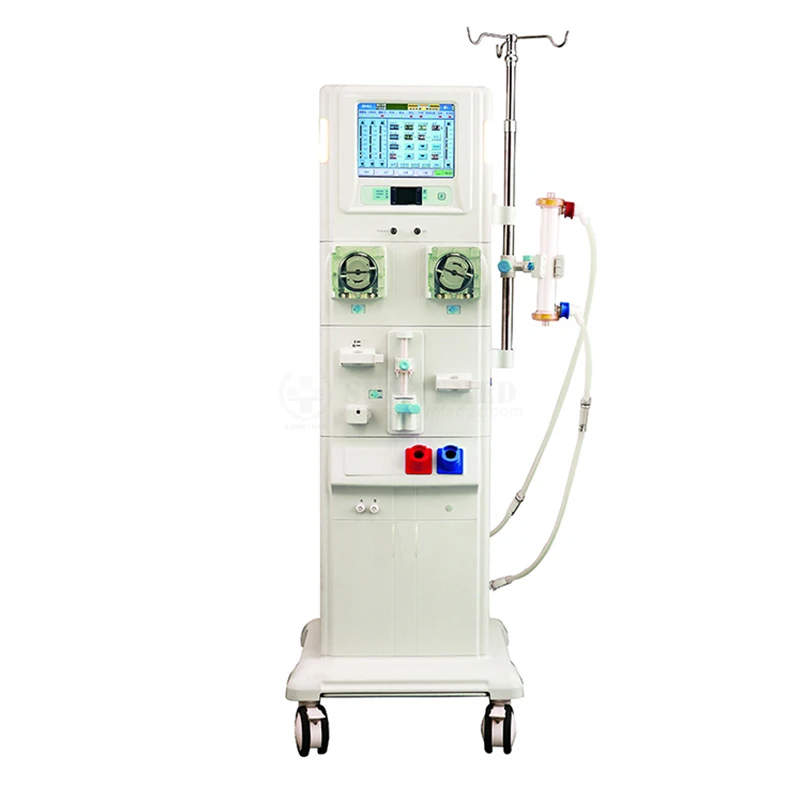

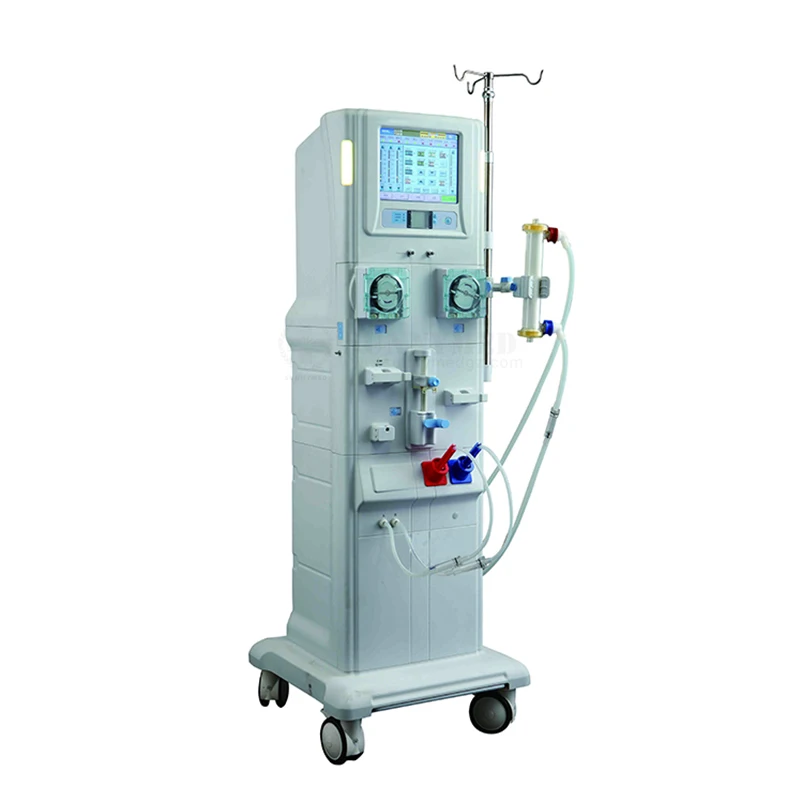

SY O001 Multifunctional Hemodialysis Equipment for hemodialysis treatment Kidney Hemodialysis Machine kidney dialysis machine
- Category: >>>
- Supplier: Sunny Medical Equipment Limited
Share on (1601159006777):
Product Overview
Description
SUNNYMED Reliable Quality Affordable Price
Why this model?
More comprehensive features
Combine with Hemodialysis, Hemoperfusion, ISO UF , Hemoperfusion, Plasa Exchange all-in-one. Multi-language LCD touch screen with high definition display interface.
Practicability
1) In-built battery backup lo support 30 minutes after power off
Combine with Hemodialysis, Hemoperfusion, ISO UF , Hemoperfusion, Plasa Exchange all-in-one. Multi-language LCD touch screen with high definition display interface.
Practicability
1) In-built battery backup lo support 30 minutes after power off
2) Disinfection: Rinse, hot disinfection and chemic disinfection. Circulated and closed disinfection system
3) Automatically turn off machine once disinfection process completes
4) Diameter of
blood pump can be adjusted to be flexible for adult and child
blood pump can be adjusted to be flexible for adult and child
5) Be applicable for various concentration ratio formula
6) Store treatments information in form of curve profile
7) Full function digital selftest process
8) With visual and auditive alarm. character message shows alarm item and troubleshooting on screen
Safety
1) Air bubble monitor: optical and ultrasonic double control, can monitor blood level and accumulate air bubble
Safety
1) Air bubble monitor: optical and ultrasonic double control, can monitor blood level and accumulate air bubble
2) With safe and
sensitive blood leakage monitor device
sensitive blood leakage monitor device
3) Complete water-way and electric way apart design, individual waterway control system to
ensure the security
ensure the security
4) Dialysate temperature with high precision, safety control at 35-39℃
5) Protection from intercross
infection, fluid supply loop and return loop is completely divided during disinfection to
infection, fluid supply loop and return loop is completely divided during disinfection to
6) Avoid pollution of whole machine in
the case of mis-sucking disinfection liquid
the case of mis-sucking disinfection liquid
7) Conductivity control and protection: conductivity A. mix. conductivity, water
outlet conductivity, insure patient's security
outlet conductivity, insure patient's security
8) Adjustable Na+ curve profile, with multiplicate optional auto-adjust program,
can realize individual dialysis and ensure patient's safety
can realize individual dialysis and ensure patient's safety
Specification(length×width×height) | 370mm×340mm×1420mm |
Weight | about90kg |
Power supply voltage | AC220V±10% Frequency:50HZ～60HZ Power:1700W |
Blood pump | Flow: 10～460 ml/min(φ6.4mm) Flow: 20～620 ml/min(φ8mm) |
Functional pump | Flow:10～460 ml/min(φ6.4mm) Flow:20～620 ml/min(φ8mm) |
Heparin pump | Flow:0.1ml/h.10ml/h(±5%) Precision:0.1ml/h Injector size:10ml/20ml/30ml |
Arterial pressure | -300mmHg…400mmHg(±10mmHg) |
Venous pressure | -200mmHg.500mmHg(±10mmHg) |
Dialysate flow | 300ml/min～800ml/min linearly adjustable (±10%) |
Dialysate Temperature controlled to range of | 35.0℃~39.0℃ |
Precision of dialysate temperature control | 0.1℃ |
Conductivity | 0mS/cm~15.8mS/cm(±0.1mS/cm) |
UF flow | 0～4000ml/h |
ISO UF flow | 0～4000ml/h(±30ml/h) |
TMP | -100mmHg～+600mmHg(±10mmHg) |
Blood leakage monitor | over 1ml blood per liter dialysate (flow:500ml/min) |
Blood level monitor | ultrasonic sensor |
Air bubble monitor | Work by Infrared mechanism for detection and it can detect single air bubble with size of 200 ul when the blood fiow is 200ml/min |
Inflow pressure | 0.12MP～0.6MPa OMPa～0.6MPa(Optional) |
RO water inflow temperature | 5℃~30℃ |
Disinfection | Rinse/disinfection chemical disinfection (citric acid, peracetic acid) |
Hot rinse | ≥80℃ |
Back-up battery | keep machine running for 15-30 minutes in case of power failure |
Electrical Data |
· Power: 1500W · Frequency: 50/60Hz |
· Voltage: AC220V±10% (110V optional) |
Dialysis Fluid Circuit |
· Dialysate flow range: linearity adjustable 300~800mL/min |
· Dialysate temperature range: Selectable 35~39℃ |
· Dialysate conductivity range: 13~15.5mS/cm (±0.1mS/cm) |
· UF flow range: 0~4000mL/hr (±30mL/hr) |
· ISO UF flow range: 0~2000mL/hr (±30mL/hr) |
· Blood leak detector: |
Automatically close the blood loop when blood leak ≥1mL per liter dialysate (Flow: 500mL/min) |
Disinfection and Cleaning |
· Disinfection: Use citric acid, peracetic acid and sodium hypochlorite. |
· Hot rinse temperature: 90℃ |
