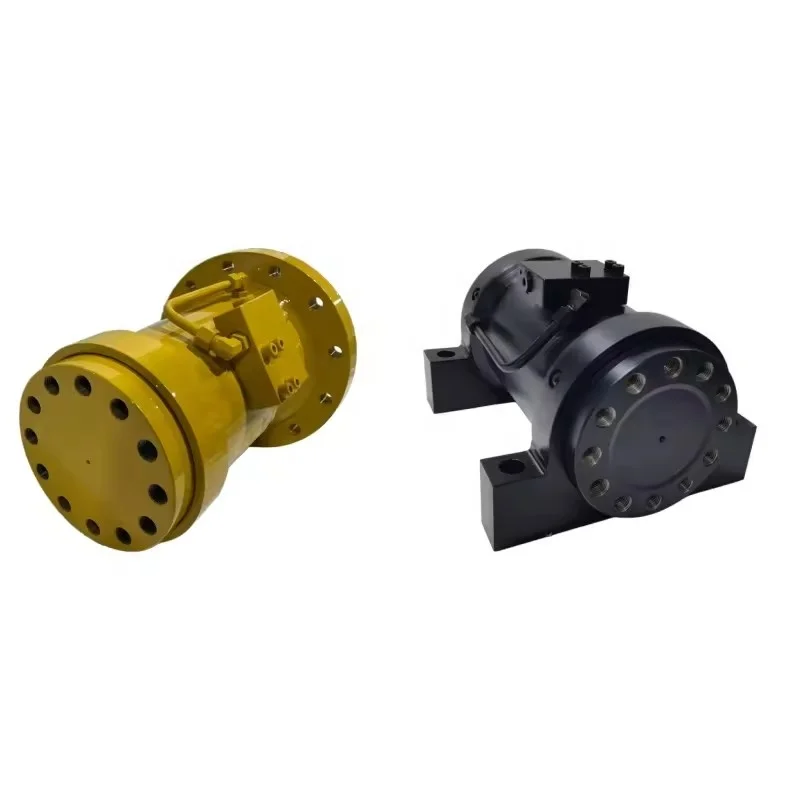

WEITAI Short Lead Time WL30 SERIES Hydraulic rotating actuator 1 Year Warranty Helical hydraulic ratary actuator
- Category: >>>
- Supplier: Qingdao Weitai Hydraulic Co. Ltd.
Share on (1601159608488):
Product Overview
Description
WEITAI Interchangeable Product
WEITAI | PARKER |
WL10 Series | Helac L10 |
WL20 Series | Helac L20 |
WL30 Series | Helac L30 |
WL40 Series | Helac T20/T30 |
WL50 Series | Customized |
* HKS and Moveco aftermarket solutions are also available
Product Parameters
Model | WL30-019 | WL30-028 | WL30-047 | WL30-073 | WL30-105 | WL30-140 | WL30-180 |
Drive Torque (Nm@21Mpa) | 1900 | 2800 | 4700 | 7300 | 10500 | 14000 | 18000 |
Holding Torque (Nm@21Mpa) | 4900 | 6800 | 12000 | 18000 | 26000 | 35000 | 46000 |

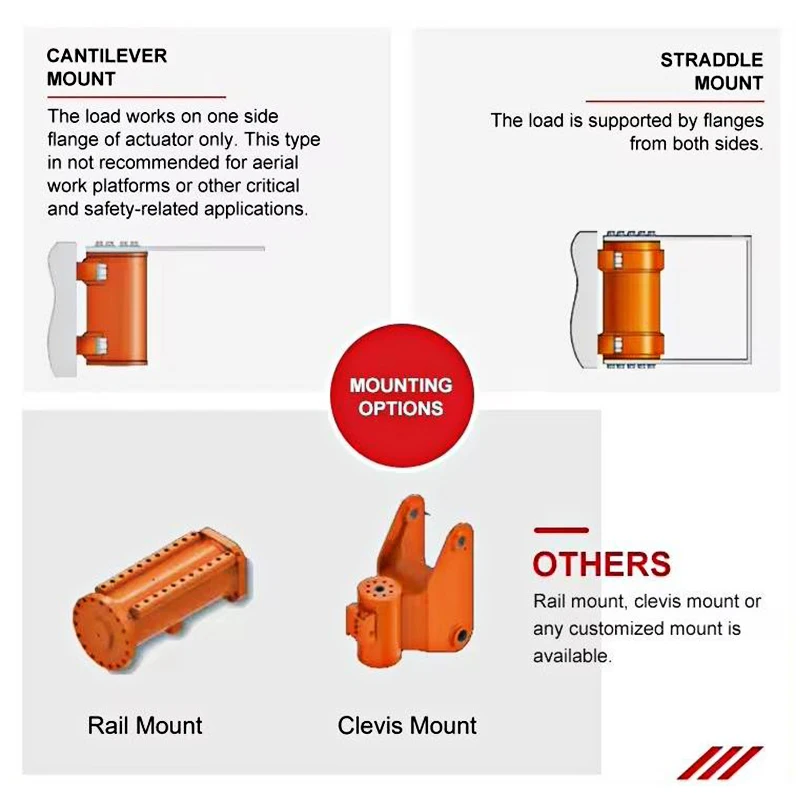

Max Cantilever Moment Capacity (Nm) | 5200 | 7100 | 11900 | 18400 | 29500 | 38800 | 55900 |
Max Straddlemoment Capacity 180°(Nm) | 13400 | 16900 | 30800 | 47800 | 75100 | 98900 | 130500 |
Max Straddle Moment Capacity 360°(Nm) | 19200 | 24600 | 45400 | 71200 | 111500 | 146000 | 197700 |
Radial Capacity (Kg) | 1800 | 2300 | 3600 | 5000 | 6800 | 8200 | 10000 |
Axial Capacity (Kg) | 1400 | 1800 | 2700 | 3600 | 4500 | 5900 | 6800 |
Displacement 180°(Cc) | 492 | 688 | 1180 | 1870 | 2680 | 3540 | 4650 |
Displacement 360°(Cc) | 980 | 1390 | 2360 | 3740 | 5360 | 7080 | 9320 |
Weight 180°(Kg) | 34.5 | 50 | 72.5 | 110 | 160 | 220 | 280 |
Weight 360°(Kg) | 45.5 | 63.4 | 100 | 140 | 200 | 290 | 370 |

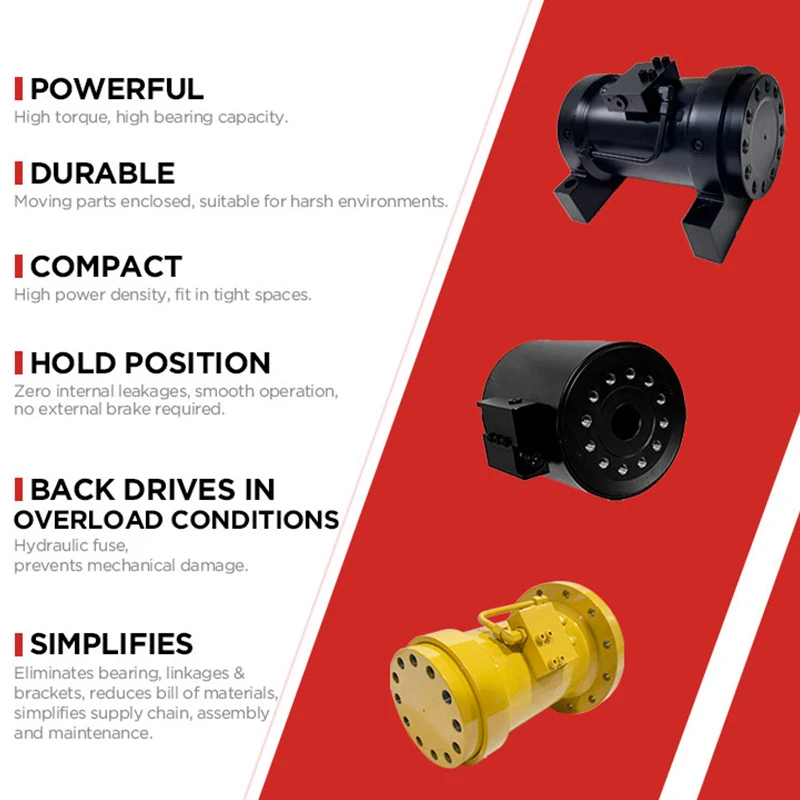

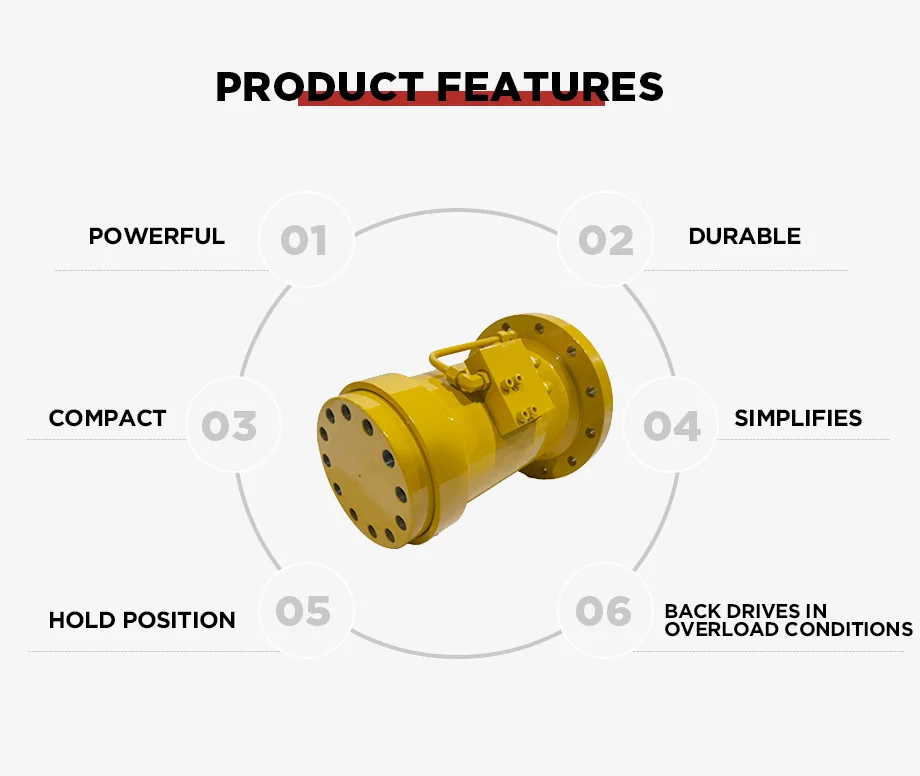

Product Advantages

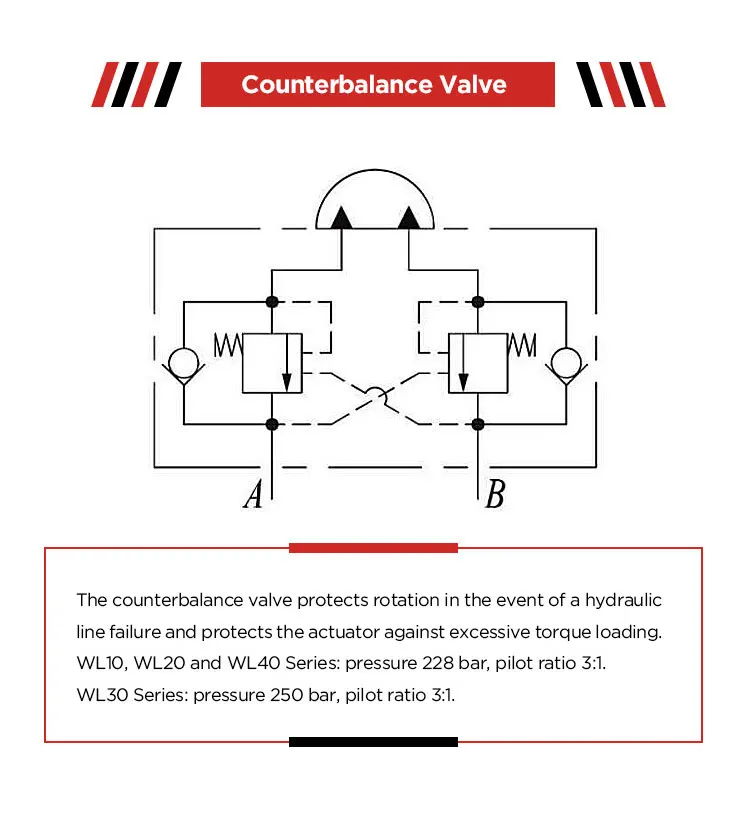

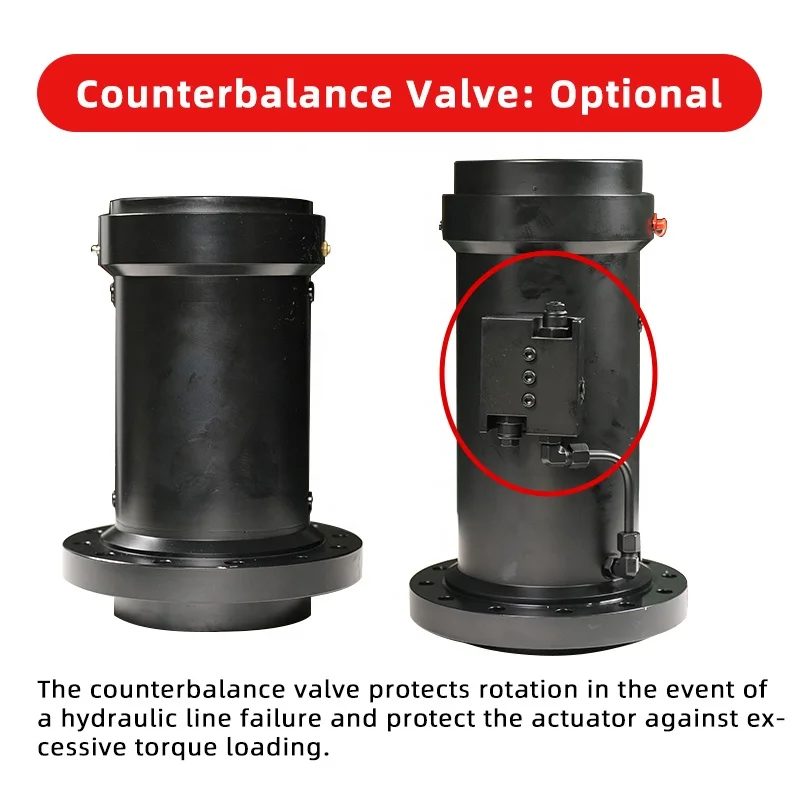

Manufactured from aluminum, the valve blocks are bolted to a flat mounting pad on the actuator housing. Three bolts secure the valve block to the actuator. See specification pages for valve location.
The pilot ratio is 3:1. The valves are set to relieve at 3300 psi ± 300 psi (228 bar ±21 bar).
The pilot ratio is 3:1. The valves are set to relieve at 3300 psi ± 300 psi (228 bar ±21 bar).
Product Application
Related Products
Recommended Products
COMPANY PROFILE
Why Choose WEITAI
Certifications
FAQ
Q1 What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list right after your company contacts us.
Q2 Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Please contact us to learn more specific information.
Q3 Can you provide relevant documentation?
Yes, we are ready to provide all kinds of documents, including Certificate of Analysis/Certificate of Conformance, Insurance, Certificate of Origin, and others.
Q4 What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
Q5 What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal. 30% deposit in advance, 70% balance against the copy of B/L.
Q6 What is the product warranty?
1 year.
