O Ring Seals Roten3 Flowserve 43 Mechanical Seal Shaft Seal for Pumps

Share on (1601160865506):


Price:$12.00 - $36.00

Quantity:


Product Overview

Description





Product Description

Product Description

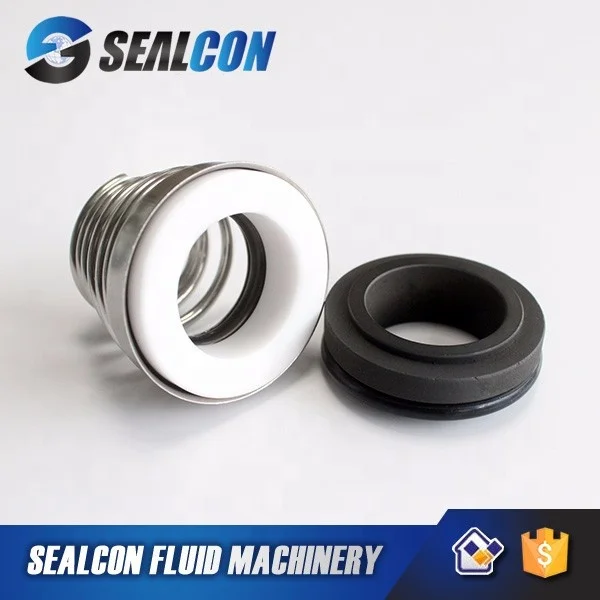

1. Sealcon type N43 is equal to  ROTEN 3  mechanical seal





2. Our seals can replace the original seals.


    we strictly follow DIN24960,ISO3069, EN12756,API628 standards.





3.If it is not the one you need ,you can pass us your pump model or your drawing ,material,shaft size for quotation.


   we can make whatever mechanical seal you need.



4.Customized products and OEM is welcomed.



5. We offer Factory Price,High Quality ,Fast Delivery and Best Sevice.






































Performance Capabilities


Materials combination


Temperature: -20°C to 180°C, dependent on the o-ring material


Face: Carbon, SiC, TC


Pressure: Up to 10 bar (unbalance type)


Seat: Ceramic, SiC, TC


Speed: Up to 10 m/s


O-ring:NBR,EPDM,FFKM,Alfas,FEP,

kalrez,Chemraz.etc


End play/axial float allowance: ±0.1mm


Spring: SS304, SS316


Size: 10mm to 40mm


Metal parts: SS304, SS316

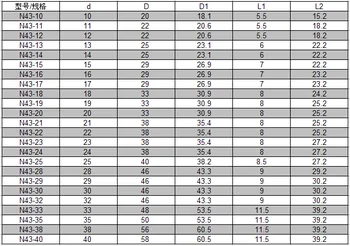

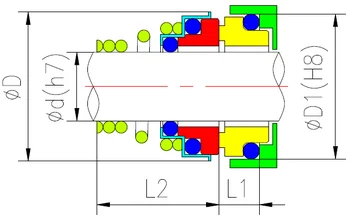

N43 (2)

N43 (1)N43 (9)








FAQ

FAQ







Q:Are you trading company or factory ?

A:We are a factory ,so we can offer you Factory Price with High Quality.

Q:Where is your factory located ?

A:Our factorty is located in Jiande, Hangzhou which is close to Shanghai and Ningbo Port.

Q:How long is your delivery?

A:For stock items ,we can ship them immediately after receiving payment .

For other items,we will need 14-25 days for mass production depends on the quantity and types of the order.

Q:Do you provide free samples ?

A:Usually we do not provide free samples .There is a sample cost which can be refund after you place order .

Q:What do you usually shipped through?

A:Air freight, Sea freight,express is the widely used shipment due to small weight and size for Mechanical seal

Q:What's your payment terms ?


A:We accept T/T, Paypal, Western Union when qualified goods are ready for ship.

Also pay to Alibaba via Credit Card is welcomed.

For amount less than 1000USD ,100% in advance.

For amount more than 1000USD,30% in advance ,balance payment before shipment

Q:I can not find our products in your catalog ,can you make customized products for us ?


A:Yes ,Customized products is available .OEM is welcomed.



Q:I don't have drawing or picture available for custom products, could you design it?



A: Yes,we can make the best suitable design in accordance with your application.











Our Company

Our Company

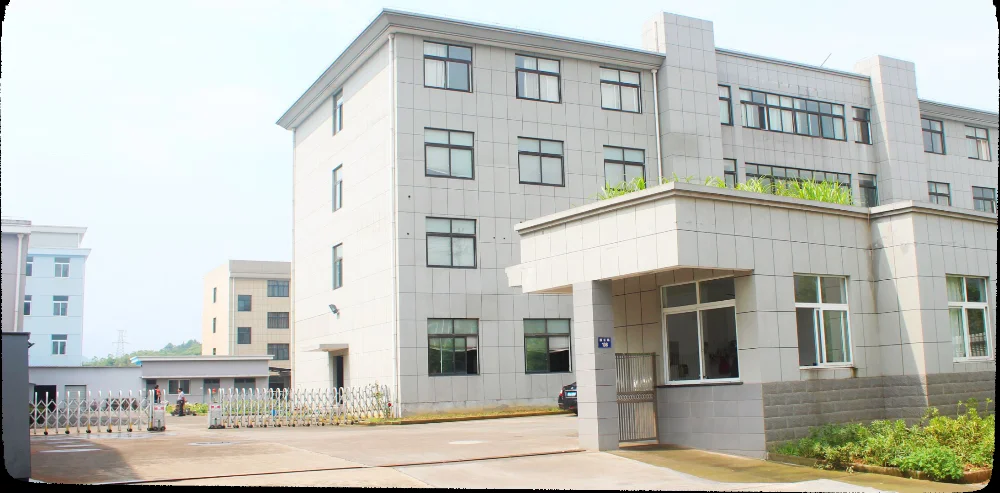

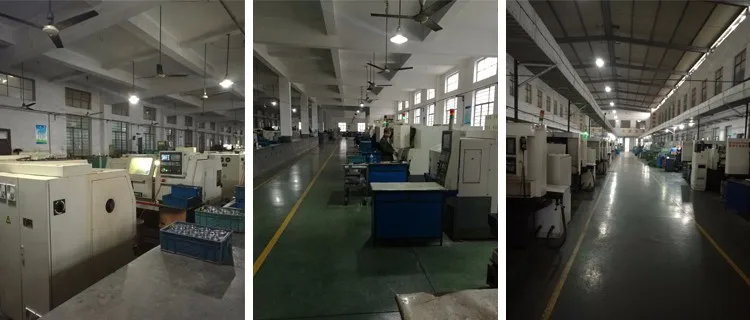

Our Factory





Seaclon's factory is located in No.106 Qilinwu, Xin'anjiang, Jiande, Hangzhou, 311600 China

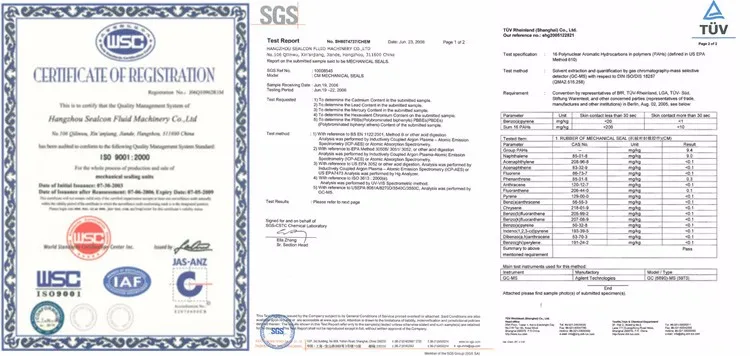

Certifications

Certifications
