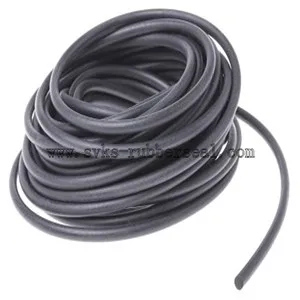

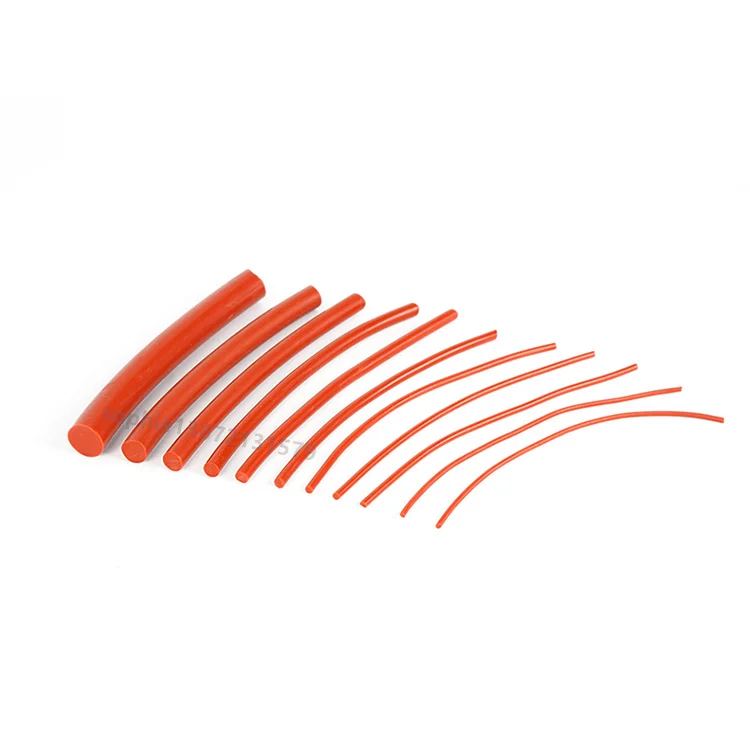

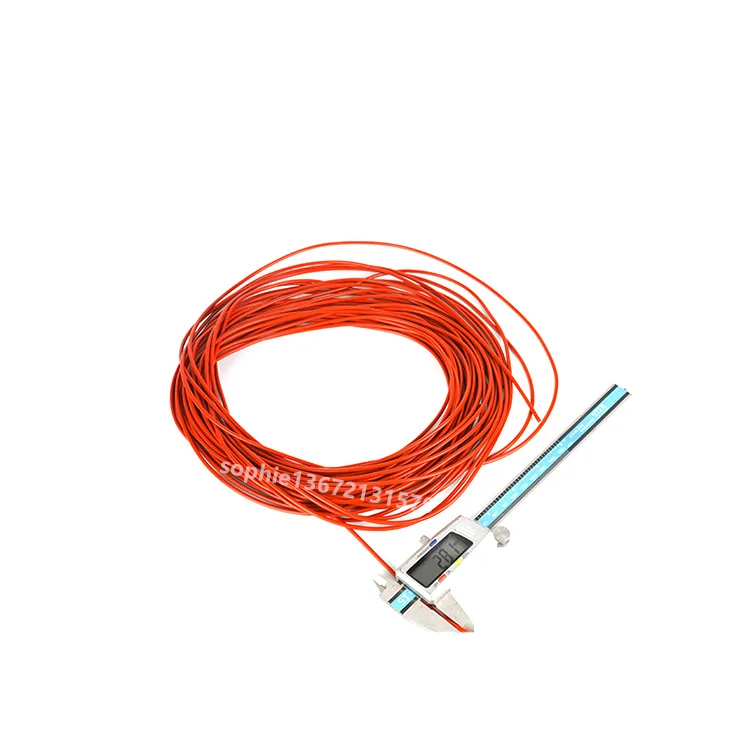

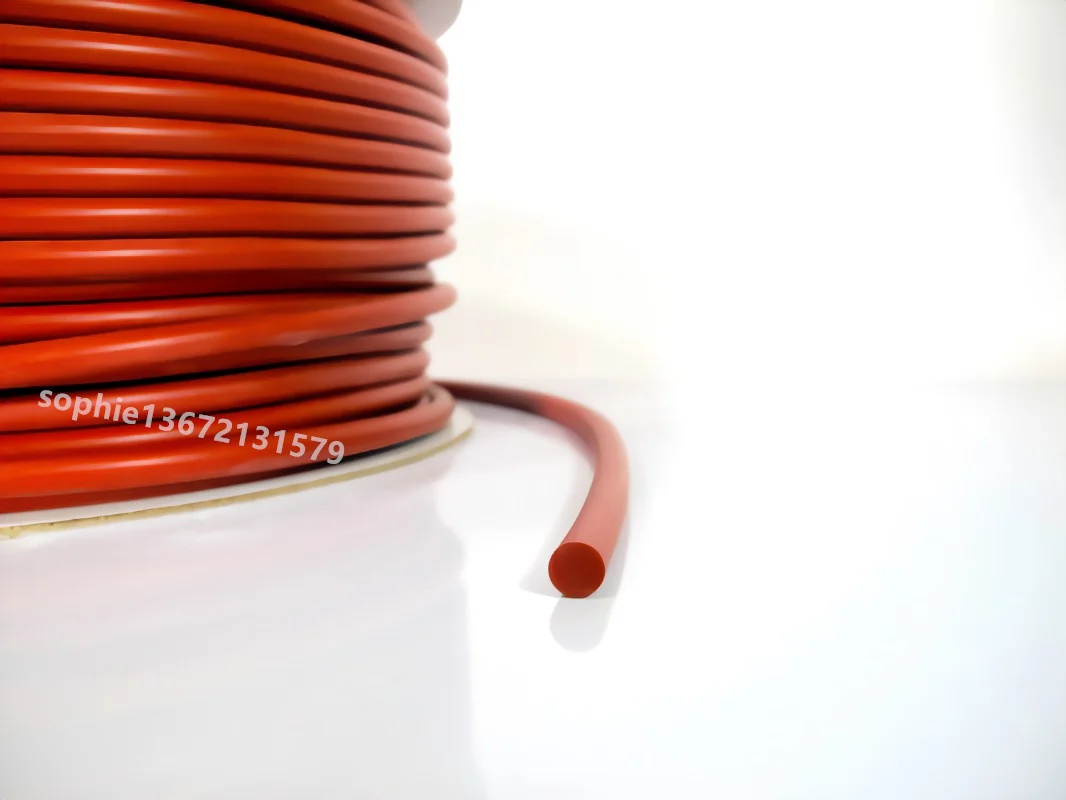

Factory Price Free Samples 1.78mm Silicone O ring Cord Rubber Strip Rubber Rope Manufacturer
- Category: >>>
- Supplier: Tianjin Swks Technology & Development Co. Ltd.Tianjin Ltd.
Share on (1601160870309):
Product Overview
Description
O Ring Description

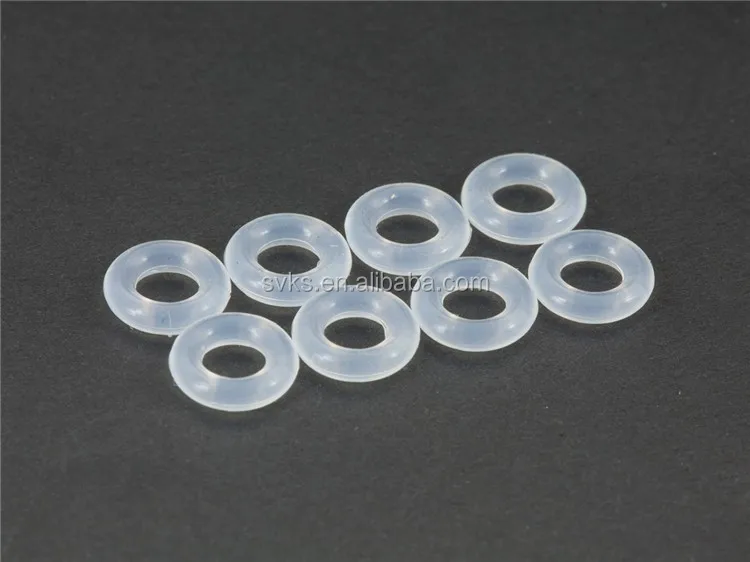

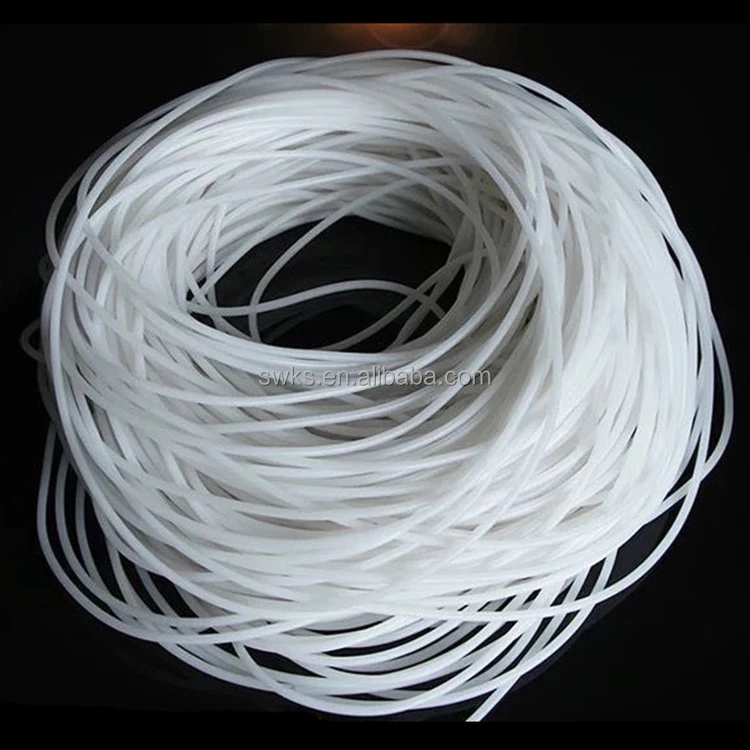

1~20mm Orings Transparent silicone VMQ O Ring Cord Seals Factory
Product name | 1~20mm Orings Transparent silicone VMQ O Ring Cord Seals Factory | ||||
Material | NBR(Nitrile), MVQ(Silicone), FKM, EPDM, PU, PTFE... | ||||
Size | AS568 o rings, BS o-rings, JIS o rings, imperial sizes or metric sizes | ||||
Hardness | 10-90 Shore A | ||||
Color | Black, white, blue, red, brown, yellow, greed, and customized color | ||||
Medium | water, oil, dust, air... | ||||
Application | Automobile, Mechanical seals,Electronic, Fluid seals, Air Valve seals, Hydraulic seals ,Oil seals | ||||
FVMQ(Fluorosilicone) O-ring
FVMQ fluorosilicone rubber O-ring combines the advantages of both silicone rubber and fluorine rubber,
on the basis of maintaining the excellent properties of silicone materials such as heat resistance, cold resistance, high voltage
resistance, and weather resistance; With the introduction of fluorine groups, it has excellent resistance to hydrogen solvents,
oil resistance, acid and alkali resistance and lower surface energy performance of organic fluorine materials.
on the basis of maintaining the excellent properties of silicone materials such as heat resistance, cold resistance, high voltage
resistance, and weather resistance; With the introduction of fluorine groups, it has excellent resistance to hydrogen solvents,
oil resistance, acid and alkali resistance and lower surface energy performance of organic fluorine materials.
FKM (Fluorocarbon) O-ring For general type FKM the service temperature is better limited to approximately from -26℃to 232℃ in
static applications, though
the service temperature can arrive to 275 C at short time In dynamic applications, it is suitable between -15℃ and 200℃.
Because FKM has excellent resistance of high temperature, oil, solvent, flame, chemicals and weathering, it is usually applied in
automotive, chemical processing, aerospace and many other industries..
NBR/Nitrile O RINGS
NBR(nitrile rubber) O-ring
For NBR the service temperature can be designed from -55 C to 100 C or up to 130 C depending on differenacrylonitrile content and
formula. NBR compounds have excellent resistance to abrasion, non-polar oils and solvent, water and permeation (higher
acrylonitrile content will be better). NBR also can be used in conditions of dilute acids, alkalis and salt solution at low
temperatures.
VMQ/Silicone O RINGS
*Service Temperature
-70°C to 220°C
*Application
Electrical (e.g., insulation), electronics (e.g., coatings), household (e.g., sealants for cooking apparatus), automobile (e.g., gaskets), aeroplane (e.g., seals), office machines (e.g., keyboard pads), medicine/dentistry (e.g., teeth impression molds), textiles/paper (e.g., coatings).

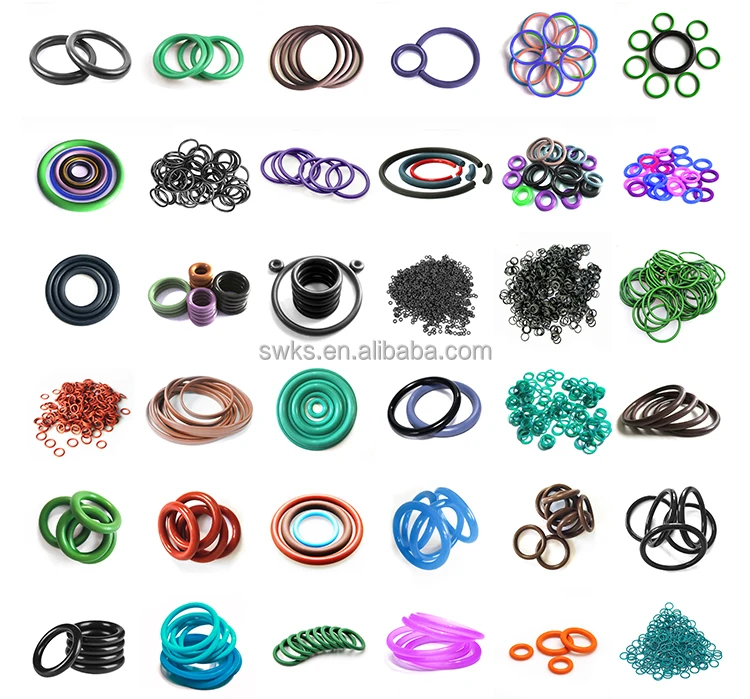

Different Types Shows

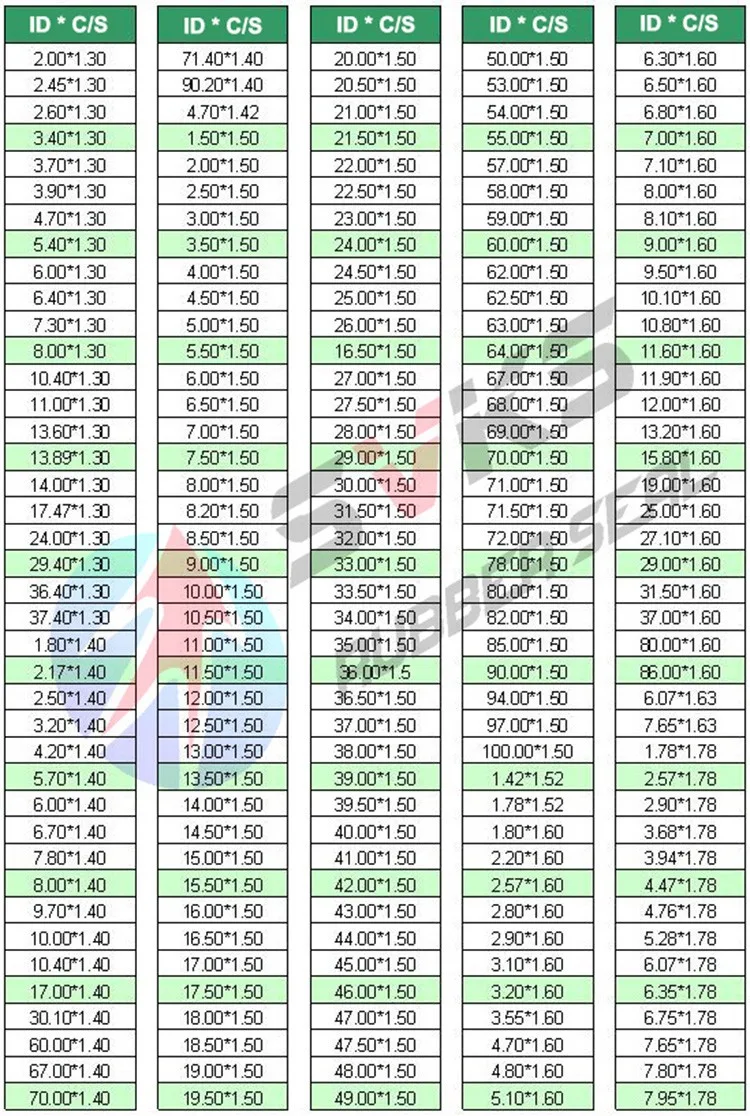

Size Table
1~20mm Orings Transparent silicone VMQ O Ring Cord Seals Factory

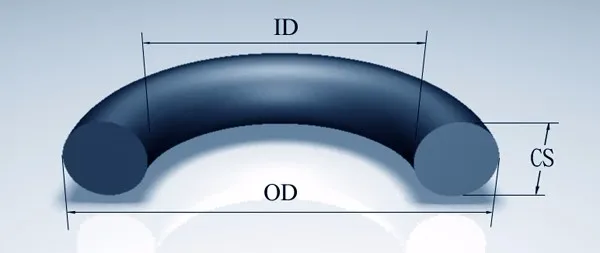

O-ring: outer diameter × wire diameter (thickness) (unit: mm)inner diameter × wire diameter (thickness) (unit: mm)
1.The O-ring is an annular seal having an O-shaped cross section, the size of which is determined by the inner diameter ID and the wire diameter CS.
2.O-ring size calculation: outer diameter = inner diameter + 2 x wire diameter (OD = ID + 2 x CS).
3.The purpose of using O-ring seals is to prevent leakage and loss of liquids or gases.
1.The O-ring is an annular seal having an O-shaped cross section, the size of which is determined by the inner diameter ID and the wire diameter CS.
2.O-ring size calculation: outer diameter = inner diameter + 2 x wire diameter (OD = ID + 2 x CS).
3.The purpose of using O-ring seals is to prevent leakage and loss of liquids or gases.

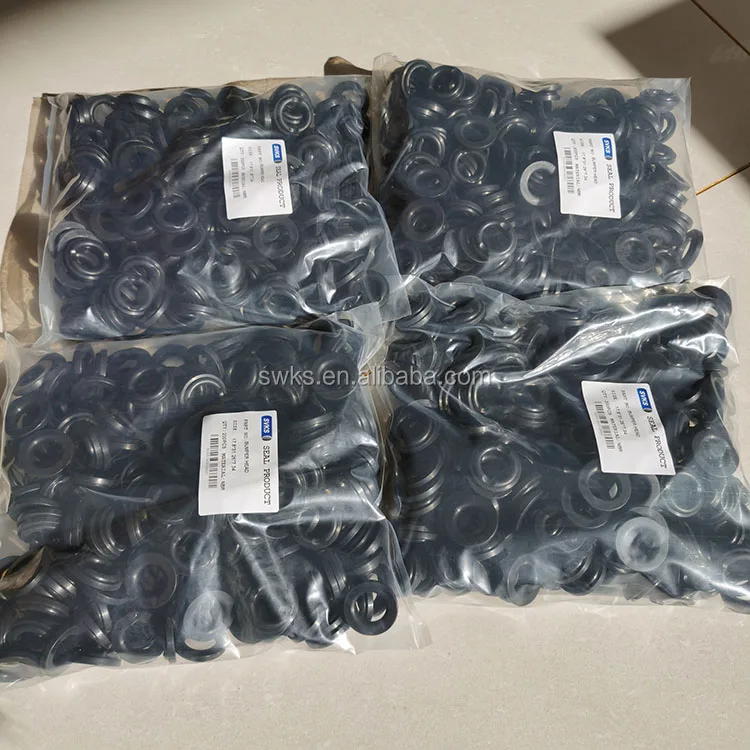

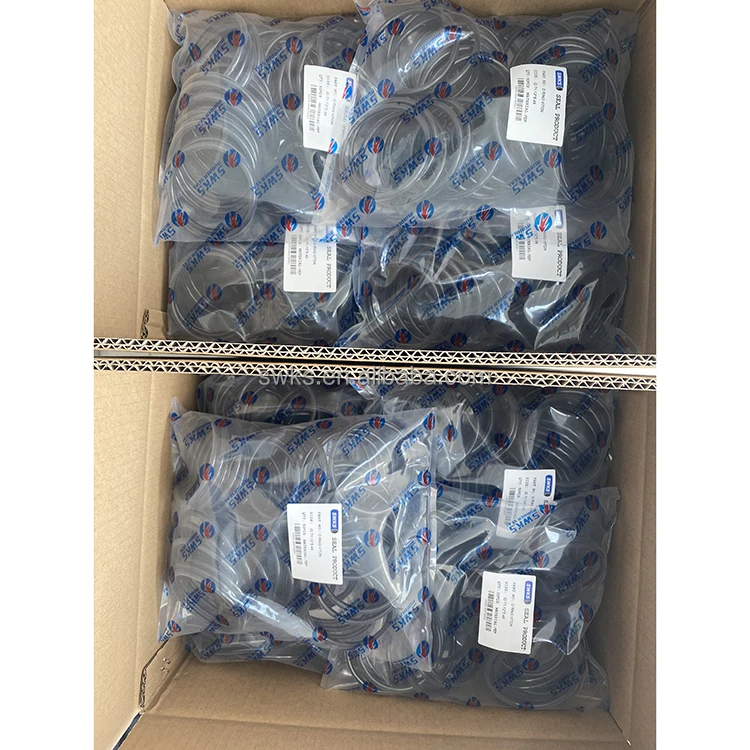

Product Packaging and Shipping
1~20mm O Ring Seal Transparent FKM VTIONS FPM o ring cord Seals rubber seals
Inner package: Plastic bag , outer package: carton box Outer package: carton box or paper packageShipment: we could ship by air , by express, by sea or as client requirements
Lead time: within 5-7 working date for stock products
Mold production: within 12-15 working date
Professional Team and Service

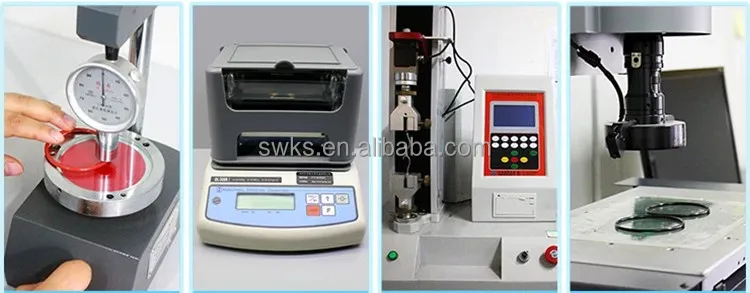

Material Inspection: Storage of all raw materials before the test, and issue a report on the corresponding material properties,
compared with raw material's own property report, two reports property values is consistent, can put in storage.
Model Inspection: After the mold development or mold cleaning finished on the machine, we will test all the specifications of the mold to ensure that each cavity of the product specifications and quality.
Production Inspection:The production process of the product inspection personnel timing semi-finished product inspection, ensure the quality of the rationality of technology, defective rate control in a reasonable range.
Quality Control:The quality inspection department will conduct a sampling inspection of each batch of products
Production Full Inspection:The optical inspection machine can ensure the appearance and dimension of the product are 100%qualified.
compared with raw material's own property report, two reports property values is consistent, can put in storage.
Model Inspection: After the mold development or mold cleaning finished on the machine, we will test all the specifications of the mold to ensure that each cavity of the product specifications and quality.
Production Inspection:The production process of the product inspection personnel timing semi-finished product inspection, ensure the quality of the rationality of technology, defective rate control in a reasonable range.
Quality Control:The quality inspection department will conduct a sampling inspection of each batch of products
Production Full Inspection:The optical inspection machine can ensure the appearance and dimension of the product are 100%qualified.
Our Service
1~20mm O Ring Seal Transparent FKM VTIONS FPM o ring cord Seals rubber seals

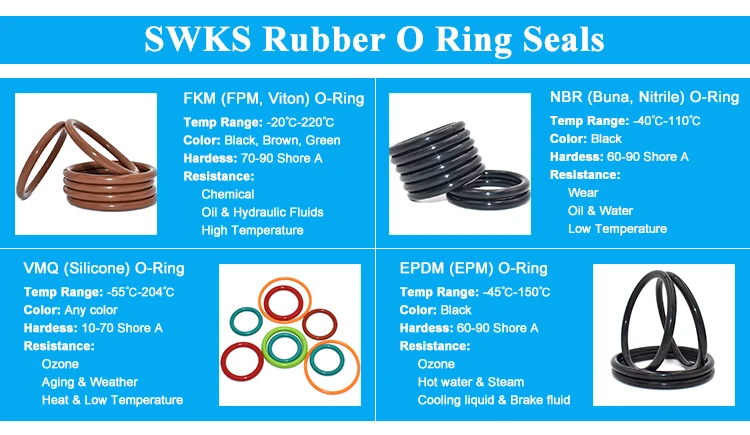

Main Materials: NBR Silicone FKM HNBR EPDM Neoprene ACMFKM O-ring: Hard material, high strength, not easy to be damaged, not easy to aging
Silicon O-ring: Soft material, good sealing effect, easy to install
NBR O-ring: Good sealing effect, easy to install, inexpensive
Due to the wide variety of product specifications, can not be listed one by one, pls contact us for any material or size of the
product you need
1~20mm O Ring Seal Transparent FKM VTIONS FPM o ring cord Seals rubber seals
