Frechem High Temperature Resistant Fkm/FFkm Fluorocarbon Rubber O Rings And Oil Seals For Various Applications
- Category: >>>
- Supplier: Jiangsu FreChem Co. Ltd.
Share on (1601160873641):
Product Overview
Description
Product Description
Competitive Price! Free Sample! | ||
Service | ODM/OEM | |
Certificate | ISO9001，RoHS，FDA，SGS | |
Material | FFKM | |
Hardness Range | 65-90 Shore A | |
Color | 1.Dark brown 2.Natural color 3.White (FOR other color can be customized) | |
Size | AS568, PG & Non-Standard O-Rings | |
Tolerance Standard | AS568, ISO2768-M or ISO3302-1:2014 CLASS M2 | |
Application | For all industries | |
Service | ODM/OEM | |
Certificate | ISO9001，RoHS，FDA，SGS | |
Due to its sample structure and reliable sealing performance , O-ring is the most widely used sealing production in static and dynamic environments.
It is used in Automotive industry, Construction industry, Electrical industry, Oil and chemical industry, Hydraulic & Pneumatic,Petrochemical,Aerospace, Semiconductor and mechanical industry.
FFKM polymer and its choosing
FFKM- Perfluorinated elastomer is copolymer of TFE and PMVE with a cure site monomer.
FFKM polymer is fully fluorinated backbones, so it has the highest level of chemical and thermal resistance in all rubber.
FFKM FFPM(Perfluoroelastomer)- Classification
Perfluorelastomers (FFKM) have high fluorine content from 70%~73%
Due to different cure site monomer in polymer, there are 3 types of FFKM curing system.
Perfluorelastomers (FFKM) have high fluorine content from 70%~73%
Due to different cure site monomer in polymer, there are 3 types of FFKM curing system.
Triazine, peroxide and bisphenol curable FFKM rubber.
The 3 types of FFKM has their own advantages and limitations and should be assessed their properties before using.
Choosing right FFKM raw gum/ compound will be the most important step to ensure optional sealing performance and service life.
Product Technical Property of FFKM raw gum
Below are comparison of different FFKM raw gum.
Due to different formulation and catalysts cause big difference in properties, please refer individual spec sheet for more information
Items | FF500B | FF600A | FF600AT | ||
Appearance | Transparent | Semi-transparent | Semi-transparent | ||
Mooney viscosity ML(1+10), 121°C | 46-75 | 40-70 | 40-75 | ||
Fluorine,% | 72.2 | 72.7 | 72.7 | ||
Specific Gravity, g/cm3 | 2.05 | 2.04 | 2.04 | ||
Curing items | 170℃*10min | ||||
Shore A hardness | 73 | 73 | 73 | ||
Tensile strength, Mpa | 18.9 | 18.9 | 16.1 | ||
Elongation at break, % | 152 | 152 | 172 | ||
Specifications and Models

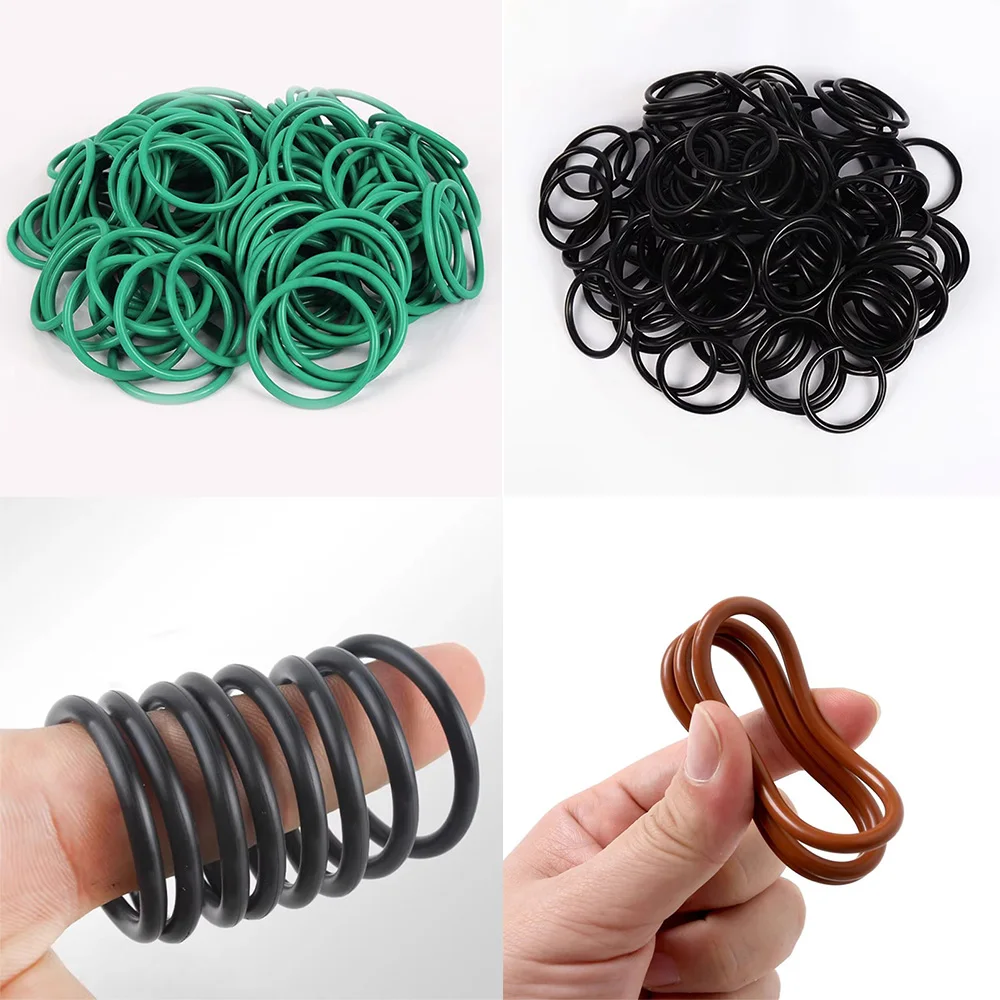

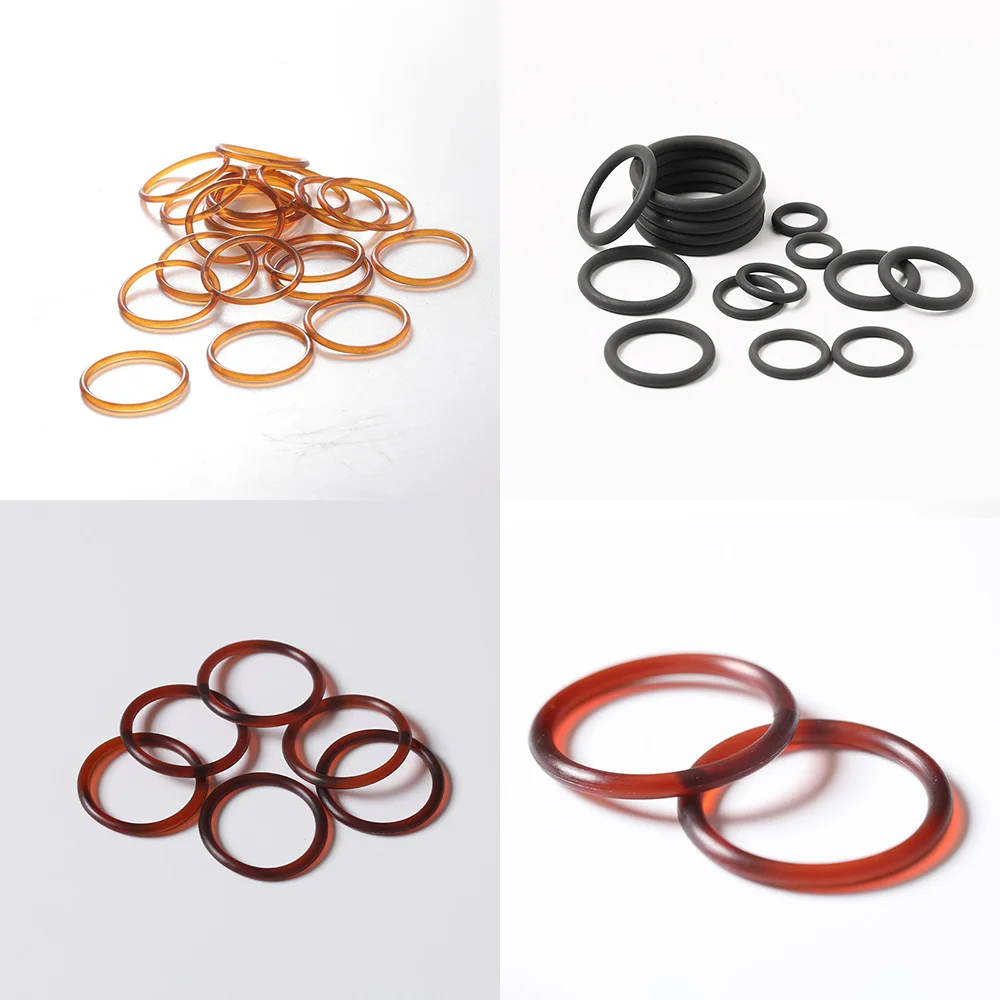

Standard O-rings
O-ring is a round solid-rubber products that's designed leakage of liquids and gases media.

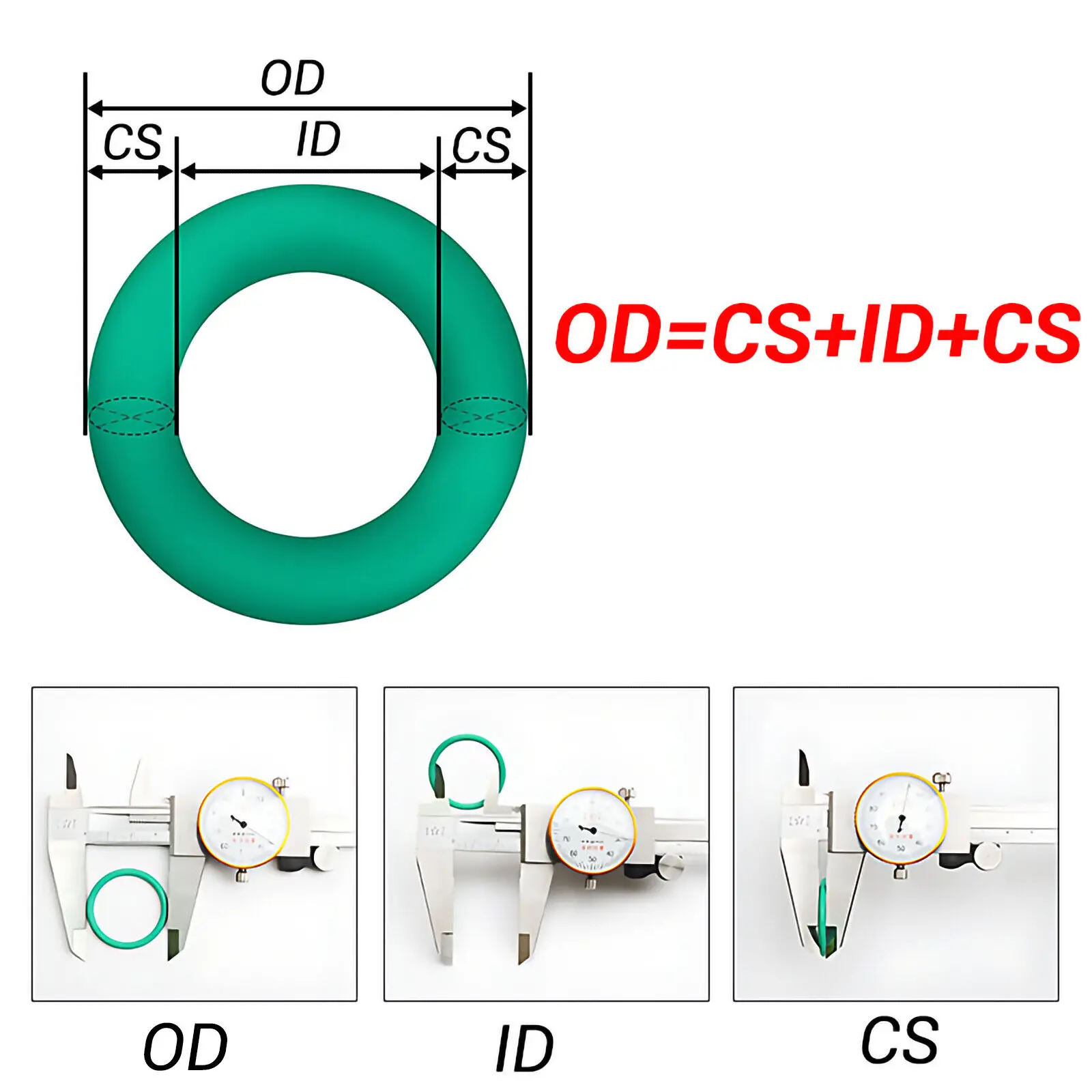

There are 2 dimensions in O-rings.
Inside diameter (ID) &
Cross section diameter (CS)

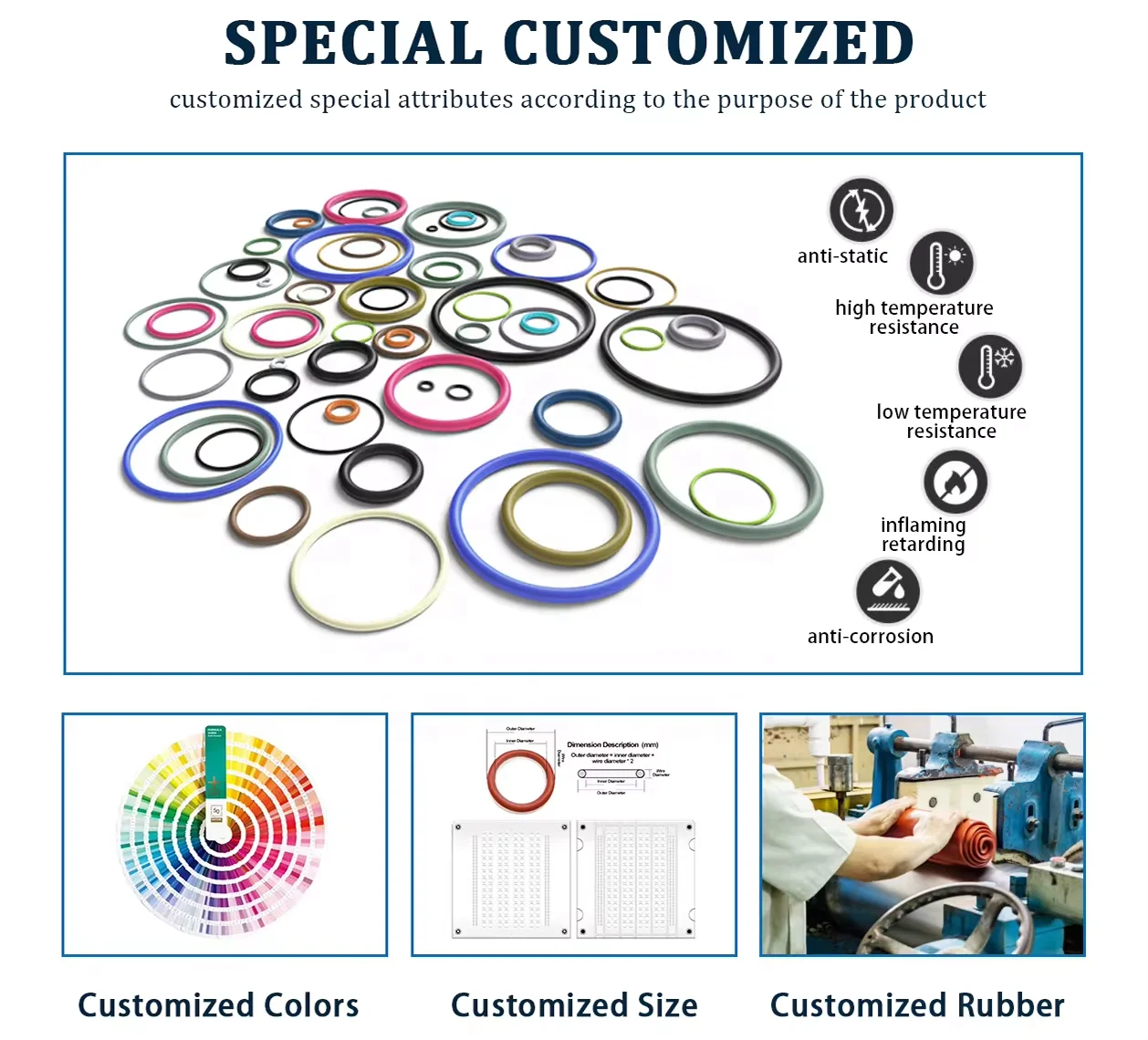

Custom molded shapes- rubber parts and rubber to matel Parts
To meet different environments and industry, there are many structure of sealing products.
Such as V-ring, X-ring and U-cup.
Besides rubber parts, there are also some rubber-metal parts.
Dimensions and mold are customized according to final requirements.
We manufacture O-rings in a wide range of sizes in multiple properties, such as color, hardness, compression set, tensile strength, temperature resistance and other chemical resistance.
Properties can be designed in rubber compounding.
But Dimensions should check one by one.
And it is better to provide CAD drawing.
Then our CNC department will produce mold accordingly.
Manufacturing process:

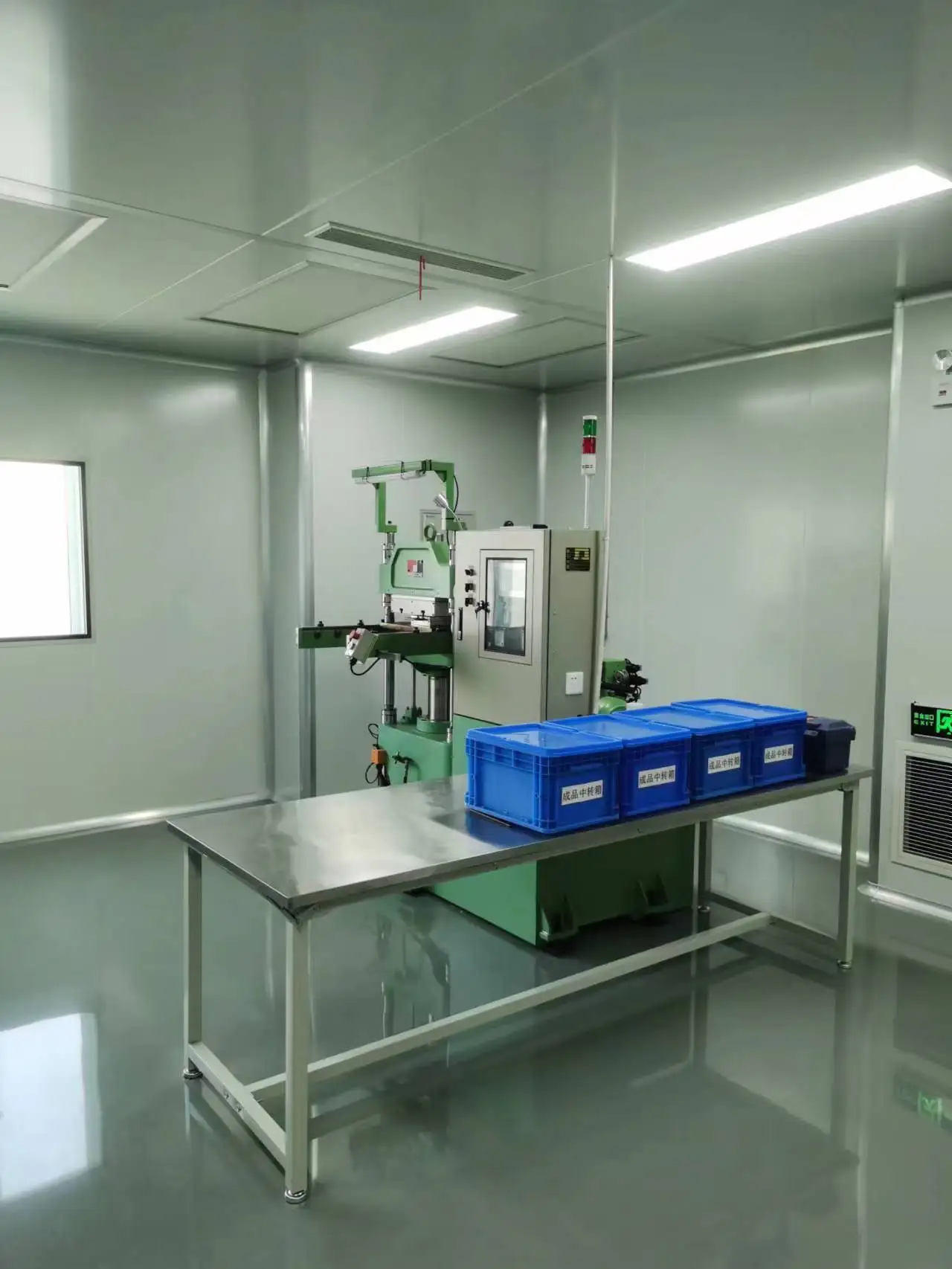

Clean room-make FFKM rubber compound
CNC workshop-customized mould

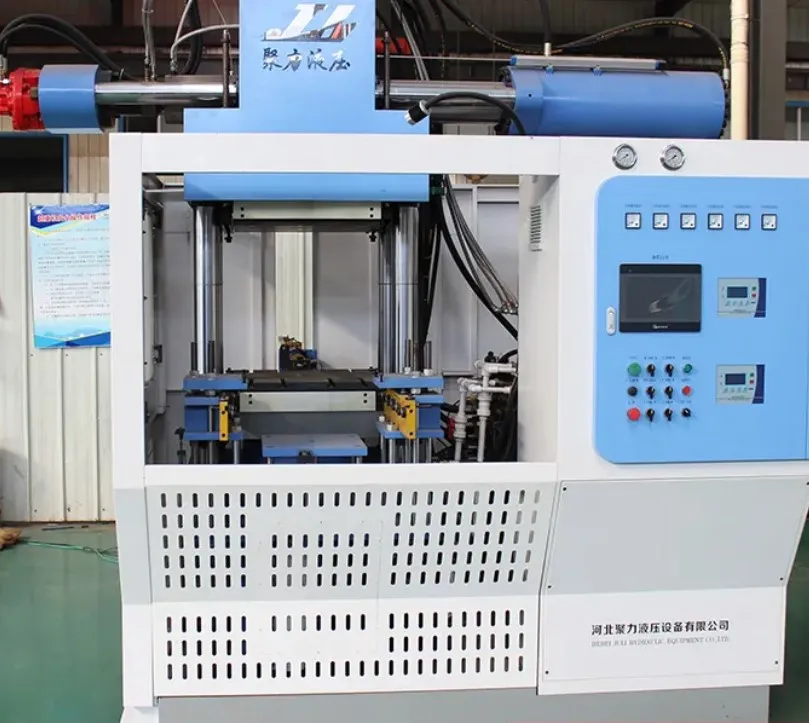

vulcanizing workshop- Molding rubber sealing parts

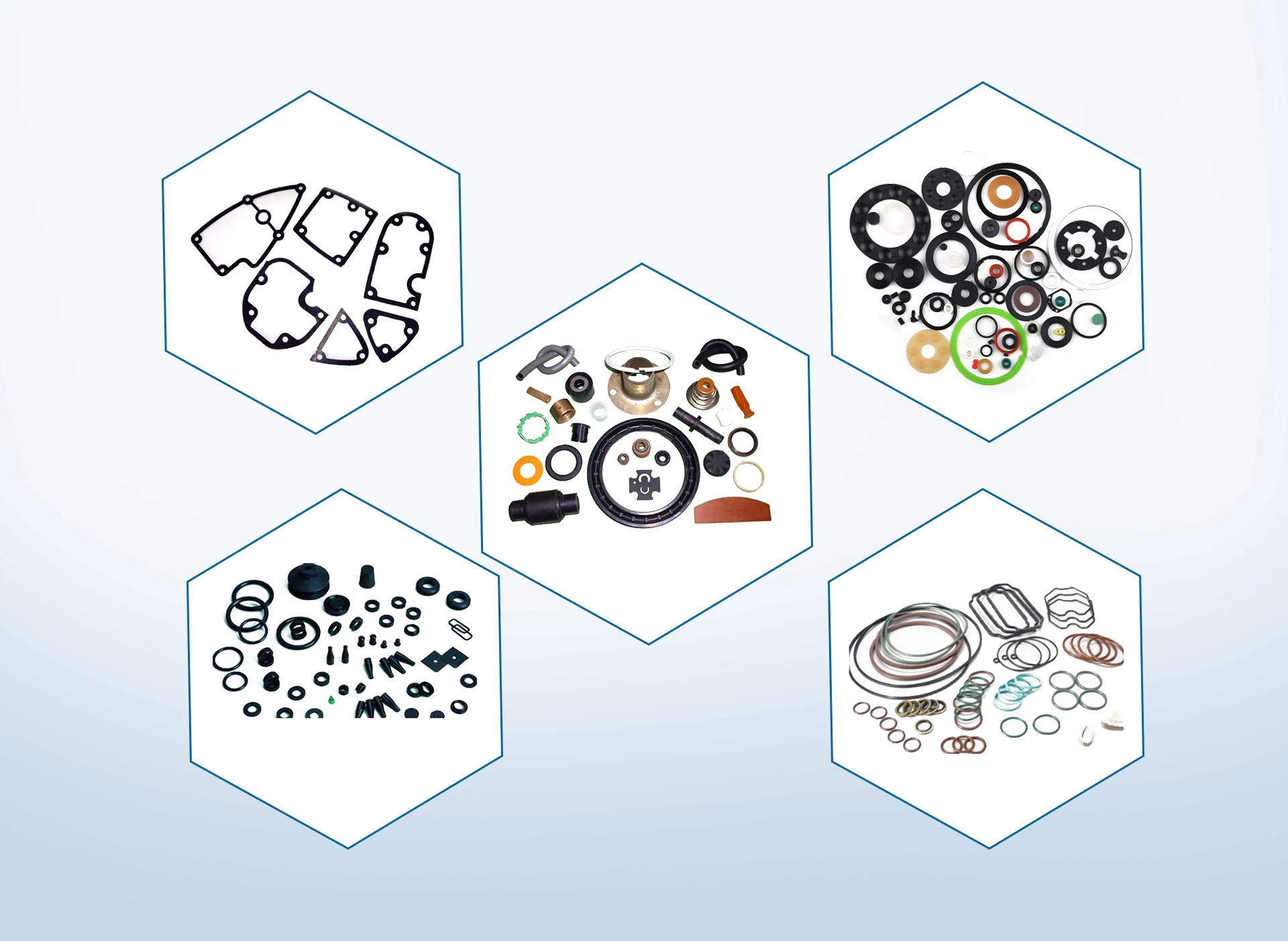

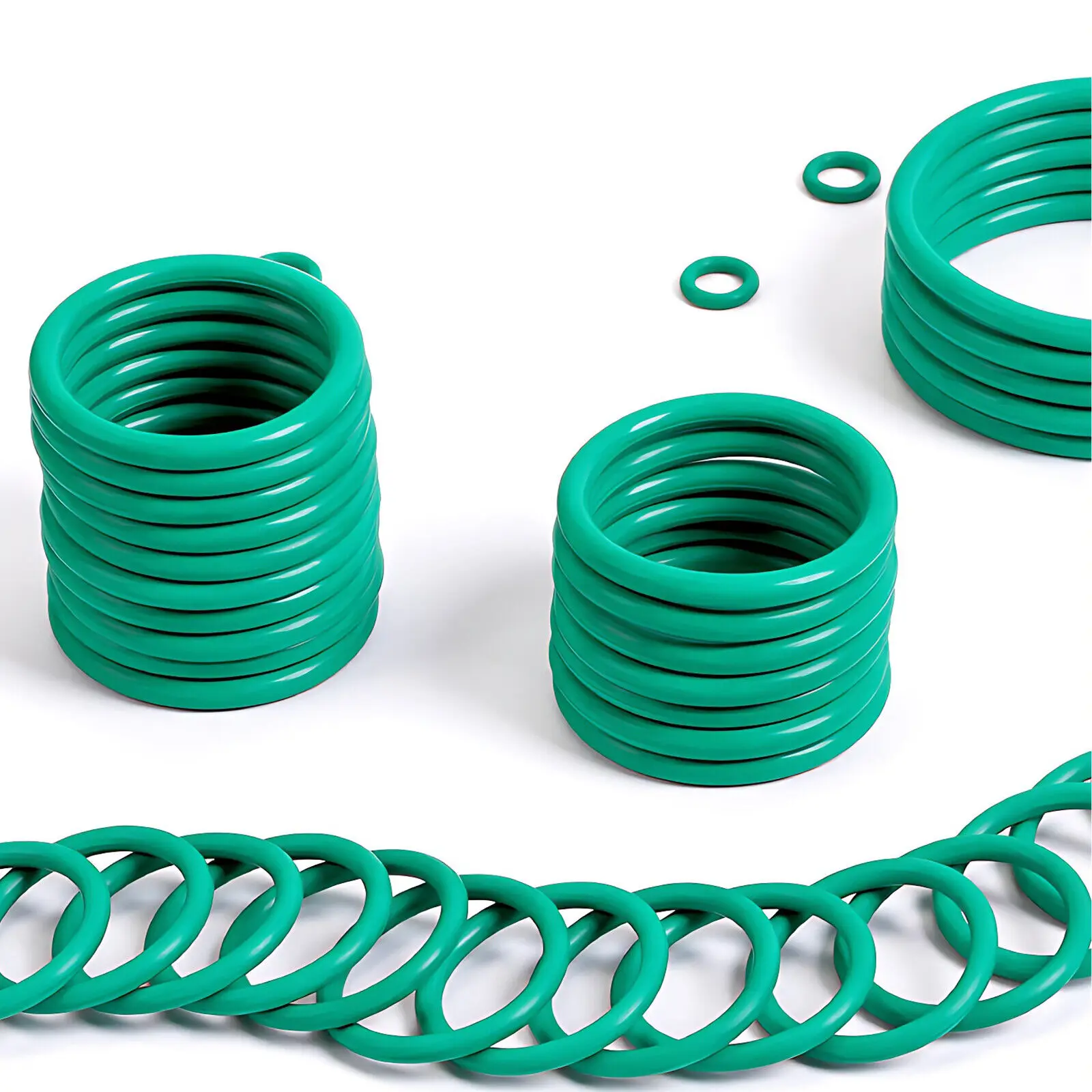

Rubber parts show
Standard and non-standard rubber parts and rubber-metal parts in sealing industry.
Application
Packing & Delivery
Packing
Insides is aluminium foil bag, and outside will be hardpaper box
Delivery
Fast delivery to catch your requirements
Company Profile
We were built in 2011 and covers an area of 13,500m2;
Second phase plant under construction is about 3 times bigger than the initial plant.
Thanks to its Research & Development capabilities, FreChem is able to provide highly qualified FKM, FFKM, and FVMQ products around the world.
For years of experience and strong technology background in rubber compounding design, we are developing new line for o-ring, oil seal and custom molded shapes for sealing industry.
In our compounding workshop, colored rubber, black rubber and FFKM rubber, non-FKM /FFKM rubber are separately.
FFKMs has individual clean room from compounding to compression molding.
Also have line + machine, CNC spark machine, advanced equipment, etc, strong design and manufacturing mold.
The equipment and special know-how used in production control guarantee that our products respond to the customer requirements and provide high consistency standards.
FreChem expects to offer best solutions as well as customization in order to meet customers’ sealing requirements.
Our vision is to improve production efficiency and quality, constantly optimize the production process and management system, to ensure that our production capacity and quality is the industry leader in all the time.
FAQ
•Q: Are you trading company or manufacturer ?
•A: We are factory and accept your special requirement from designed compounding to Package& Delivery.
•Q:May I visit your factory?
•A:Sure,sincerely welcome to visit our factory,
•A: We are factory and accept your special requirement from designed compounding to Package& Delivery.
•Q:May I visit your factory?
•A:Sure,sincerely welcome to visit our factory,
And we will arrange pick you up at airport or train station.
•Q:What is your main products?
•A:We produce high quality of rubber compounds and custom rubber sealing parts for HNBR, FKM,FFKM, FVMQ rubber and so on.
•Q: Do you provide samples ? is it free or extra ?
•A: Yes, we would like to send you a sample for free. only for testing.
•Q: How much the courier freight will be charged for the samples?
•A: Courier freight depends on the quantity, weight, carton size and your area. DHL, FedEx, TNT, UPS are available.
•Q: How long is your delivery time ?
•A: Generally it is 5-10 days if the goods are standard. or it is 15-20 days for custom service.
•Q: How to get a quotation fast?
•A: Providing the detailed information such as material, hardness, color, dimension, application, annual quantity and drawing, we will send quotation within 24 hours.
•Q:Could I use my own logo or design on goods?
•A:Yes.Customized logo and design on mass production are available.
•Q: What is your terms of payment ?
•A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment...
•Q:What is your main products?
•A:We produce high quality of rubber compounds and custom rubber sealing parts for HNBR, FKM,FFKM, FVMQ rubber and so on.
•Q: Do you provide samples ? is it free or extra ?
•A: Yes, we would like to send you a sample for free. only for testing.
•Q: How much the courier freight will be charged for the samples?
•A: Courier freight depends on the quantity, weight, carton size and your area. DHL, FedEx, TNT, UPS are available.
•Q: How long is your delivery time ?
•A: Generally it is 5-10 days if the goods are standard. or it is 15-20 days for custom service.
•Q: How to get a quotation fast?
•A: Providing the detailed information such as material, hardness, color, dimension, application, annual quantity and drawing, we will send quotation within 24 hours.
•Q:Could I use my own logo or design on goods?
•A:Yes.Customized logo and design on mass production are available.
•Q: What is your terms of payment ?
•A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment...
Custom service
Contact us for our flexible process, custom-made process that is easy to meet your special requirements
