Product Overview

Description

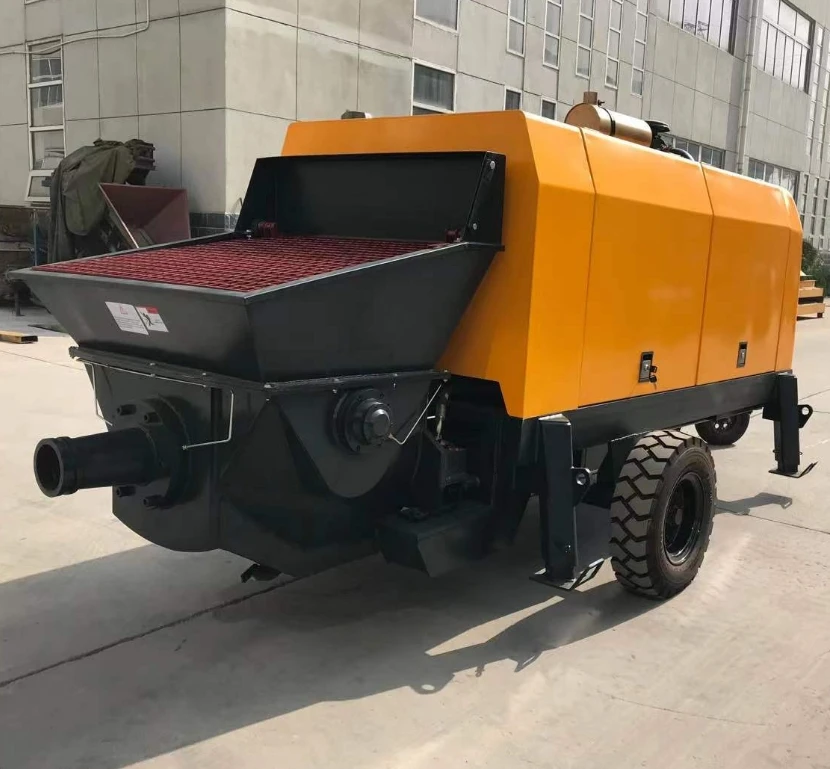

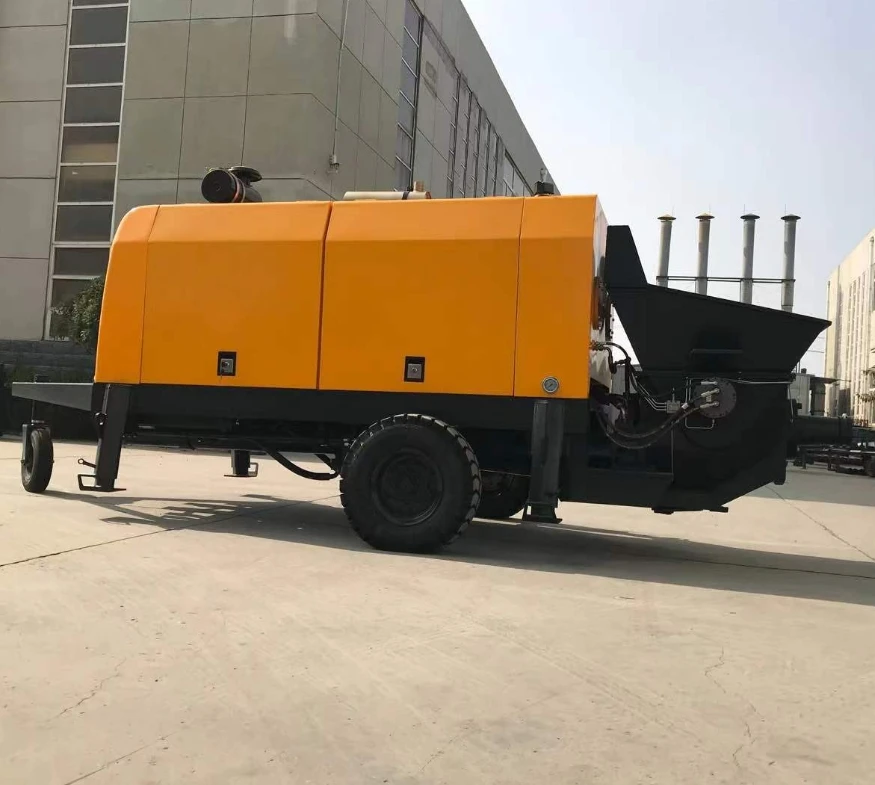

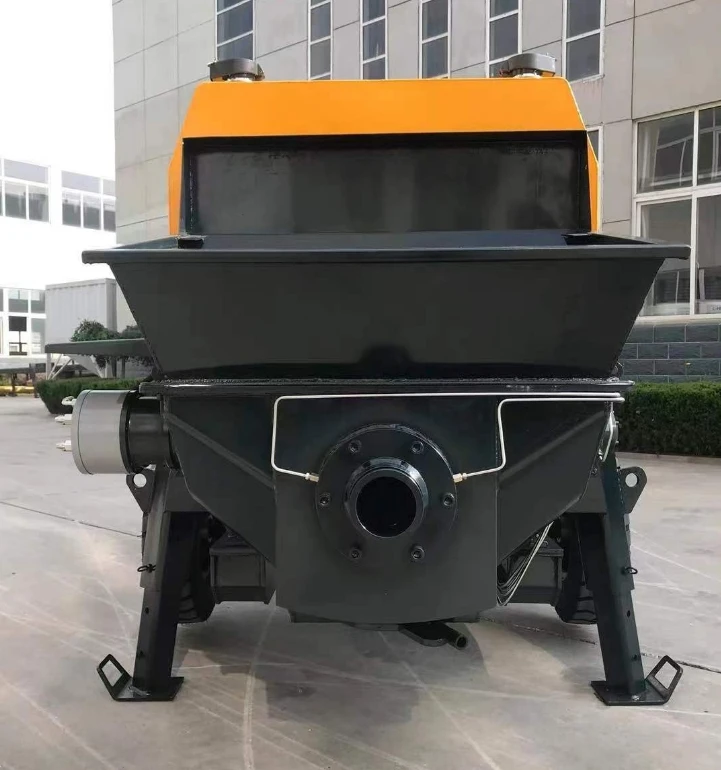

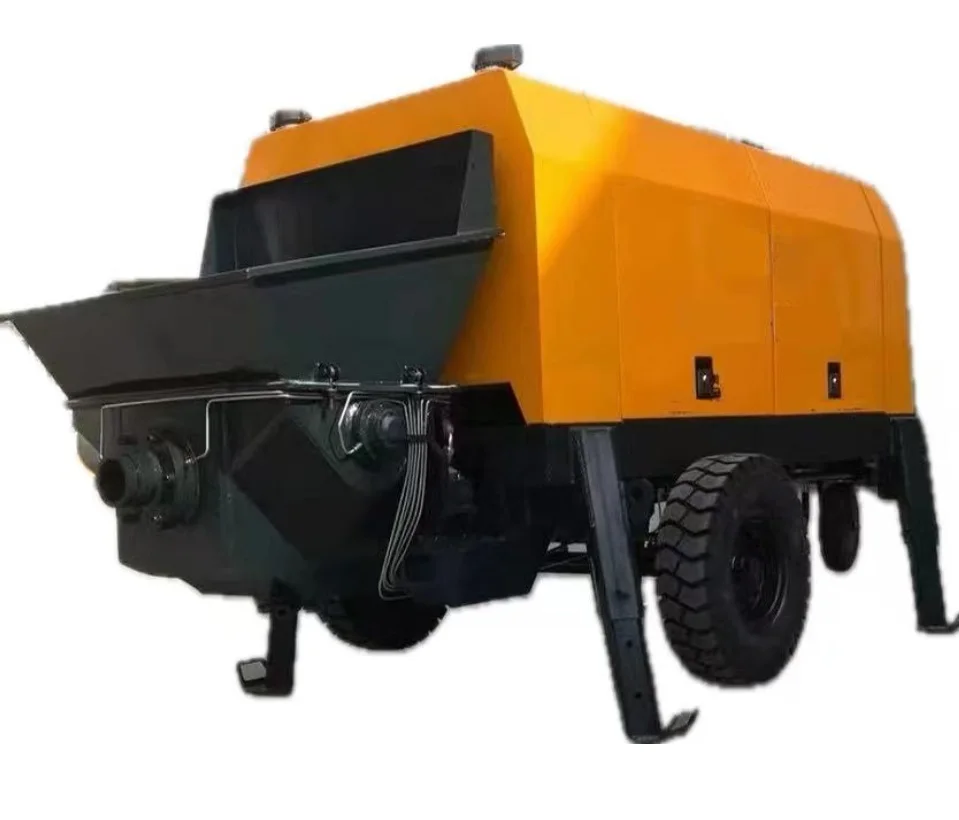

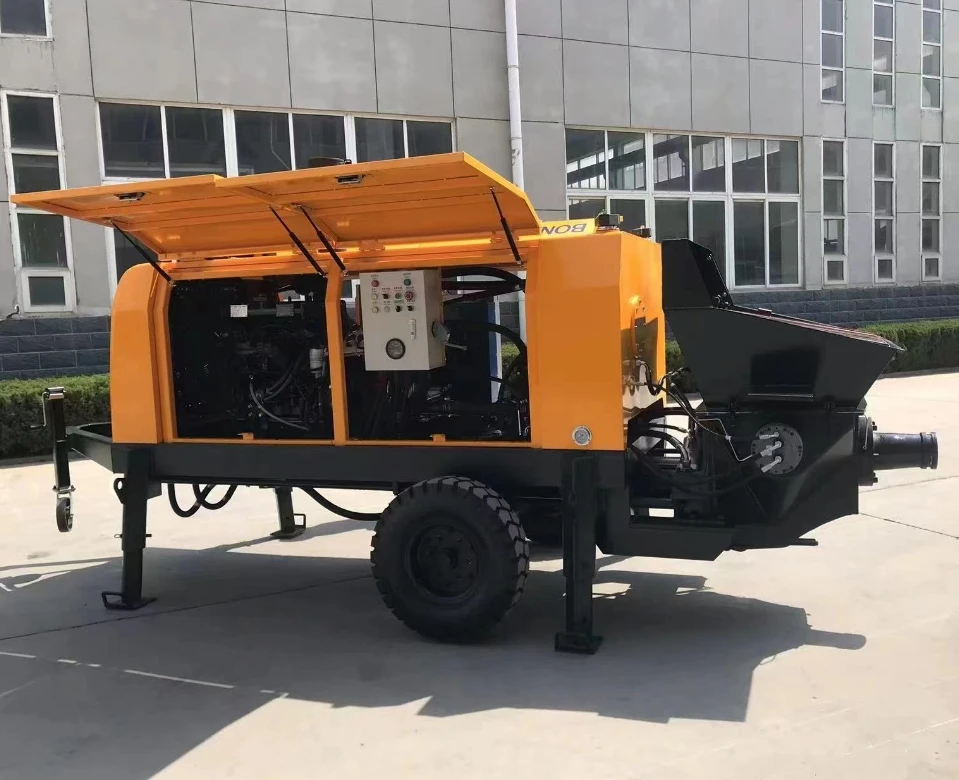

Factory supply operation easily stationary diesel concrete pump for house building portable concrete pump price

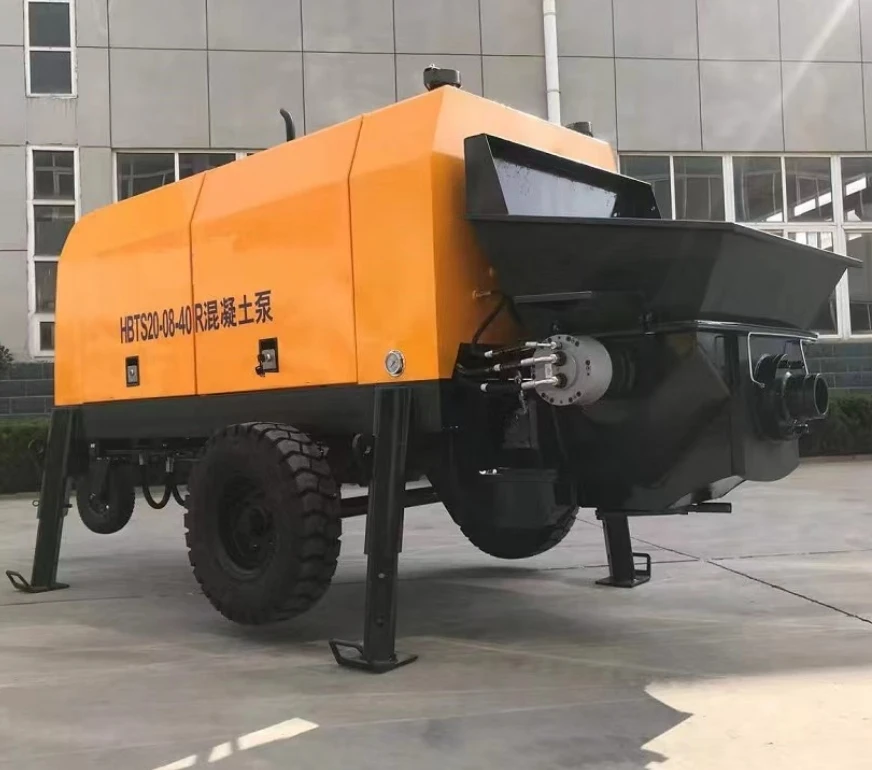

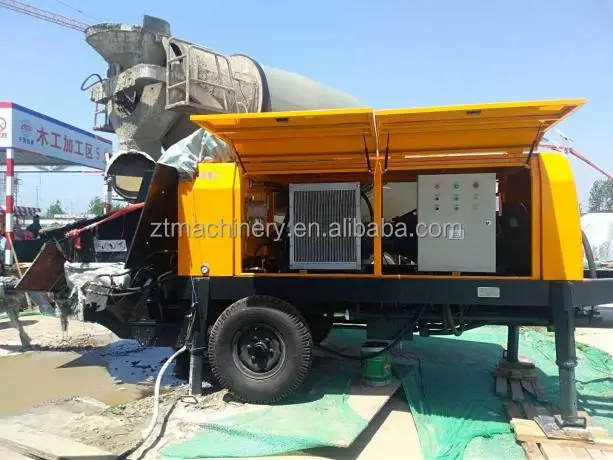

Stationary concrete pump, it is for the concrete conveying pump, it also known as concrete pump, consists of a pump body and conveying pipe. It is a kind of machine that uses pressure to transport concrete continuously along the pipeline, mainly used in house construction, bridge and tunnel construction. It is mainly divided into gate valve concrete conveying pump and S valve concrete conveying pump.





Item		Unit	Parameter
Pumping system	Max. theoretical delivery volume	m³/h	30
	Max. theoretical delivery pressure	MPa	10
	Max. theoretical delivery height (Φ125)	M	120
	Max. theoretical delivery distance (Φ125)	m	400
	Distribution valve type		S tube valve
	Concrete cylinder specification	mm	160×1000
	Hopper capacity	L	400
	Output opening diameter	mm	125
Power system	Diesel engine power	KW	55
	Rated rotation speed	r/min	2200
Hydraulic system	Type of Hydraulic oil circuit		Open oil circuit
	Main oil pump		HANDOK
	Maximum oil pressure of pumping system	MPa	28
	Maximum oil pressure of mixing system		14
	Highest mixing speed	r/min	40
	Hydraulic oil tank capacity	L	260
	Allowable max. diameter of aggregate	mm	30
	Inner diameter of concrete delivery pipe	mm	Φ125/Φ100/Φ80
	Dimension(length× width× height)	mm	4070×1580×2280
	Weight	kg	2900



Diesel Engine Hydraulic diesel concrete pump trailer mounted
1. Power: Siemens electromotor Diesel Engine Hydraulic diesel concrete pump trailer mounted
2. Main oil pump: original German HAWE, Rexroth or Kawasaki from Japan
3. Seal parts: American Parker Diesel Engine Hydraulic diesel concrete pump
4. Main electric parts: original Schneider, Omron or LS electrical devices
5. Manual switch of high pressure and low pressure is equipped
6. Pipe joints: American Eaton Diesel Engine Hydraulic diesel concrete pump trailer mounted
7.100m pipe line, spare parts and tools













Main parts we use the World famous brand for the stationary concrete pump

1. Power system

Hydraulic oil pump: Germany Rexroth; Kawasaki.

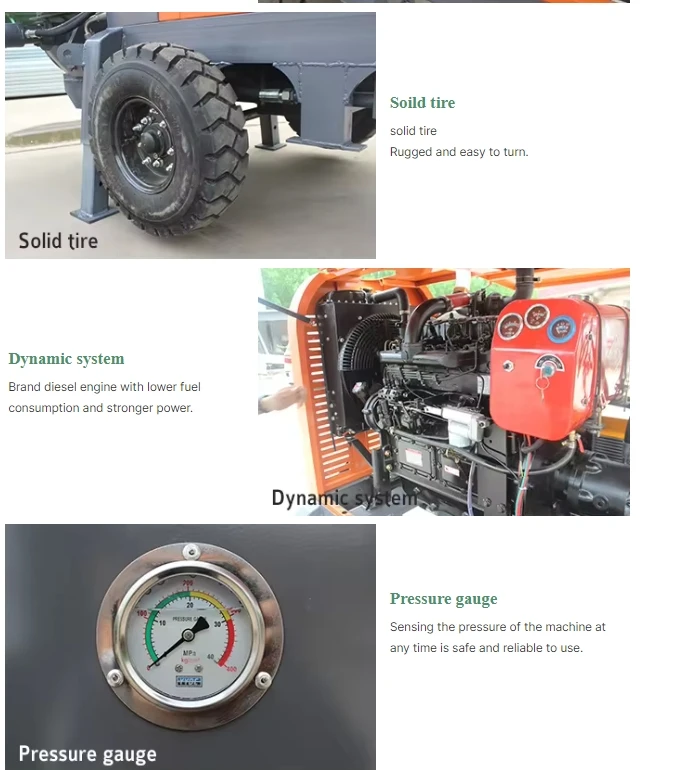

Famous Diesel Engine for the diesel concrete pump

Deutz, Cummins, Weichai, Yuchai,  .etc

2. Electronic control

Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.

Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.

3. Hydraulic system

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system.  Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

4. Pumping system

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.

5. Lubrication System

The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston.  The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.

6. Cooling System

Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.



 Zhantong has the professional loading team, can Max. save your delivery cost:









One 20ft container can load 1 unit concrete mixer and pump, and 100m delivery pipes;

One 40ft contiainer can load 2 units concrete mixer and pumps, and 200m delivery pipes;

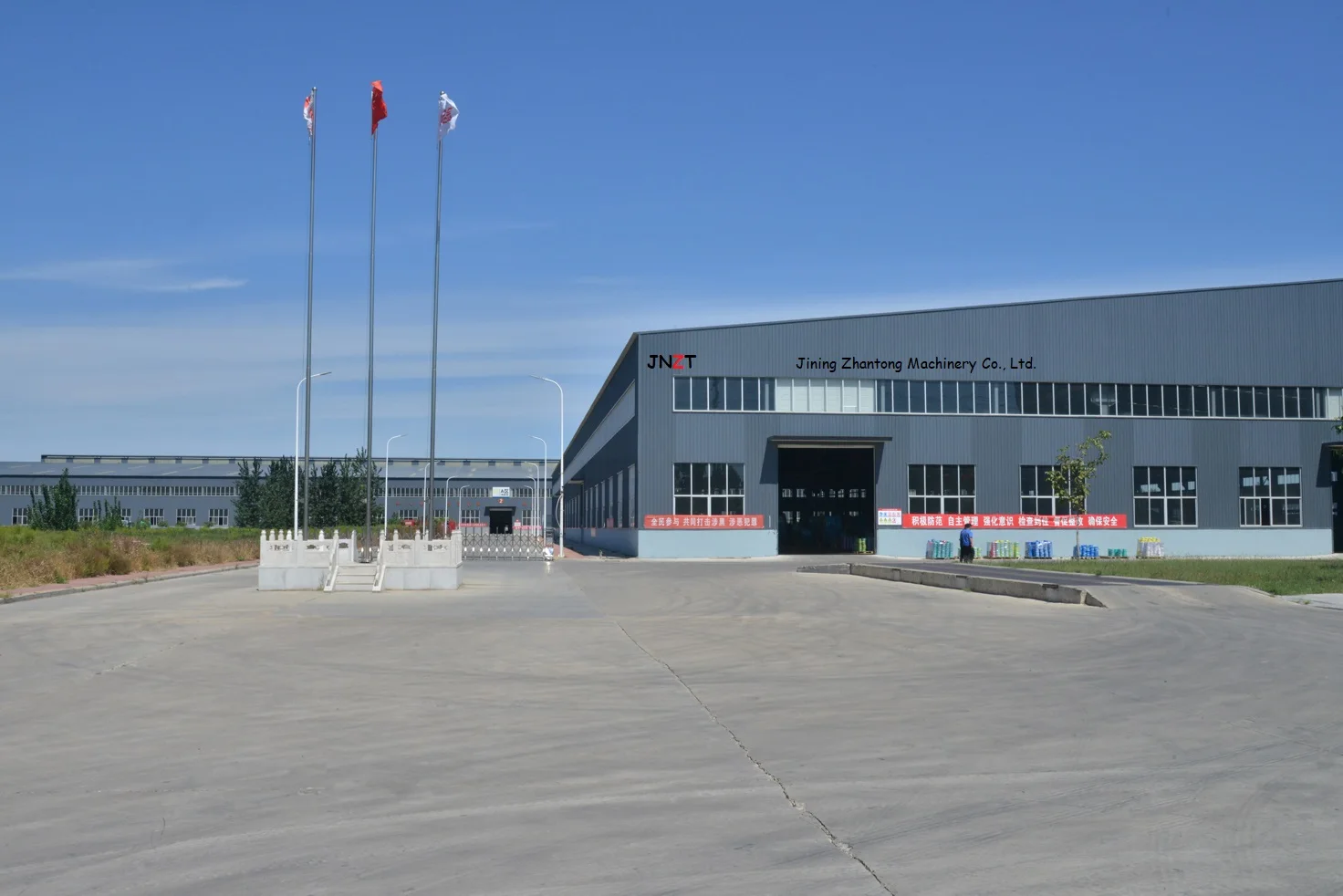

Jining Zhantong Machinery Co., Ltd, founded in 2009, we are one of the professional factory of construction machinery and engineering machinery with its many years of production and services. Jinin Zhantong Manufacture keeps on growing with its good quality products and good after sales service, Product coverage continues to expand, like Crawler excavator, Wheel excavator, Backhoe loader, Wheel loader, Skid steering loader, Forklift and so on. Our products have ISO9001 International quality management system certification, most of the products are CE approved.
Jining Zhantong covers more than 15 provinces and cities, and exported to more than 50 countries, like Australia, Thailand, Indonesia, Brazil, Argentina, South Africa, Germany, England, France, Finland etc, several countries are with agent and distributors. Company adheres service first, quality-oriented management aim, got more and more good reputation these years.
Jining Zhantong Machinery Co., Ltd sincerely hope to work together with customers both home and aboard to have win-win business relationship.
WELCOME you to visit us!





















Q: ARE YOU MANUFACTURER AND WHAT IS YOUR BRAND?
A: Yes, we are professional manufacturer on concrete machine, ladder lift truck, aerial lift truck and so on, and our Brand is 'JH' and ‘JUHE'.

Q: OEM OR ODM IS AVAILABLE?
A: Yes, we can produce with your logo.

Q: HOW IS YOUR DELIVERY TIME?
A: If standard machine, the delivery time will be 7-15 days, if customized version, that depends on the customized configuration time.

Q: HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
A: Our team is professional working 24*7 to respond client inquiries in time. Most problems can be solved within 6 hours.

Q: WHICH PAYMENT TERMS CAN YOU ACCEPT?
A: Normally we can work on TT or LC.
(1)T/T: 30% prepayment to start production and 70% balance shall be paid before shipment;
(2)L/C: 100% irrevocable LC at sight without "soft clauses" from an international recognized bank can be accepted.
