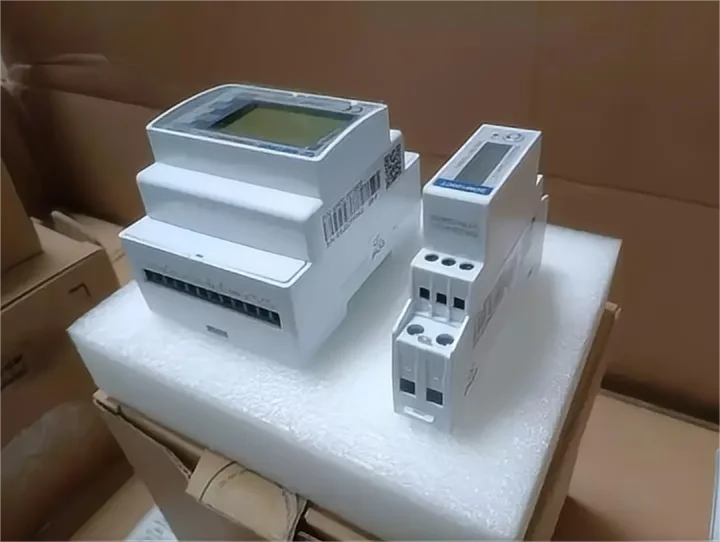

Growatt Smart Meter 3 Phase SDM630MCT 40mA SDM630Modbus V2 Electric Meter Wireless Electricity Energy Meter
Growatt Smart Meter 3 Phase SDM630MCT-40mA SDM630Modbus V2 Electric Meter Wireless Electricity Energy Meter
Growatt Smart Meter 3 Phase SDM630MCT-40mA SDM630Modbus V2 Electric Meter Wireless Electricity Energy Meter
Growatt Smart Meter 3 Phase SDM630MCT-40mA SDM630Modbus V2 Electric Meter Wireless Electricity Energy Meter
Growatt Smart Meter 3 Phase SDM630MCT-40mA SDM630Modbus V2 Electric Meter Wireless Electricity Energy Meter
Growatt Smart Meter 3 Phase SDM630MCT-40mA SDM630Modbus V2 Electric Meter Wireless Electricity Energy Meter
Growatt Smart Meter 3 Phase SDM630MCT-40mA SDM630Modbus V2 Electric Meter Wireless Electricity Energy Meter

Growatt Smart Meter 3 Phase SDM630MCT 40mA SDM630Modbus V2 Electric Meter Wireless Electricity Energy Meter

Share on (1601164951136):


Price:$55.00 - $75.00

Quantity:


Product Overview

Description



Product Description


item
value
Place of Origin
China
Brand Name
Eastron
Model Number
SDM630MCT-40mA
Display Type
Digital Only
Accuracy Class
Class 1/Class B
Supply Voltage
3*230/400V ac
Operating Temperature
-25℃-+55℃
Dimensions
94.5*72*65(H*W*D)

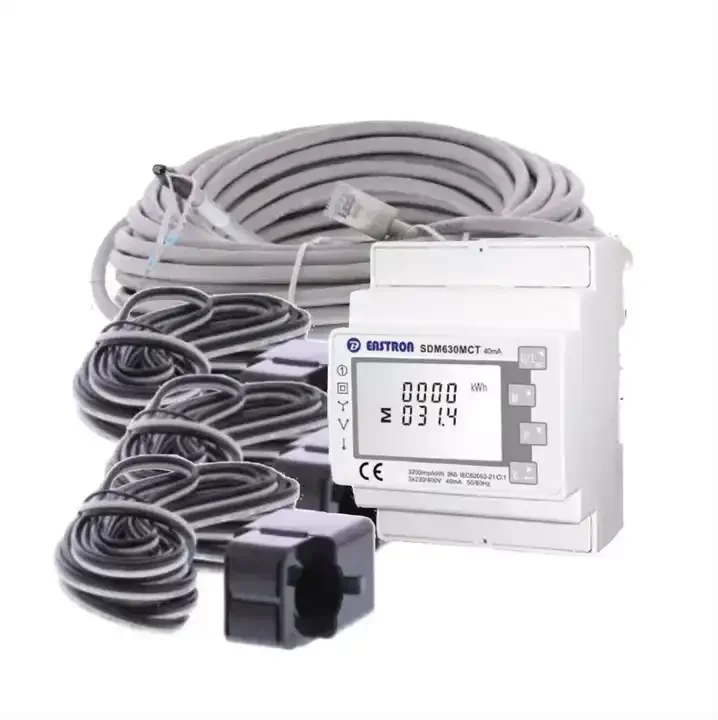

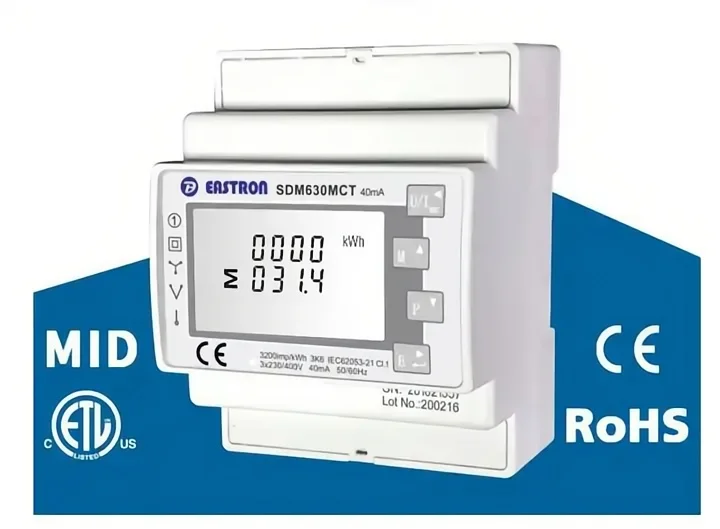

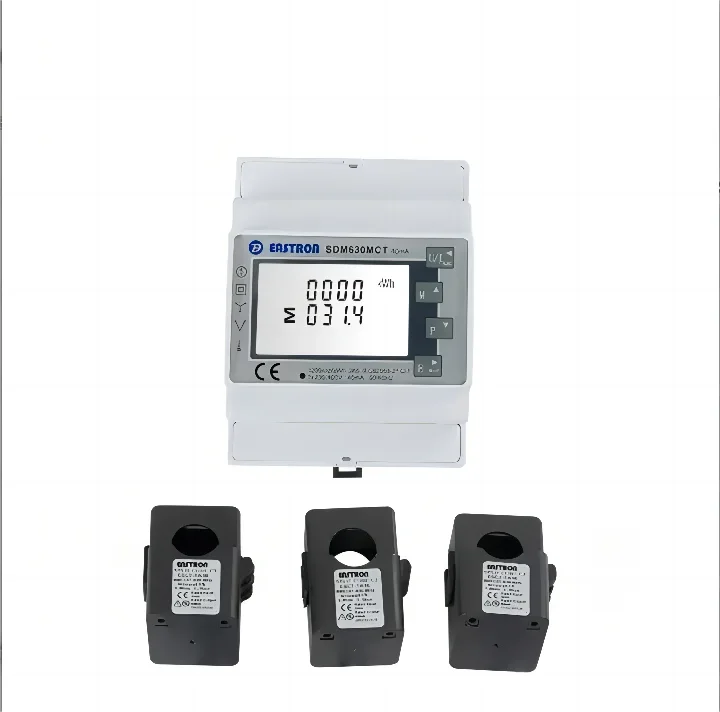

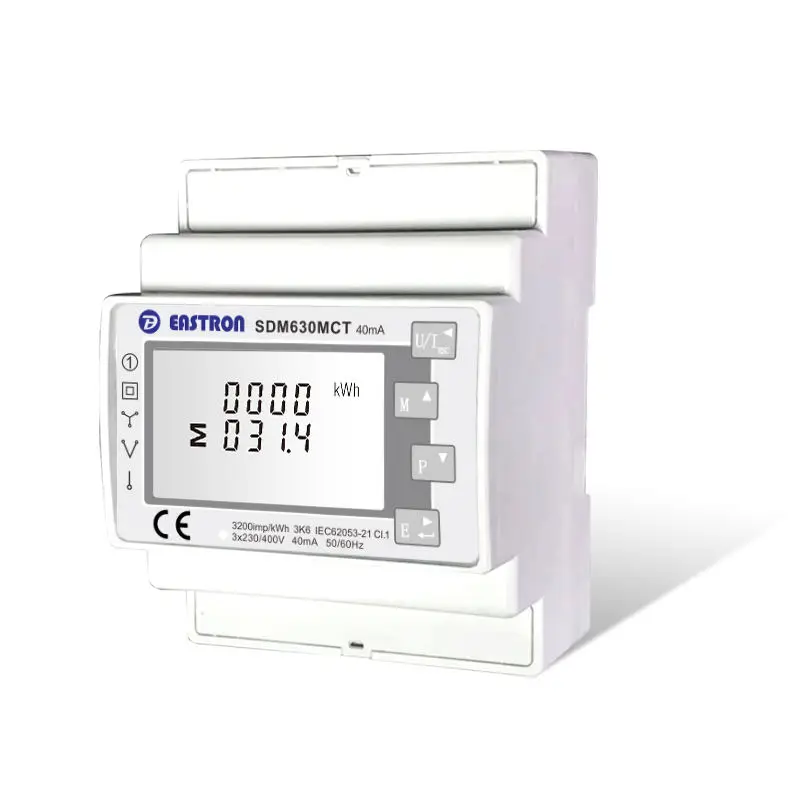

DIN Rail Energy Meter for Single and Three Phase Electrical Systems
Measures kWh Kvarh, KW, Kvar, KVA, P, F, PF, Hz, dmd, V, A, THD,etc.
Bi-directional measurement IMP & EXP  Two pulse outputs
RS485 Modbus  Din rail mounting 35mm
1/5A CT connection
Better than Class 0.5S

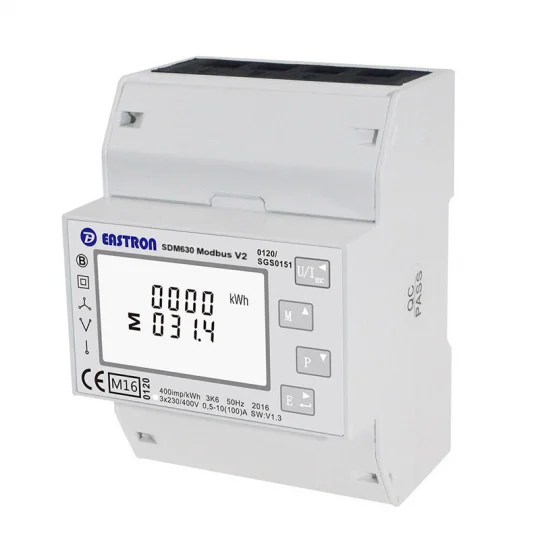

SDM630-Modbus V2
DIN Rail Smart Meter for Single and Three Phase Electrical Systems
Measures kWh Kvarh, KW, Kvar, KVA, P, F, PF, Hz, dmd, V, A, etc.
Bi-directional measurement IMP & EXP
Two pulse outputs
RS485 Modbus
Din rail mounting 35mm
100A direct connection
Better than Class 1 / B accuracy


Specification




Eastron SDM630 Modbus V2 100A Three Phase Multifunction DIN Rail Energy Meter



Nominal Voltage Input
100-289V AC (Ph+N) or 173-500V AC (Ph+Ph)
Max Continuous Voltage
120% of Nominal
Nominal Input Current
0.5-10(100)A AC
Max Continuous Current
120% of Nominal
Frequency
50Hz ±10%


Voltage
0·5% of range maximum
Current
0·5% of range nominal
Frequency
0·2% of mid-frequency
Power Factor
1% of unity (0.01)
Active Power (W)
±1% of range maximum
Reactive Power (VAr)
±1% of range maximum
Apparent Power (VA)
±1% of range maximum
Active Energy (Wh)
Class 1 IEC 62053-21
Reactive Energy (VARh
±1% of range maximum
Total Harmonic Distortion
1% up to 31st harmonic
Response time to step input
1s, typical, to >99% of final reading, at 50 Hz


Unit Characteristics
The Unit can measure and display:
Line voltage and THD% (total harmonic distortion) of all phases
Line Frequency
Currents, Current demands and current THD% of all phases
Power, maximum power demand and power factor
Active energy imported and exported
Reactive energy imported and exported

The unit has password-protected set-up screens for:
Changing password
Supply system selection 1p2w, 1p3w,3p3w,3p4w
Demand Interval time
Reset for demand measurements
Pulse output duration Two pulse output indicates real-time energy measurement. An RS485 output allows remote monitoring from another display or a computer.


Current Transformer Primary Current
Current Transformer Primary CurrentThe unit can be configured to operate with CT ratio between primary current and secondary current. The secondary CT has two options: 1A/5A


RS485 Serial – Modbus RTU
This uses an RS485 serial port with Modbus RTU protocol to provide a means of remotely monitoring and controlling the Unit Set-up screens are provided for setting up the RS485 port.
