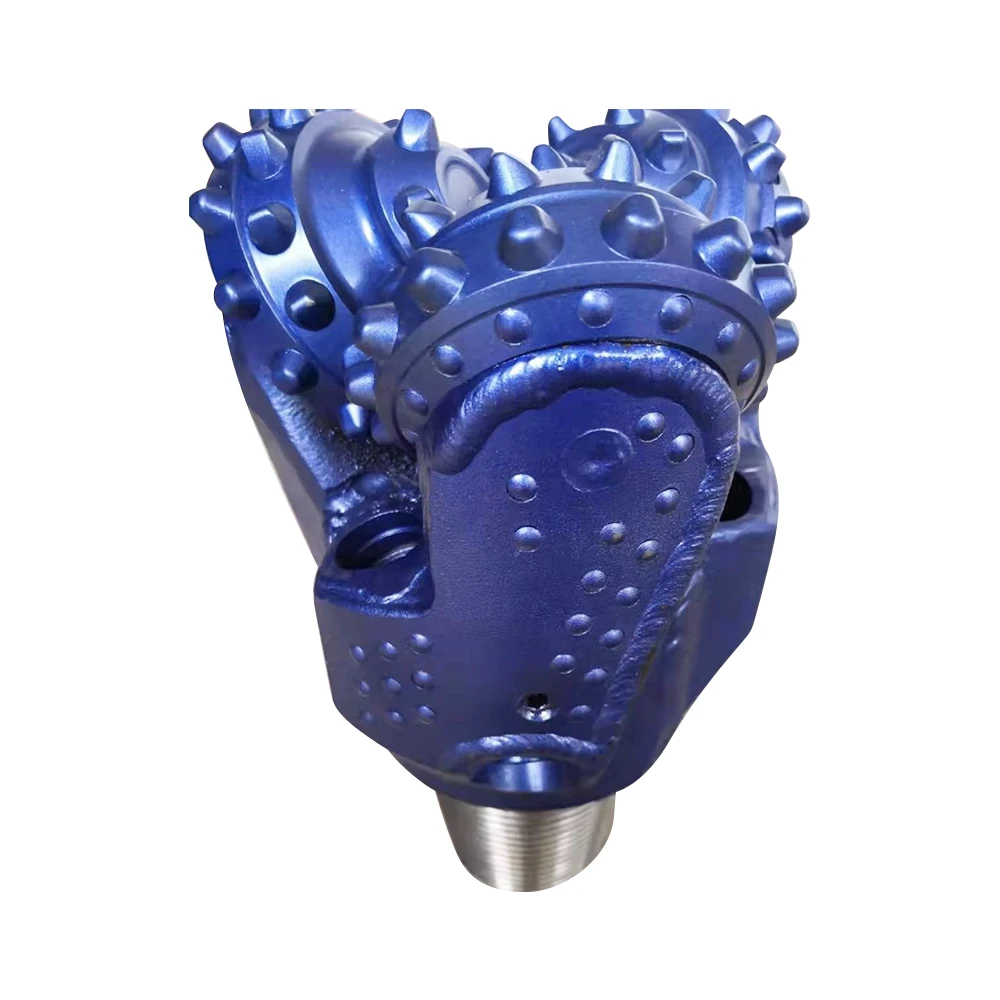

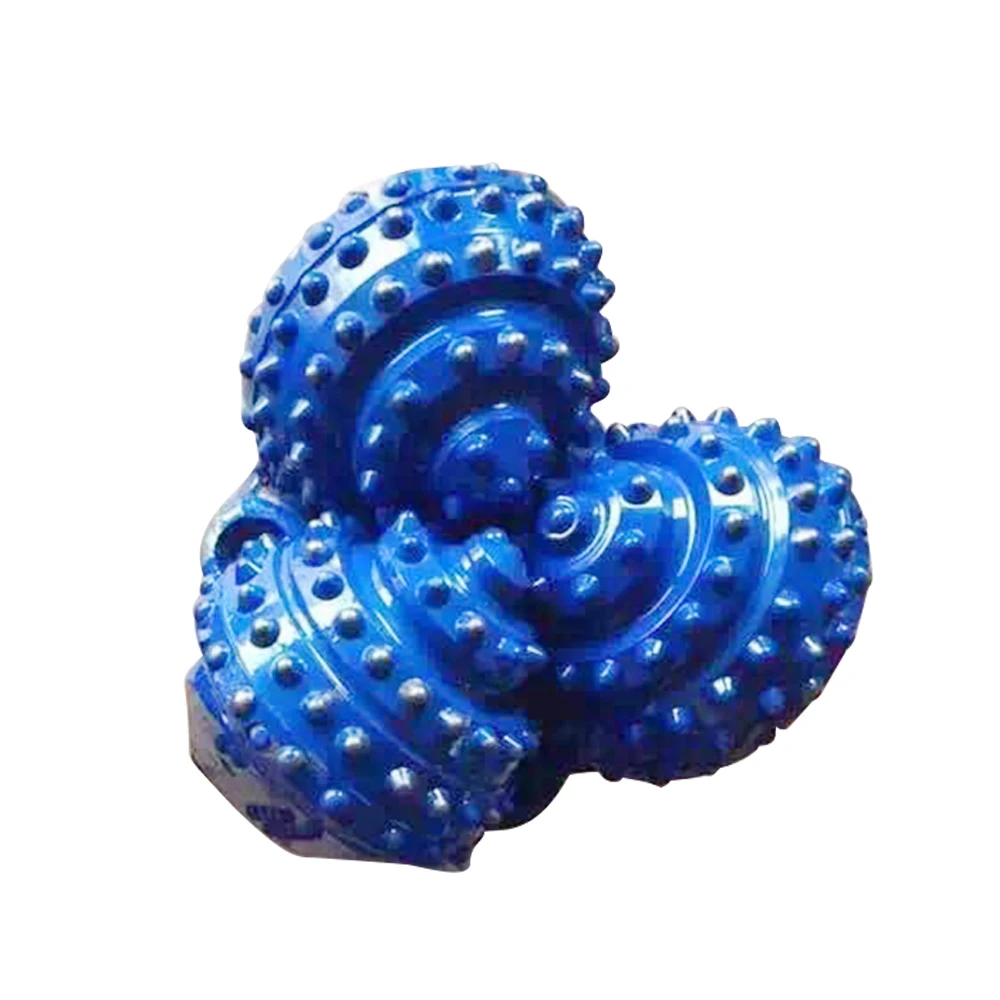

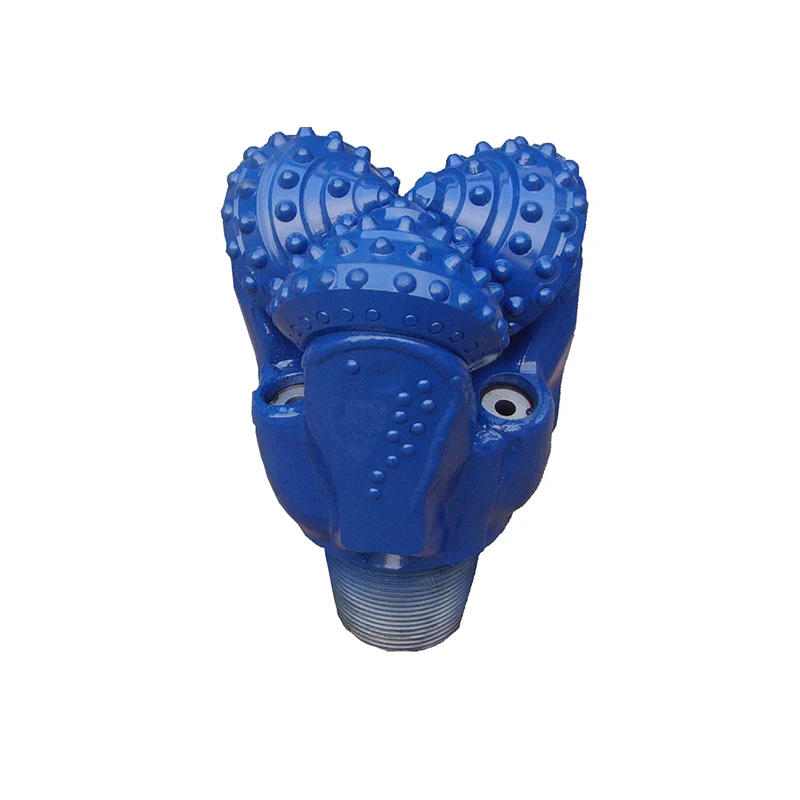

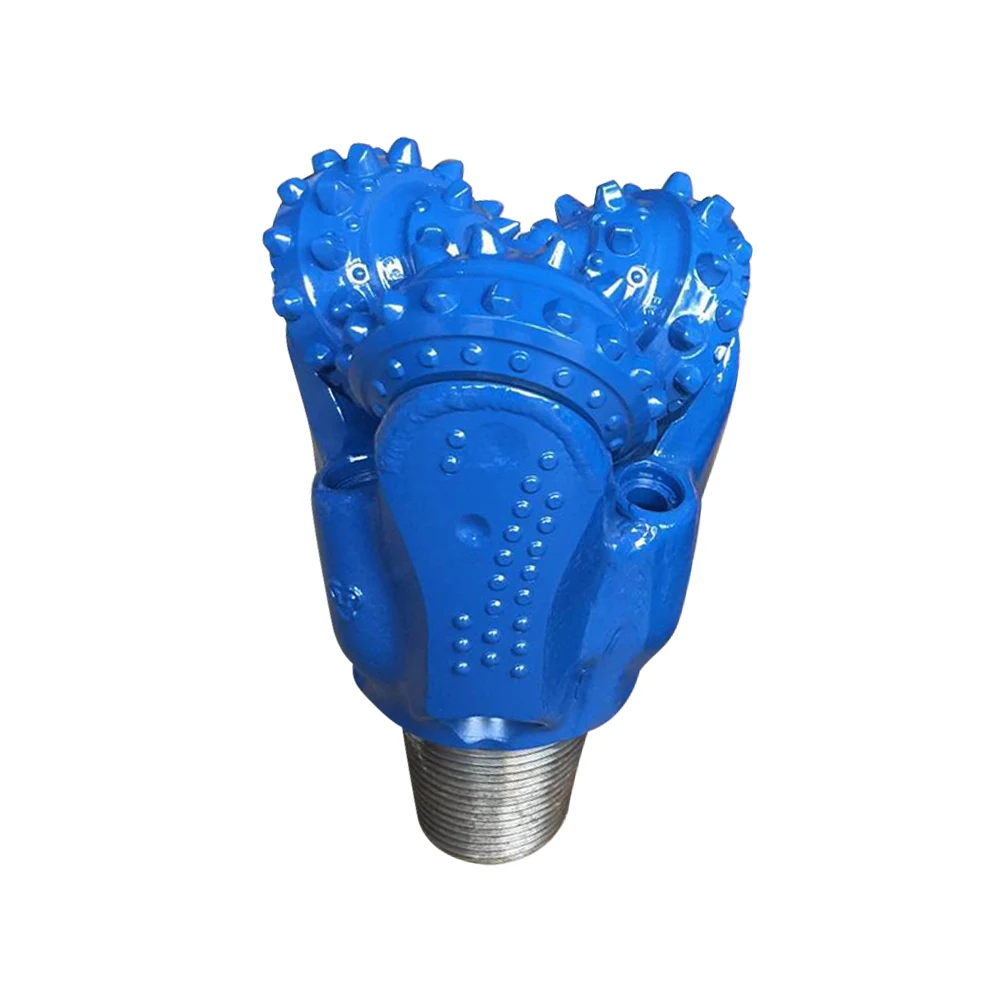

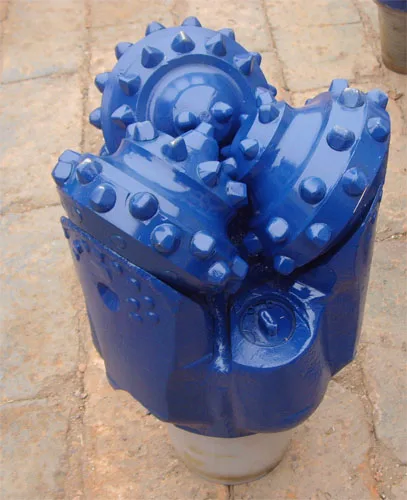

8 1/2inch oil and gas drilling bits API standard rock drill bit
- Category: >>>
- Supplier: Glorytek Industry (beijing) Co. Ltd.
Share on (1601165182989):
Product Overview
Description
Multi-size Tricone Bit for Water Well Drilling
Product Description
Tricone Bits are widely used in Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work.
Technical Parameter
Size | Supply from 3 3/4inch to 26inch |
IADC Code | 117/127/217/227/517/537 etc. |
Thread | 2 3/8,2 7/8,3 1/2,4 1/2, 6 5/8,7 5/8 REG |
G.W./N.W. | 10.5-520/9-489(KG) |
Dimension | 14*16*26--66*63*84mm each |
Standards | SY/T5164 |
API SPEC 7-1 | |
Teeth Type | Standard Type |
Back cone feature | single Row |
Sealed Protection | Enhanced Type |
WOB | 0.70~1.20KN/mm |
Rotation Speed | 70-40r/min |
Applicable Formations | High compressive strength, medium hard, thick hard interlayer, such as hard shale, limestone, sandstone, dolomite, etc. |
TCI Teeth Elastomer sealed bearing tricone rock bit
Gauge Structure
Multiple gauge protection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
Bearing Structure
High precision bearing with two thrust faces. Ball lock the cone.Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
Seal and Lubrication
Premium O-ring, Optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
Product Application
It can receive highWOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.
Recommended Drilling Parameter
Cutting Structure
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.
Gauge Structure
Multiple gauge protection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
Bearing Structure
High precision bearing with two thrust faces. Ball lock the cone.Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
Seal and Lubrication
Premium O-ring, Optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
Product Application
It can receive highWOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.
Recommended Drilling Parameter
IADC WOB (KN/mm) | RPM (r/min) | Applicable | Formations | |||
417/437/447/415/435 | 0.35~0.9 | 150~70 | Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, gypsum, salt, soft limestone, etc. | |||
517/527/515 | 0.35~1.0 | 140~60 | Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc. | |||
537/547/535 | 0.45~1.0 | 120~50 | Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc. | |||
617/615 | 0.45~1.1 | 90~50 | Medium hard formation with high compress strength, such as hard shale, limestone, sandstone, dolomite. etc | |||
637/635 | 0.5~1.2 | 80~40 | Hard formations with high compressive strength, such as sandstone, limestone, dolomite ,hard gypsum, marble, etc. | |||
Note: The upper limits ofWOB and RPM in above table should not be used simultaneously. | ||||||
Structures
Cutting Structure Gauge Structure Nozzels
conical tungsten carbide insert gauge protection with tungsten various of sizes of nozzels
carbide insert and sand on the to get different flow
heel of cones
Packing & Delivery
We normally have stock for 12 1/4" IADC 537 tricone bits, we can prepare shipment within 3 days after placing order. Shipping by by air and by sea are all available.
Our Company & Servce
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
Service
Pre-sale service:
1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose, choosing the different body type
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose, choosing the different body type
After-sale Service:
Delivery Time: Based on order quantity, normally it takes 20 days for production.Only 2 or 3 days if we have stock on your request size.Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
Technical Support will be available in any time. We could provide the professional suggestion for you.
Technical Support will be available in any time. We could provide the professional suggestion for you.
Online support to help solve the problem.
Shipping spare parts immediately if requested,
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
A: Mining, hdd drilling, foundation pit, quarry, oil, well, etc.
Q: What is the MOQ?
A. The MOQ is 1 Piece
A. The MOQ is 1 Piece
Q: What is the payment terms?
A: We can accept payment by T/T, Credit Card, West Union etc.
