Product introduction

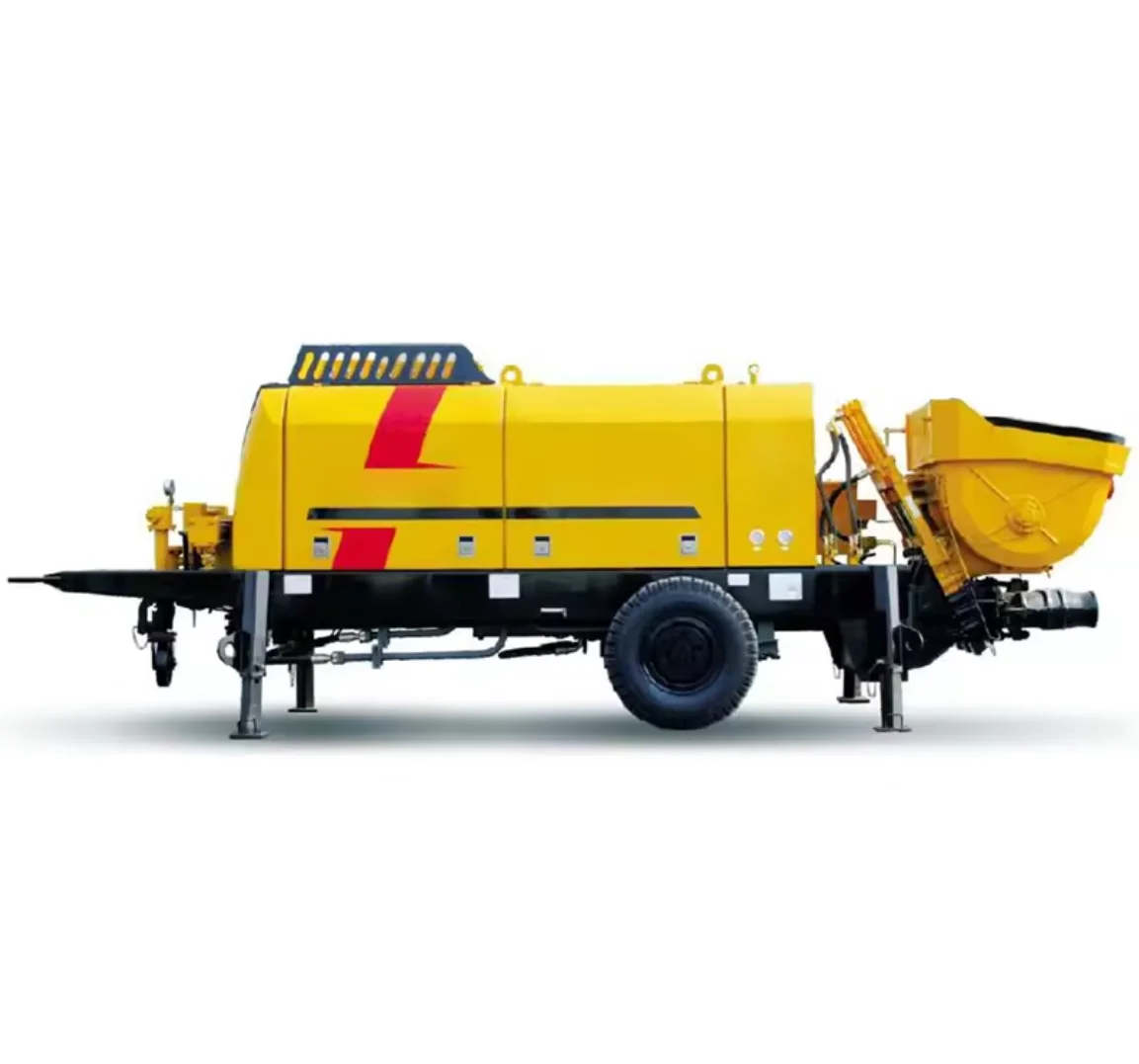

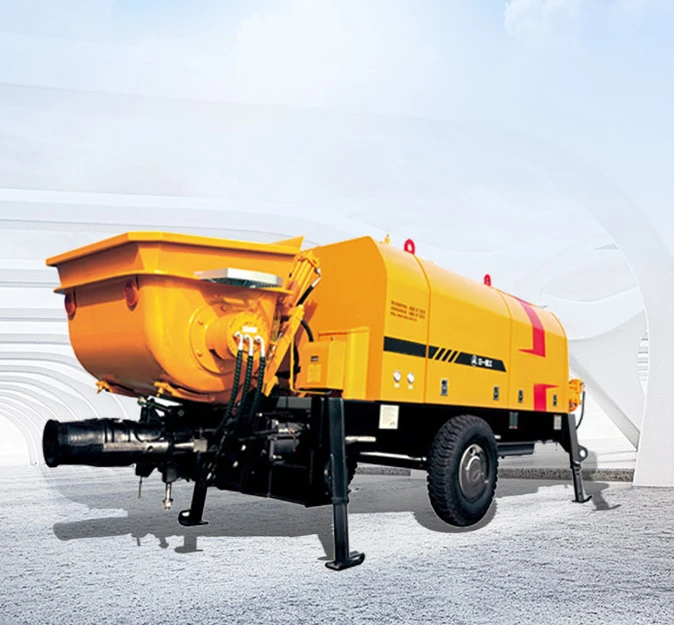

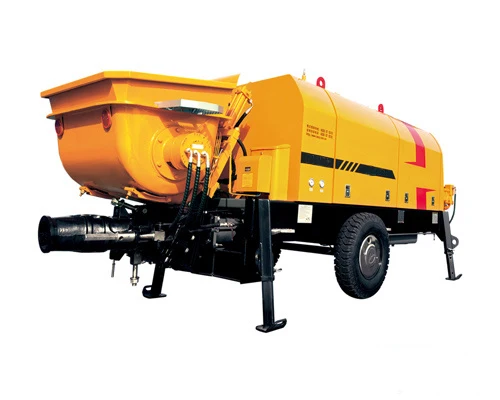

HBT6006A-5 motor concrete drag pump advanced hydraulic system pressure difference induction reversing hydraulic system: The use of pressure difference induction reversing technology, with electro-hydraulic proportional buffer technology. The open system has the advantages of self-circulation filtration of impurities, high hydraulic oil cleanliness and low temperature, and the closed system has the characteristics of small reversing impact, which maximizes the efficiency of the system, reduces the wear between parts, extends the service life and reduces the maintenance cost. High-flow and high-efficiency main valve system: The use of high-pressure high-flow electro-hydraulic precision control of the main valve, optimize the flow channel design and layout of the integrated valve group, short reversing time, small pressure loss, low temperature rise, high reliability.Advanced hydraulic systemPressure difference induction commutation hydraulic system: the use of pressure difference induction commutation technology, with electro-hydraulic proportional buffer technology. The open system has the advantages of self-circulation filtration of impurities, high hydraulic oil cleanliness and low temperature, and the closed system has the characteristics of small reversing impact, which maximizes the efficiency of the system, reduces the wear between parts, extends the service life and reduces the maintenance cost.
High-flow and high-efficiency main valve system: The use of high-pressure high-flow electro-hydraulic precision control of the main valve, optimize the flow channel design and layout of the integrated valve group, short reversing time, small pressure loss, low temperature rise, high reliability.
Automatic piston withdrawal: easy to achieve the concrete piston back to the water tank, short maintenance time, daily maintenance more convenient.
Intelligent control systemFault self-diagnosis technology: Insight into equipment status at every moment, real-time monitoring and diagnosis of more than 50 faults, can effectively shorten the troubleshooting time of 70%, saving you time and worry.
Special motion controller: Using special motion controller for pumping, integrated pumping classic algorithm and function library, faster operation speed, better performance, perfect integration with pumping conditions.
Forced pumping technology: During the construction process, when the peripheral detection loop fails, the "forced" function can be enabled to start the pumping operation for emergency treatment.
High efficiency pumping systemEfficient pumping technology: The use of differential pressure induction reversing technology and the main oil pump electric proportional control buffer technology, shorten the commutation time, optimize the master cylinder and swing cylinder buffer commutation time match, to achieve efficient pumping.
High power stirring motor: large displacement, large torque steel ball motor forced feeding, in the material difference and increase the hopper can also stir normally, not stuck, improve the suction.
Large diameter reversing cylinder: Using large diameter reversing cylinder, the reversing is strong and powerful, perfectly avoiding the problem of pipe blocking.
New hopper: Optimize the hopper cavity, improve the suction efficiency, do not pick material, a variety of difficult concrete easily cope.
Cutting-edge energy-saving technologyThe new generation of energy-saving technology automatically adjusts the engine speed and power according to the load, so that every drop of fuel bursts into power, achieving an overall energy saving of 25%.
Extreme wear technologyThe service life of discharge port and transition sleeve is up to 60 ~ 80 thousand square; The service life of concrete piston can reach 20 ~ 30 thousand square; The service life of the glasses plate is up to 50,000 to 80,000 square meters, and the service life of the cutting ring is up to 20,000 to 40,000 square meters; The service life of the conveying cylinder is up to 100,000 ~ 140,000 square meters.
