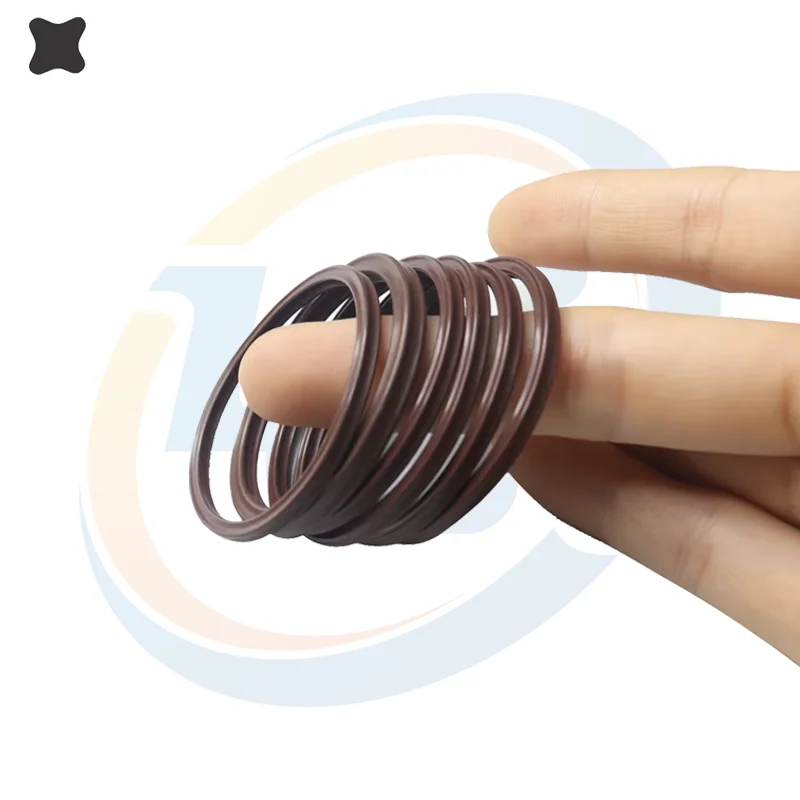

Manufacture Standard Full Sizes As568 ffkm fkm nbr Rubber X Ring Quad O Ring Seals Product Category for seal
- Category: >>>
- Supplier: Xingtai Longcheng Sealing Co. Ltd.
Share on (1601168564838):
Product Overview
Description
Products Description
What Makes X-Ring Seals Better? | ||||||||
1.Twice the Sealing Surface | The multi-sided design provides more sealing surfaces than O-rings. | |||||||
2.Long service life | Because there are multiple sealing points, less extrusion is required to provide an effective seal. Reducing friction and wear will extend the sealing life and achieve better sealing results | |||||||
The “X” profile creates a stable seal that is more resistant to rolling in a groove than an O-Ring when used in a dynamic application. | ||||||||
4.Reduced Leakage | Parting lines of X-Ring seals are located in the valley between the lobes away from the critical sealing surface. | |||||||
5.Better Lubricant Retention | Grooves in the inner and outer diameters of these rings retain lubricant, thereby reducing friction and extending service life. | |||||||
6.Better Seal | The lower separation force and lower operating pressure make it the best choice for reciprocating applications | |||||||

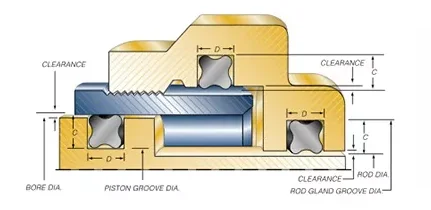

7.Optimal design | X-Rings will fit in standard O-Ring grooves for most applications. | |||||||

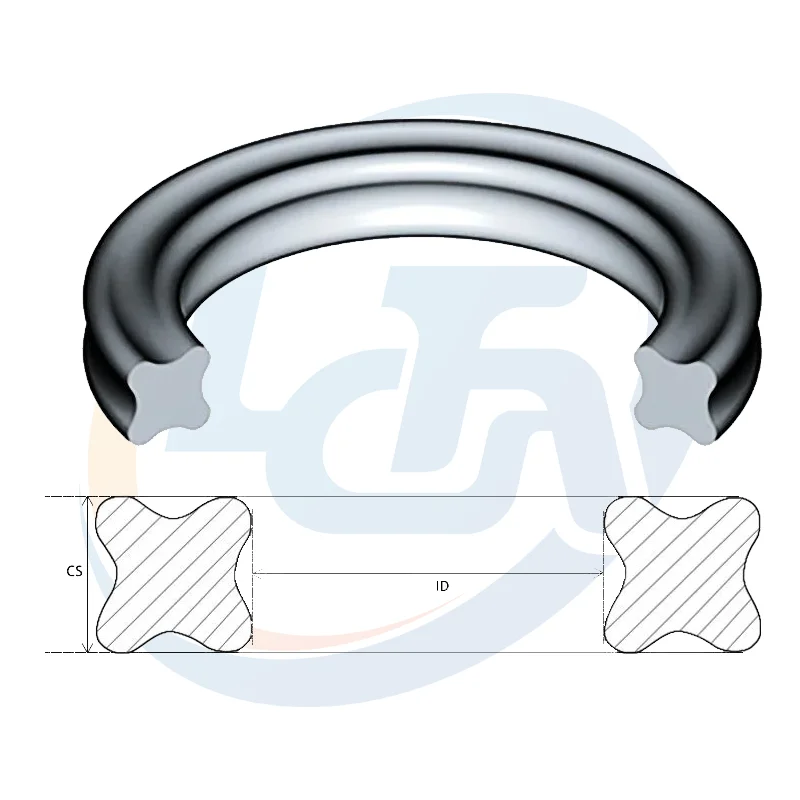

The size of x-ring seal is determined by the inner diameter ID and the wire diameter CS. Quad-ring size calculation: outer diameter = inner diameter + 2 x wire diameter (OD = ID + 2x CS).

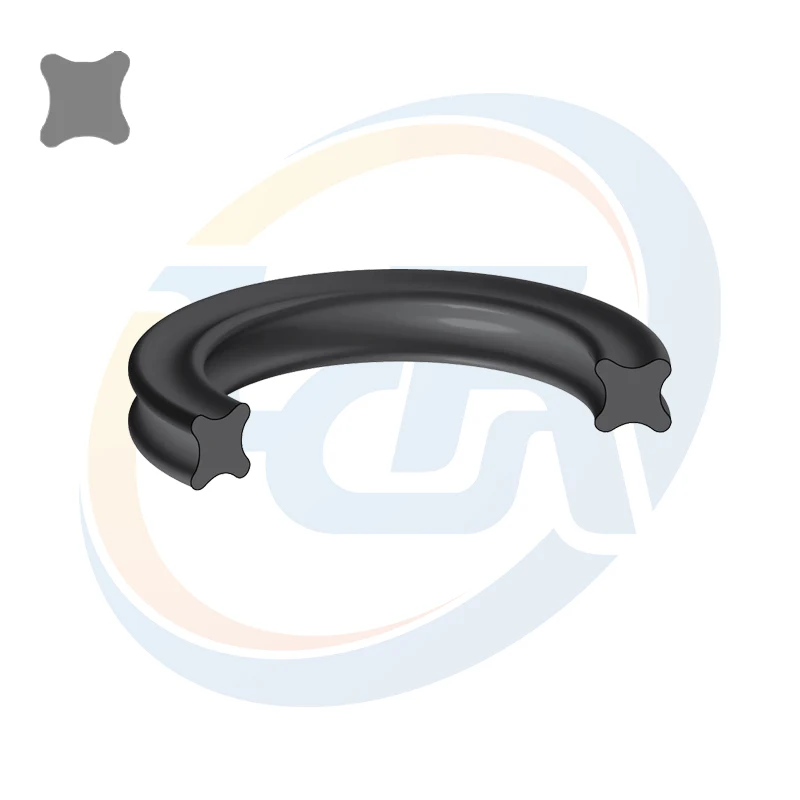

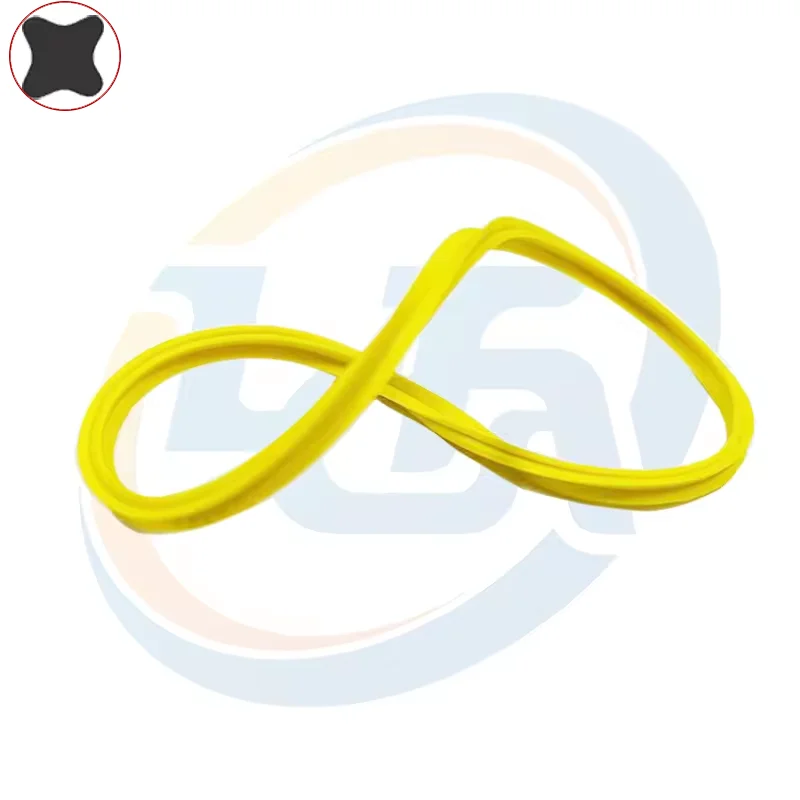

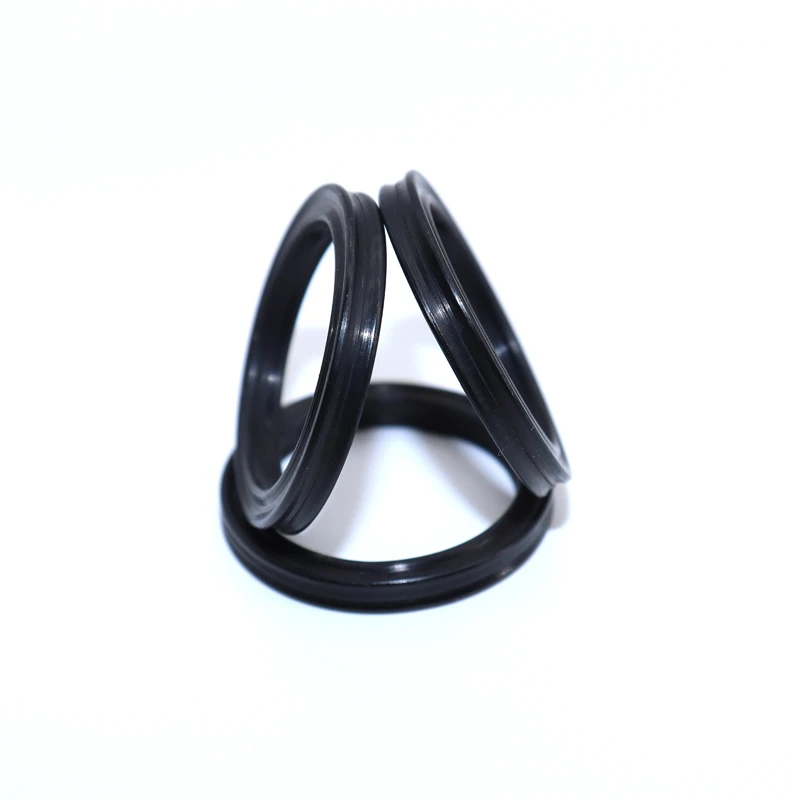

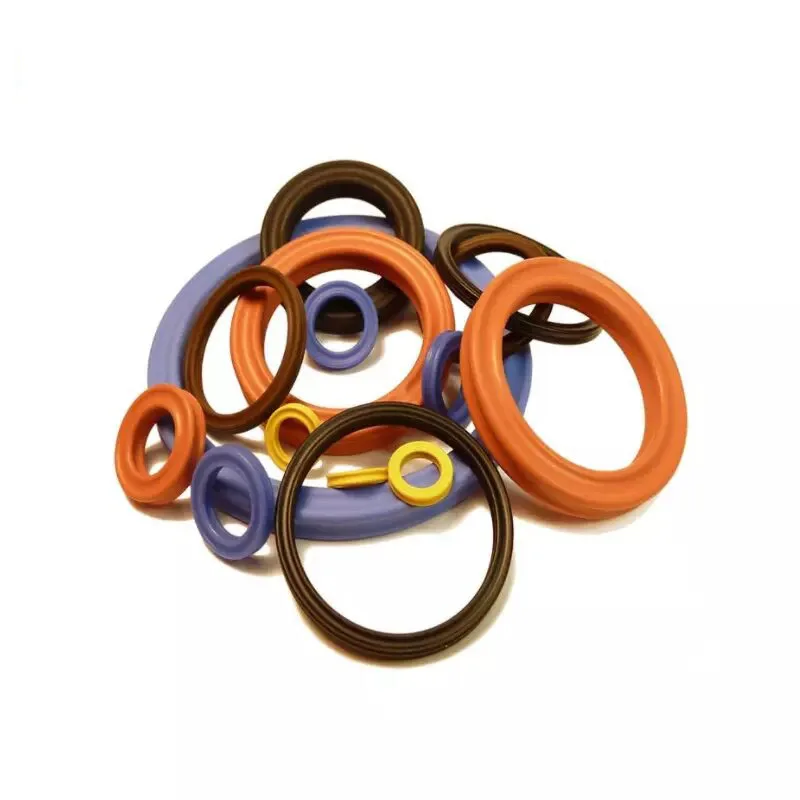

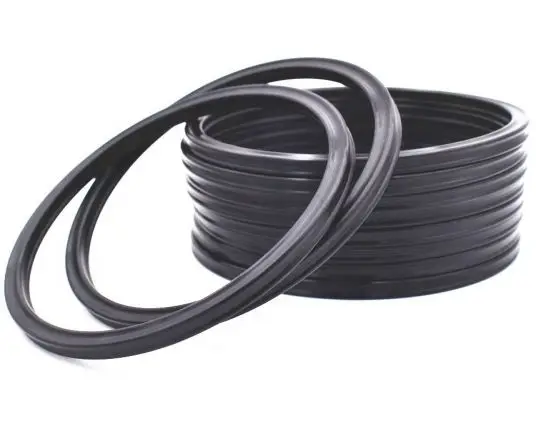

Rubber X Ring/Quad Ring
The X-ring is a sealing ring with a double-lip structure, and its cross section is X-shaped.
The X-ring has a high sealing performance, suitable for high pressure, high temperature or corrosive
Product advantage

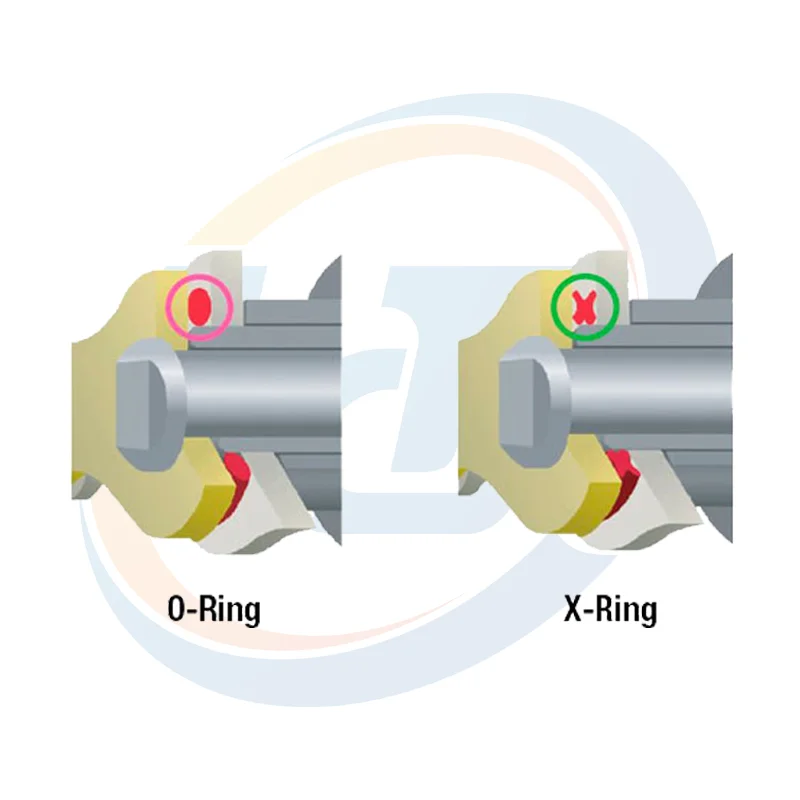

1.Compared with the O-ring, the X-ring has less friction resistance and starting resistance because it forms a lubricating cavity between the sealing lips
2.Because of its flash position in the concave section, so the sealing effect is good
3.Non-circular section to avoid rolling during reciprocating motion
We have more than 8,000 sets of molds,

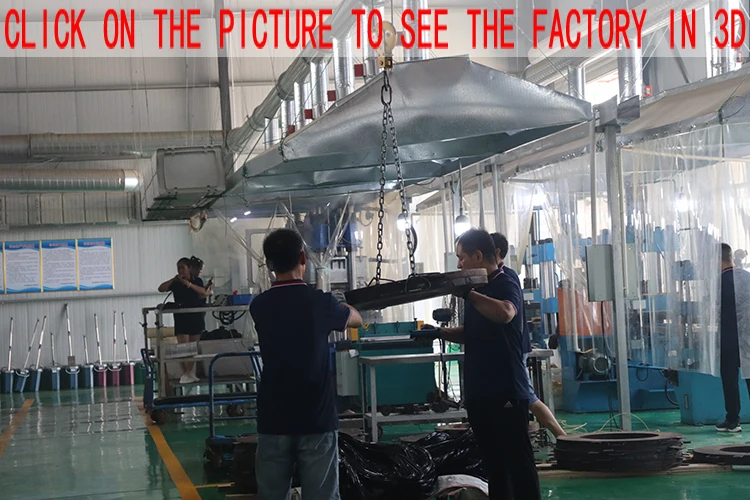

Our factory covers an area of about 5,000 square meters and has 104 employees. We have our own rubber mixing R&D team, mold R&D
team and professional new product R&D team. There are 36 vulcanizing machines in the factory including 14 vacuum vulcanizing
machines and 22 curing presses, specifications of which range from 400 mm to 2,000 mm.
Our factory covers an area of about 5,000 square meters and has 104 employees. We have our own rubber mixing R&D team, mold R&D
team and professional new product R&D team. There are 36 vulcanizing machines in the factory including 14 vacuum vulcanizing
machines and 22 curing presses, specifications of which range from 400 mm to 2,000 mm.
More Products
-----Application-----

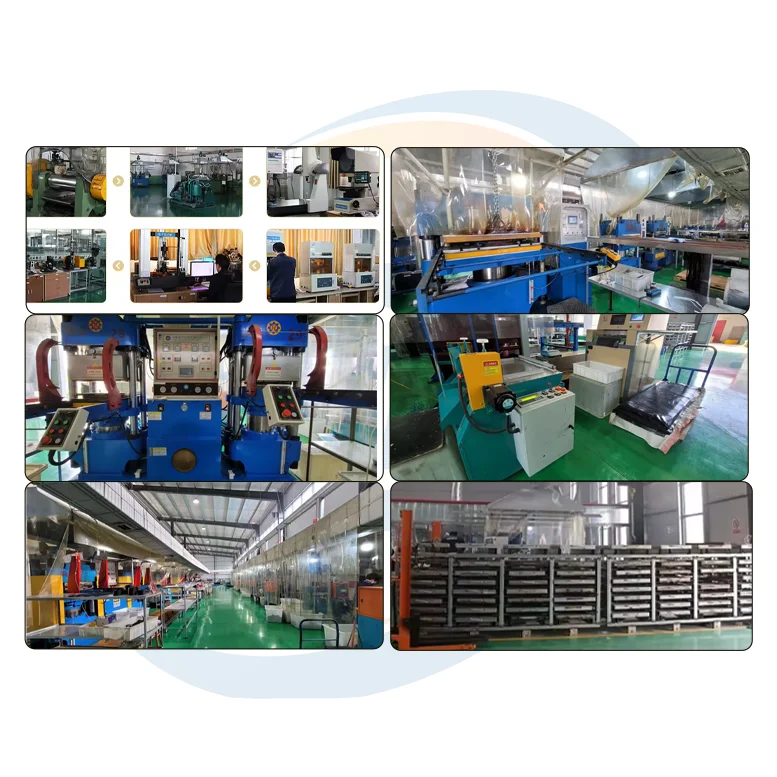

-----The production process-----
Certifications
·multi-channel inspection process to ensure the quality of your products
·support third-party inspections
·return the unqualified goods without reason
About LONGCHENG
Company profile
Xingtai Longcheng Sealing Co., Ltd. was established in 2013, is a leading domestic sealing solutions supplier, covers an area of 12,000 square meters, located in Xingtai, Hebei. Our product range includes O-rings, custom molded rubber parts, PU products and more.Our products have been successfully applied to various industries such as machinery，mining，agriculture, home appliances,automobiles, railways, etc.Packaging&Shipping
FAQ
Q 1. What's the payment term?
A 1: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.
Q 2:Can you supply different color materials?
A 2: Yes, we can produce custom molded rubber and silicone rubber products in different colors, the color code will be required in case of an order.
Q 3: Do you have the products in stock?
A 3: Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order.
Q 4: What is the life expectancy of the rubber seal?
A 4: Product life is contingent upon many factors, including environment, cycles, pressure, etc. Longcheng Rubber cannot predict seal life under all the varying conditions of operation. Accellerated life testing may be performed by customer to determine expected life, but must be conducted in dynamic application.
Q 5：what can you buy from us?
A 5：Mould,O Ring,Non-standard Custom Sealing Ring,Silicone Kitchenware,AutoParts Rubber Parts
Q 6：why should you buy from us not from other suppliers?
A 6：The company specialized research and development,the productionrubber, the silica gel, the fluorine rubber o seal ring. It has 10 CNC machines and 40 vulcanizing machines.Complete product specifications, through the ISO9001 quality system certification.
A 1: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.
Q 2:Can you supply different color materials?
A 2: Yes, we can produce custom molded rubber and silicone rubber products in different colors, the color code will be required in case of an order.
Q 3: Do you have the products in stock?
A 3: Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order.
Q 4: What is the life expectancy of the rubber seal?
A 4: Product life is contingent upon many factors, including environment, cycles, pressure, etc. Longcheng Rubber cannot predict seal life under all the varying conditions of operation. Accellerated life testing may be performed by customer to determine expected life, but must be conducted in dynamic application.
Q 5：what can you buy from us?
A 5：Mould,O Ring,Non-standard Custom Sealing Ring,Silicone Kitchenware,AutoParts Rubber Parts
Q 6：why should you buy from us not from other suppliers?
A 6：The company specialized research and development,the productionrubber, the silica gel, the fluorine rubber o seal ring. It has 10 CNC machines and 40 vulcanizing machines.Complete product specifications, through the ISO9001 quality system certification.
