High Efficiency Stone Machinery 4 Axis Bridge Saw Stone Cutting Machine for Granite Marble Slab bridge saw cutting machine
- Category: >>>
- Supplier: Jinan Ganger Cnc Technology Co. Ltd.Jinan Ltd.
Share on (1601174099489):
Product Overview
Description
Product details

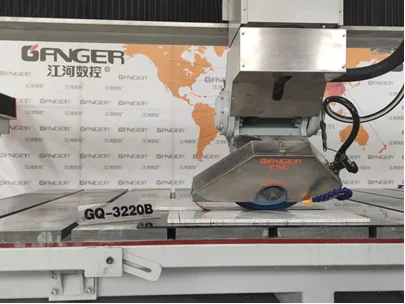

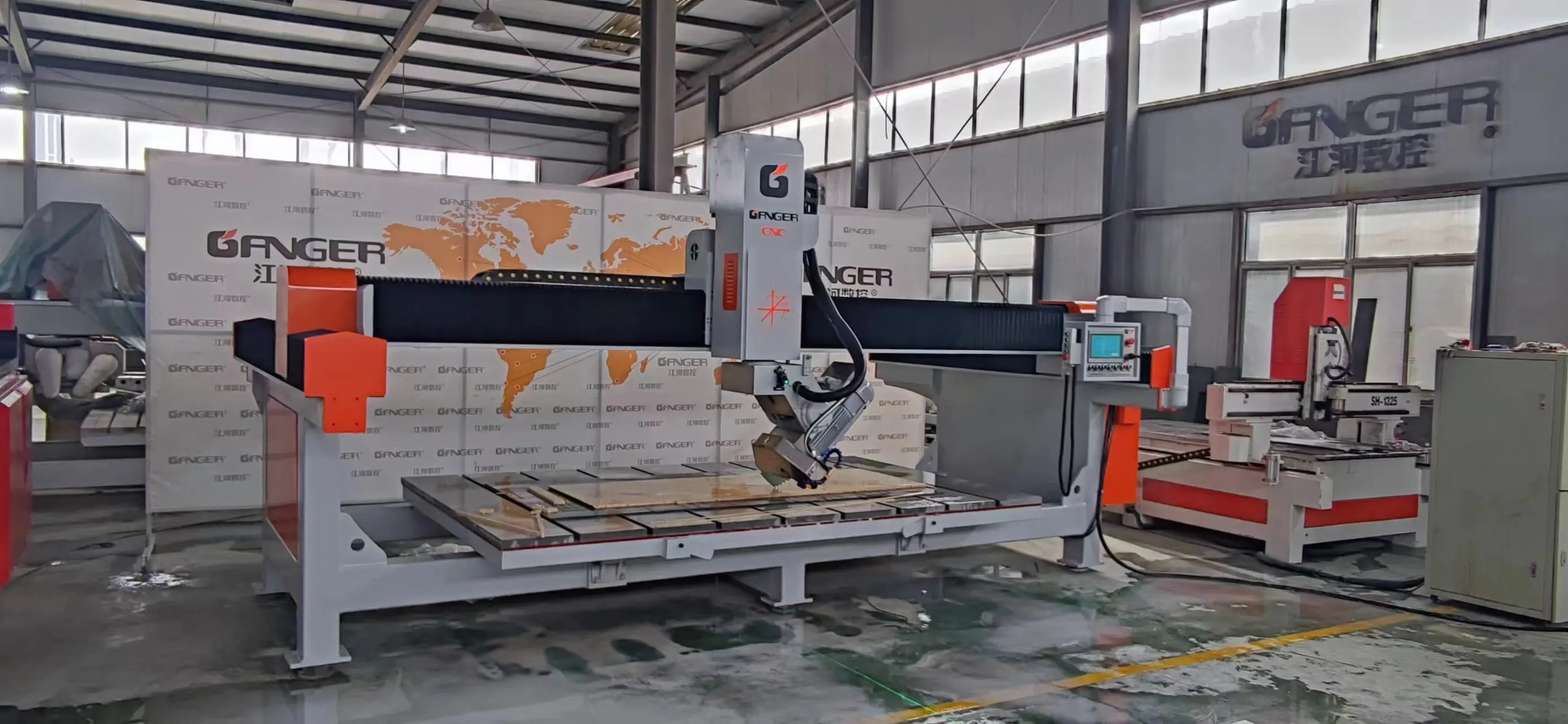

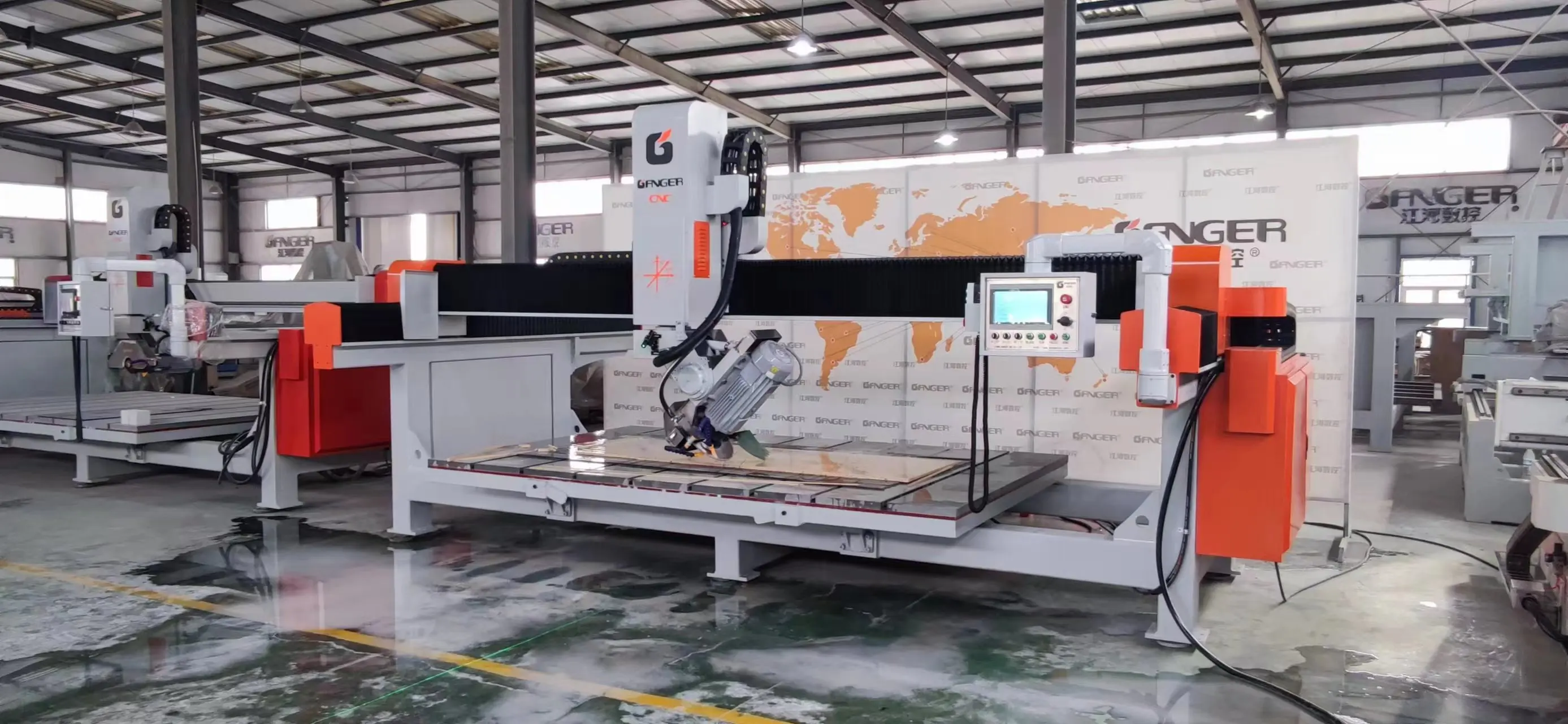

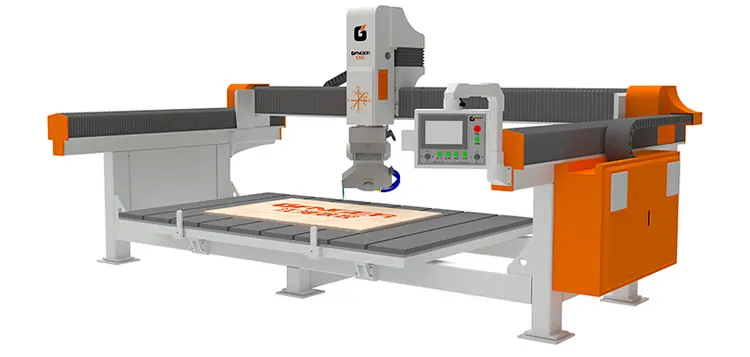

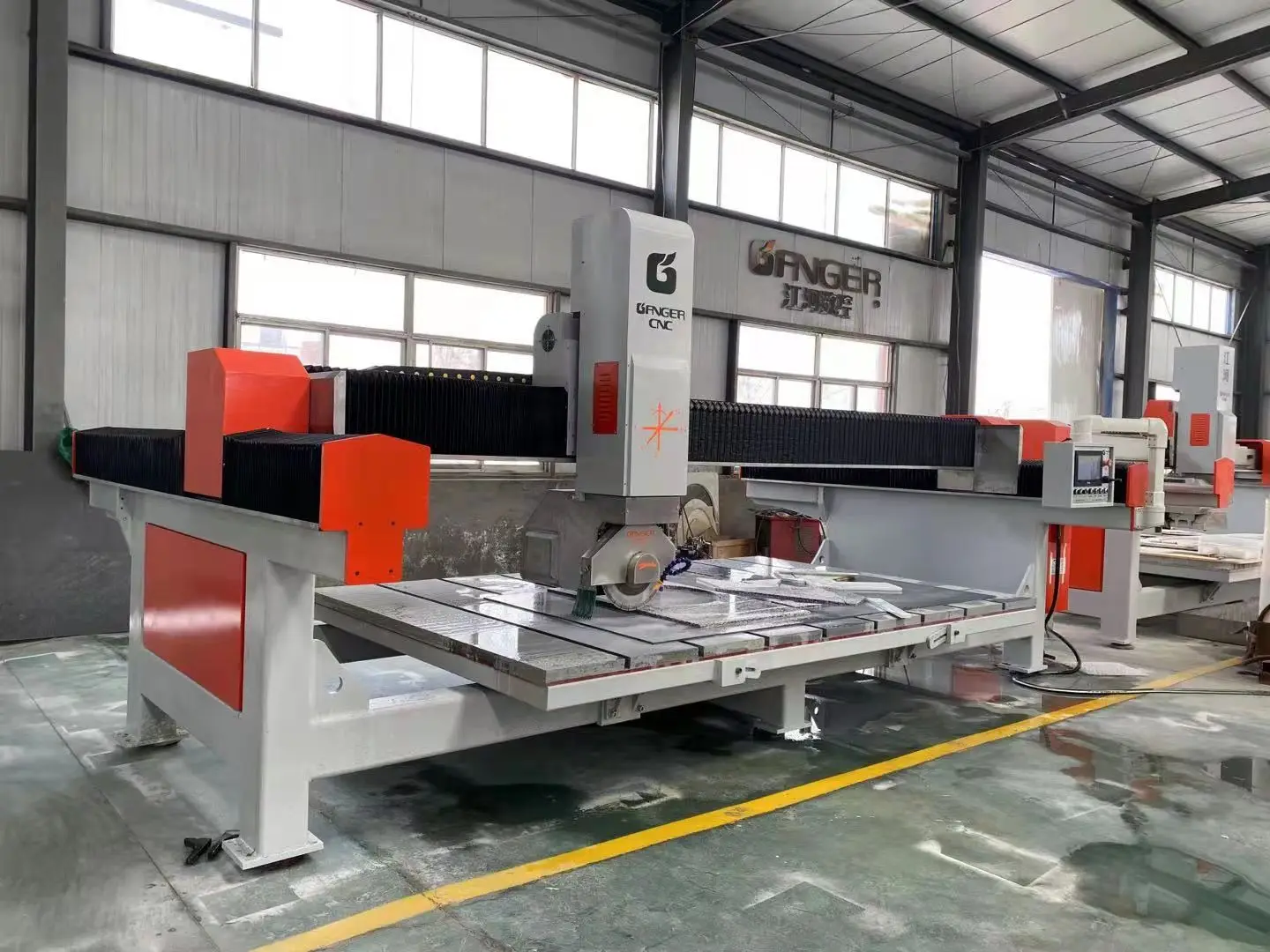

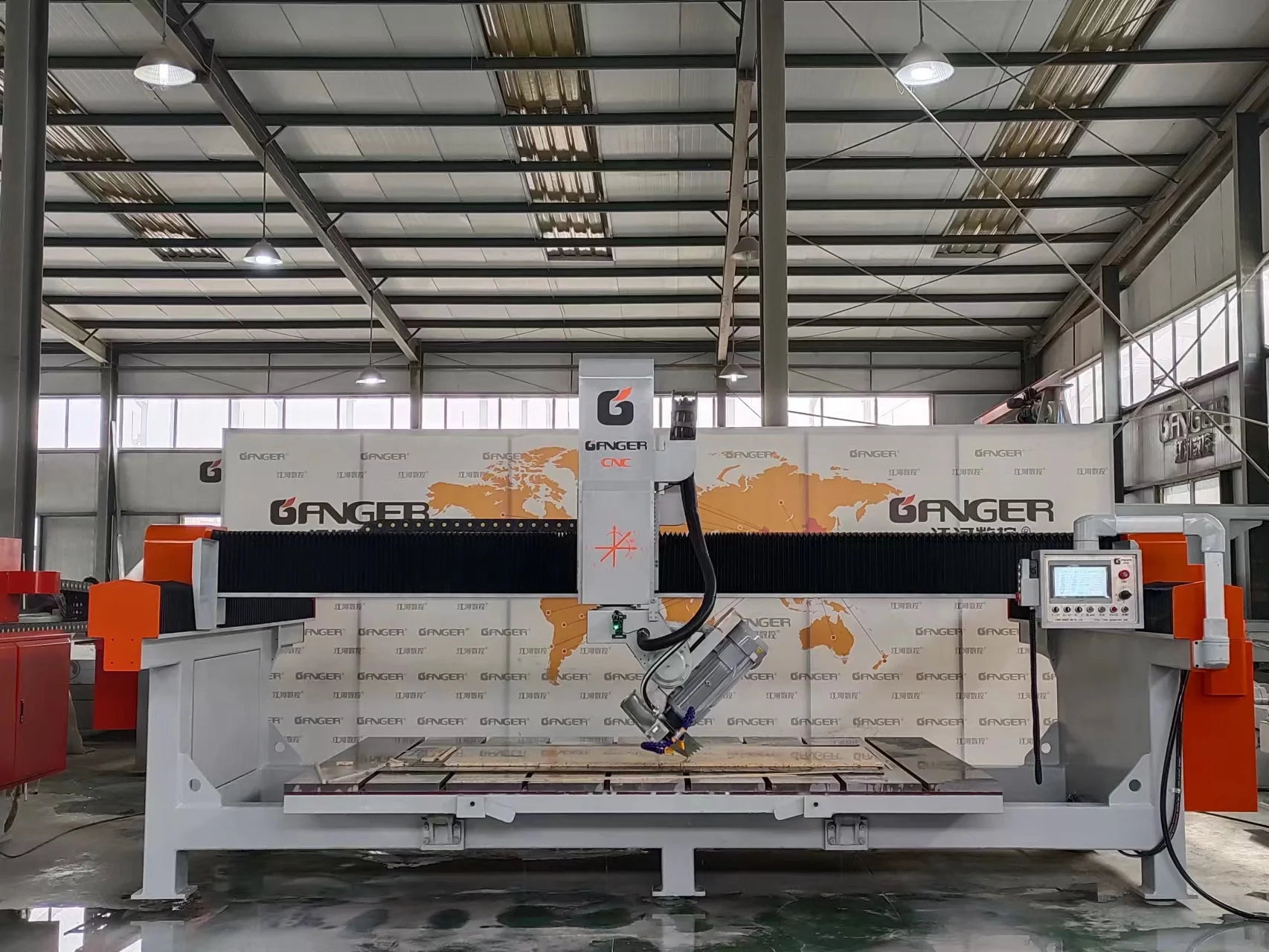

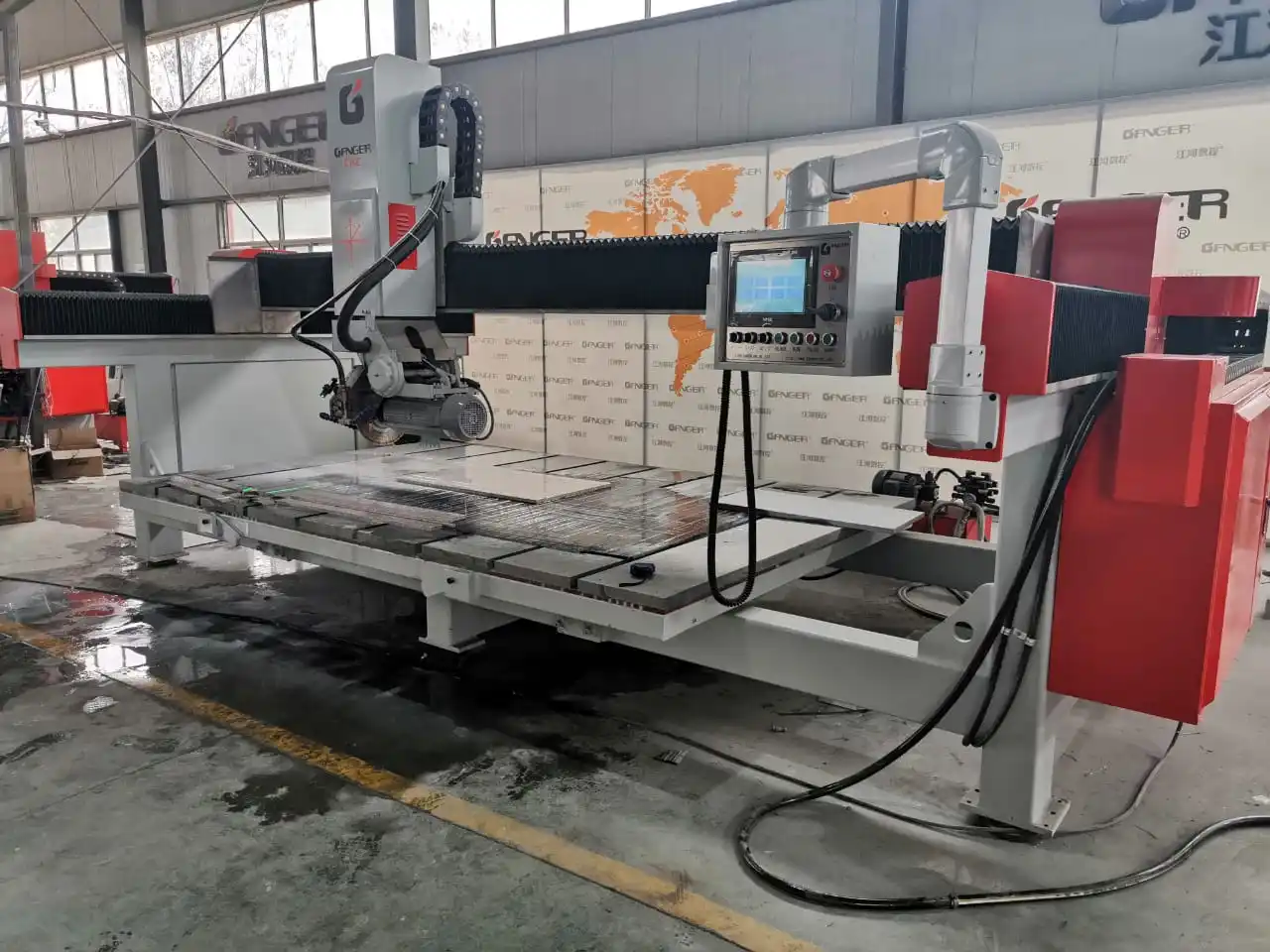

Middle Bridge Saw Machines Stone Cutting Machines
Applicable Industry & Material:
Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.
Technical parameters
Model | GQ-3220B | ||||||
X/Y/Z Axis working size | 3200*2000*200mm | ||||||
Diameter of blade | 350mm | ||||||
Working table size | 3200x2000mm | ||||||
Rotation speed of blade | 3000/6000rpm (optional, adjustable) | ||||||
Blade Motor power | 11KW | ||||||
Total power | 25KW | ||||||
Miter | 45° | ||||||
C axis rotation angle | 0°-135° | ||||||
Table Tilting angle | 85° | ||||||
Control system | GANGER | ||||||
Gross weight | 4500KGS | ||||||

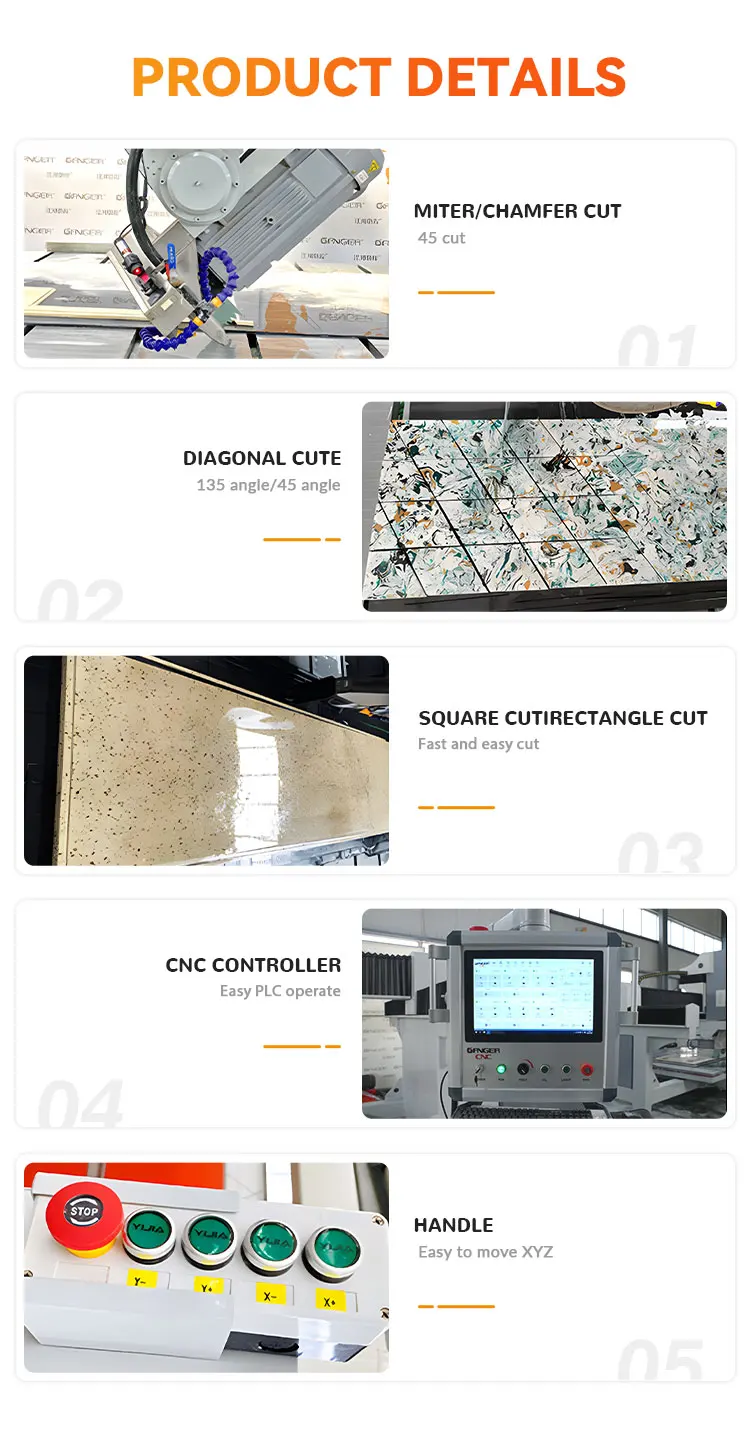

Machine Features:

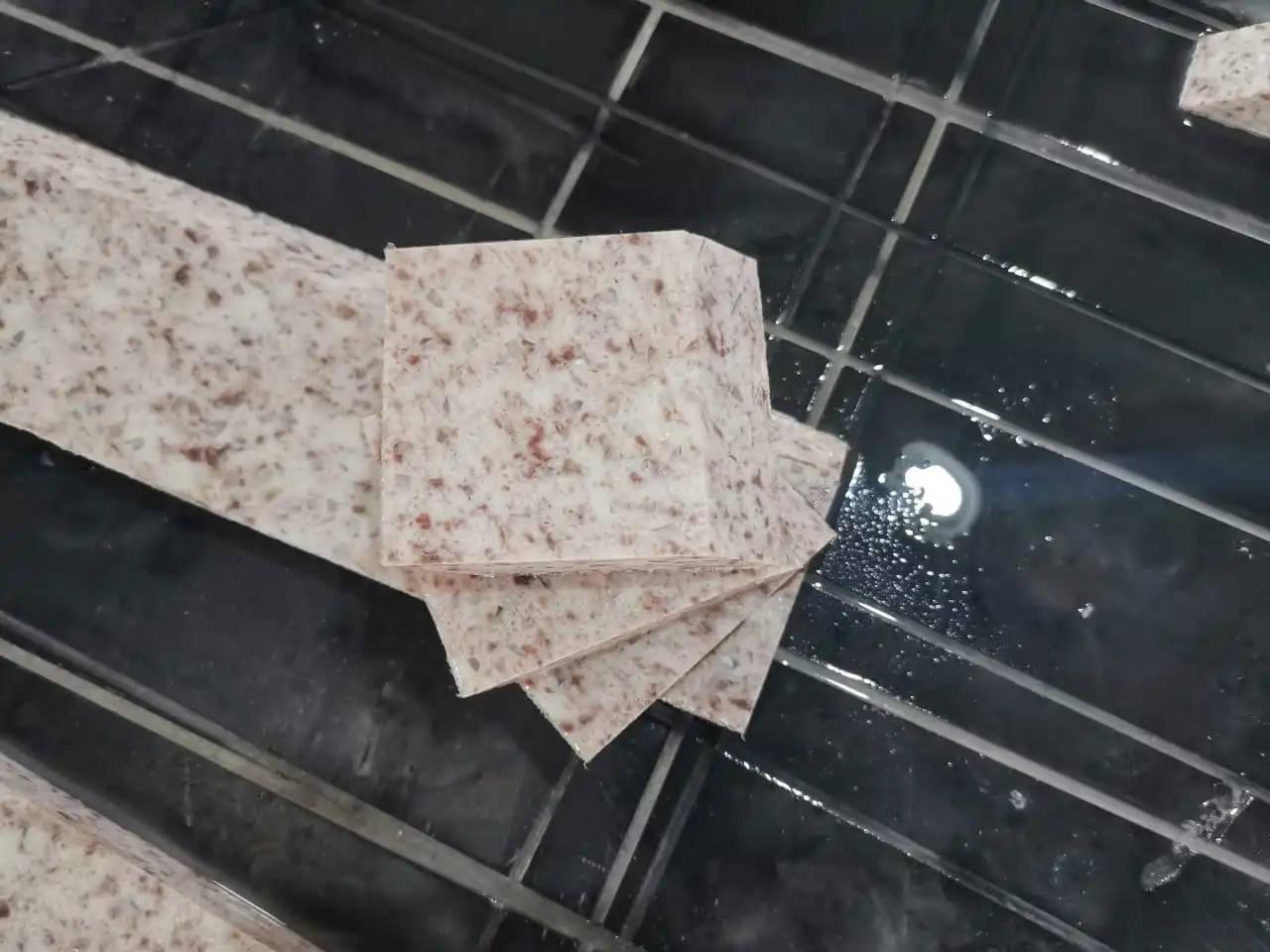

1.XYZC four axis, C axis 0 to 135 degree automatic rotation,horizontal, vertical and diamond cutting, and miter 45° cutting.

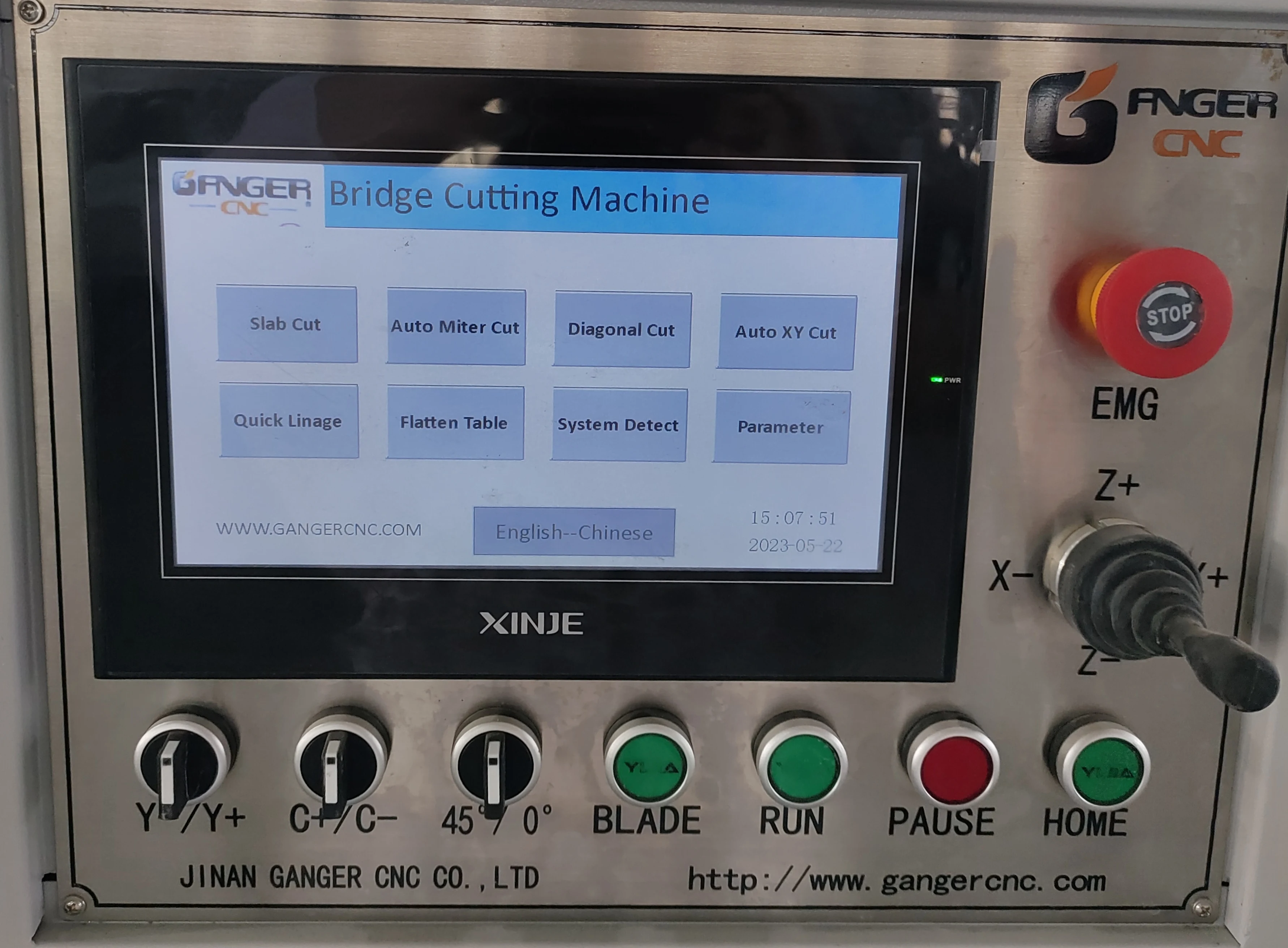

2.PLC control system, input operating parameters on the control panel, and the cut-
ting process is automated and programmed.
3.By infrared ray to confirm the position of the workpiece.
4.Table tilts 85 degree to load slabs easily.
5.Whole steel structure machine body ensuring high stability.
6.Running stability, high precision, high speed.
7.Compact and rational design, small size machine, convenient to handle and move.
2.PLC control system, input operating parameters on the control panel, and the cut-
ting process is automated and programmed.
3.By infrared ray to confirm the position of the workpiece.
4.Table tilts 85 degree to load slabs easily.
5.Whole steel structure machine body ensuring high stability.
6.Running stability, high precision, high speed.
7.Compact and rational design, small size machine, convenient to handle and move.
