150 wheeled excavator wholesale for sale

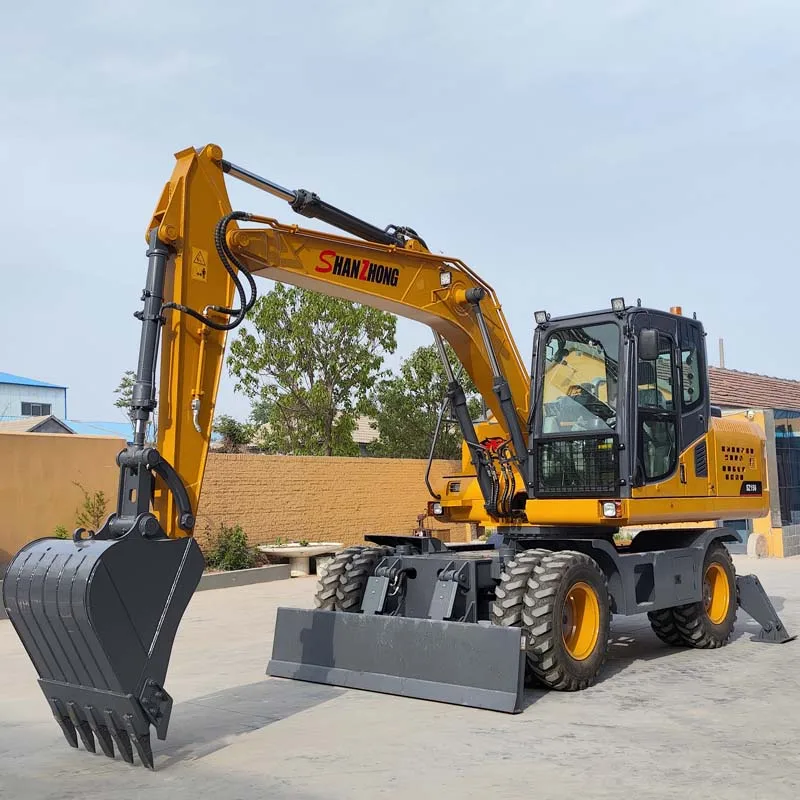

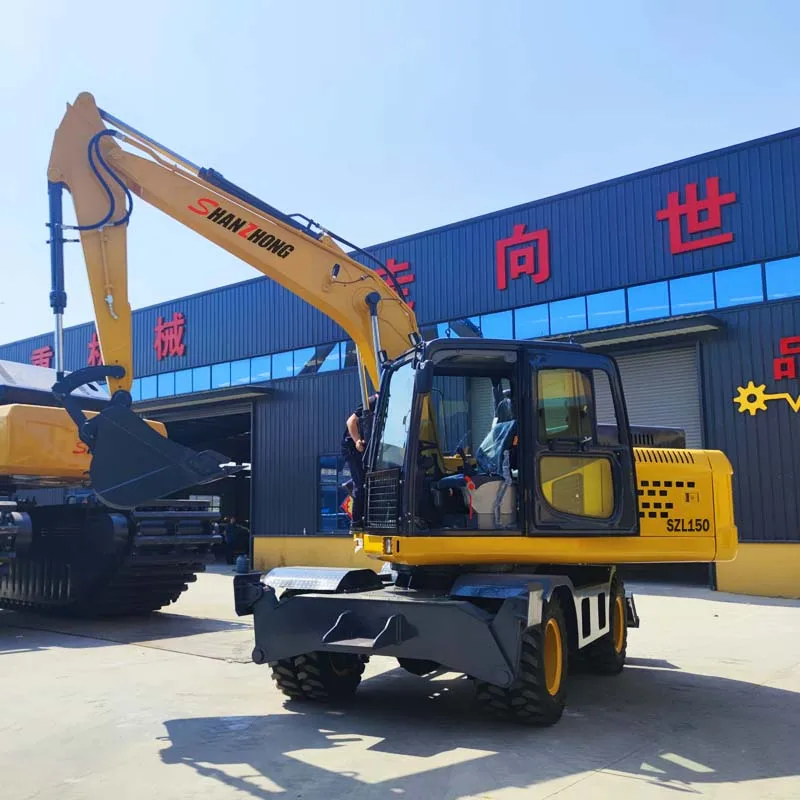

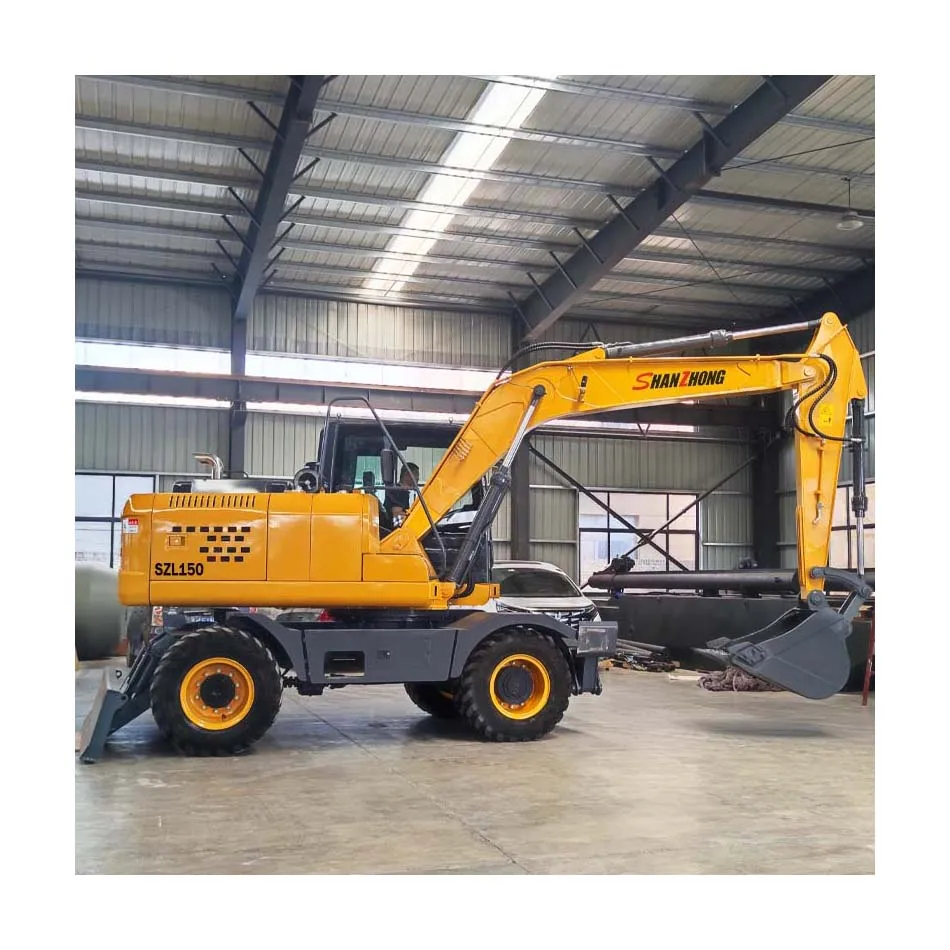

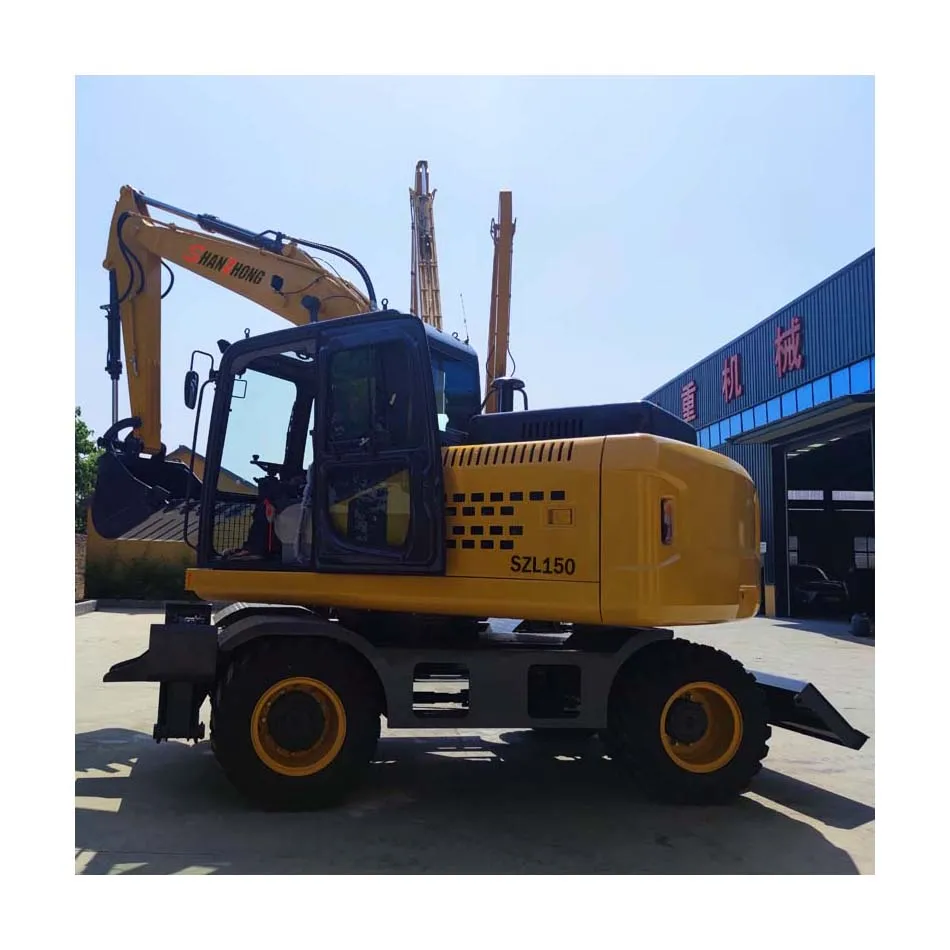

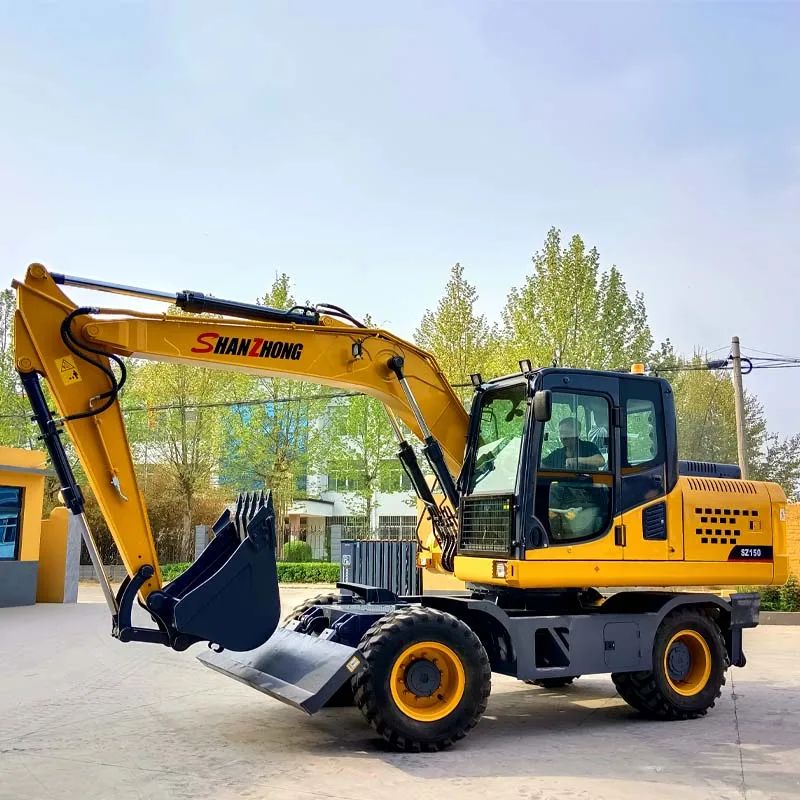

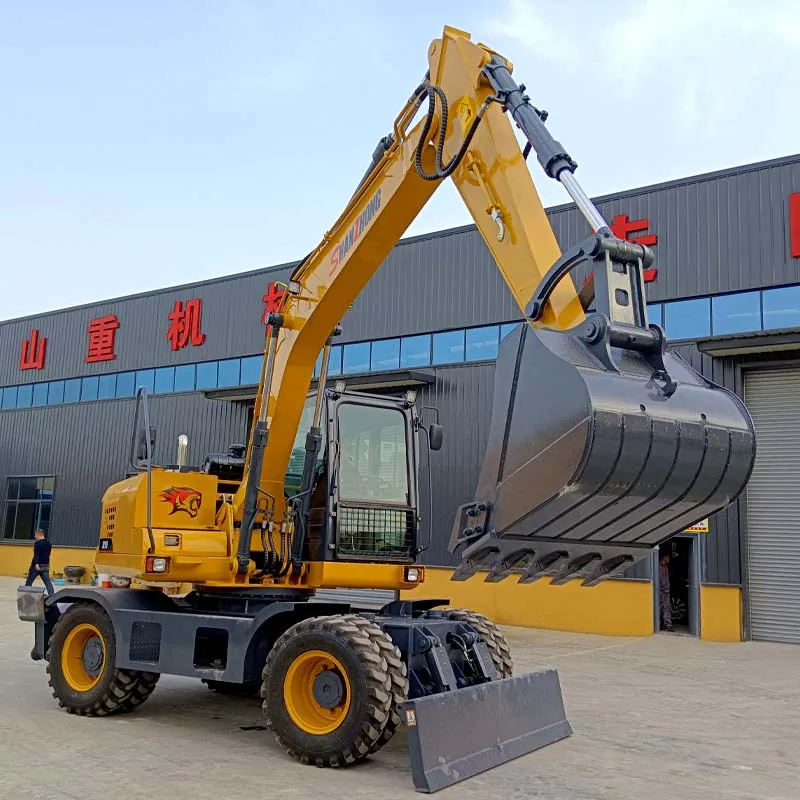

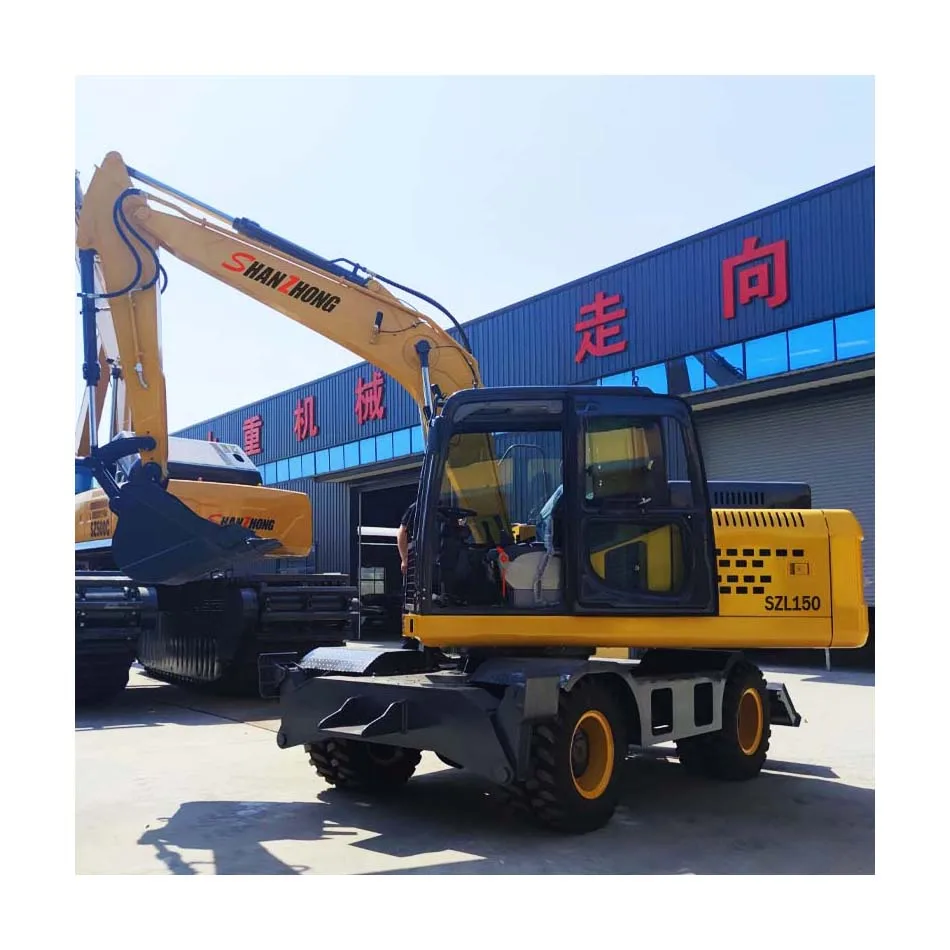

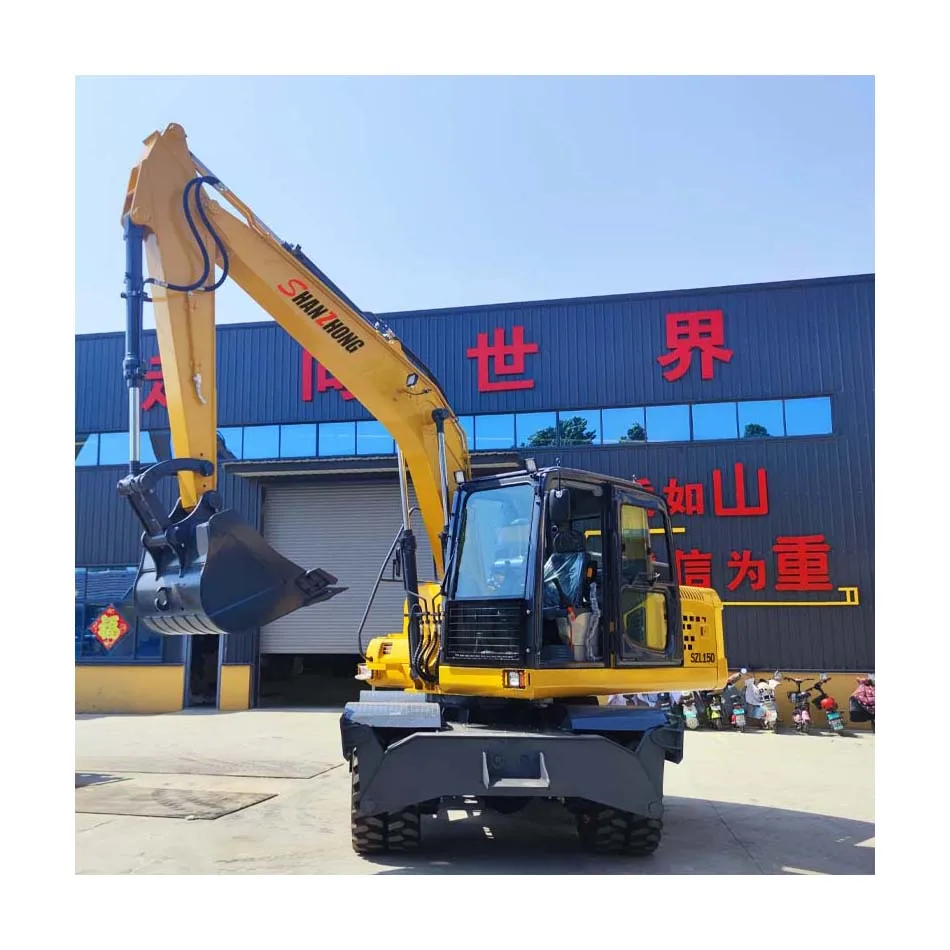

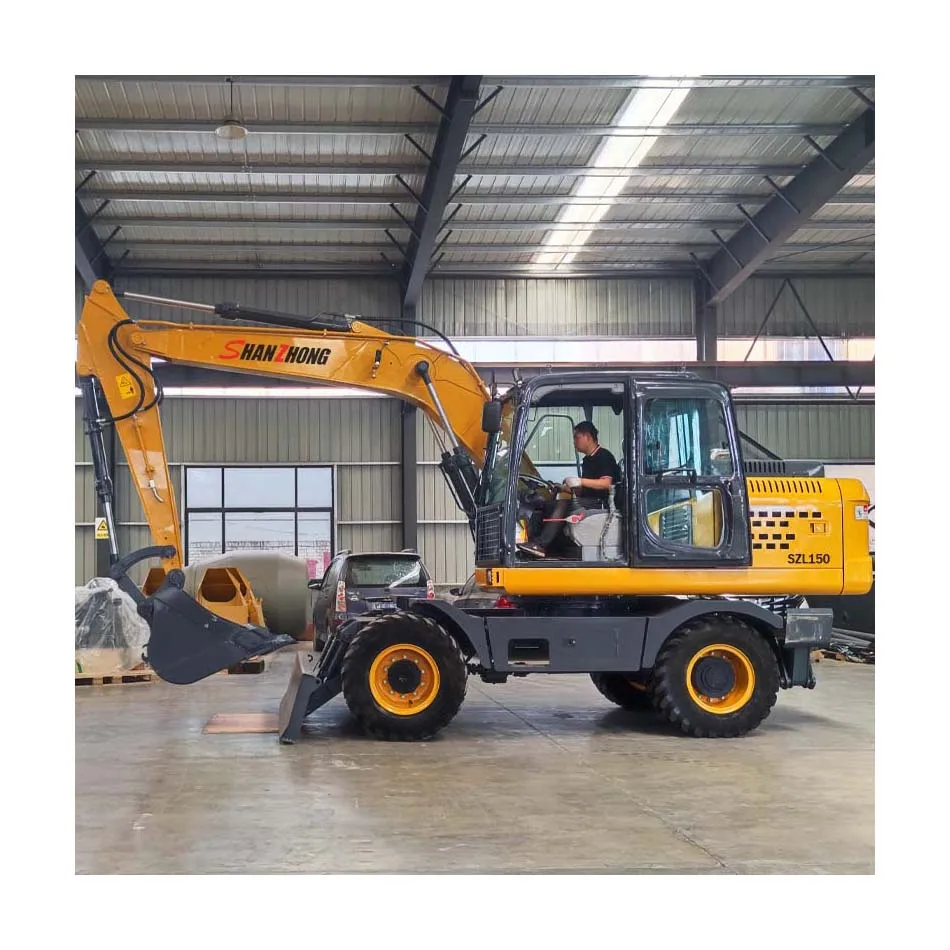

Shanzhong SZL150 Medium Excavator Earthmoving

Benefits & features
1:SZL150 wheel excavator of Shanzhong machinery adopts well-known Cummins efficient environmental protection engine and imported hydraulic system
2:The high-efficiency and environment-friendly engine is matched with the hydraulic system of the whole machine, which makes the excavator flexible, efficient, stable and durable
3.Shanzhong SZL150 uses high-efficiency hydraulic system to intelligently match with axle gearbox and Ensure the random switching between the working state and walking state of the excavator




Product Description
This small hydraulic bucket wheeled long boom excavator long reach for sale is designed for small works, small and middle projects, in garden, farmland, municipal works,vegetable greenhouse. It is with brand engine and imported pump and valve,easy to maintain.
Product Parameters
| Basic parameter | |||
| Brand: | shanzhong | Model: | SZL150 |
| Engine Model: | 4BTAA3.9-C125 | Engine Power: | 93kw/2200rpm |
| Weight: | 14000kg | Bucket Capacity: | 0.60m³ |
| Size | |||
| Shipping Length: | 7350mm | Boom Length: | 4500mm |
| Shipping Height: | 3150mm | Arm Length: | 2500mm |
| Overall Width: | 2550mm | Blade Height: | 560mm |
| Turntable Width: | 2430mm | Blade Width: | 2600mm |
| Wheel Base: | 2650mm | Blade Lifting Height: | 420mm |
| Wheel Tread: | 1970mm | Blade Support Height: | 110mm |
| Radius, Swing center to real end: | 2400mm | Ground Clearance of Outrigger: | 310mm |
| Counterweight Ground Clearance: | 1070mm | Min. Ground Clearance: | 250mm |
| Hydraulic Oil Capacity: | 180L | Fuel Oil Capacity: | 220L |
| Working Range | |||
| Max. Digging Radius: | 8360mm | Max. Digging Height: | 8950mm |
| Max. Digging Depth: | 5250mm | Max. Dumping Height: | 6330mm |
| Hydraulic System Pressure: | 31.5MPa | Hydraulic System Flow: | 2*126L+53/min |
| Bucket Digging Force: | 115kn | Arm Digging Force: | 98kn |
| Rotation Speed: | 13-14r/min | Max. Speed: | 28km/h |
| Gradeability: | ≥60% | ||

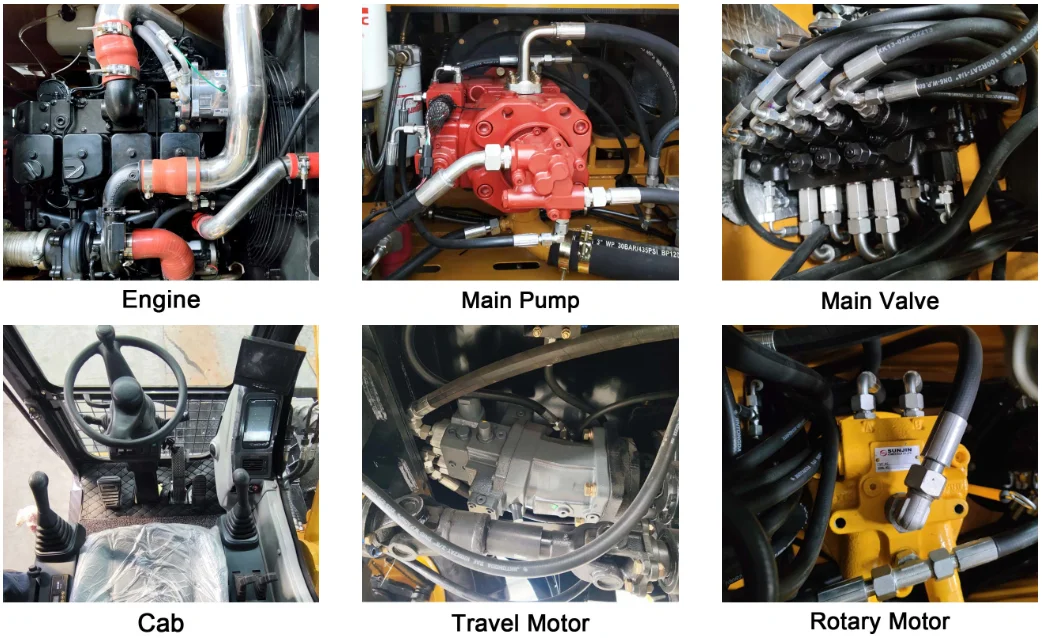

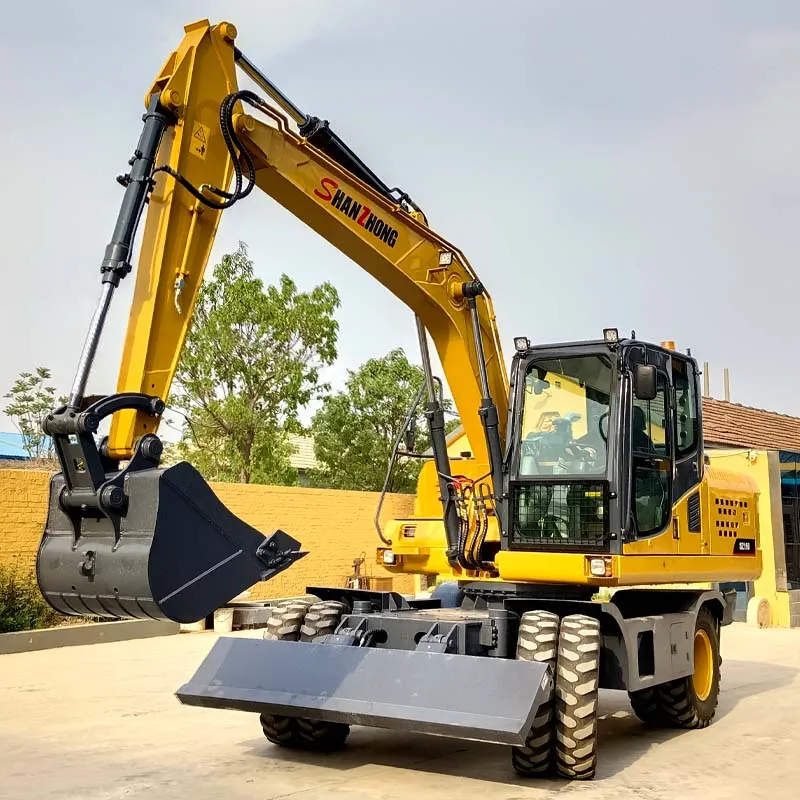

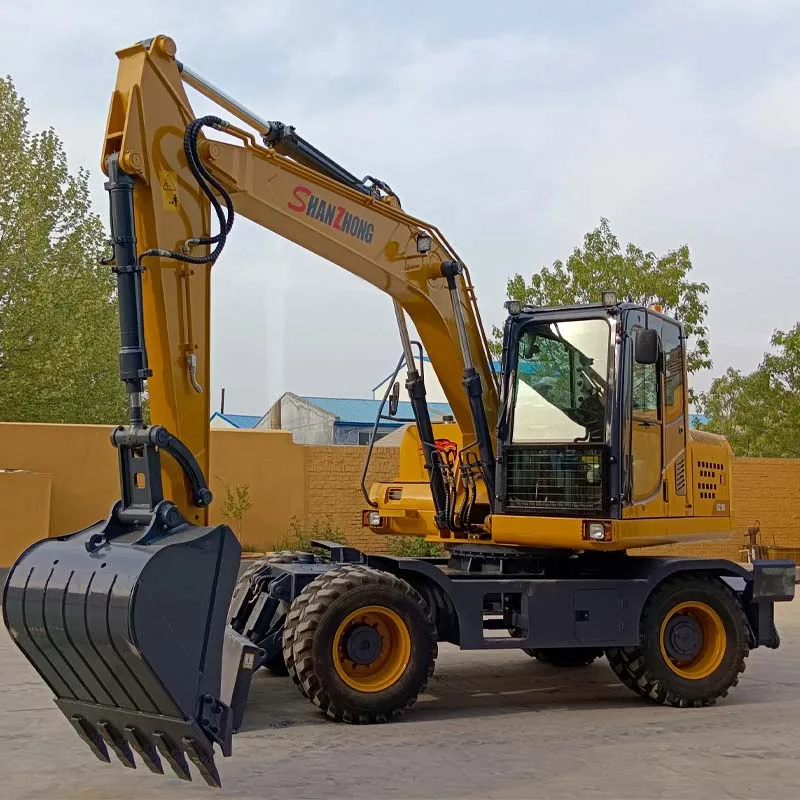

Detailed Images

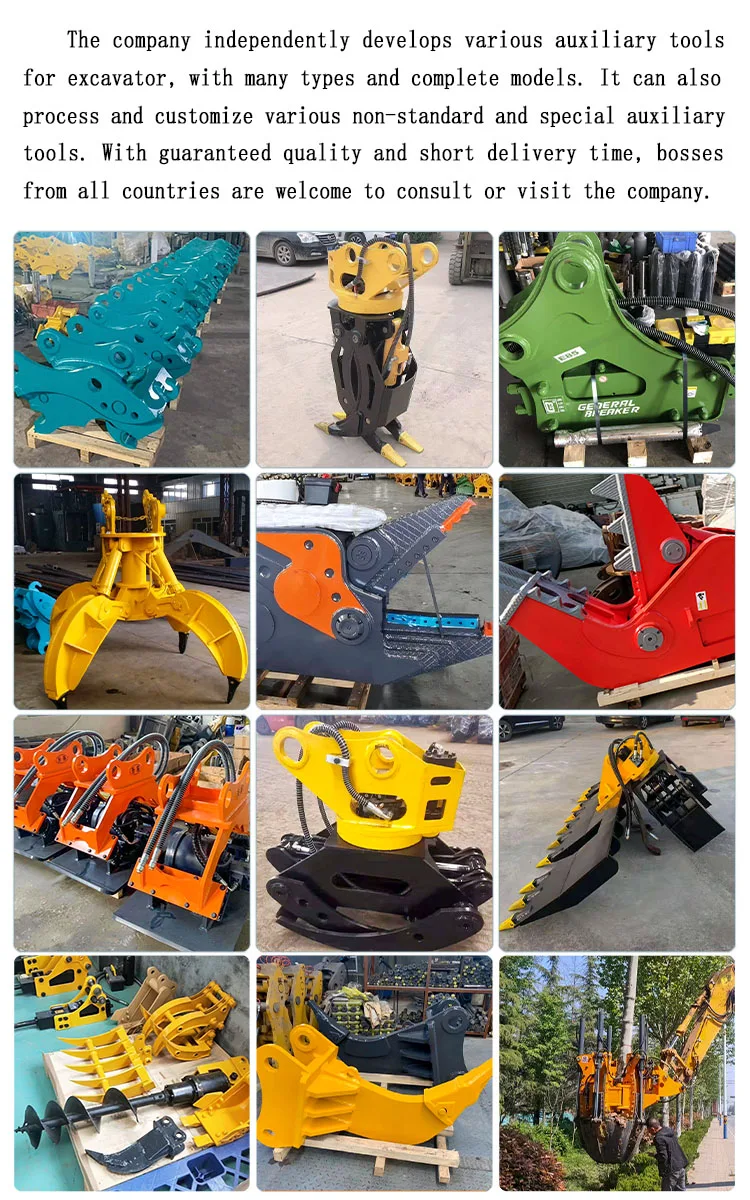

Attachments

Company Information
Yucheng Shanzhong Machinery co.,ltd is a professional manufacturer and trading enterprise,specialized in the export of wheel excavator,crawler excavator,mini excavator,wheel loader,backhoe loader,sugarcane grabber,steel grabber,wood grabber and all kinds of atttachments.
We have 15 years of experiences,Our products have been exported to more than 30 countries and regions.Including:Russia and Central Asia,Afria,Southeast and South Asia,South America and so on.
Our company is located in Shandong Province which is a financial, trade and shipping center in china. All these give our company an obvious superiority in exporting, transportation and material flow.Professional and constantly innovation,professional producing line,every serious careful assembly workers,we ensure every machine that we produce has very reliable quality and stability.
We sincerely hope to work with more customers and friends from all over the world in different cooperation ways,we hope to build believe and win-win cooperation relationship with you.


Clients visit
Our small hydraulic bucket wheeled long boom excavator long reach for sale are exported to Southeast Asia, North America, Arabia, the Middle East and so on. The company often organizes to participate in the domestic and foreign exhibitions.We also welcome domestic and foreign customers to visit Our factory.


Packaging & Shipping

After-Sales Service

FAQ
Q: How can I trust you, and what can you offer me?
A: In this case, we would like to invite you over to visit our factory.If neceassary we can go to your country for a face to face negotiation. Our ultimate goal is to establish a long term cooperations in the trade of machinery products, but if you like a quick deal is also acceptable. We will do our best to reach your target price.
Q: How about your product quality?
A: All our products are from the original manufacturers and the quality is 100% guaranteed.
Q: Can you supply the spare parts or the loader attachment?
A: Yes, we can. Any of the machine part and attachment can be provided, and all of them are directly from factory.
Q: How about your warranty item?
A: We can support email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.
Q:Can I be your agent in my country ?
A: It's OK if the order quantity is appropriate. We supply excavators to many domestic and foreign trade company. We looks forward to long-term cooperation.
