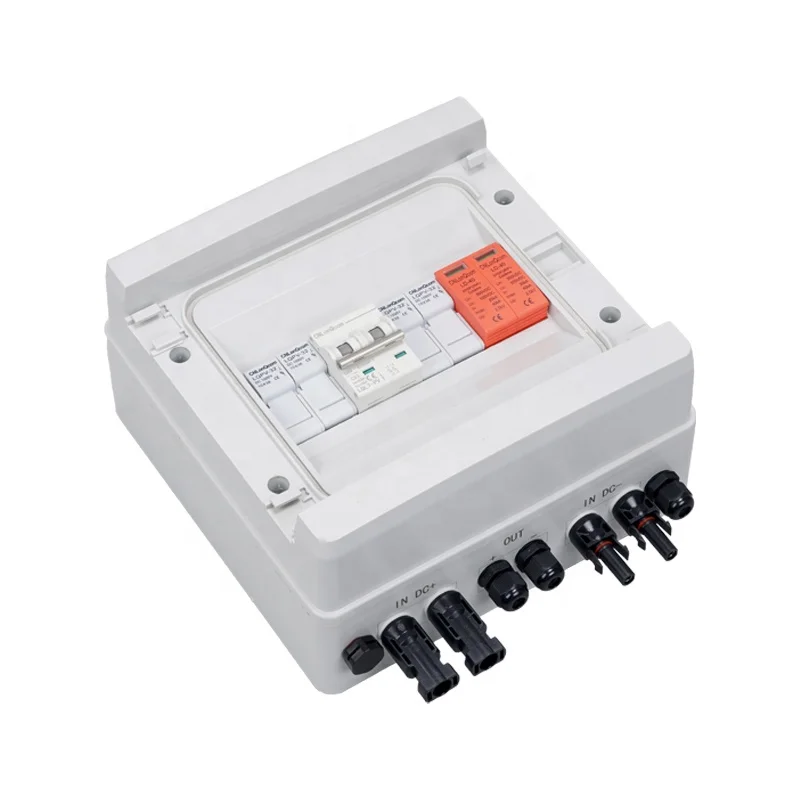

CNLonQcom 2 1 500V 32A 2 In 1 Out Solar Plastic IP65 Waterproof Box | Durable ABS Material 2 Strings Combiner Box
- Category: >>>
- Supplier: Wenzhou Longqi New Energy Technology Co. Ltd.
Share on (1601180934890):
Product Overview
Description
Specification
Product Name | Solar Combiner Box |
Product Model | LQX-DC500V2-1 |
Max DC System Voltage | 500VDC |
Maximum input current per string | 15A |
Max Input Strings | 2 |
Output String Count | 1 |
Max Output Switch Current | 32A |
Lightning Protection | Yes |
Relative Humidity | 0-95%, Non-Condensing |
Protection Rating | IP65 |
Material | ABS+PC |
Installation | Wall-Mounted |
Operating Temperature | -25°C to +55°C |
Altitude | Up to 2km |
Test Category | II |
Product Description
China Combiner Box Manufacturers, Suppliers, Factory

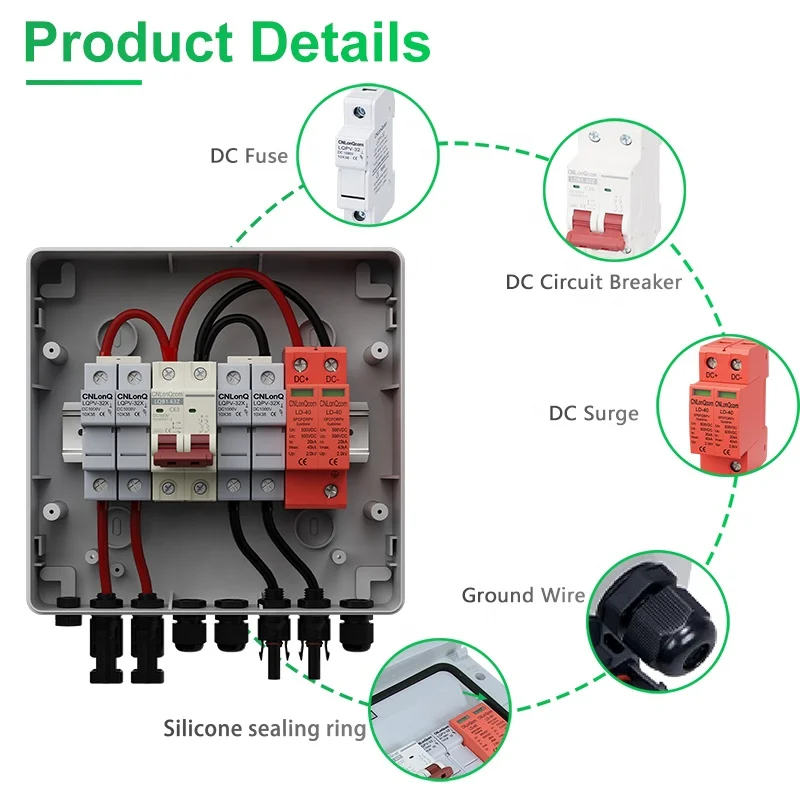

● High Reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
● Strong Adaptability
IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.

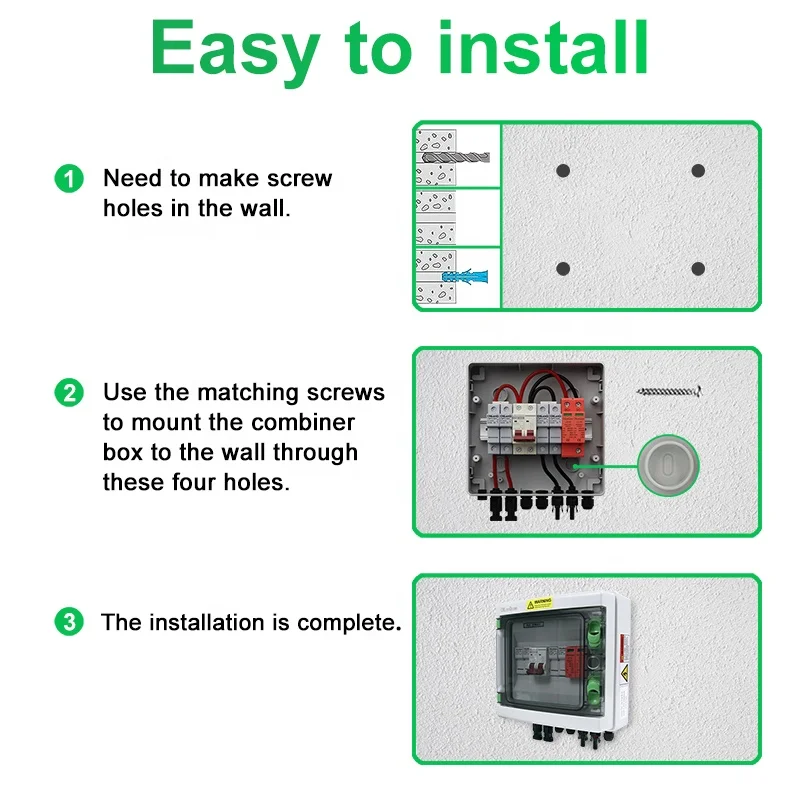

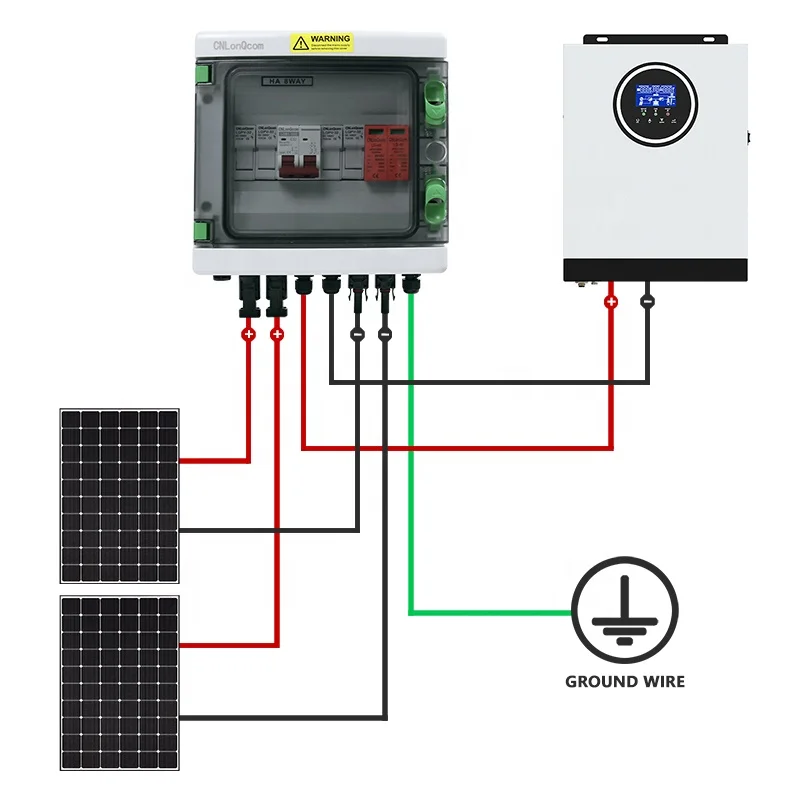

The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.
● Flexible Configuration
Used for single crystal silicon solar modules, poly crystalline silicon solar modules, thin film solar modules.
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
● Strong Adaptability
IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.
● Flexible Configuration
Used for single crystal silicon solar modules, poly crystalline silicon solar modules, thin film solar modules.
