Efficient 5 axis bridge saw stone cutting machine automatic 45 degree marble tile cutting machine for construction industry
- Category: >>>
- Supplier: Jinan Blue Elephant Cnc Machinery Co. Ltd.
Share on (1601180976800):
Product Overview
Description
Product Description
Efficient 5 axis bridge saw stone cutting machine automatic 45 degree marble tile cutting machine for construction industry
Processing
1. It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation. 2. This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.
3. It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs.
4. The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.

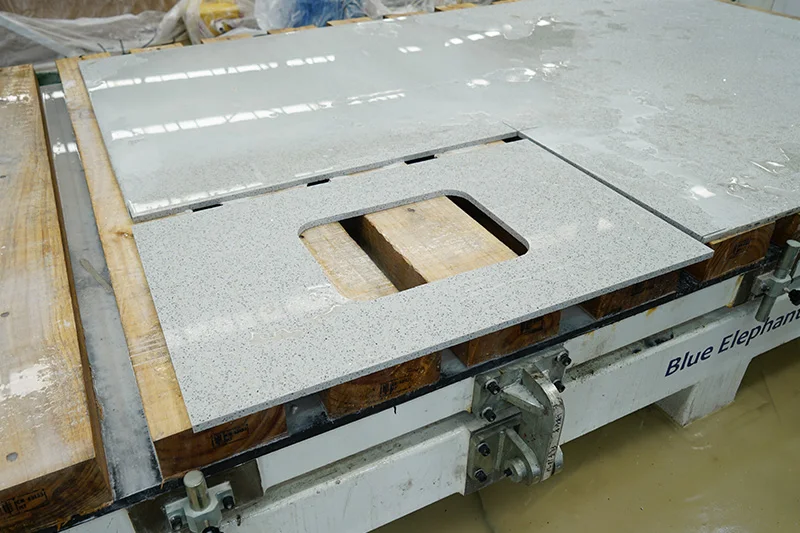

5. This bridge saw is ideal for cutting slabs of quartz, marble, granite and stone.
Technical Parameters
Maximum working size | X Axis: 3200mm Y Axis: 2000mm Z Axis: 400mm |
Maximum working size | C Axis: ±360 degree |
Maximum working size | A axis: 0-90 degree |
X,Y, Z Structure | Taiwan φ30mm linear guide and rails; Z axis Taiwan TBI ball screw (Model 3210 ), Screw lead 10mm, more precision and stable |
Control system | Blue Elephant customized system (built-in CAM software) |
Saw | Dimension 450mm Max. cutting thickness 100mm 11KW motor, Rated: 3000r/min |
Reducer | Japan Shimpo reducer |
Motor and driver | X Y and Z axis 1300W absolute servo motor, Z axis with brake A and C axis 1000W absolute servo motor |
Working Voltage | AC380V, 3phase, 50HZ |
Turning angle | 0-80° |
Maximum Turning Weight | 800KGS |
Command | G code |

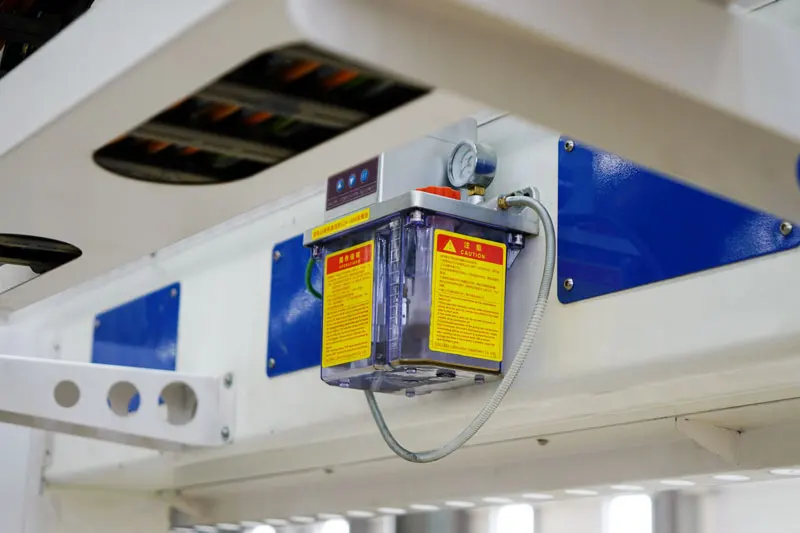

Lubrication system | Automatic oil lubrication system |
Overall Dimension | 5.85x4.5x3.3m |
Gross weight | 5500kgs |
Details Images

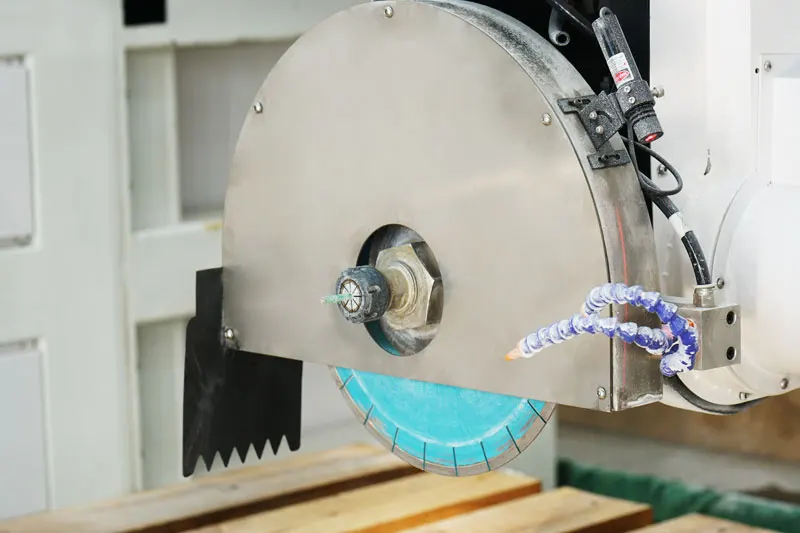

5 axis spindle
Higher efficiency and more time saving
ElectronicComponents
Using the standard components with CE certification, such as Germany Schneider company.

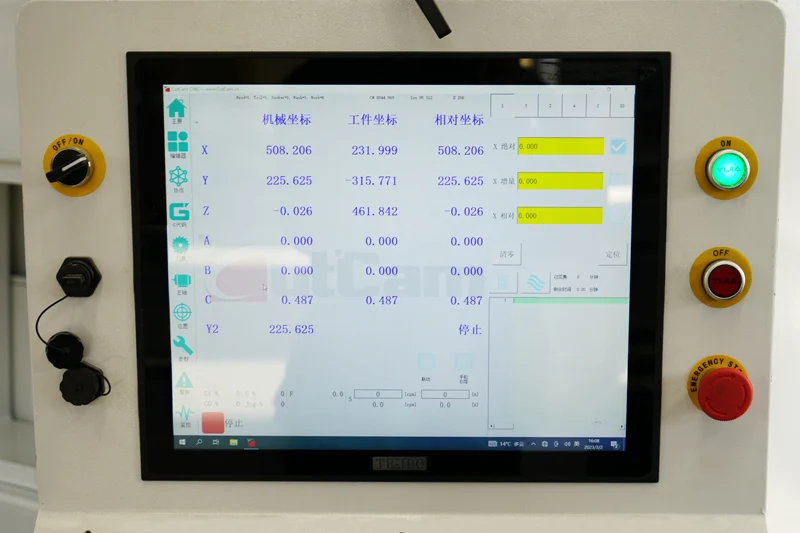

Dsp A11 Control
This machine adopts a DSP A 11 control system, which is more convenient and easy to operate.
Customer feedback
40% customer other choice
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing&Shipping
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Company Introduction
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Learn more about us, welcome to click https://blueelephant.en.alibaba.com
Learn more about us, welcome to click https://blueelephant.en.alibaba.com
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2.Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
