4800W Programmable Control BGA Rework Station LV 06 Automatic Preheating Soldering Equipment Welding Gear
4800W Programmable Control BGA Rework Station LV-06 Automatic Preheating Soldering Equipment Welding Gear
4800W Programmable Control BGA Rework Station LV-06 Automatic Preheating Soldering Equipment Welding Gear
4800W Programmable Control BGA Rework Station LV-06 Automatic Preheating Soldering Equipment Welding Gear
4800W Programmable Control BGA Rework Station LV-06 Automatic Preheating Soldering Equipment Welding Gear
4800W Programmable Control BGA Rework Station LV-06 Automatic Preheating Soldering Equipment Welding Gear
4800W Programmable Control BGA Rework Station LV-06 Automatic Preheating Soldering Equipment Welding Gear

4800W Programmable Control BGA Rework Station LV 06 Automatic Preheating Soldering Equipment Welding Gear

Share on (1601181498203):


Price:$960.00 - $1,000.00

Quantity:


Product Overview

Description



Specification


Total Power
4800W
Upper Heating Power
800W
Lower Heating Power
1200W
Infrared Heating Power
2700W(1200W is controlled)

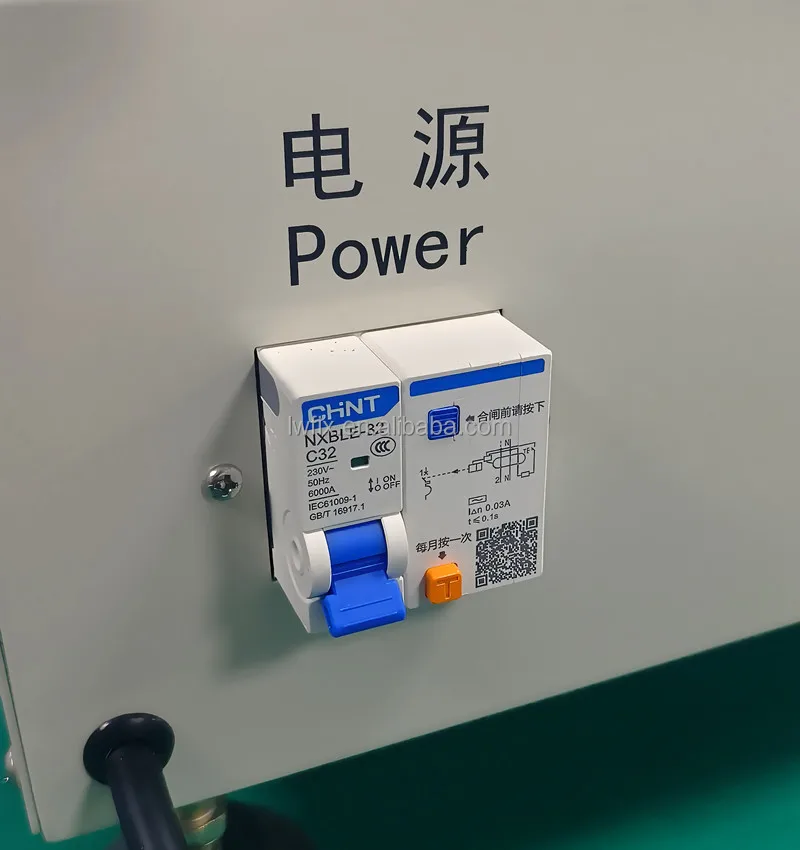

Power supply
(Single Phase) AC 220V±10 50Hz
Location way
V-shape card slot + Universal jigs

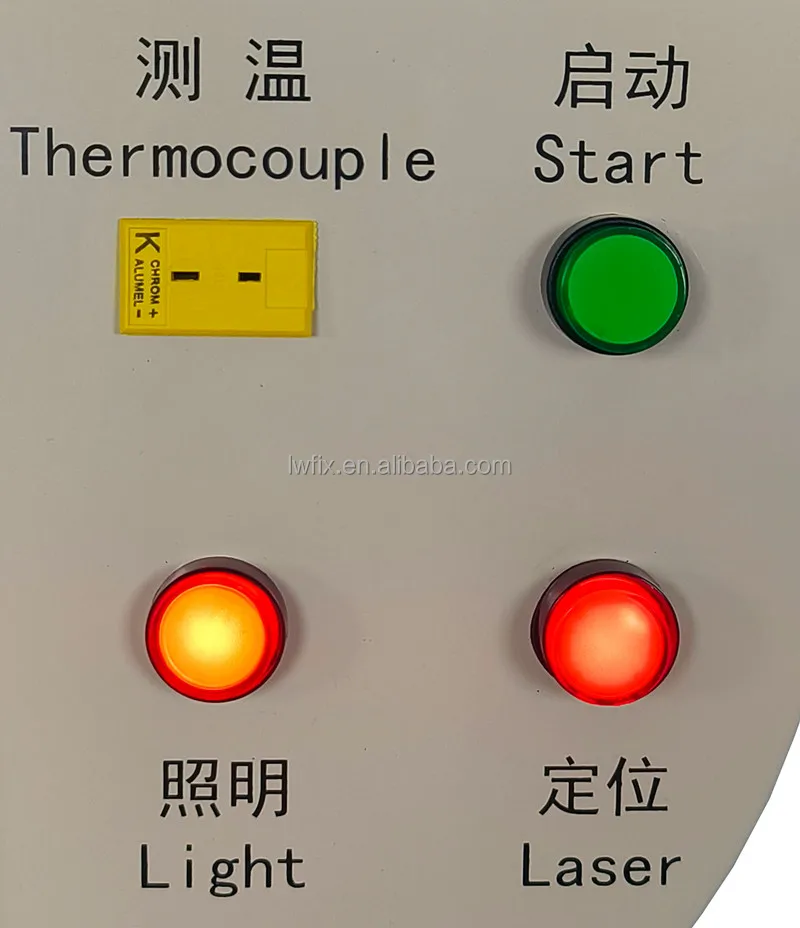

Temperature Controlling
K-type thermocouple closed loop control, independent temperature
control, precision up to ±3 degree
Electrical Material
Touch screen + Temperature control module + PLC control
Max PCB size
470×370mm
Min PCB size
10×10mm
Sensor
1 unit
PCB Thickness
0.3-5mm
Suitable Chip Size
2*2mm-60*60mm
Machine Size
620×620×600mm
Weight
Net 50kg






Product Description

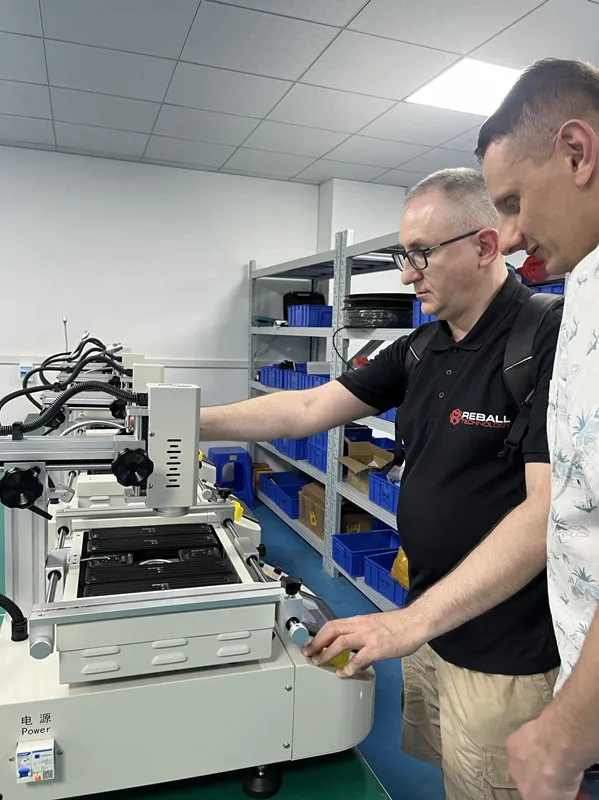

Customer Photos
