60 Ton 20ft 60 Ton 48 Ft 50ft 30 Ton 3 Axle 40ft Semi Container Flatbed Trailer For Sale
- Category: >>>
- Supplier: Liangshan Tongya Heavy Industry Co. Ltd.
Share on (1601187291301):
Product Overview
Description

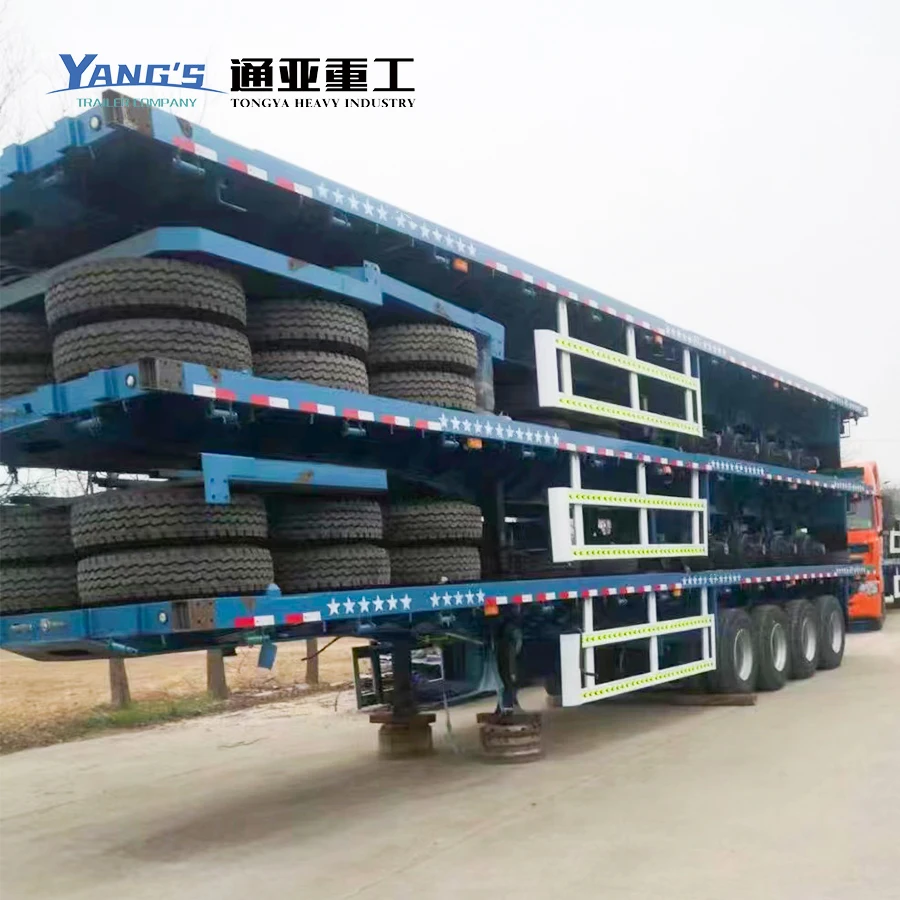

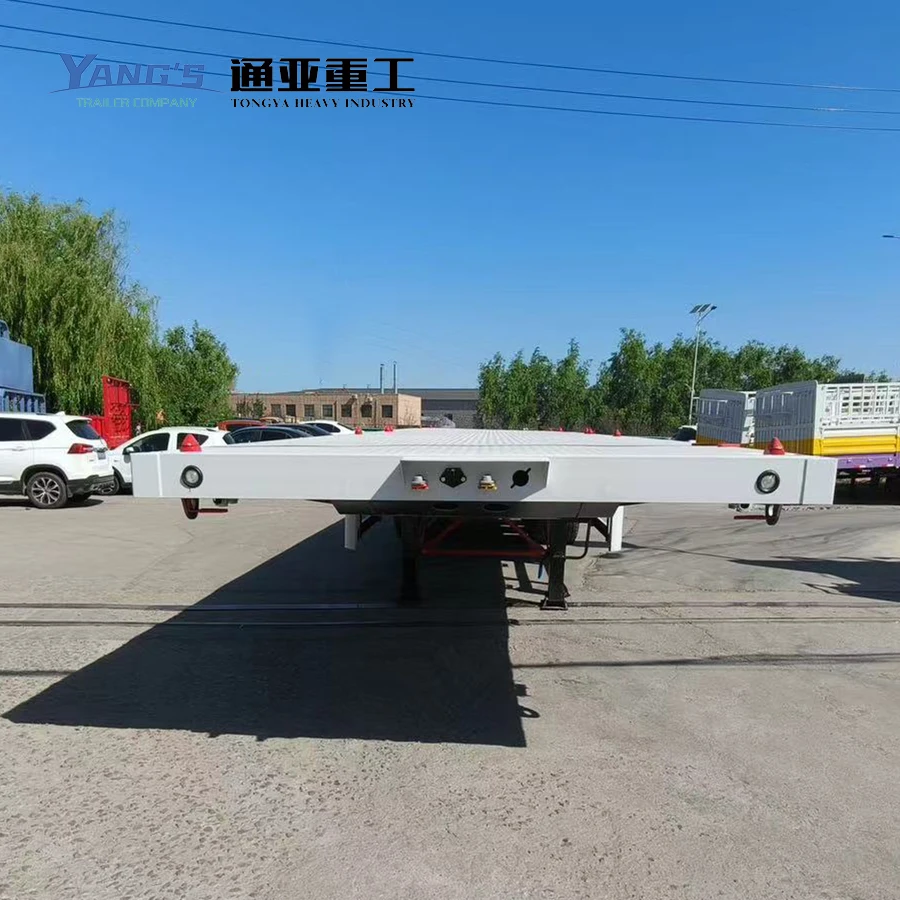

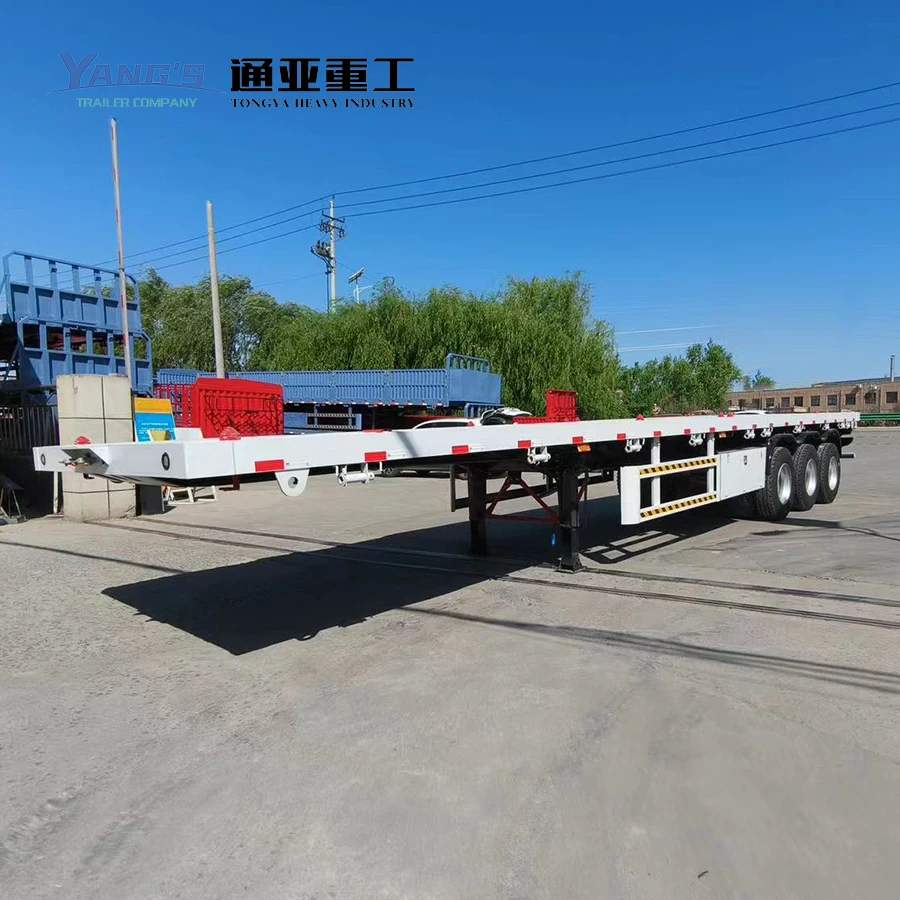

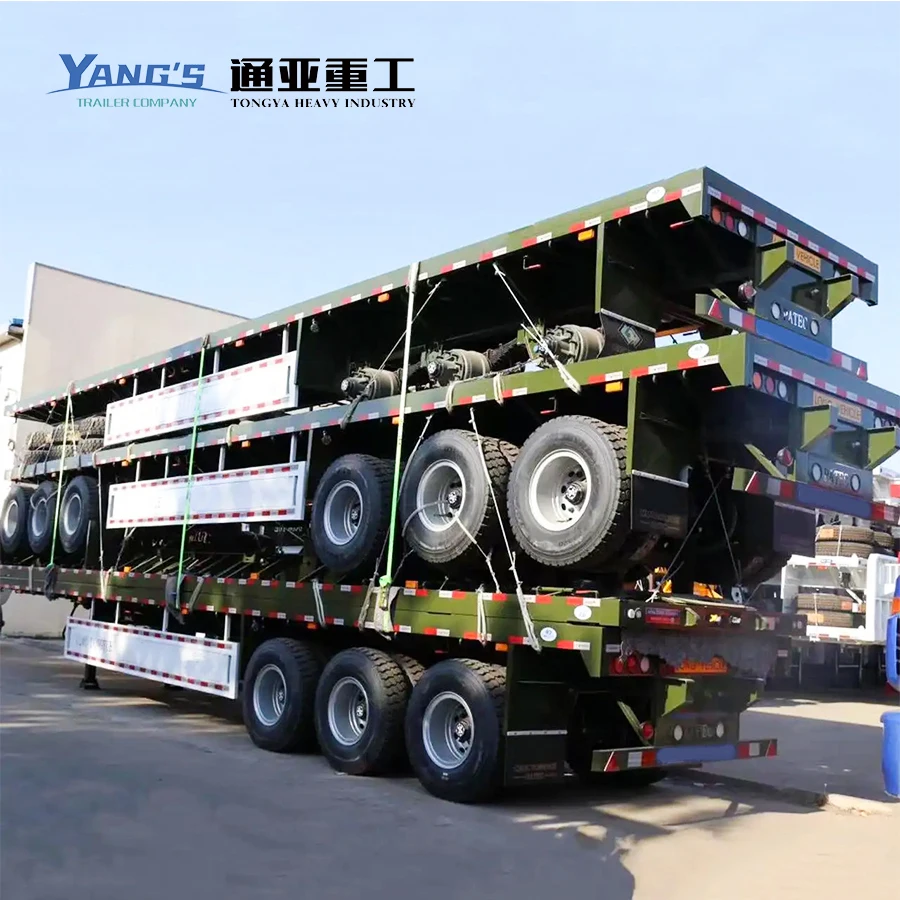

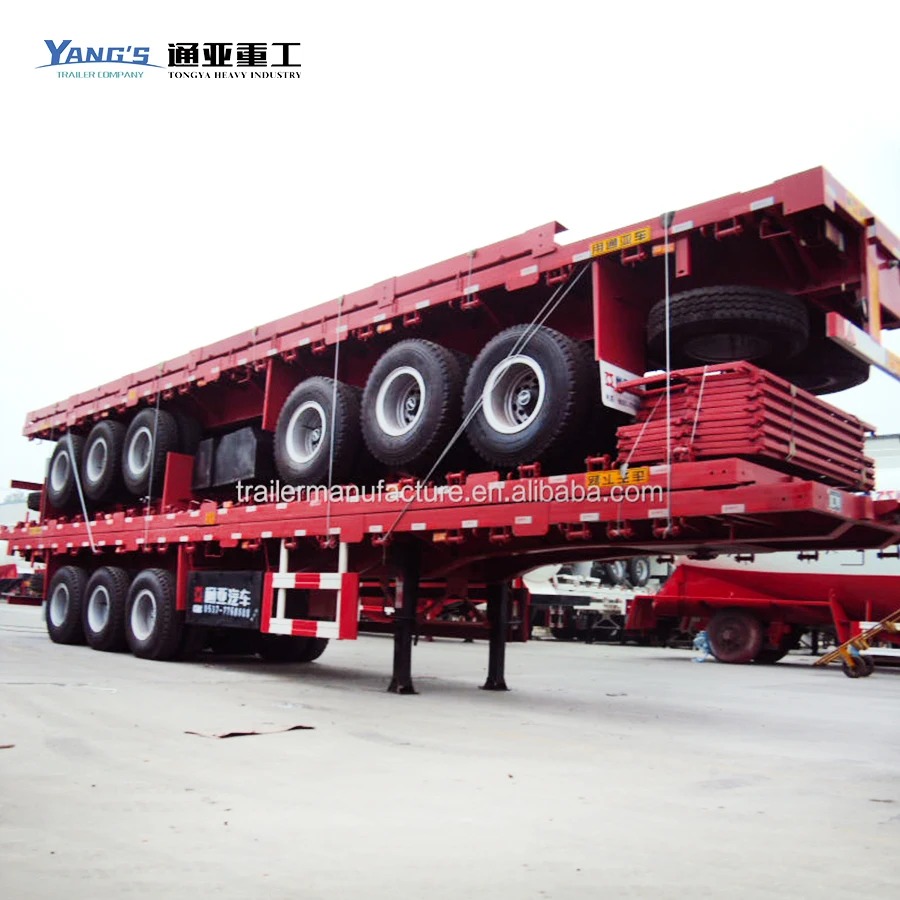

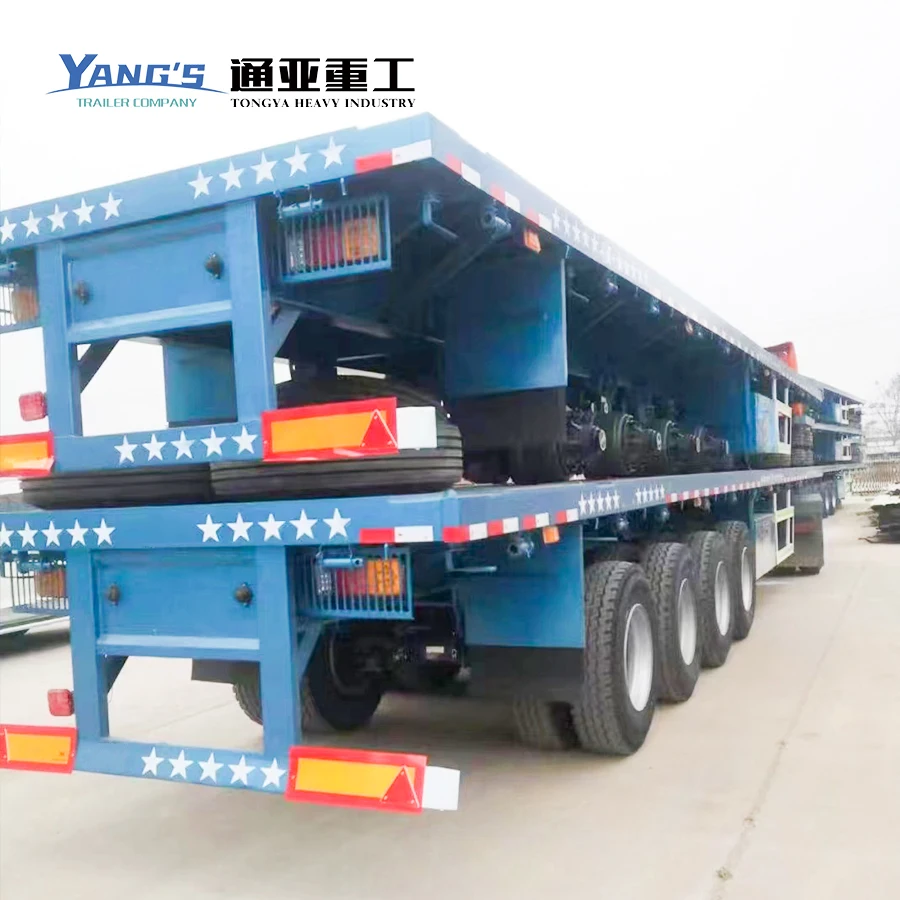

TONGYA Flatbed Container Carrier Semi Trailers
Founded in 1982, TONGYA HEAVY INDUSTRY CO., LTD. is a leading Chinese manufacturer of semi trailers, trailers and truck bodies. It has 26 senior engineers, 500 experienced staff, over 134,500 square meter land, 10 advanced and automatic production lines including biggest laser cutting machines, CNC bending machines, Switzerland Locator, automatic welding, jointing, bending machines to work for you!
30 years of production, an average of 20 years of work experience of employees, 500 sets trailersmonthly output by a wealth of quality inspection team and engineers to ensure excellent quality, strong supply chain system of over 100 suppliers of second-hand and stock trailers, trucks, traction heads and auto parts, and do a full range of quality inspection, documents, inspection,delivery services for you. Professional customer service provides you with a full range of after-sales services.
30 years of production, an average of 20 years of work experience of employees, 500 sets trailersmonthly output by a wealth of quality inspection team and engineers to ensure excellent quality, strong supply chain system of over 100 suppliers of second-hand and stock trailers, trucks, traction heads and auto parts, and do a full range of quality inspection, documents, inspection,delivery services for you. Professional customer service provides you with a full range of after-sales services.
Product Parameters
Tongya 40Ton Flatbed Trailer 20/40/45/48ft Container Flatbed Semi-trailer Chassis | ||||||
Product name | 20 FT Flatbed Semi-trailer | 40 FT Flatbed Semi-trailer | 45 FT Flatbed Semi-trailer | |||
Product Size | 7000*2500*1570mm | 12400* 2500*1570mm | 13950*2500*1600mm | |||
Axle | 2 /3 Axles*13Ton FUWA/BPW/other | 2 /3 Axles*13Ton FUWA/BPW/other | 2 /3 Axles*13Ton FUWA/BPW/other | |||
Application | 1*20 ft Container or cargo Loading Loading | 1*40ft/2*20 ft Container/Cargo Loading | 1*40ft/1*45/2*20 ft Container / Cargo Loading | |||
Capacity | 20-60 Tons | 30-80 Tons | 30-80 Tons | |||
Main Beam Material | Q345/T700 | Q345/T700 | Q345/T700 | |||
Upper Plate Thickness | 12mm | 16mm | 16mm | |||
Middle Plate Thickness | 6mm | 10mm | 10mm | |||
Lower Plate Thickness | 14mm | 18mm | 18mm | |||
Height | 500mm | |||||
Platform Thickness | 3mm thick patterned steel plate | |||||
Leaf Spring | 90mm*13mm*10/90mm*16mm*10 | |||||
Kin Pin | 50#(2")/90#(3.5") JOST/Other Brand | |||||
Landing Gear | 28 Tons Two Speed,JOST/Other Brand | |||||
Twist Lock | 4 Sets | 8 Sets | 8 Sets | |||
Suspension System | Mechanical or Air Suspension | |||||
Tire | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other | |||||
Rim | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | |||||
Tool Box | Steel or Aluminum | |||||
Painting | Electrophoresis paint | |||||
If you want to know more details,please contact us directly | ||||||
1.The Flatbed Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.
2.The girder adopts submerged arc welding, the whole vehicle shot blasting and derusting, and the bottom plate is 3mm thick pattern.

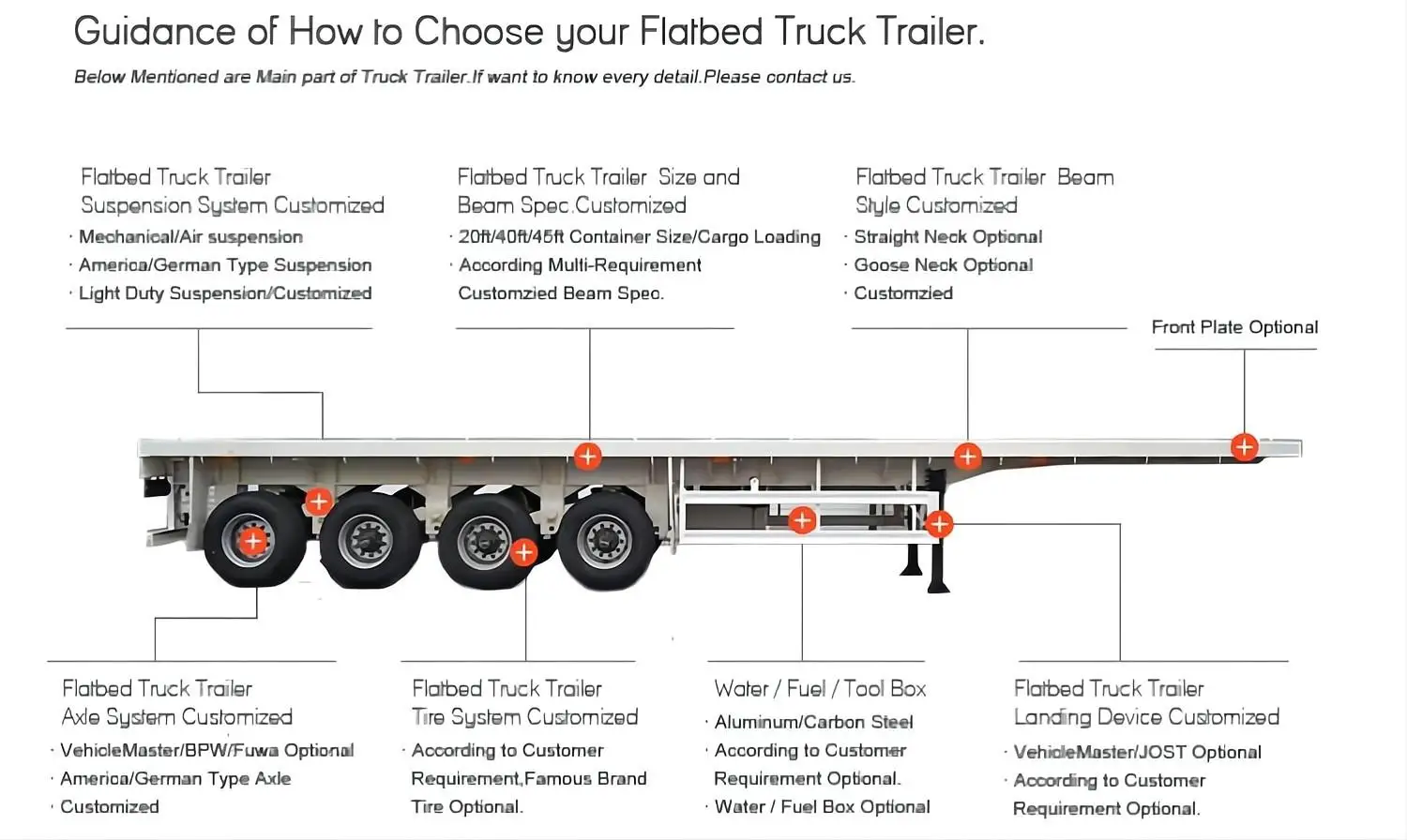

3.This kind of flat semi-trailer can be equipped with removable breast boards, columns, number of locks, etc. according to customer requirements.
4.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
5.We adopt world famous brand of parts, like Fuwa axle, BPW axle, JOST landing gear, WABCO braking valve etc. The axles are equipped with WABCO emergency brake valves, and the double brake air chambers also widen the pads.
6.Our Trailer factory can also support other customized flatbed semi-trailers, superlink flatbed semi-trailers, and lumber flatbed semi-trailers.
2.The girder adopts submerged arc welding, the whole vehicle shot blasting and derusting, and the bottom plate is 3mm thick pattern.
3.This kind of flat semi-trailer can be equipped with removable breast boards, columns, number of locks, etc. according to customer requirements.
4.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
5.We adopt world famous brand of parts, like Fuwa axle, BPW axle, JOST landing gear, WABCO braking valve etc. The axles are equipped with WABCO emergency brake valves, and the double brake air chambers also widen the pads.
6.Our Trailer factory can also support other customized flatbed semi-trailers, superlink flatbed semi-trailers, and lumber flatbed semi-trailers.

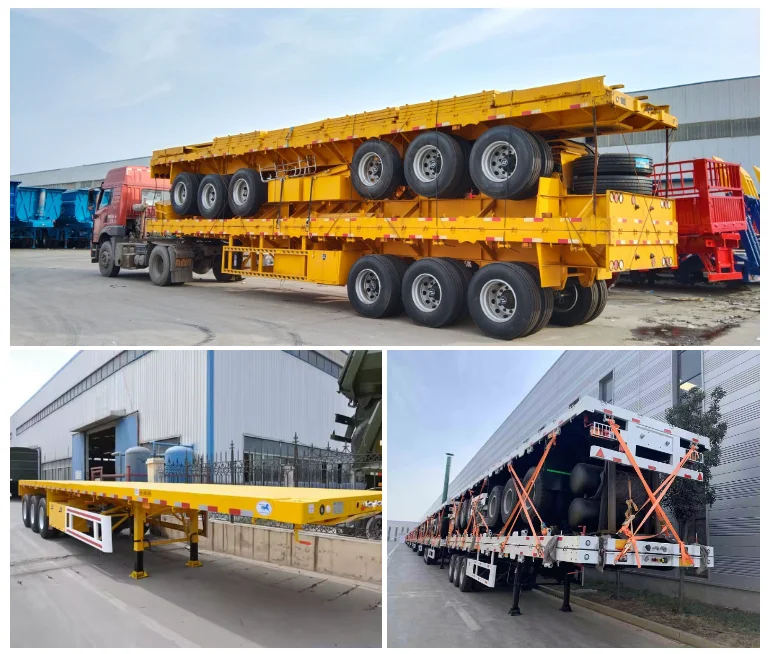

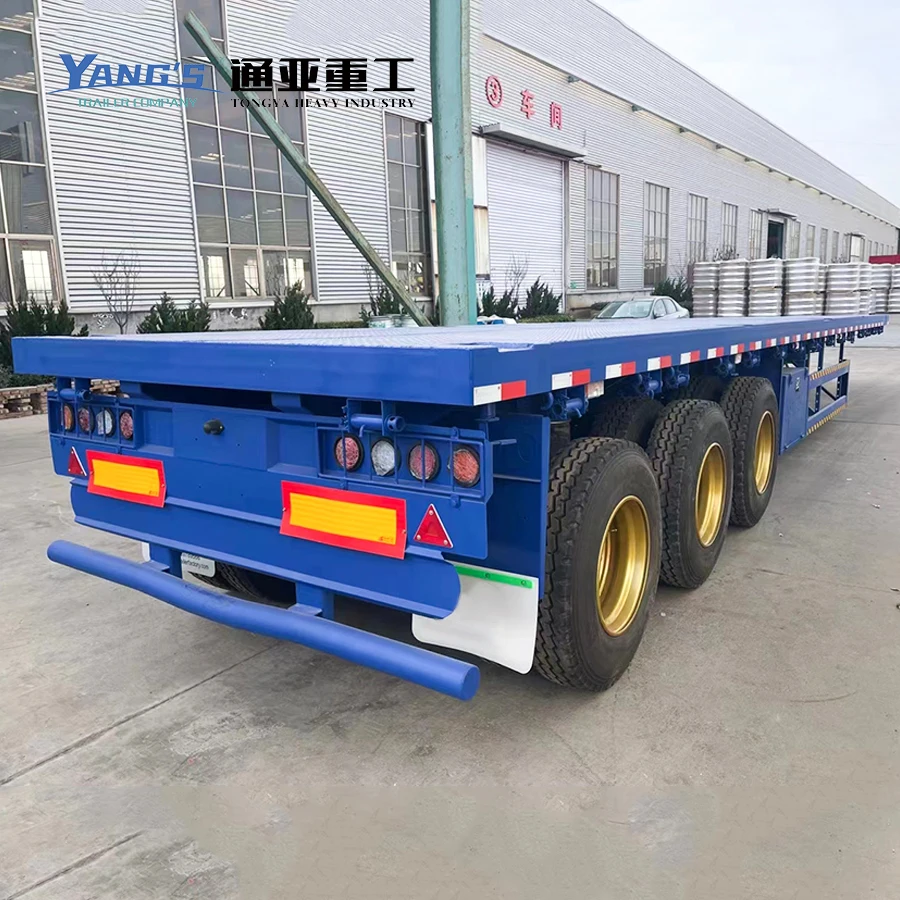

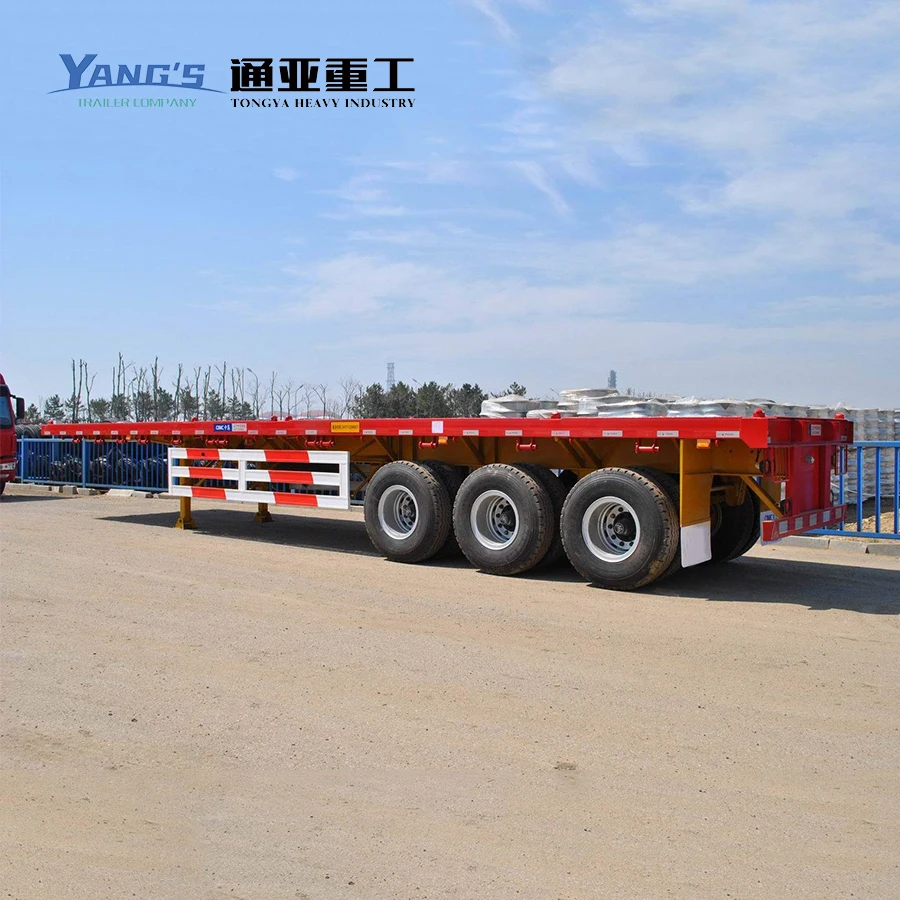

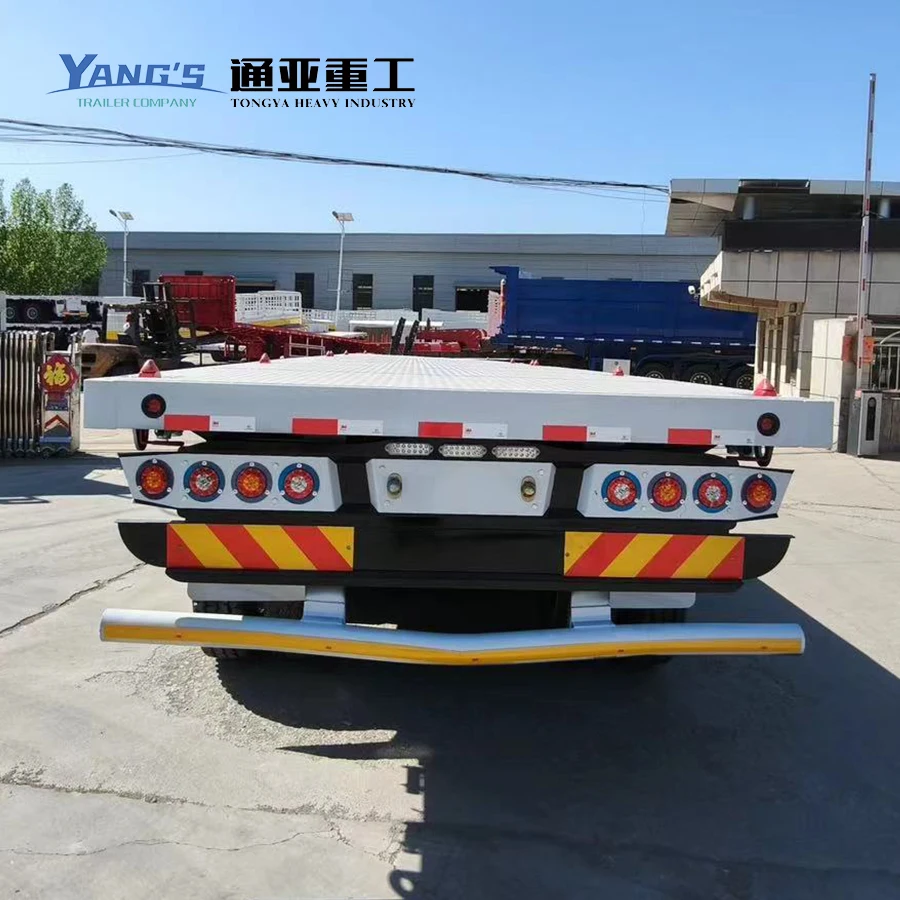

Product Details
Our Services

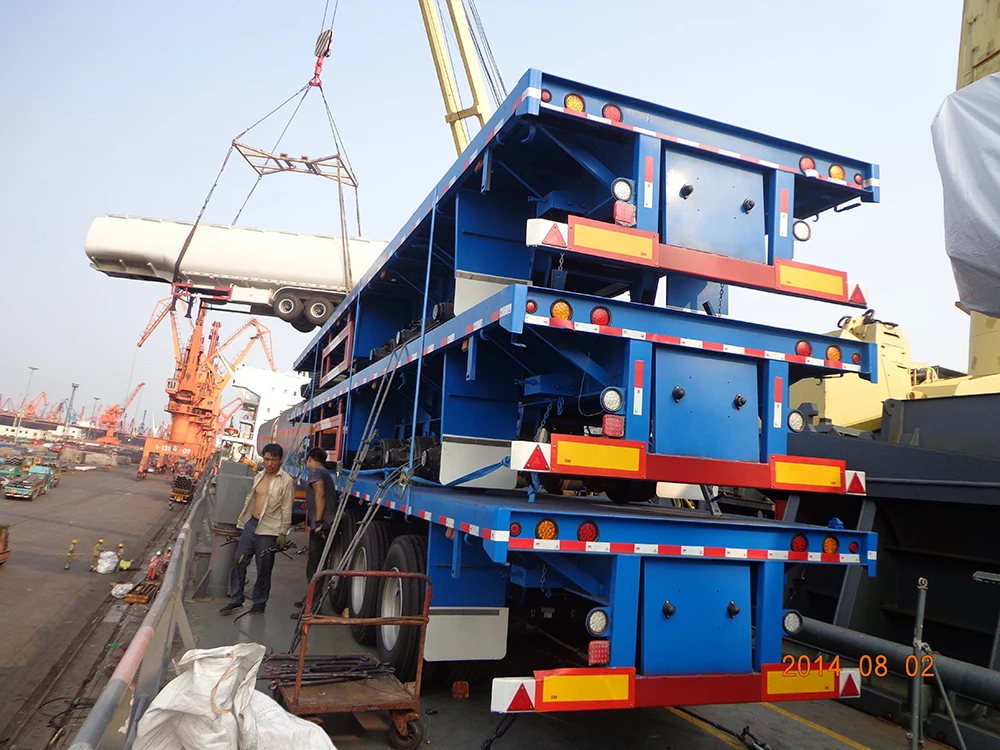

Packaging & Shipping
About Us
Founded in 1982, TONGYA HEAVY INDUSTRY CO., LTD. is a leading Chinese manufacturer of semi trailers, trailers and truck bodies. It has 26 senior engineers, 500 experienced staff, over 134,500 square meter land, 10 advanced and automatic production lines including biggest laser cutting machines, CNC bending machines, Switzerland Locator, automatic welding, jointing, bending machines to work for you!
30 years of production, an average of 20 years of work experience of employees, 500 sets trailersmonthly output by a wealth of quality inspection team and engineers to ensure excellent quality, strong supply chain system of over 100 suppliers of second-hand and stock trailers, trucks, traction heads and auto parts, and do a full range of quality inspection, documents, inspection,delivery services for you. Professional customer service provides you with a full range of after-sales services.

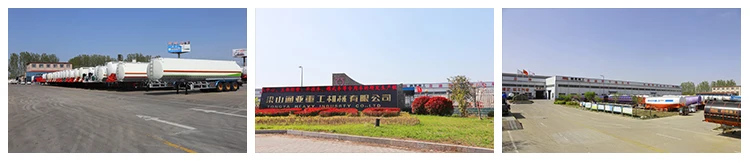

Our Factory
FAQ
1. Who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(90.00%),Southeast Asia(6.00%),Africa(4.00%). There are
total about 301-500 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Bulk Cemenet Tanker Semi Trailer, Fuel Tanker Semi Trailer, Three Axle Low Bed Semi Trailer, Rear Dumper Semi Trailer, Three Axle
Flat Bed Semi Trailer
4. Why should you buy from us not from other suppliers?
null
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DAF；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Russian
We are based in Shandong, China, start from 2010,sell to Domestic Market(90.00%),Southeast Asia(6.00%),Africa(4.00%). There are
total about 301-500 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Bulk Cemenet Tanker Semi Trailer, Fuel Tanker Semi Trailer, Three Axle Low Bed Semi Trailer, Rear Dumper Semi Trailer, Three Axle
Flat Bed Semi Trailer
4. Why should you buy from us not from other suppliers?
null
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DAF；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Russian
