80m3 Diesel Cement Mortar Trailer Pump 800m Conveying Horizontal Distance Small Portable Concrete Pumps
- Category: >>>
- Supplier: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.
Share on (1601187642611):
Product Overview
Description
Hot Sale Model
Products Description
Introduction of 80m3 Diesel Cement Mortar Trailer Pump 800m Conveying Horizontal Distance Small Portable Concrete Pumps
Concrete pumps are extensively utilized in various construction projects, including high-rise buildings, bridge construction, tunneling, road development, and hydraulic engineering. Their versatile application facilitates swift and precise concrete conveyance, ensuring efficiency and structural stability. These pumps prove instrumental in distributing concrete evenly, even in challenging locations, enhancing construction flexibility.zmwm02
Product Paramenters
Parameter of 80m3 Diesel Cement Mortar Trailer Pump 800m Conveying Horizontal Distance Small Portable Concrete Pumps
Maximum Theoretical Concrete Delivery Volume | 75-80m³/h |
Maximum Pumping Concrete Pressure | 18MPa |
Distribution Valve Form | S-pipe valve |
Concrete Conveying Cylinder Bore*Stroke | Φ230*1800mm |
Outlet Diameter | Φ200mm |
Rated Power | 6108 |
Rated Speed | 1480r/min |
Hydraulic Circuit Form | open circuit |
Pumping Xiyong Oil Pressure | 40MPa |
Stirring System Oil Pressure | 15MPa |
Hydraulic Tank Volume | 560L |
Maximum Conveying Vertical Distance | 250m |
Maximum Conveying Horizontal Distance | 800m |
Maximum Particles Allowed | 60mm |
Dimensions L*W/*H | 6200*1800*2000mm |
Total Mass | 5800KG |
Details Images

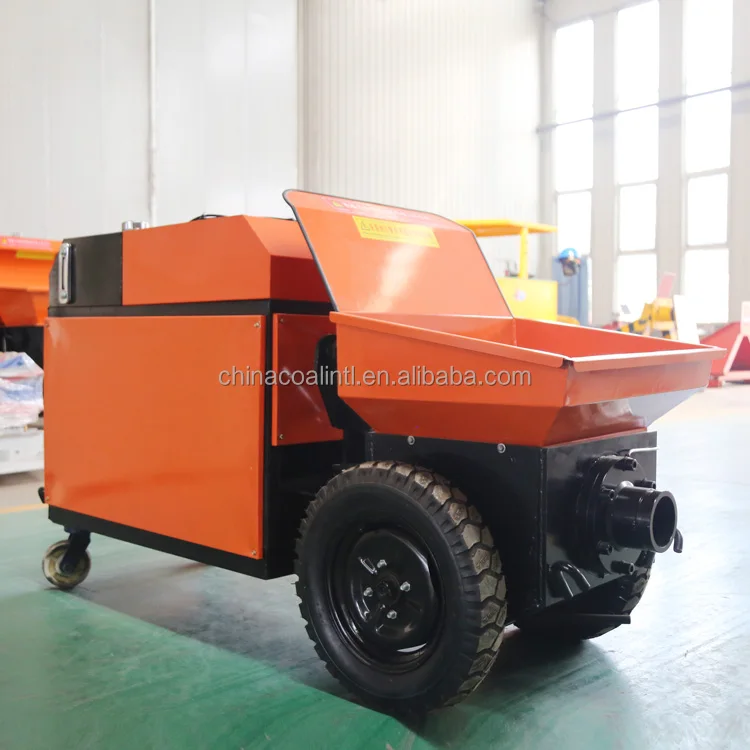

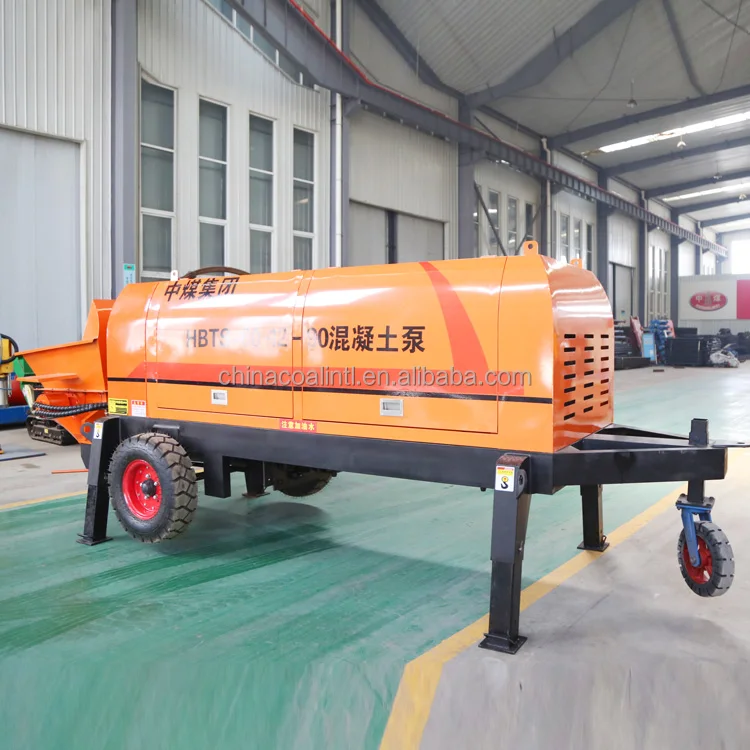

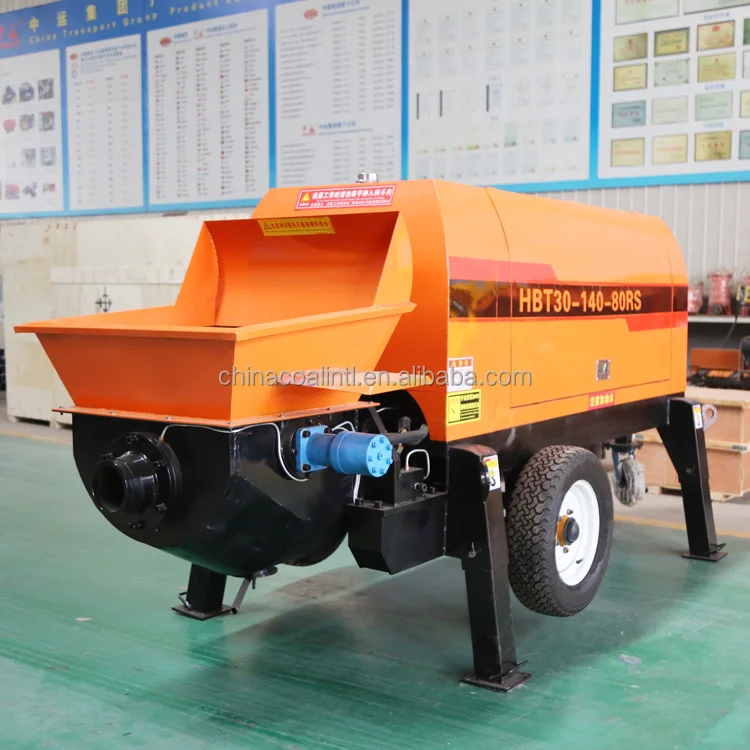

Photos of 80m3 Diesel Cement Mortar Trailer Pump 800m Conveying Horizontal Distance Small Portable Concrete Pumps
