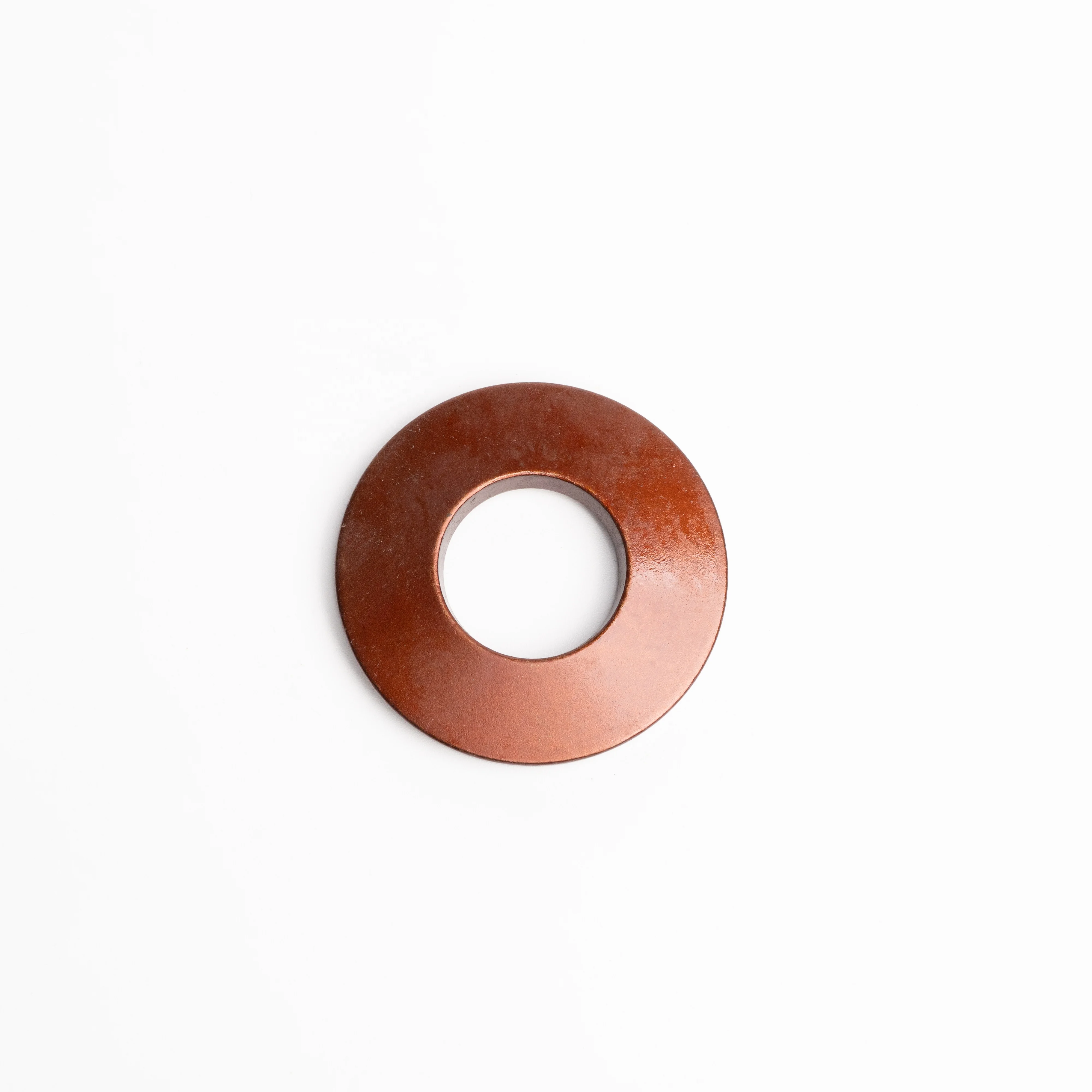

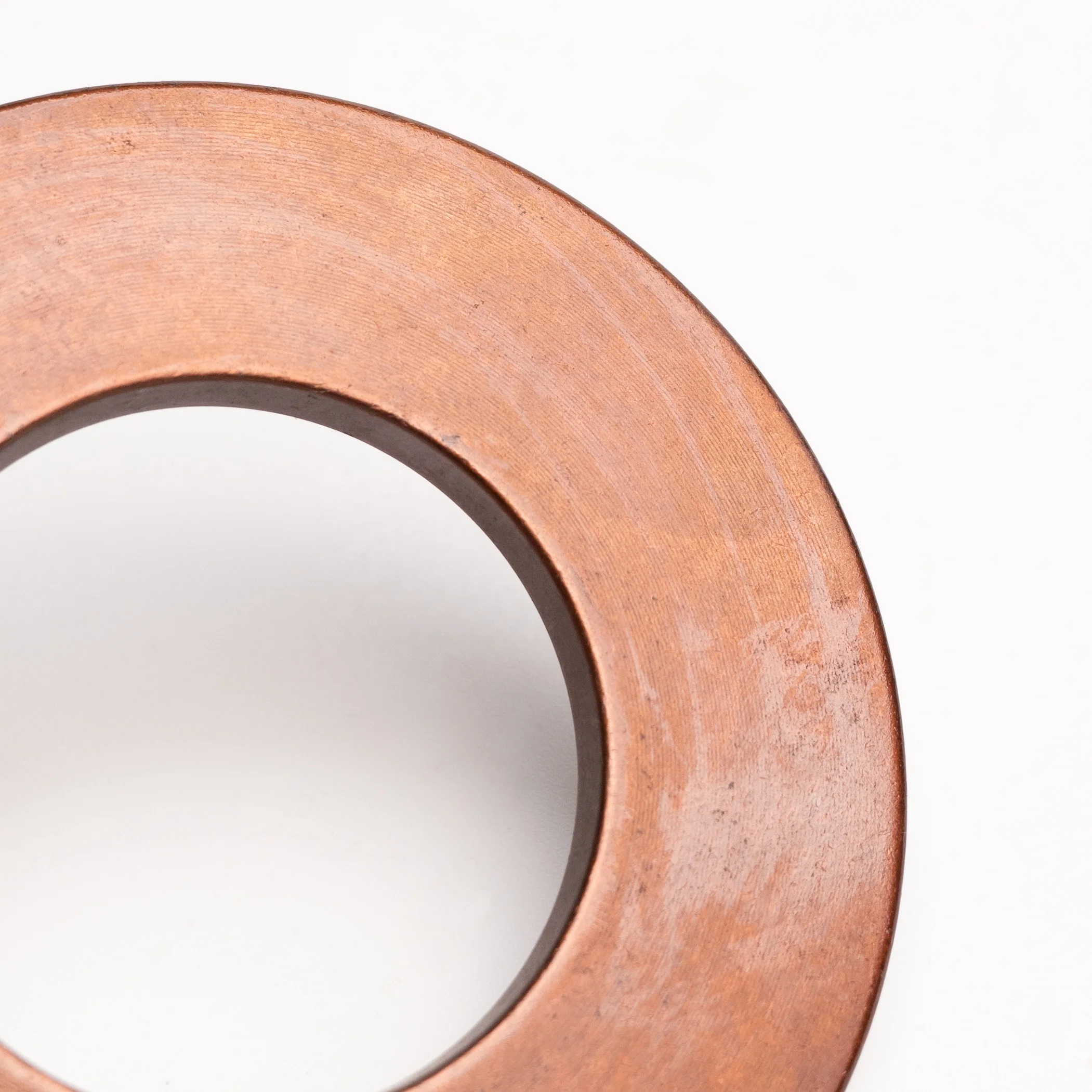

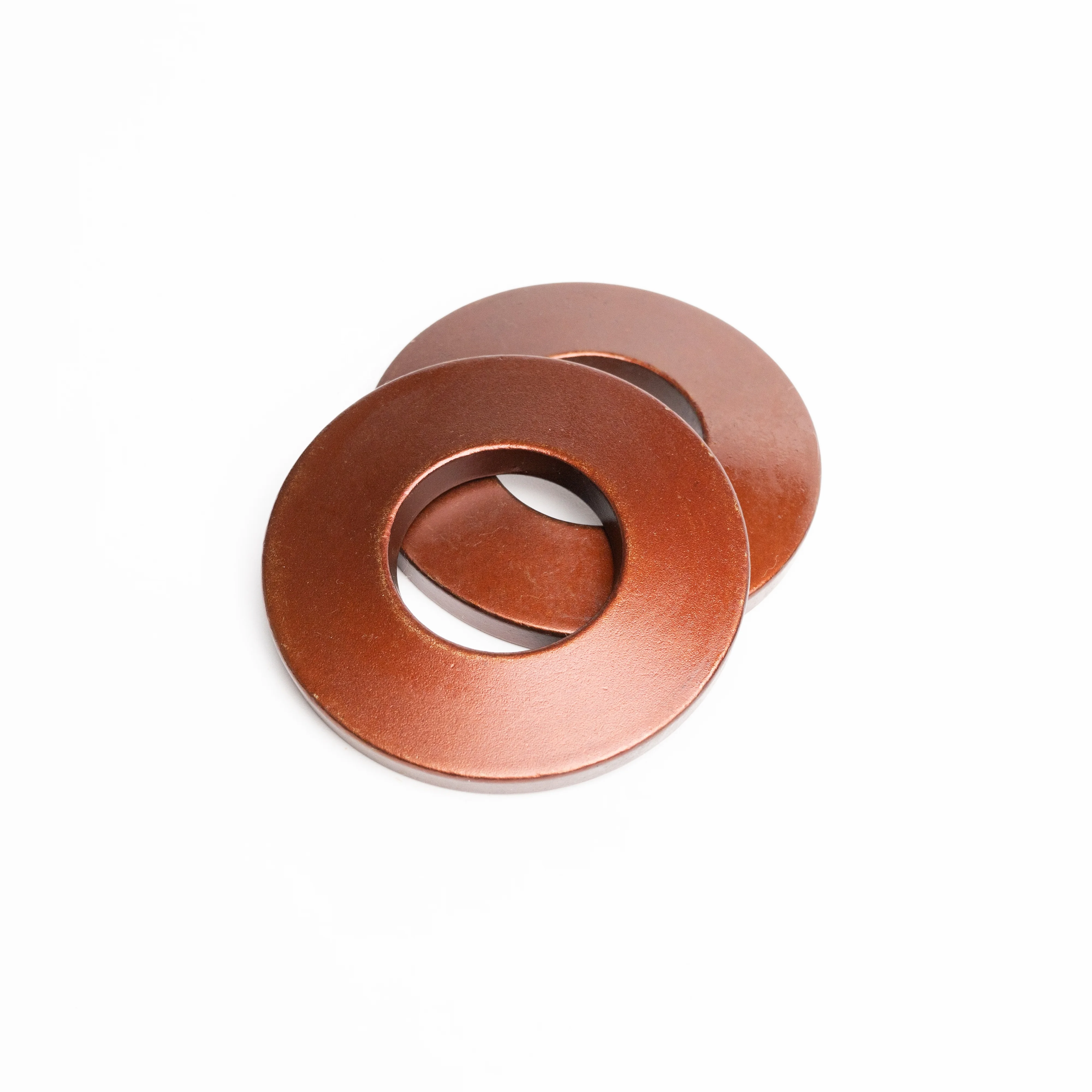

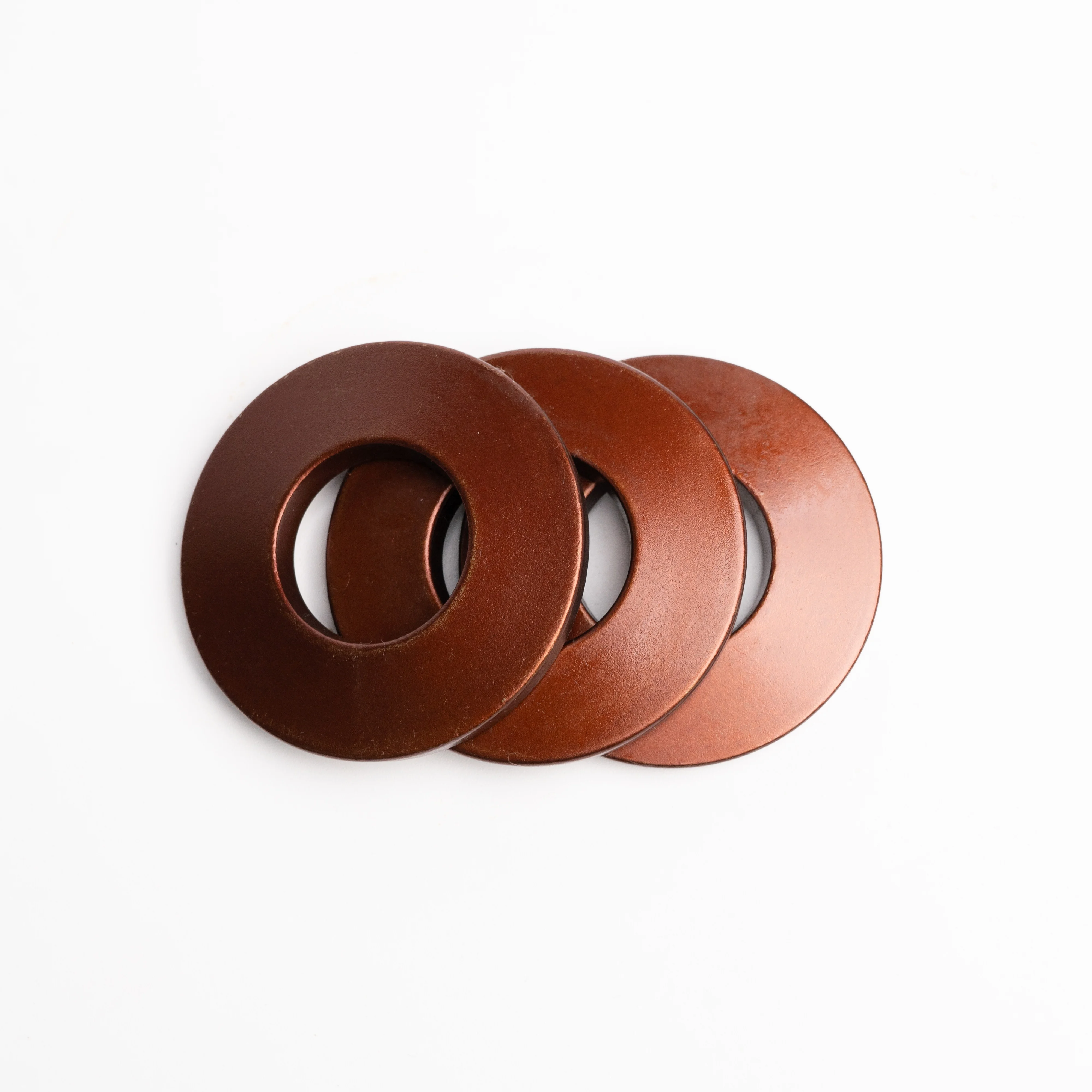

disc spring OD50 Versatile and Reliable Disc Springs DIN2093 Belleville Washers cushion Washers 50*25.4*2.25*3.75
- Category: >>>
- Supplier: Yangzhou Wuting Disc Spring Co. Ltd.
Share on (1601188508693):
Product Overview
Description
Disc springs/ Belleville washers
Disc springs, also known as disc washers or belleville washers, are ideal for high load applications especially where space is limited. The conical disc spring is made from a convex disc where the outer edge operates in opposition to the center of the disc. This creates a high spring force within a short area of movement. The disc spring configuration enables these springs to support higher loads with relatively small deflection and less solid height than a standard helical designed springs. Disc springs are versatile and are used in many manufacturing and plant applications.
The advantages of Disc Springs compared to other types of springs include the following:
* A wide range of load/deflection characteristics
* High load capacity with small deflection
* Space savings – high load to size ratio
* Consistent performance under design loads
* Longer fatigue life

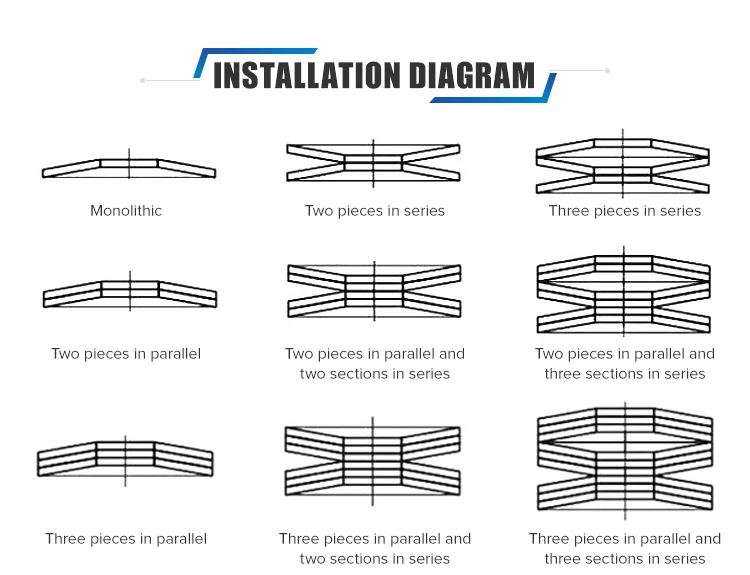

* Inherent dampening especially with parallel stacking
* Flexibility in stack arrangement to meet your application requirements
* A wide range of load/deflection characteristics
* High load capacity with small deflection
* Space savings – high load to size ratio
* Consistent performance under design loads
* Longer fatigue life
* Inherent dampening especially with parallel stacking
* Flexibility in stack arrangement to meet your application requirements
Specification
item | value |
Place of Origin | China |
Brand Name | WUTING |
Model Number | 50*25.4*2.25*3.75 |
Size | 50*25.4*2.25*3.75 |
Style | Disk;Diaphragm;Dish |
Material | 60Si2MnA，50CrV4 |
Use | Industrial |
Surface treatment | Bluing/Zinc/Nickel/Chrome/Phosphate Coating, Electrophoretic Coating, etc |
Payment Terms | 30% down payment, 70% before shipping, can be adjusted according to the situation |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packaging | Plastic Bag + Box + Carton + Pallet |
Selling Units | Single item |
Single Package Size/Weight | 210*210*180（22-29kg） 270*270*125（22-29kg） 330*190*180（25-40kg） |
Company Profile

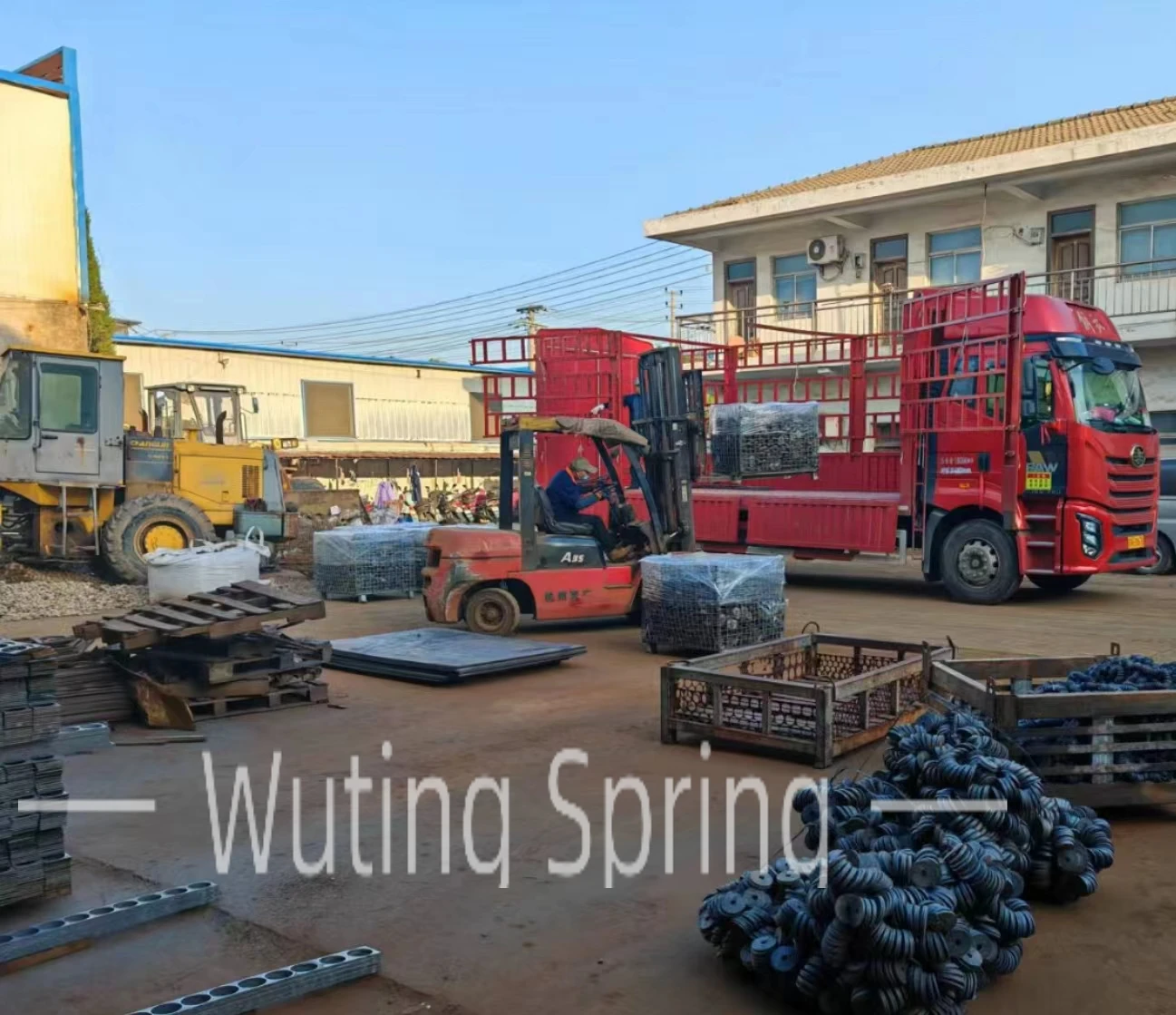

Yangzhou Wuting Disc Spring Co., Ltd. was established in 2002 and specializing in the manufacture of disc springs.
The main products of the company include: disc spring, heavy-duty disc spring washer, high temperature disc spring, volute spring and its extension products, as well as various non-standard customized spring products. The products are widely used in machinery, metallurgy, electric power, petrochemical and other industries, supporting bearings, reducers, electrical busway, valves and other products, and replacing imported products with good quality.
The company is equipped with sophisticated production equipment. Through the advanced finite element optimization design software and spring mechanical property testing system, the quality of products can be reliably guaranteed to meet customer requirements.
The main products of the company include: disc spring, heavy-duty disc spring washer, high temperature disc spring, volute spring and its extension products, as well as various non-standard customized spring products. The products are widely used in machinery, metallurgy, electric power, petrochemical and other industries, supporting bearings, reducers, electrical busway, valves and other products, and replacing imported products with good quality.
The company is equipped with sophisticated production equipment. Through the advanced finite element optimization design software and spring mechanical property testing system, the quality of products can be reliably guaranteed to meet customer requirements.
