Cheap Cutting Plasma Machine Prices Plasma Cutting Machine
$1,485.00-1,495.00

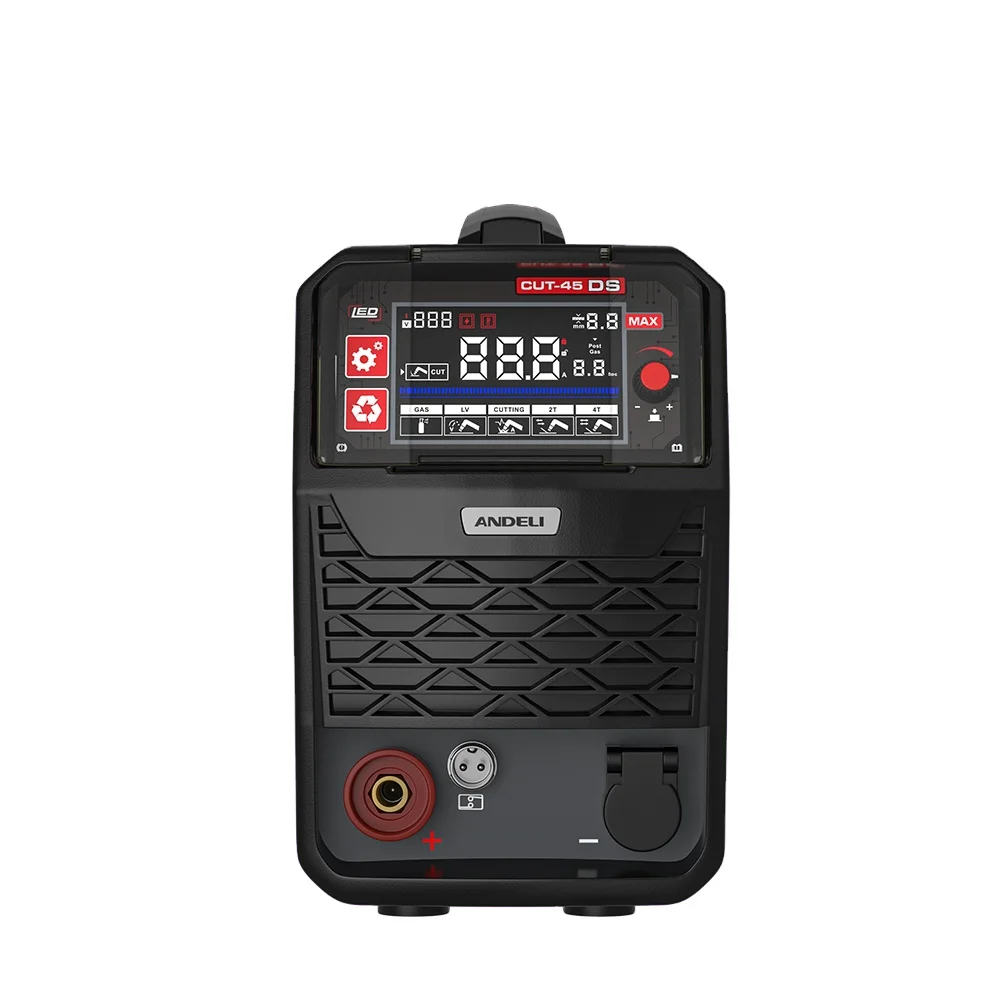

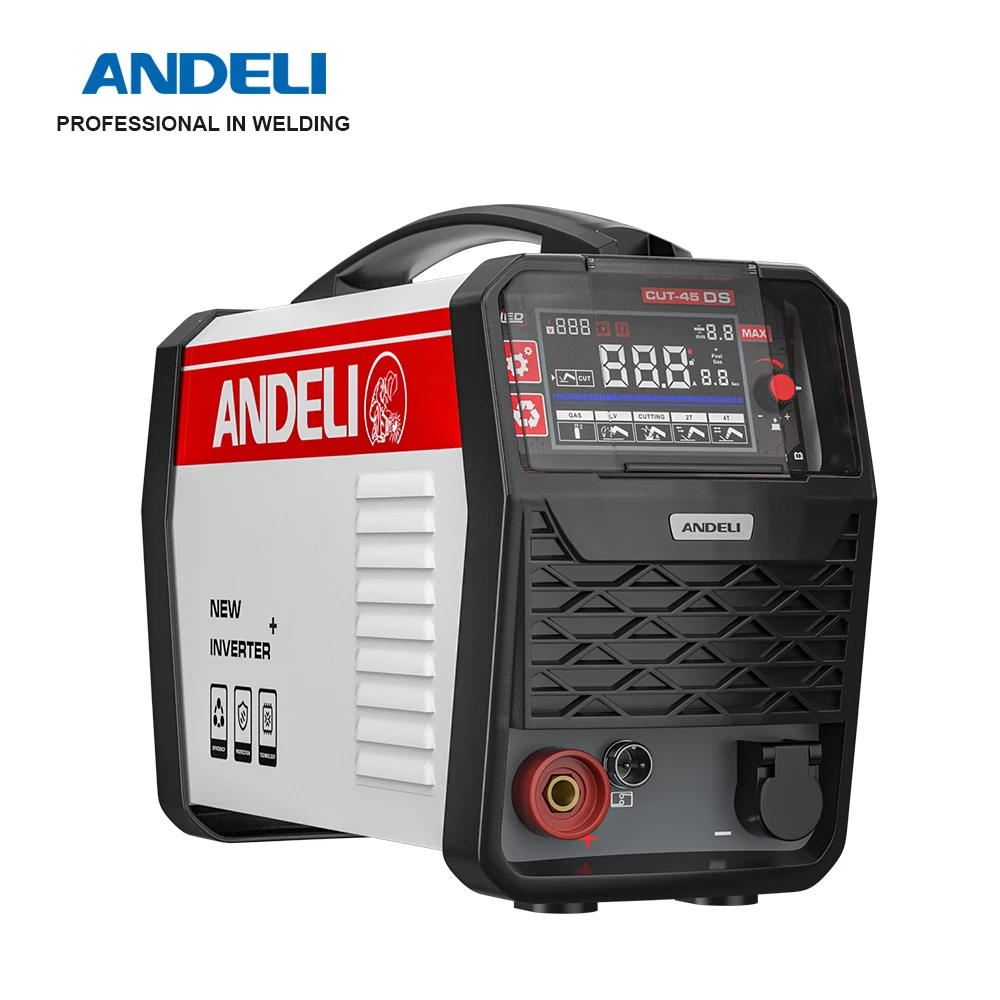

ANDELI 2024 New Arrival 110V/220V LED CUT45D HF CUT 15MM Plasma cutter machine
- Category: >>>
- Supplier: Andeli Group Wenzhou Import Export Co. Ltd.
Share on (1601192009042):
Product Overview
Description
Product Description

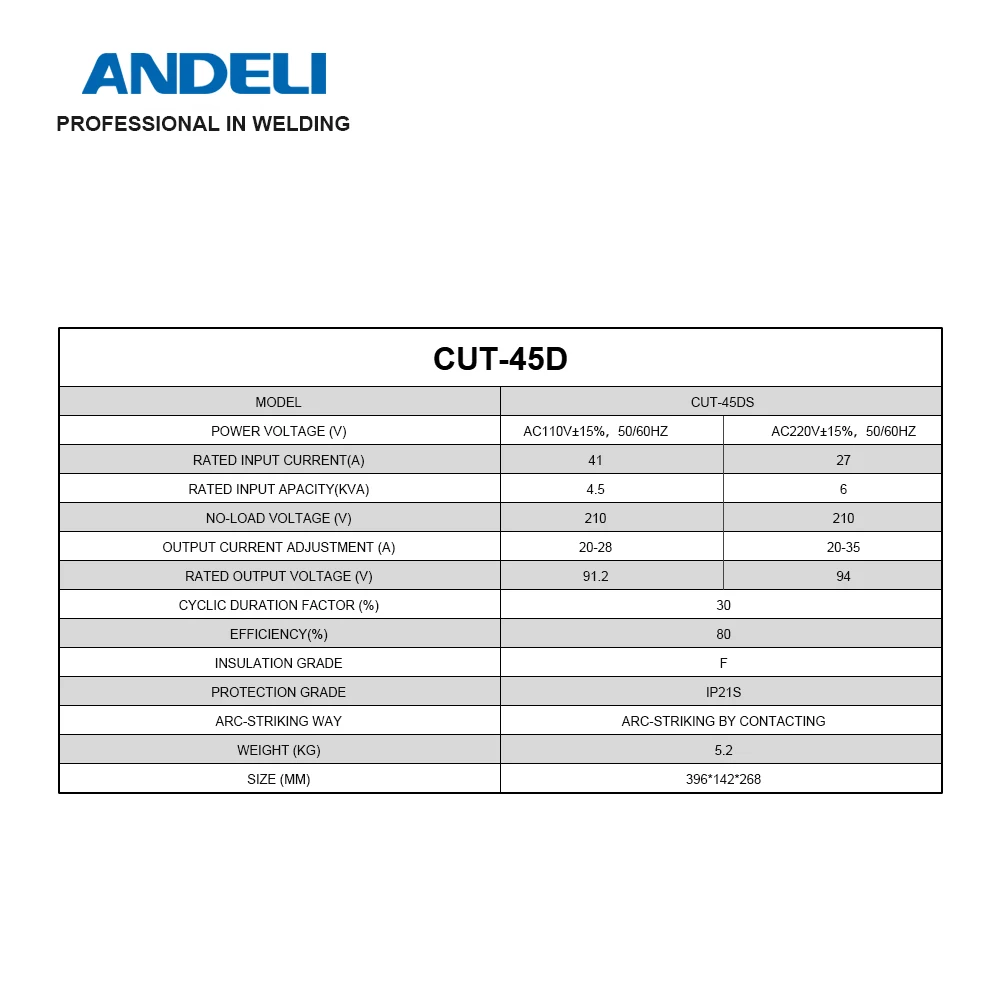

Specification
model | cut--45DS |
Function | Plasma cut |
Function Power Supply Voltage(V) | AC110V/220V |
Frequency Hz | 50/60 |
No-load voltage (V) | 280 |
Efficiency % | 0.7 |
Rated Input Power (KW) | 4.4KVA(110V)/7.4KVA(220V) |
Effective current | 44A(110V)/36.6A(220V) |
Rated Input Current (A) | 40A(110V)/33.7A(220V) |
Cutting Current Range（A) | 15-35A(110V)/15-45A(220V) |
40% Duty cycle (%40℃ 10min) | 35A(110V)/45A(220V) |
60% Duty cycle (%40℃ 10min) | 28A(110V)/36A(220V) |
100% Duty cycle (%40℃ 10min) | 22A(110V)/28A(220V) |
Power Factor | 0.85 |
Load Voltage (V) | 98V |
Post-Flow Time(S) | 20s |
Protection Class | IP21S |
Insulation Class | H |
Cooling | FAN&AIR |
Cutting Thickness(MM) | 25mm(0.5MPa) 8-12mm(0.4MPa) |

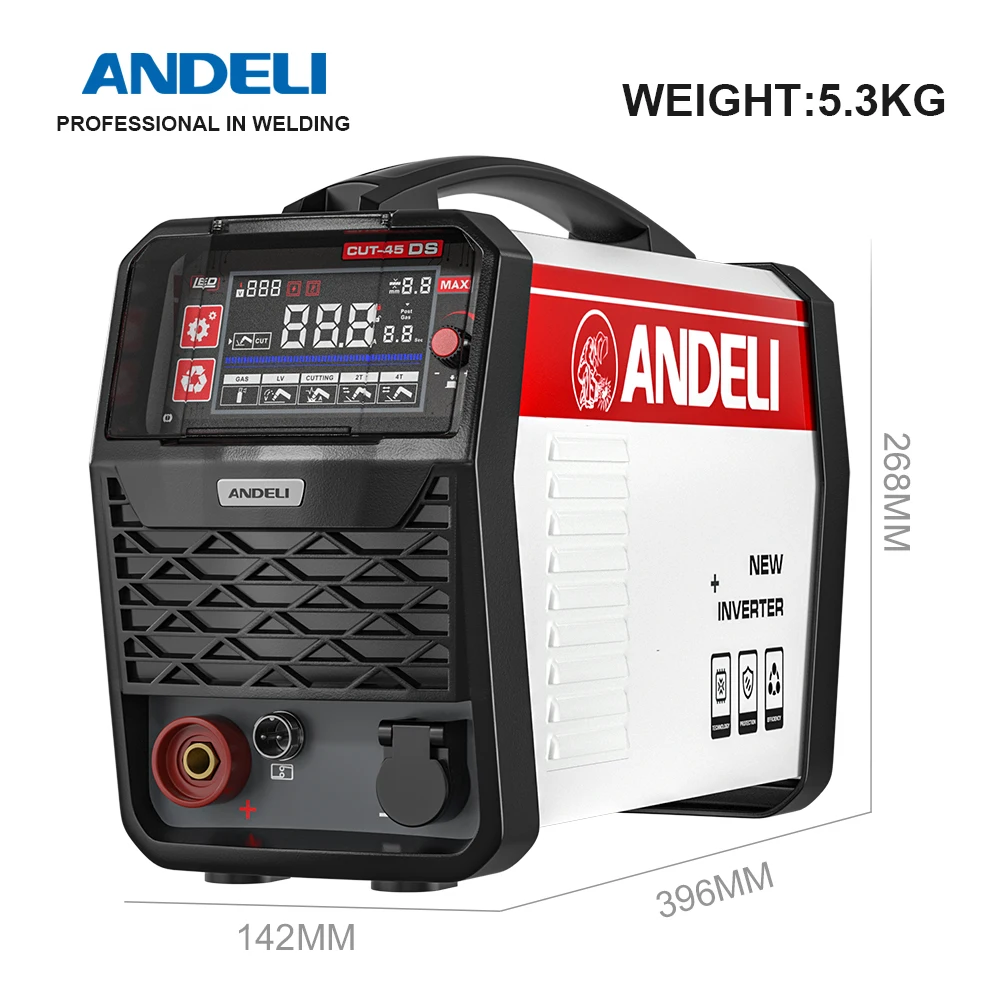

Dimension(MM) | 420*170*320 |
Net Weight(KG) | 7.5 |
