Cheap Cutting Plasma Machine Prices Plasma Cutting Machine
$1,485.00-1,495.00

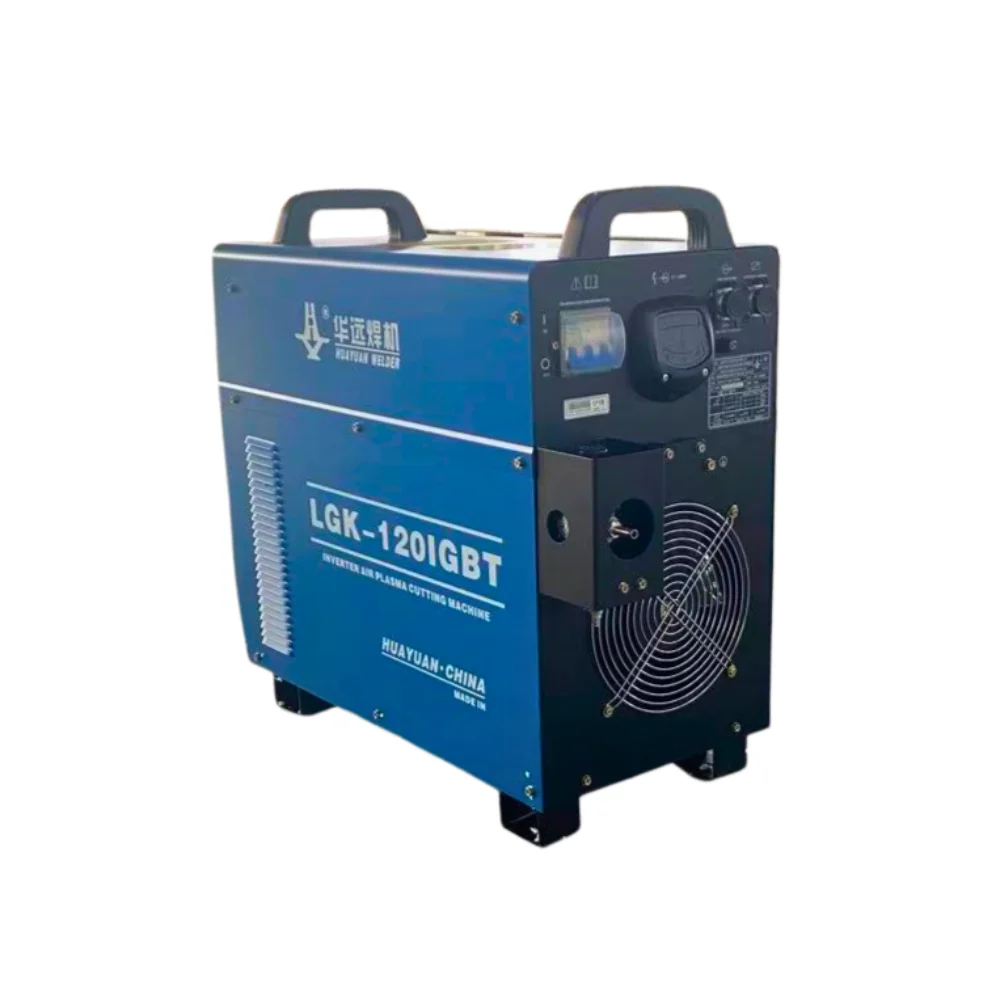

LGK 120IGBT Plasma Cutter with 8m Cable Specifically Designed for Versatile Steel & Aluminum Applications P80 Machines
- Category: >>>
- Supplier: Shenzhen Hafnium Technology Co. Ltd.Shenzhen Ltd.
Share on (1601341771243):
Product Overview
Description
Products Description
LGK-120HD+P80 machine torch 8m cable
P80 machine torch 8m cable
P80 consumable kits
Application
Widely used for shipyard building, bridge, pressure vessel, stainless steel, aluminum, copper and its alloy etc metal.
Advantage
Stable output current
good grooving shape
Faster than air gouging machine Lower cost
Faster
Max Air gouging machine speed=1m/min ( 8mm carbon rod )
Max plasma gouging speed=1.5m/min (120A)
Lower cost
Plasma gouging samples are well formed, the grooving groove is uniform, and there is no sticky slag, which basically does not require
secondary grinding to save labor costs
Max Air gouging machine speed=1m/min ( 8mm carbon rod )
Max plasma gouging speed=1.5m/min (120A)
Lower cost
Plasma gouging samples are well formed, the grooving groove is uniform, and there is no sticky slag, which basically does not require
secondary grinding to save labor costs
Suitable most metal
Suitable most metal
Plasma gouging does not require carbon rod electrodes compared to carbon arc gouging, which reduces the consumption of consumables
and reduces the overall cost of use Compare to carbon arc gouging Weak arc, less smoke, and lower noise
and reduces the overall cost of use Compare to carbon arc gouging Weak arc, less smoke, and lower noise
Duty cycle 100%(40° )
Non-load Voltage up to380V
Good HF generator
Arc strike success rate
Arc strike success rate
Adopt dust-proof,moisture-proof and salt
spray-proof spraying process
spray-proof spraying process
Good air filter
With overload,input fault protection
Output with protection cap
Optional consumables | ||||||||
No. | Category | Item | Specification | Order number | ||||
1 | power souce | Air switch | DZ47-63/63A(DZ47D-3P/63A) | 102010200003 | ||||
2 | power souce | Knob | MF-A03 | 102010500058 | ||||
3 | power souce | Fast connector | DKJ-50(Black) | 104010000005 | ||||
4 | power souce | Fast connector | DKJ-50(Black) | 104010000003 | ||||
5 | power souce | Boatswitch | RK2-1621 | 102010500070 | ||||
power souce | RK2-0122 | 102010500072 | ||||||
6 | power souce | Air filter | GFR200-08 | 102010200026 | ||||
7 | power souce | Connector | WS20K4Z | 104020000046 | ||||
1 | torch | P80 electrode | YP80100 | 106050000245 | ||||
2 | torch | P80 gouging nozzle | YPC80225(φ2.5) | 106050000082 | ||||
3 | torch | P80 gouging shiled | YPC80101 | 106050000068 | ||||
4 | torch | P80 ceramic | YP80003 | 106050000193 | ||||
5 | torch | P80compression ring | YP80002 | 106050000192 | ||||
6 | torch | P80 cutting nozzle | YP80170(φ1.7) | 106050000346 | ||||
7 | torch | P80 shiled | YP80004(ceramic) | 106050000244 | ||||
Packaging | ||||
Model | LGK-120IGBT-B | LGK-200IGBT-B | ||
Package | Plywood case | Plywood case | ||
Size | 725x410x750 | 850x500x980 | ||
Weight | 58kg | 105kg | ||
Product Paramenters
Item | Unit | LGK-120IGBT-B | LGK-200IGBT-B | |||||
Gouging | Cutting | Gouging | Cutting | |||||
Input Power | V/Hz | 3~380±15%50/60 | ||||||
Rated Input Capacity | KVA | 34.4 | 22.4 | 55 | 46.7 | |||
Rated Input Current | A | 52.3 | 34 | 83.6 | 71 | |||
Rated Output Current | A | 120 | 200 | |||||
Rated Output Voltage | V | 200 | 128 | 200 | 160 | |||
Rated Open Circuit Voltage | V | 380 | ||||||
Rated Duty Cycle | 100%(40℃) | |||||||
Output Current Adjust Range | A | 30~120 | 40~200 | |||||
Arc Voltage Output Ratio | 1:1/1:20/1:50/1:100 | |||||||

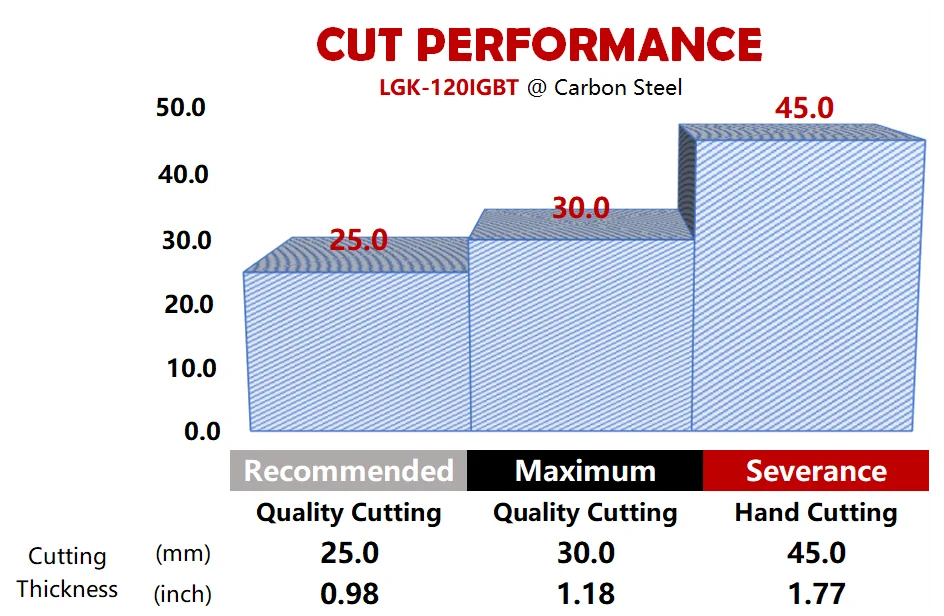

Quality Cut Thickness | mm | 0.3~25 | 1~45 | |||||
Severance Cut Thickness | mm | 45 | 65 | |||||
Plasma Gas | Compressed Air | |||||||
Air Pressure | MPa | 0.4~0.5 | 0.4~0.6 | 0.4~0.5 | 0.4~0.6 | |||
Torch Cooling Mode | Air Cooling | Water Cooling | ||||||
Power Source Cooling Mode | Air Cooling | |||||||
Insulation Grade | F | |||||||
Ingress Protection | IP21S | |||||||
Dimension(L×W×H) | mm | 675x320x605 | 800x380x810 | |||||
Net Weight | Kg | 48 | 83 | |||||
Company Profile
Manufacturing Process
Exhibition & Customer Visit Company
Package&Delivery
Aftersales Service
FAQ
Q1: Can you customize welding and plasma cutting torches?
A1: Yes, customization is common. We support OEM and ODM services for torches and can customize cable lengths, branding, or even the torch design to suit specific needs
Q2: What is the delivery time and minimum order quantity (MOQ)?
A2: Delivery times varies from 3 to 30 days, depending on order size and customization requirements. MOQs can vary, with some models available for as low as 1 piece (ideal for sampling), while bulk orders might have higher MOQs for discounted pricing.
Q3: What payment and protection options are available?
A3: Alibaba Trade Assurance is a common protection, ensuring secure payments and quality control. Buyers can also use secure payment options, such as SSL-encrypted transactions, with refunds available in case of issues.
Q4: Where is your factory located? How can I visit there?
A4: Our factory is located in Yiyuan City, Shandong Province, China. You can visit us by air or by the high-speed train. All the customers, from domestic China or abroad, are warmly welcome to visit us!
Q5: What's the quality of your products?
A5: We are very focused on the quality of the products. We are ISO certified manufacturer. Our CNC plasma cutting machines are built to last. Each machine is carefully assembled by experts out of the finest materials.
Q6: What shall we do if don't know how to operate your machine after bought from you?
A6: We have detailed installation and operating instructions attached, also comes with detailed video instructions. What’ more ,we have experienced engineers on call 24 hours to support you.
Q7: What are your payment terms?
A7:We support T/T, L/C and so on. We also accept other payment terms upon agreement.
Q8: All products have a warranty?
A8:YES, Our warranty term is One Year.
A1: Yes, customization is common. We support OEM and ODM services for torches and can customize cable lengths, branding, or even the torch design to suit specific needs
Q2: What is the delivery time and minimum order quantity (MOQ)?
A2: Delivery times varies from 3 to 30 days, depending on order size and customization requirements. MOQs can vary, with some models available for as low as 1 piece (ideal for sampling), while bulk orders might have higher MOQs for discounted pricing.
Q3: What payment and protection options are available?
A3: Alibaba Trade Assurance is a common protection, ensuring secure payments and quality control. Buyers can also use secure payment options, such as SSL-encrypted transactions, with refunds available in case of issues.
Q4: Where is your factory located? How can I visit there?
A4: Our factory is located in Yiyuan City, Shandong Province, China. You can visit us by air or by the high-speed train. All the customers, from domestic China or abroad, are warmly welcome to visit us!
Q5: What's the quality of your products?
A5: We are very focused on the quality of the products. We are ISO certified manufacturer. Our CNC plasma cutting machines are built to last. Each machine is carefully assembled by experts out of the finest materials.
Q6: What shall we do if don't know how to operate your machine after bought from you?
A6: We have detailed installation and operating instructions attached, also comes with detailed video instructions. What’ more ,we have experienced engineers on call 24 hours to support you.
Q7: What are your payment terms?
A7:We support T/T, L/C and so on. We also accept other payment terms upon agreement.
Q8: All products have a warranty?
A8:YES, Our warranty term is One Year.
