cheap price 150 ton portable hydraulic track link pin press
US $350.00-$850.00

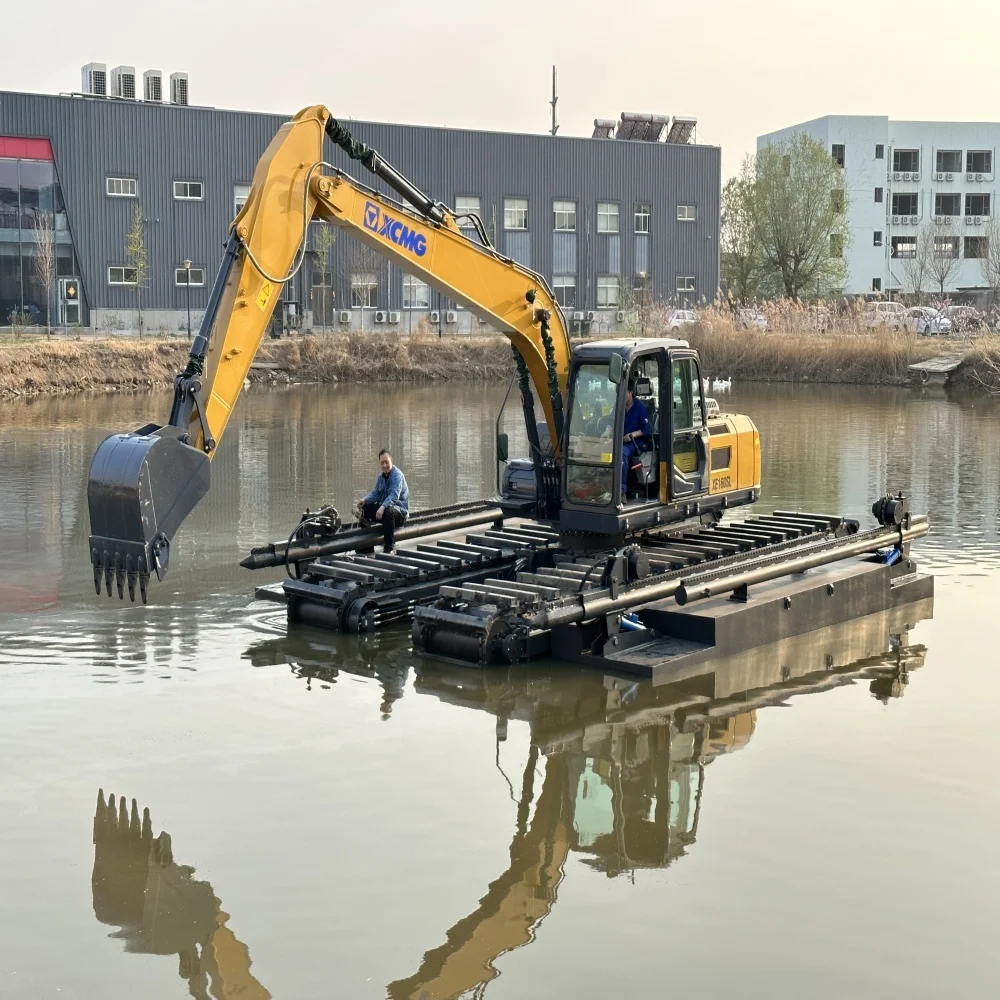

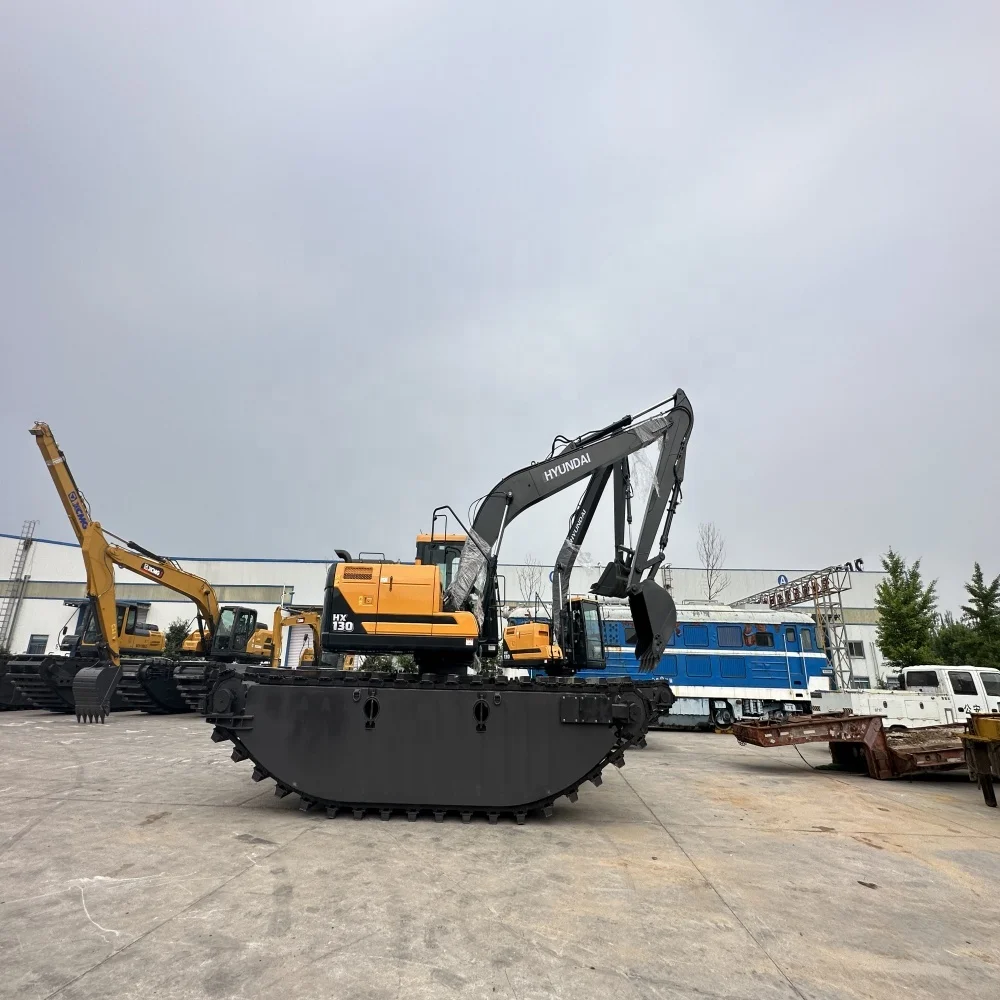

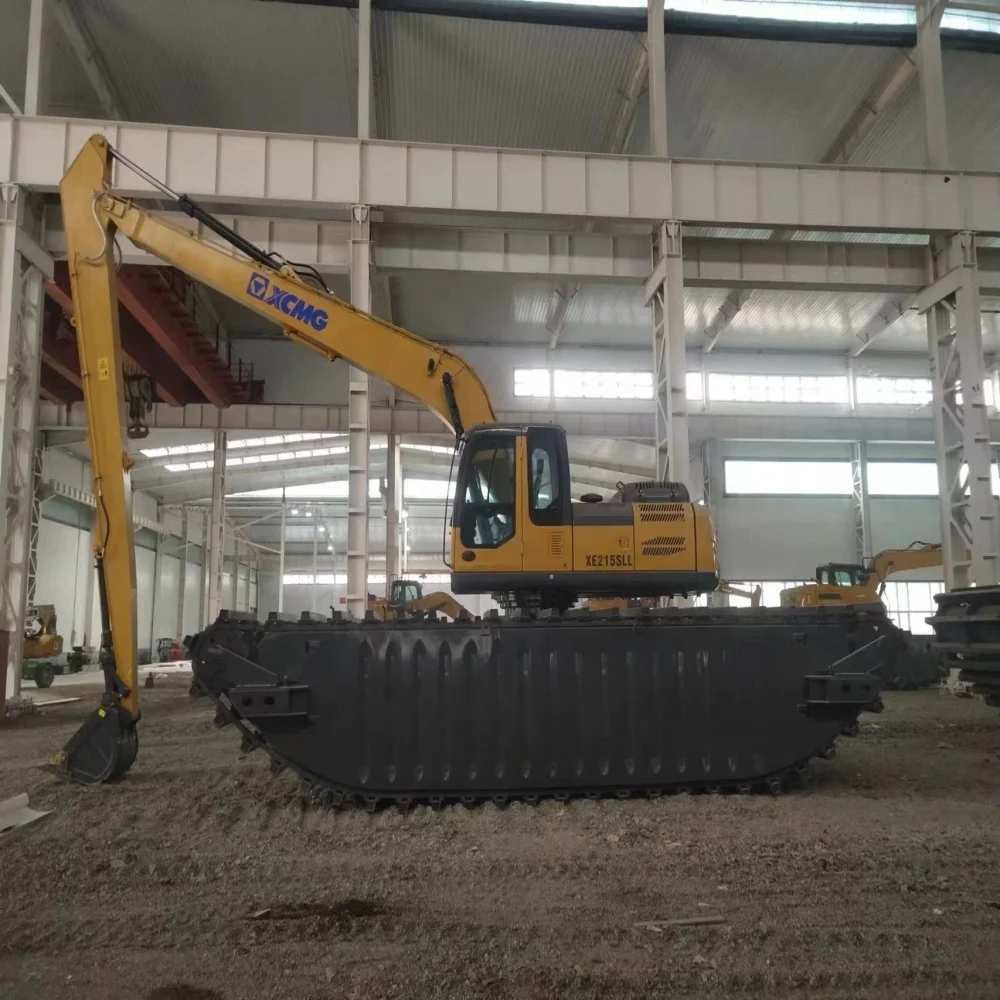

Mini Amphibious floating pontoon for excavator
- Category: >>>
- Supplier: Bin Zhou Jinyi Equipment Co. LtdBin Ltd
Share on (1601192188352):
Product Overview
Description
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
Specifications
Model number | 60-80 | 120-160 | 180-200 | 200-250 | 250-270 | 300-350 | 350-400 | |
Float length | A | 5700 | 7000 | 7500 | 8000 | 9500 | 10000 | 10500 |
ground specific pressure | B | 1000 | 2000 | 3500 | 4000 | 5500 | 6000 | 6500 |
CCounterweight ground clearance | C | 1500 | 1800 | 1900 | 2040 | 2140 | 2140 | 2140 |
Tail turning radius | D | 1750 | 2140 | 2750 | 2750 | 2750 | 3100 | 3360 |
Cab width | E | 2070 | 2490 | 2630 | 2630 | 2630 | 2790 | 3000 |
Height of cab from ground | F | 3500 | 3710 | 4015 | 4115 | 4215 | 4315 | 4315 |
Ground clearance | G | 875 | 1060 | 1210 | 1210 | 1210 | 1210 | 1210 |
Pontoon height | K | 1340 | 1640 | 1740 | 1800 | 1900 | 1900 | 1900 |
Total width of the pontoon | I | 3000 | 3600/4600 | 4300/5700 | 300/570 | 4500/5900 | 4800/6200 | 5000/6400 |
Intermediate span | M | 1200 | 1500 | 1700 | 1700 | 1700 | 2000 | 2000 |
Pontoon single width | H | 1000 | 1250 | 1500 | 1500 | 1500 | 1700 | 1700 |
Total height | D | 3700 | 3800 | 4029 | 4129 | 4229 | 4315 | 4315 |
Total length of the pontoon | N | 7270 | 10040 | 12340 | 12840 | 13840 | 14900 | 15980 |

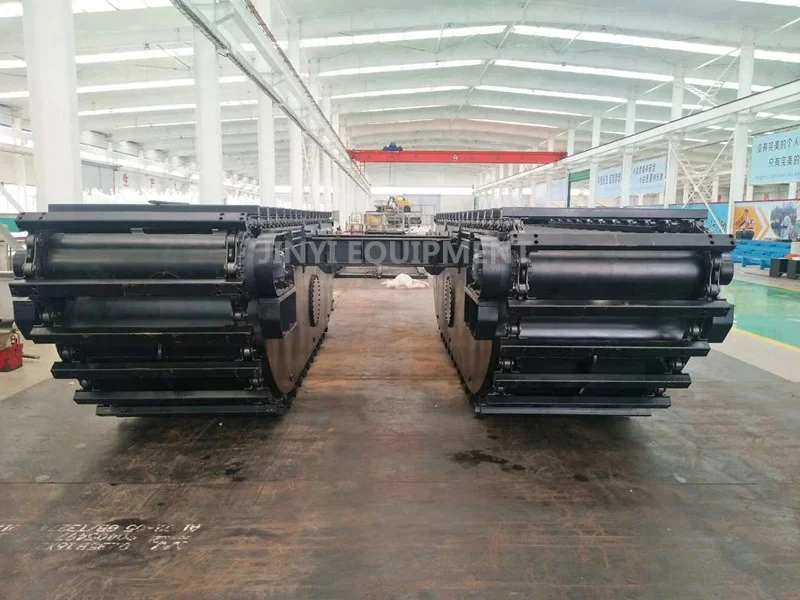

PRODUCT CONFIGURATION
Rotary platform
The flange size of the reassembly platform is customized according to the customer's excavator brand and model.
chain
The chain is available in two materials: titanium alloy and chromium. The titanium alloy material is twice as strong as ordinary materials and more durable. It can maintain an accurate average transmission ratio and achieve higher transmission efficiency.
Chain plate
The internal design support of the chain plate greatly improves the load-bearing capacity and reduces losses on hard ground.
The chain plate is designed in a trapezoidal shape, which is non-slip and not easy to bend, and has a longer life.
Can be customized according to customer requirements
The chain plate is designed in a trapezoidal shape, which is non-slip and not easy to bend, and has a longer life.
Can be customized according to customer requirements
spud
The spud and hydraulic mechanism are
integrated in the closed vice pontoon, which
are installed on both sides of the amphibious
excavator. The hydraulic power can be used
to control the tilting or up-and-down positioning. ts length is determined by the depth of the
working area. The spuds are erected when working,then the hydraulic mechanism is started to
insert t into the mud. The use of spud will greatly improve the stabilty of equipment operation in
water.

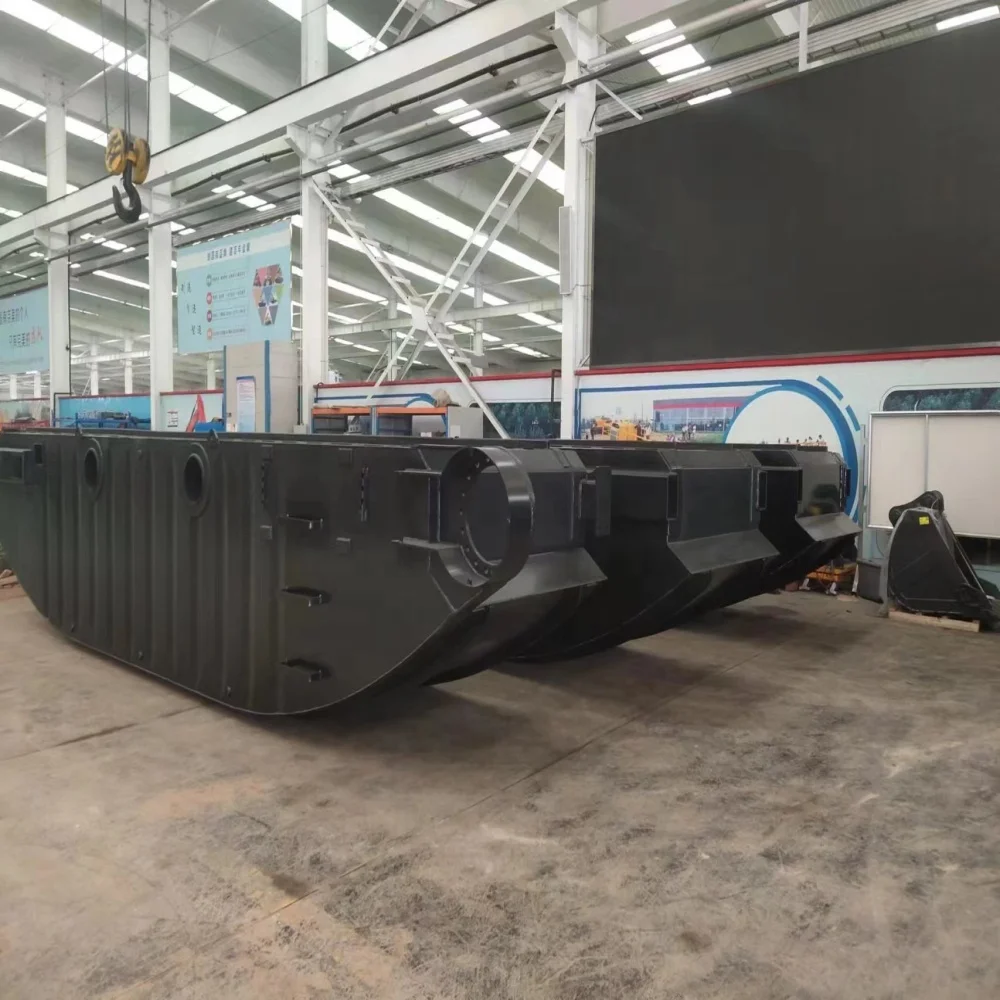

Pontoon Expansion
The pontoon expansion is unique for our company. It means that the device can be adjusted the
distance between two pontoons in a certain range. The beams are equipped with hydraulic control
system, which is easy to operate with high safety. During the construction process, if the narrow
working environment is encountered, Distance between two pontoons can be minimized while
working.Adjusting the spacing to a suitable size in a wide area enhances the stability of the chassis
and improves work efficiency.
distance between two pontoons in a certain range. The beams are equipped with hydraulic control
system, which is easy to operate with high safety. During the construction process, if the narrow
working environment is encountered, Distance between two pontoons can be minimized while
working.Adjusting the spacing to a suitable size in a wide area enhances the stability of the chassis
and improves work efficiency.

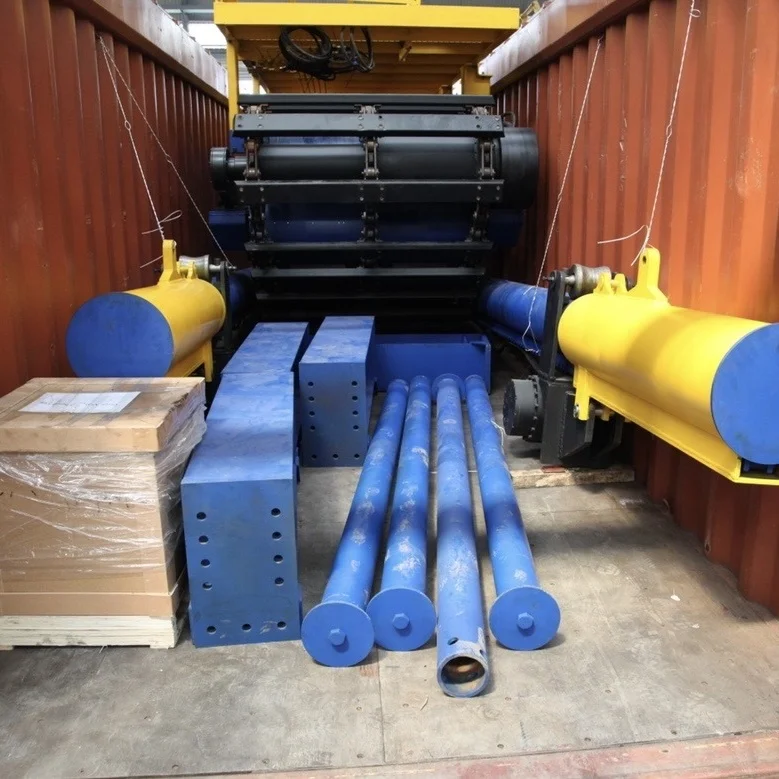

Product packaging

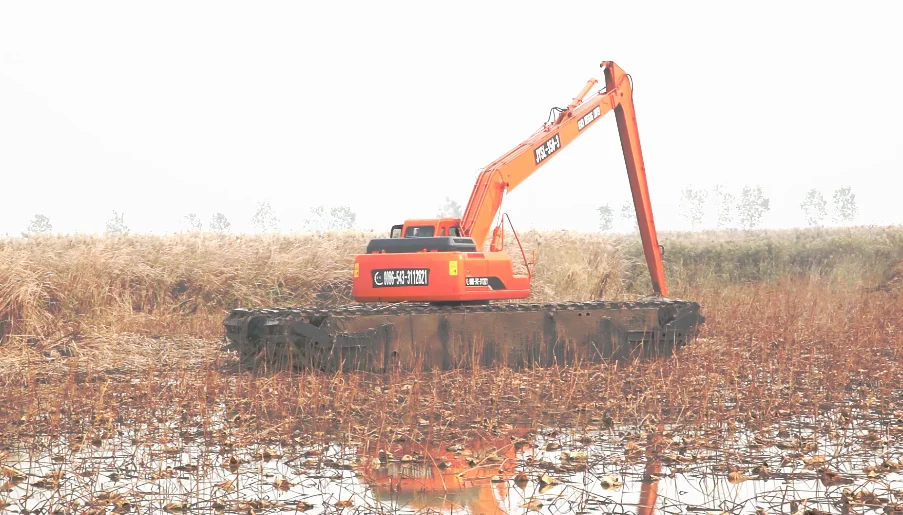

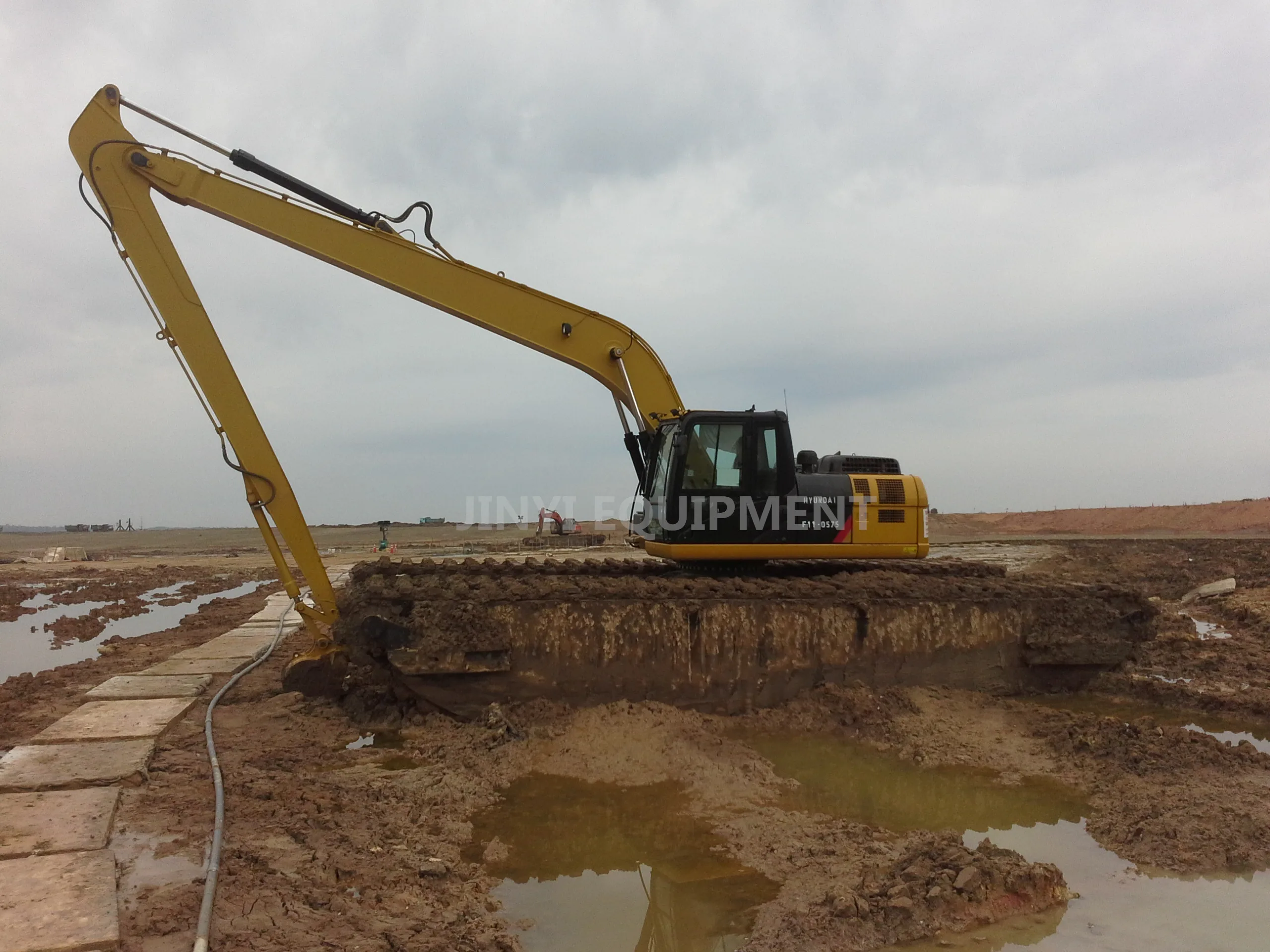

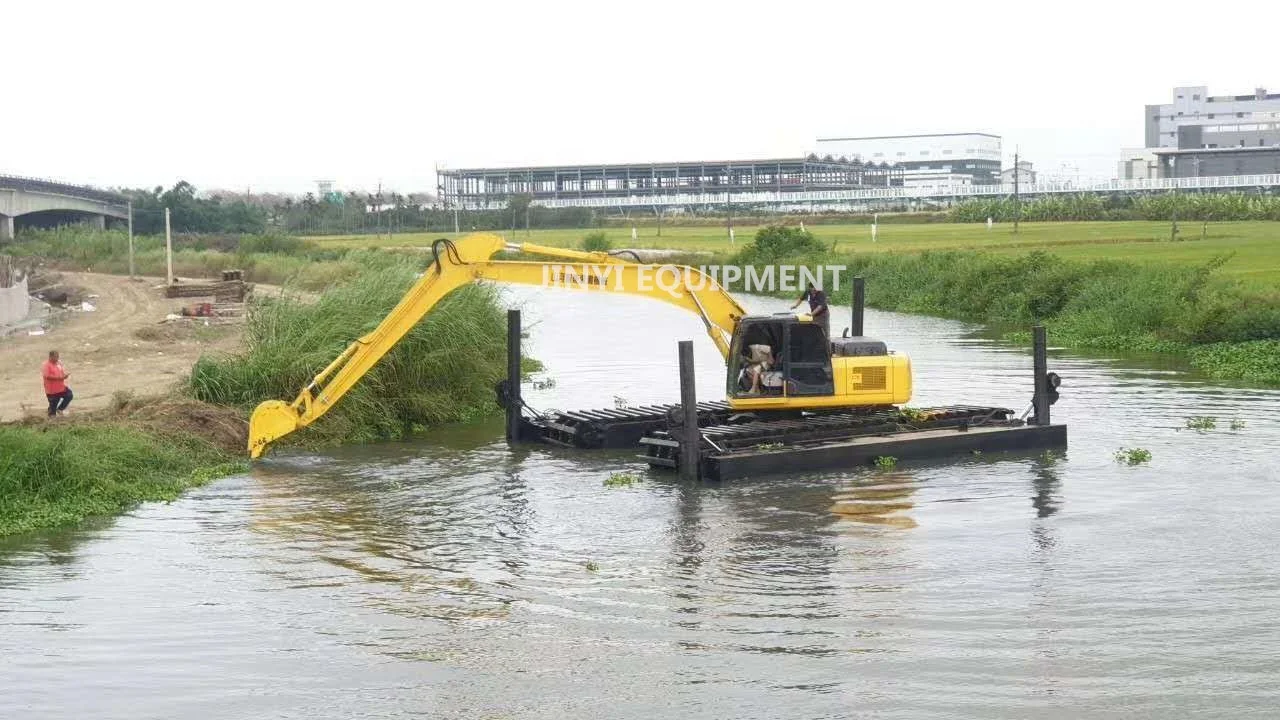

What place use
FAQ
1. Are you factory?
Yes, Our factory is in BinZhou City, Shandong Province, welcome to visit us.
2. How big are you?
Binzhou Jinyi Equipment Co.,Ltd was founded in 2006 with an area of 140 acres,116 workers.
Binzhou Jinyi Equipment Co.,Ltd was founded in 2006 with an area of 140 acres,116 workers.
3. What equipment do you build?
We have a series of amphibious machinery products for excavator, dump truck and sand-suction boat, which have been widely used in many types of national key green livelihood projects, such as flood control and drought relief, municipal dredging, farmland water conservancy, beach lakes, fish pond shrimp ponds, salt lake production and transformation etc.
We have a series of amphibious machinery products for excavator, dump truck and sand-suction boat, which have been widely used in many types of national key green livelihood projects, such as flood control and drought relief, municipal dredging, farmland water conservancy, beach lakes, fish pond shrimp ponds, salt lake production and transformation etc.
4. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required
Cummins, Weichai, Yuchai, etc, or as required
Certifications

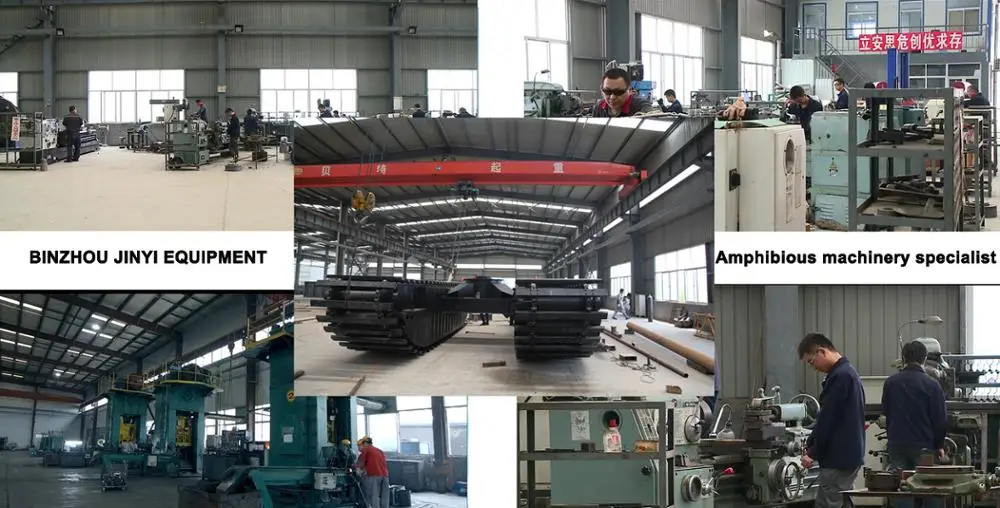

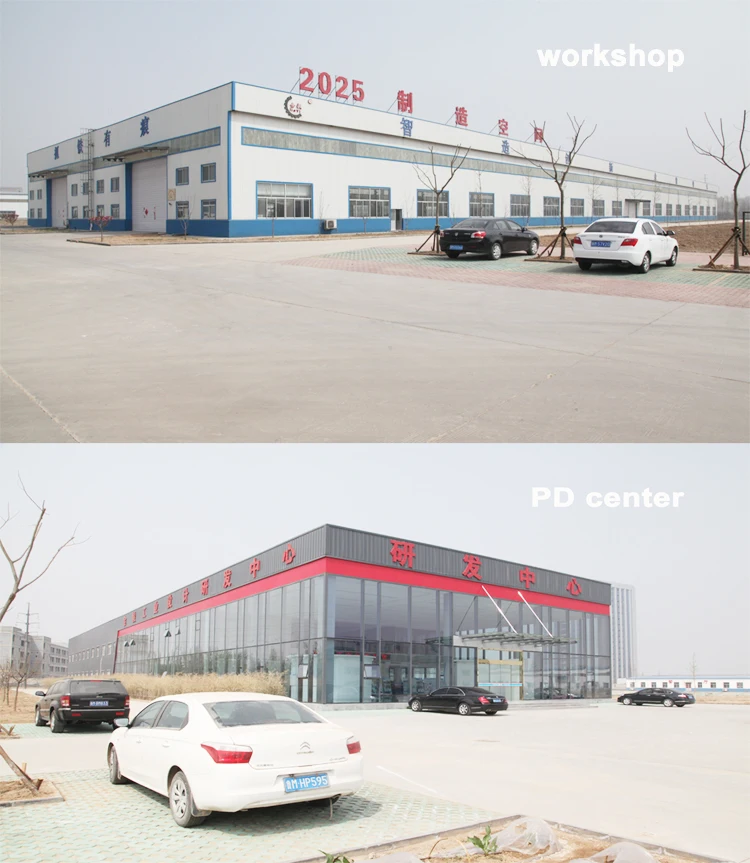

company profile
Binzhou Jinyi Equipment Co.,Ltd was founded in 2006 with an area of 140 acres,We have a series of amphibious machinery products for excavator, dump truck and sand-suction boat, which have been widely used in many types of national key green livelihood projects, such as flood control and drought relief, municipal dredging, farmland water conservancy, beach lakes, fish pond shrimp ponds, salt lake production and transformation etc.At present, our products have been exported to the United States, Germany, Russia, New Zealand, Brazil, India, Malaysia, Egypt, Iran, Indonesia, reputations from customers. Driven by innovation and quality. "
Jinyi brand" isNigeria and other countries & regions in Europe, America and Asia, and won goodstriving towards the woride
Bona Innovation: forward-looking, looking forward to the future, Jin Yi never stopLooking forward to the future, Jinyi will never stop.
