Product Overview

Description



  Linyi Yuanteng Machinery Equipment Co.,Ltd was established in 1995. The Chinese company is located in Linyi city, Shandong Province, and in Dakar Senegal in Africa we have our own plant.

  African factory in Senegal provides gypsum board, gypsum powder, putty powder, cement air-added brick, gypsum ceiling board, gypsum cornice, cement tile and other building materials.

  We are a large-scale professional factory with independent research and design, production and sales of building materials machinery, accumulating richly experience in equipment design.manufacturing,installation and commissioning.

  Factory in China,the main products are including: gypsum board production line, gypsum powder production line, glass magnesium board production line, gypsum cornice production line and other building materials complete production lines.

  Our company strives to improve its competitiveness, forge a distinctive corporate culture, and pursue sustainable development. According to the concept of "quality creates quality, integrity creates the future", the company will do its best to provide engineering design, technical consultation, product research, manufacturing, engineering supervision, after-sales service tracking and other services for Chinese and foreign customers.

  Waiting for your visit and we will do the better service for you!

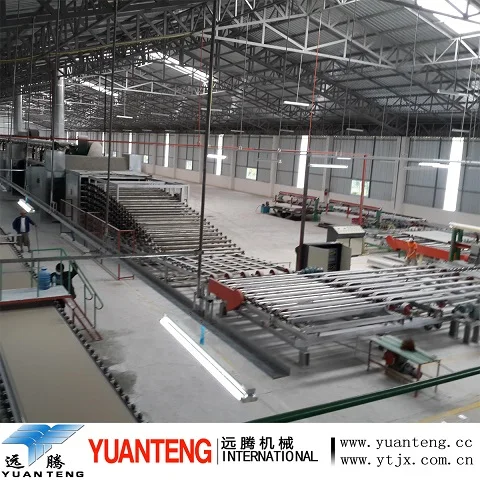

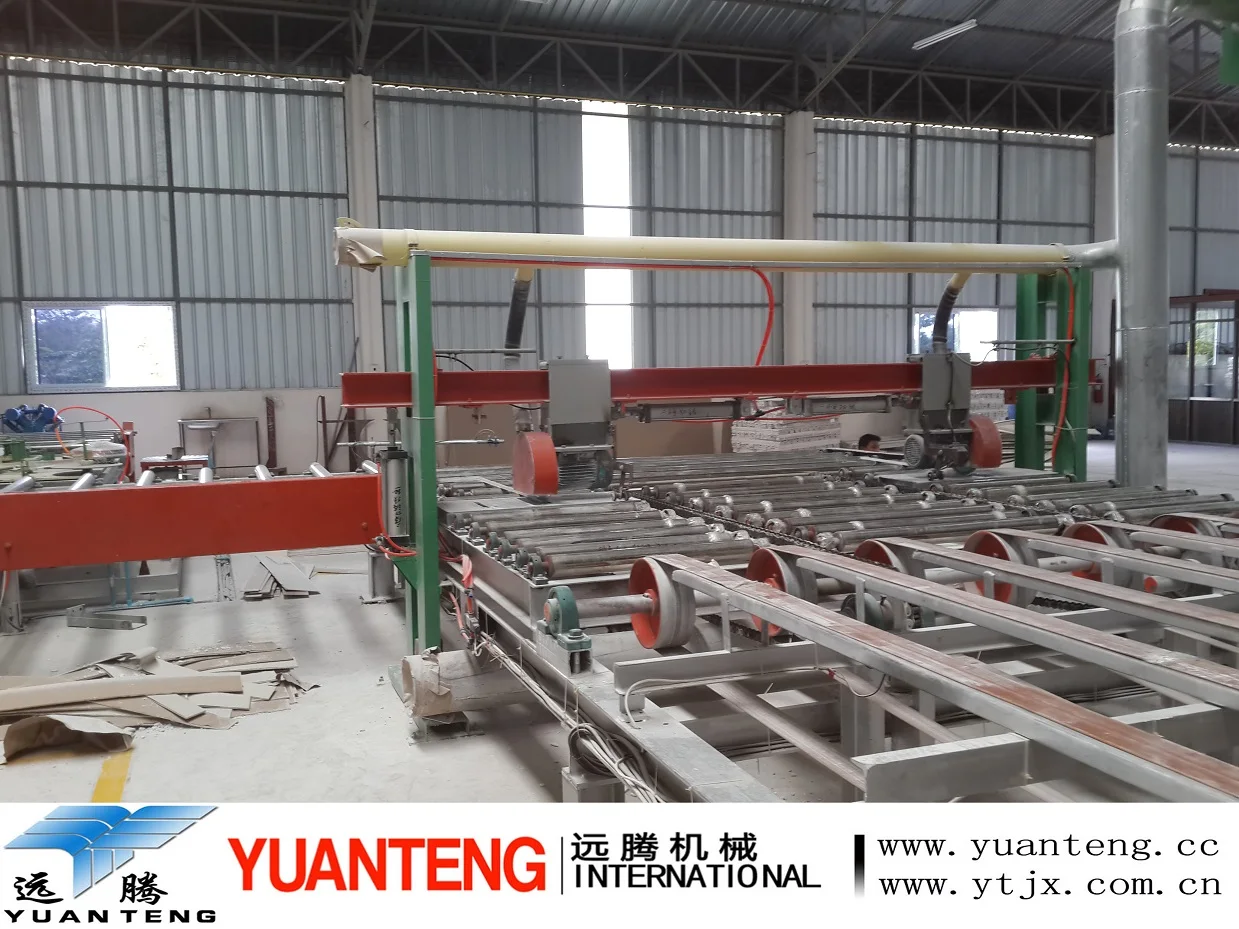

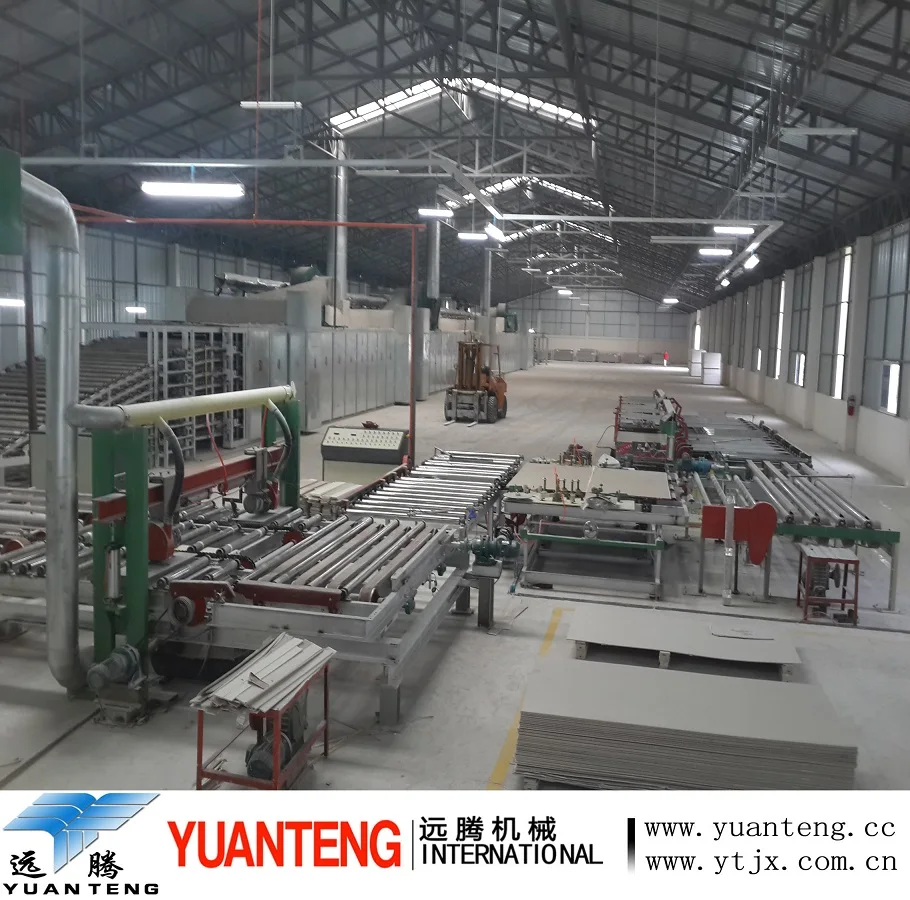

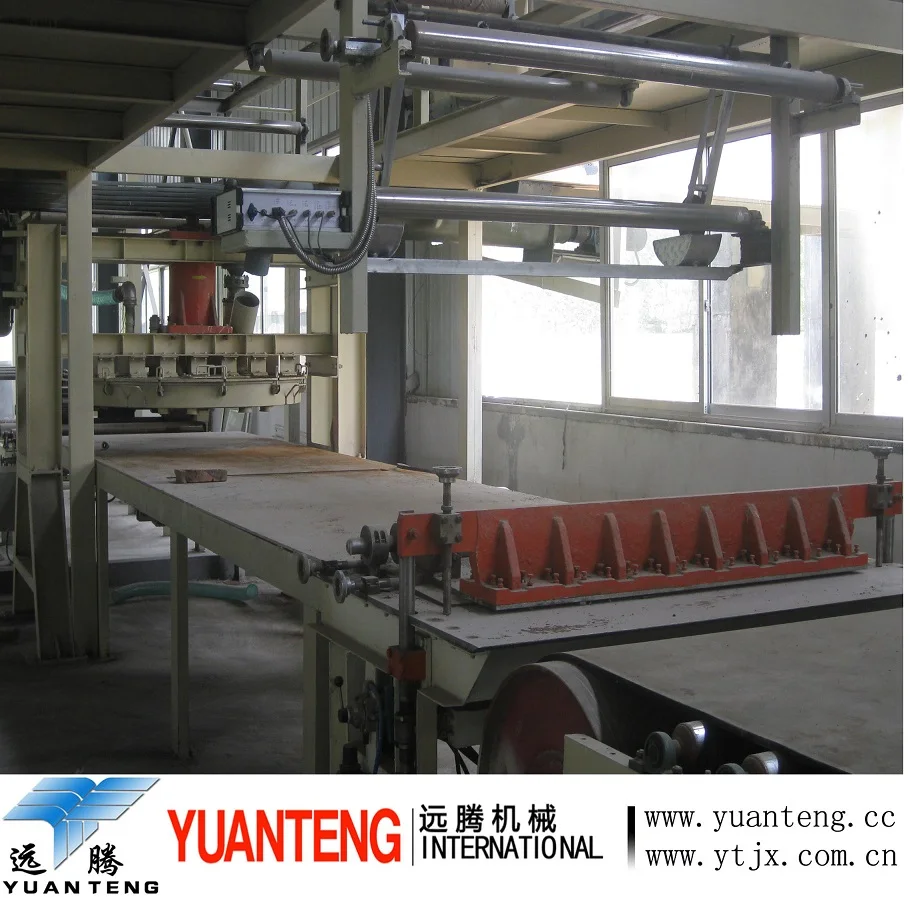

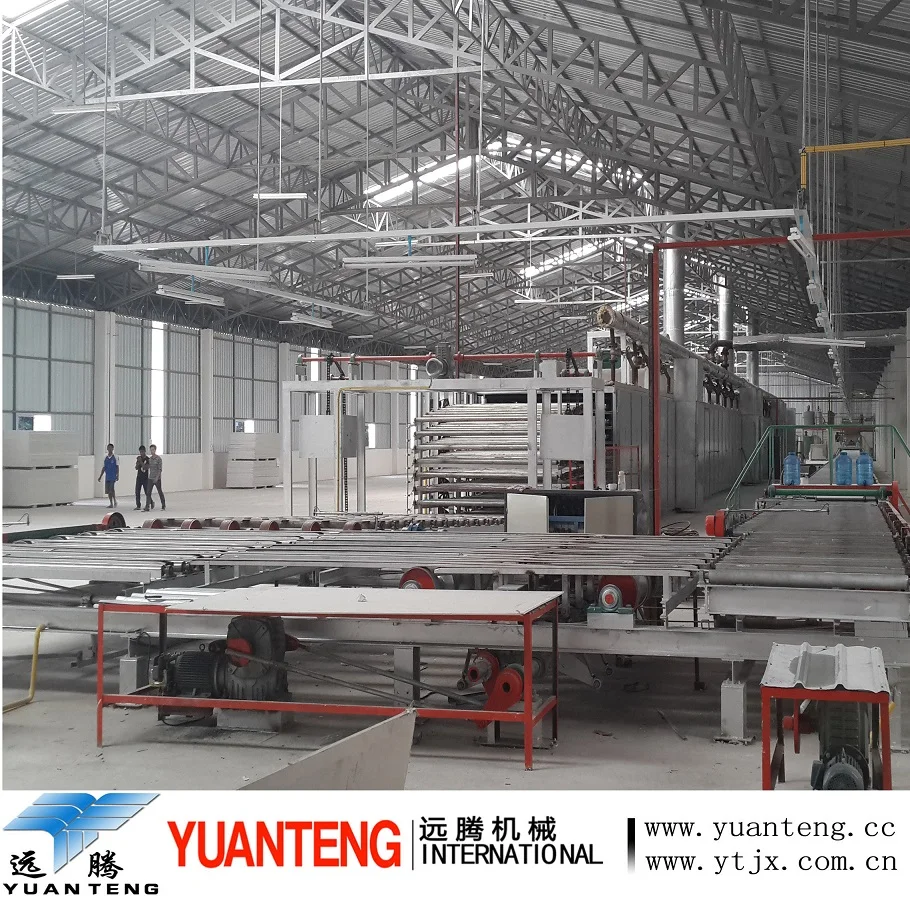

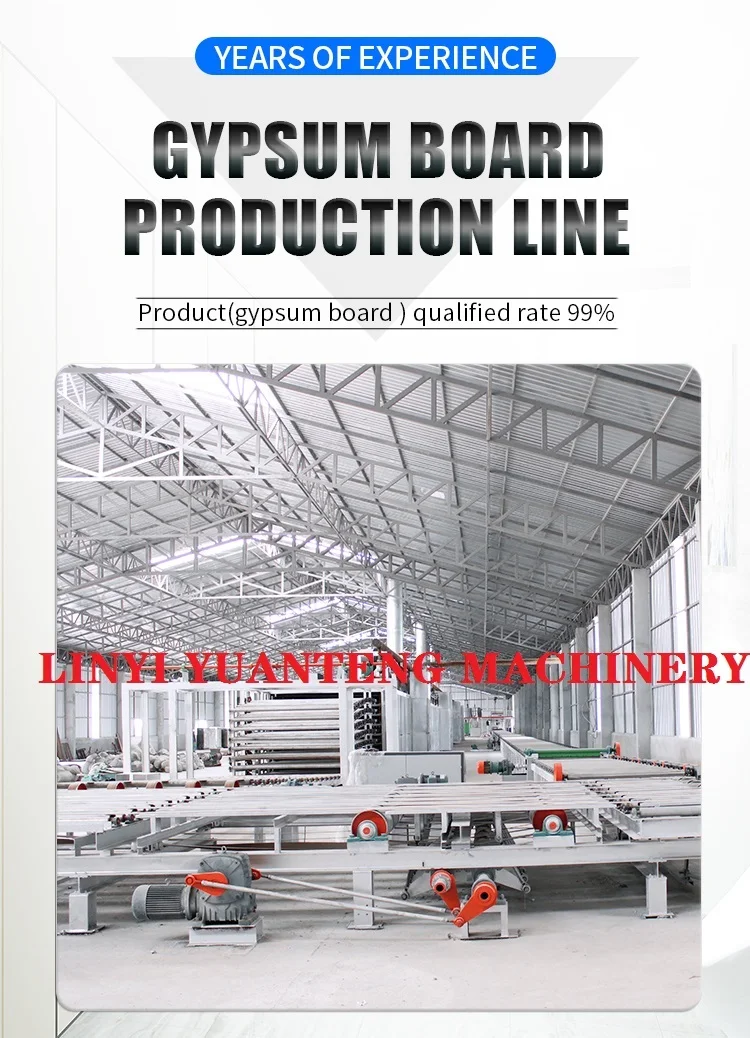

 Gypsum board production line brief introduction:



1. Capacity :1 million m2/y~30 million m2/y

(Annual production according to 300 days calculate, 24 hours of continuous production)

2. Automation: semi degree automatic and high degree automatic

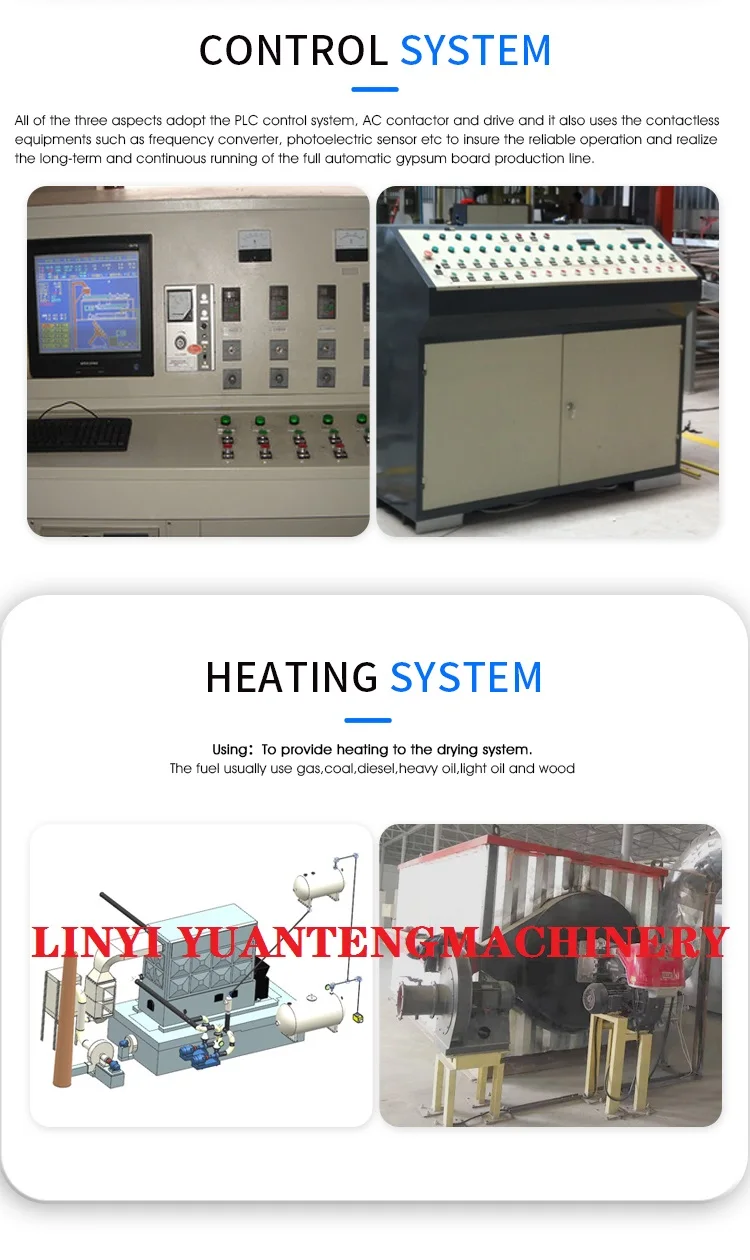

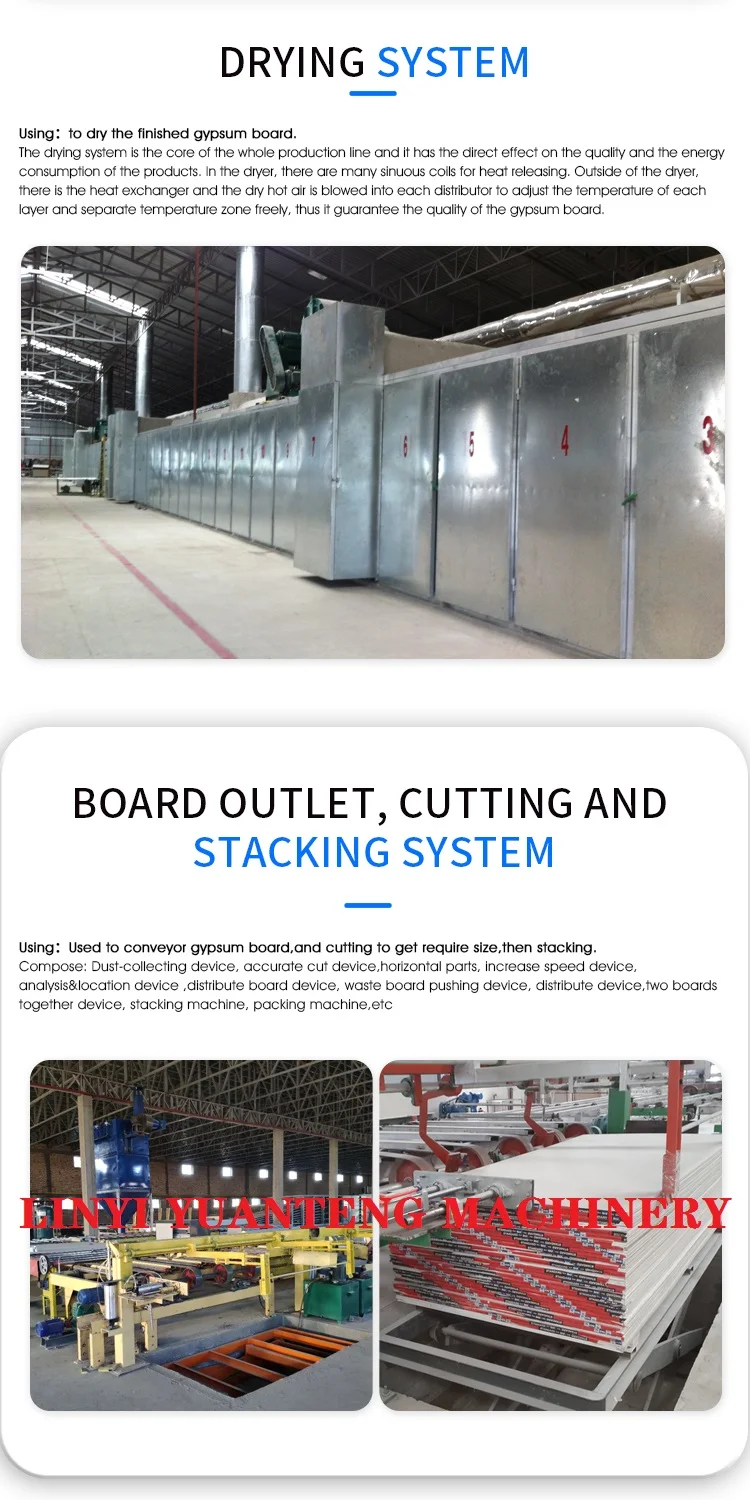

3. Drying system.Using hot air or hot oil type

4. Fuel: Coal, wood, natural gas, heavy oil and diesel oil

5. Main materials:

Construction gypsum powder, modified starch, protective paper, foaming agent, water, white latex. Fiberglass and paper pulp (adding selectively)

6. Dimension of product:

Thickness: 7mm-22mm
width: 1200mm or 1220mm

length: 2400mm~3600mm
we can design and manufacture products of other dimensions as clients’ special requirement.

7. Standard of product quality:

In conformity with national standard GB9775-2008

Gypsum board specifications

Product quality meet the national standard of the People’s Republic of China GB/T9775-2008<<Paper Faced Gypsum Board>>

Length (mm)	2400,2440,2500,2700,3000
Width (mm)	1200,1220
discrepancy of the length and width (mm)	Length 0-6   Width 0-5
Thickness (mm)	8,9,9.5,12,12.5,12.7,15,18
Discrepancy of the thickness	0±0.5mm      0±0.6mm
Discrepancy of the diagonal	≤5 mm
Crippling load of the board	9.5: portrait ≥360     landscape orientation ≥ 140 12: portrait ≥500     landscape orientation  ≥180
rate of water content	<2%

8. Category:

a) Common paper surface gypsum board
b) Fireproof paper surface gypsum board (H)
c) Waterproof paper surface gypsum board (S)

9.Advantage:

(1) the equipment structure is reasonable, energy saving ,high degree of automation , producing cost is low , have competitive advantage .

(2) Product(gypsum board ) qualified rate 99%,

(3) low cost for test machines , after equipment is installed, you can go to production. Within 24 hours .the product pass rate can up to 99%.

(4)We can offer  the services of design, producing, installation, commissioning and training, as well as turnkey project for customers.

10 After-sell service

1).We offer technical support until the workers know how to operate.

2).We offer the technology data and relative files of gypsum powder production line. The Operating Instruction will go to the customers with the equipment.

3).We provide free answers for all kinds of questions about the production line.

4).We provide lifelong guidance of above equipment.Visit client in regular times.

5).Excellent easy-broken parts support for buyers. Easy-broken parts guarantee for one year.One year guarantee for whole production line

6).We can help the customer to do the consignment and the relevant procedure for import and export.
