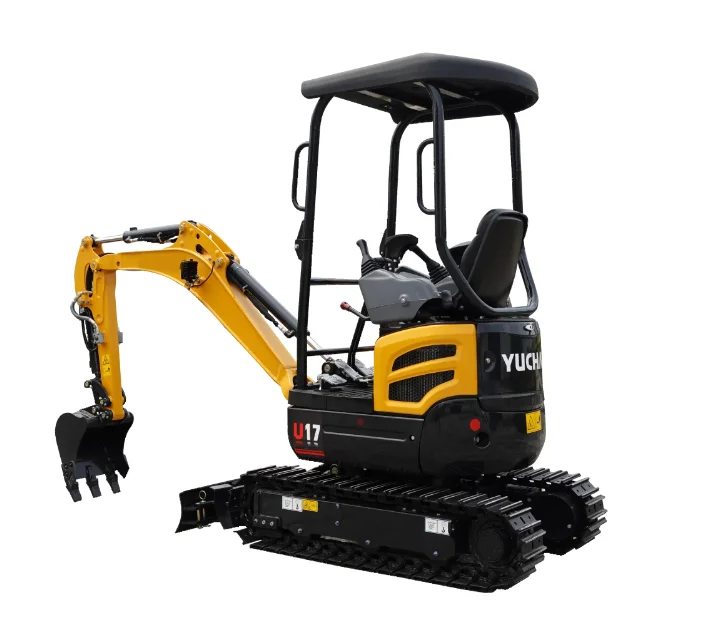

YUCHAI Brand New 1.7ton Mini Excavator U17 Small Digger with Kubota Engine and Attachmetns Hot Sale in America
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.Oriemac Ltd.
Share on (1601193216011):
Product Overview
Description
Products Description
Factory Direct Sale 1.7ton Mini Excavator U17 Kubota Engine!
With the left and right pilot operation, it has gentle movement and better stability.With the left and right deflection function, it can work in narrow space. It is equipped with telescopic chassis. Convenient maintenance and low use cost.
The overall body does not exceed the width of both sides of the crawler, so that the excavator will not be hindered from turning when turning.Easily operate in narrow space.
The overall body does not exceed the width of both sides of the crawler, so that the excavator will not be hindered from turning when turning.Easily operate in narrow space.
Advantages:
*Excellent Operation Performance
The composite action of the tooling device is coordinated and smooth. Precise control and easy operation. Walking is powerful, smooth, and jump-free. The whole machine is stable,no nodding and tail lifting phenomenon.No impact, no abnormal noise imagine.
The composite action of the tooling device is coordinated and smooth. Precise control and easy operation. Walking is powerful, smooth, and jump-free. The whole machine is stable,no nodding and tail lifting phenomenon.No impact, no abnormal noise imagine.
*Telescopic chassis
The U17 chassis' minimum width is 990mm for narrow space.It can be increased to 1240mm for stability in particular
conditions or terrain.
The U17 chassis' minimum width is 990mm for narrow space.It can be increased to 1240mm for stability in particular
conditions or terrain.
*The Boom Can be Deflected Left and Right
Maximum left deflection angle of boom is 60°.
Maximum right deflection angle of boom is 70°.
To improves the flexibility of the excavator bucket, we reduces the working space so that the bucket can rotate when the machine body and boom remain stationary.
*Various Attachments
More than ten types of attachments
Hydraulic hammers, buckets, quick change devices,wood grabbers,simple grab pliers clearing bucket,clam shell bucket,drilling tool, lawn mower, etc.
More than 40 key working conditions are applied,with a wide range of working conditions.
Maximum left deflection angle of boom is 60°.
Maximum right deflection angle of boom is 70°.
To improves the flexibility of the excavator bucket, we reduces the working space so that the bucket can rotate when the machine body and boom remain stationary.
*Various Attachments
More than ten types of attachments
Hydraulic hammers, buckets, quick change devices,wood grabbers,simple grab pliers clearing bucket,clam shell bucket,drilling tool, lawn mower, etc.
More than 40 key working conditions are applied,with a wide range of working conditions.
CONTACT
Hello, I'm Beth, More details please contact me at your free.
Mobile/Whatsapp/Wechat:+86-15399648430
Email: beth@oriemac.com

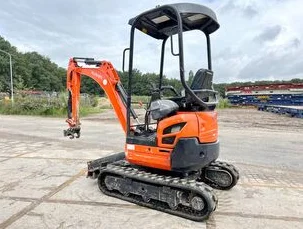

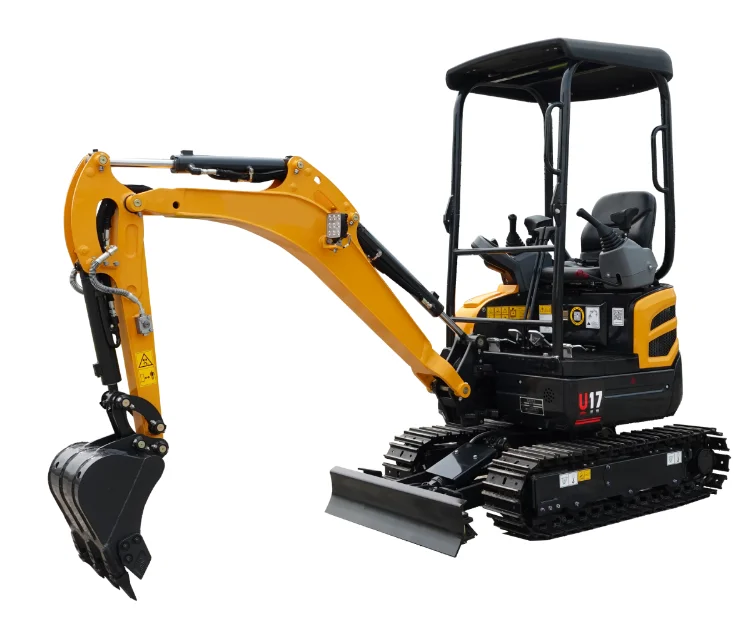

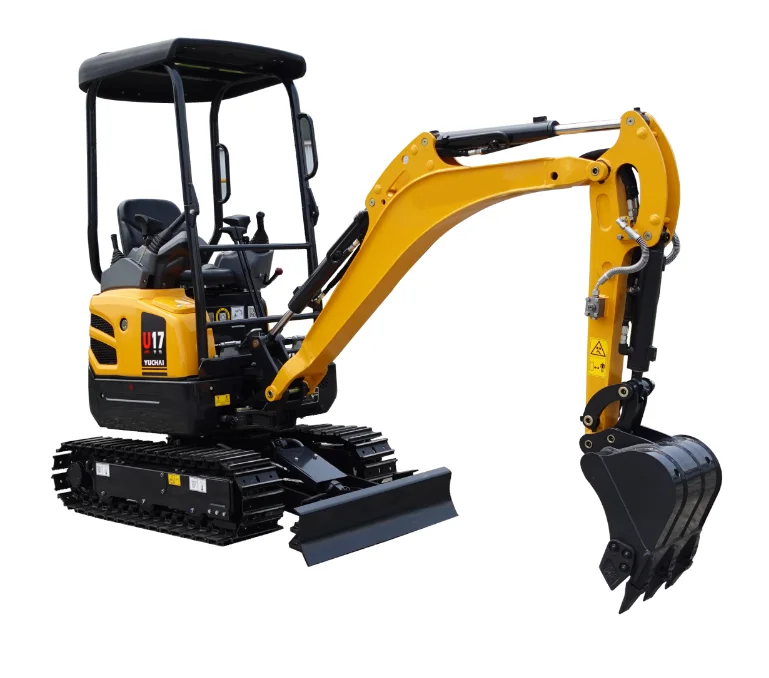

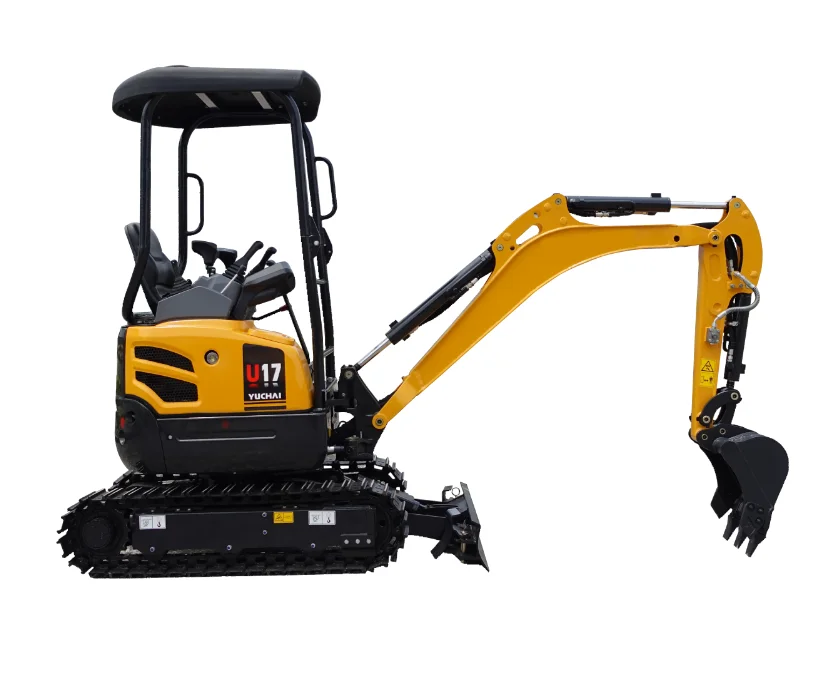

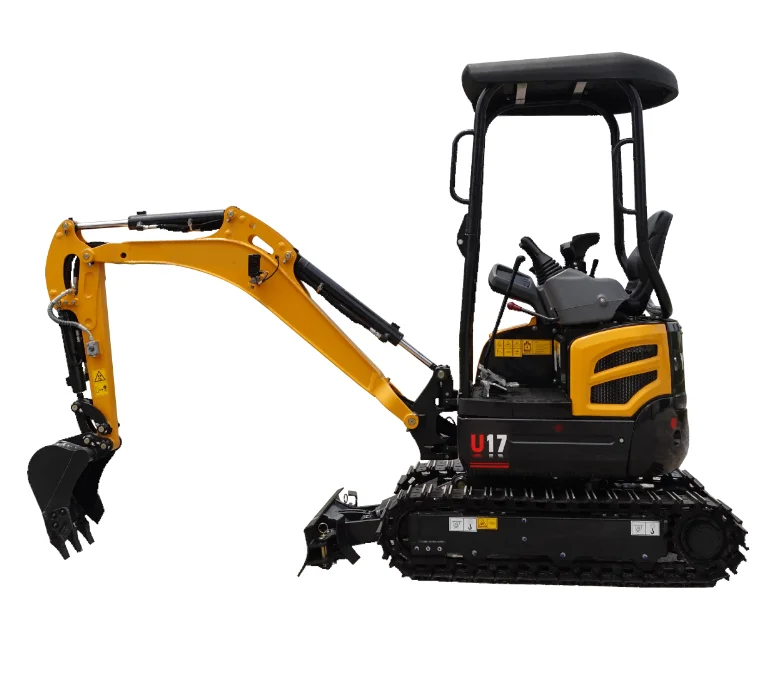

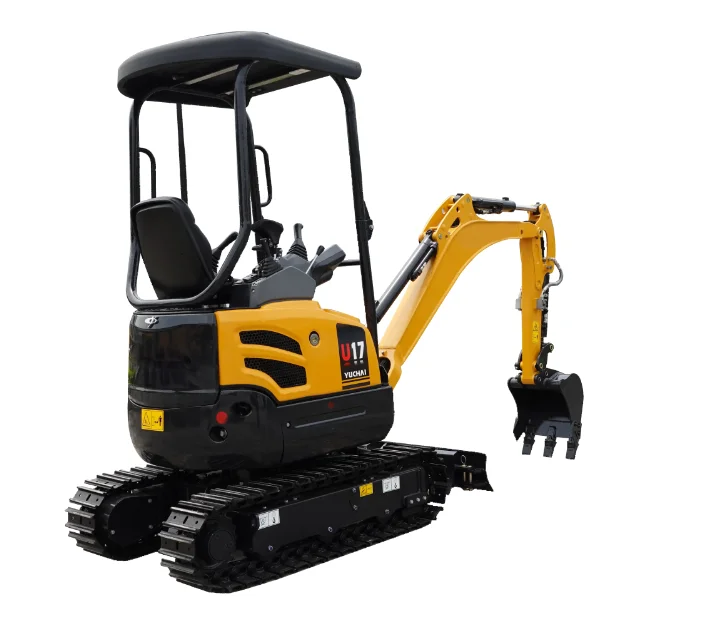

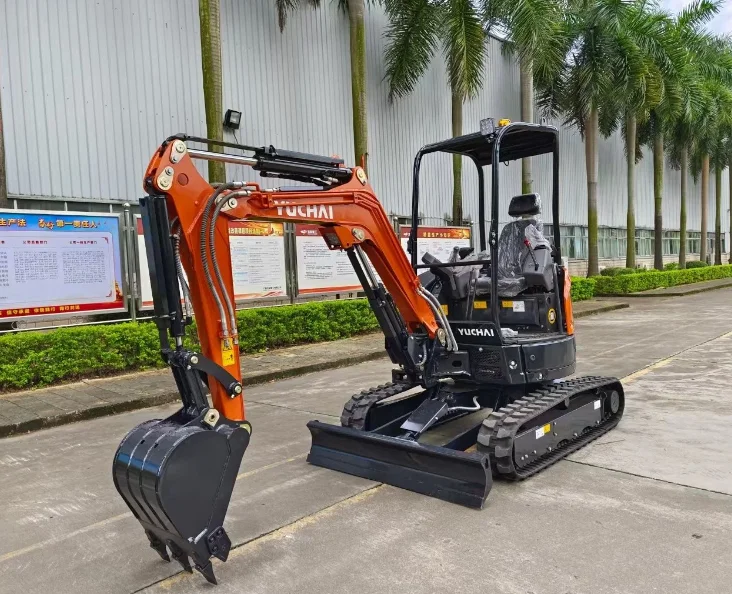

PRODUCTS PICTURES
Products Description
Model | U17 |
Machine weight | 1720kg |
Bucket capacity | 0.05cbm |
Engine model | Kubota |
Engine power | 11.8kw |
Max gradeability | 30° |
Max digging force of arm | 9.5kn |
Max digging force of bucket | 17.2kn |
Travelling speed | 2/4km/h |
Slewing speed of platform | 8.5~10.5rpm |
Max digging height | 3600mm |
Max digging depth | 2310mm |
Max digging radius on ground level | 3930mm |
Max dumping height | 3870mm |
Max vertical digging depth | 1920mm |
Width of undercarriage | 990-1240mm |
Length of track | 1600mm |
Fuel tank capacity | 16L |
