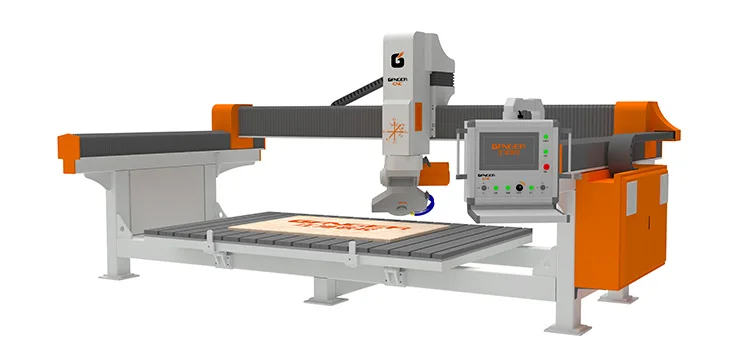

Upgraded 4 Axis Bridge Saw marble granite quartz Stone Cutting Machine for Miter 45 Degrees Ellipse Circle

Share on (1601195606658):


Price:$21,000.00

Quantity:


Product Overview

Description



Upgraded 4 Axis Bridge Saw marble granite quartz Stone Cutting Machine for Miter 45 Degrees Ellipse Circle






Product details




Applicable Industry & Material:
Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.


Machine Features:

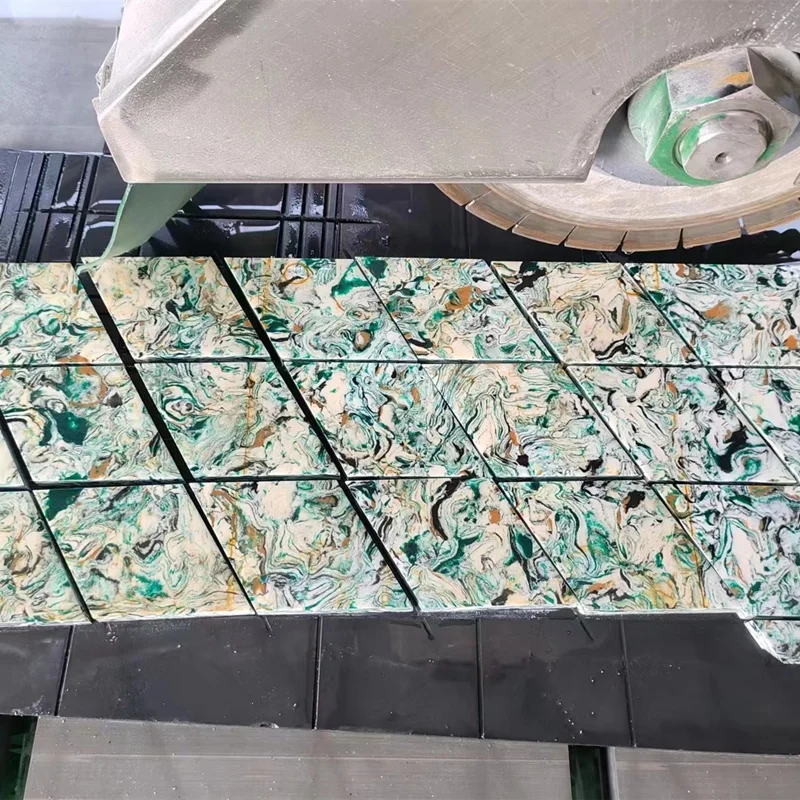

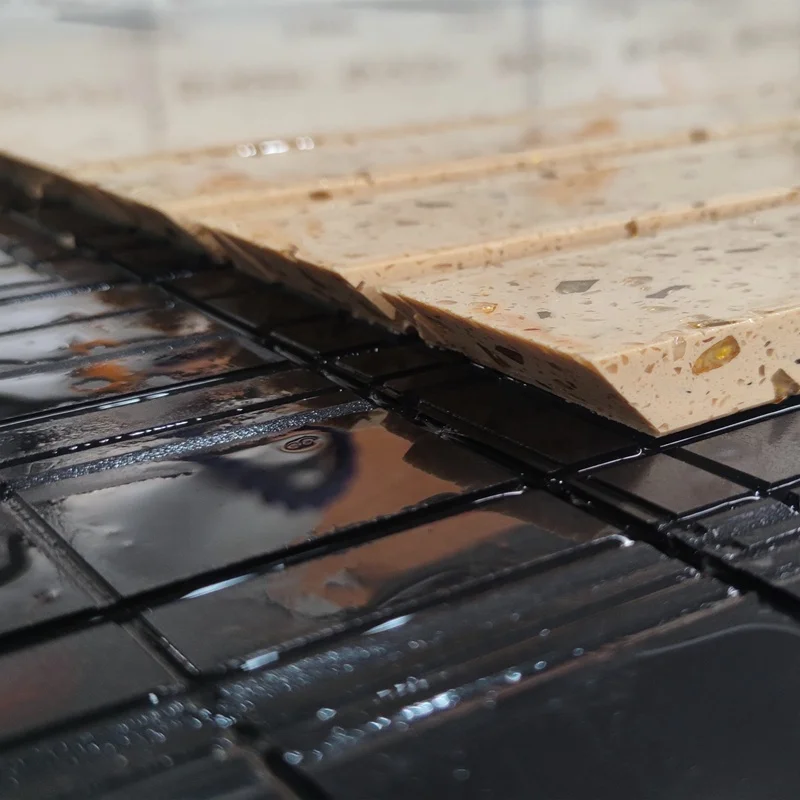

1.XYZC four axis, C axis 0 to 360 degree automatic rotation, horizontal, vertical and diamond cutting, miter 45° cutting, layered cutting, straight cutting and miter 45° cutting for L-shaped plates.
2.PLC control system, input operating parameters on the control panel, and the cutting process is automated and programmed.
3.By infrared ray to confirm the position of the workpiece.
4.Table tilts 85 degree to load slabs easily.
5. Whole steel structure machine body ensuring high stability.
6. Stone machinery running stability, high precision, high speed.
7. Stone cutting machine with compact and rational design, small size machine, convenient to handle and move.


Technical parameters


Model
GQ-3220H
X/Y/Z Axis working size
3200*2000*200mm
Diameter of blade
350mm
Working table size
3200x2000mm
Rotation speed of blade
3000/6000rpm (optional, adjustable)
Blade motor power
11KW
Total power
25KW
Chamer
45°
C axis rotation angle
0°- 360°
Table Tilting angle
85°
Control system
GANGER
Gross weight
4500KGS
