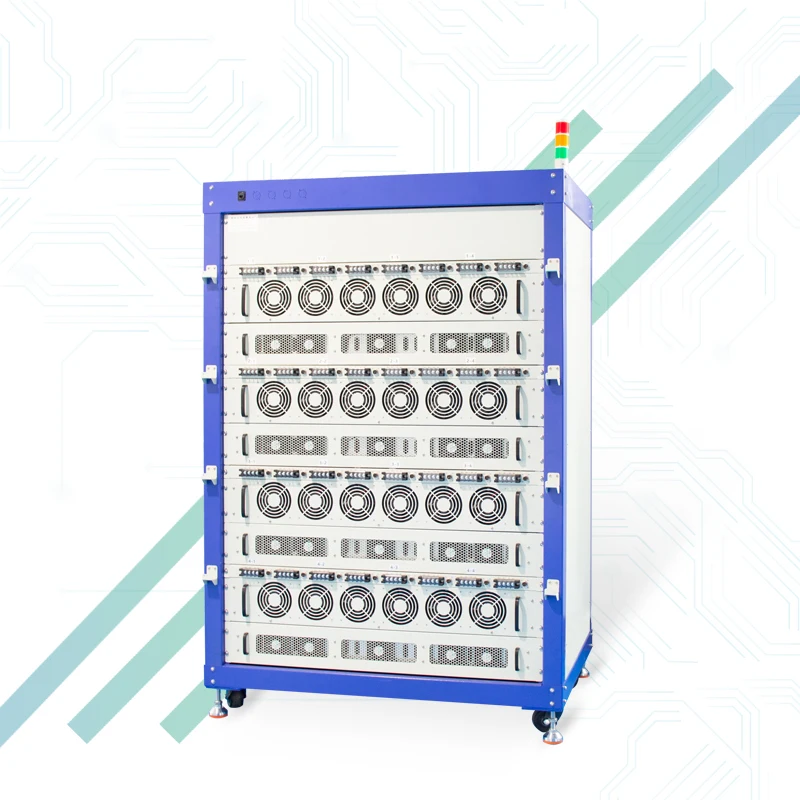

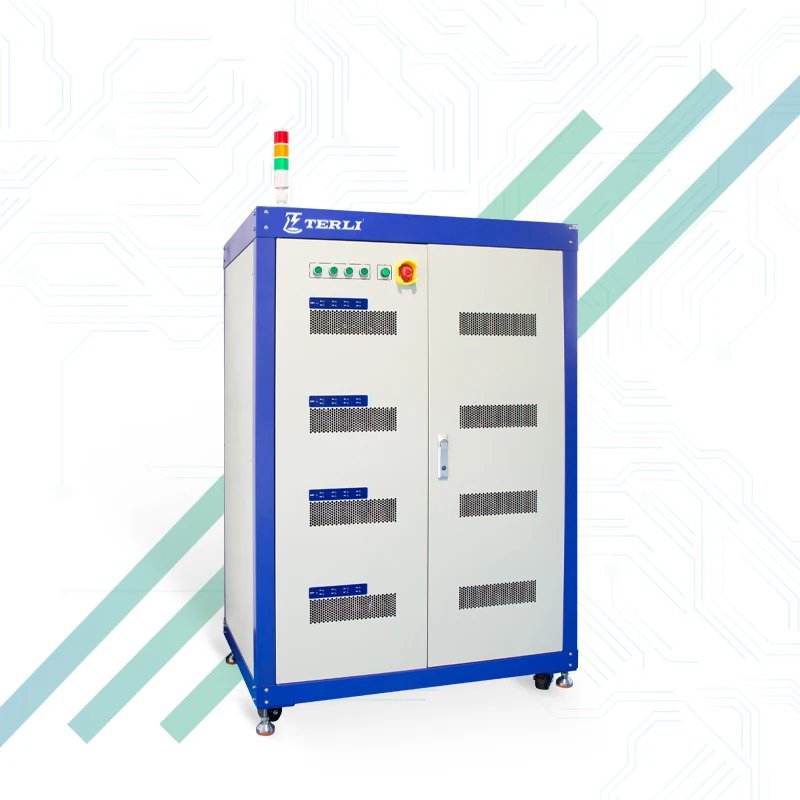

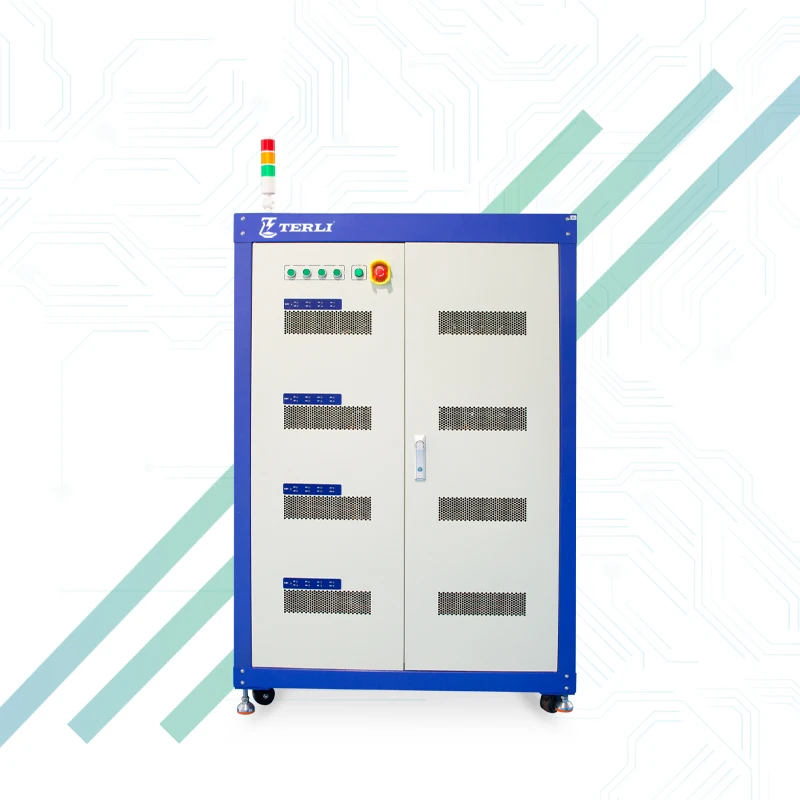

Single Channel 100V Series Lithium Battery Charging Discharging Capacity Life Cycle Load Tester Age Testing Machine
- Category: >>>
- Supplier: Guangzhou Terli New Energy Technology Co. Ltd.
Share on (1601197565883):
Product Overview
Description
Equipment Structure | ||
Model | 60V30A (24CH) | |
Communication Mode | TCP/IP (network port) | |
Channel Control Mode | Single point independent control | |
Charging Energy Saving Efficiency | 90% | |
Charging Voltage | 0～60V | |
Port Discharge Voltage | 7.5～60V | |
Charging Current | 0.1A～30A | |
Discharge Feedback Efficiency | 88% | |
Discharge Current | 0.2A～30A | |
Voltage Accuracy | ± (0.1%RD + 0.1%FS) | |
Current Accuracy | ± (0.1%RD + 0.1%FS) | |
Voltage Resolution | 0.1mV | |
Current Resolution | 0.1mA | |
Total Power | 54KW | |
Input Power | AC 380V±10%/50Hz (cabinet power supply: three-phase five-wire) | |
Main Temperature | Each channel can have 1 main temperature, temperature resolution: 0.1℃ (optional function, customizable) | |
Sampling Time | Single box sampling frequency 10mS | |
Recording Time | 100mS～65535S | |
Charging Mode | Constant current charging CC, constant voltage charging CV (need to use CC+CV mode), constant current constant voltage charging CCCV, constant power charging CPC | |
Charging Cut-off Condition | Voltage, current, time, capacity, temperature (optional function, customizable) | |
Discharging Mode | Constant current discharge CD, constant power discharge CPD, constant current constant voltage discharge DCCV (optional function, customizable) | |
Discharging Cut-off Condition | Voltage, current, time, capacity, temperature (optional function, customizable) | |
Single Cycle Working Steps | 100 steps | |
Circuit Structure | Modular structure design, easy to replace and repair | |
Software and Hardware Protection | Reverse connection protection, overvoltage protection, overcurrent protection, overtemperature protection, undervoltage protection, short circuit protection | |
Any detail, please feel free to contact us!
