4644152037 K2KR CLUTCH ASSY FOR 4WG200 TRANSMISSION

Product Overview

Description

NAME: K2+KR CLUTCH ASSY+
PN: 4644152037
APPLY FOR 4WG180 4WG200 6WG200 YD13 TRANSMISSION

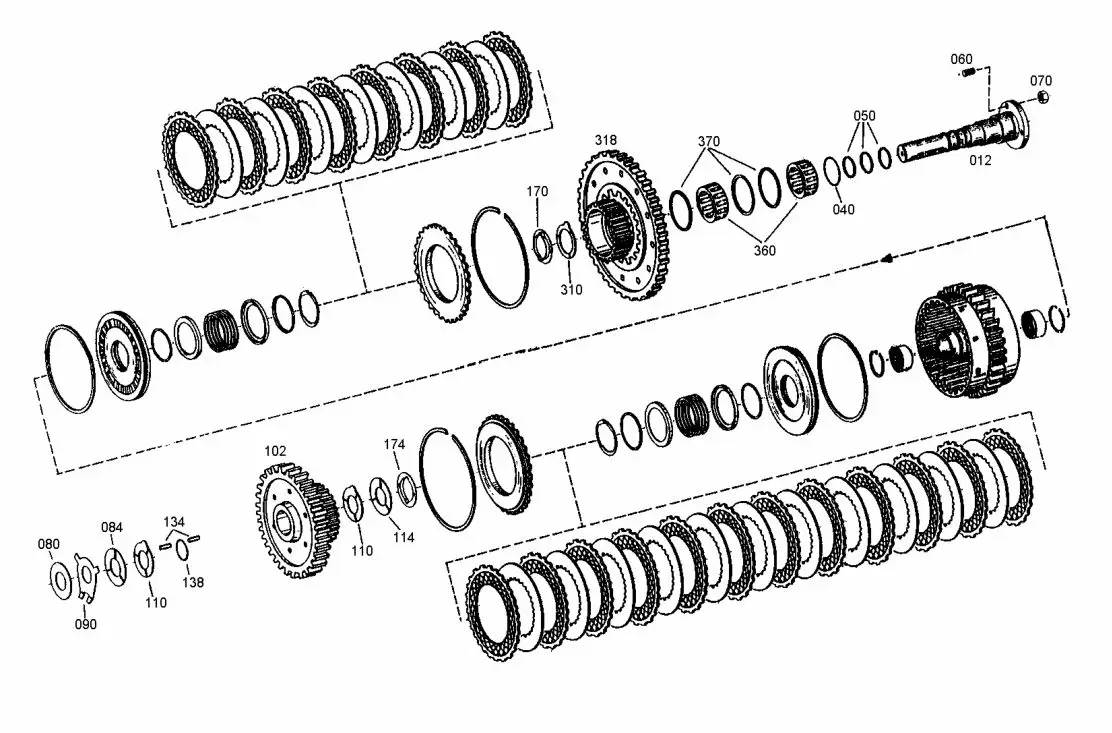

0501309330 OUTER CLUTCH PLATE
4644308330 INNER CLUTCH PLATE
4644308329 INNER CLUTCH PLATE
4644308329 INNER CLUTCH PLATE
4644308330 INNER CLUTCH PLATE
0750112139 PROFILED SEAL RING
4644351070 PISTON
0750112140 PROFILED SEAL RING
4642308083 GUIDE RING
0732041183 COMPRESSION SPRING
4642308084 GUIDE RING
0630531346 V-RING
4644308071 END SHIM
0730513181 SNAP RING A=2,50
0730513434 SNAP RING
0730513436 SNAP RING A=2,40
0730513459 SNAP RING A=2,20
0730513457 SNAP RING A=2,10
4644351094 THRUST WASHER
0730150779 THRUST WASHER
4644252097 SPUR GEAR
0501308830 ANGLE RING
0750115211 ROLLER CAGE
0634313536 O-RING
0734401106 SHAFT SEAL
4644352062 AXLE
0636610014 STUD
0637006018 HEXAGON NUT
0730003501 SHIM K00462/95 S=0,4
0730003502 SHIM K00462/95 S=0,6
0730003503 SHIM K00462/95 S=0,8
0730003504 SHIM K00462/95 S=1,0
0730003505 SHIM K00462/95 S=1,2
0730108157 SHIM
0730108158 SHIM
0730108159 SHIM
0730108160 SHIM
0730108161 SHIM
0730108162 SHIM
0730108163 SHIM
0730108164 SHIM
4644303529 THRUST WASHER
0730150759 THRUST WASHER
4644308265 THRUST WASHER
0750119100 ROLLER SET
4644308266 WASHER
4644308625 SPUR GEAR
0730150773 THRUST WASHER
4642308555 THRUST WASHER
0730513181 SNAP RING A=2,50
0730513434 SNAP RING
0730513436 SNAP RING A=2,40
0730513459 SNAP RING A=2,20
0730513457 SNAP RING A=2,10
4644308071 END SHIM
0630531346 V-RING
4642308084 GUIDE RING
0730513610 SNAP RING
0635303203 NEEDLE SLEEVE
4644252098 DISC CARRIER
0635303205 NEEDLE SLEEVE
0730513611 SNAP RING
0501309330 OUTER CLUTCH PLATE
4644308329 INNER CLUTCH PLATE
4644308330 INNER CLUTCH PLATE
4644308329 INNER CLUTCH PLATE
4644308330 INNER CLUTCH PLATE
