Multi Function Lithium Battery Pack Protective Plate BMS Tester Testing Machine Device Protection Board Test Equipment for Ebike
- Category: >>>
- Supplier: Shenzhen Aitop Intelligent Equipment Co. ltd
Share on (1601197794758):
Product Overview
Description
Product description:
The battery pack BMS test system is mainly used to test various functional indicators of the lithium-ion battery BMS, evaluate
whether the various parameters are within the design range, and then judge whether the BMS are qualified and usable.
whether the various parameters are within the design range, and then judge whether the BMS are qualified and usable.
Features:
1. With BMS short-circuit protection test function, it refers to the real short-circuit protection test, microsecond level.
2. It has a single string self-consumption current test function, which refers to the cell current consumed by each string
protection board.
3. It has balanced current and balanced voltage test functions, can accurately test the balanced current and balanced voltage.
4. The battery BMS tester can select the test mode. In the quick test mode, the upper limit and lower limit of each test item can
be set, and it only displays whether the test item is qualified or unqualified.
5. The battery pack BMS testing machine can select the test mode. In the precise test mode, the step voltage of the protection
voltage and the step current of the over-discharge current can be set. Test the exact value of each test item in detail and
determine whether the test value is within the range of the set parameters.
2. It has a single string self-consumption current test function, which refers to the cell current consumed by each string
protection board.
3. It has balanced current and balanced voltage test functions, can accurately test the balanced current and balanced voltage.
4. The battery BMS tester can select the test mode. In the quick test mode, the upper limit and lower limit of each test item can
be set, and it only displays whether the test item is qualified or unqualified.
5. The battery pack BMS testing machine can select the test mode. In the precise test mode, the step voltage of the protection
voltage and the step current of the over-discharge current can be set. Test the exact value of each test item in detail and
determine whether the test value is within the range of the set parameters.

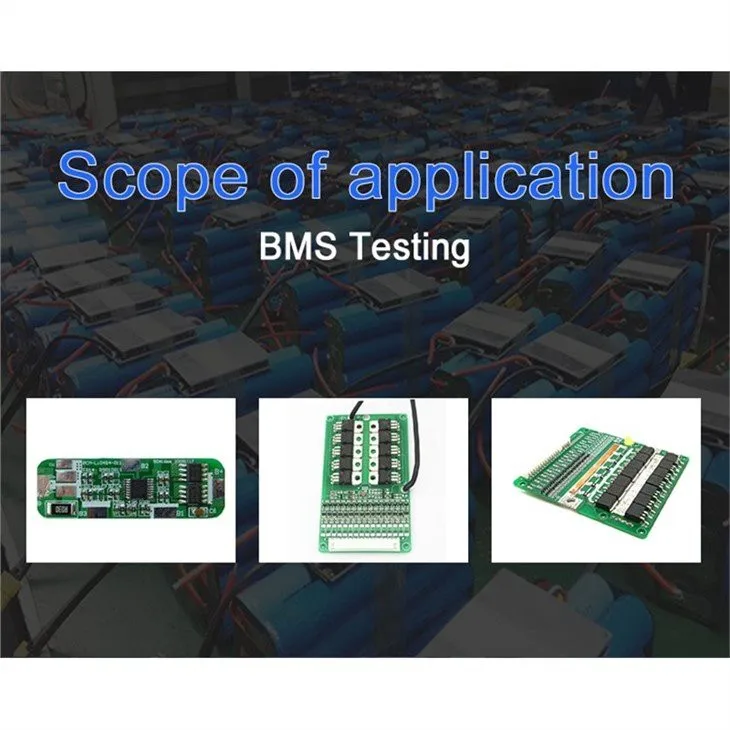

Scope of application:
The battery BMS testing machine is suitable for testing the basic and protection characteristics of the lithium-ion battery BMS.
The main users are battery BMS manufacturers and lithium-ion battery pack manufacturers.
The main users are battery BMS manufacturers and lithium-ion battery pack manufacturers.
AITOP Battery machine factory contact number Shenzhen AITOP Intelligent Equipment Co., Ltd.
Email :lina.aitopgroup@gmail.com
wehcat/whatsapp /Phone :008618435204981
wehcat/whatsapp /Phone :008618435204981
Specification
Place of Origin | China，shenzhen |
Application | All kinds of lithium battery packs |
Balanced turn-on voltage | 0-5V ±5mV |
Equilibrium real time current | 0-1000MA ±1mA |
Over current protection delay | 0-8S ±1mS |
Total self current consumption | 0-10MA ±5u |
Single self current consumption | 0-500uA ±1uA |
Loop resistance | 0-200mΩ ±1mΩ |
Short circuit protecting | (more than 10 series) 0-9999u |
Maximum power | 600W |
Supply voltage | 220VAC |
Product Description
FAQ
Q1: What can your machines do?
A: Make the batteries production automatically. Save the factory owner’s invest and better the efficiency.
A: Make the batteries production automatically. Save the factory owner’s invest and better the efficiency.
Q2: What kind of items can your machines produce?
A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.
A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.
Q3: How can I see samples or know more about the machines?
A: We have real time video on Youtube. Please contact our sales to get the links. Indian friends can visit our New Delhi sales office and see the machine by yourselves.
A: We have real time video on Youtube. Please contact our sales to get the links. Indian friends can visit our New Delhi sales office and see the machine by yourselves.
Q4: Do you have a MOQ for orders?
A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine. Our factory MOQ is 1 set.
A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine. Our factory MOQ is 1 set.
Q5: Do you have any warranty or certifications?
A: We provide 12 months warranty for the machine, and life-time after-sales maintenance. All of our products are with CE certifications and are good to export worldwide.
A: We provide 12 months warranty for the machine, and life-time after-sales maintenance. All of our products are with CE certifications and are good to export worldwide.
Q6: I m a new factory owner. Can I get some advices about automatic production?
A: You can tell us the ideal turn-over you want for your new factories. Our professional engineers and sales shall provide you with budget and costs how much it takes.
A: You can tell us the ideal turn-over you want for your new factories. Our professional engineers and sales shall provide you with budget and costs how much it takes.
