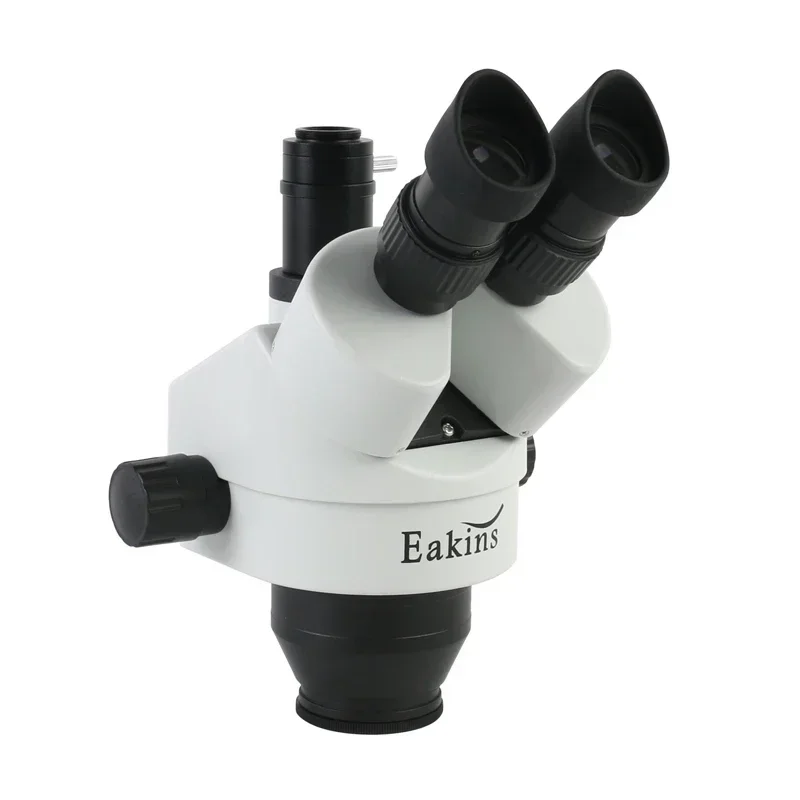

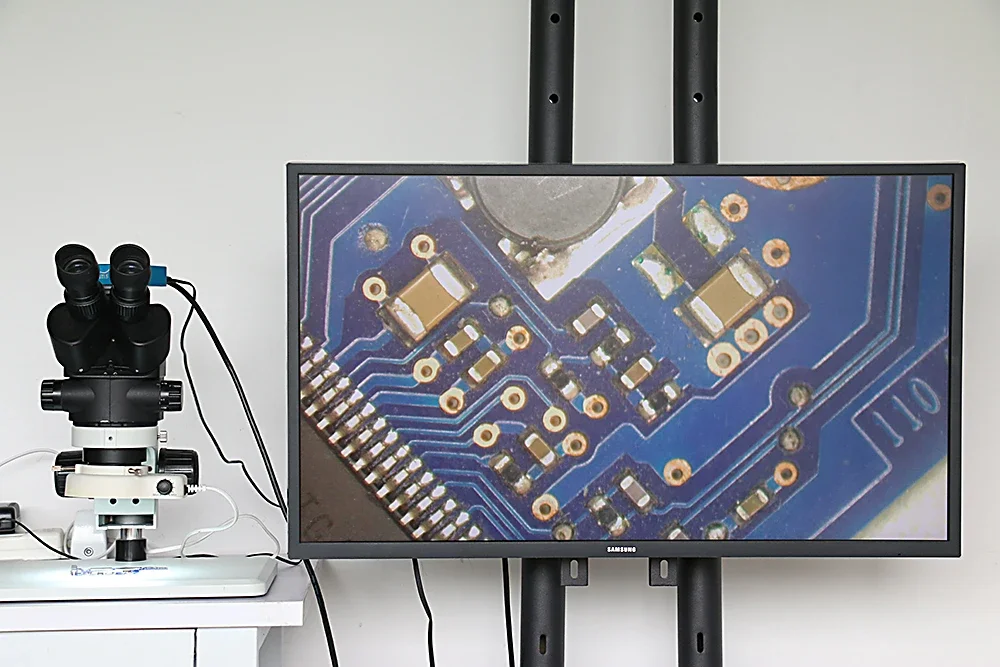

3.5X 7X 45X 90X Trinocular Stereo Microscope Double Boom Stand Zoom Simul Focal 48MP Camera Microscope For Industrial PCB Repair

Feature:

An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light

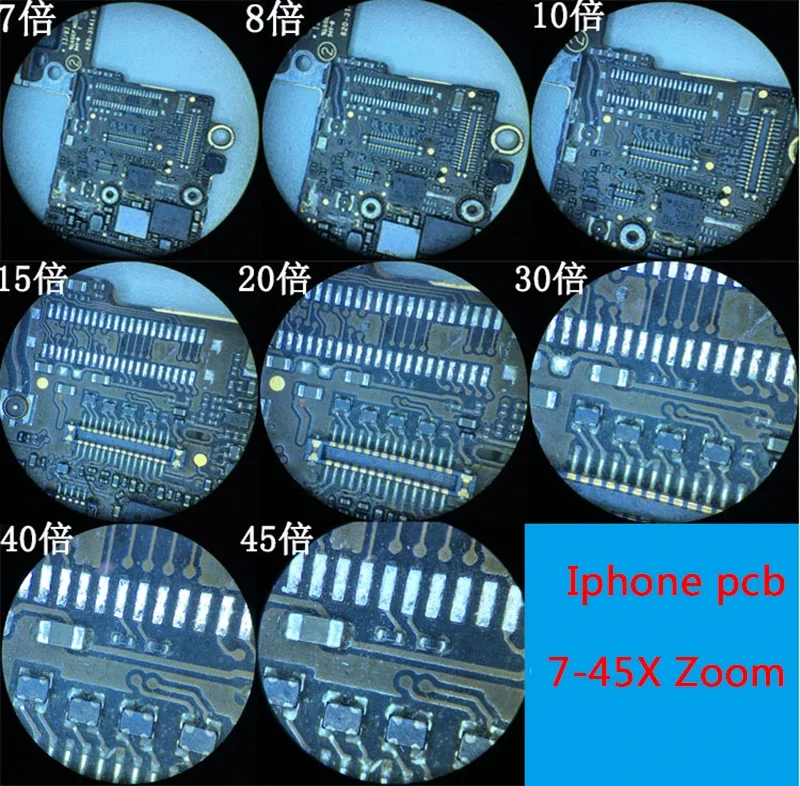

7x-45x super wide zoom magnification power
Bright cool light 144-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included


Expand the scope of operations,any orientation and angle observed the objectives.

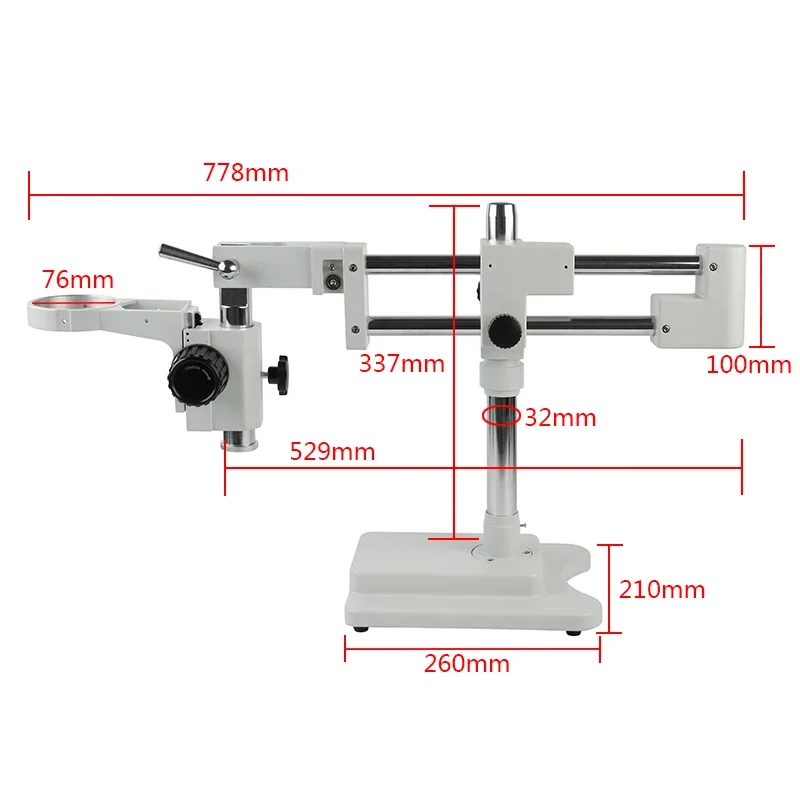

Vertical Pillar: high 380mm,Diameter Ø32mm
Horizontal moving:235mm
Base size: 210x260x40mm
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm


144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

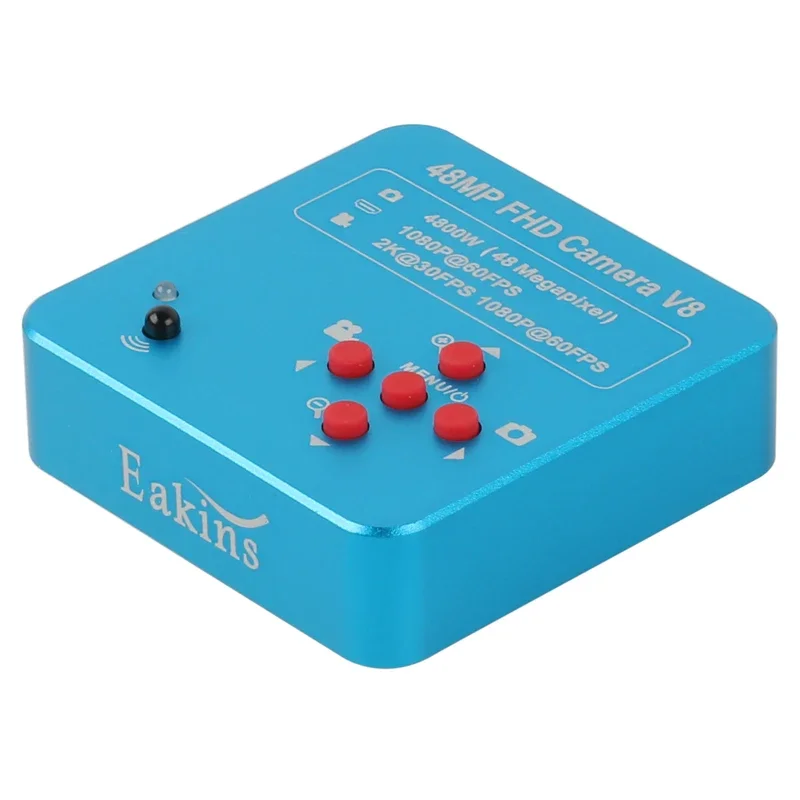

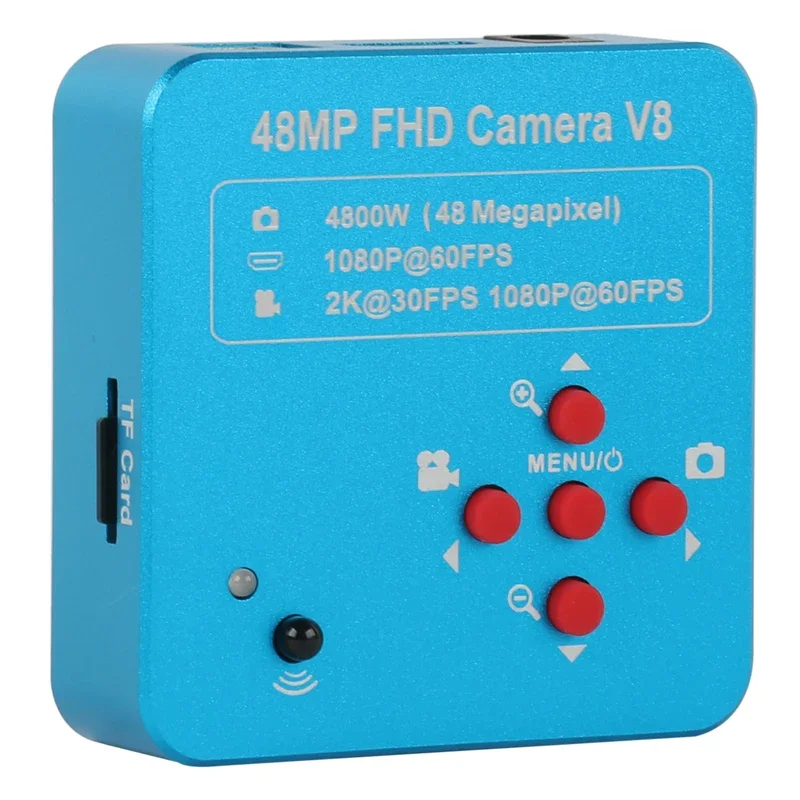

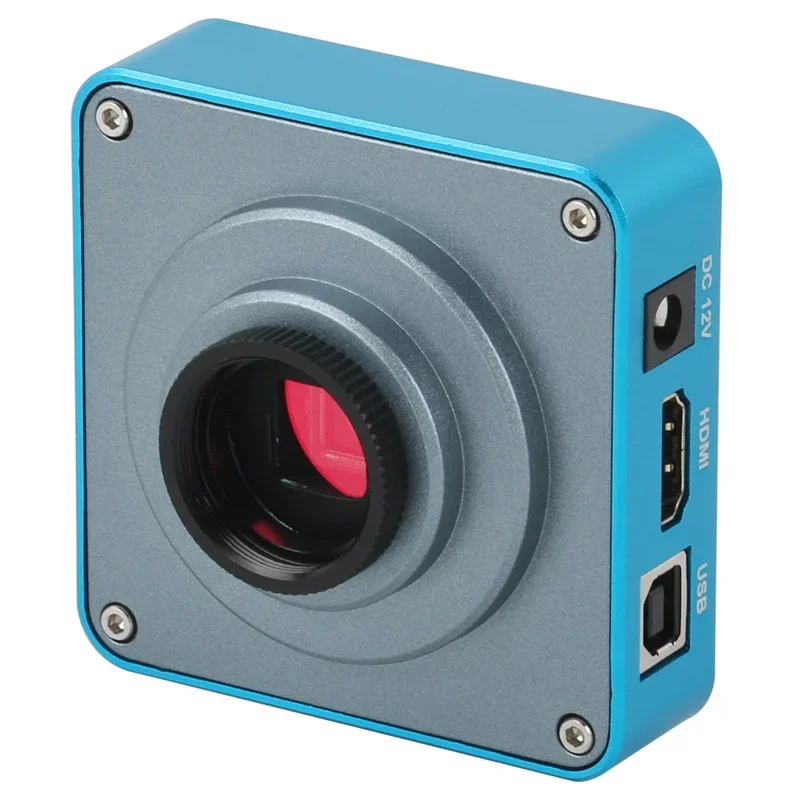

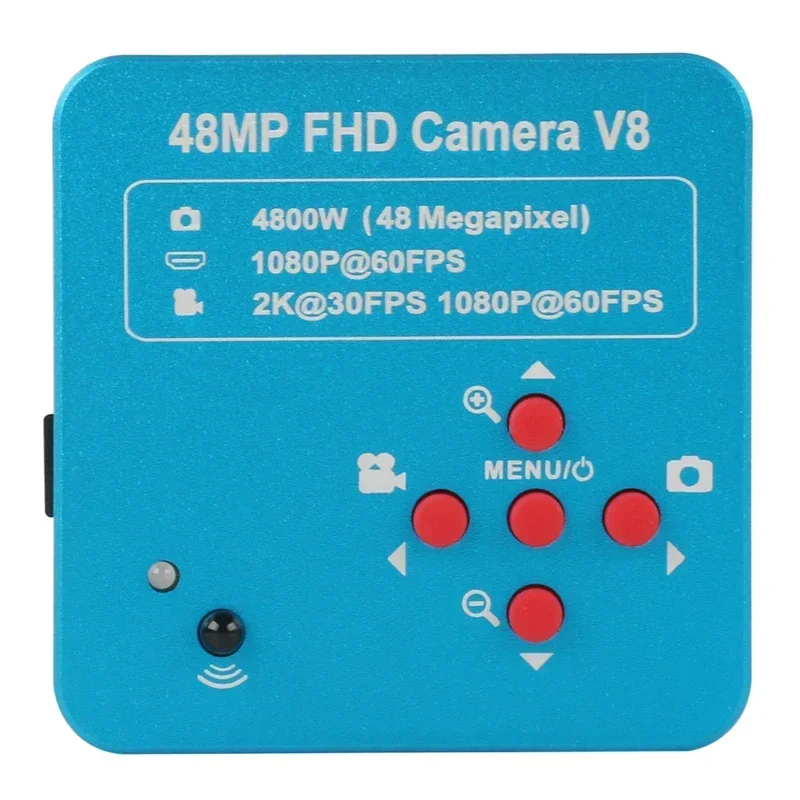

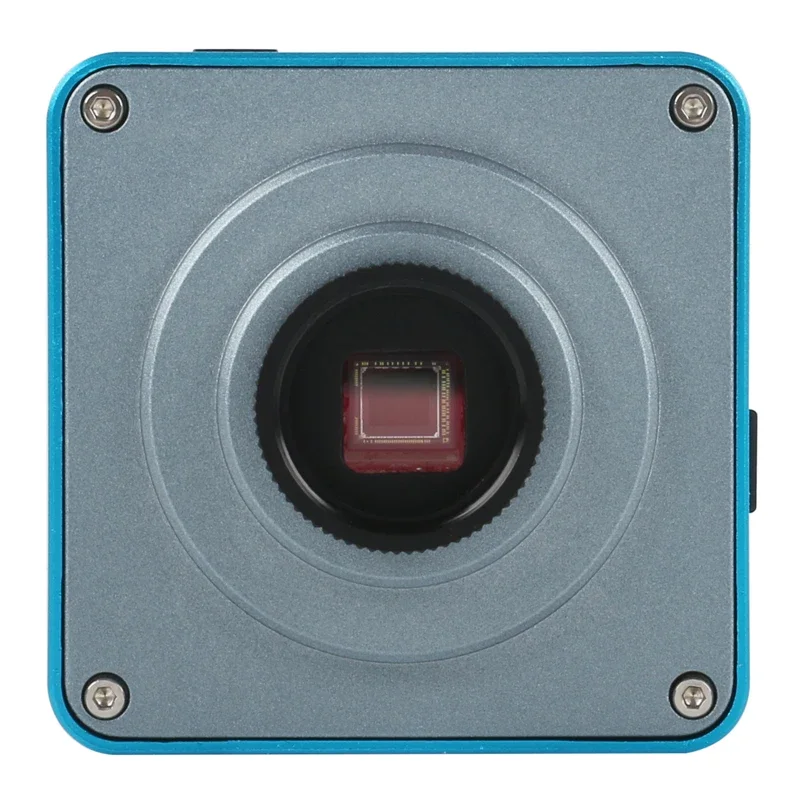

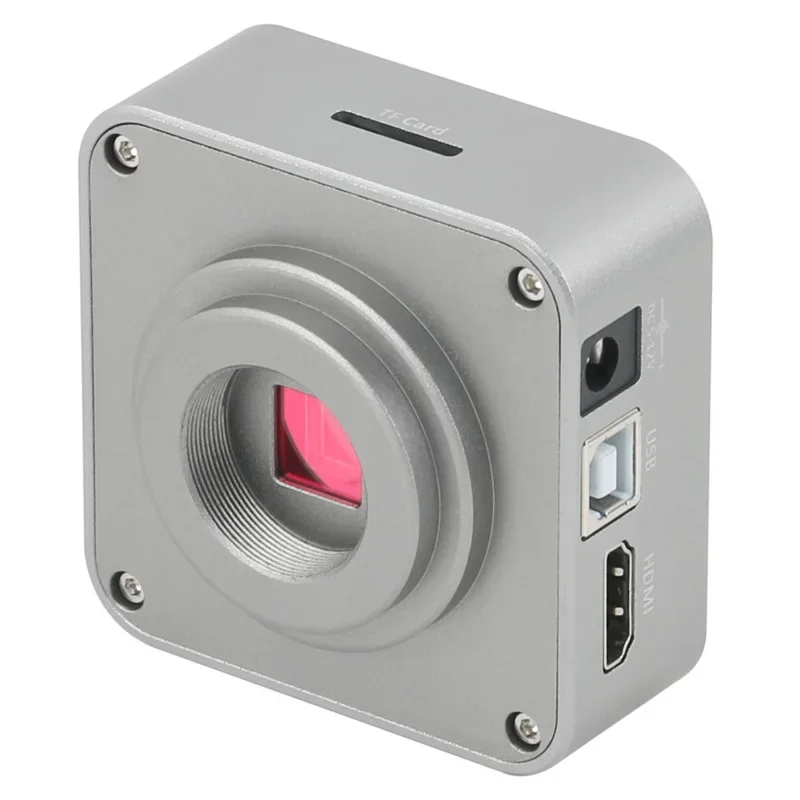

48mp 2K camera  Camera :

Module:FHD216
Sensor Panasonic:48 MegaPixel, 48 million pixels CMOS
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:21MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB

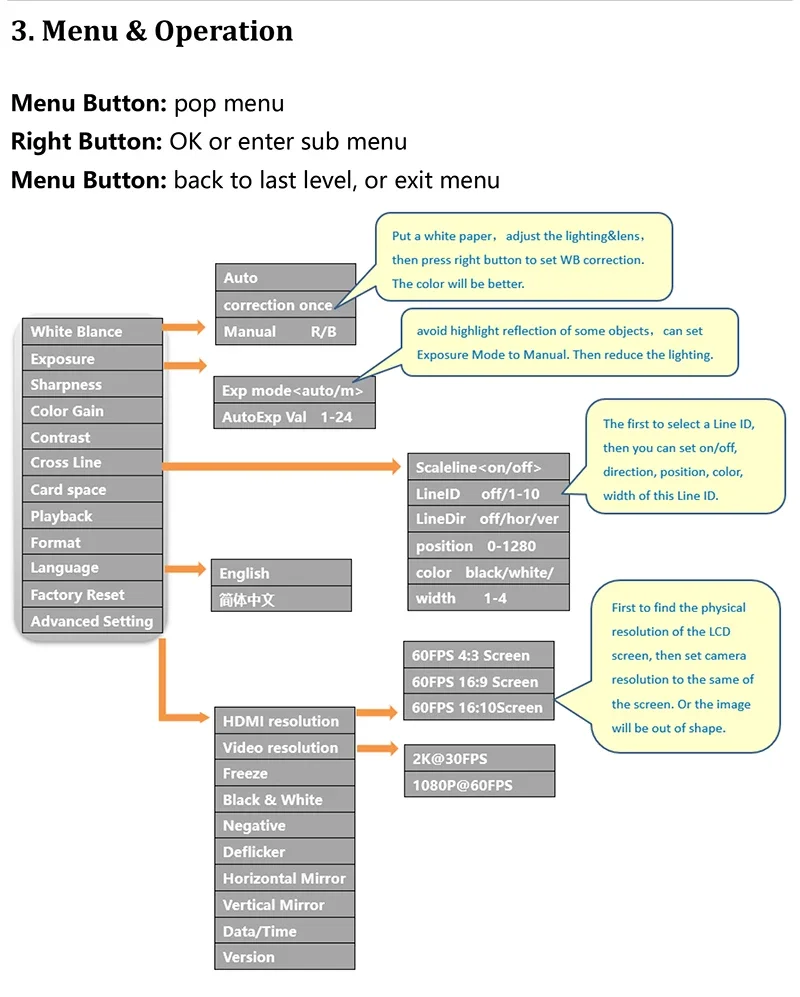

AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W 12V,0.12A
Lens interface:C/CS
Net weight:180g
Gross weight:400g
Camera size:74*74*35mm
Packaging size:160*100*80mm
Questions Solutions:
LCD no video or flicker
1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

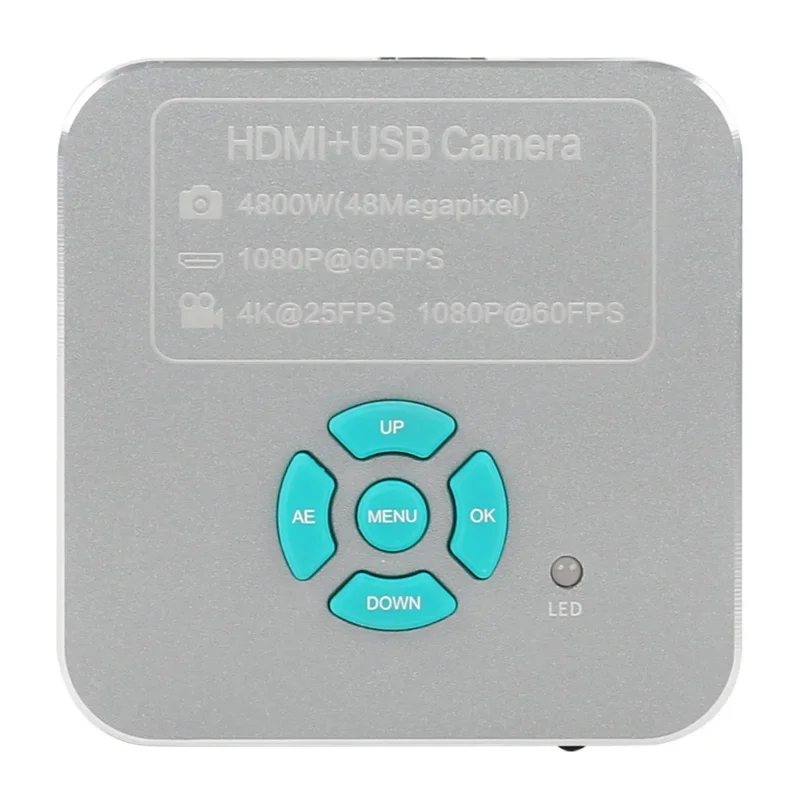

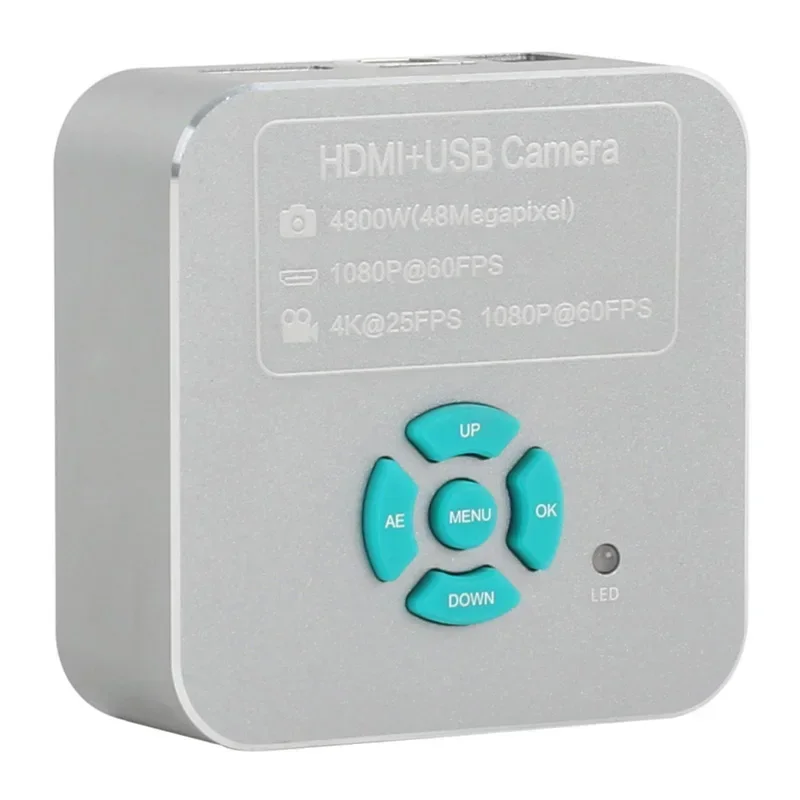

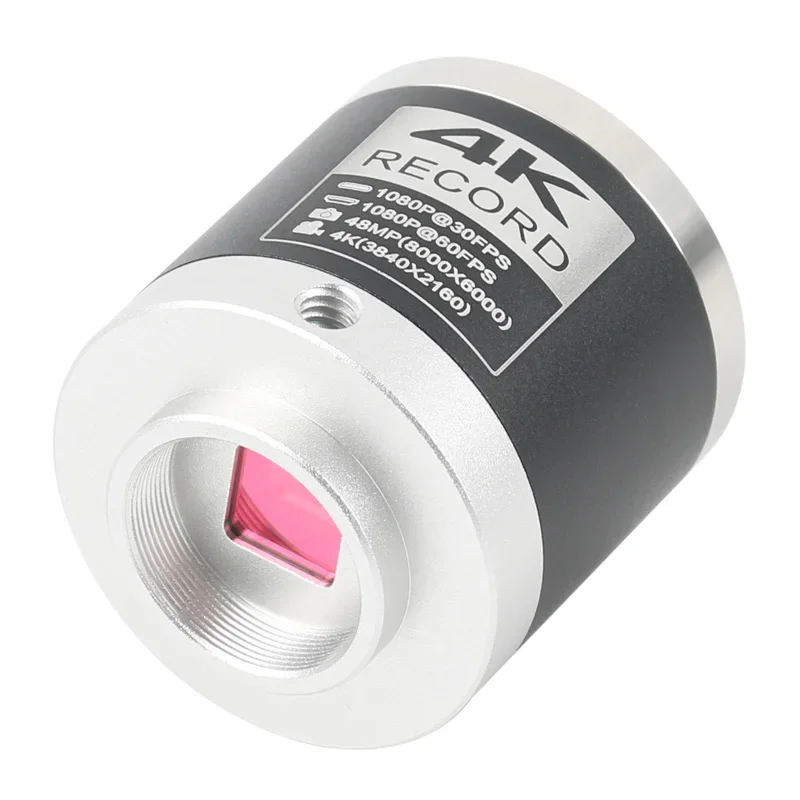

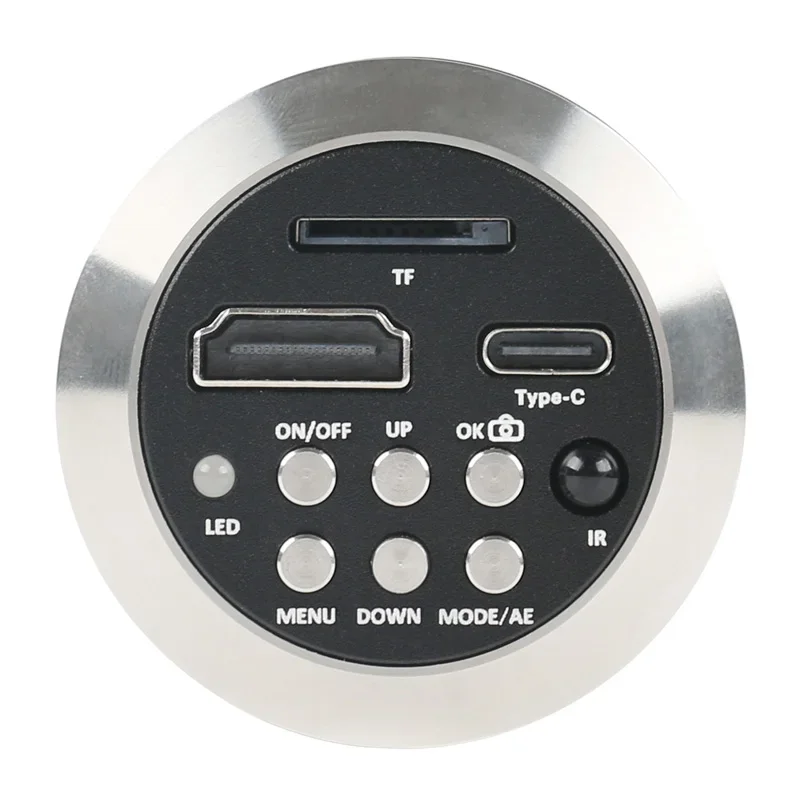

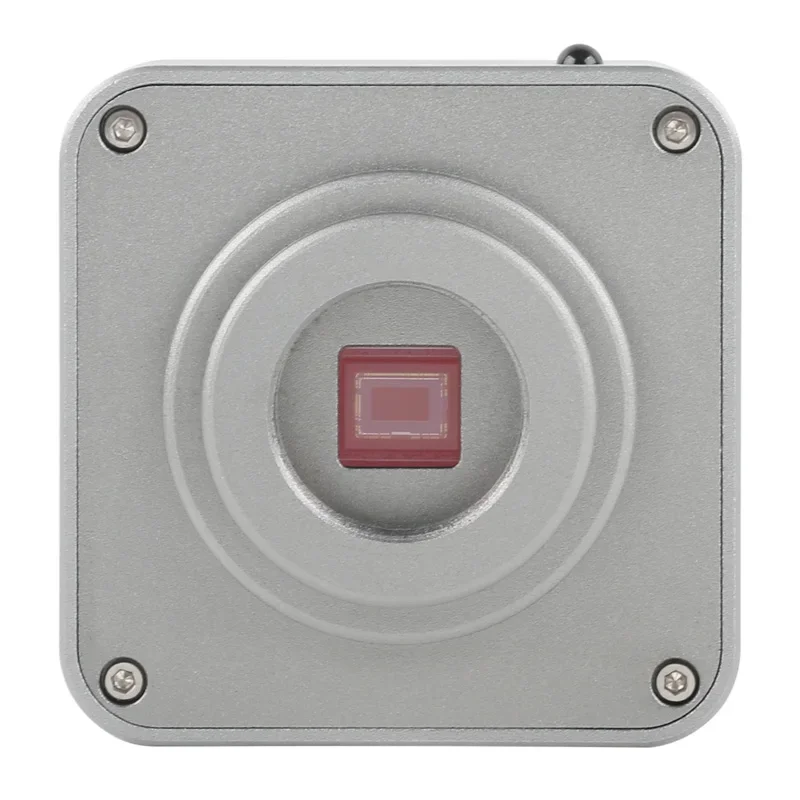

48mp 4K 2k Camera :

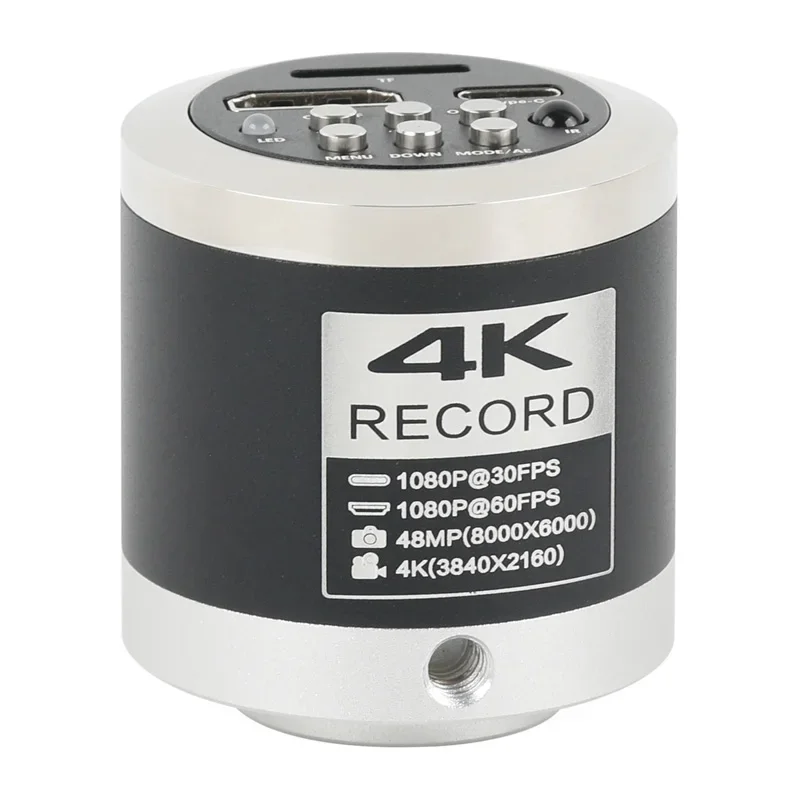

48mp 4K  Camera :
Function:
Adopt Imported Sony sensor;
Adopt 1/2.8 inch image sensor;
HDMI 1080P 60 frame image output;
TYPE-C driver-free output 1080P 30/Fps image output;
HDMI port 4K, 1080P video recording, 48MP Pictures were taken;
48MP photos, JPG format, photo size 8000x6000;
One-key freeze/thaw function;
Electronic zoom function;
Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
Support manual/automatic white balance/one-key white B, R, G,  adjustable;
Provide 16 line functions, line color, thickness, position adjustable;
Provide center crosshair display on/off;
Support TF card storage, up to 64GB;
Support remote control operation, take pictures without shaking and the image will be clearer;
Support Chinese and English menu languages;
Support shutdown setting parameter saving;
Aluminum alloy casing processed by CNC precision milling technology;

Sensor: 1/2.8 Sony sensor
Pixel size: 2.9μm × 2.9μm
HDMI output: 1920*1080 60 frames
TYPE-C output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual/one key exposure
Exposure Compensation: Support
White balance: automatic/manual/one-key white balance, support RGB adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Parallel lines: support 16 straight/vertical lines, adjustable in color, thickness and position
Centerline: support
Menu language: English/Chinese/Traditional Chinese
Remote control: support remote control operation
Net weight: 150g
Product size: 68*68*47mm

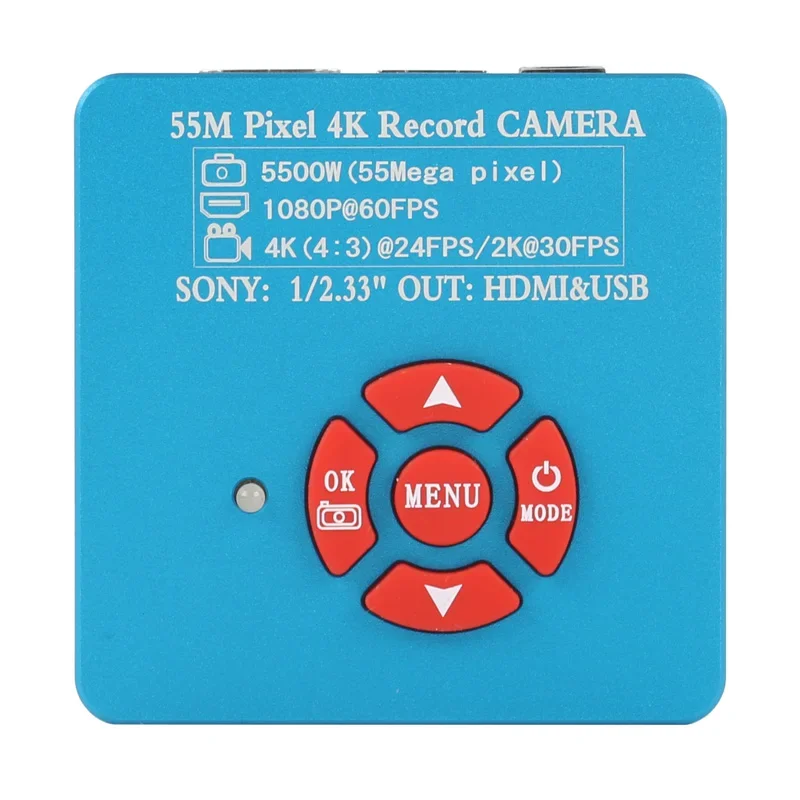

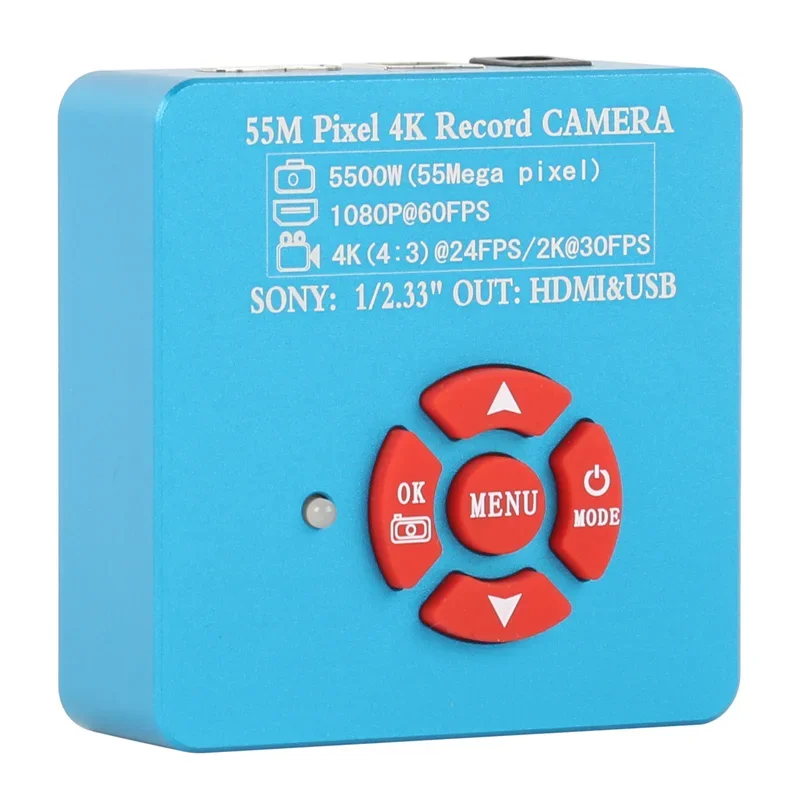

55mp 4k 2K camera  Specification:
Picture Pixel: 9885X5560  55M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
CMOS censer: SONY  1/2.33 inch
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode HDMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max)
Cross line: Overlap or Cancel
Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70℃

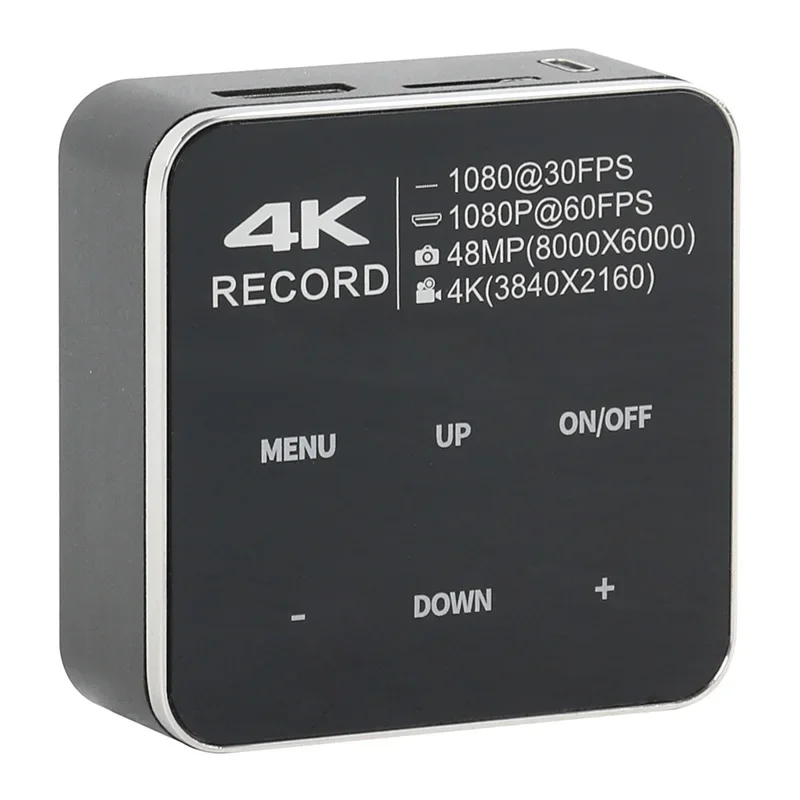

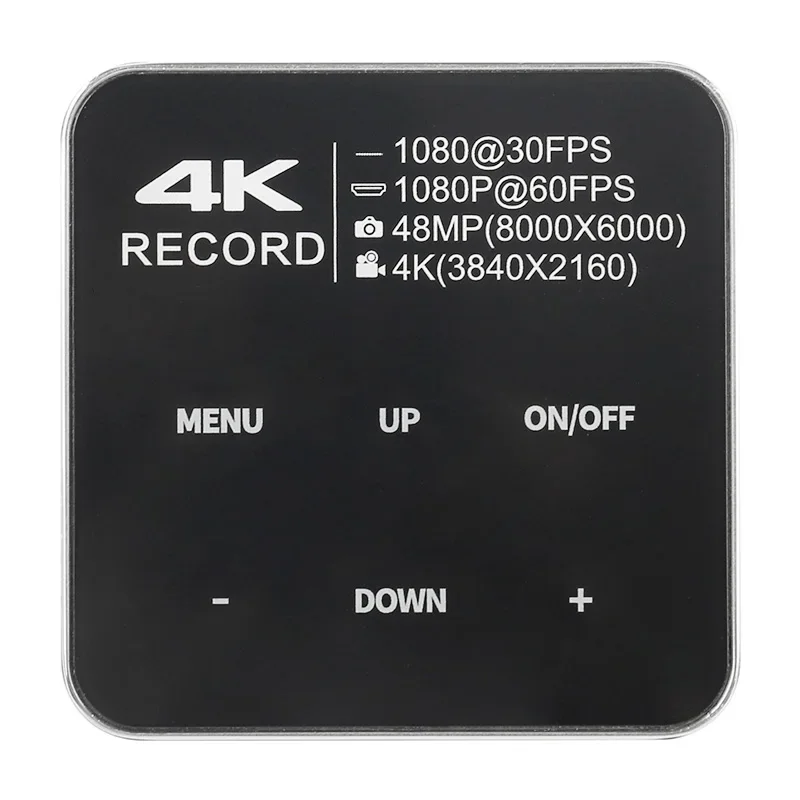

48mp 4k 2K touch screencamera

Model: Camera with HDMI USB2.0 two output
Image sensor: SONY Sensor
Keys: Touch keys
Frame rate: 60F/S @ HDMI output
Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply: 5V 1A Type-c Power Supply


Remote Control Instruction:
1．+ KEY: Zoom in / - KEY: Zoom out
2．UP: EV+; DOWN: EV-
3．OK: Confirm button or Start recording
4．Menu
5．Mode: Camera / Video / Playback mode change button
6．The bottom button is to take photos
7．Left & Right: Not in use

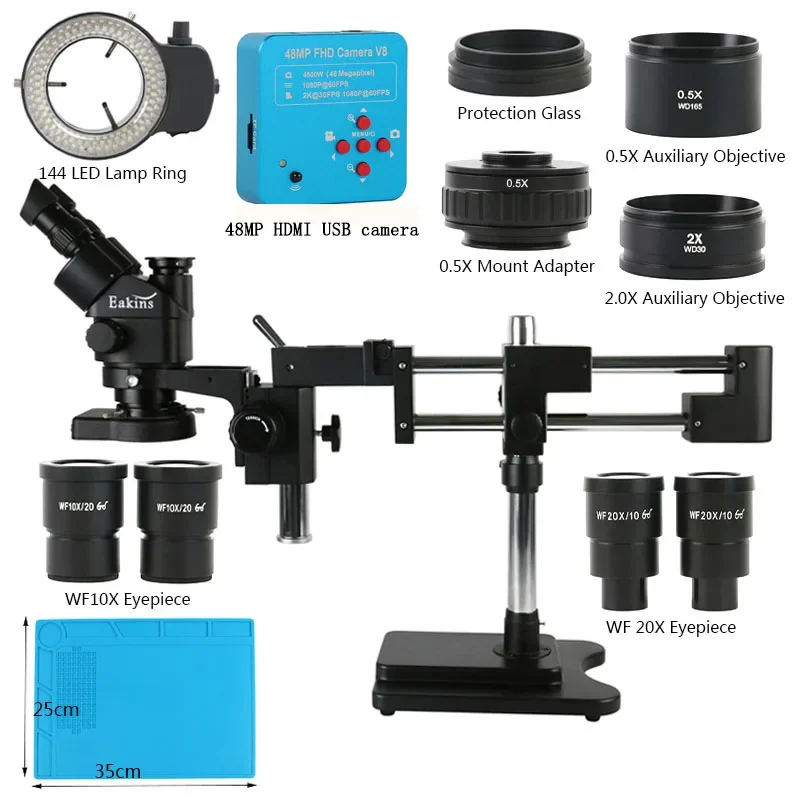

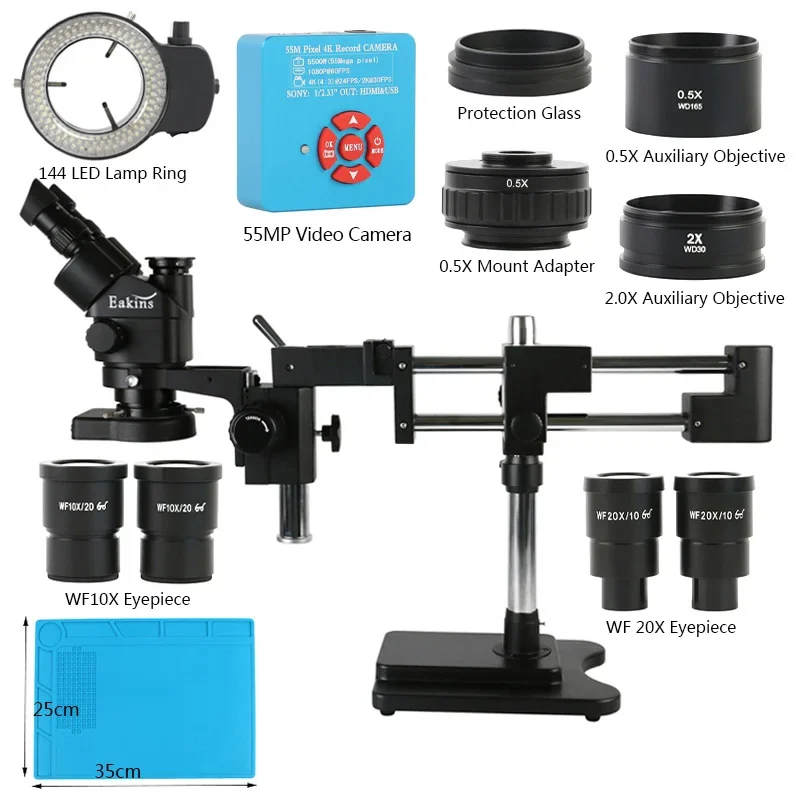

Package Including:

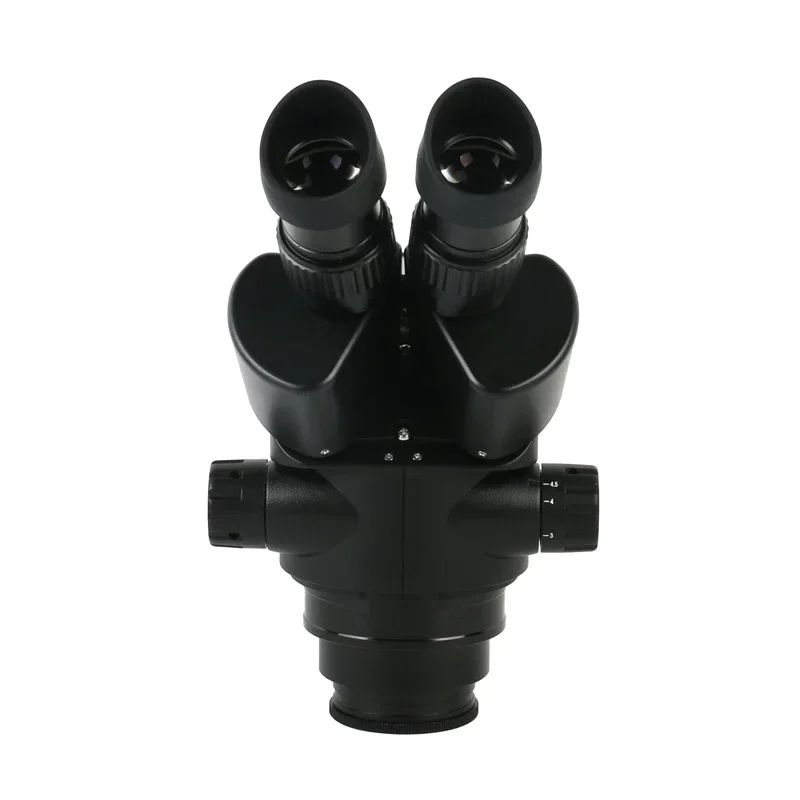

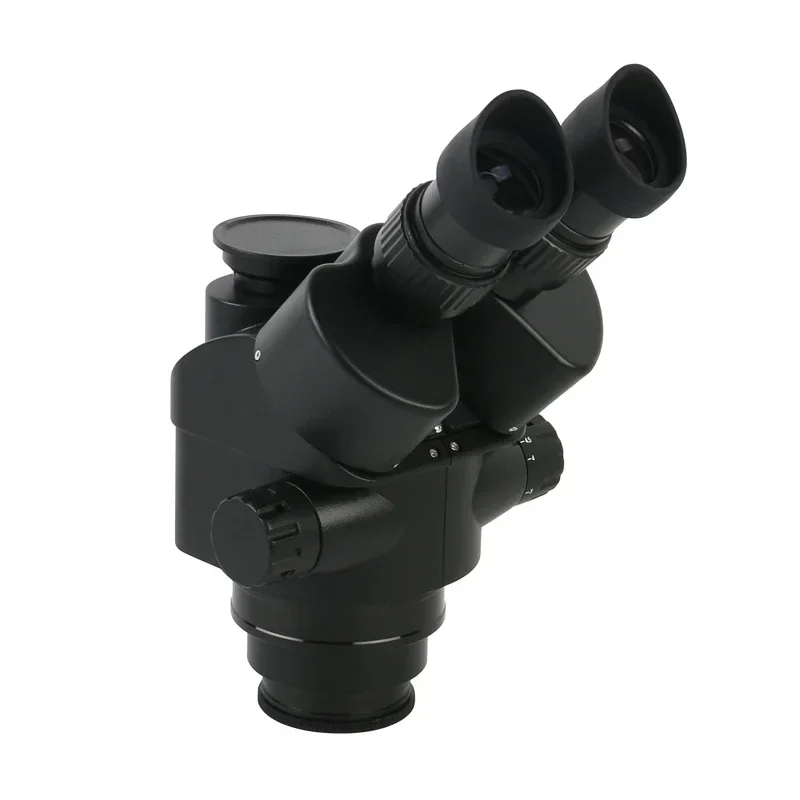

1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X20MM Eyepieces
1 x Pair of Super Widefield 20X10MM Eyepieces
1 x 144-LED Ring Light
1 x Double Boom Microscope Bracket
1 x Focusing Rack
1 x C-mount Adapter
1 x Pair of Eye-Guards
1 x Dust Cover
1 x Microscope Camera

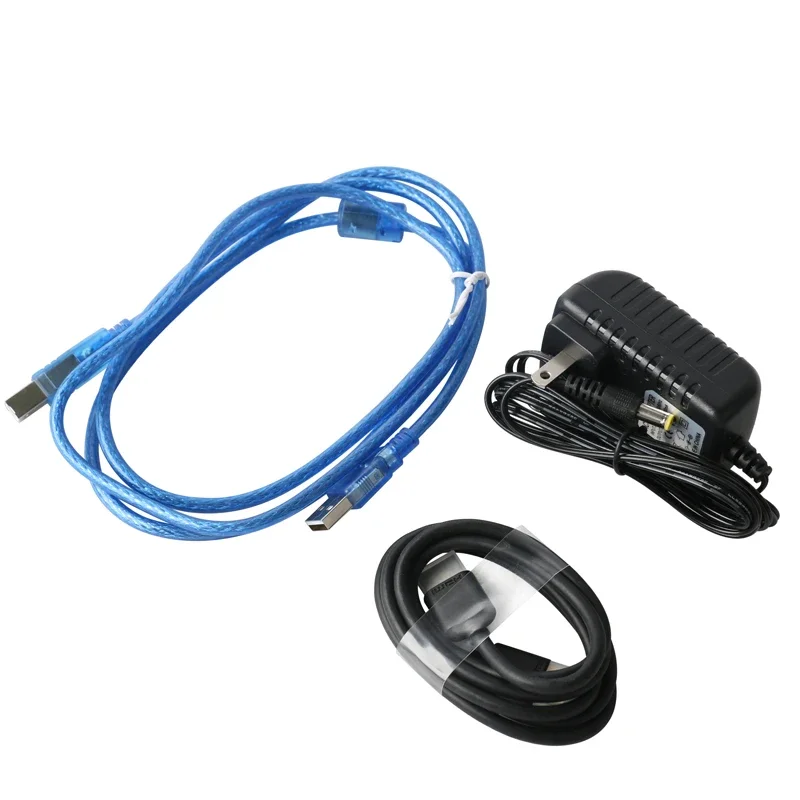

1 x Power Adapter (AU/EU)
1 x IR remoter
1 x Usb Lines
1 x HDMI Lines
1 x Paper Manual
1 x 8G TF Card

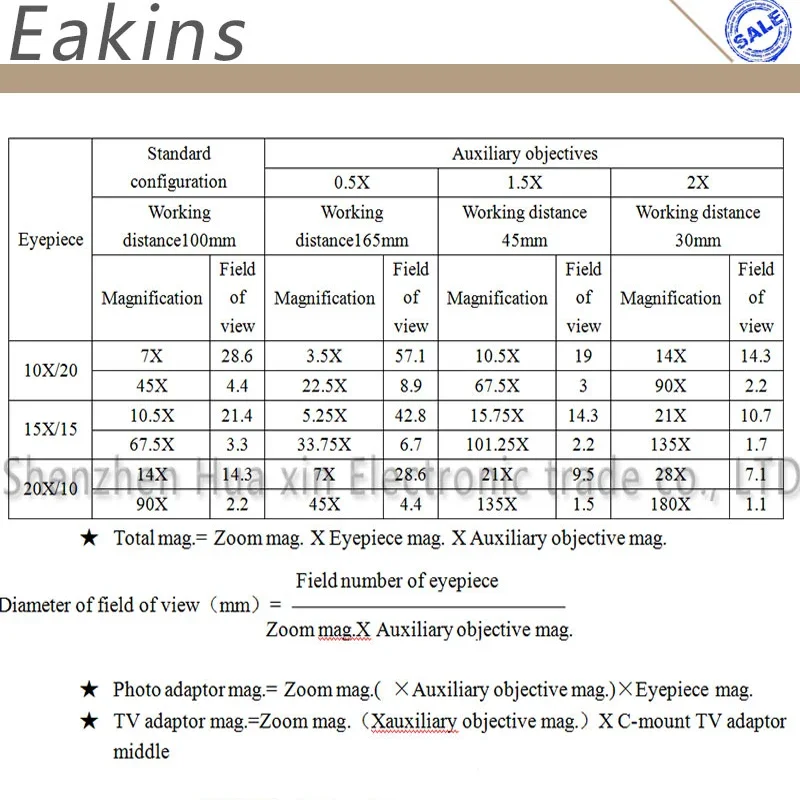

1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
1 x High Temperature Resistant Working Pad

Optional accessories:

1 x SZMCTV 1/2 Lens

1 x 0.5X Adapter Lens
