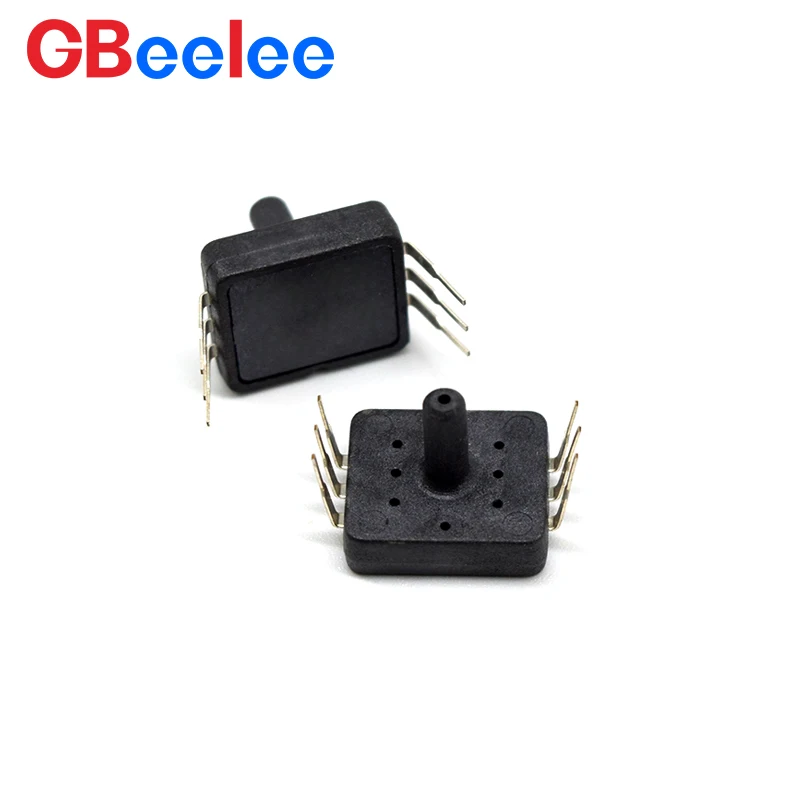

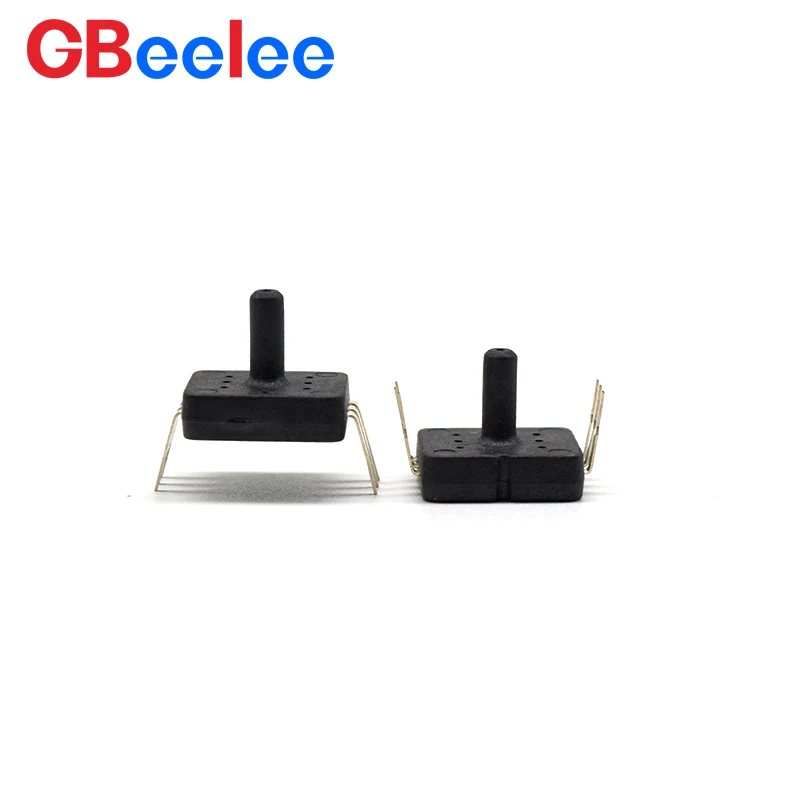

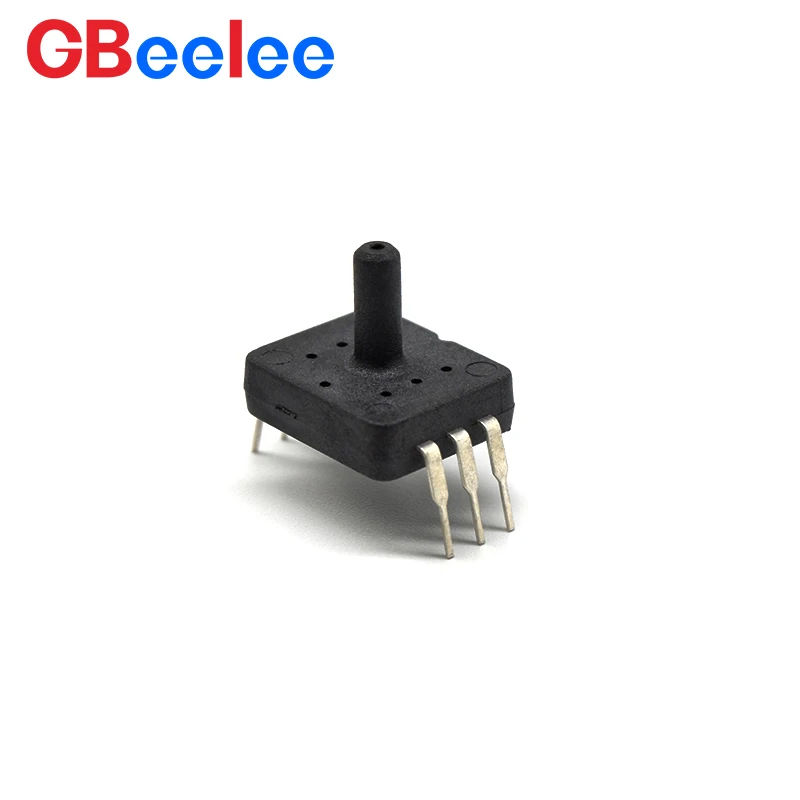

Air Pressure Sensor Module 500Pa~1MPa DIP 6 package Direct insertion Wheatstone bridge Frame micro differential pressure sensor
- Category: >>>
- Supplier: Dongguan Bailing Electronics Co. Ltd.
Share on (1601197905306):
Product Overview
Description

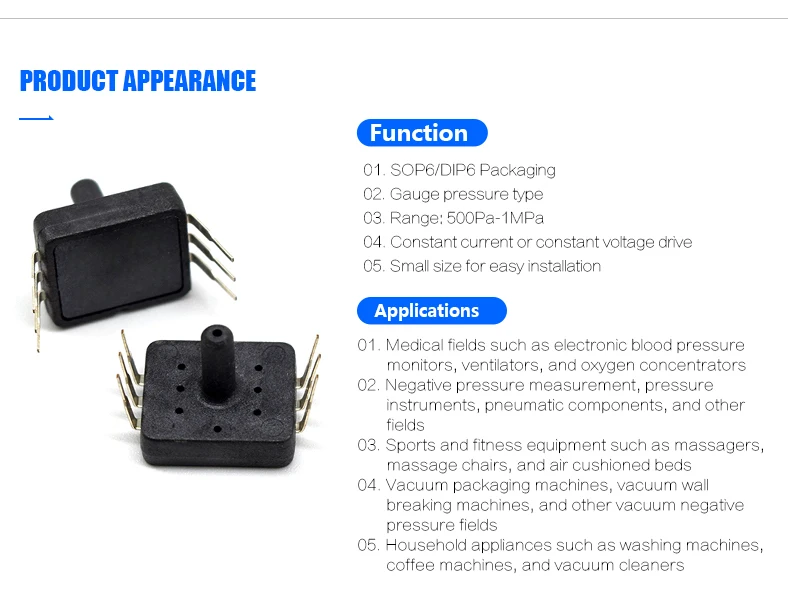

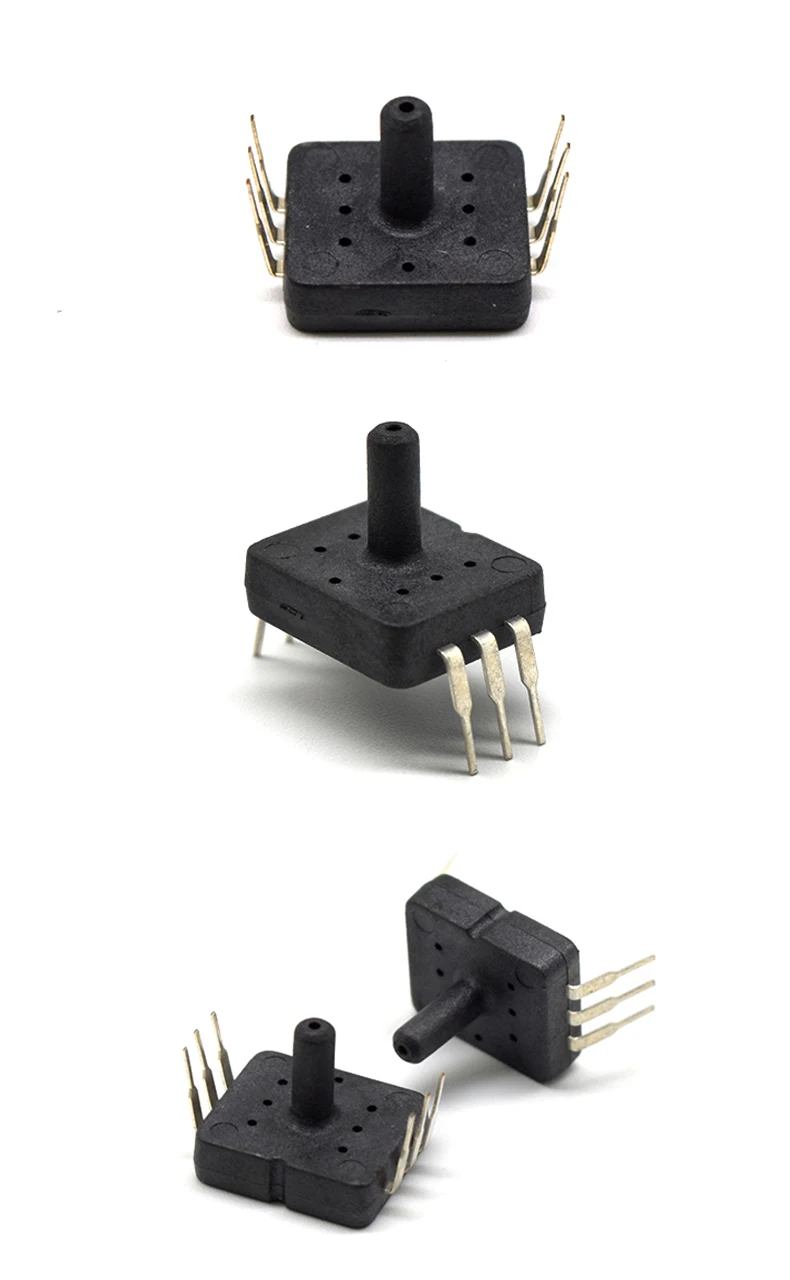

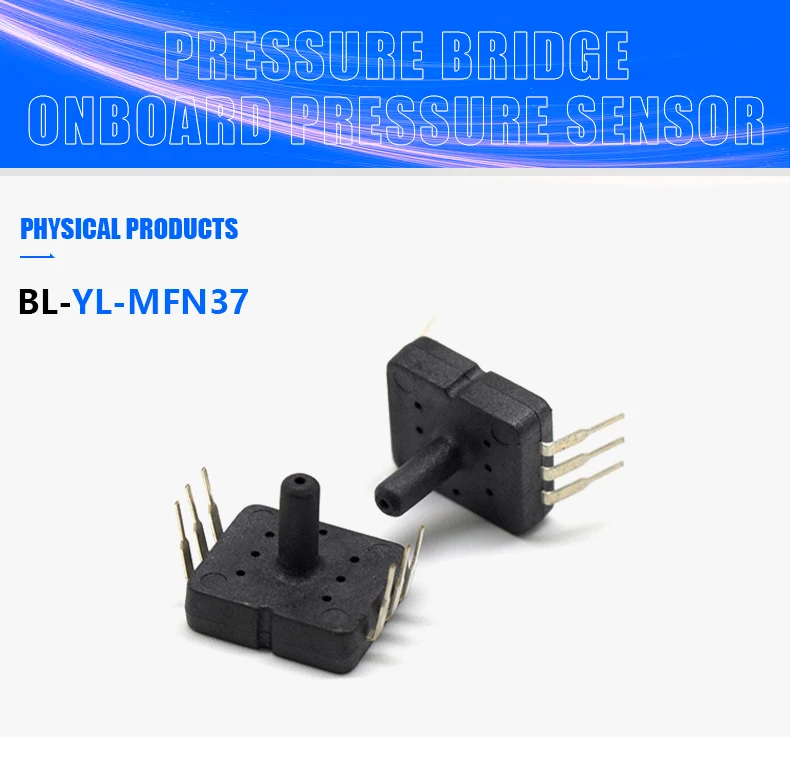

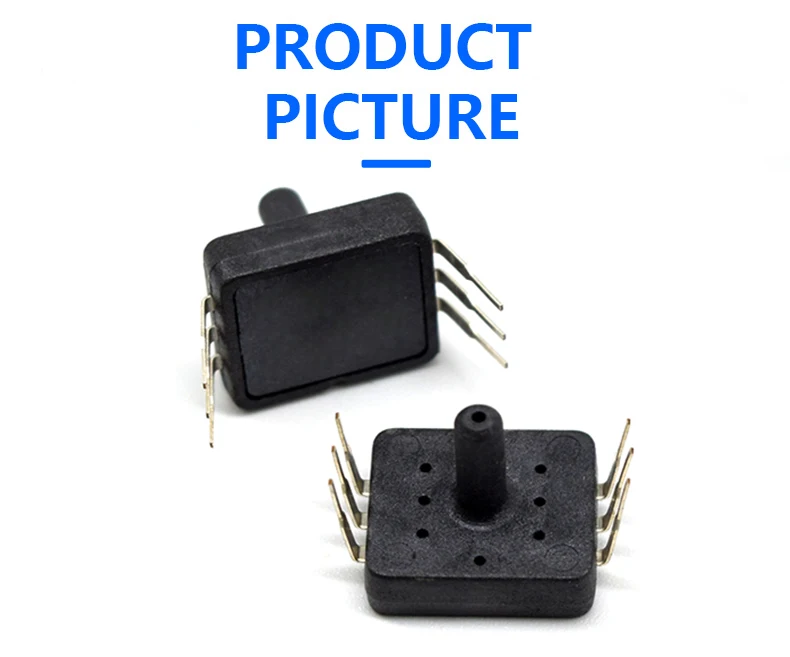

The BL-YL-MFN37 micro differential pressure sensor adopts a SOP6/DIP6 packaging form, with an internal pressure sensor chip output and a Wheatstone bridge circuit. When a power supply voltage is applied as a reference, a standard signal can be generated. The BL-YL-MFN37 micro differential pressure sensor has a small size and is convenient for customers to install the product. Widely used in medical electronics, automotive electronics, sports and fitness equipment, and other fields.
Project | parameter | units | ||||
Recommended operating conditions | ||||||
Pressure type | Gauge pressure | — | ||||
Rated pressure | 48.26 | kPa | ||||
Measurable pressure range | -48.26~48.26 | kPa | ||||
Temperature range | 0 to 50 | ℃ | ||||
Pressure medium | Only for non corrosive gases (no liquids) | — | ||||
Excitation current (constant) | 1.5 | mADC | ||||
Absolute maximum rated value | ||||||
Maximum withstand voltage | 2x rated pressure | — | ||||
Maximum excitation current | 3.0 | mADC | ||||
Working temperature | 0 to 80 | ℃ | ||||
Storage temperature | -20 to 100 | ℃ | ||||
Working humidity | 30 to 80(no exposed state) | %RH | ||||
Electrical characteristics (driving current 1.5mA, constant, ambient temperature Ta=25 ℃) | ||||||
Output span voltage | 40 to 130 (from 0kPa to rated) | mV | ||||
Offset voltage | +/-30 (at 0kPa) | mV | ||||
Bridge resistance | 4000 to 6000 | Ω | ||||
Response time | 2(for reference) | msec. | ||||
accuracy | TC Span | +/-0.3 | %FS/0-50deg.c | |||
TC Offset | +/-0.03 | %FS/0-50deg.c | ||||
linear | +/-0.1 | %FS | ||||
Pressure hysteresis | +/-0.1 | %FS | ||||
TC Span: Zero temperature drift (temperature range 0~50 ℃) TC Offset: Full range temperature drift (temperature range 0~50 ℃) | ||||||
