FSR Single zone sensor RP R45H8 Thickness 0.45mm ring film pressure sensor manufacturer impact sensing test
- Category: >>>
- Supplier: Shenzhen Legact Technology Ltd.
Share on (1601282934414):
Product Overview
Description
Product Description

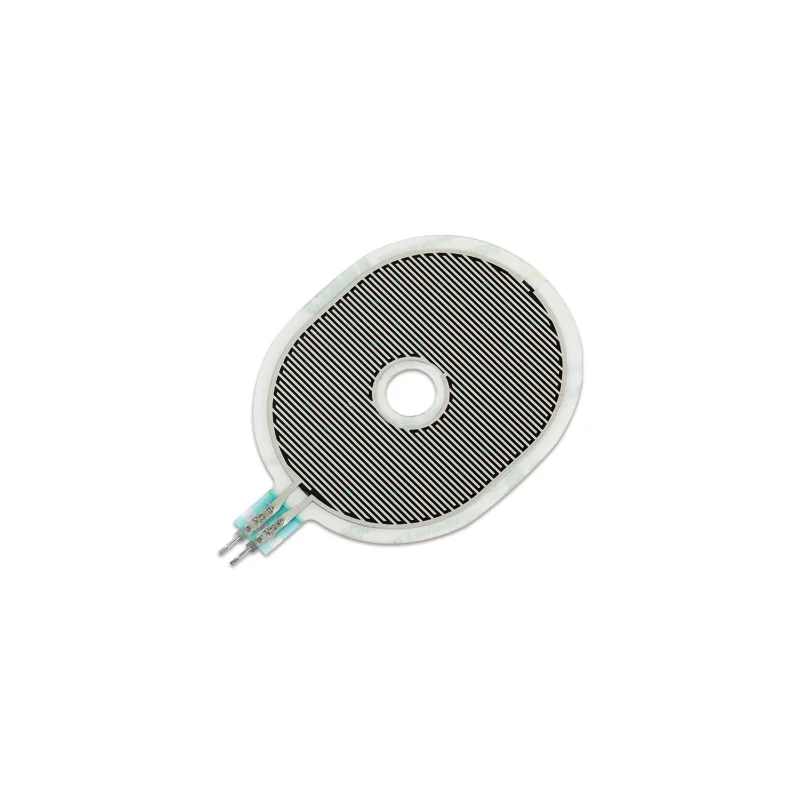

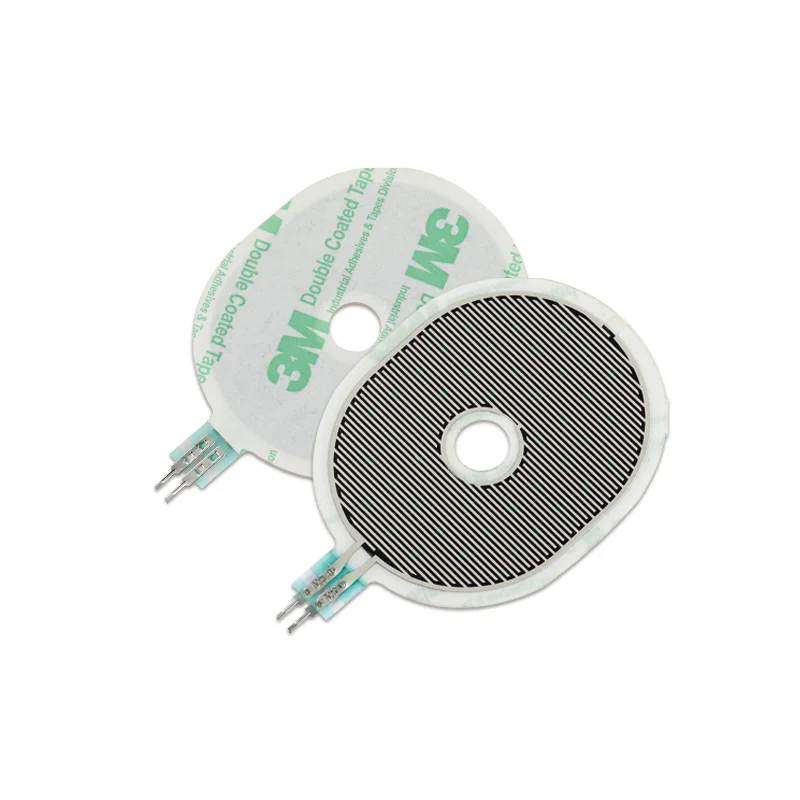

RP-R45H8 is a resistive ring-film pressure sensor.When the sensor is without external pressure, the sensor is open and the resistance is infinite; when the pressure is about 0.5 Kg, the sensor is in the trigger state and the resistance value is less than 500 KΩ; when the pressure increases further, the resistance becomes smaller; when the pressure reaches 50 Kg, the resistance value is less than 1 KΩ; the output resistance of the pressure sensing end changes accordingly with the change of external pressure.
Technical Data and Physical Properties
Thickness | 0.45mm |
Shape | flexible |
Actuation force | 0.5kg |
Pressure limit | From 0.5 Kg to 50 Kg or greater |
Operating temperature | |
At the 0.5 Kg force | Resistance is <500 KΩ |
At 50 Kg of the force | Resistor <1 KΩ |

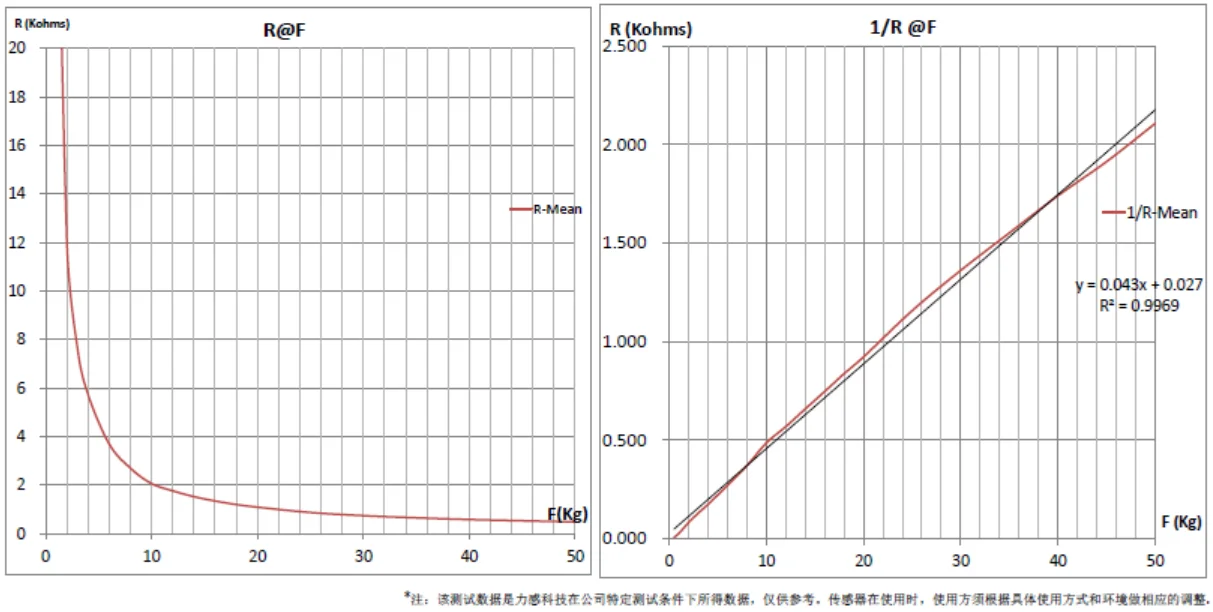

Product pressure and resistance characteristics

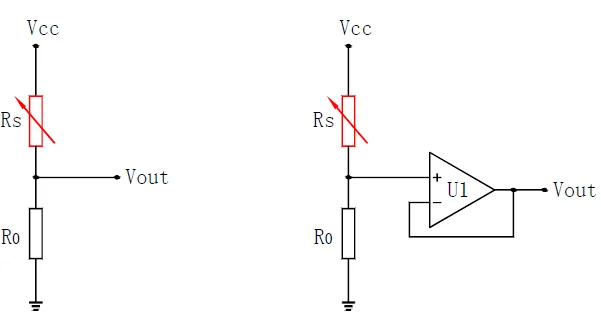

Description of the applied circuits
It is suggested that the sensor output information can be obtained by connecting the fixed resistance of about 1K-10K Ohm, and capturing the two-terminal voltage of the fixed resistance R0..
Custom sensors
We can design specialized sensors to meet the customers’ unique requirements. It is including specialized shape andsize,specialized force vs. resistance characteristic, special material and thickness, unique active area shape and quantity, and also connection options.

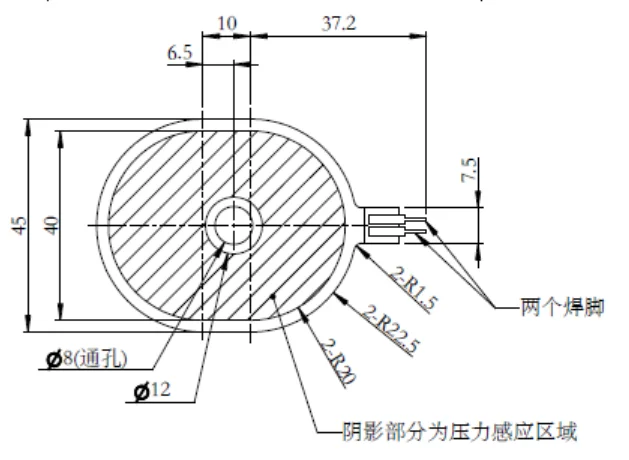

Mechanical data of sensor RP-R45H8
Mobile Phone: +8615813728838
Email: denny@film-sensor.com
Click on the picture to send us an inquiry for more information
Product application

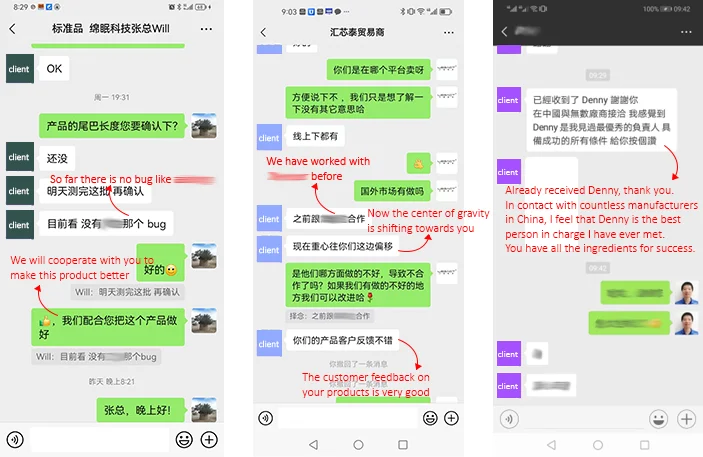

Favorable feedback
