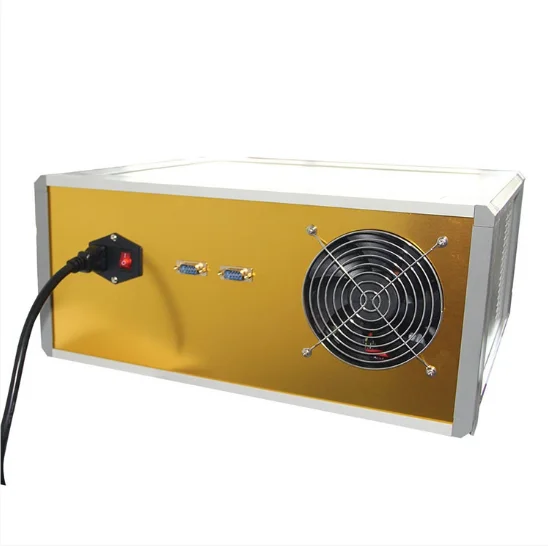

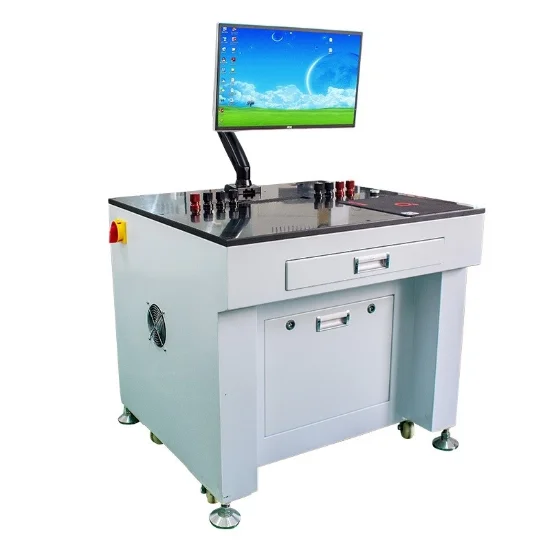

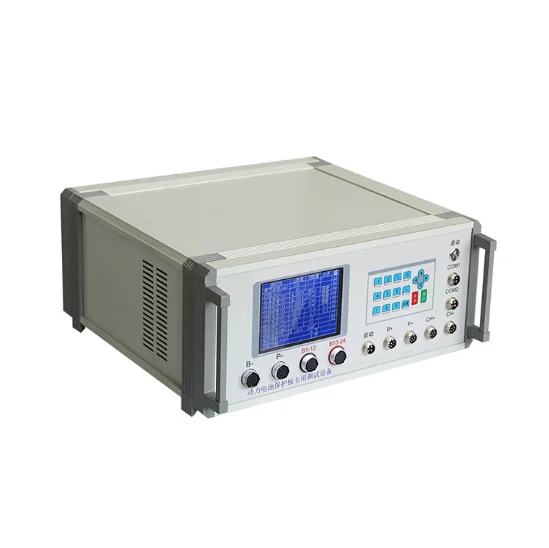

1 32s Battery BMS Protection Circuit Board Testing System Machine Bms Tester
- Category: >>>
- Supplier: Shenzhen Aitop Intelligent Equipment Co. ltd
Share on (1601197944495):
Product Overview
Description
Machine features
The PBTS series multi-function BMS board testing machine is mainly used to testing the BMS board specifications is within the parameters which declared by the BMS board supplier, so as to provide a set of testing standards for the staff. It is suitable for power battery BMS board manufacturers and power battery pack manufacturers.
Machine functions
1) overcharge protection voltage
2) overcharge recovery voltage
3) over discharge protection voltage
4) over discharge recovery voltage
5) over discharge current protection
6) short circuit protection performance test
7) charging current protection
9) equalization opening voltage
10) equalization real-time current
11) BMS board total consumption
12) single section self consumption current
13) overcharge protection delay
14) over discharge protection delay
15) overcurrent protection delay
16) internal resistance
2) overcharge recovery voltage
3) over discharge protection voltage
4) over discharge recovery voltage
5) over discharge current protection
6) short circuit protection performance test
7) charging current protection
9) equalization opening voltage
10) equalization real-time current
11) BMS board total consumption
12) single section self consumption current
13) overcharge protection delay
14) over discharge protection delay
15) overcurrent protection delay
16) internal resistance

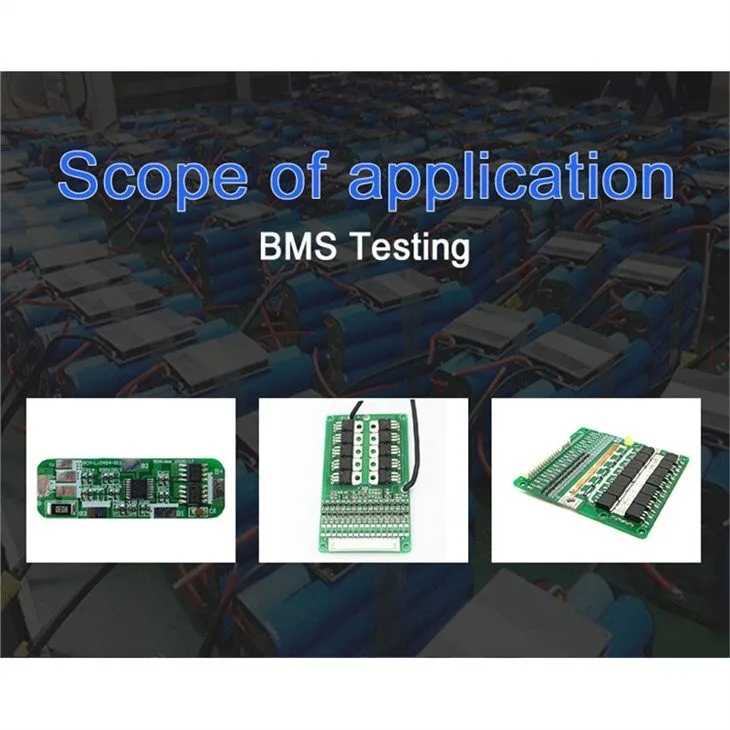

Application
1-32S BMS testing system mainly faces the PCB board manufacturer and power battery pack manufacturer for detection of battery
protecting board.
protecting board.
AITOP Battery machine factory contact number Shenzhen AITOP Intelligent Equipment Co., Ltd.
Email :lina.aitopgroup@gmail.com
wehcat/whatsapp /Phone :008618435204981
wehcat/whatsapp /Phone :008618435204981
Specification
Place of Origin | China，shenzhen |
Application | All kinds of lithium battery packs |
Balanced turn-on voltage | 0-5V ±5mV |
Equilibrium real time current | 0-1000MA ±1mA |
Over current protection delay | 0-8S ±1mS |
Total self current consumption | 0-10MA ±5u |
Single self current consumption | 0-500uA ±1uA |
Loop resistance | 0-200mΩ ±1mΩ |
Short circuit protecting | (more than 10 series) 0-9999u |
Maximum power | 600W |
Supply voltage | 220VAC |
Product Description
FAQ
Q1: What can your machines do?
A: Make the batteries production automatically. Save the factory owner’s invest and better the efficiency.
A: Make the batteries production automatically. Save the factory owner’s invest and better the efficiency.
Q2: What kind of items can your machines produce?
A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.
A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.
Q3: How can I see samples or know more about the machines?
A: We have real time video on Youtube. Please contact our sales to get the links. Indian friends can visit our New Delhi sales office and see the machine by yourselves.
A: We have real time video on Youtube. Please contact our sales to get the links. Indian friends can visit our New Delhi sales office and see the machine by yourselves.
Q4: Do you have a MOQ for orders?
A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine. Our factory MOQ is 1 set.
A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine. Our factory MOQ is 1 set.
Q5: Do you have any warranty or certifications?
A: We provide 12 months warranty for the machine, and life-time after-sales maintenance. All of our products are with CE certifications and are good to export worldwide.
A: We provide 12 months warranty for the machine, and life-time after-sales maintenance. All of our products are with CE certifications and are good to export worldwide.
Q6: I m a new factory owner. Can I get some advices about automatic production?
A: You can tell us the ideal turn-over you want for your new factories. Our professional engineers and sales shall provide you with budget and costs how much it takes.
A: You can tell us the ideal turn-over you want for your new factories. Our professional engineers and sales shall provide you with budget and costs how much it takes.
