Factory Sell CNC Machine Double Head Stone Router Machine 1530 CNC Stone Engraving Machine Manufacturer from Jinan China
- Category: >>>
- Supplier: Jinan TechPro CNC Equipment Co. Ltd.
Share on (1601199135575):
Product Overview
Description
Factory Sell CNC Machine Double Head Stone Router Machine 1530 CNC Stone Engraving Machine Manufacturer from Jinan China
Products Description

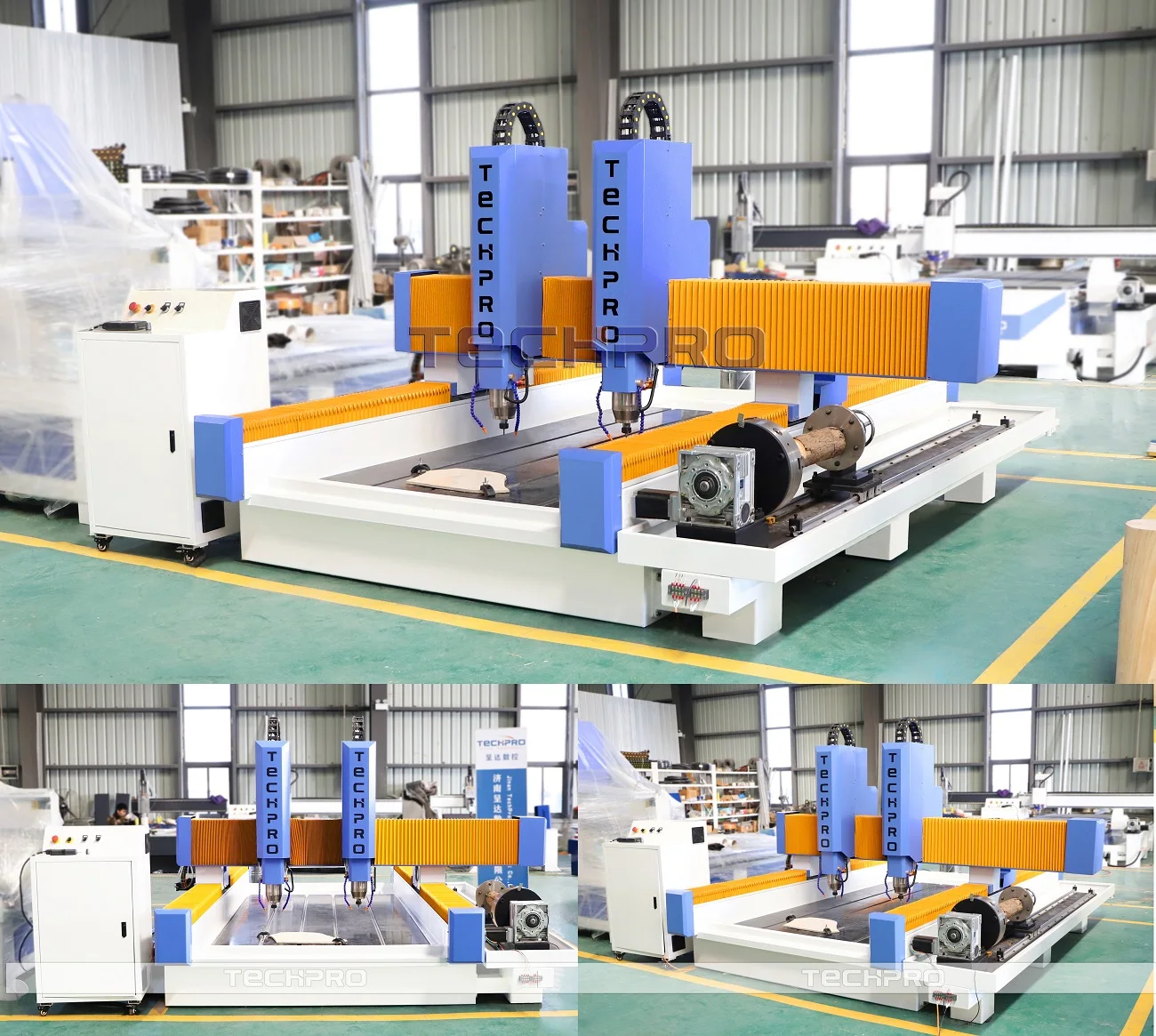

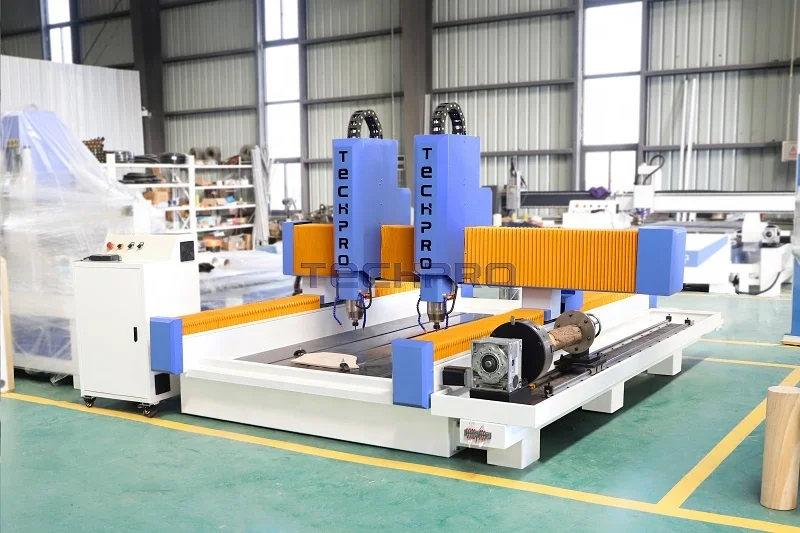

TechPro Double Head Stone CNC Router with Rotary Features :

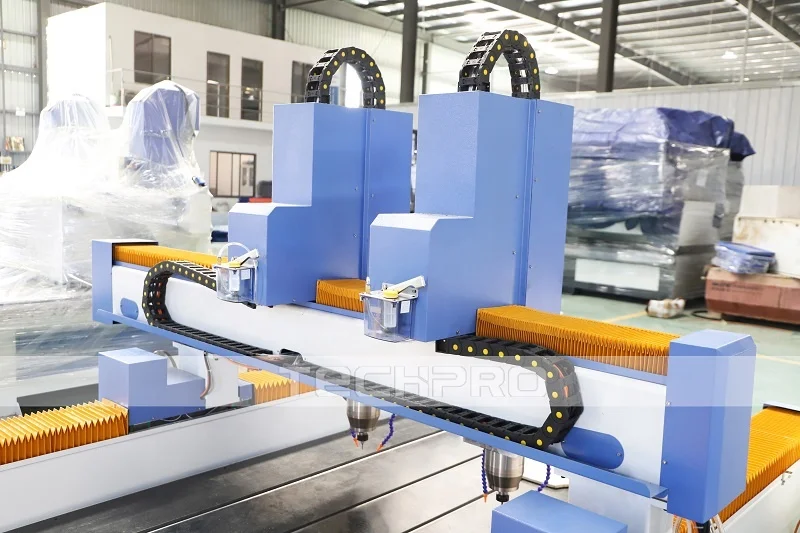

1. This machine with independent double-head design can improve processing efficiency and can also be used with a single head, it have toggle switch for spindle 1 and spindle 2.

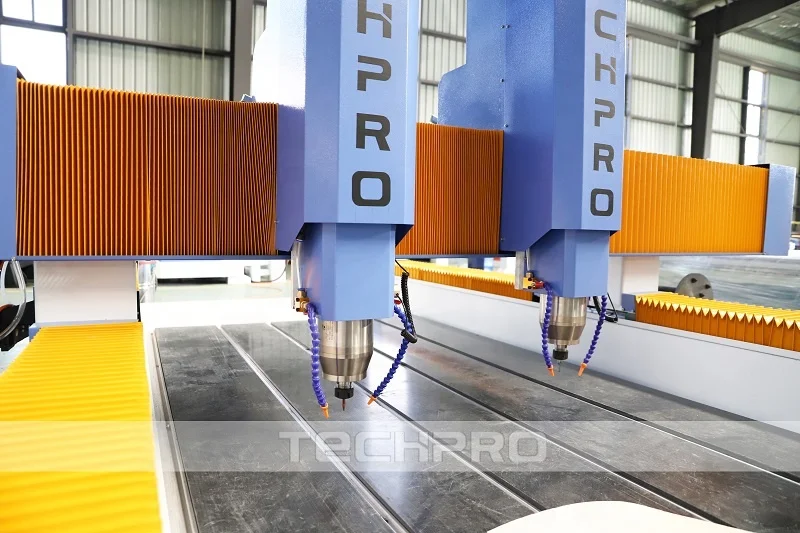

2. The spindle adopt high speed 5.5kw/7.5kw water cooling spindle high performance for long time. Professional stone processing with high torque and high precision.
3. Under the dust cover, you will see: X axis and Y axis adopt good quality rack and pinion, Z axis adopt Taiwan TBI ball screw. The four axis adopt Hiwin/PMI linear guide rails, high precision.
5. High-precision screws and guide rails: All screws and guide rails are imported. The X and Y axis adopt oil-immersed lubrication method. In addition, the effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.
6. This is T slot table with steel water tank, you can easy to fix the material and water tank will not rust.
7. The CNC Stone machine design software is Artcam / Aspire English version and easy to learn, we can provide the training videos.
2. The spindle adopt high speed 5.5kw/7.5kw water cooling spindle high performance for long time. Professional stone processing with high torque and high precision.
3. Under the dust cover, you will see: X axis and Y axis adopt good quality rack and pinion, Z axis adopt Taiwan TBI ball screw. The four axis adopt Hiwin/PMI linear guide rails, high precision.

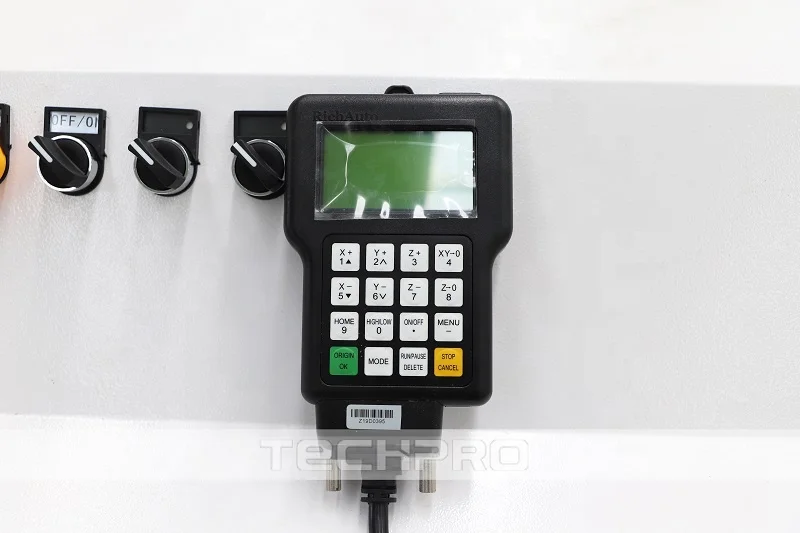

4. TechPro stone cnc router cutting machine adopts adopt Richauto A18 4 axis control system, can satisfy 4th axis rotary device working. easy to operate.
5. High-precision screws and guide rails: All screws and guide rails are imported. The X and Y axis adopt oil-immersed lubrication method. In addition, the effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.
6. This is T slot table with steel water tank, you can easy to fix the material and water tank will not rust.
7. The CNC Stone machine design software is Artcam / Aspire English version and easy to learn, we can provide the training videos.

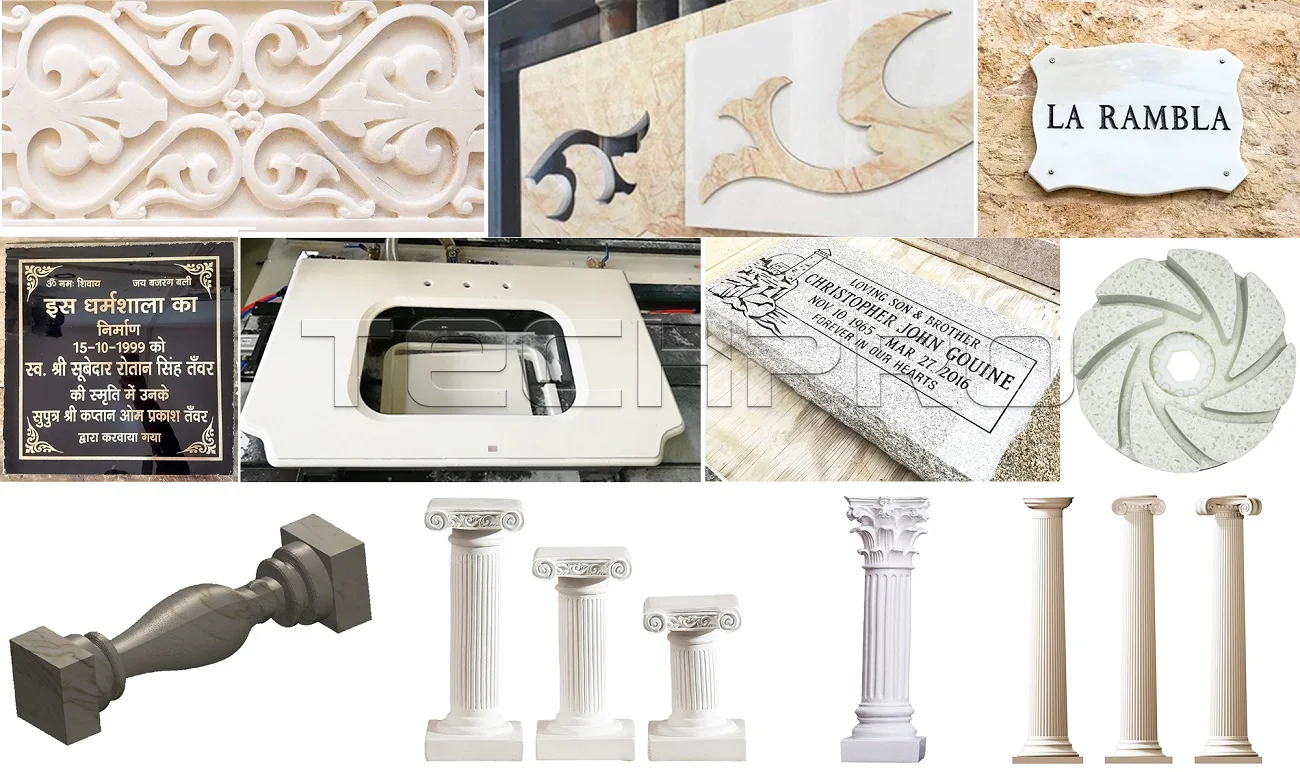

Application of Stone CNC Router with Rotary:
1. Applied materials:
The stone engraving machine is suitable for three-dimensional relief, pointed bottom engraving, flat bottom engraving, line engraving, chamfering, drilling, etc. of various stones such as marble, granite, jade, blue stone, black stone, etc. It is specifically used for stone engraving, stone relief, stone positive engraving, stone negative engraving, stone line engraving,stone cutting, stone hollowing.
2. Applied Industry:
①. Stone Industry: It is suitable for stone industry, stone tablet processing industry, artistic relief, advertising industry, decoration and decoration industry, ceramic industry and construction industry, etc.
②. Woodworking Industry: Chair, door, window, bed, cabinet, kitchen ware and other furniture; Redwood classical and antique furniture, Exquisite European furniture, decorative products sculpture.
②. Woodworking Industry: Chair, door, window, bed, cabinet, kitchen ware and other furniture; Redwood classical and antique furniture, Exquisite European furniture, decorative products sculpture.
③. Metal Industry: Engraving and cutting of soft metals such as aluminum and copper.
Machine Configuration
Model | TPS1325R-2 |
Working Area | 1300*2500*400mm (Optional 1500*3000 / 2000*3000mm) |
CNC Control System | Richauto A18 4 Axis Control System |
Spindle | China HQD 5.5kw Water Cooling Spindle ( 0-24000rpm ) |
Motor and Driver | China Leadshine Stepper Motor and Driver |
Inverter | China Fuling Lnverter |
Table Surface | T-Slot with PVC table + Water Tank |
Bed Structure | Heavy Duty 10mm Steel Machine Bed; 10-12mm Moving Steel Gantry |
Lubrication System | Manual Lubrication System |
Transmission | X,Y axis: rack and pinion transmission; Z axis: Taiwan TBI ball screw X,Y,Z axis: Taiwan Hiwin square guide rails with 30mm |

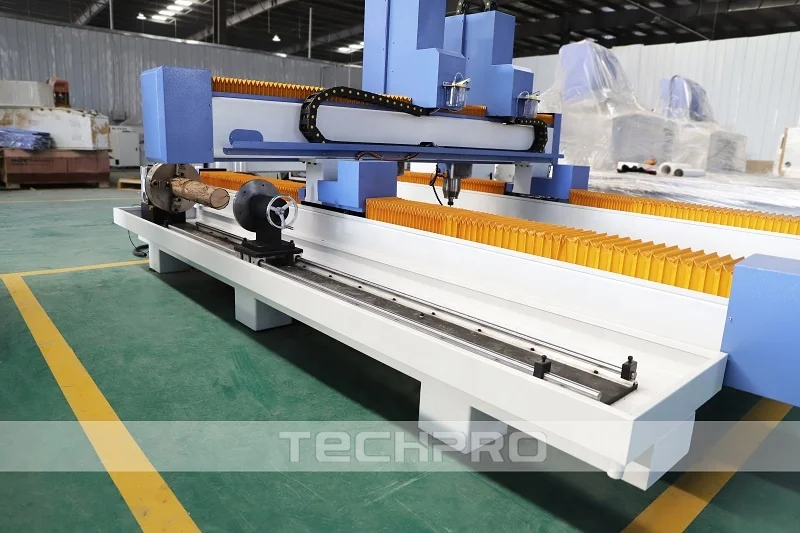

Rotary Device | Diameter 300mm, Length:2500mm |
Electric Parts | French Schneider Electrical Components |
Others Parts | Japan Omron Llimited Switch, Automatic Tools Sensor |
Software | Artcam / Ucancam / Aspire / Fushion360 etc |
Working Voltage | 380V or 220V /3 Phase/1 Phase |
Optional | Mach3 PC Control System |
Leadshine / Delta / Yaskawa Servo Motor and Driver | |
4th Axis Rotary Device Diameter 100mm/200mm |
