mild steel profile material powered spiral conveyor to delivery goods

Product Overview

Description

mild steel profile material powered spiral conveyor to delivery goods

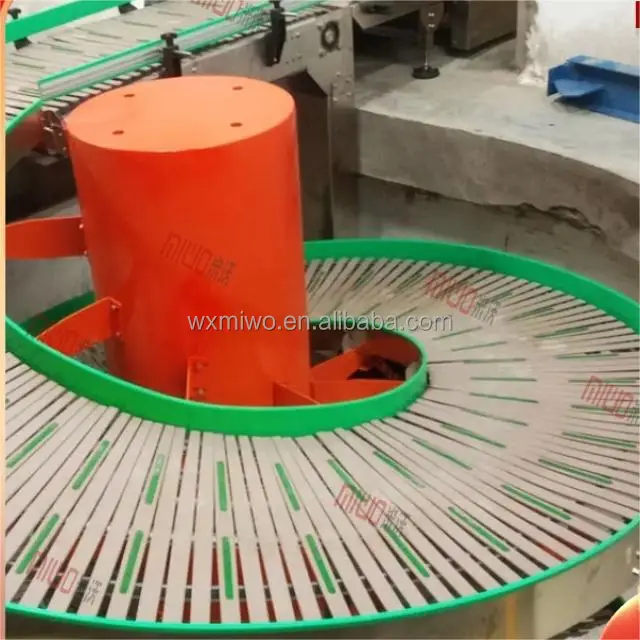

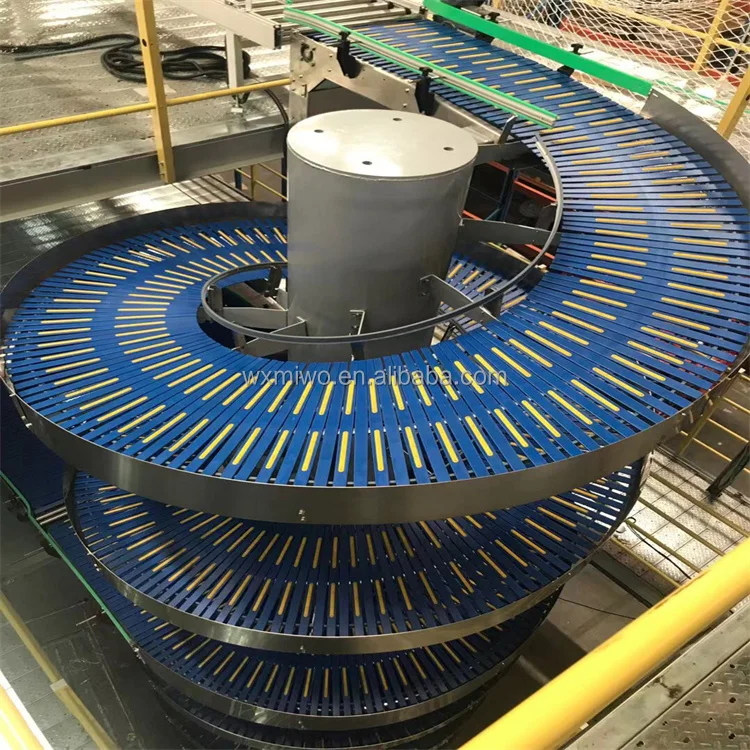

This innovative chain enables a low rolling friction operation without any sliding movements or wear strips on the spiral conveyors.The chain is pulled by a heavy duty steel roller chain and the slats are supported by precision steel roller bearings which ride on a polyurethane surface.This arrangement effectively takes up the side forces created by a tight radius and at the same time increases the load carrying capacity.This enables the spiral conveyors to start and stop fully loaded and facilitates high speed,low noise and long life.



Technical data:

Item#	Belt width	Outer diameter	Profile material	Side plate material
MW-L115	115mm	1500mm	Mild steel / Stainless steel	Mild steel / Stainless steel
MW-L250	250mm	1700mm
MW-L300	300mm	1750mm
MW-L400	400mm	2050mm
MW-L500	500mm	2200mm
MW-L600	600mm	2400mm
MW-L700	700mm	2700mm
MW-L900	900mm	4000mm







Belt effective width	700mm
Infeed height	600mm
Outfeed height	5500mm
Loads	Up to 50kgs per meter
Angle of incline	2.5 degree to 18 degree
Motor	1.5KW*380V*50HZ
Single motor traction	Max to 12 meters height
Total max height	25 meters combination

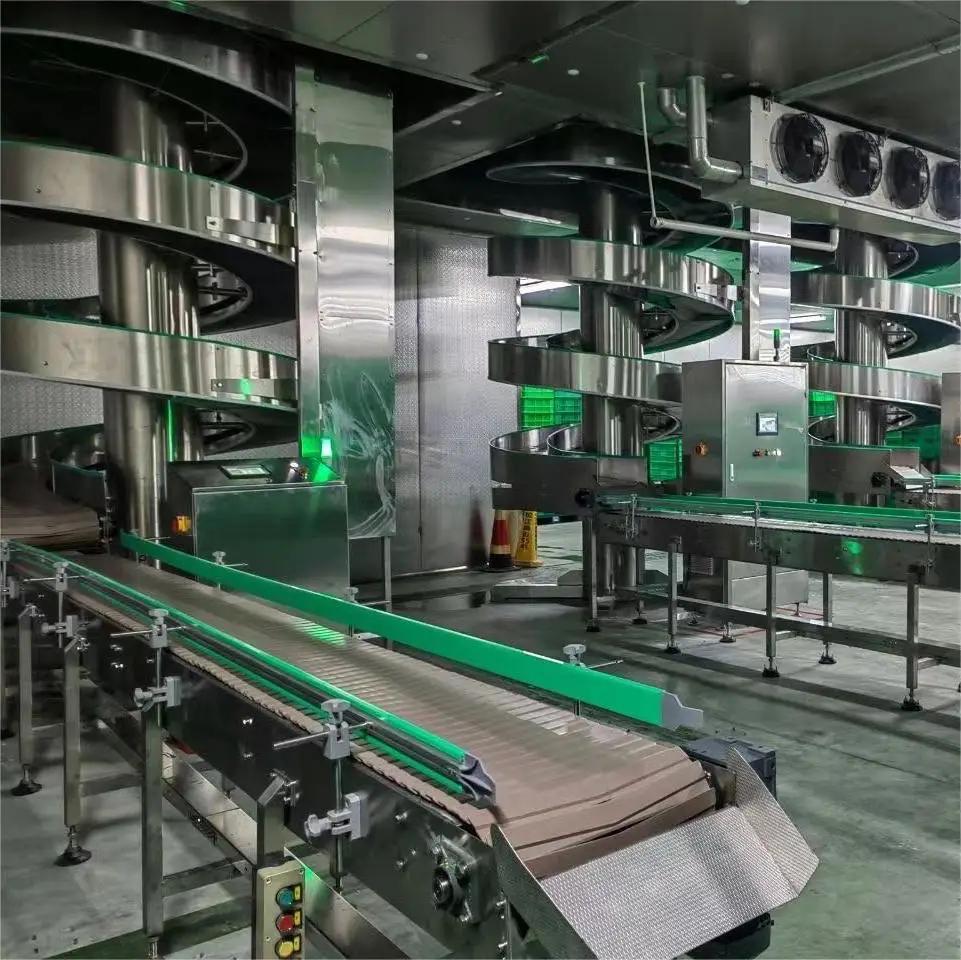

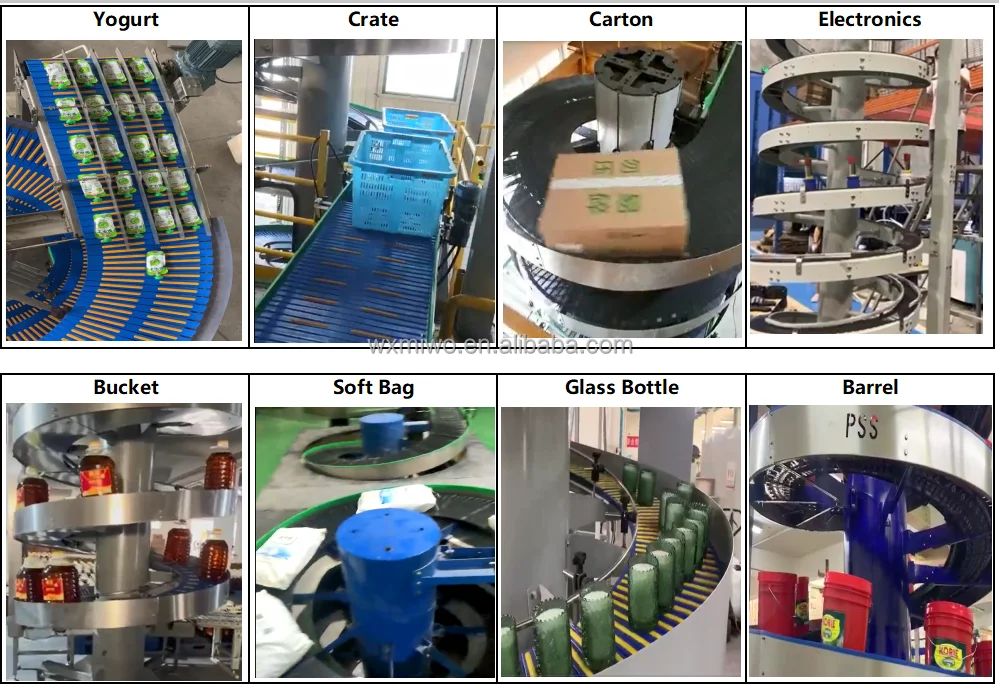

Chain sprial conveyor application:

Widely used in various industries,such as building materials,chemical,power,metallurgy,food and other industries,suitable for horizontal or inclined transport powder,granular and small pieces of materials such as ash,slag,cartons.The spiral conveyor is not suitable for conveying perishable,viscous,agglomerated materials.

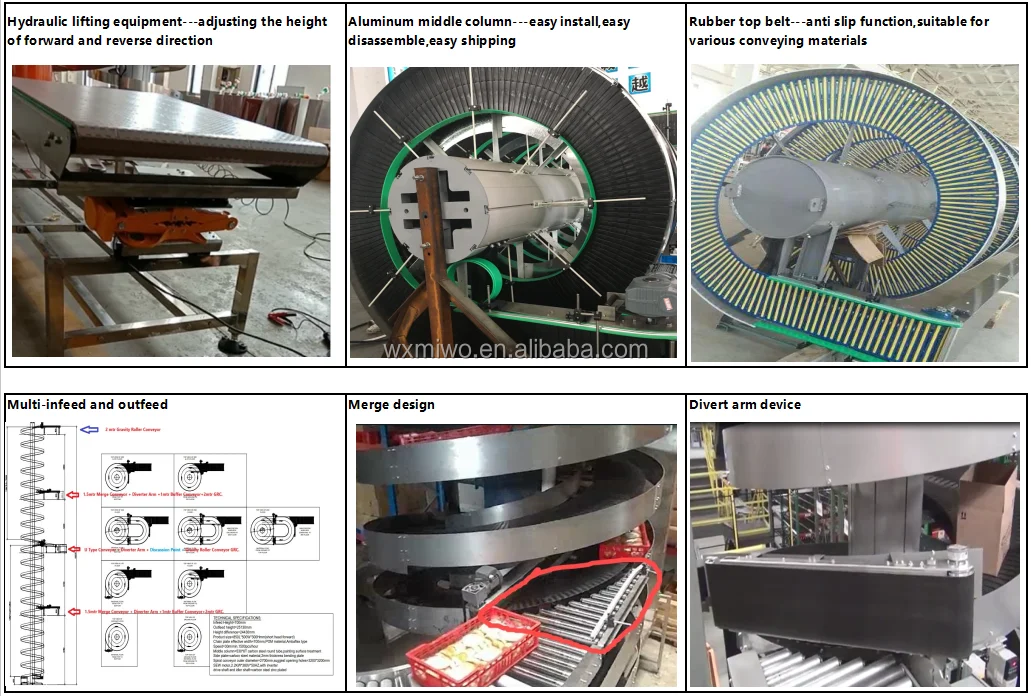

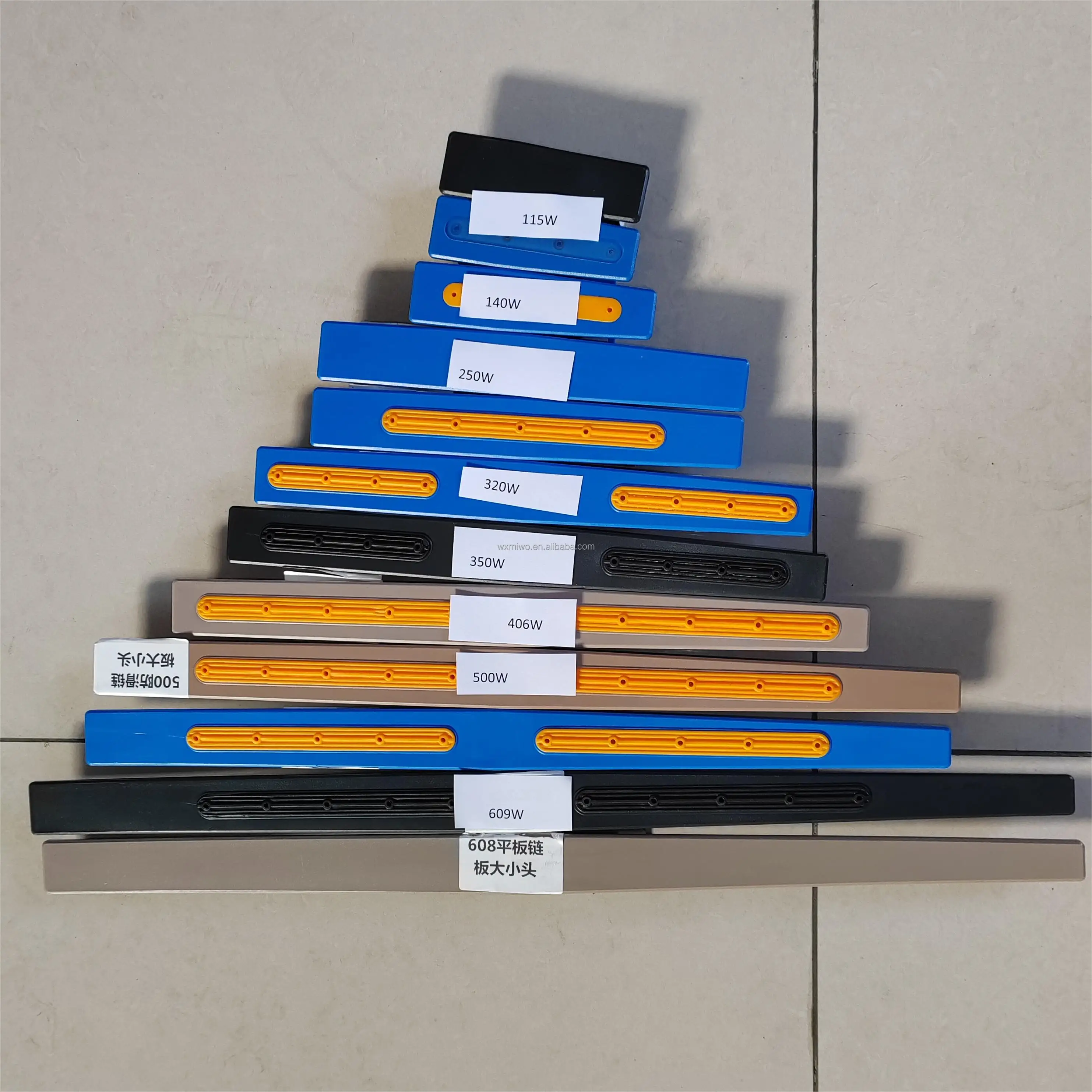

Chain spiral conveyor spare parts avaliable as below:





Chain spiral conveyor features:

•


  Small Footprint:

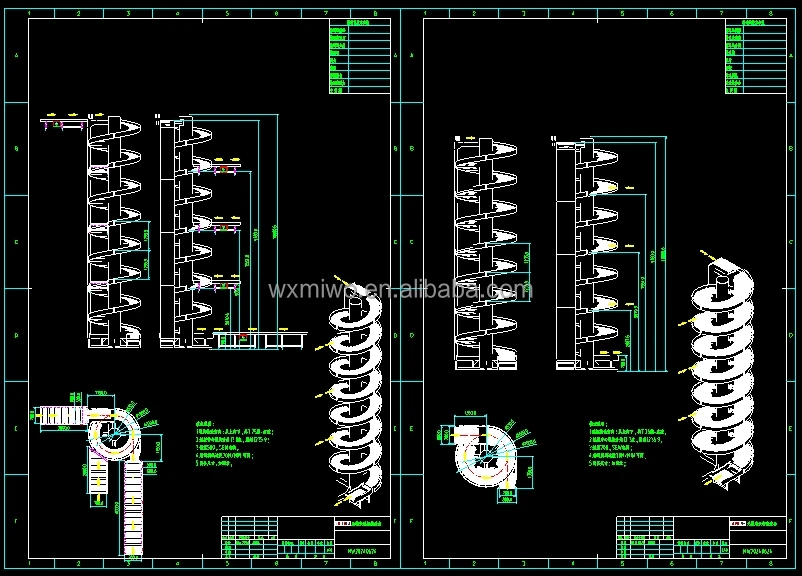

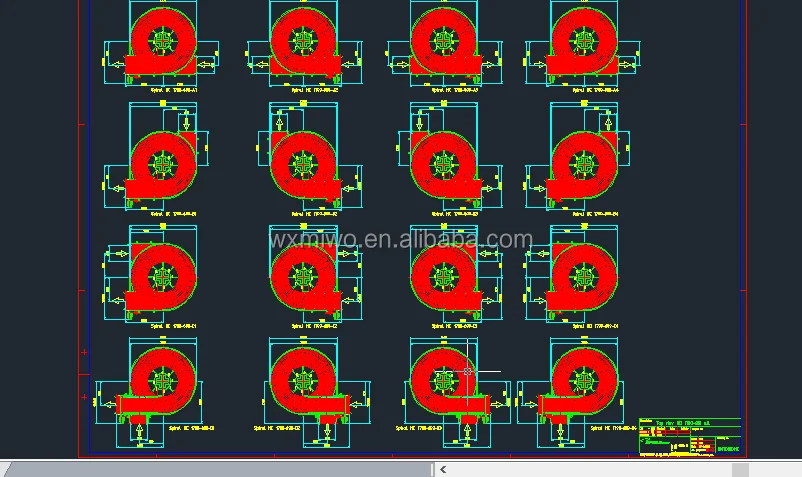

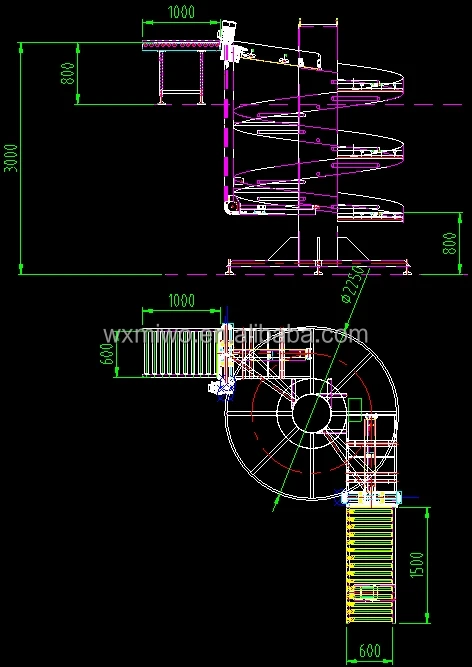

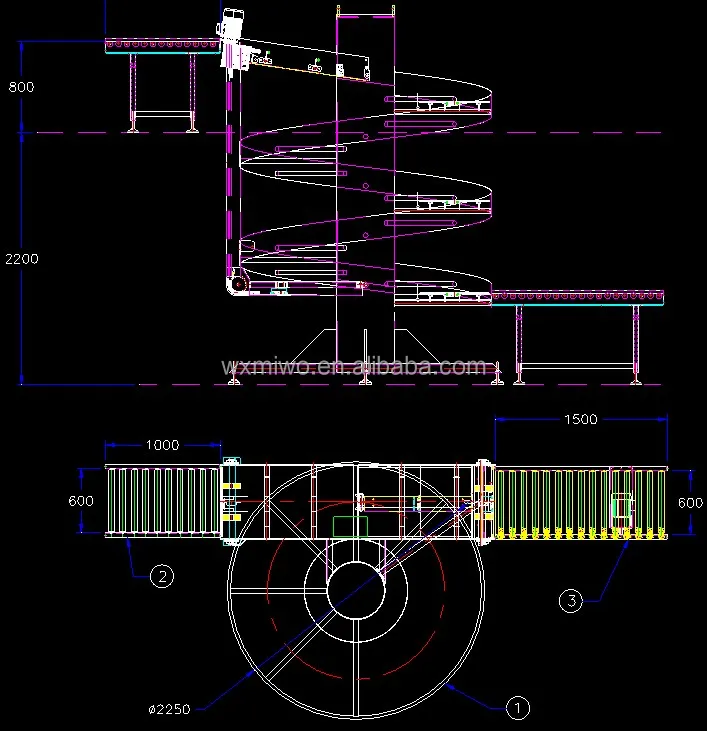

  The proprietary low friction chain slat belt allow Spiral Conveyors to operate within a small footprint, saving valuable floor space. See the chart below for specific dimensions on our most popular models.





•


  Horizontal Entry and Exit:




  All Spirals are designed with a horizontal section at the in and outfeed. This assures a safe and reliable transition between the spiral and adjoining conveyors without product damage and undue wear.





•


  Built in Protection:




  All Ryson Spiral Conveyors are equipped with an automatic chain tensioning device and built-in overload protection as a standard.





•


  One Drive:




  Only one drive motor is required, resulting in substantial savings in energy, controls and systems integration.





•


  Easy to Install:

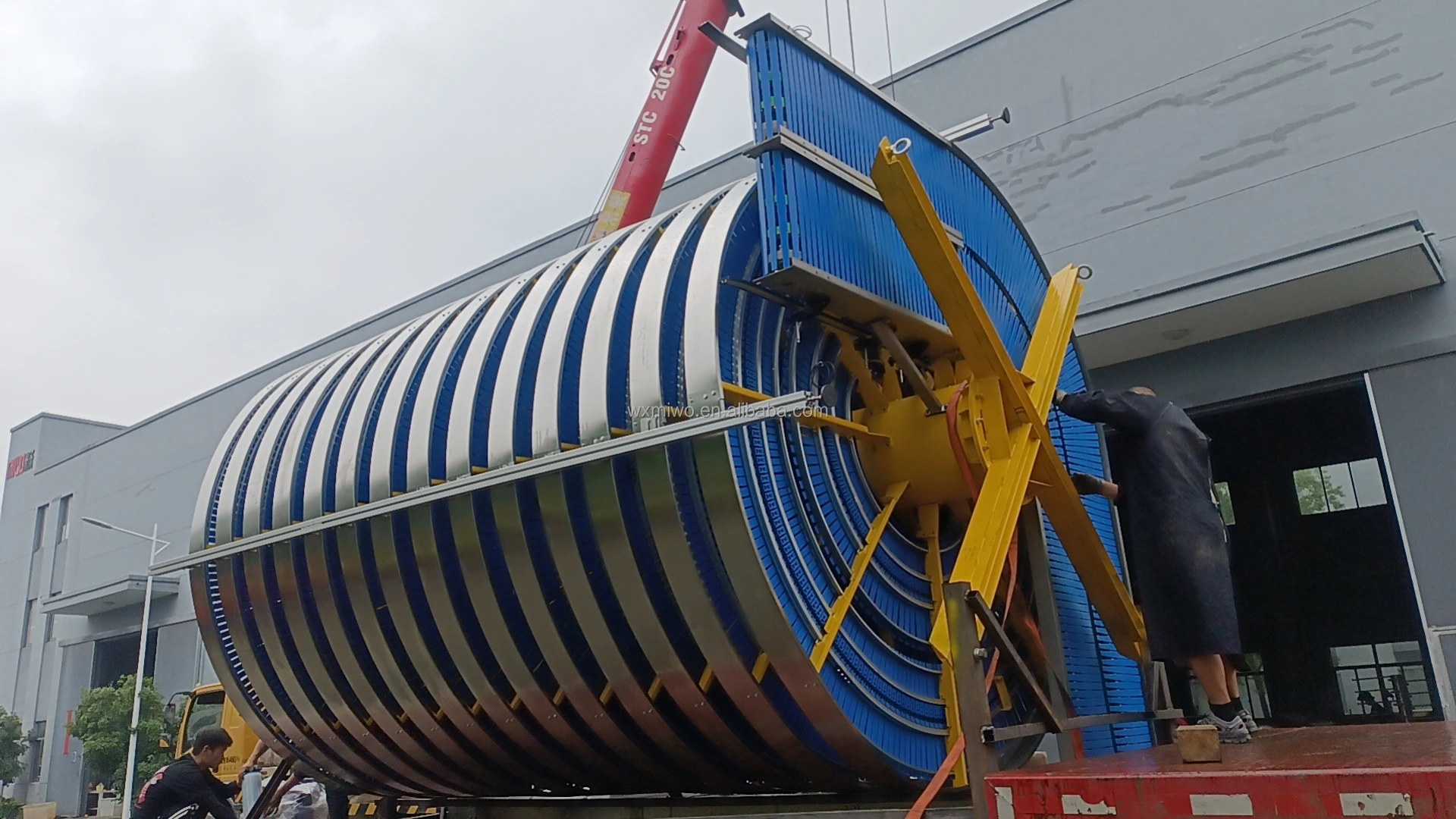

  Most Spiral Conveyors are shipped in one piece, pre-assembled and pre-tested, drastically reducing time and cost of installation.





•


  Low Noise:




  Our proprietary chain slat belt assures a low noise operation, less than 75 db in most cases.

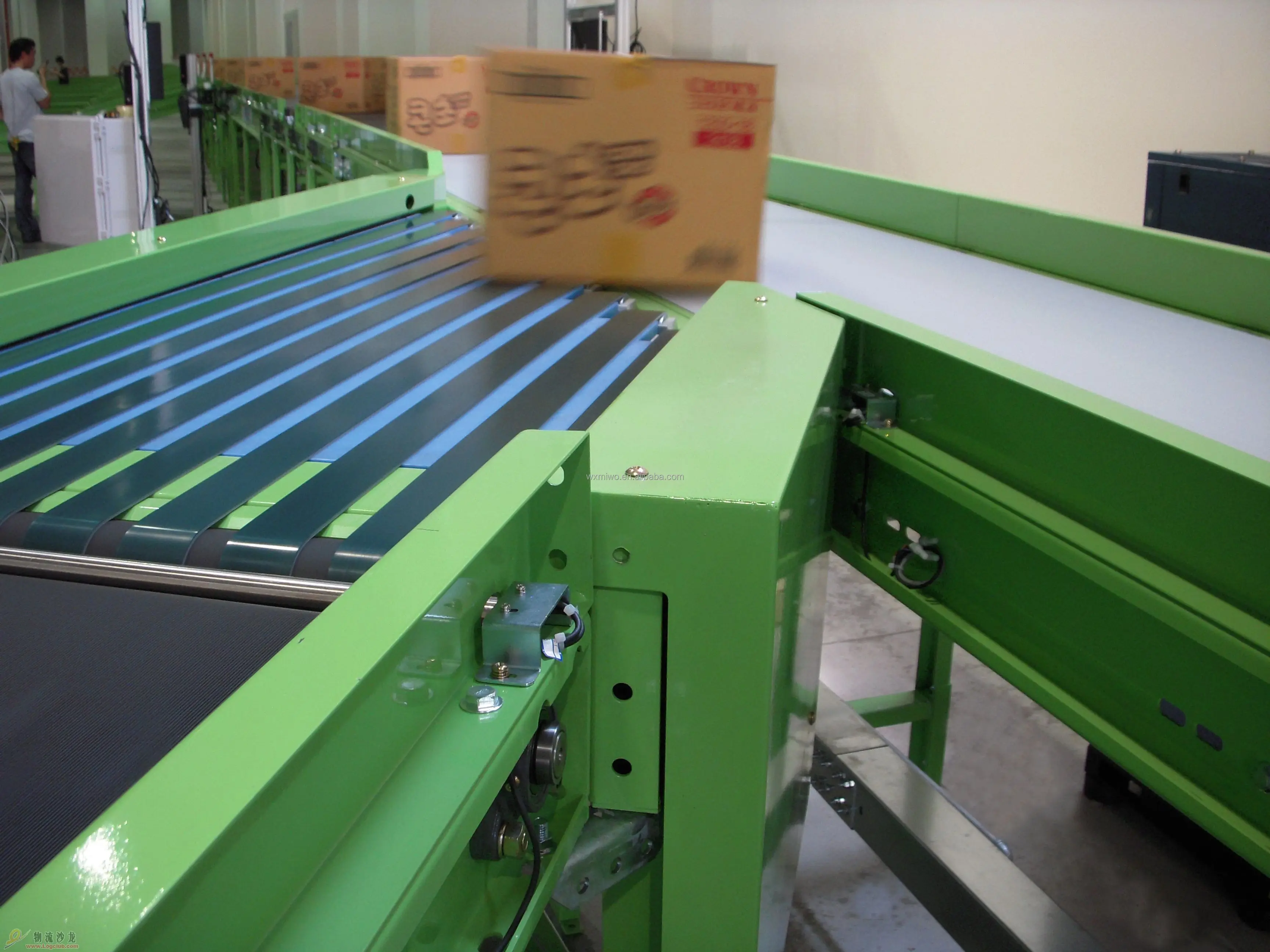

Other products:
