MiniTree Cheap Industrial Mini PC Intel 7th 8th Gen DDR4 32GB RAM 512GB SSD 4xUSB3.0 Dual COM 6Intel 2.5G LAN 3G/4G WiFi slot
- Category: >>>
- Supplier: Dongguan Mini Tree Computer Manufacturing Co. Ltd.
Share on (1601200215643):
Product Overview
Description
Product Description
Product Highlight
- Fanless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7x24 hours durably.
- 6*Intel 2.5G LANS and 2*RS232 COM ports, support Windows, Linux and pfSense OS.
- 1*mSATA SSD+1*2.5'' SSD/HDD installation supported.
- One embedded SIM card slot onboard, 3G/4G/WiFi optional.
- Applied in Firewall, Network Server, Network Security, VPN Router etc.
- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design with high quality, slim design 209*150*57MM.
- Low consumption save much energy and eco-friendly.
- Fanless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7x24 hours durably.
- 6*Intel 2.5G LANS and 2*RS232 COM ports, support Windows, Linux and pfSense OS.
- 1*mSATA SSD+1*2.5'' SSD/HDD installation supported.
- One embedded SIM card slot onboard, 3G/4G/WiFi optional.
- Applied in Firewall, Network Server, Network Security, VPN Router etc.
- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design with high quality, slim design 209*150*57MM.
- Low consumption save much energy and eco-friendly.
Product Details
Specification
Basic Information: | ||
CPUs | Intel Core i3-8140U, 2 Cores 4 Threads, 4M Cache, Base Frequency 2.10GHz, up to 3.90GHz Intel Core i5-8260U, 4 Cores 8 Threads, 6M Cache, Base Frequency 1.60GHz, up to 3.90GHz Intel Core i5-10210U, 4 Cores 8 Threads, 6M Cache, Base Frequency 1.60GHz, up to 4.20GHz Intel Core i7-10810U, 4 Cores 8 Threads, 8M Cahce, Base Frequency 1.80GHz, up to 4.90GHz Intel Celeron 2955U, 2 Cores 2 Threads, 2M Cache, Base Frequency 1.40GHz Intel Celeron 3855U, 2 Cores 2 Threads, 2M Cache, Base Frequency 1.80GHz Intel Pentium 5405U, 2 Cores 4 Threads, 2M Cache, Base Frequency 2.30GHz | |
Graphics Card | Refer to cpu | |
Display | 1x HDMI | |
Memory(RAM) | 2955U/3865U: SODIMM DDR3L 1333/1600MHz 5405U/i5-8260U/i3-8140U/i5-10210U/i7-10510U: SODIMM DDR4 2133/2400/2666MHz | |
Hard Disk | 1x SATA 2.5"HDD (Maximum data conversion rate SATA2.0) 1x Full Height mSATA socket | |
Support System | Pfsense, OpenWrt, VYOS,Windows, LEDE /ESXI6.7/Ubuntu/LINUX/CENTOS | |

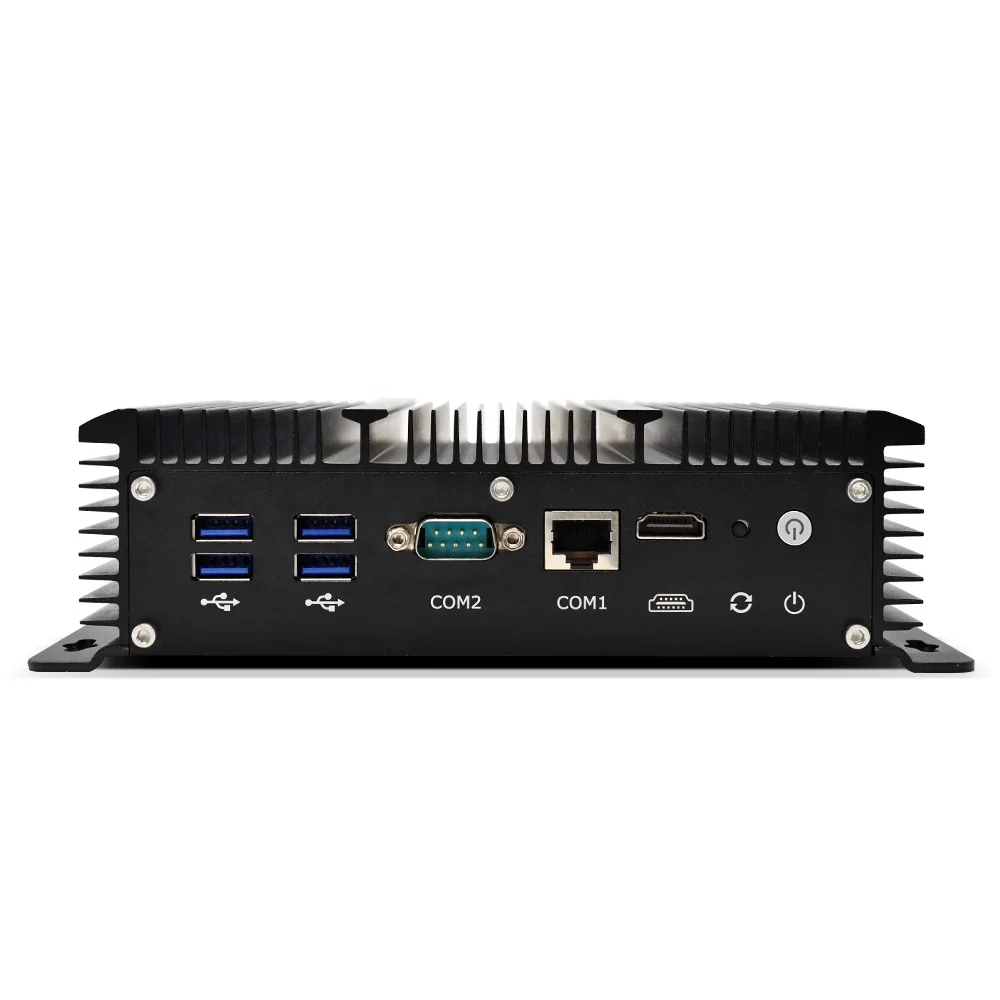

Front-Panel Connectors | Power No/Off 2 x USB 3.0, 2 x USB 2.0(7th/8th//10th:4*USB3.0) 1 x RJ45 RS232(COM1) 1 x DB9 RS232(COM2) 1 x HDMI | |

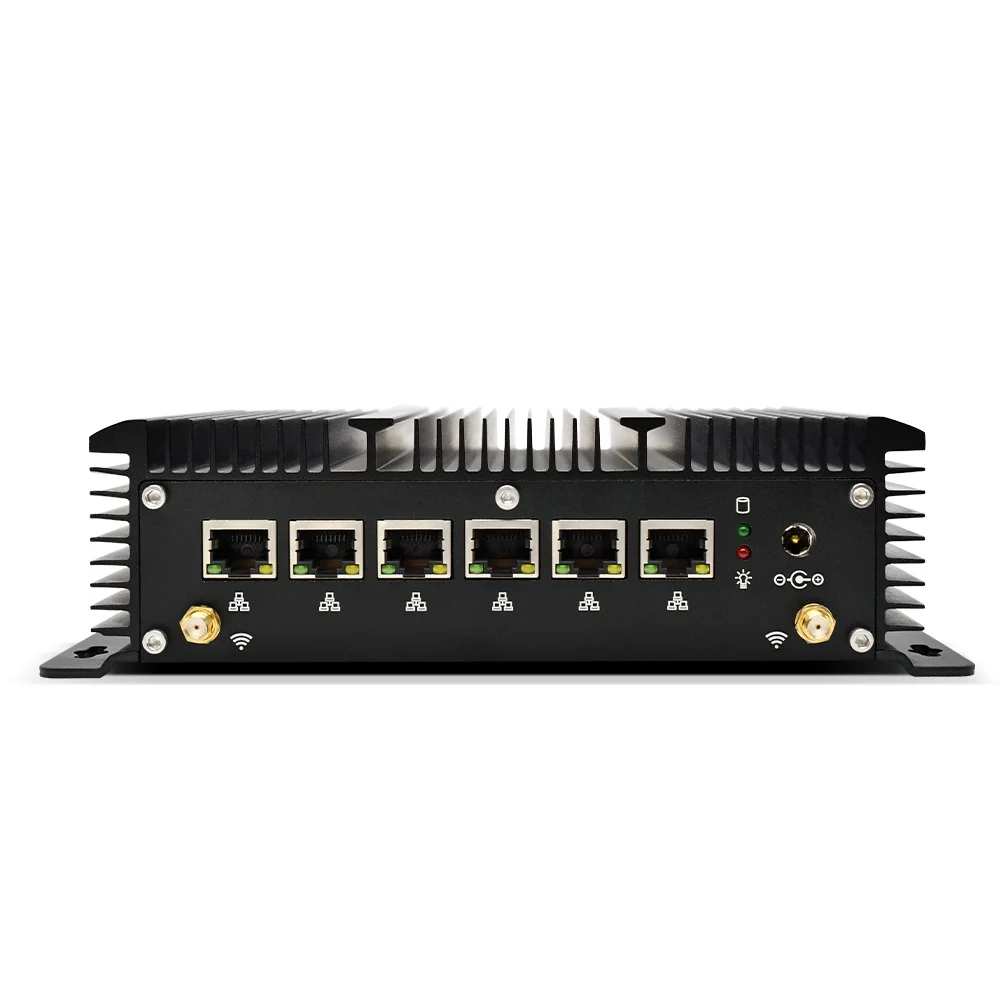

Rear-Panel Connectors | 6 x RJ45 10/100/1000 Mbps Adaptive (2955u/3865u/7th core series cpu) 6 x RJ45 100/1000/2500 Mbps Adaptive (8th/10th gen core series cpu) 1 x DC IN 12V | |
Ethernet Ports | Intel i225V NIC Supports Wake UP on LAN, S5 RTC Wake Settings, PXE Boot. Restore on AC power loss. | |
Expansion | Mini PCIE (USB-bus) for WiFi/3G/4G Modules, 1x SIM slot | |
Power | Power type: DC-IN 5.5 *2.5 Input voltage: 12V Current: 5A | |
Power Consumption | Power Adapter: DC 12V-5A | |
Cooling System | Fanless Passive Cooling | |
Mounted | Wall Mounted/Desktop | |
Chassis Material | Aluminum alloy | |
Operating Temperature | -20-65℃ | |
Storage Temperature | 15℃-35℃ | |
Relative Humidity | 5%~95% (non-condensing) | |
Dimension | 209 *149 *54 mm | |
Package Content | 1x Mini PC 1x Power Adapter 1x SATA Power Cable,SATA Cable 1x User Manual | |
