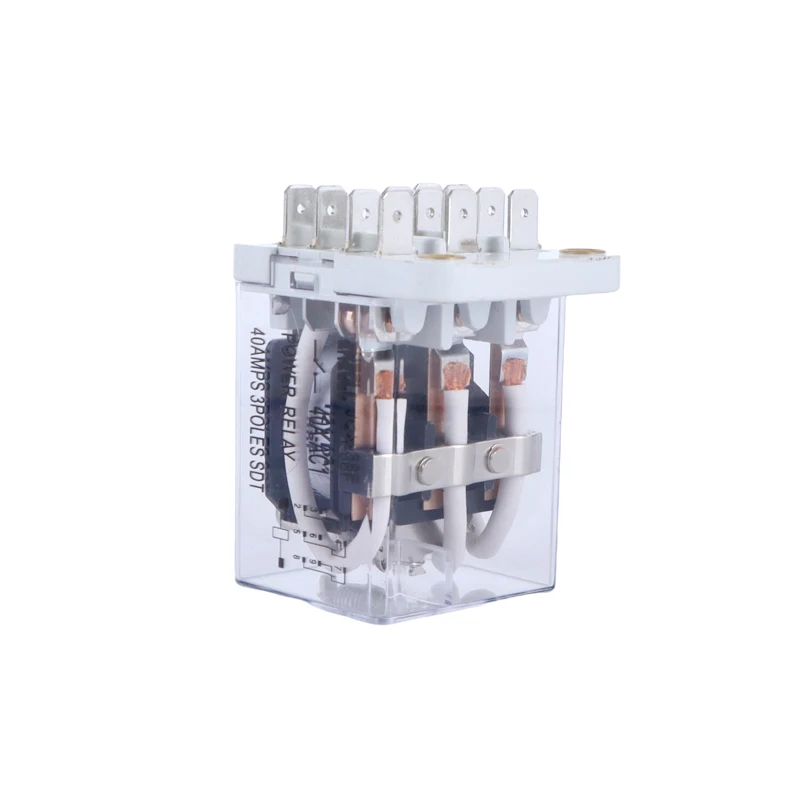

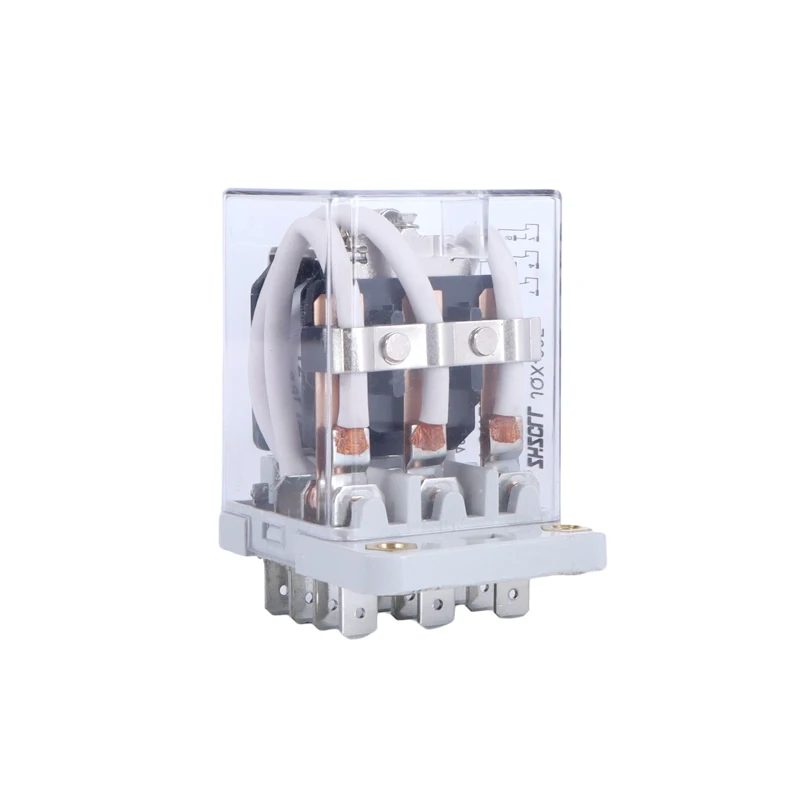

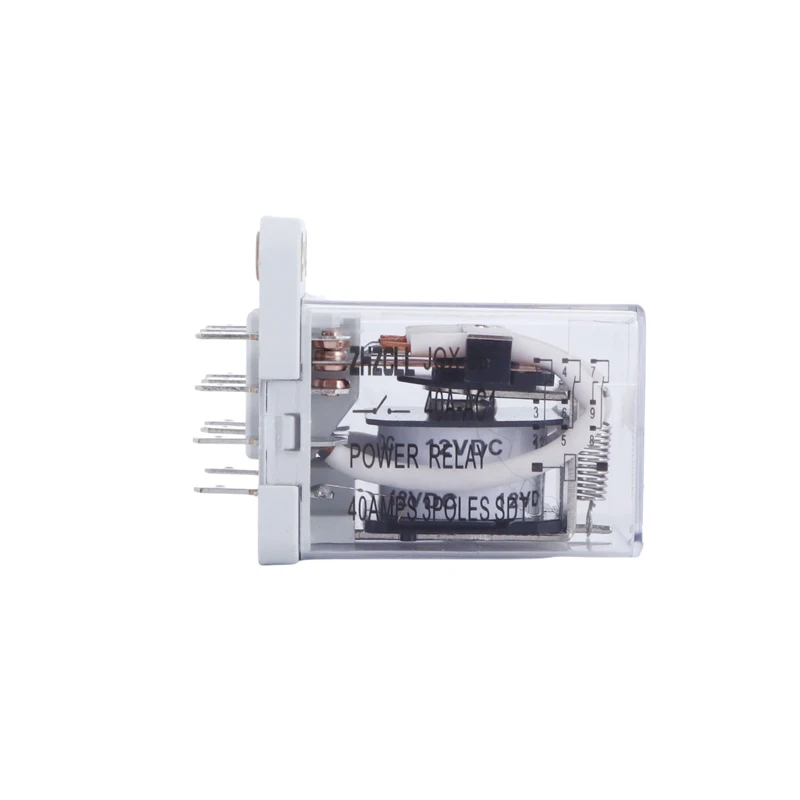

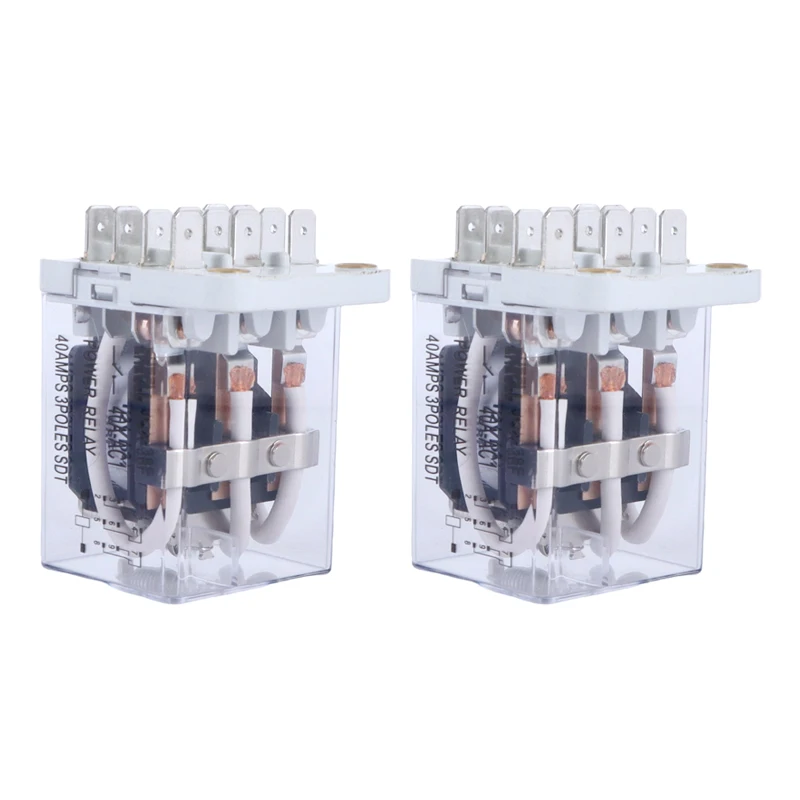

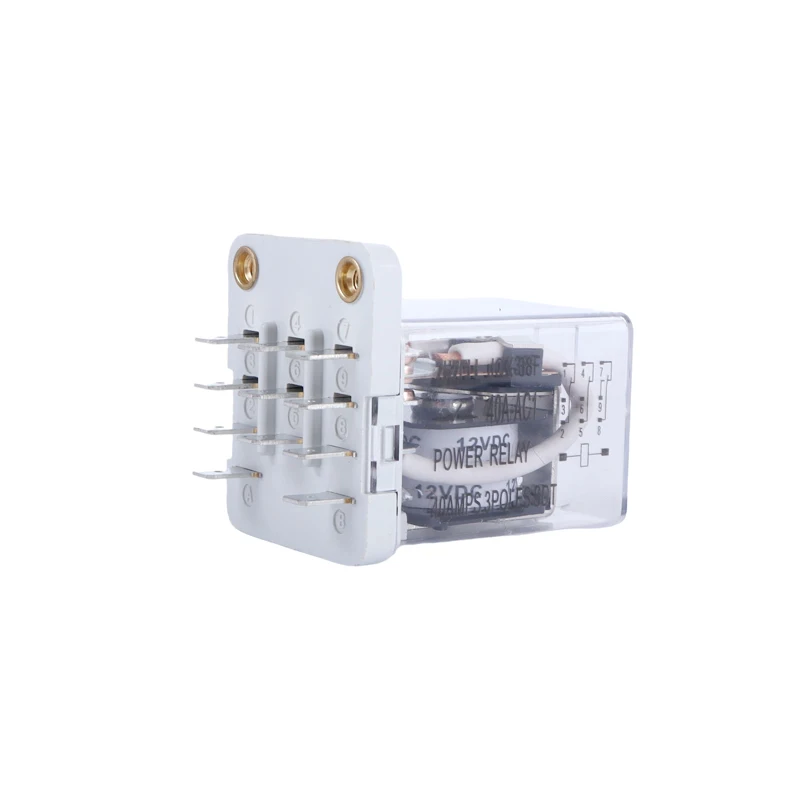

Power Relay Nnc71b (JQX 38F) Sealed Type for Door Rolling Machine High Power Relay Miniature Enclosed Rlay
- Category: >>>
- Supplier: Yueqing Zhenglin Electric Appliance Factory
Share on (1601200218364):
Product Overview
Description
Products Description
Model | JQX-38F | ||||
Dimention(mm) | 55.7*41.5*49.1 | ||||
Contact Form | 3Z 3H 3D | ||||
Contact Material | Silver Alloy | ||||
Resistance Performance Of Contactor Capacity | 30A/40A/28VDC, 30A/40A/250VAC | ||||
Coil Power at 23°C | DC(W) | <1.5W | |||
AC(VA) | <2.5VA | ||||
Coil Voltage | DC(V) | 6~220V | |||
AC(V) | 6~380V | ||||
Pick-up Voltage at 23°C | DC≤75% AC≤80% | ||||
Drop-out Voltage at 23°C | DC≥10% AC≥30% | ||||
Max Voltage at 23°C | 110% | ||||
Contact Resistance(at 6VDC 1A) | ≤100mΩ | ||||
Dielectric Strength | Between Open Contacts | ≥1200VAC 50Hz/1min Leakage Current 1mA | |||
Contacts Pieces | ≥1500VAC 50Hz/1min Leakage Current 1mA | ||||
Between Coil & Contacts | ≥1500VAC 50Hz/1min Leakage Current 1mA | ||||
Insulation Resistance(MΩ) at 500VDC | ≥1000MΩ | ||||
Service Life | Electrical | 10^5 Times(Frequency:On 1 Time/1S,Off 1 Time/1S) | |||
Mechanical | 10^6 Times(Frequency:300 Times/1min) | ||||
Ambient Temperature | -25°C ~ +55°C | ||||
Teminal Type | Insert Type | Welding Type | |||
Suitable Socket | 38F11A | ||||
Product Weight | 130g | ||||
Same Reference | |||||
Similar recommendation
Company Profile
Zhenglin Electric is a modern enterprise with nearly 20 years of professional experience in relay production. The company has a number of advanced automatic relay production and testing lines. Our company has long-term close cooperation with a number of high-quality professional parts supporting enterprises. The product quality is stable and reliable, and won the trust and praise of our customers. Our products not only meet the needs of domestic customers but also export to many countries and regions. In today's global integration development process, the company actively responds to the national strategy, and we will produce higher-quality relay products for domestic and foreign customers with more professional technology and services. Zhenglin company warmly welcomes new and old customers at home and abroad to visit and guide.
Logistics mode
Model | JQX-38F | ||||
Dimention(mm) | 55.7*41.5*49.1 | ||||
Contact Form | 3Z 3H 3D | ||||
Contact Material | Silver Alloy | ||||
Resistance Performance Of Contactor Capacity | 30A/40A/28VDC, 30A/40A/250VAC | ||||
Coil Power at 23°C | DC(W) | <1.5W | |||
AC(VA) | <2.5VA | ||||
Coil Voltage | DC(V) | 6~220V | |||
AC(V) | 6~380V | ||||
Pick-up Voltage at 23°C | DC≤75% AC≤80% | ||||
Drop-out Voltage at 23°C | DC≥10% AC≥30% | ||||
Max Voltage at 23°C | 110% | ||||
Contact Resistance(at 6VDC 1A) | ≤100mΩ | ||||
Dielectric Strength | Between Open Contacts | ≥1200VAC 50Hz/1min Leakage Current 1mA | |||
Contacts Pieces | ≥1500VAC 50Hz/1min Leakage Current 1mA | ||||
Between Coil & Contacts | ≥1500VAC 50Hz/1min Leakage Current 1mA | ||||
Insulation Resistance(MΩ) at 500VDC | ≥1000MΩ | ||||
Service Life | Electrical | 10^5 Times(Frequency:On 1 Time/1S,Off 1 Time/1S) | |||
Mechanical | 10^6 Times(Frequency:300 Times/1min) | ||||
Ambient Temperature | -25°C ~ +55°C | ||||
Teminal Type | Insert Type | Welding Type | |||
Suitable Socket | 38F11A | ||||
Product Weight | 130g | ||||
Same Reference | |||||
FAQ
Q1.Can I have sample oder for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How do you proceed order for relay ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How do you proceed order for relay ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
