  • Zhenglin High Quality JQX 58F Power Relay Large Current 60A Sealed Electromagnetic Relay

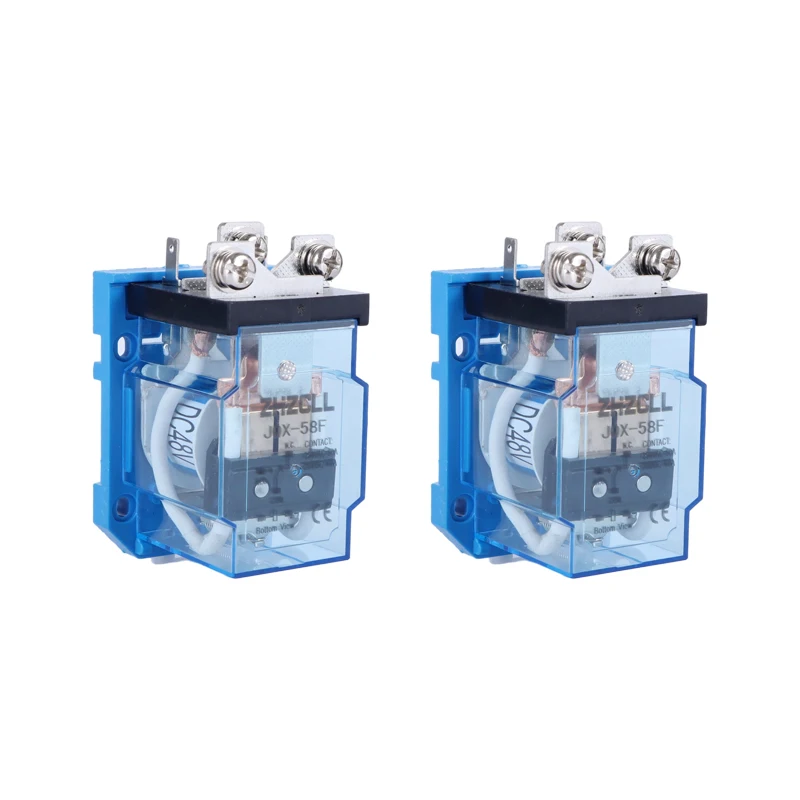

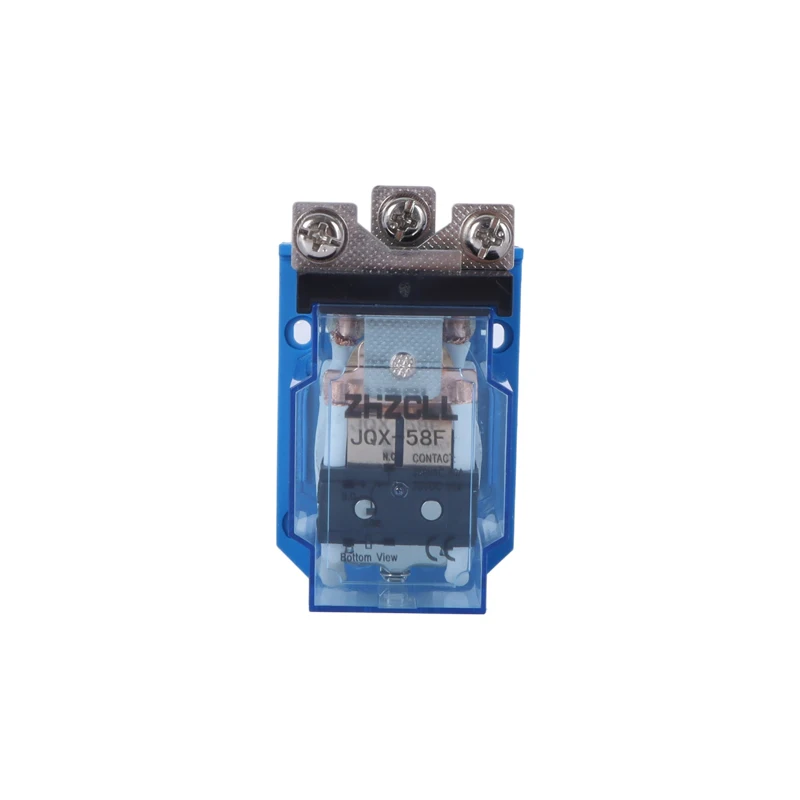

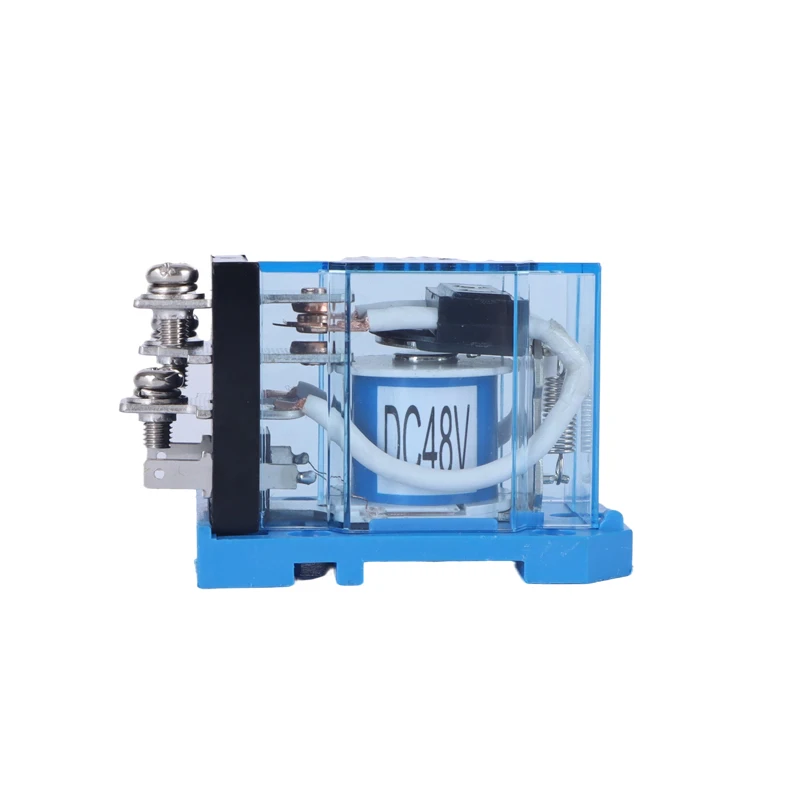

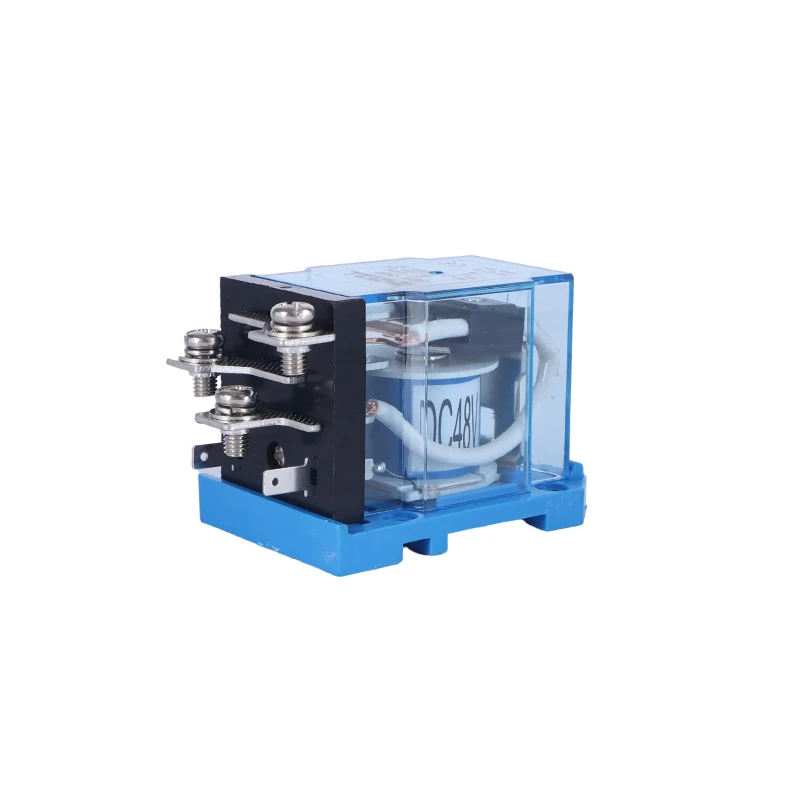

Zhenglin High Quality JQX 58F Power Relay Large Current 60A Sealed Electromagnetic Relay
Zhenglin High Quality JQX-58F Power Relay Large Current 60A Sealed Electromagnetic Relay
Zhenglin High Quality JQX-58F Power Relay Large Current 60A Sealed Electromagnetic Relay
Zhenglin High Quality JQX-58F Power Relay Large Current 60A Sealed Electromagnetic Relay
Zhenglin High Quality JQX-58F Power Relay Large Current 60A Sealed Electromagnetic Relay
Zhenglin High Quality JQX-58F Power Relay Large Current 60A Sealed Electromagnetic Relay
Zhenglin High Quality JQX-58F Power Relay Large Current 60A Sealed Electromagnetic Relay

Zhenglin High Quality JQX 58F Power Relay Large Current 60A Sealed Electromagnetic Relay

Share on (1601351765693):


Price:

Quantity:


Product Overview

Description



Products Description




Contact Ratings
Contact Ratings
1Z,1H,1D
Contact Resistance
100MΩ(1A 6VDC)
Contact Material
AgSnO
Contact Capacity
60A 250VAC/28VDC
Specification
Insulation Resistance
1000MΩ,500VDC
Dielectric Strength
BCC 2500V 1 min
BOC 1200V 1 min
Operate Time
25ms/25ms
Terminal Type
Screw
Coil Ratings
Nominal Coil Power
DC:2.0W AC:2.5VA


Coil Versions
Nominal
Voltage
VDC
Pull-in
Voltage
VDC
Release
Voltage
VDC
Coil
Resistance
Ω:±10%
Nominal
Voltage
VAC
Pull-in
Voltage
VAC
Release
Voltage
VAC
Coil
Resistance
Ω:±10%
6
4.80
0.60
20
6
4.80
1.80
14.4
12
9.60
1.20
65
12
9.60
3.60
57
24
19.2
2.40
320
24
19.20
7.20
250
48
38.4
4.80
1280
48
38.40
14.4
921
60
48.0
6.00
2800
110/220
88.00
36.0
5000
110
88.0
11.0
9650
220/240
176.0
72.0
19600/25040


Similar recommendation

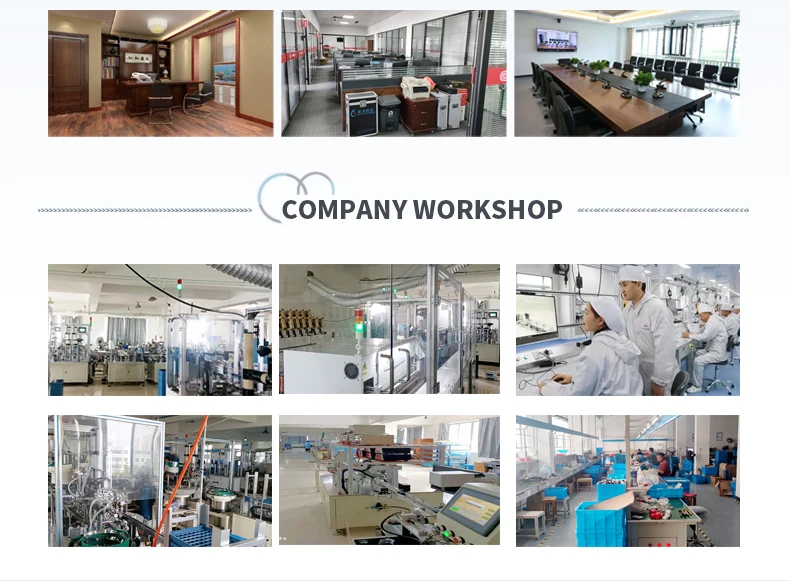

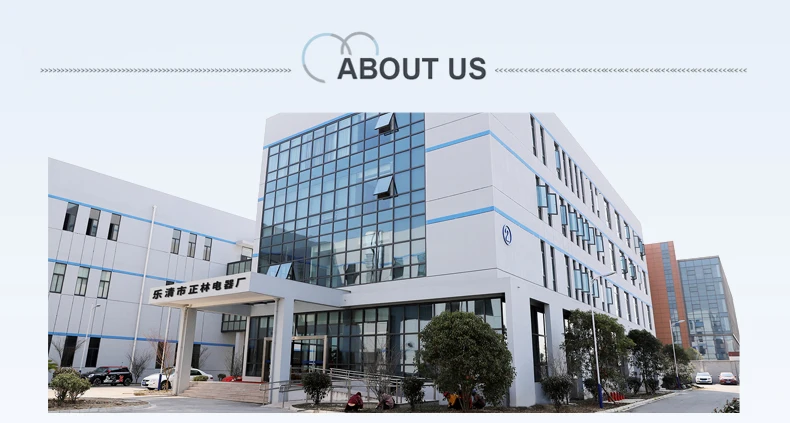

Company Profile



Zhenglin Electric is a modern enterprise with nearly 20 years of professional experience in relay production. The company has a number of advanced automatic relay production and testing lines. Our company has long-term close cooperation with a number of high-quality professional parts supporting enterprises. The product quality is stable and reliable, and won the trust and praise of our customers. Our products not only meet the needs of domestic customers but also export to many countries and regions. In today's global integration development process, the company actively responds to the national strategy, and we will produce higher-quality relay products for domestic and foreign customers with more professional technology and services. Zhenglin company warmly welcomes new and old customers at home and abroad to visit and guide.






Logistics mode




FAQ


Q1.Can I have sample oder for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How do you proceed order for relay ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it ok to print my logo on relay product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
