Price:$17,200.00

Quantity:


Product Overview

Description





200g 300g 400g 500g ozone generator water ozonator large scale water treatment system

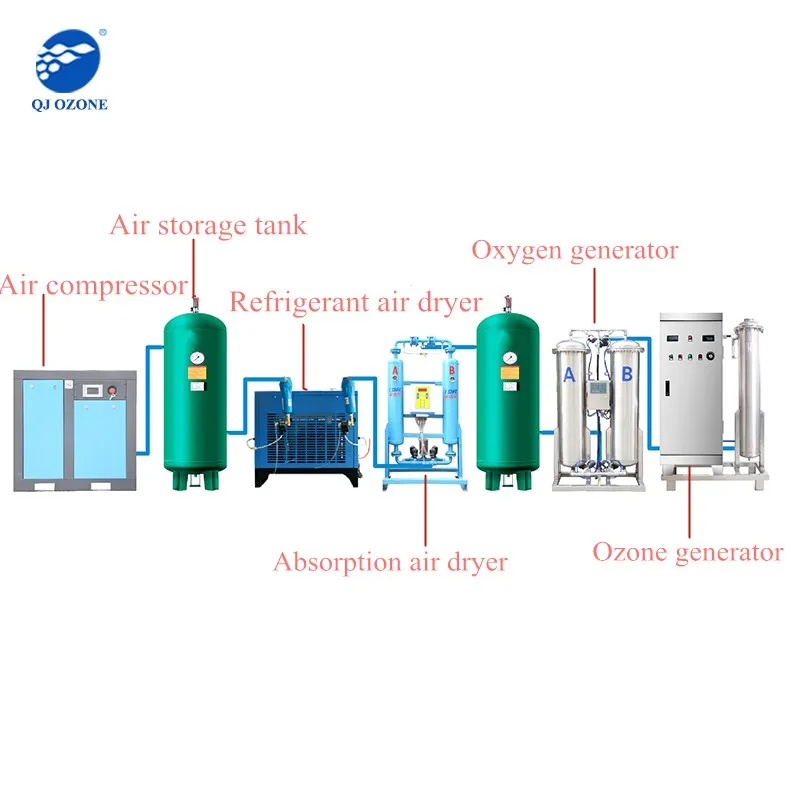

QJ-8011Y 500G ozone generator inlcuding :

Screw Air compressor *1 ----------------- collect air from environment (quite)
Gas Storage tank *2 ------------------- pressure balance
Compressed Air Refrigerant Dryer *1 ------------------ cooling air because input compressed air is too hot
Absorption Air dryer *1 ------------------- purifying & drying air
oxygen concentrator *1 ------------------ Nitrogen and oxygen separating,make high purity oxygen gas.
500g/hr ozone generator *1 ----------------- reduce oxygen ozone gas






Product model
Ozone production (g/h)
Power rating(kw)
Cooling water flow(m3/h)
Dimension(mm)
Gas source
QJ-8016K
300
3
0.5-1
750*500*1430




Air source
QJ-8017K
400
4
0.5-1
750*700*1530
QJ-8018K
500
4.5
1-1.5
800*700*1530
QJ-8019K
600
5
1-1.5
900*700*1530
QJ-8020K
800
7
1-1.5
1000*700*1530
QJ-8021K
1000
8
1-1.5
800*800*1530
QJ-8022K
2000
16
1-1.5
900*800*1530
QJ-8023K
3000
21
3-5
1000*800*1530
QJ-8007Y
150
1.5
0.5-1
600*500*1430






Oxygen source
QJ-8008Y
200
2
0.5-1
600*500*1430
QJ-8009Y
300
3
0.5-1
700*500*1430
QJ-8010Y
400
4
0.5-1
800*500*1430
QJ-8011Y
500
4.5
1-1.5
800*700*1530
QJ-8012Y
600
5
1-1.5
900*700*1530
QJ-8013Y
800
7
1-1.5
1000*700*1530
QJ-8014Y
1000
8
1-1.5
800*800*1530
QJ-8015Y
2000
16
1-1.5
900*800*1530
QJ-8016Y
3000
21
3-5
1000*800*1530


Remarks:
1.300-3000g/hr ozone generator should be used external air source/oxygen source equipment.
2.The equipment of external air source/oxygen source includes air compressor compressed, air refrigerant dryer, ultrafilter, adsorption air dryer, pressure regulator, air storage tank, and PSA oxygen generator.
3.Equipment size is subject to practicality, data only for reference.




For sewage treatment, water reuse, pure water treatment, food processing, pharmaceutical production, chemical oxidation, health care, water plants, hospitals, factories and living quarters, a swimming pool, beverages and foodstuffs,pharmaceutical plants, Wells and cisterns field water disinfection tanks, animal husbandry and aquaculture, cold storage, landscape water, waste gas treatment, ozonation, air sterilization.


Food and beverage industry


Food industry
Beverage industry


Meat processing
Vegetables and fruits processing


Air sterilization


Pharmaceutical factory
Sterile room
Cold storage


Hospital
Hotel
Restaurant


Water treatment


Pure water
Drinking water
Swimming pool water


Waste water
Sewage
Fish farming water
