Product Overview
Description
Factory air cooling ozone tube ozone generator cell

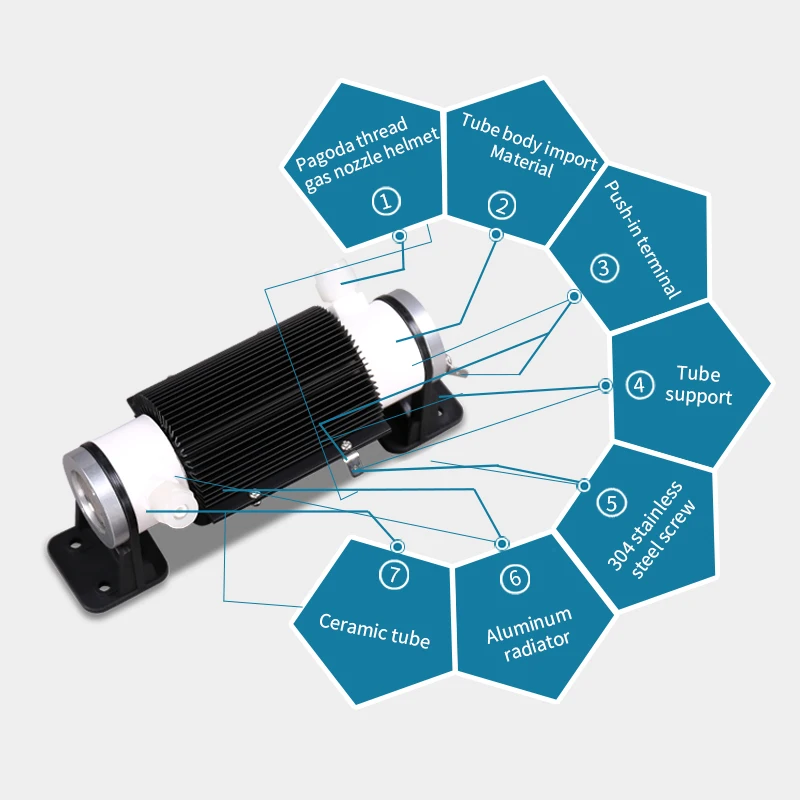

Imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material for ensuring several years running.
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2. Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3. Low working voltage.
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2. Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3. Low working voltage.
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install

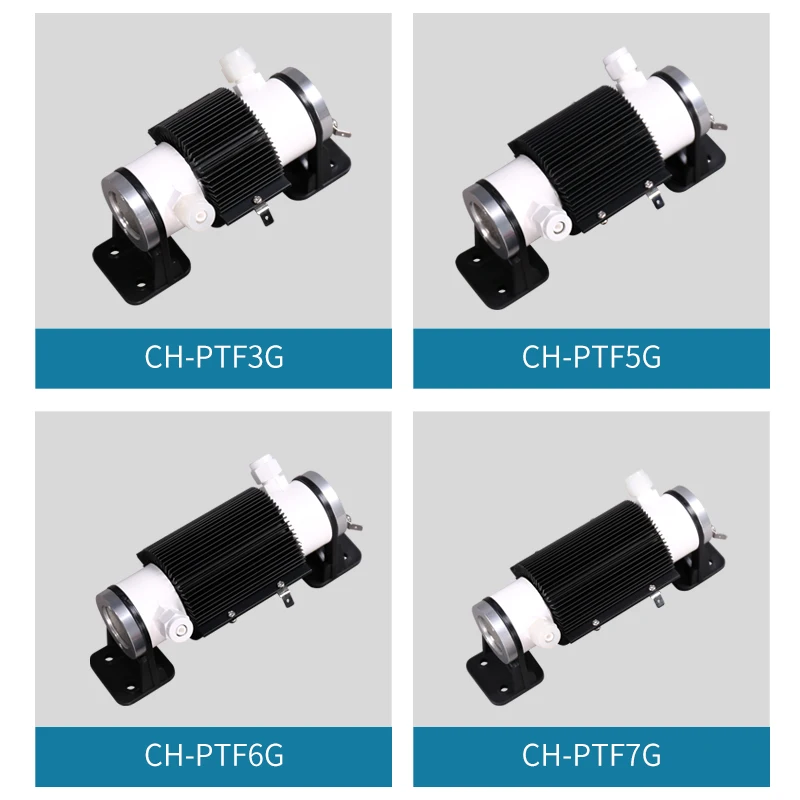

CH-PTF3GA-1 ~5GA-1
Item | Unit | CH-PTF*A-1 | ||||||||||
3GA-1 (12V,24V) | 3GA-1 (220V) | 3GA-1 (110V) | 5GA-1 (12V,24V) | 5GA-1 (220V) | 5GA-1 (110V) | |||||||
Ambient temperature | ℃ | 21 | ||||||||||
Ambient humidity | % | 40 | ||||||||||
Power | W | ≤80 | ||||||||||
Oxygen feed flow rate | LPM | 0.5-1 | 0.5-2 | |||||||||
Ozone concentration | Mg/L | 81.6-49.2 | 72~48 | |||||||||
Ozone output | G/Hr | 2.4-2.95 | 2.16~4.76 | |||||||||
Ozone output adjustable range | % | 20~100 | ||||||||||
Line power supply | V/Hz | 12V 24V 110/60 220/50 | ||||||||||
Cooling way | / | Air cooling | ||||||||||
Diameter of cooling fan | mm | 120 | ||||||||||
Diameter of gas inlet/outlet | mm | EDФ6 | ||||||||||
Power supply dimensions | mm | 158*75*68 | ||||||||||
ozone tube dimensions | mm | 165×90*90 | 185*90*90 | |||||||||
Ozone tube weight | Kg | 0.5 | 0.53 | |||||||||
Power supply weight | Kg | 0.52 | ||||||||||
CH-PTF6GA-1 ~7GA-1
Item | Unit | CH-PTF*A-1 | ||||||||||
6GA-1 (12V,24V) | 6GA-1 (220V) | 6GA-1 (110V) | 7GA-1 (12V,24V) | 7GA-1 (220V) | 7GA-1 (110V) | |||||||
Ambient temperature | ℃ | 26 | ||||||||||
Ambient humidity | % | 49 | ||||||||||
Power | W | ≤85 | ||||||||||
Oxygen feed flow rate | LPM | 1-3 | 1-3 | |||||||||
Ozone concentration | Mg/L | 64.6~36.7 | 70~41.2 | |||||||||
Ozone output | G/Hr | 3.9~6.6 | 4.20~7.4 | |||||||||
Ozone output adjustable range | % | 20~100 | ||||||||||
Line power supply | V/Hz | 12V 24V 110/60 220/50 | ||||||||||
Cooling way | / | Air cooling | ||||||||||
Diameter of cooling fan | mm | 150 | ||||||||||
Diameter of gas inlet/outlet | mm | EDФ6 | ||||||||||
Power supply dimensions | mm | 158*75*68 | ||||||||||
ozone tube dimensions | mm | 200*90*90 | 212*90*90 | |||||||||
Ozone tube weight | Kg | 0.56 | 0.65 | |||||||||
Power supply weight | Kg | 0.52 | ||||||||||
