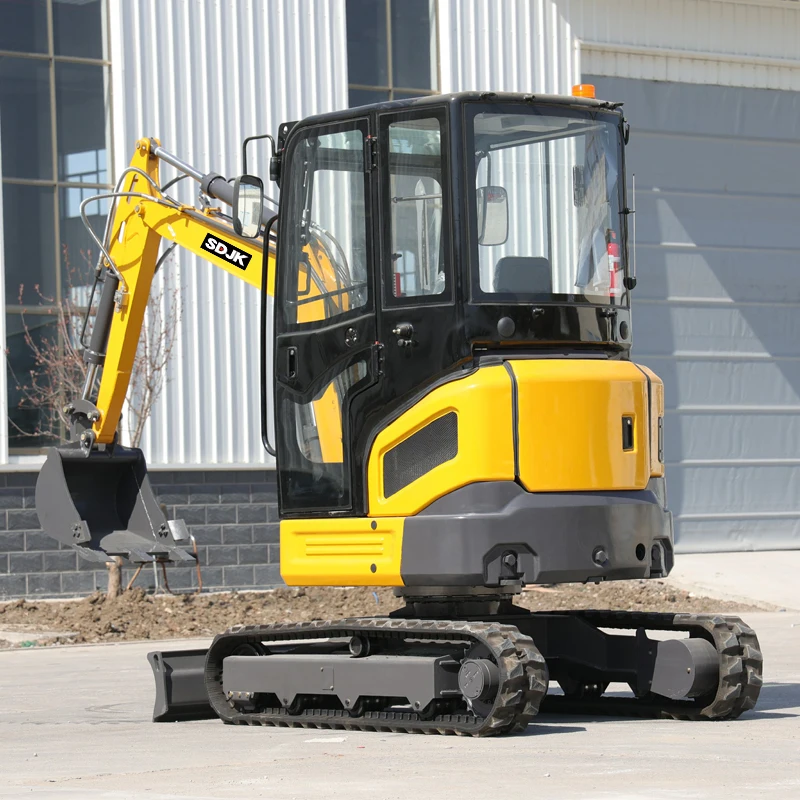

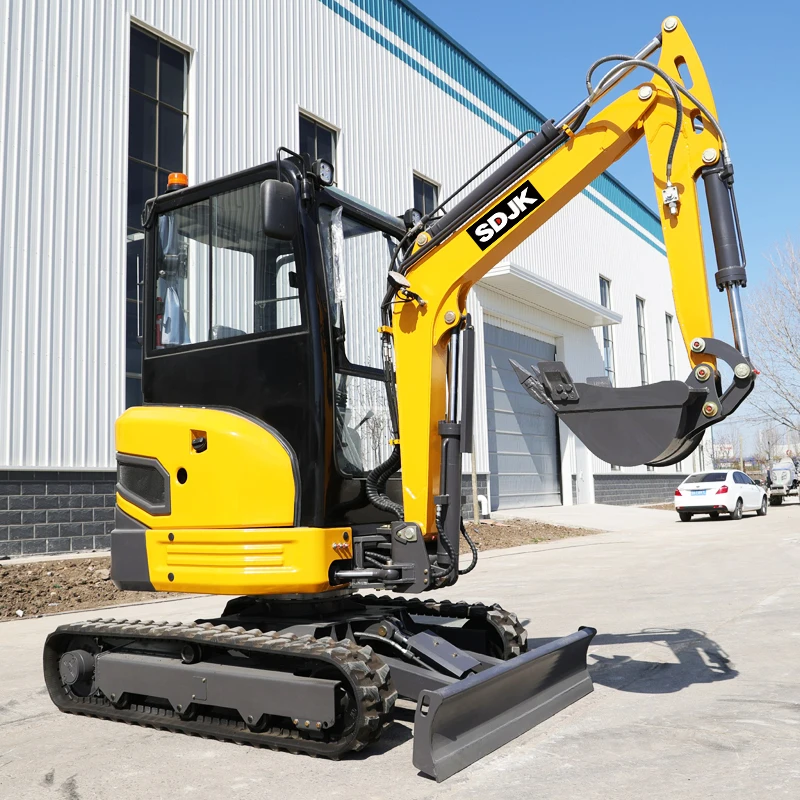

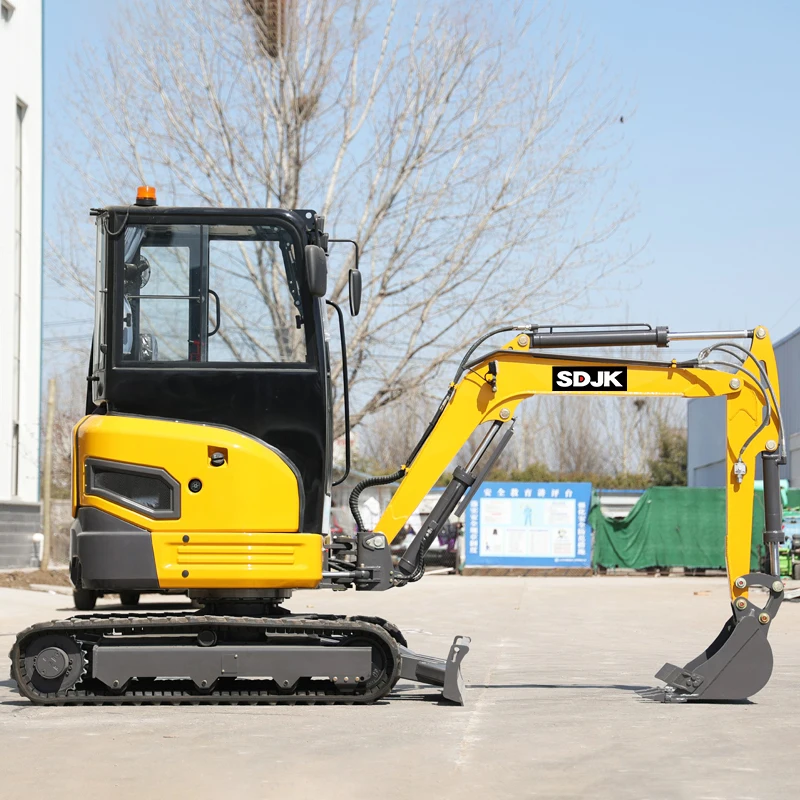

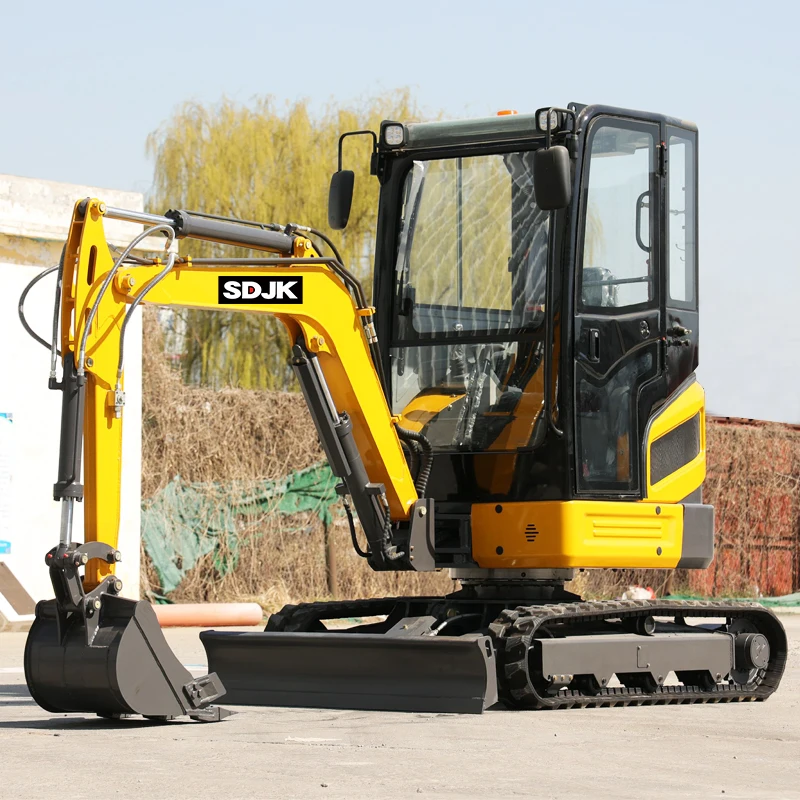

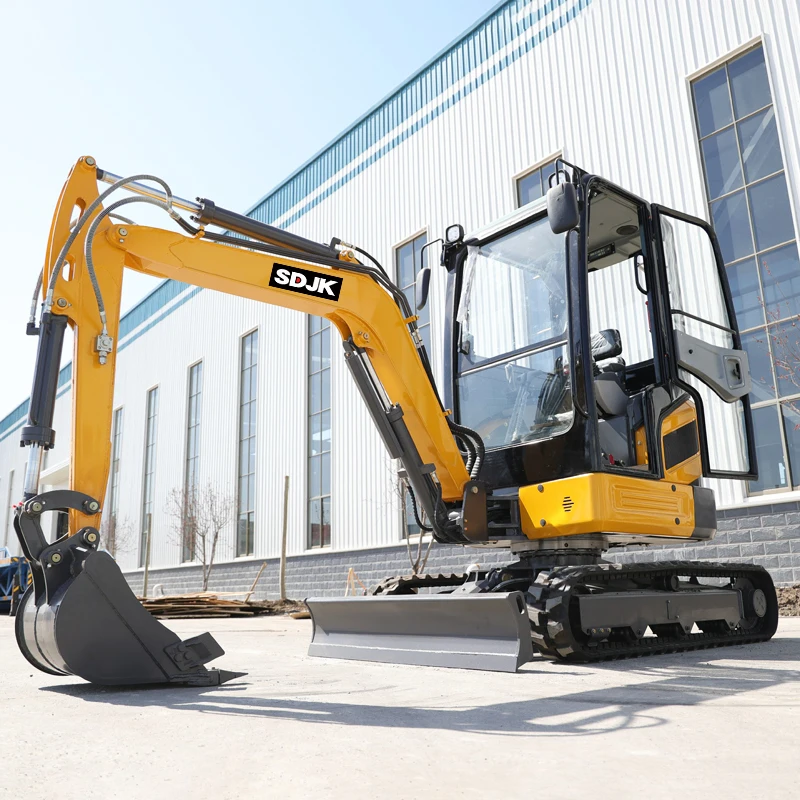

SDJK Mini Excavator with EPA EURO 5 Kubota Engine 3.5 Ton Small Digger Excavator Machine for Home Use Free Shipping
- Category: >>>
- Supplier: Shandong Jk Machinery Co. Ltd.
Share on (1601200358650):
Product Overview
Description
Welcome to China Excavator Manufacturer
We can realize your various design needs and provide OEM ODM
Give me a chance and give you a chance to learn about the mini excavators produced by our factory
JKW-35S 3.5ton mini excavator | ||||||||||
Overall Length | 4485mm | Bucket Width | 450mm | Boom Swing Angle | 75(50)° | |||||
Maxiumum Width | 1550mm | Bucket Capacity | 0.09m³ | Min. Front End Swing Radius | 2035mm | |||||
Overall Height | 2440mm | Bucket Digging Force | 26.5kN | Min. Rear Swing Radius | 790mm | |||||
Type of Fuel | Diesel | Horizontal Length to the Left | 635mm | Swing Speed of Platform | 8.5r/min | |||||
More product models
You can choose the machine that suits you according to different jobs
JKW-26S 2.6 ton Mini Excavator | ||||||
Bucket Capacity | 0.066m³ | Brand | YANMAR 3TNV76-P | |||
Operating Weight | 2600kg | Engine Power | 20HP | |||
Bucket Width | 460mm | Min.swing Radius | 1850mm | |||
Travel Motor | LIKECHUAN Double Speed | Max.dgging Depth | 2320mm | |||
Rotary Motor | Eaton walking motor | Max.digging Height | 3880mm | |||
Hydraulic Pump | Taifeng plunger pump | Max.unloading height | 2550mm | |||
Multiple Directional Control Valve | TLS | Maximum digging distance: | 4015mm | |||
Length*width*height | 3850mm*1500mm*2380mm | Maximum bulldozing depth | 270mm | |||
Track Length | 1860mm | Track Width | 250mm | |||
JKW-20 2 Ton Mini Excavator | ||||||
Bucket Capacity | 0.04m3 | Engine | Kubota D902 | |||
Chassis Width | 1200mm | Engine Power | 11.8kw/2300rpm | |||
Track Length | 1540mm | Turning Radius | 1400mm | |||
Gradeability | 30° | Max.Digging Height | 3500mm | |||
Bulldozer blade width | 1200mm | Max.Dumping Height | 2400mm | |||
Bulldozing blade height | 210mm | Max.Digging Depth | 2270mm | |||
Transport Length | 3460mm | Max.Digging Radius | 3800mm | |||
Excavator Height | 2270mm | Max.Vertical Digging Depth | 1900mm | |||
Overall Dimension(LxWxH) | 3460*1200*2270mm | Operating Weight | 2000kg | |||
JKW-18S 1.8ton Mini Excavator | ||||||
Bucket Capacity | 0.02m³ | Engine | KUBOTA D902-E4B-CBH-1 | |||
Power | 16HP | Length*width*height | 3300mm*1100mm*2360mm | |||
Track Length | 1450 mm | Track Width | 230mm | |||
Min.swing Radius | 1660 mm | Max.digging Depth | 2120 mm | |||
Max.digging Height | 3310 mm | Max.unloading height | 2370 mm | |||
Bucket Width | 400mm | Hydraulic Pump | Tianji Gear Pump | |||
Travel Motor | LIKE | Rotary Motor | LIKE | |||
JKW-10 1ton Mini Excavator | ||||||
operating weight | 1000kg | Bucket capacity | 0.022m³ | |||
maximum travel speed | 1.2km/h | Swing speed | 9rpm | |||
Maximum gradeability | 30° | Overall length (transportation) | 2870 | |||
Overall width | 930 | Overall height with roof | 2213 | |||
Why choose us？
1.Powerful motivation, Low fuel consumption2. More functions on Excavator: Swing boom, Pilot joystick.
3. Attachments: Excavator with Auger, Grabber, Hydraulic Breaker, Ripper, Rake, Tilting Bucket, Leveling Bucket,Steel track，Quick Coupler etc.
4. Fast delivery, all parts are available in stock all the time.
5. Good service, 1 year warranty, free parts is offer during warranty time.
About mini excavator:
Mini excavators offer myriad uses for home, municipal, and construction purposes. Shop mini excavators for sale and get started on that project!
Mini Excavator Features
Mini excavators offer myriad uses for home, municipal, and construction purposes. Shop mini excavators for sale and get started on that project!
Mini Excavator Features
SDJK mini excavator is a small, compact construction machine that is commonly used for digging, grading, and demolition. The SDJK excavator typically consists of a cab mounted on a rotating platform, which is powered by a diesel or electric engine. A boom arm and bucket are attached to the front of the SDJK excavator, which can be used for a variety of digging and grading tasks. Mini excavators are valued for their maneuverability and versatility, as they are capable of working in tight spaces and can be equipped with various attachments for different tasks. They are commonly used in construction, agriculture, landscaping, and demolition projects.
Types of Mini Excavators
The most common type of SDJK mini excavator is the conventional tail swing, characterized by a tail that extends beyond the tracks. A zero tail swing small excavator has a compact design, with the cab and boom positioned within the width of the tracks, making it ideal for use in tight spaces. If you are working in a confined space, a compact radius mini backhoe has a reduced turning radius, making it ideal for use in confined spaces and for tasks that require precise movement.
Some mini excavators are equipped with extendable arms, which provide additional reach and digging depth. A JKW-20 with a backhoe attachment allows for digging and grading from the rear of the machine, making it useful for tasks that require greater reach. A mini excavator with a breaker attachment is useful for demolition and breaking up concrete, asphalt, and other materials.
Different Uses for Mini Excavators
SDJK mini excavators are commonly used for digging foundations for buildings, grading soil or gravel for landscaping projects, and preparing construction sites. Mini excavators can be equipped with demolition attachments, such as hydraulic hammers, to break up concrete, asphalt, and other materials. The front-mounted bucket on a mini excavator can be used to load and haul a variety of materials, such as dirt, gravel, sand, and rocks.
If you are a gardener, mini excavators can be used for tasks such as planting trees, installing retaining walls, and grading soil.In agriculture, mini excavators are commonly used for tasks such as digging irrigation ditches, grading fields, and clearing land.Mini excavators can also be used for excavation projects, such as digging trenches, ditches, and holes.
Types of Mini Excavators
The most common type of SDJK mini excavator is the conventional tail swing, characterized by a tail that extends beyond the tracks. A zero tail swing small excavator has a compact design, with the cab and boom positioned within the width of the tracks, making it ideal for use in tight spaces. If you are working in a confined space, a compact radius mini backhoe has a reduced turning radius, making it ideal for use in confined spaces and for tasks that require precise movement.
Some mini excavators are equipped with extendable arms, which provide additional reach and digging depth. A JKW-20 with a backhoe attachment allows for digging and grading from the rear of the machine, making it useful for tasks that require greater reach. A mini excavator with a breaker attachment is useful for demolition and breaking up concrete, asphalt, and other materials.
Different Uses for Mini Excavators
SDJK mini excavators are commonly used for digging foundations for buildings, grading soil or gravel for landscaping projects, and preparing construction sites. Mini excavators can be equipped with demolition attachments, such as hydraulic hammers, to break up concrete, asphalt, and other materials. The front-mounted bucket on a mini excavator can be used to load and haul a variety of materials, such as dirt, gravel, sand, and rocks.
If you are a gardener, mini excavators can be used for tasks such as planting trees, installing retaining walls, and grading soil.In agriculture, mini excavators are commonly used for tasks such as digging irrigation ditches, grading fields, and clearing land.Mini excavators can also be used for excavation projects, such as digging trenches, ditches, and holes.
