SKZColorCatPro Factory direct supply color matching machine color uv spectrophotometer test colorimeter
- Category: >>>
- Supplier: SKZ International Co. Limited
Share on (1601200364089):
Product Overview
Description

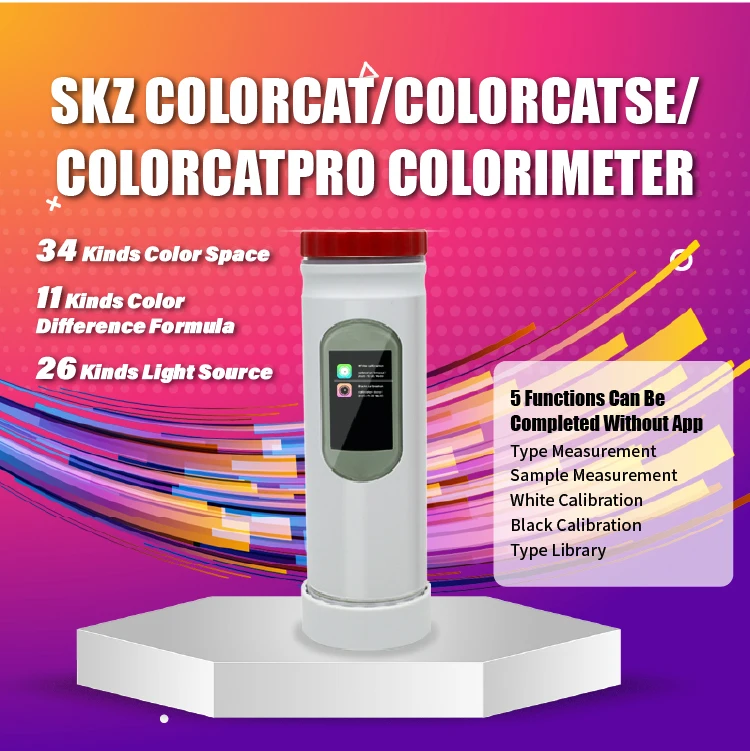

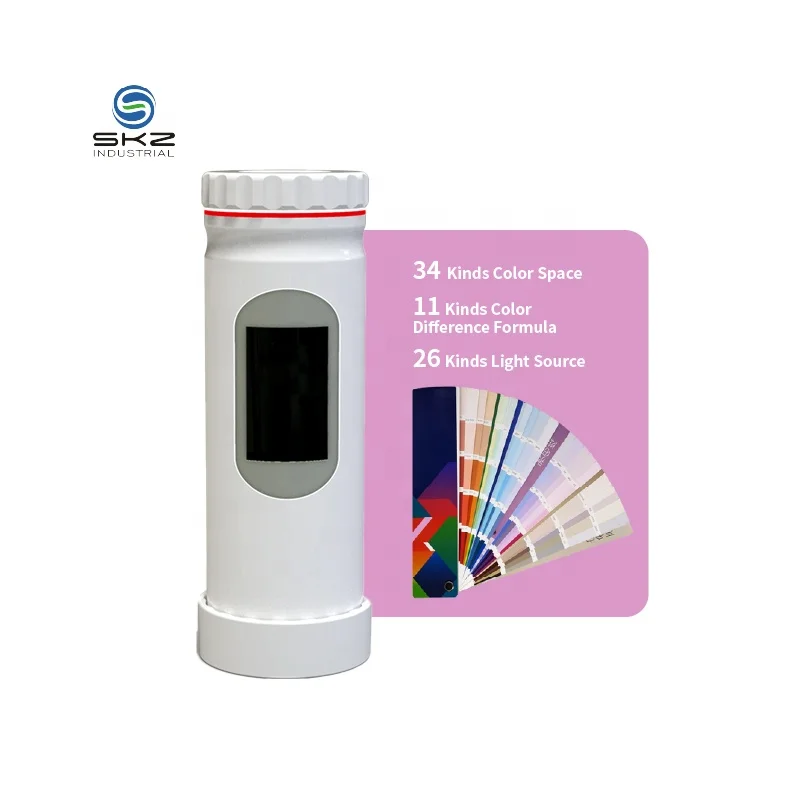

SKZColorCatPro Factory direct supply color-matching machine color uv spectrophotometer test colorimeter
ColorCat is our newly developed practical color measuring instrument, there are three models for customers to buy. It has a complete range of color measurement functions and auxiliary accessories, and can be applied to test work in a variety of industries. It is an excellent domestic color measurement instrument with high cost performance. Colorcat APP is used with SKZ photoelectric colorimeter and spectrophotometer, with friendly interface and powerful functions. It can realize the functions of color measurement, quality report generation, color card search, color card number record management, etc. It is an all-round color quality management assistant.
Feature
1.The body is small and lightweight Small and exquisite, easy to carry, color measurement anytime, anywhere.
2.Standard sample library support The instrument has its own standard sample library function, which can call up standard sample measurement anytime and anywhere.
3. Support multiple measurement models There are as many as 34 color spaces, 11 color difference formulas, and 26 measurement light sources, which can always suit your needs.
4.Accurate measurement and stable data The principle of spectral spectroscopy, the accuracy is as high as 0.01, and the measurement is fast.
2.Standard sample library support The instrument has its own standard sample library function, which can call up standard sample measurement anytime and anywhere.
3. Support multiple measurement models There are as many as 34 color spaces, 11 color difference formulas, and 26 measurement light sources, which can always suit your needs.
4.Accurate measurement and stable data The principle of spectral spectroscopy, the accuracy is as high as 0.01, and the measurement is fast.
Specification
Model | ColorCat SE | ColorCat | ColorCat Pro | ||
Repeated accuracy | △E*ab≤0.1 | △E*ab≤0.08 | △E*ab≤0.05 | ||
Solution | 0.1 | 0.1 | 0.01 | ||
Measuring Speed | 1.5S | 1.0S | 0.5S | ||
Light Source Type | Full spectrum LED | Full spectrum LED | Full spectrum LED & UV | ||
Battery Capacity | More than 6000 times after full charge | More than 10000 times after full charge | |||
Geometric Condition | d/8, SCI | ||||

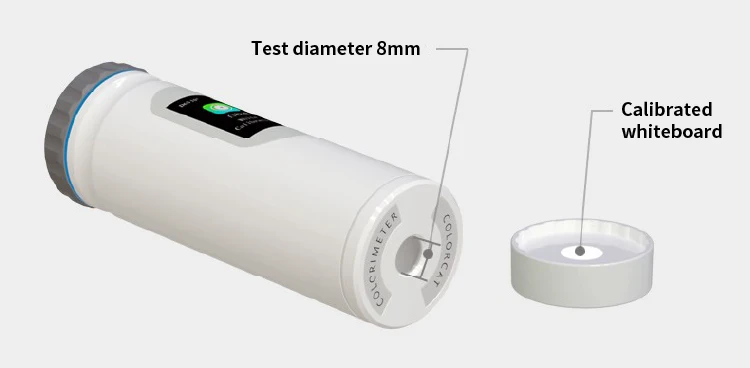

Measuring spot (Caliber) | 8mm | ||||
Wavelength coverage | 400nm~700nm | ||||
Wavelength Interval | 10nm | ||||
Calibration Method | Automatic | ||||
Color Difference Formula | △E*ab | △E*ab、△E*ch、△E*uv、△E*HunterLab、△E*CMC（l:c）、△E*94、△E*00、△E*sRGB、△E*BFD、△E*FCMII、△E*DIN99 | |||
Standard Light Source | D65、 A | A、C、D50、D55、D65、D75、F1、F2、F3、F4、F5、F6、F7、F8、F9、F10、F11、F12、CWF、U30、U35、DLF、NBF、TL83、TL84 | |||
Observer Angle | CIE10°(1964) | CIE10°(1964)、CIE2°(1931) | |||

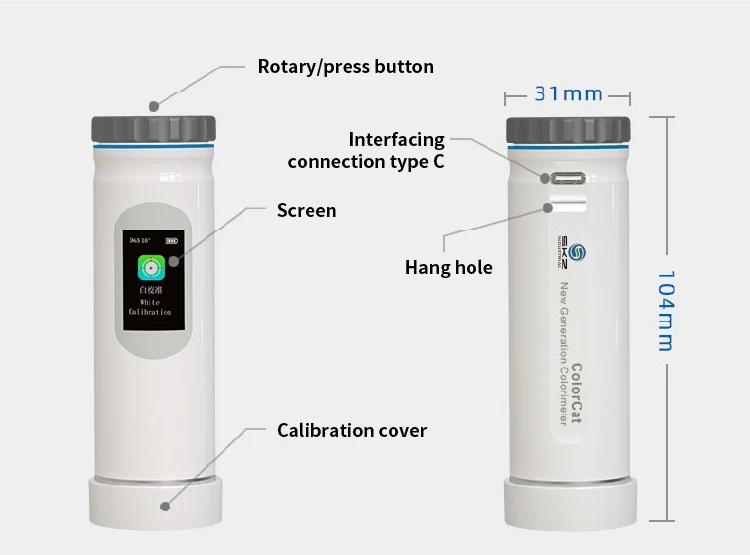

Operation Method | Integrated Rotate/Press Button | ||||
Display | OLED Colored Display 1.14 inch | ||||
Chinese/English | Chinese/English | ||||
Interface | Type C/Bluetooth | ||||
APP System | Android/IOS/Windows | ||||
Storage | No limitation through APP | ||||
Dimension | φ31X96mm（Not including the white calibration board） | ||||
Weight | 80g（Not including the white calibration board） | ||||
Packing List | Instrument、White calibration board、Data cable、User’s manual、Warranty card | ||||

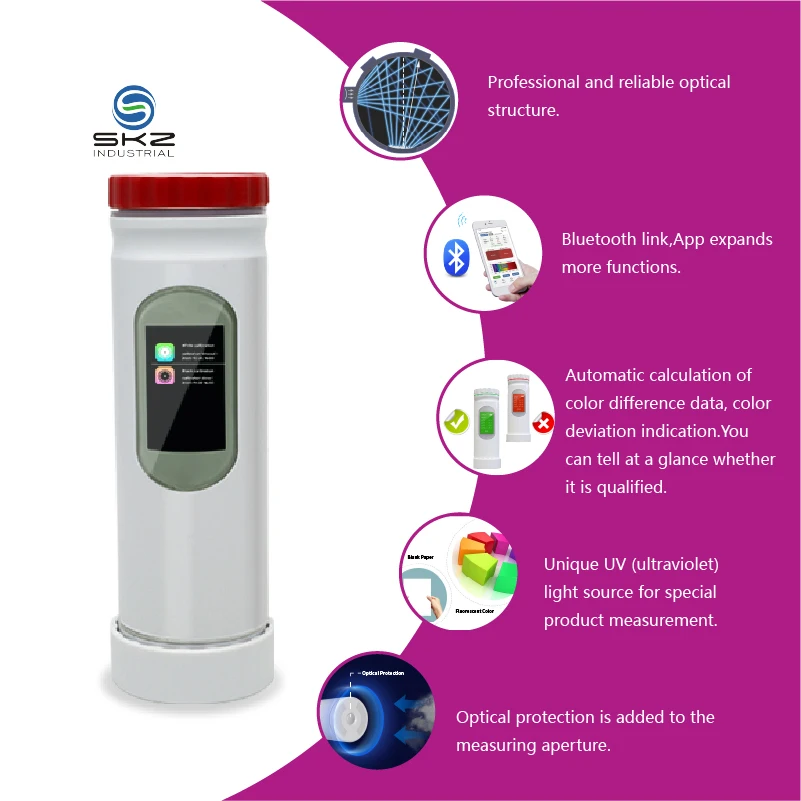

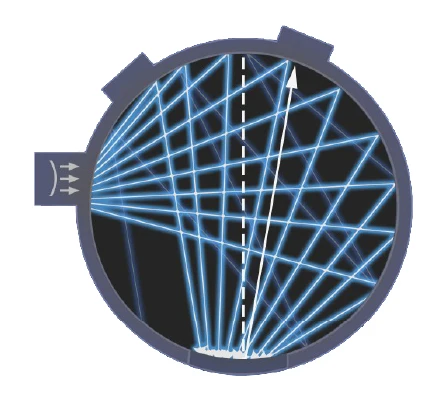

1.Professional and reliable optical structure.
The first optical path is used for spectral measurement, and the other optical path detects spectral energy changes, compensating
and correcting the data of the first optical path to achieve a more stable and reliable measurement.
and correcting the data of the first optical path to achieve a more stable and reliable measurement.

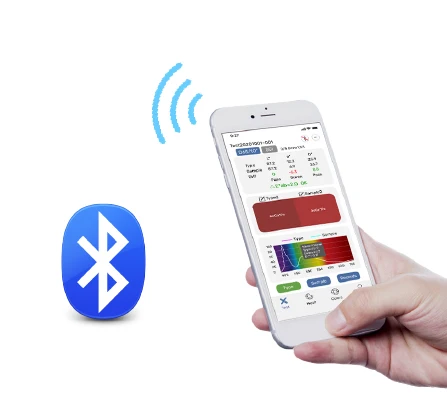

2.Bluetooth link,App expands more functions.
Bluetooth link,App expands more functions to create a personal and business exclusive color library.
4.Unique UV (ultraviolet) light source for special product measurement.
For some products containing special substances (such as fluorescent agents, whitening agents), the instrument provides a stable UV UV light source, which will make the measurement data closer to the real thing.
(If you need UV light, choose ColorCatPro)

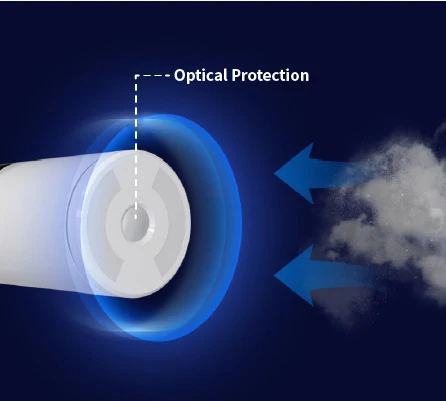

5.Optical protection is added to the measuring aperture.
Moisture-proof, dust-proof, stain-proof, more durable.

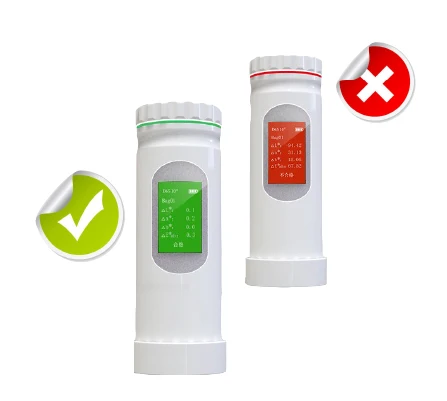

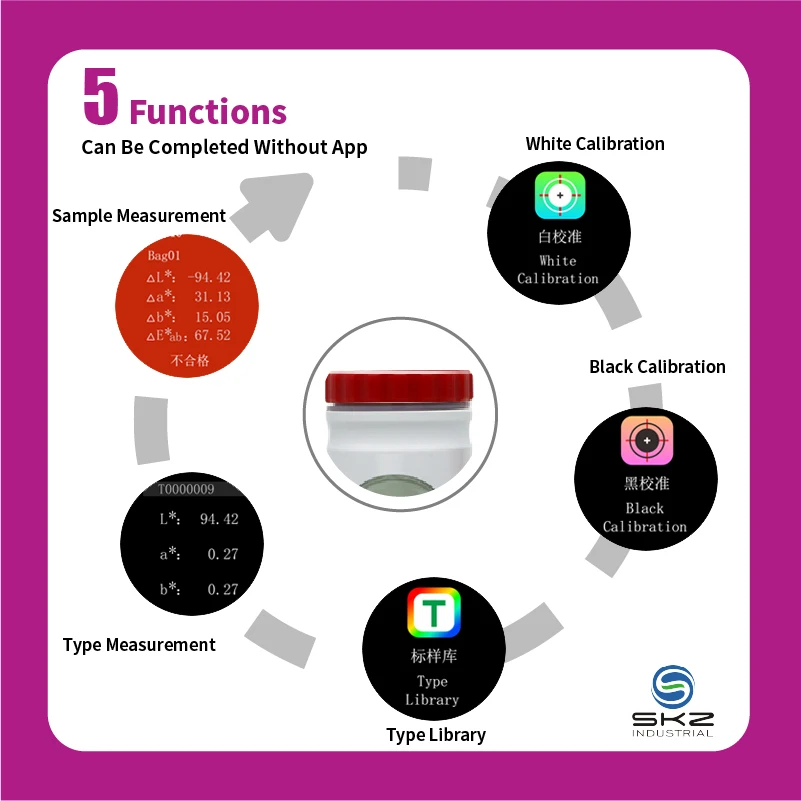

6.Automatic calculation of color difference data, color deviation indication.You can tell at a glance whether it is qualified.
ΔL*: The positive number is white and black, and the negative number is black and white, and the larger the value, the greater the difference.
Δa*: positive number is red and lack of green, negative number is green and lack of red, the greater the value is the
greater the difference.
greater the difference.
Δb*: The positive number is yellow and lacks blue, and the negative number is blue and lacks yellow, and the larger the value, the greater the difference. ΔE*ab: total color difference, the larger the value, the larger the difference.
Details Images
Rubber
Cloth
Metal
Paint
Leather
Plastic

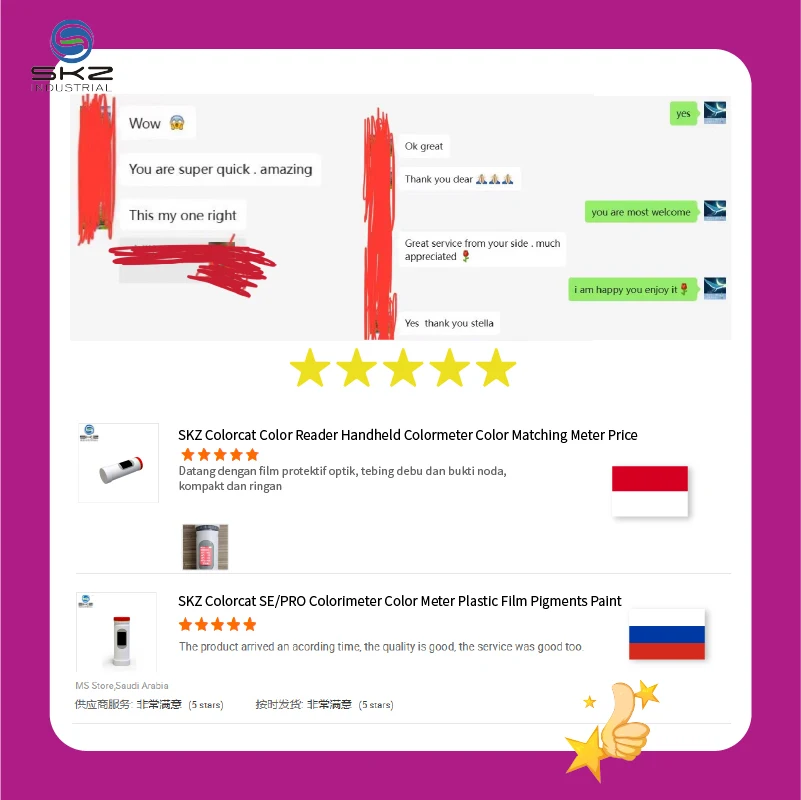

Evaluation
Company Profile

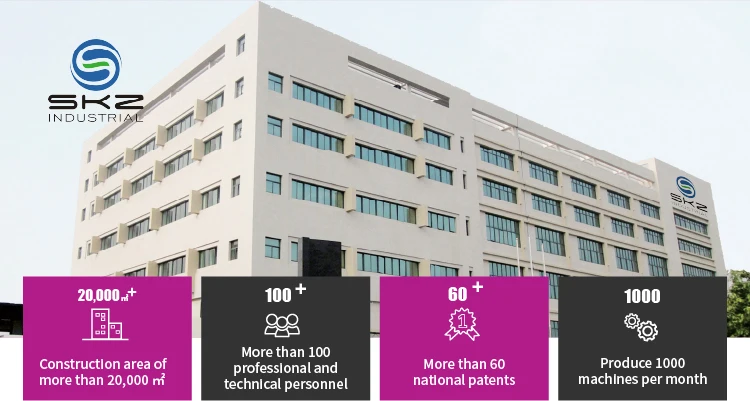

SKZ Industrial Co., Limited and SKZ International Co., LTD are the members of SKZ group, We are specialized in manufacturing and supply optical instrument: Gloss Meter, Spectrophotometer. “SKZ” is the trademark, We passed the SGS/TUV inspection certification, CE certification and ISO certification. SKZ is established in the year of 2006, we can provide one-stop service with professional and prompt pre-sales, mid-sales, and after-sales support. With more than 16 years experience in the field of Laboratory Instrument, we care about your laboratory, more concerned about your experience, you can find us 24 hours, seven days a week. Our products have been exported to America, the European Union, Southeast Asia and Africa. We welcome customers to contact us for future business relationships and mutual success!
1.SKZ is established in the year of 2006, we can provide one-stop service with professional and prompt pre-sales, mid-sales, and after-sales support.
2.“SKZ” is the trademark, We passed the SGS/TUV inspection certification, CE certification and ISO certification.

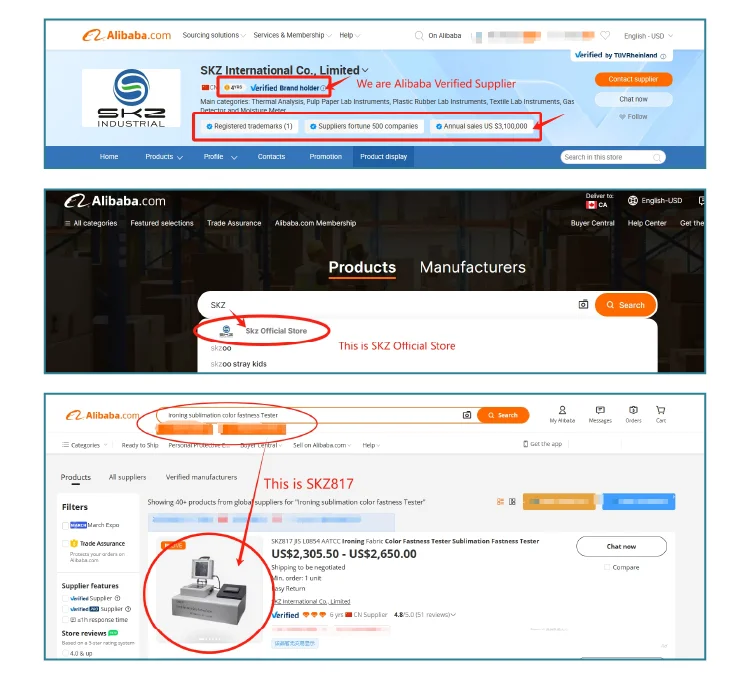

3.SKZ is Verified Supplier and has obtained 19 strength tags. We have VR showroom and on-site factory videos taken. Our products are eligible to participate in exclusive marketing scenarios, so you can receive more discounts from Alibaba.

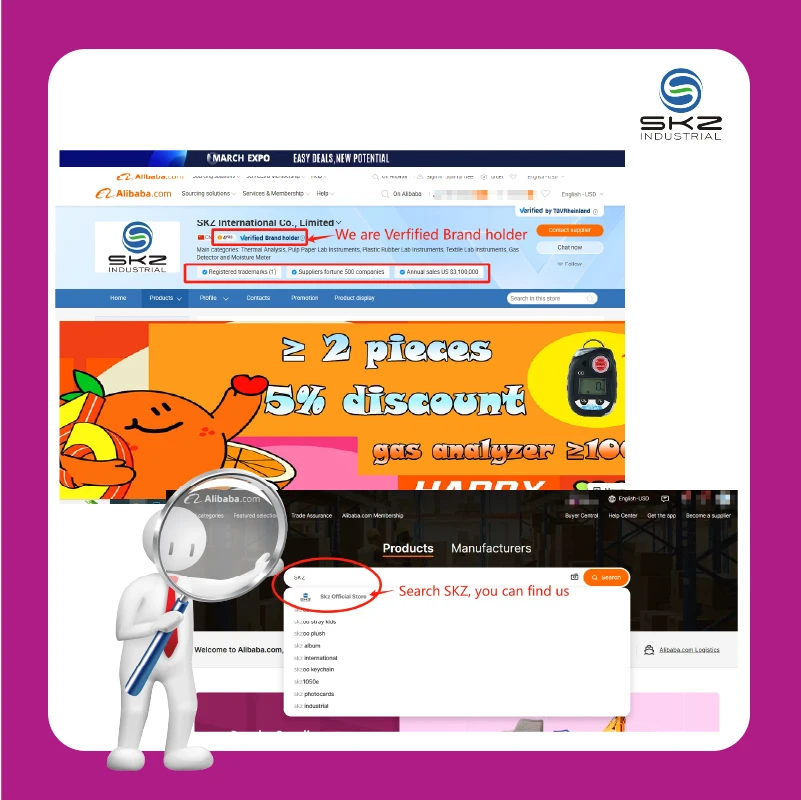

4. Searching "SKZ" on www.alibaba.com, can directly find us on top.
4. Searching "SKZ" on www.alibaba.com, can directly find us on top.
5. Our factory covers an area of 2500m³.We integrate design, manufacturing, and service to meet the special requirements of casting, OEM, and processing.
6. We provide a one-year after-sales warranty service. If repairs or replacement parts are needed, we will negotiate and provide you with the most favorable price.
Certifications

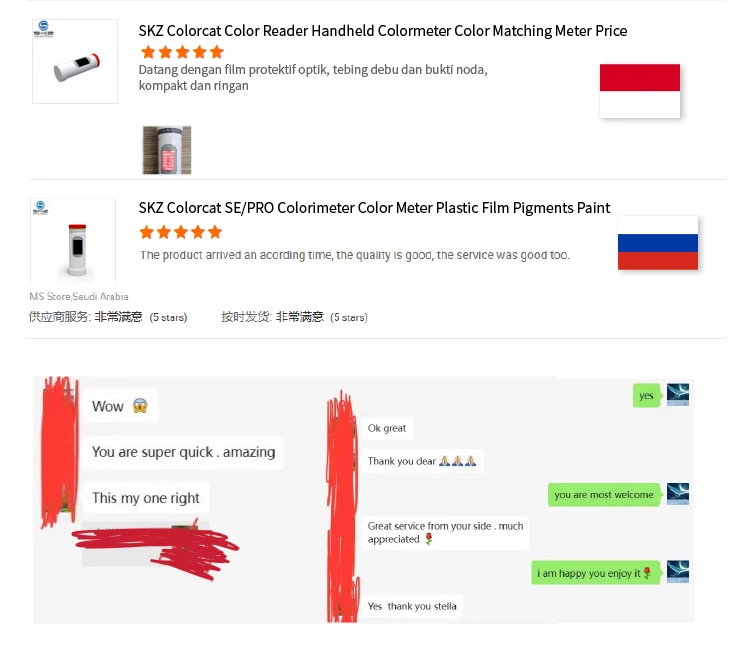

Customer show

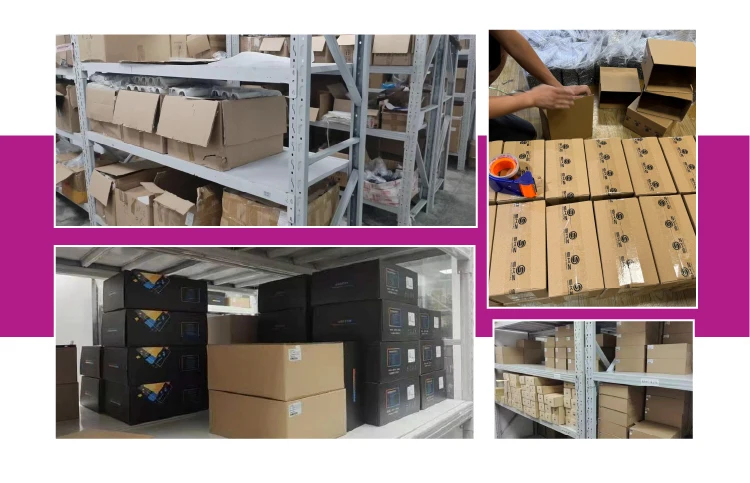

Packing&Delivery
After-sales service
1.We provide free remote online technical guidance and product consultation. If you need on-site installation, we can also provide with extra charge.
2.We provide 1 year after-sales warranty service. If repairs or replacement parts are needed, we will negotiate and provide you with the most favorable price.
