10Hz Mini Laser Distance Measurement Sensor 10m Distance Meter Module 1mm Accuracy Electronic Laser Distance Sensor
10Hz Mini Laser Distance Measurement Sensor 10m Distance Meter Module 1mm Accuracy Electronic Laser Distance Sensor
10Hz Mini Laser Distance Measurement Sensor 10m Distance Meter Module 1mm Accuracy Electronic Laser Distance Sensor
10Hz Mini Laser Distance Measurement Sensor 10m Distance Meter Module 1mm Accuracy Electronic Laser Distance Sensor
10Hz Mini Laser Distance Measurement Sensor 10m Distance Meter Module 1mm Accuracy Electronic Laser Distance Sensor
10Hz Mini Laser Distance Measurement Sensor 10m Distance Meter Module 1mm Accuracy Electronic Laser Distance Sensor
10Hz Mini Laser Distance Measurement Sensor 10m Distance Meter Module 1mm Accuracy Electronic Laser Distance Sensor

10Hz Mini Laser Distance Measurement Sensor 10m Distance Meter Module 1mm Accuracy Electronic Laser Distance Sensor

Share on (1601200511598):


Price:$42.85 - $53.56

Quantity:


Product Overview

Description



Products Description

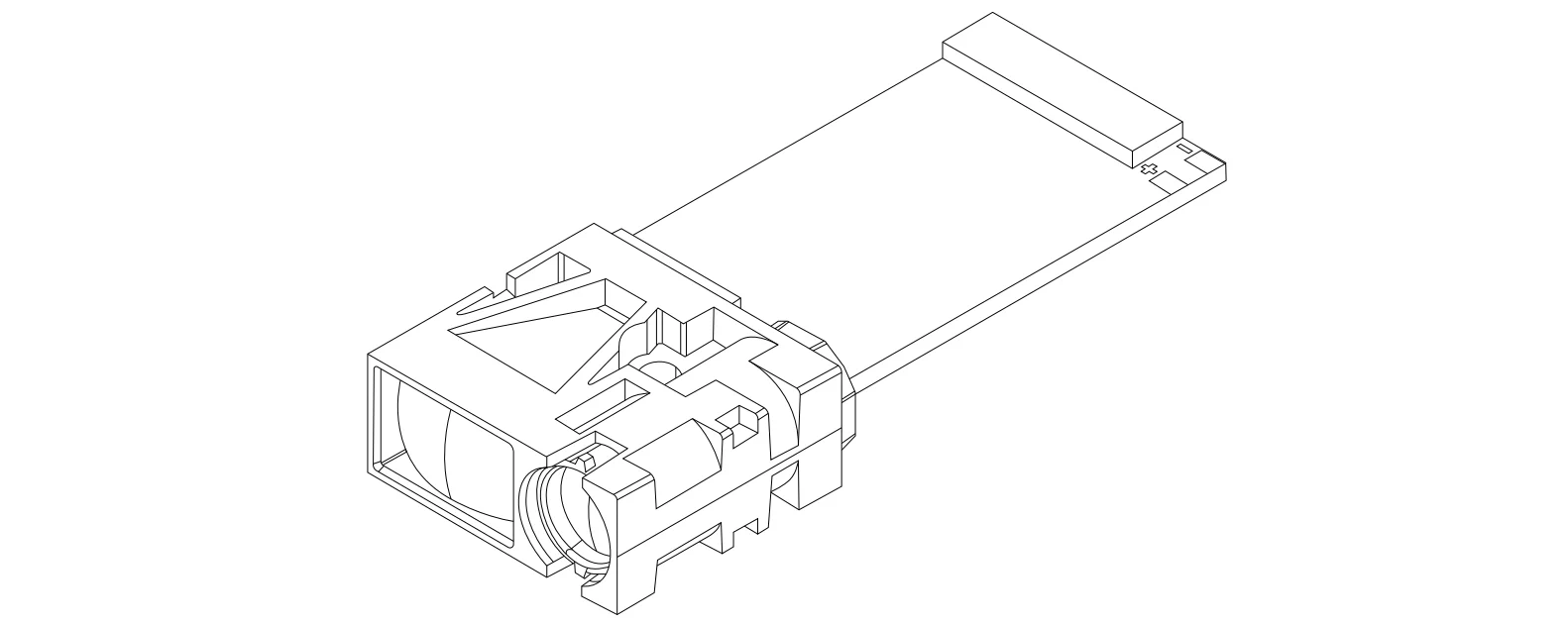

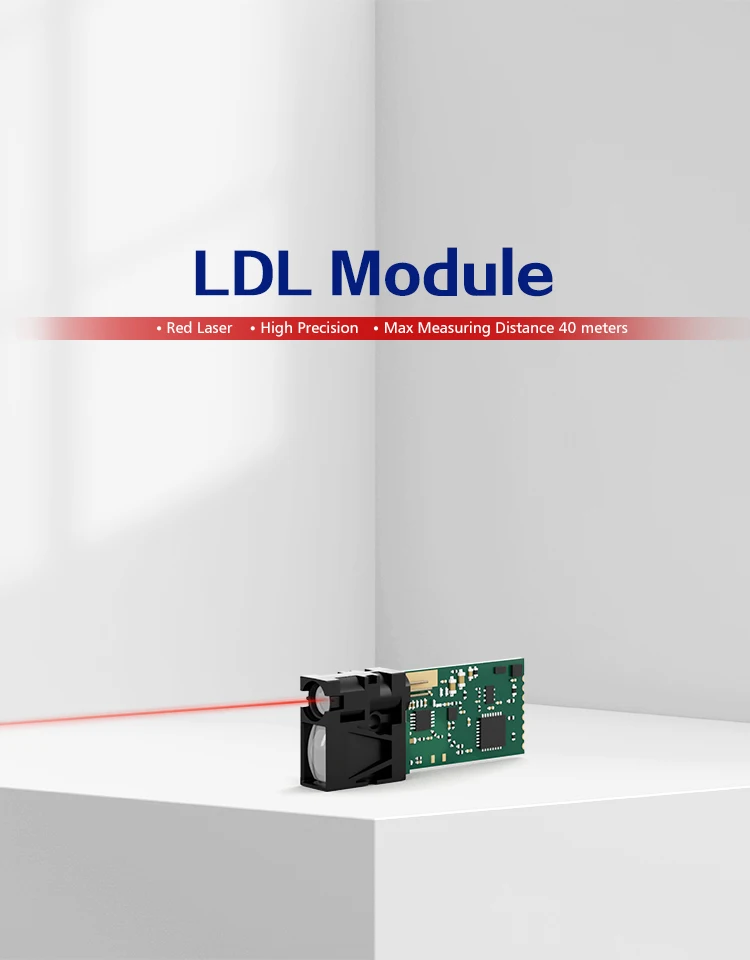

LDL Module

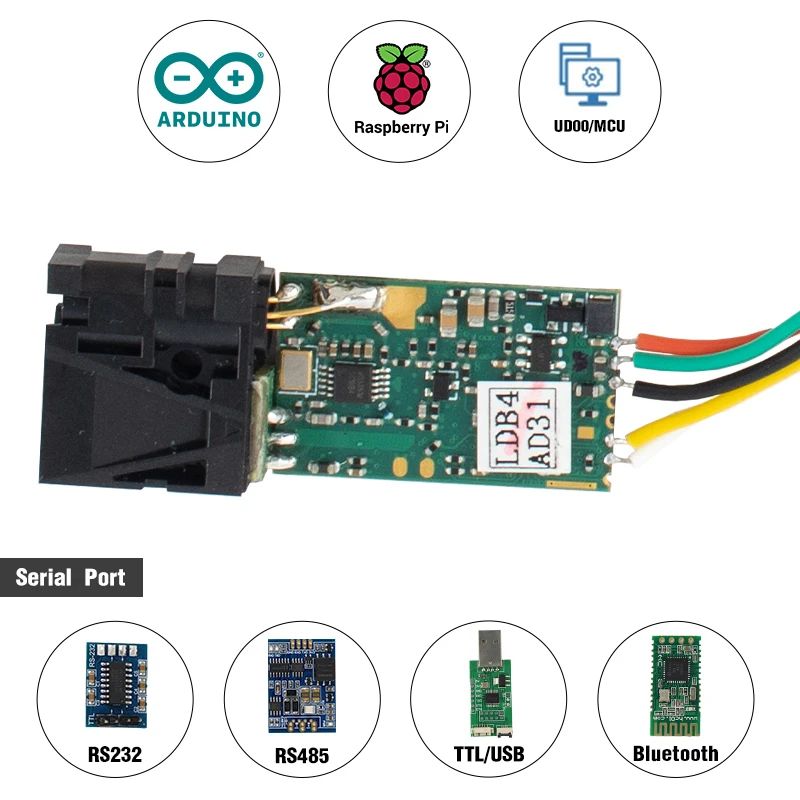

LDL laser distance sensor module, a 1mm precision laser distance measurement module, is a device utilized for measuring target distances and transmitting data. It employs visible laser technology to emit laser beams and receive reflected laser signals to measure the distance between objects and the sensor. The laser ranging sensor supports communication interfaces such as USB, TTL, RS232, RS485, Bluetooth, enabling data transmission and communication with other devices.


Product Parameters


Accuracy
±1mm
Measurement Units
Meter/Inch/Feet
Measure Distance
0.03-5/10/20/40 meters
Measure Time
0.3~4 seconds
Frequency
3/10/20Hz
Laser Type
620nm-690nm, <1mW  Red laser
Laser Class
Class II
operating Temperature
0-40 ℃ （32-104 ℉ ）
Storage Temperature
-25~60 ℃ (-13~140 ℉)
Interface
UART/RS485/RS232/Bluetooth
Voltage
DC 2.5~3.3V

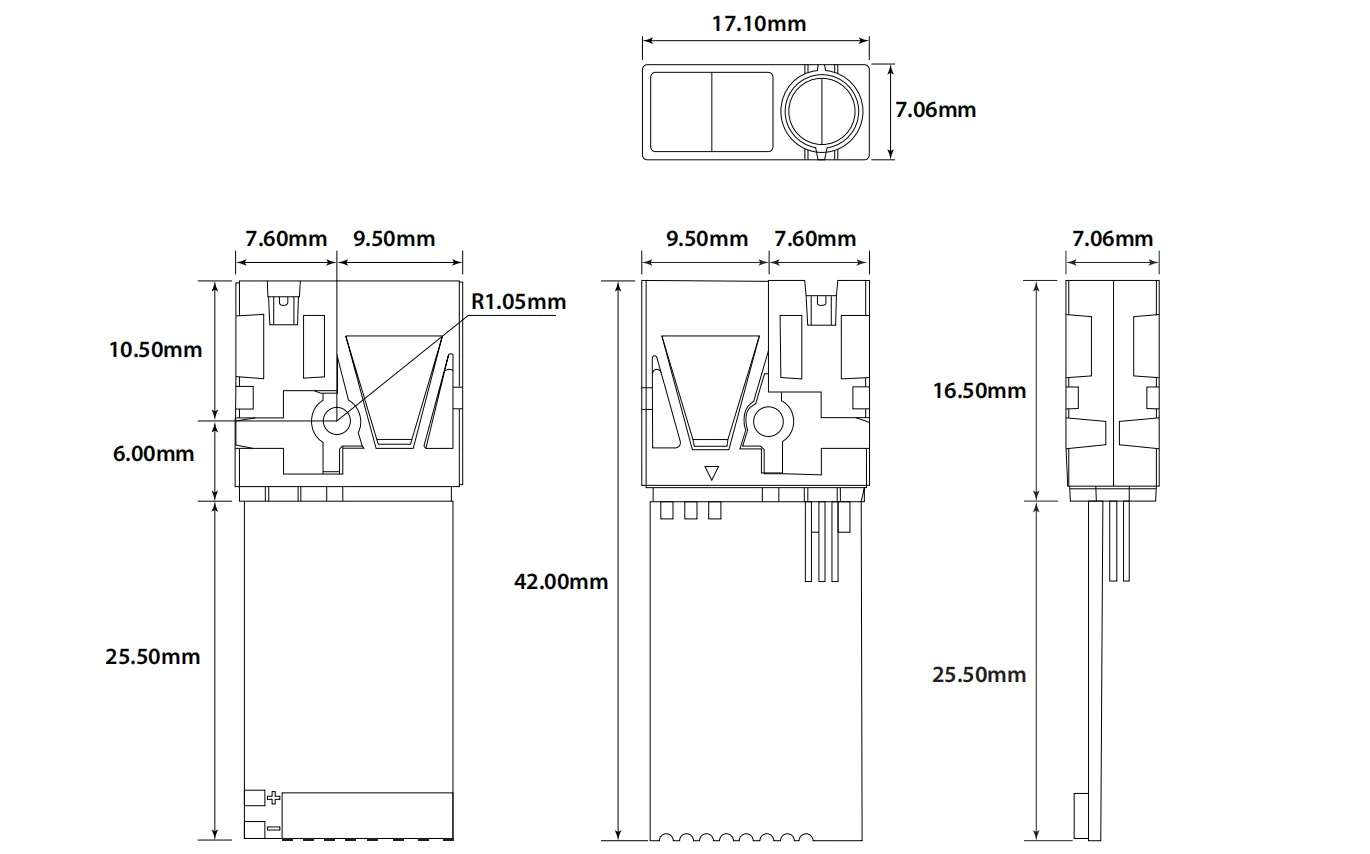

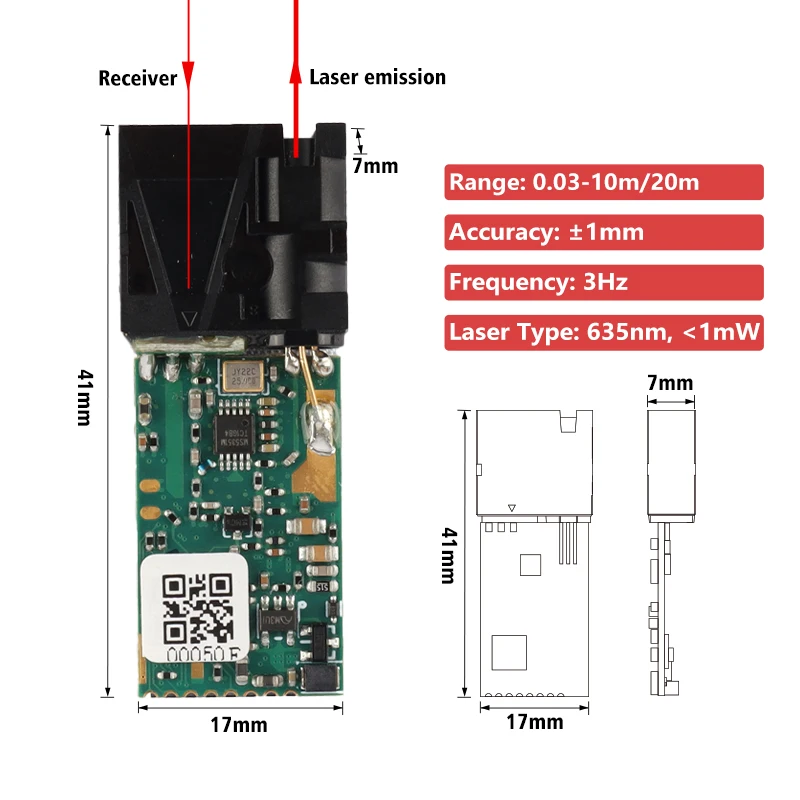

Size
42*17*7mm
Weight
4g


Feature
LDL laser range sensor module is suitable for measuring the distance of objects within the range of 40 meters and is widely used in Industrial Automation, Robotics, Intelligent Transportation, Intelligent Warehousing and other fields. The main features of the sensor module include high precision measurement, fast response, good stability, strong anti-interference ability and so on. We are the factory of this product production, we have our own production line, engineers, so we support all kinds of customization, which includes distance customization, frequency customization, precision customization and all other kinds of customization.


Product Details

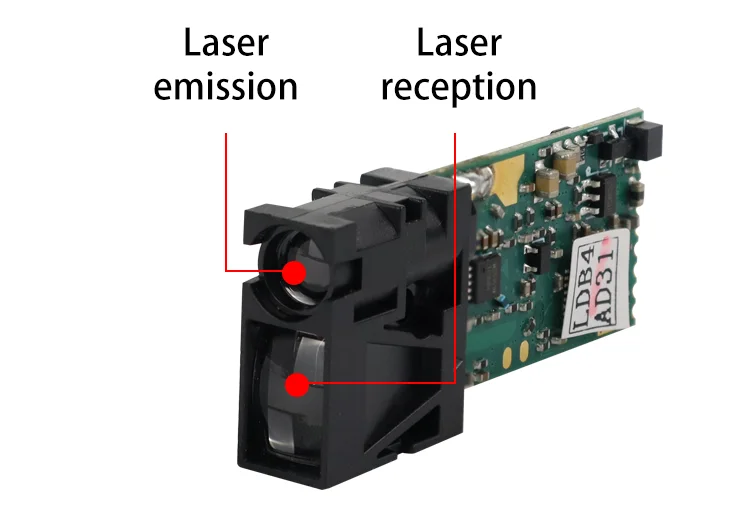

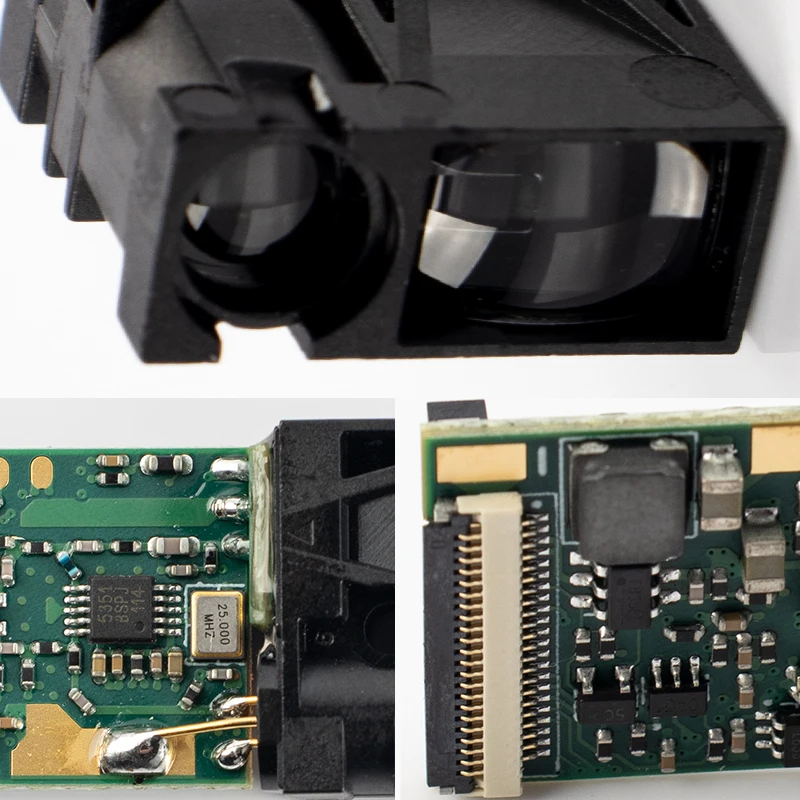

Laser Emisson And Reception

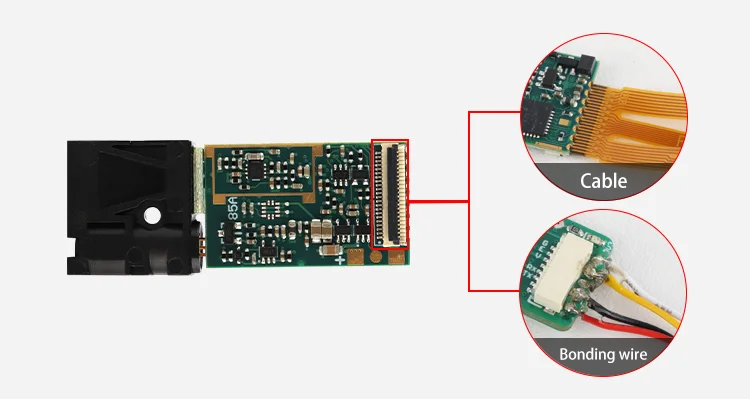

Connecting Wire




Communication Port

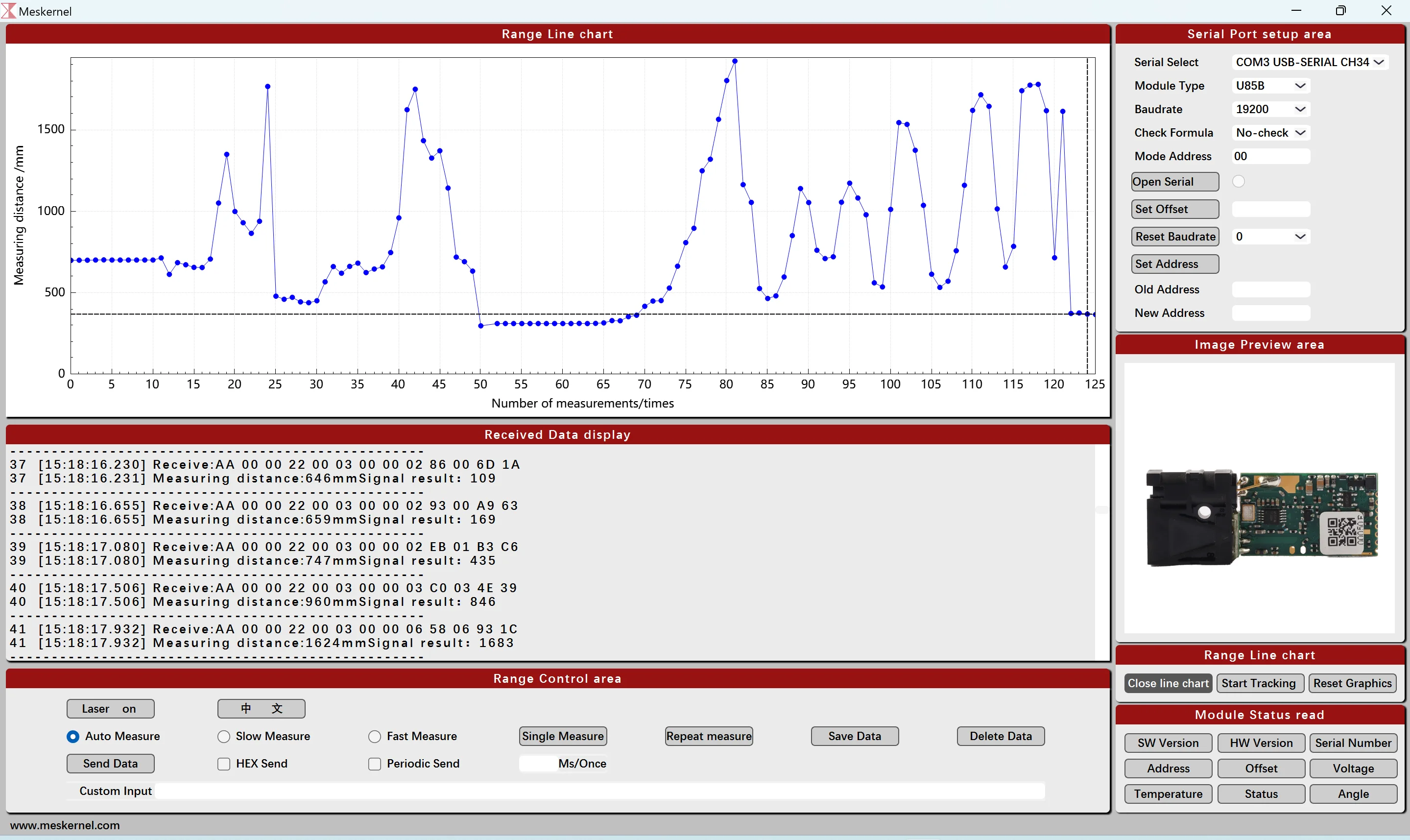

Test Software Platform
We possess proprietary software testing tools that interface with the computer via distance measurement technology.

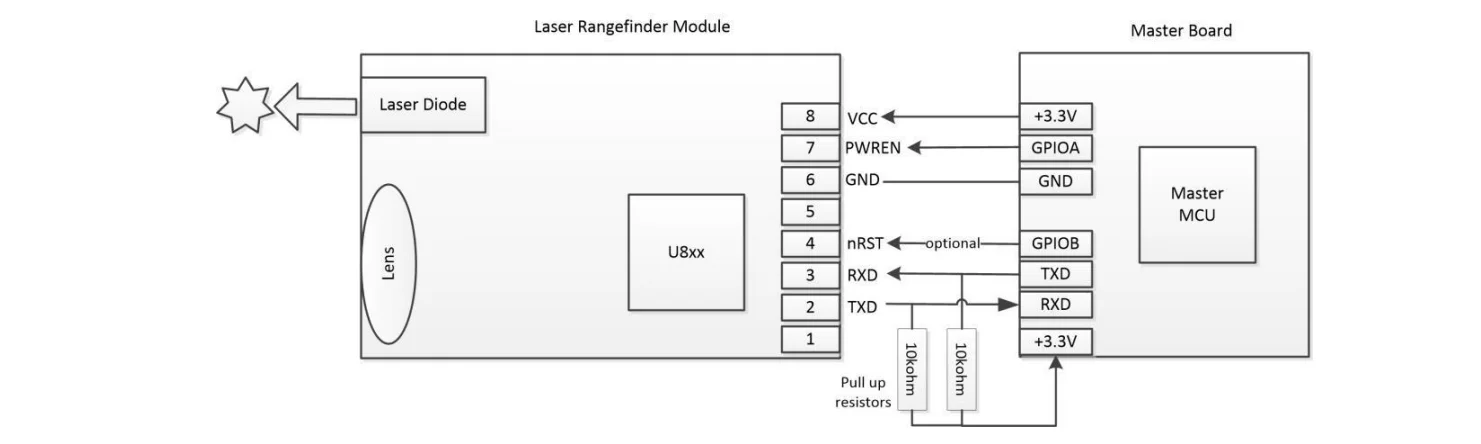

Interface Definition




Application



Industrial Automation

Measure the level of stored material, enabling efficient inventory management and ensuring optimal filling and emptying processes.

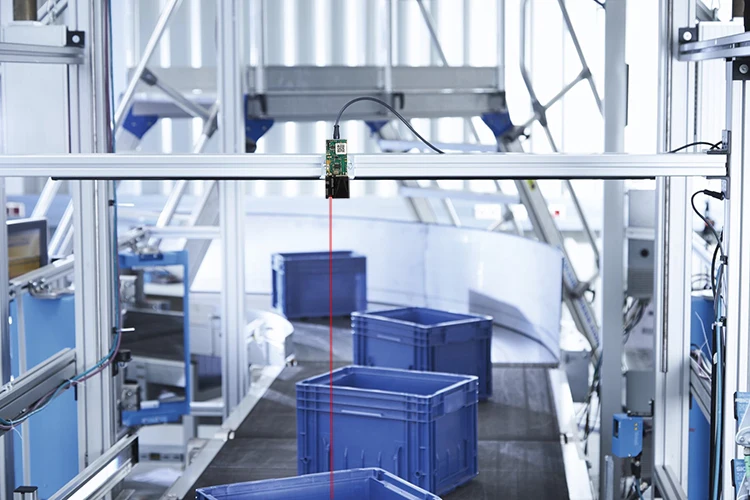

Transfer Belt

Measure distances between objects or materials being transferred along the belt, ensuring precise positioning and alignment in industrial conveyor systems.



Engineering Surveying

Measure distances between points and objects, facilitating precise mapping, construction layout, and terrain modeling tasks.

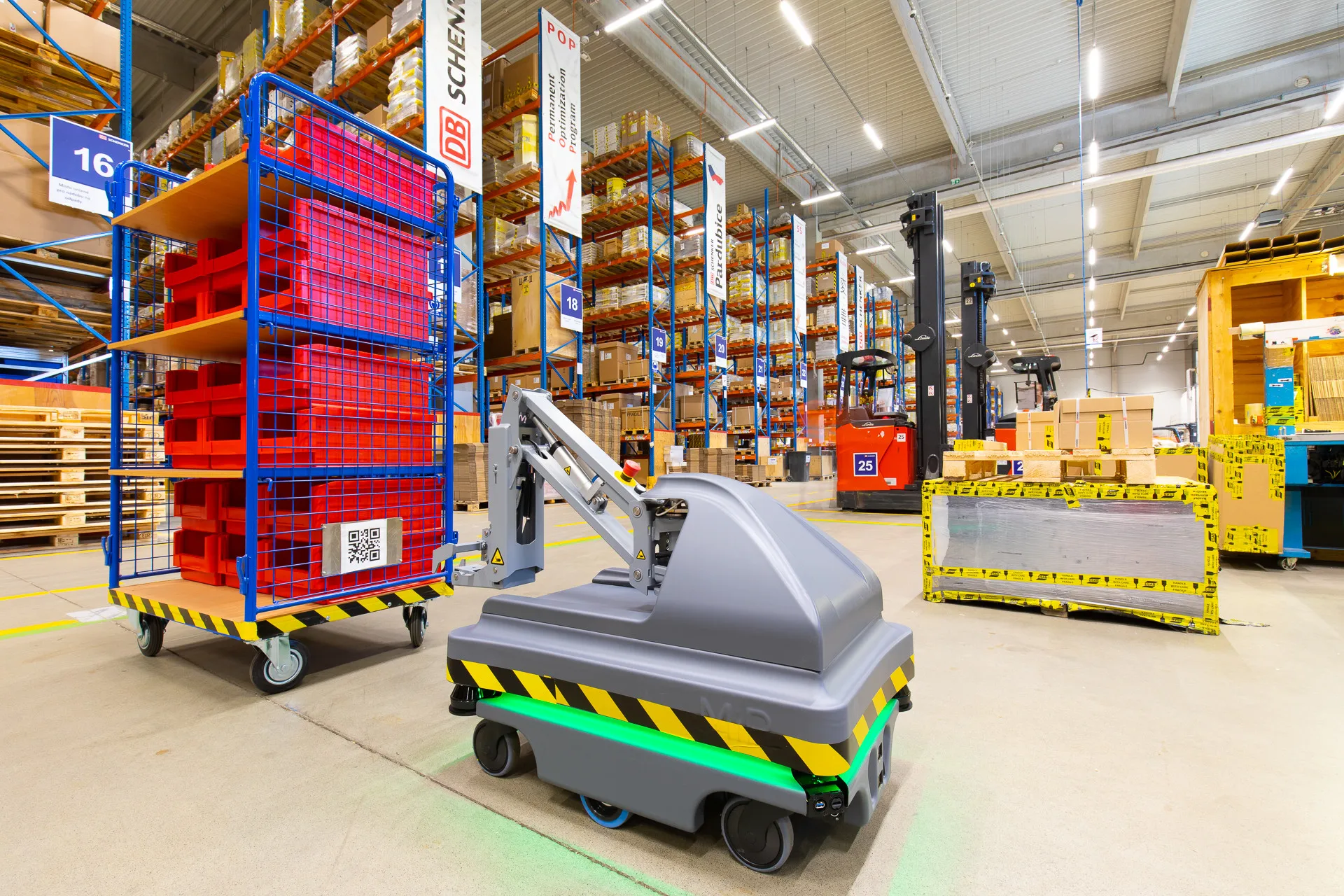

Intelligent Logistics

Measure distances between objects and guide automated systems for efficient navigation, sorting, and warehouse management.



Granary And Other Warehouse

Measure the level of stored material, enabling efficient inventory management and ensuring optimal filling and emptying processes.



Robot Vacuum Cleaner
The robot can measure the distance of obstacles ahead to achieve intelligent obstacle avoidance. At present, it is widely used in service industry






Company Profile


Chengdu Meskernel Integrated Technology Co.,Ltd.

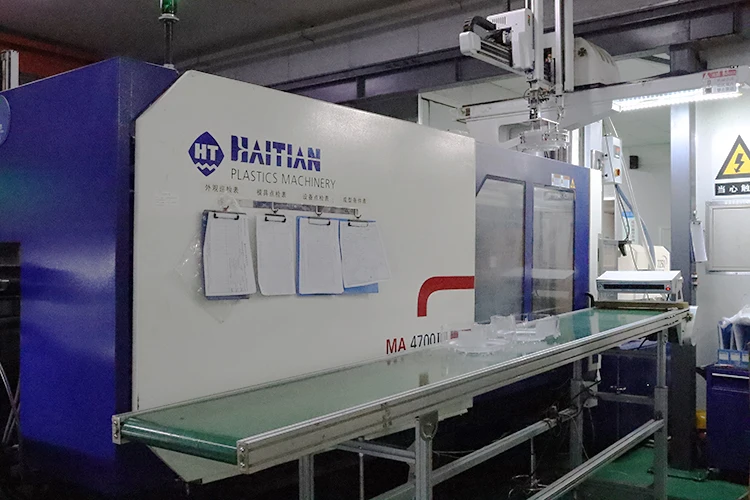

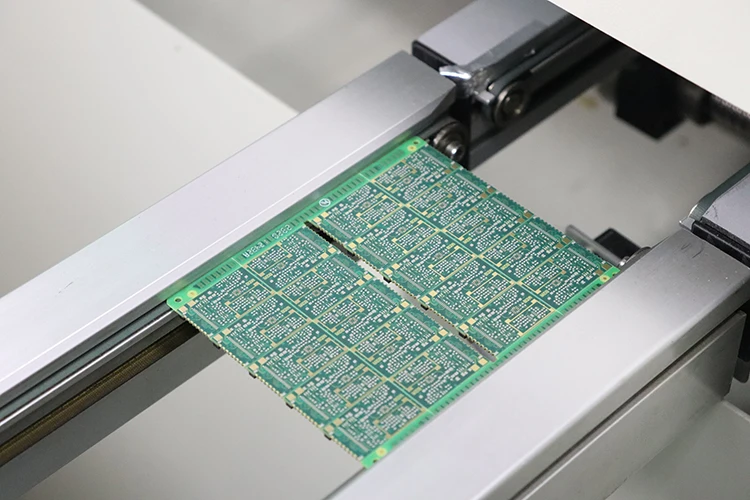

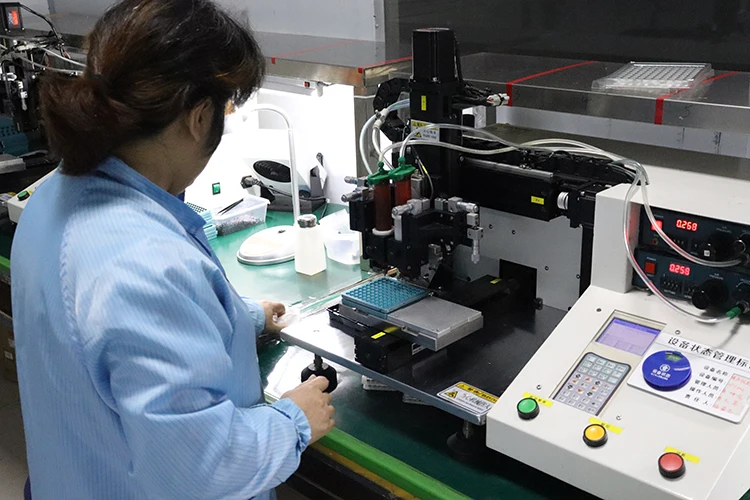

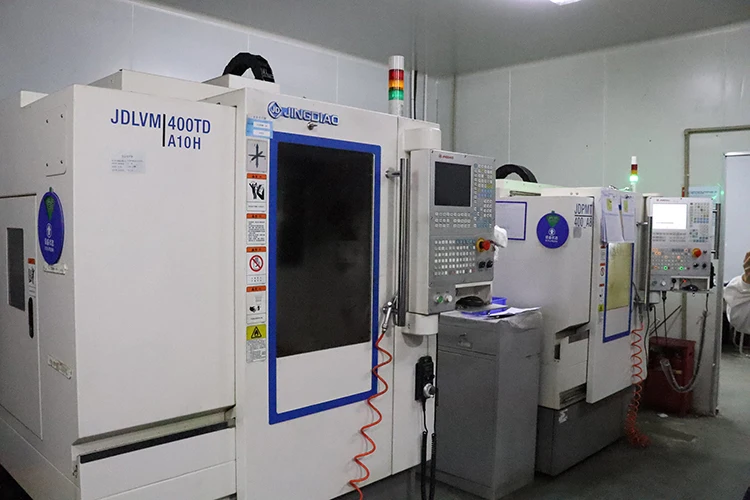

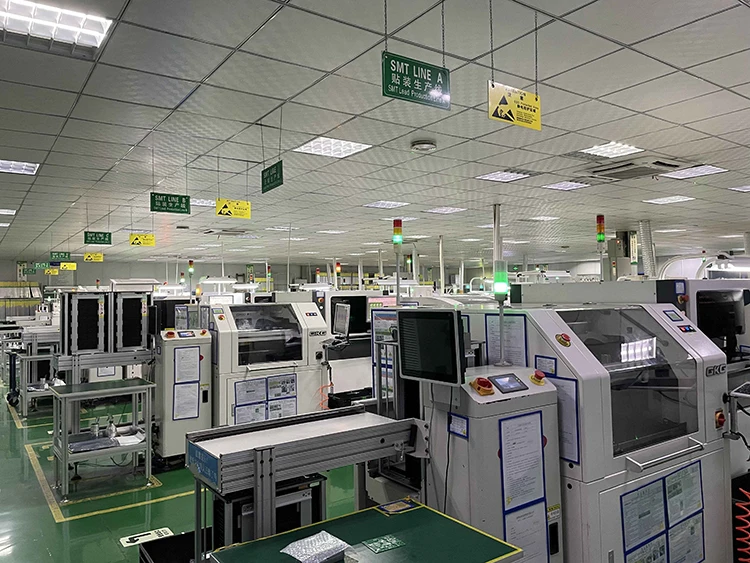

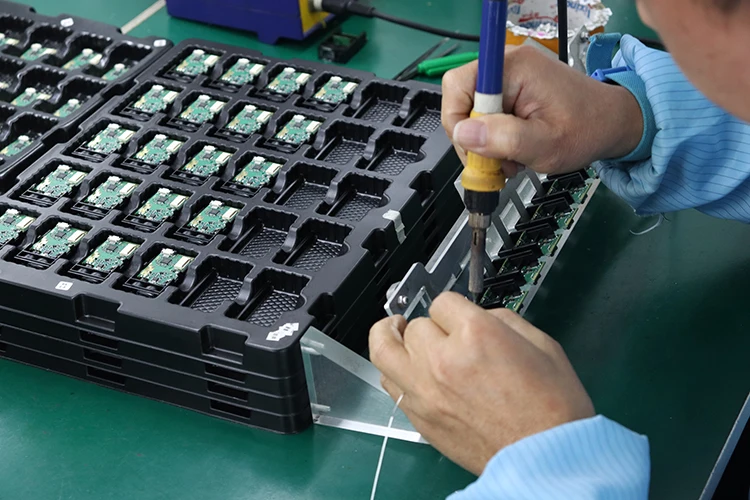

Chengdu Meskernel Integrated Technology Co.,Ltd. is a high-tech enterprise specializing in the research, development, design and production of laser measurement (sensing) core chips and systems. Meskernel engaged in the manufacturing of laser distance products, including Laser Measure Sensors/Modules and 2D, 3D Lidar. Our products are known for their exceptional precision, compact size, dot-matrix Lidar technology, and reliable perfor- mance. Meskernel has earned the unwavering trust and recognition of customers both domestically and internationally.

The company is headquartered in Chengdu, Sichuan Province, and currently has more than 100 employees, including more than 40 R&D engineers, accounting for more than 40%. At present, it is a Gazelle Enterprise in Chengdu as a Specialized, Refined, and Innovative Enterprise in Sichuan Province, and has joined the Natural Super Hivision Innovation Center Joint Laboratory, obtained and qualified of Chengdu Enterprise Technology Center, ISO Management System Certification and more than 60 patents.

We believe only by keeping your feet on the ground, you can look up at the stars. In the future, we will always uphold the values of "unity, focus, integrity, and common progress", focus on developing higher, faster, and stronger laser measurement cores, persist in R&D innovation, strengthen the market, and make every effort to create the most competitive world-renowned brand in the segmented fields.








Certifications






Packaging And Delivery






FAQ


Q1. Are you trading company or manufacture?
A1：We are original manufacturer locates in Shuangliu District Chengdu. Our company was established in 2003 with more than 80 national patents and own brands, Welcome to visit us.

Q2. What is your main product?
A2: Our company has mainly focused on the field of laser measurement and control, Laser Ranging Module, Laser Distance Sensor, Laser Rangefinder Module as long as Laser Distance Meter, Laser Rang Finder and 2D 3D LiDAR.

Q3. What’s the warranty of your products?
A3: We provide 12 months of Factory Warranty for all our products since shipping date.

Q4. Can you offer customized service?
A4: Sure we can provide clients OEM and ODM products and solutions. For products function data like Distance, Precision, Frequency, interface of Bluetooth, Communication Protocol RS485, RS232, USB, TTL, we all provide ODM even the programming.

Q5. Can I have a sample for testing?
A5: Yes, we can provide 1-2 pcs samples for clients testing for its programming compatibility and stability.but clients will firstly pay the sample cost and shipping cost.

Q6. How much does it cost to ship to my country?
A6:You can send us your shipping address and we can calculate the shipping cost.

Q7. What is your payment method?
A7: T/T, Paypal, Western Union, L/C is available.

Q8. What is the packing method, dose it suit for long distance shipping?
A8: Due to its international shipment,we treat the packages very well and strengthen packed.The products will firstly wraps with film and then insert to the grooved plastic foam board.

Q9. Can I be your distributor or agent?
A9: Yes, you are welcome to be our agent or distributors, we have some policy for the management of our agent or distributors.

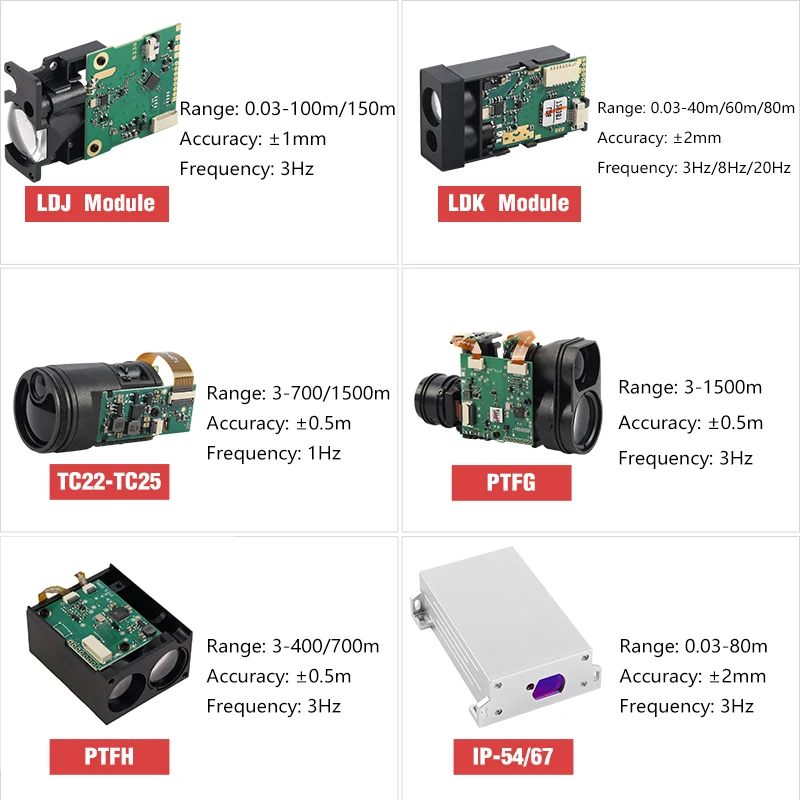

We Recommend
