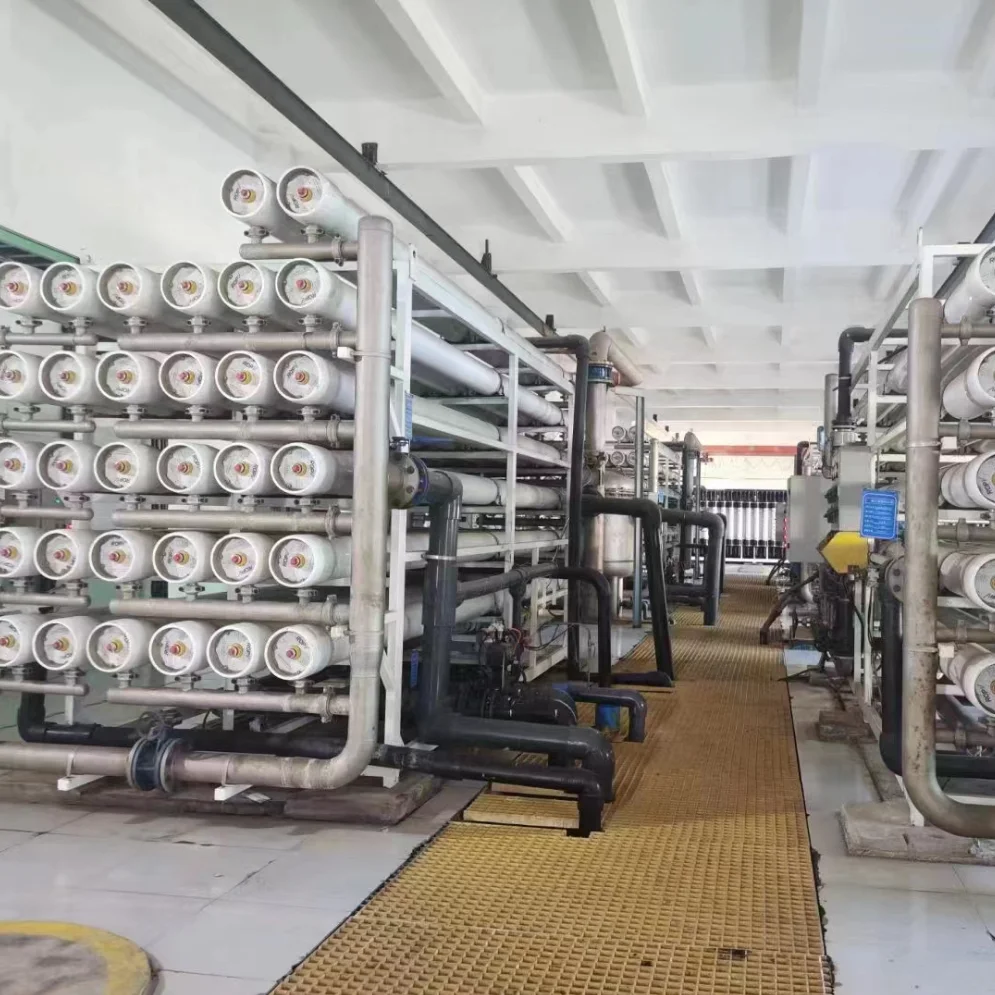

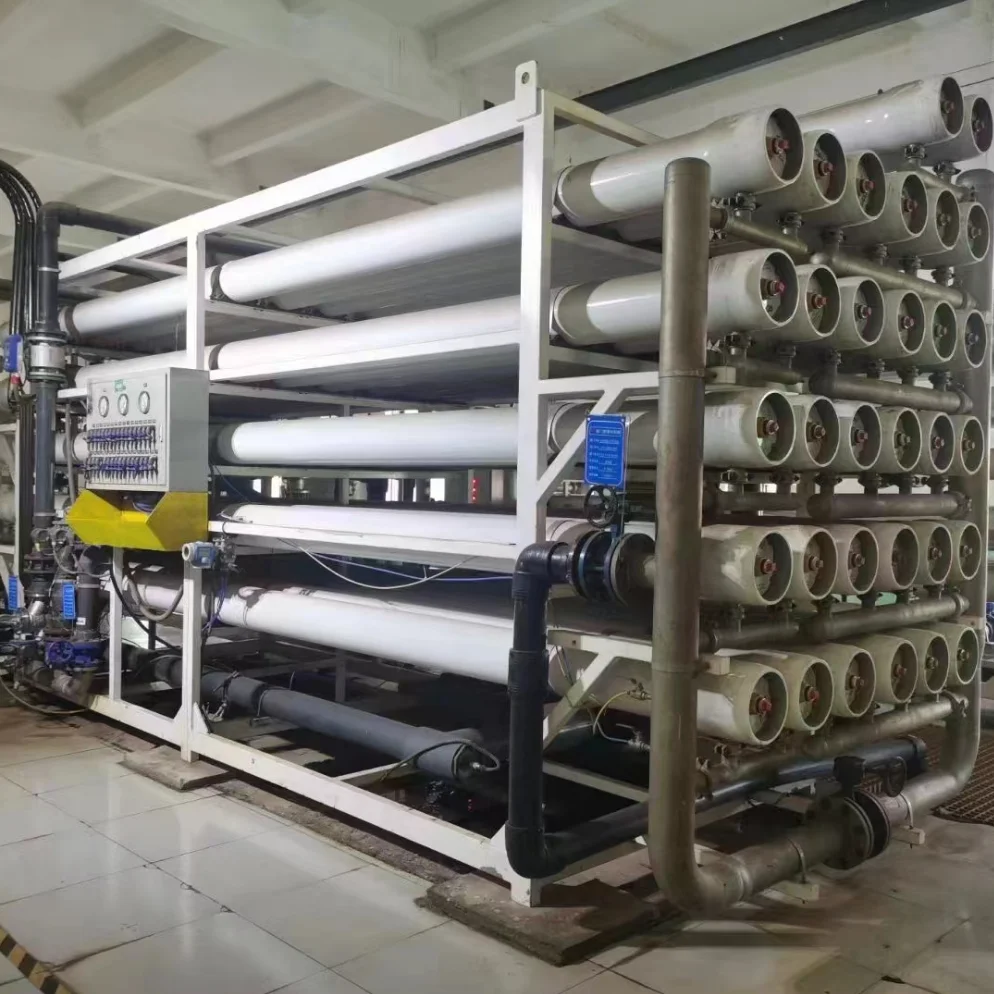

Hollow UF Membrane Water Treatment for domestic sewage treatment
- Category: >>>
- Supplier: STARK Environmental Solutions Ltd.
Share on (1601200527098):
Product Overview
Description
Product Overview
UF water purifier filter system alkaline water filter hollow fiber ultrafiltration membrane waste water treatment plant
Ultrafiltration is one of the membrane separation technologies driven by pressure. For the purpose of separating macromolecules from small molecules, the membrane pore size is between 20-1000A°. The hollow fiber ultrafilter (membrane) has the advantages of high filling density in the unit container and small floor space.
The ultrafiltration equipment system has a high recovery rate and high-quality products, which can achieve high-efficiency separation, purification and high-fold concentration of materials.The system is made of sanitary pipe valves, and the site is clean and hygienic, meeting the requirements of GMP production specifications.
Ultrafiltration device product introduction
Ultrafiltration is the use of ultrafiltration membrane microporous screening machine, driven by pressure, the diameter of 0.002-0.1μm between the particles and impurities, to remove suspended matter, colloids, proteins, microorganisms and macromolecular organic matter.
Ultrafiltration is the use of ultrafiltration membrane microporous screening machine, driven by pressure, the diameter of 0.002-0.1μm between the particles and impurities, to remove suspended matter, colloids, proteins, microorganisms and macromolecular organic matter.
Characteristics of ultrafiltration device
1. The filtration process is carried out at room temperature, with mild conditions and no component destruction, so it is especially suitable for the separation, classification, concentration and enrichment of heat-sensitive substances, such as drugs, enzymes, fruit juices, etc.
2. The ultrafiltration device does not change phase in the filtration process, no heating, low energy consumption, no need to add chemical reagents, no pollution, is an energy saving and environmental protection separation technology.
3. Ultrafiltration technology has high separation efficiency, and it is very effective for the recovery of trace components in dilute solution and the concentration of low concentration solution.
4. The ultrafiltration process only uses pressure as the power of membrane separation, so the separation device is simple, the process is short, the operation is simple, and the control and maintenance are easy.
Application field of ultrafiltration device
1. Industrial water treatment: groundwater and surface water are used as water sources for industrial production after filtration.
2. Water plant water supply treatment: groundwater or surface water as the source of water, deep purification, improve the quality of drinking water.
3. Domestic sewage reuse: deep treatment on the basis of standard discharge to achieve the purpose of reuse.
4. Industrial wastewater reuse: deep treatment on the basis of standard discharge to achieve the purpose of reuse.
5. Deep treatment of drinking water: deep purification and filtration of tap water to improve water quality.
6. Pre-treatment of reverse osmosis system: pre-treatment of reverse osmosis system, seawater desalination pretreatment.
UF system has advanced technological design, high degree of integration, compact structure, small footprint, simple operation and maintenance, and low labor intensity.
Reverse osmosis equipment has a variety of configurations according to the customer's use environment and specific requirements, please inform the customer of the following details, in order to get an accurate solution recommendation and quotation:
1, the required water production:
1, the required water production:
2, raw water source:
3, water quality requirements:
4, pretreatment filter tank and pipeline material requirements?
5. Is there any water storage facility?
6. Use site power supply:
If the requirements cannot be accurately described, please contact us directly. We will provide you with a complete plan and quotation according to your needs.
If the requirements cannot be accurately described, please contact us directly. We will provide you with a complete plan and quotation according to your needs.
Product Paramenters
Model | STK-UF-2000L | STK-UF-5000L | STK-UF-10000L | STK-UF-15000L |
Capacity | 2 m3 / Hr | 5 m3 / Hr | 10 m3 / Hr | 15 m3 / Hr |
Size | 120*80*165CM | 200*80*165CM | 250*140*200CM | 275*140*200CM |
Power | 1.1kw | 4.4kw | 5.0kw | 7.5kw |
Company Profile
STARK ALWAYS WELCOME YOU!!
STARK Environmental Solutions Ltd. is a scientific enterprise which is specialized in development,production,sales and service for environmental industrial water treatment products.We are specialized in reverse osmosis equipment,ultrafiltration equipment,EDI electric desalination system,sea water desalination machine ,brackish water desalination machine,water filling machine and water treatment accessories like water filter,water softener,stainless steel tank and membrane housing,UV Sterilizer and ozone generator.Water treatment products are widely used in industries of electron,electroplating, power plants,pharmaceuticals,petroleum,chemical,food and beverage,printing and dyeing,etc.
PRODUCT CONFIGURATION
Pretreatment filter tank

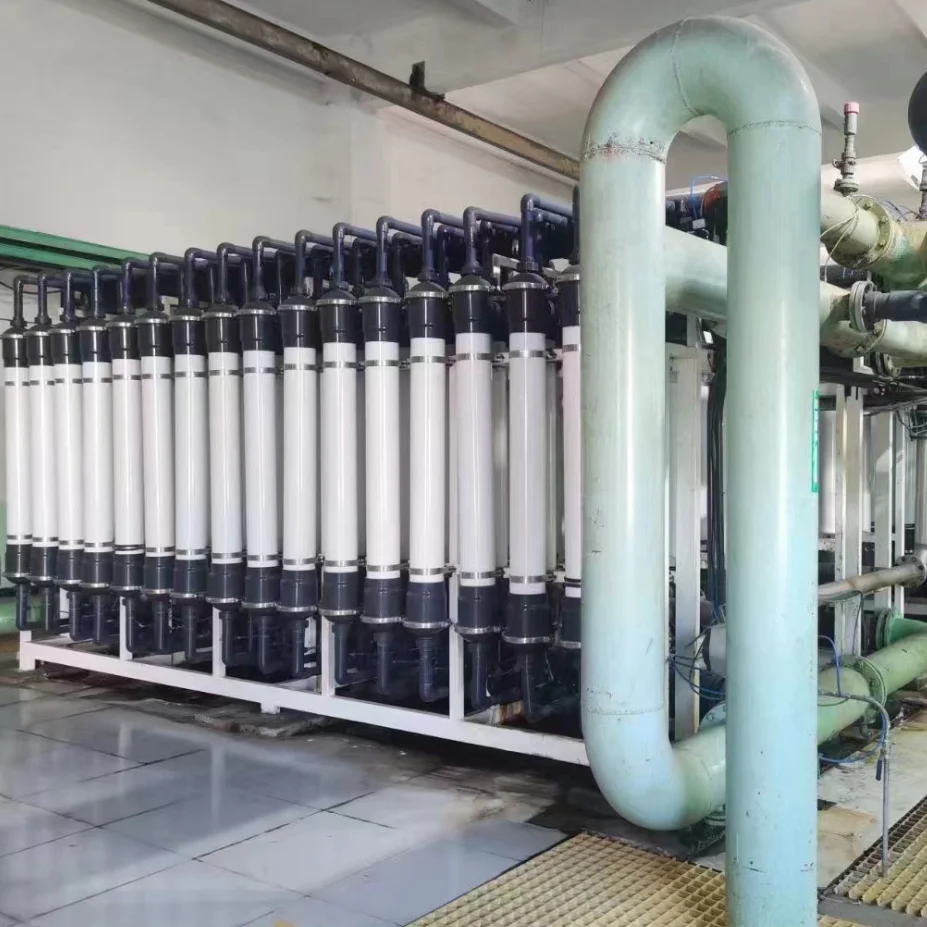

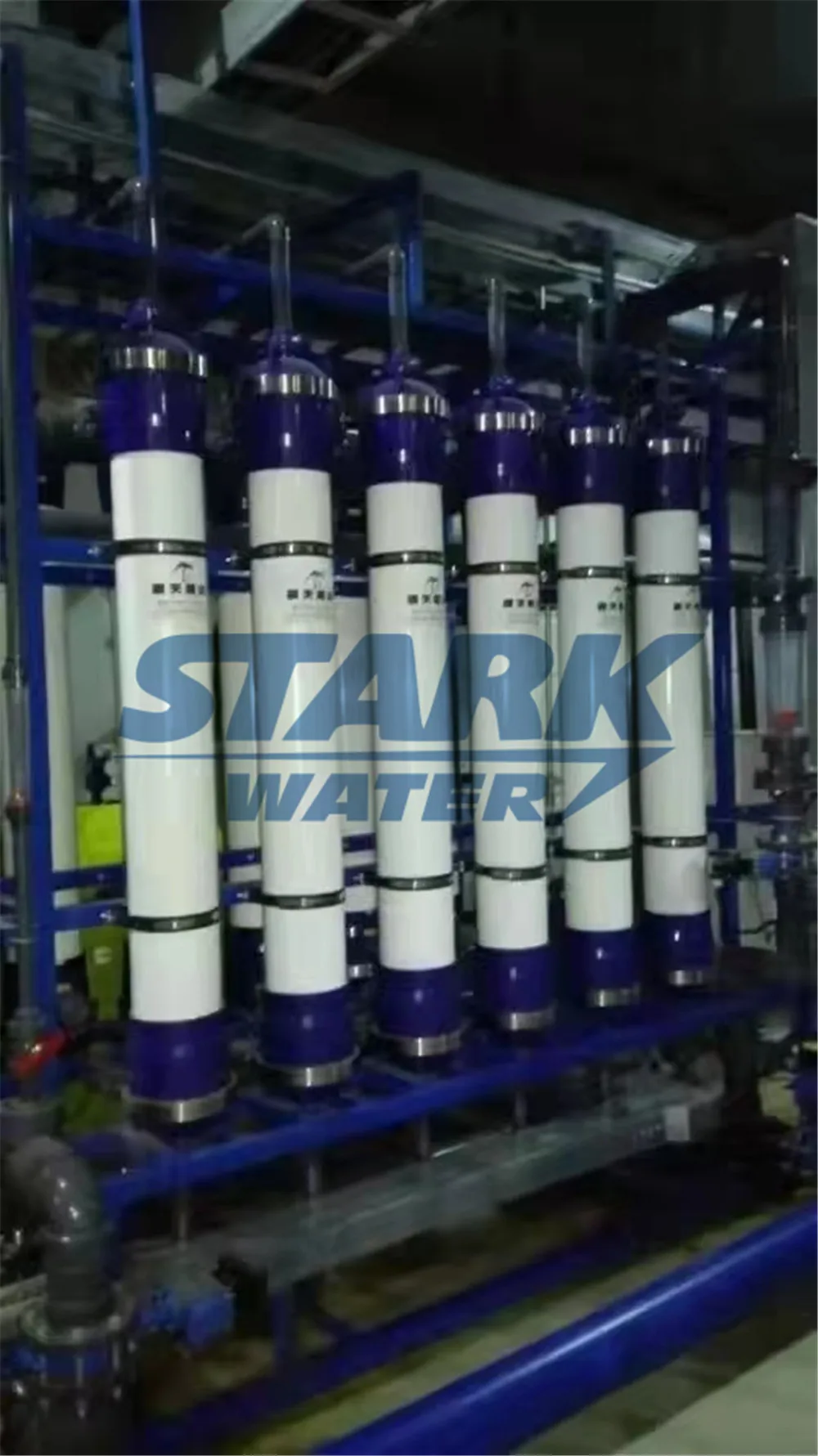

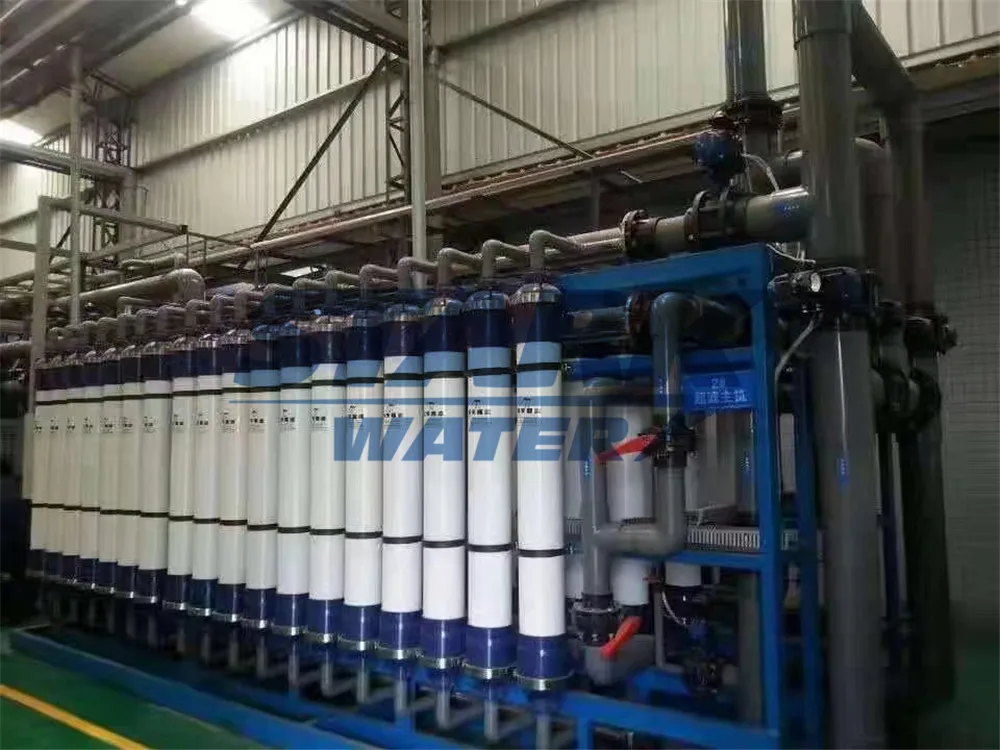

UF unit
Electric panel
Application of ultrafiltration in wastewater treatment
(1) Treatment of reduced dye wastewater;
(2) Electrophoretic coating wastewater treatment;
(3) Treatment of wastewater containing emulsified oil;
(4) Domestic sewage treatment
(1) Treatment of reduced dye wastewater;
(2) Electrophoretic coating wastewater treatment;
(3) Treatment of wastewater containing emulsified oil;
(4) Domestic sewage treatment
