1 in 2 out temperature signal isolator 4 20ma pt100 temperature converter to 0-10v
    This apparatus transmits the in thermocouple(TC) or thermal resistance(RTD) signal to isolated current or voltage signal in a circuit or two isolated circuits, and the input, output, and power supply are galvanically isolated from each other.
    It can be used together with modular instrumentation and DCS, PLC and other systems, to offer signal isolation, signal conversion, signal distribution, signal processing and other functions to field instrument, thereby enhancing the immunity of automatic control system in the industrial production process, and ensuring system stability and reliability.


Input Signal
RTD: PT10, PT1000 etc
TC: KSBJNTE etc
Accuracy
0.05%FS
Output Signal
4-20mA, 1-5V,0-10V etc
Insulation intensity
3kv/50HZ, one min
Channels
One in one out , one in two out, Two in two out
One in one out , one in two out, Two in two out
40ppm/℃

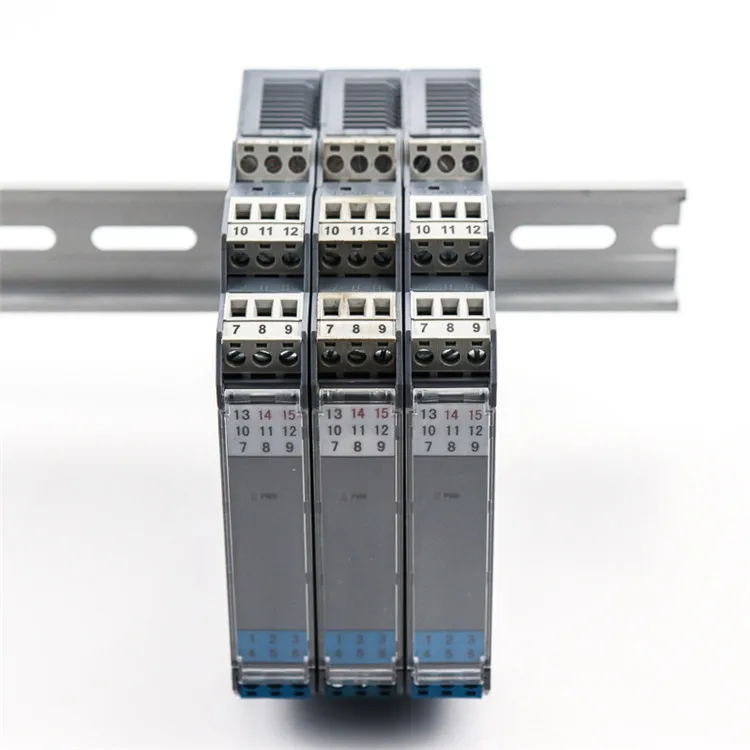

Installation
35mm DIN rail
Response time
200ms
Dimension
12.7*110*118.9mm;
17.7*110*118.9mm
Characteristics
Active or passive output switchable
Power supply
DC18-32V
Keywords
thermal resistance temperature signal transmitter
