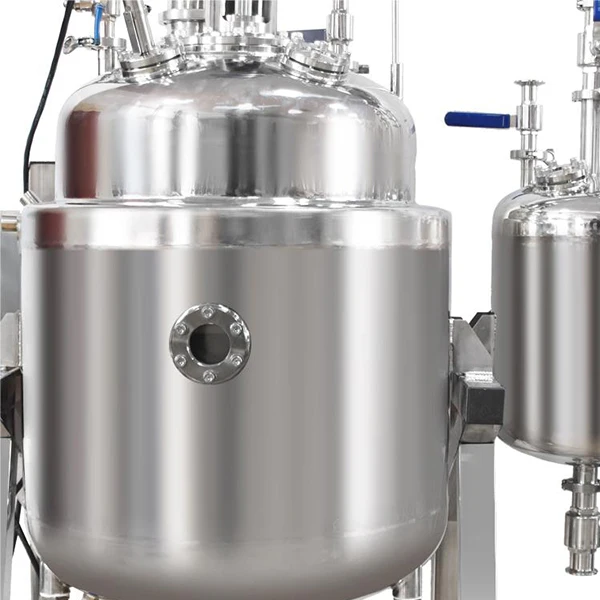

100L stainless steel reactor Stainless Steel Reaction Kettle China Stainless Steel Reactor
- Category: >>>
- Supplier: Shanghai Valuen Industrial Co. Ltd
Share on (1601200654059):
Product Overview
Description
Product Description

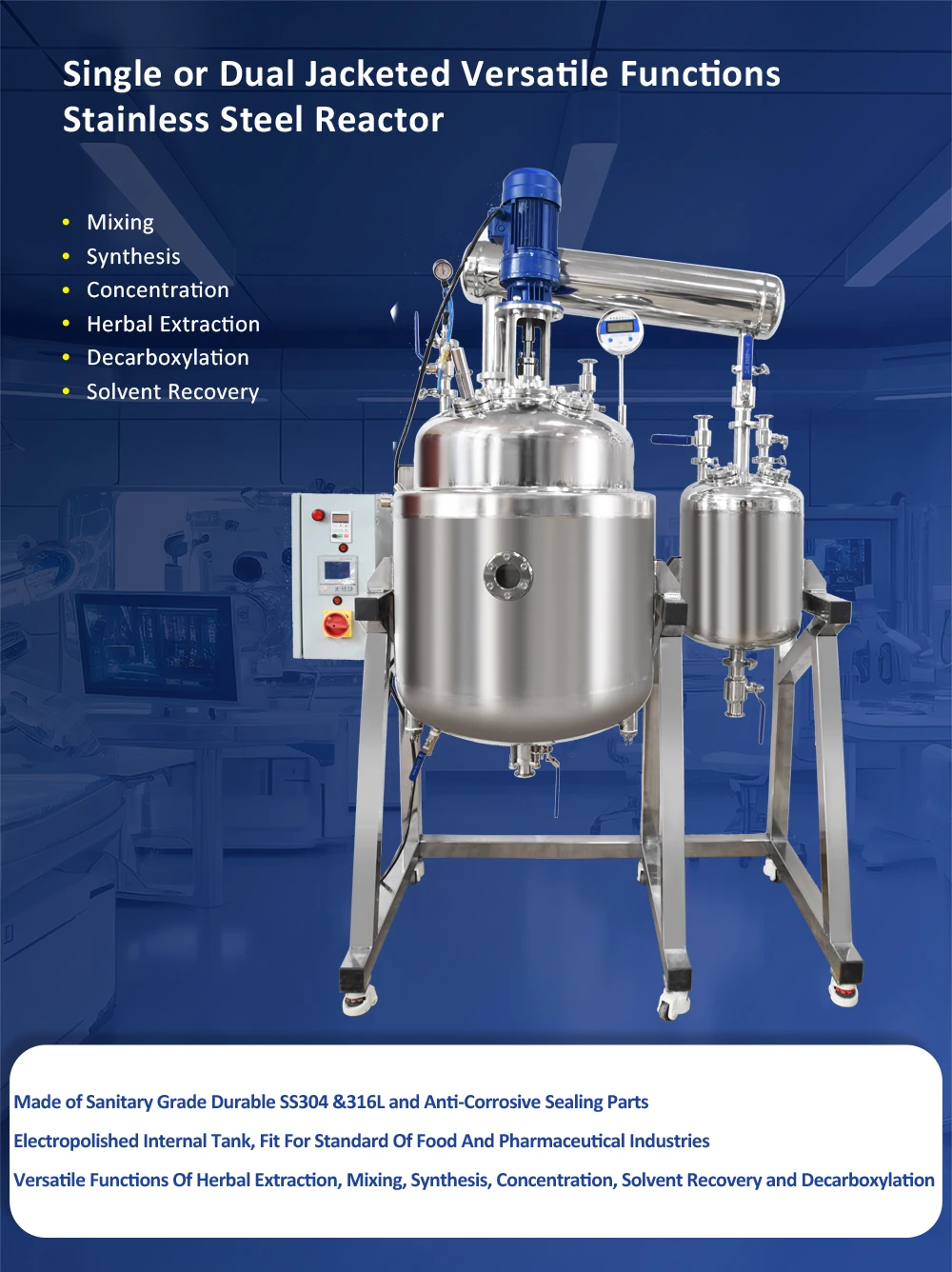

Single or Dual Jacketed Sanitary Grade Stainless Steel Reactor (100-500L) Versatile Functions Of Herbal Extraction, Mixing, Synthesis, Concentration, Solvent Recovery And Decarboxylation Sanitary Grade Durable 316 & 304 Stainless Steel Electropolished Internal Tank, Fit For Standard Of Food Industries | ||||||||
Product Paramenters
Model | VJR100S | VJR150S | VJR200S | VJR300S | VJR500S | VJR1000S | |||||
Reaction Tank Capacity | 100L | 150L | 200L | 300L | 500L | 1000L | |||||
Receiving Tank Capacity | 30L | 50L | 50L | 100L | 150L | 250L | |||||
Jacket Quantity | Single jacket or Dual jacket with inner heating jacket and outer insulation jacket (customizable) | ||||||||||
Stainless Steel Material | Sanitary Grade 316 or 304 Stainles Steel | ||||||||||
Heating Mode (Optional) | 2 Options: Built-in electrical heating device or Circulation jacket with heating fluid | ||||||||||
Cooling Mode (Optional) | 2 Options: Internal cooling condensers or Ciruculation jacket with cooling fluid | ||||||||||
Working Temperature Range | -80°C to 350°C | ||||||||||
Rotary Speed | 0-500RPM | 0-150RPM | 0-120RPM | ||||||||

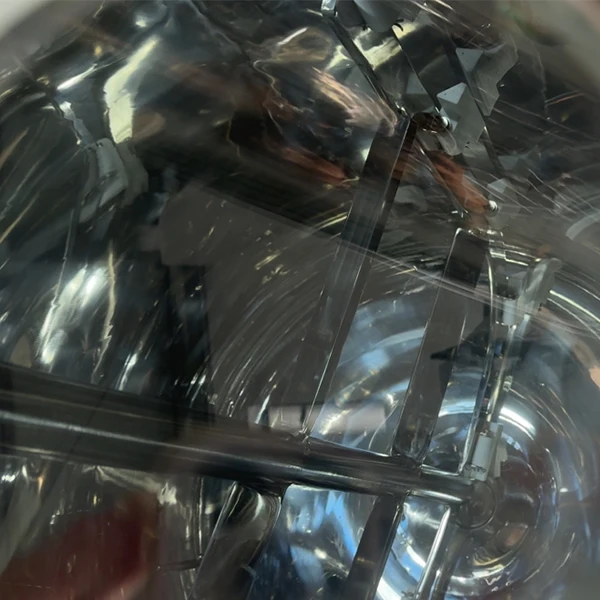

Stirrer | Sanitary Grade 316 or 304 Stainles Steel (Standard: Frame Steel; Customizable) | ||||||||||
Stirring Motor Power | 750W | 1100W | 2200W | 3000W | |||||||
Heating Power if with Inner Electrical Heating Device (Optional) | 12KW | 18KW | 27KW | 27KW | 30KW | Not recommended | |||||
Control Panel | Digital-display Stirring speed controller, Heating temperature controller if with internal electrical heating, and Main power switch | ||||||||||
Power Supply | 110V or 220V, 50/60Hz, Single Phase; 220V or 380V, 50/60HZ, 3 Phase | ||||||||||
Condensation Area | 1.5m² | 2.0m² | 2.0m² | 3.0m² | 4m² | 4m² | |||||

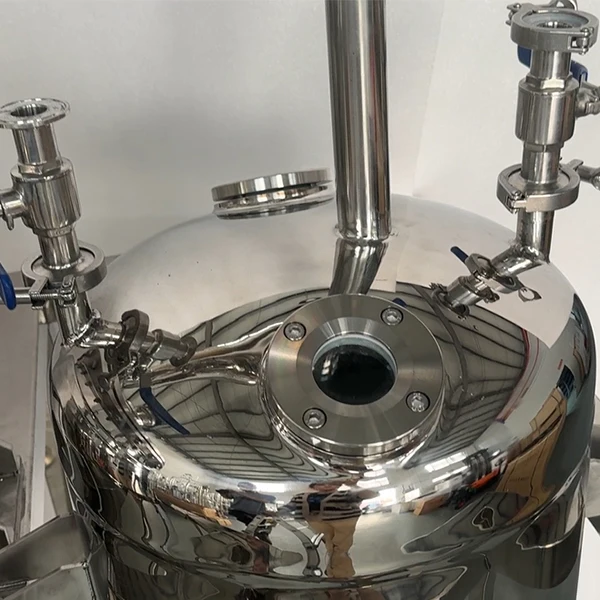

Ports on Lid | 9 Ports: feeding port, condenser port, stirring port, sight glass port, pressure gauge port, temperature sensor port, vacuum port, 2 spare ports (customizable) | ||||||||||

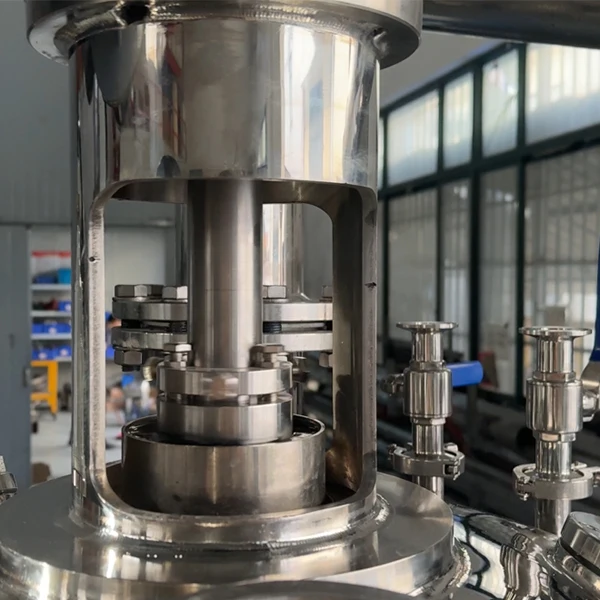

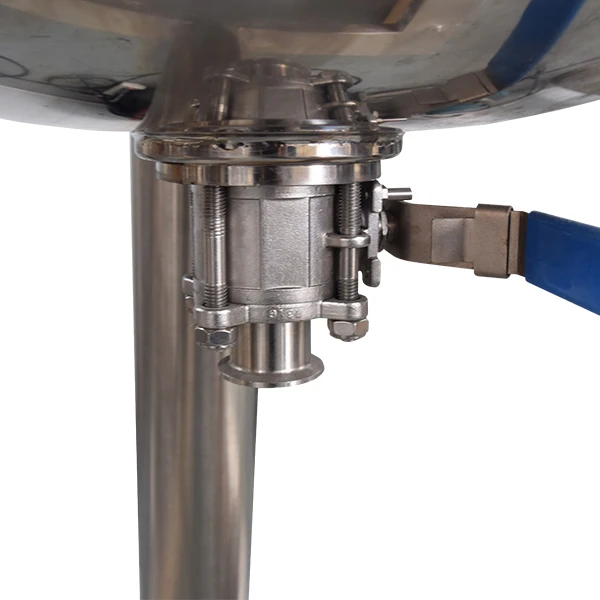

Product Details

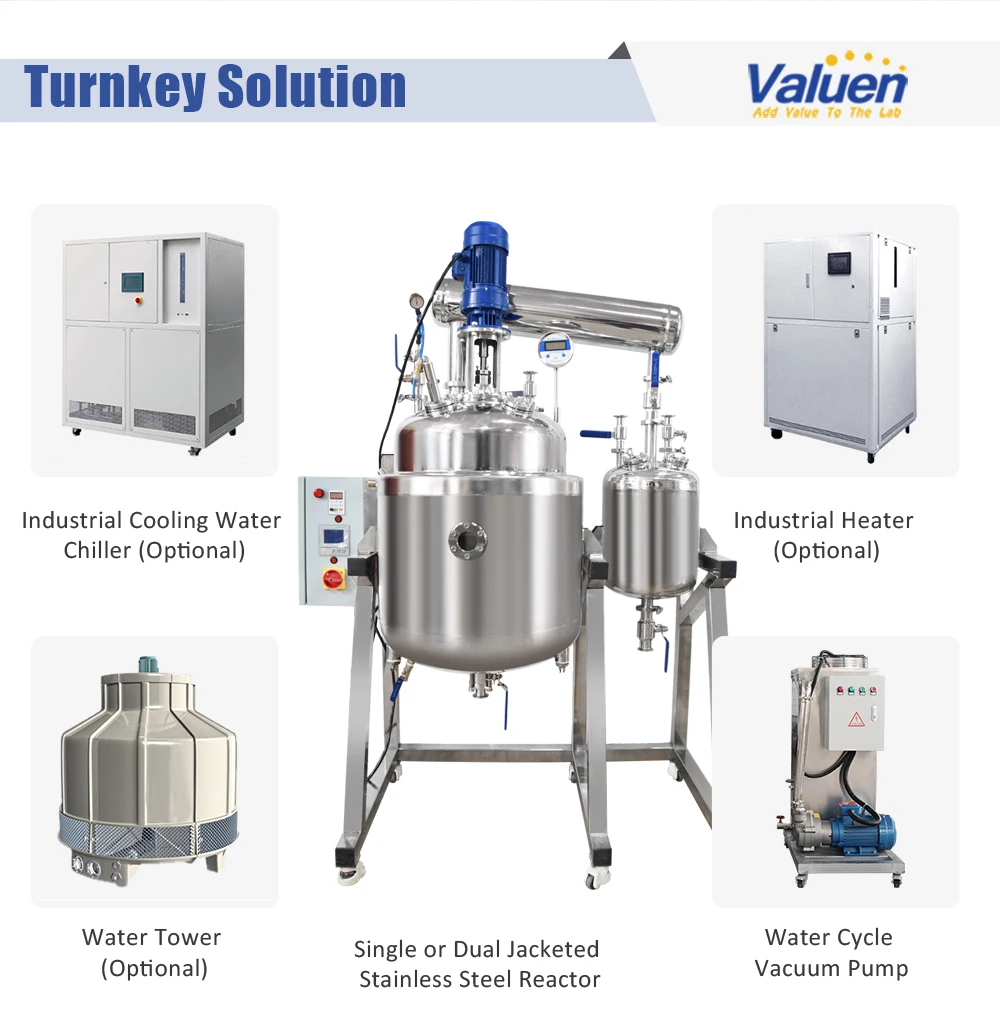

Turnkey Solution
We Provide Turnkey Set Single or Dual Jacketed Stainless Steel Reactor Heater & Chiller (Optional) Vacuum Pump (Optional) ( Water vacuum pump, Rotary vane vacuum pump or Diaphragm vacuum pump) | ||||||||
Application

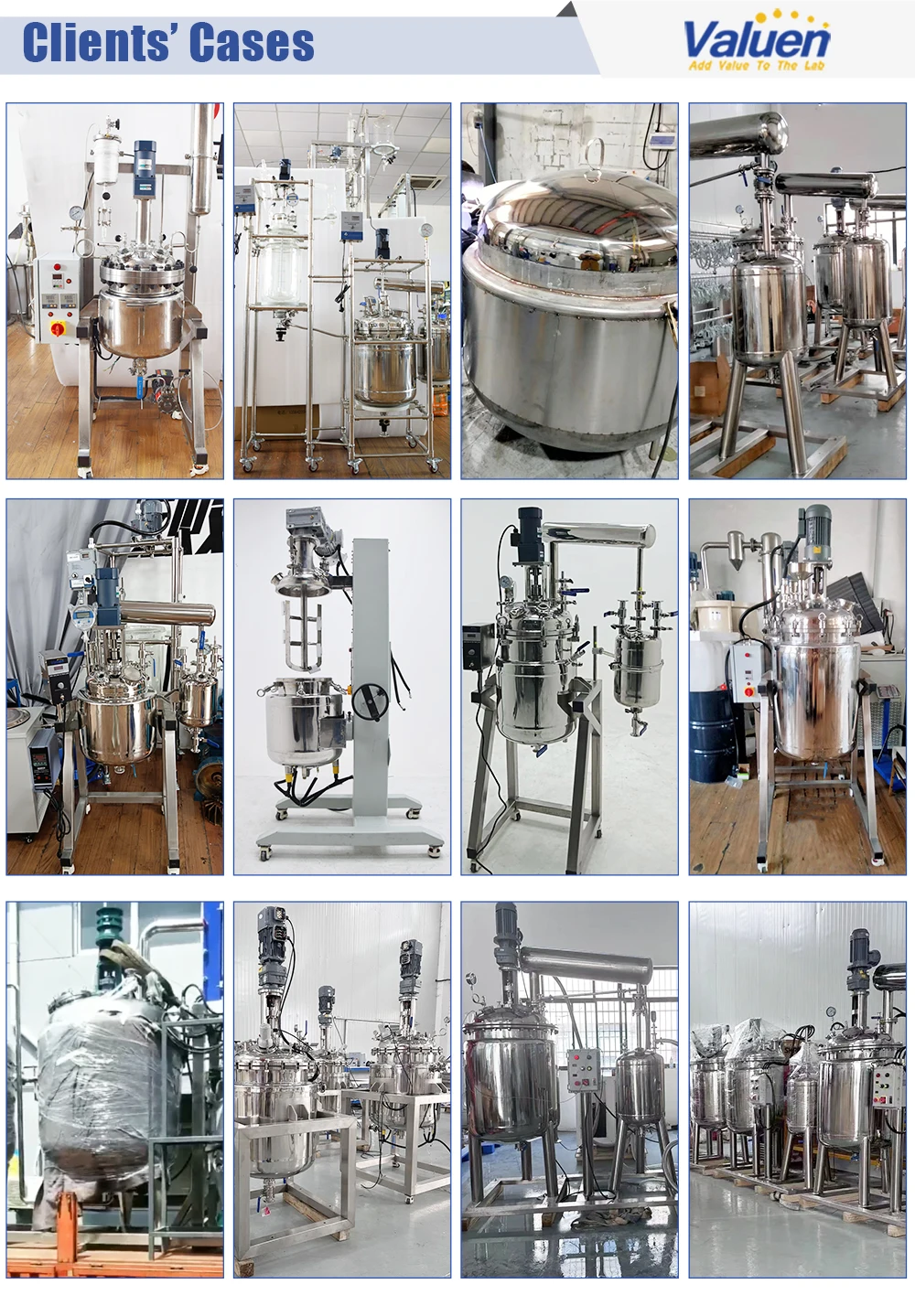

Customer Cases
Company Profile
With more than 15 years’ industry experiences, Valuen team are experts in the design, development, and manufacture of premium quality products for chemists and chemical engineers in areas such as academia, chemical, food, flavor & fragrance, and petrochemical industries as well as many others. Our products cover a broad range of applications from distillation, concentration, reaction, extraction, isolation, purification, mixing, drying, and ancillary equipment for supporting those chemical process like heating, cooling and vacuum devices, both of lab and scale production.
