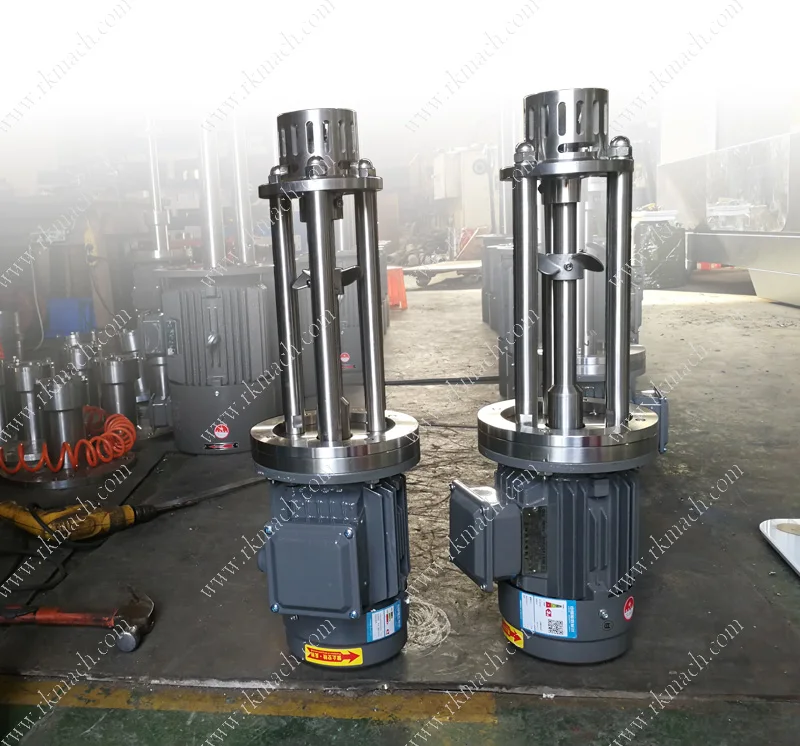

220V 3kw 4HP SS316L high shear batch homogenizer high shear mixer with fine screen working head for fine chemical homogenizing

Product Overview

Description

high shear mixer to be installed on 100L 150L 200L stainless steel tank / vessel / bowl / drum to mix guar gum and axnthan gum

380V 50Hz 3P voltage

For the manufacturing of daily chemicals and food & beverage industry, especially cosmetic industry such as lipstick,facial cream, lotions, washing detergent, hand sanitizer and ointment.

Todispersing, shearing and cutting force in working load to get uniformly homogenizing and thoroughly emulsifying.

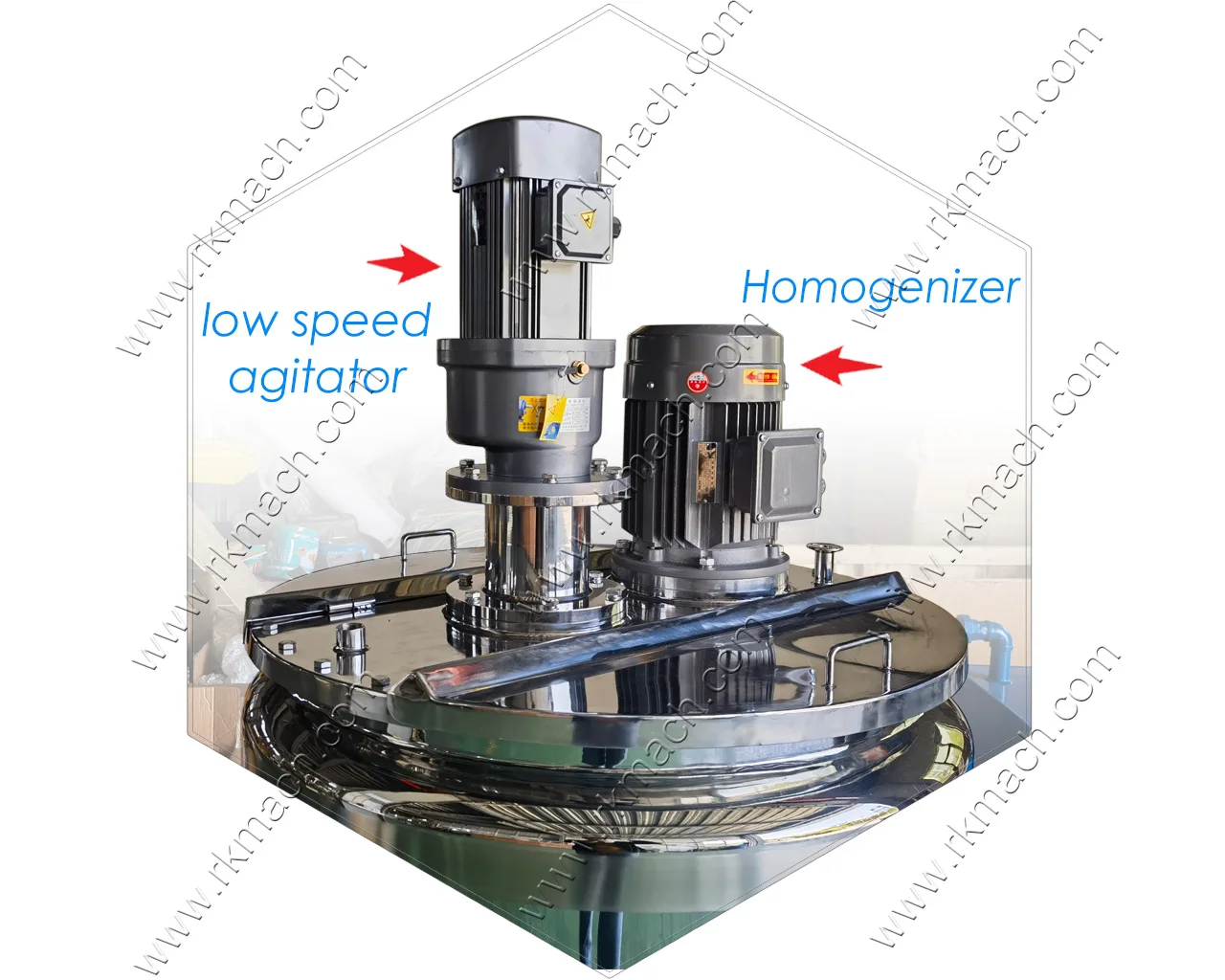

Installed on existing stainless-steel tank, vessel, IBC tote, plastic drum and barrels.

Main parts included in the high shear mixer / homogenizer

• the driving motor for satisfactory operation under 220V 50hz


• the mounting flange for easy assembly on existing tanks


• the support shafts for working head and driving motor


• a down thrust propeller on the main rotation shaft


• the rotation shaft to hold the propeller and rotor


• the rotor stator assembly (working head)



Model	TRS-3	TRS-4	TRS-5.5	TRS-7.5
EXW price
Voltage	220V 60hz 3Phase AC
Mounting	Top mounting
Working mode	Batch type
Wet material	Stainless steel 304 / 316L
Motor poles	2
Speed	Synchronous RPM 3000
Protection	IP55 weatherproof enclosures
Motor power	4HP	5.5HP	7.5HP	10HP
Suitable for	30~200L

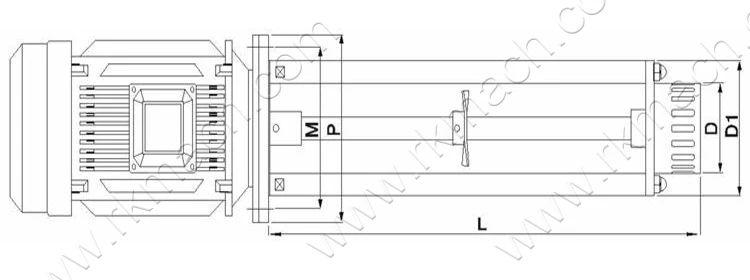

L	700
M	215
P	250
D	114
D1	180
Over length	1080

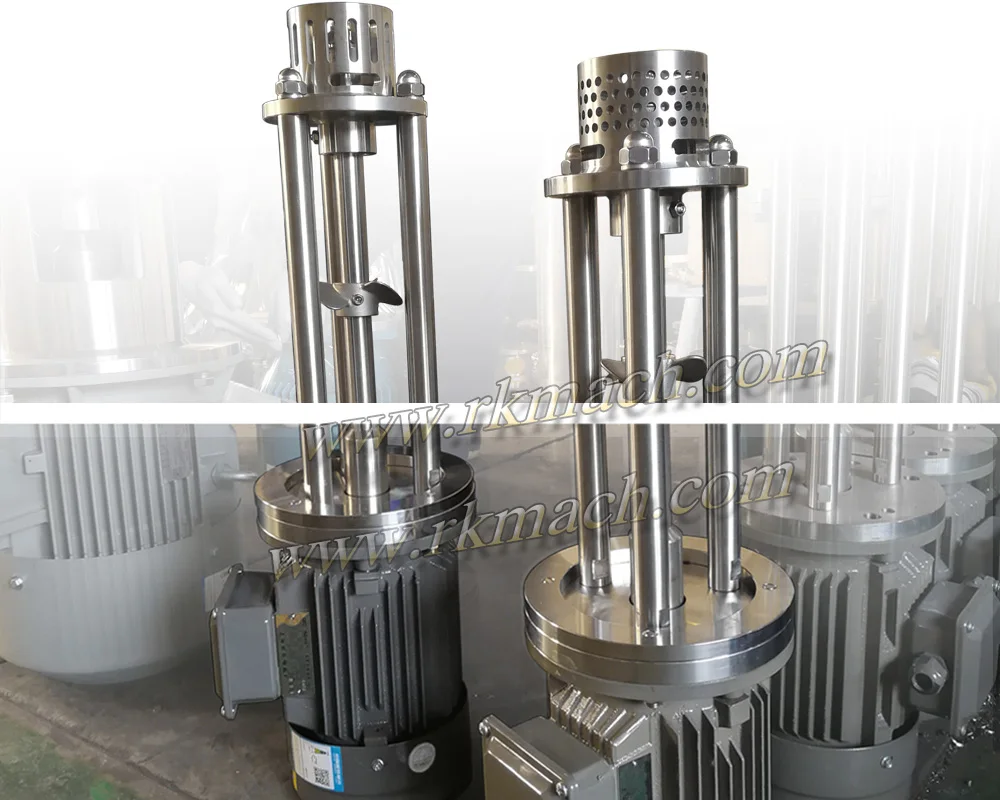

about the working head

Ranking machinery offers High Shear Rotor-Stator mixers with a selection of stator heads to fine tune the mixer for your process and to handle a wide variety of working load.

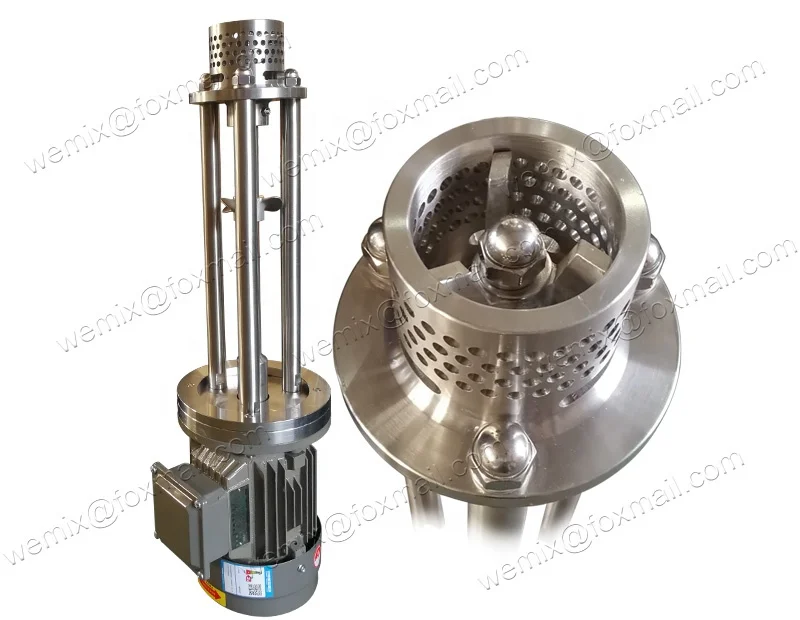

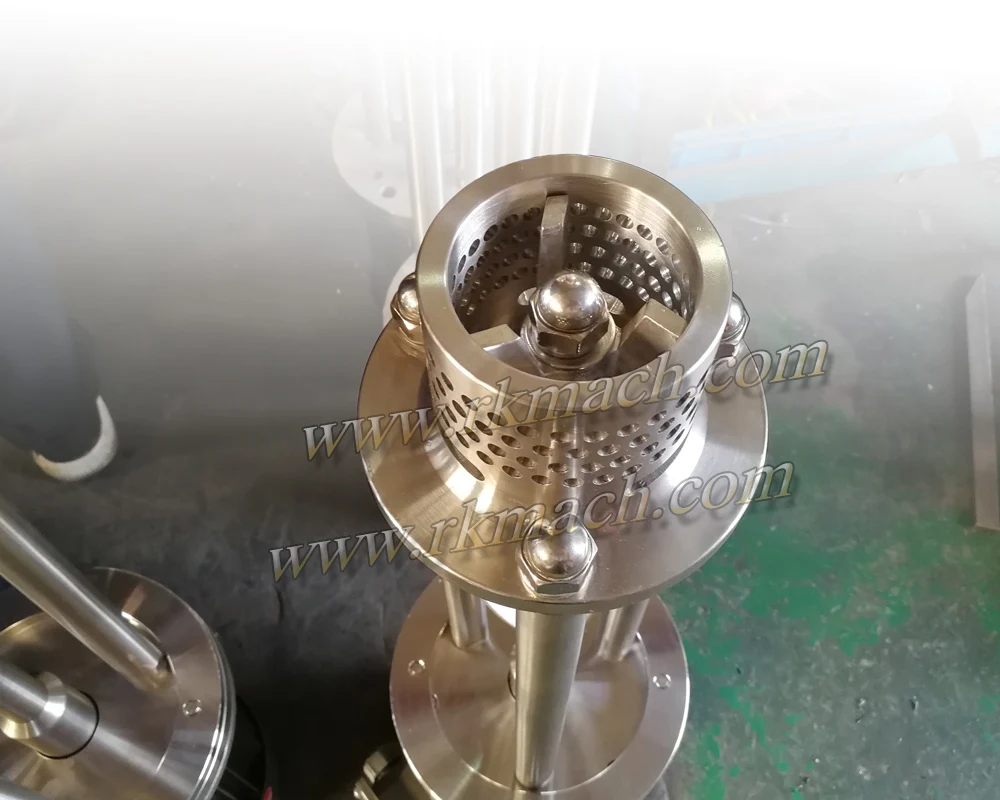

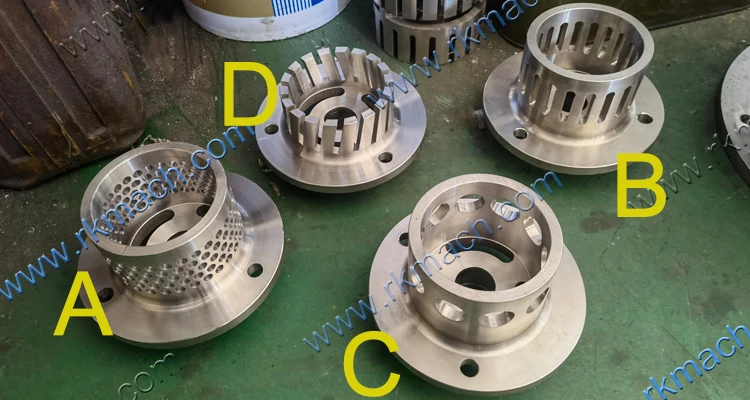

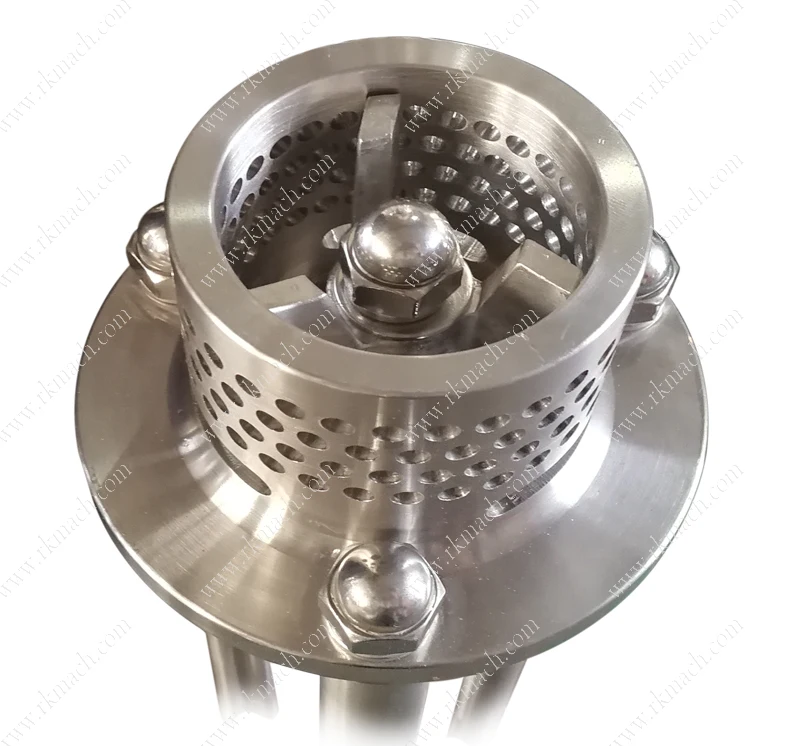

A.    Mesh / fine screen stator for fine emulsions.

B.     Long hole (slotted) for fine dispersions and size reduction of solids

C.    Round hole stator for dispersing application

D.    Claw type stator offers more shearing force, for high viscosity and heavy duty working condition.
