Product Overview
Description
Product Overview

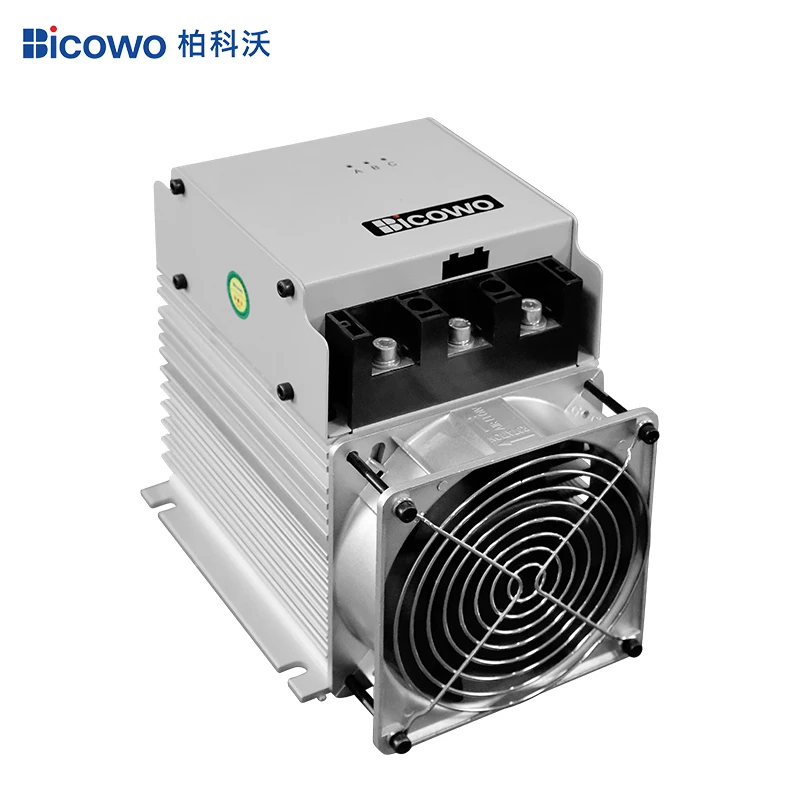

PFK-D2/D3/D4Thyristor switch
This capacitor switching thyristor switch uses imported zero-crossing trigger chip to control the thyristor voltage when zero, and the current when zero, to ensure that the input capacitor has no inrush current.The effective protection circuit improves the anti-harmonic ability of the switch.Temperature control technology is used to reliably ensure that the thyristor works within the specified temperature range, and when there is a component failure or some reason to cause the heat sink temperature.When the degree exceeds the standard, the switch will automatically exit, effectively protecting the thyristor from damage;Full use of integrated circuits, as far as possible to reduce discrete components, so that the switch volume as reasonable and reduced, can reduce the cost of the entire cabinet;The anti-interference circuit design improves the anti-interference ability of the switch and effectively prevents the breakdown of thyristor caused by false triggering.Automatic capacitive potential equalization, to solve the problem of phase loss in the switching process;
Electronic discharge circuit to speed up capacitor discharge;400V system, 660V system, please specify before ordering.
Electronic discharge circuit to speed up capacitor discharge;400V system, 660V system, please specify before ordering.
REVERSE WITHSTAND HIGH PRESSURE
STABLE QUALITY
STRONG RELIABILITY
TEMPERATURE CONTROL TECHNOLOGY
INTEGRATED CIRCUIT
ANTI-INTERFERENCE CIRCUIT DESIGN
TYPE DESCRIPTION
PFK-D4 Controllable switch
PFK-D2 Controllable switch
PFK-D3 Controllable switch

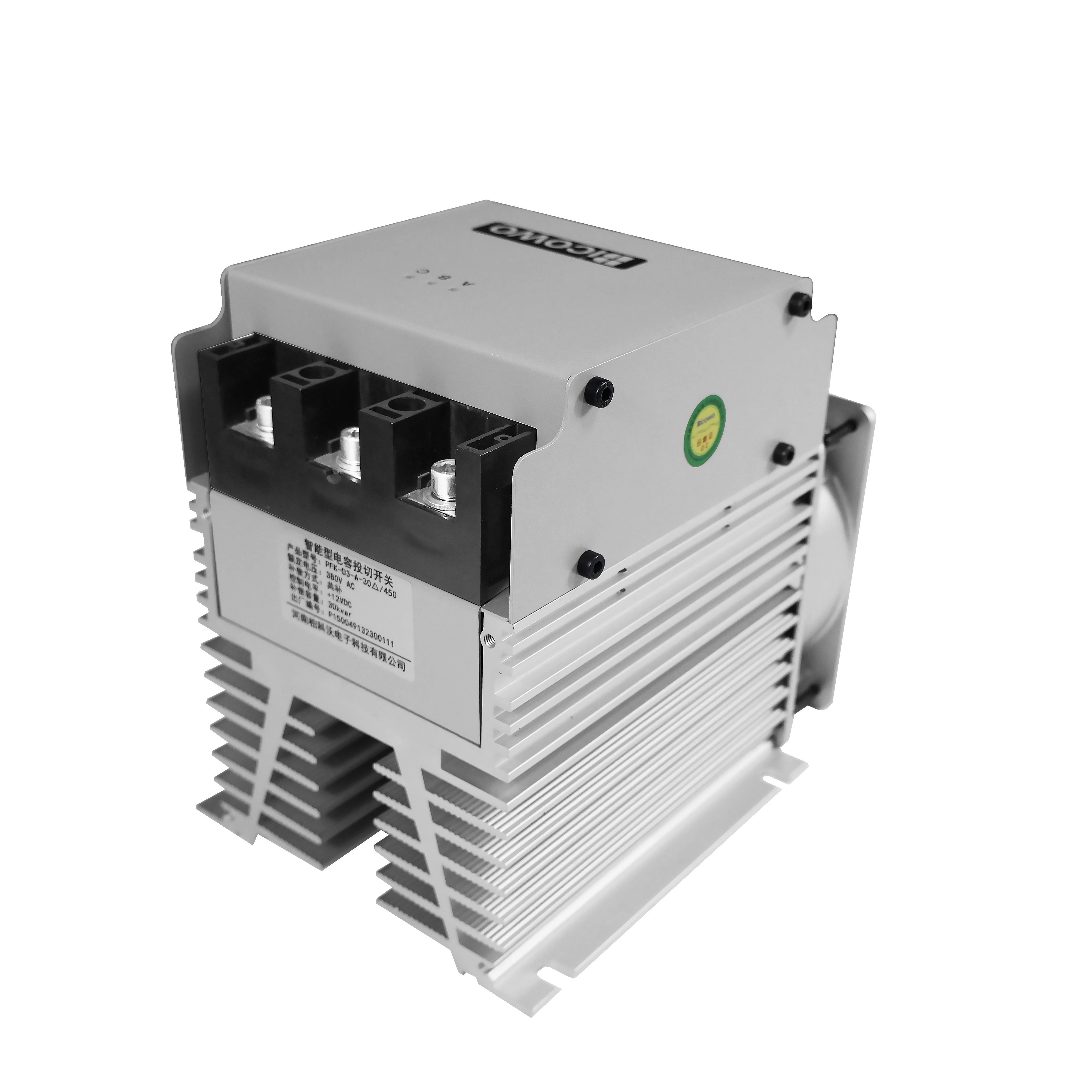

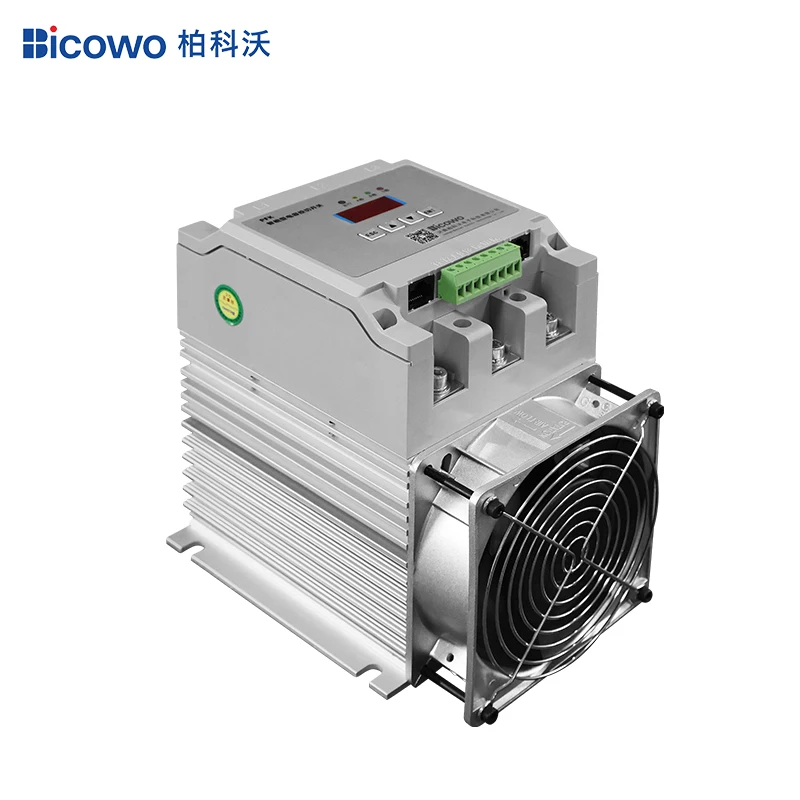

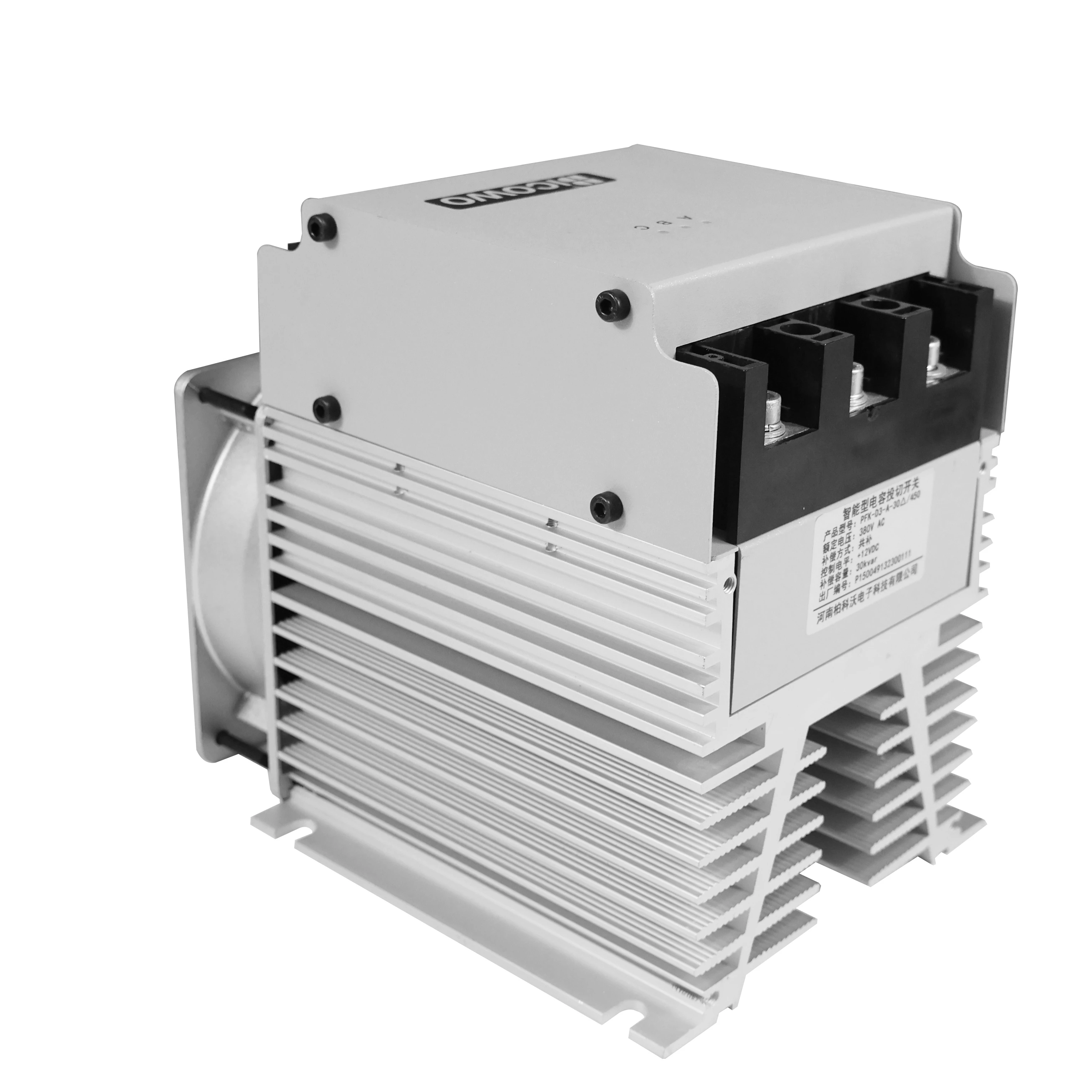

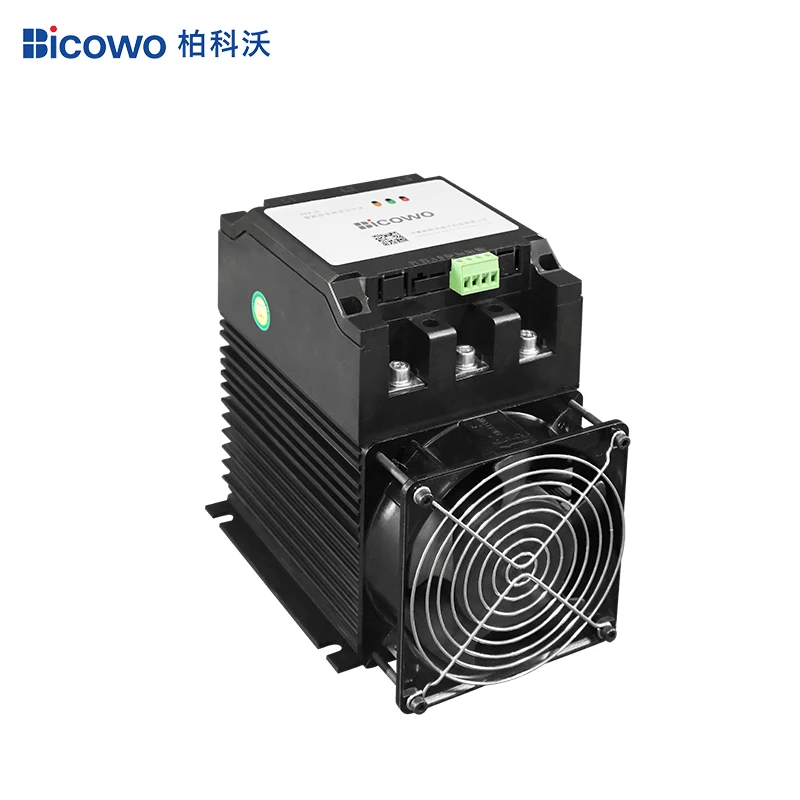

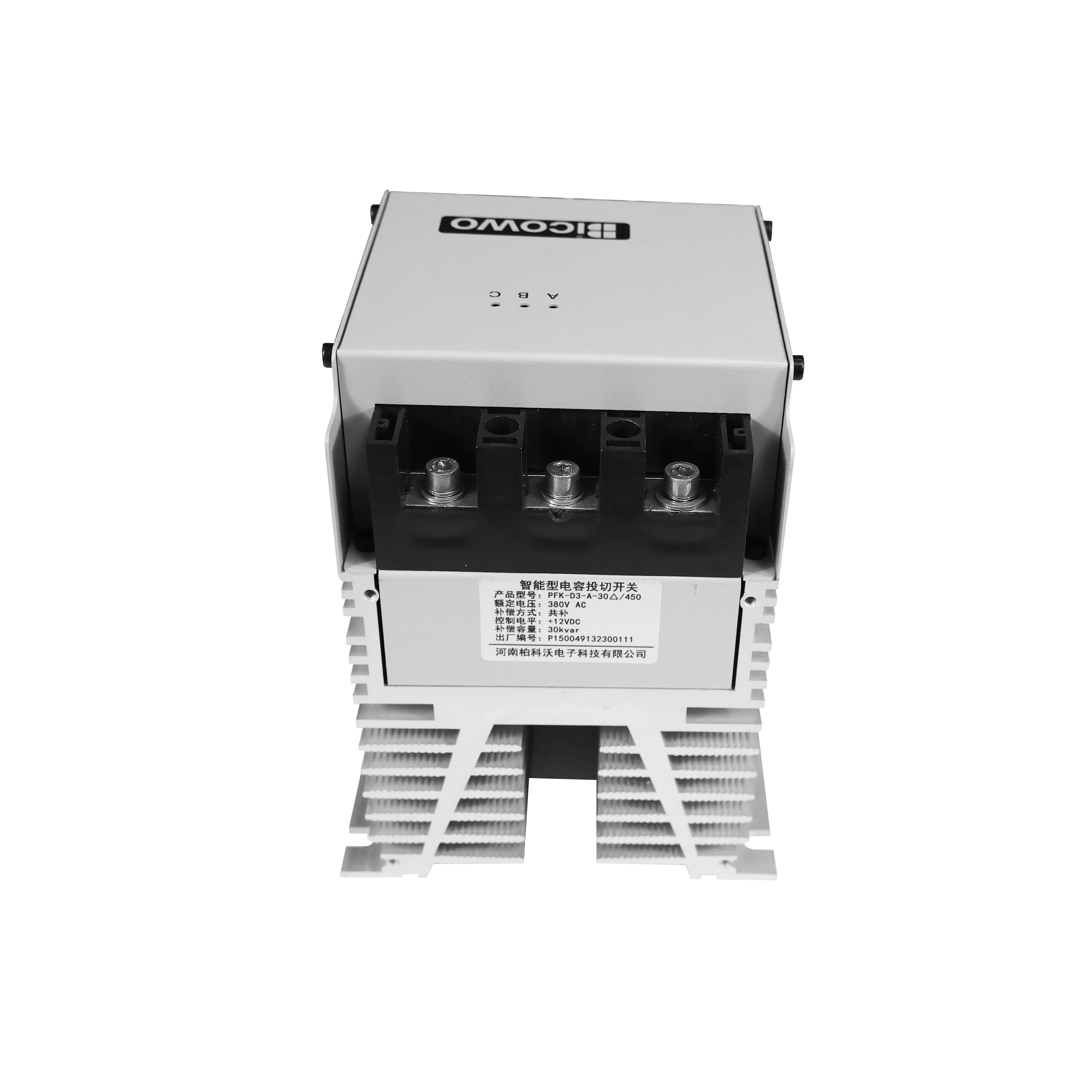

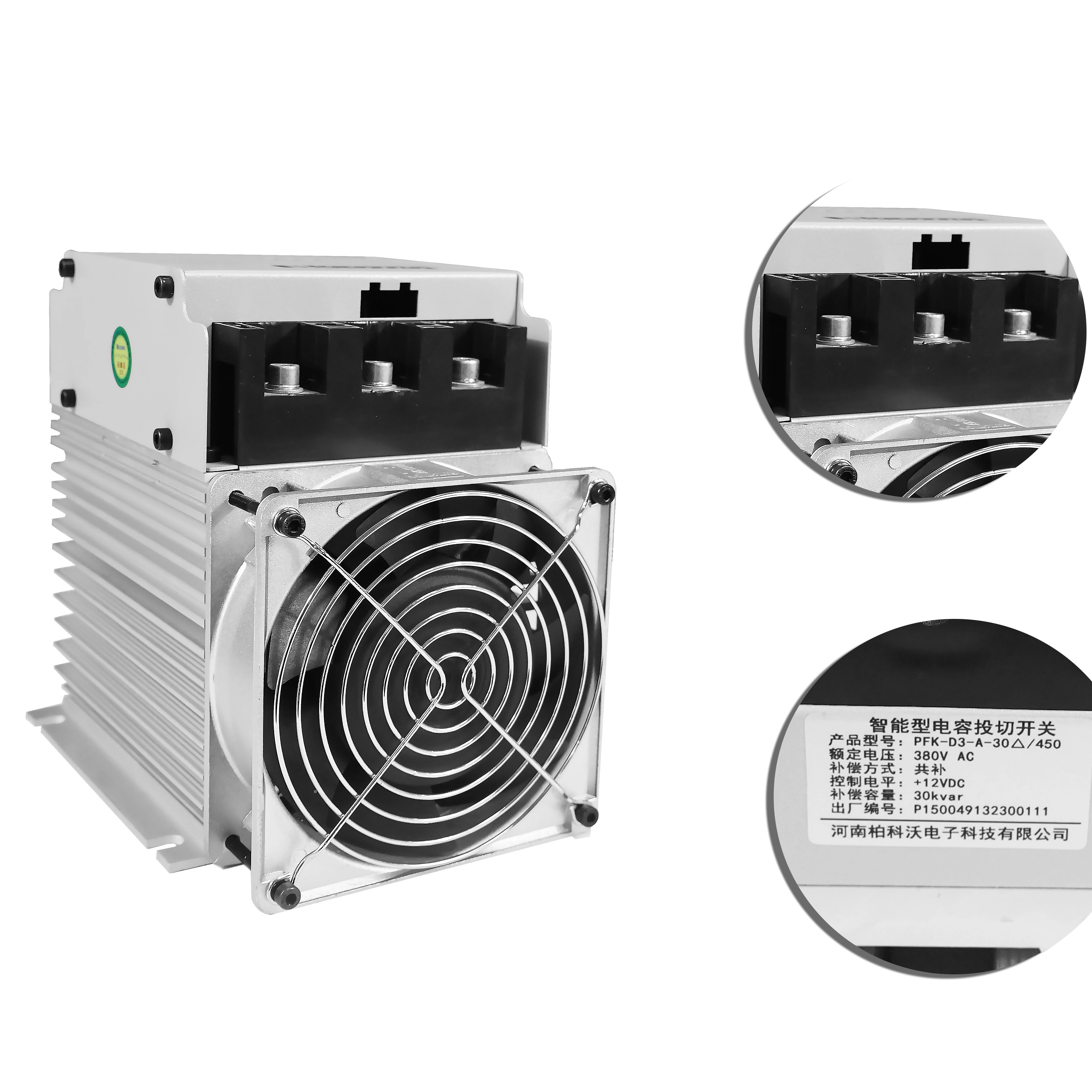

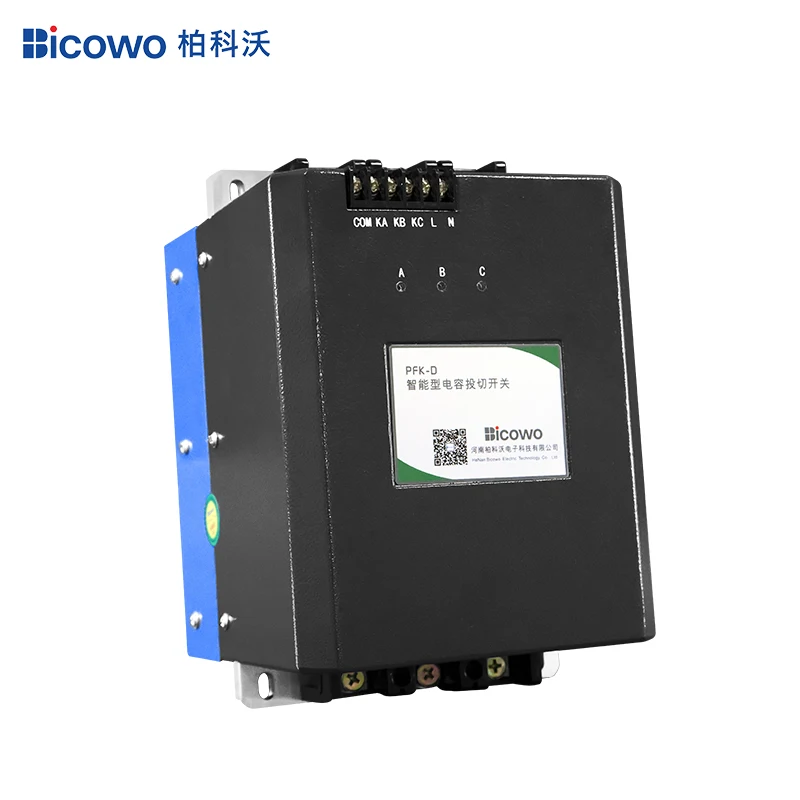

PRODUCT DISPIAY
PRODUCT SPECIFICATIONS
No | Product model | Matching capacitance | Voltage level | Overall dimension |
1 | PFK-D2-A-30△-0.45 | 30kvar | 0.45kv | 262*160*192 |
2 | PFK-D2-A-40△-0.45 | 40kvar | 0.45kv | 262*160*192 |
3 | PFK-D2-A-50△-0.45 | 50kvar | 0.45kv | 262*160*192 |
4 | PFK-D2-A-60△-0.45 | 60kvar | 0.45kv | 262*160*192 |
5 | PFK-D2-A-90△-0.45 | 90kvar | 0.45kv | 262*160*192 |
6 | PFK-D2-A-30Y-0.25 | 30kvar | 0.25kv | 262*160*192 |
7 | PFK-D2-A-40Y-0.25 | 40kvar | 0.25kv | 262*160*192 |
8 | PFK-D2-A-50Y-0.25 | 50kvar | 0.25kv | 262*160*192 |

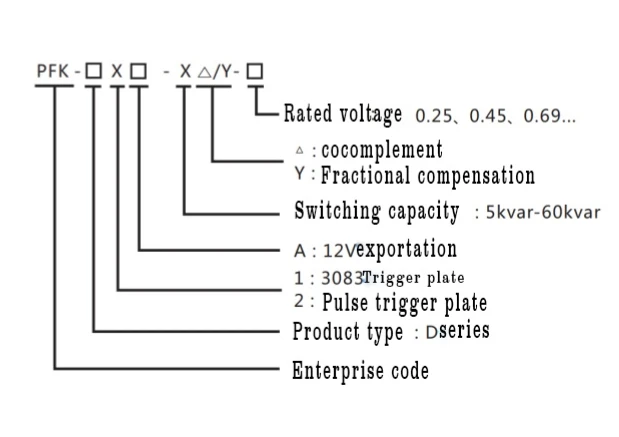

TYPE DESCRIPTION
PRODUCT WIRING DIAGRAM

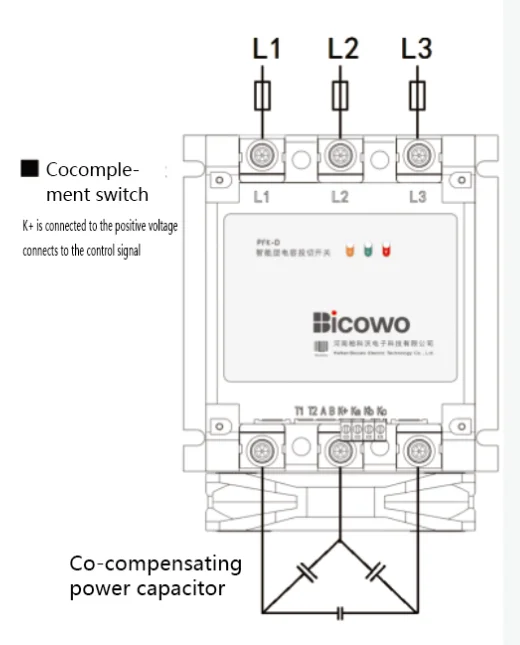

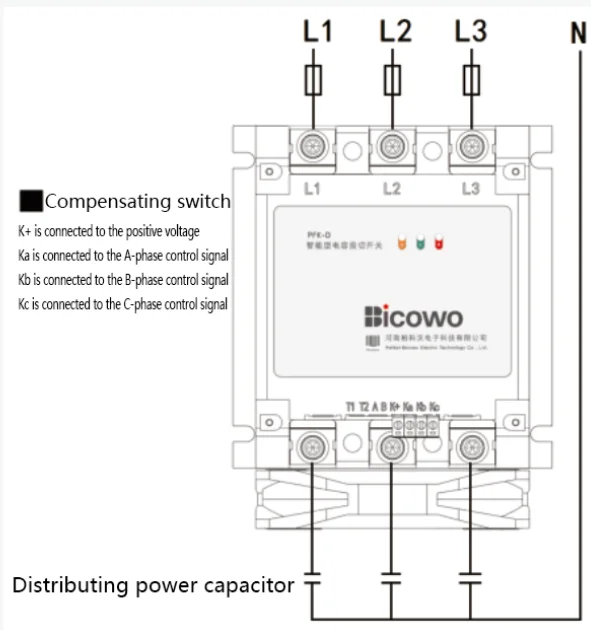

Cocomplement switch Compensating switch
Note: For type B (dry contact output) wiring diagram, refer to the productmanual for wiring diaqram of more than 12 channels

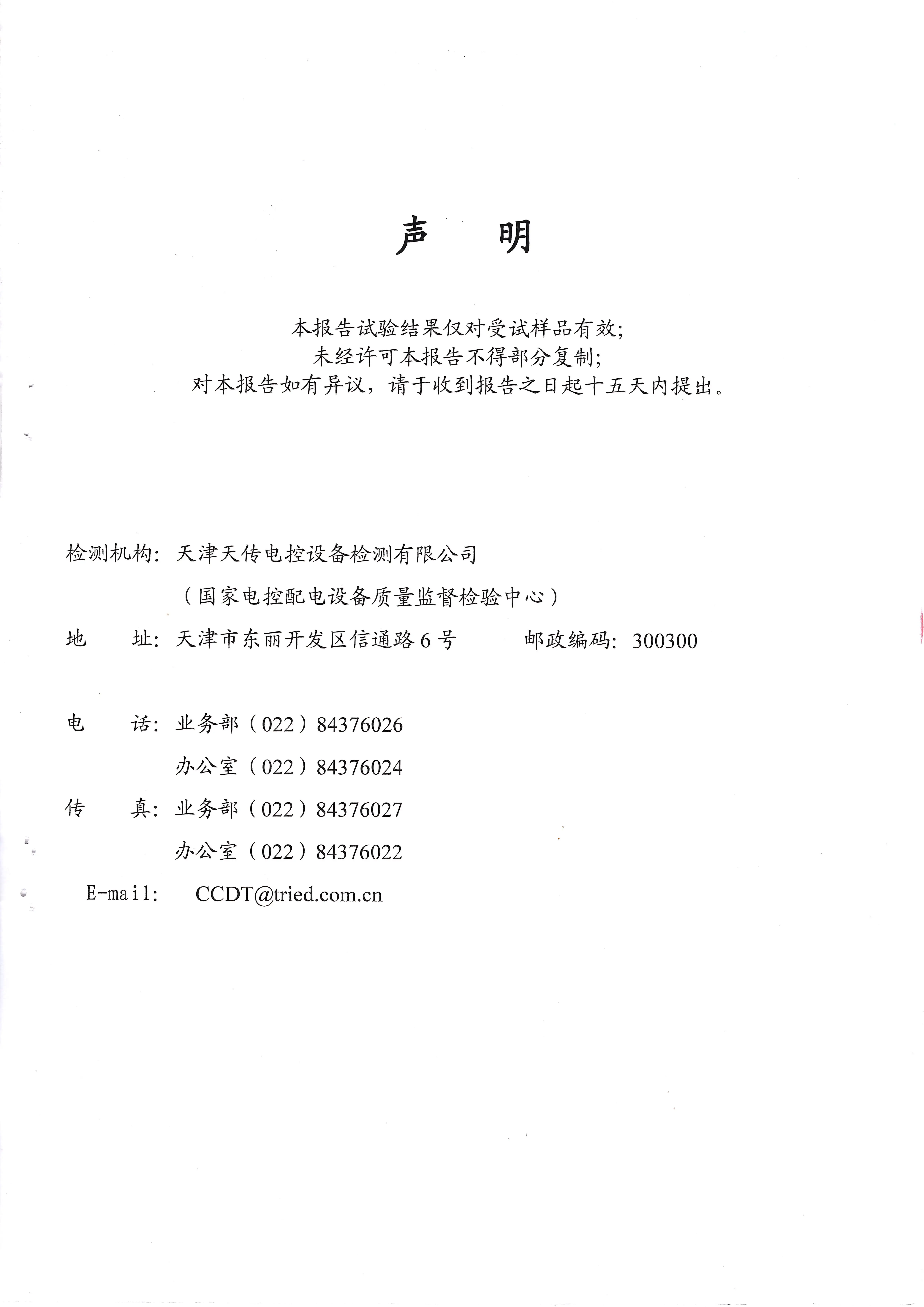

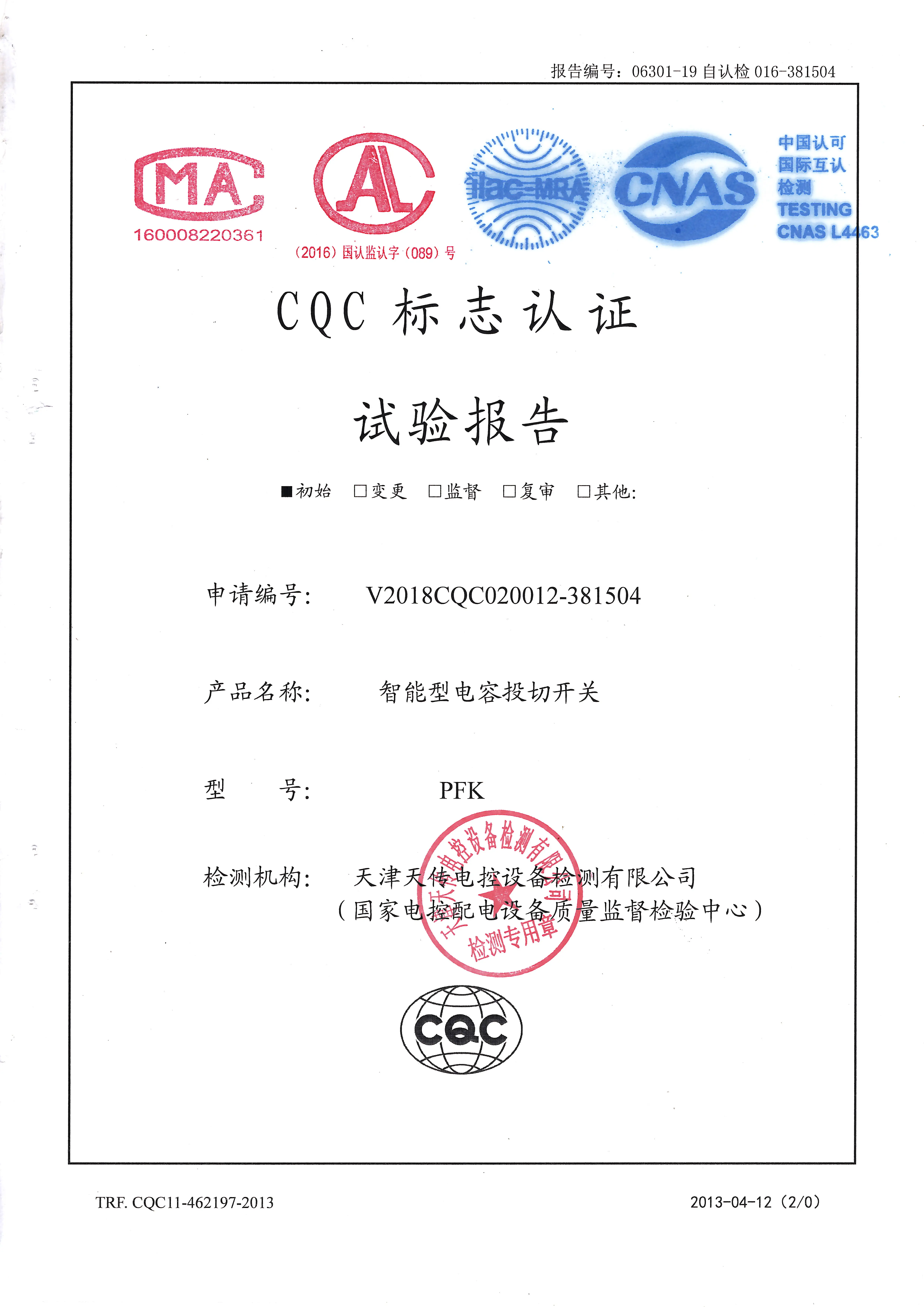

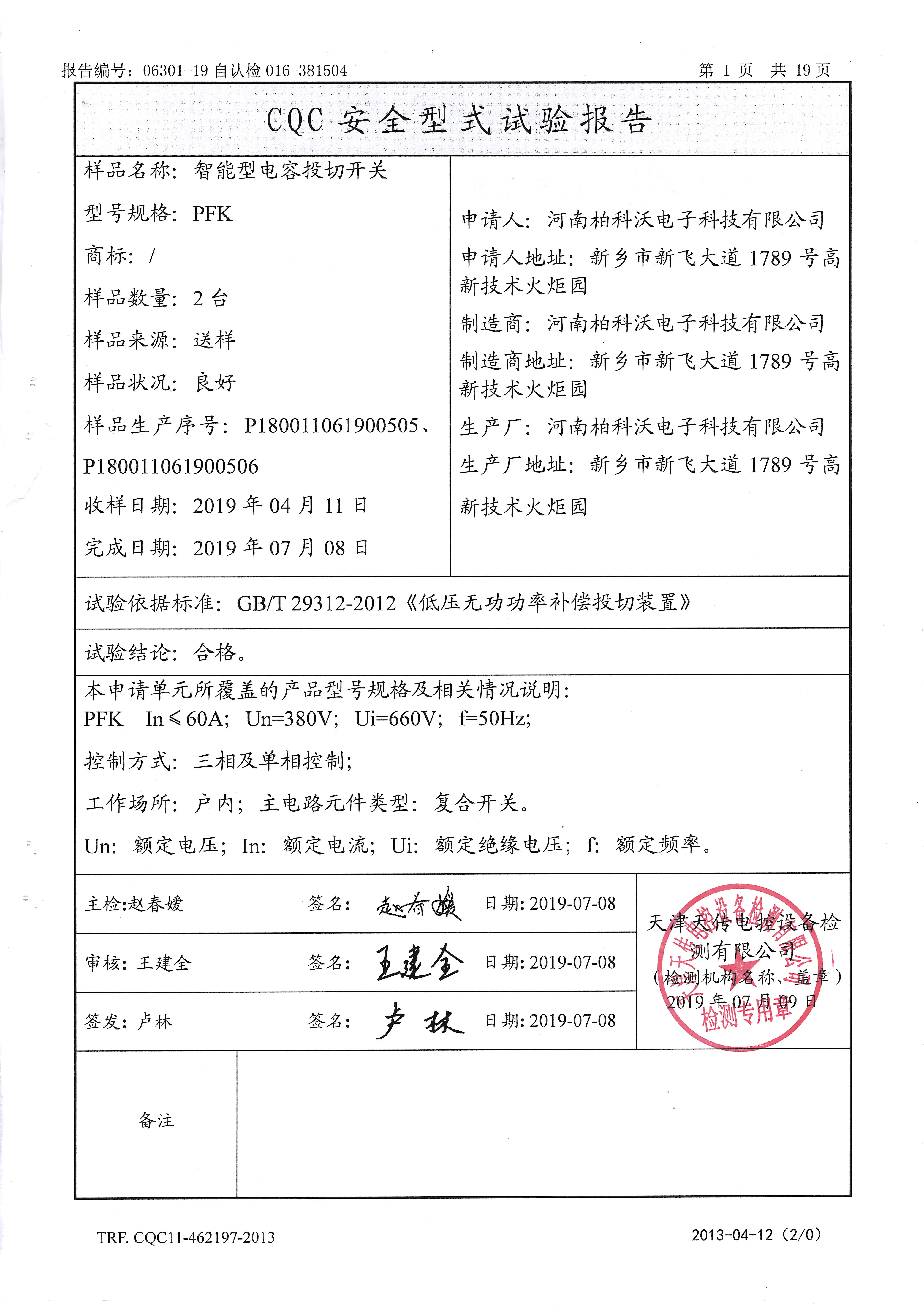

PRODUCT CQC TEST REPORT
SIMILAR PRODUCTS
FAQ
Q：Are you trading company or manufacturer ?
A：Our factory is located in Xinxiang City, Henan Province
Q：Does your company provide customized manufacturing?
A：We provide OEM/ODM service to our customers .Our experienced R＆D team will giour customer solution in a high efff
efficiency way.
Q：How long is your delivery time?
A：3-6 working days for the items were in stock, 15-26days for the items out of stock.
Q：What is your terms of payment ?
A：Small online orders were 100% before delivery, order amount more than $3000, 30% in advance 70% before.
Q：What is your payment terms?
A：Our Payment term is T/, Aliexpress, Western Union, PayPal, L/C
