Zunsia cheap Core11th Network Firewall PC Mainboard 6LAN Computer Server Firewall Rackmount Motherboard for 1U Network Appliance
- Category: >>>
- Supplier: Shenzhen Zunsia Intelligent Technology Co. Ltd.
Share on (1601201079797):
Product Overview
Description
Products Description

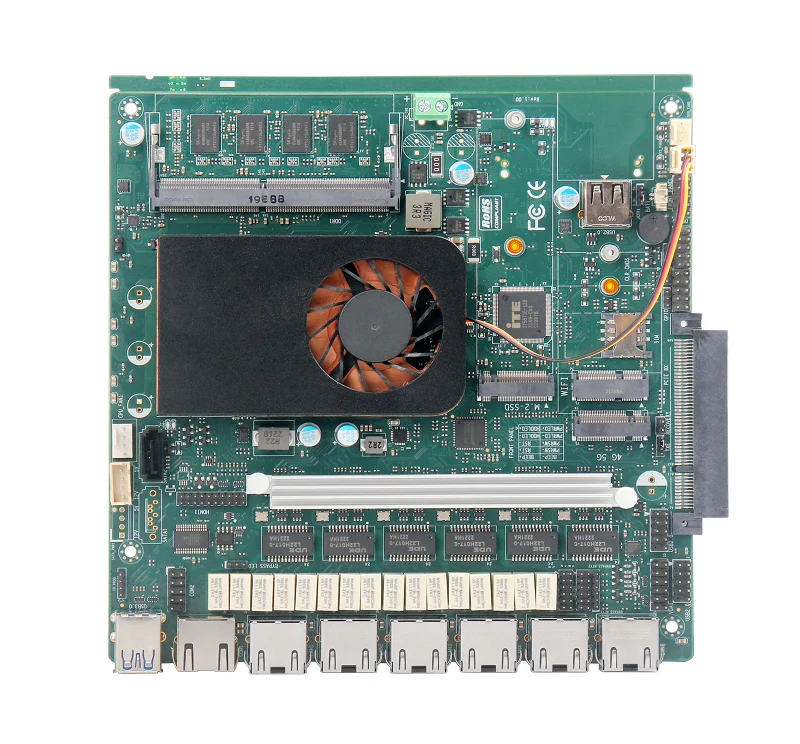

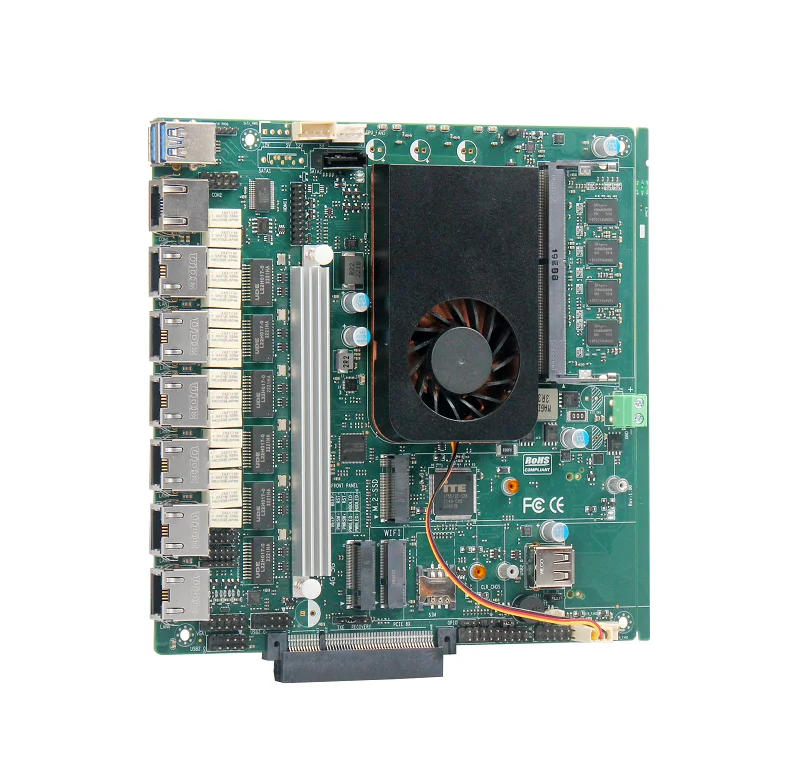

Zunsia Core 11th Network Firewall PC Mainboard 6LAN Computer Server Firewall Rackmount Motherboard for 1U Network Appliance

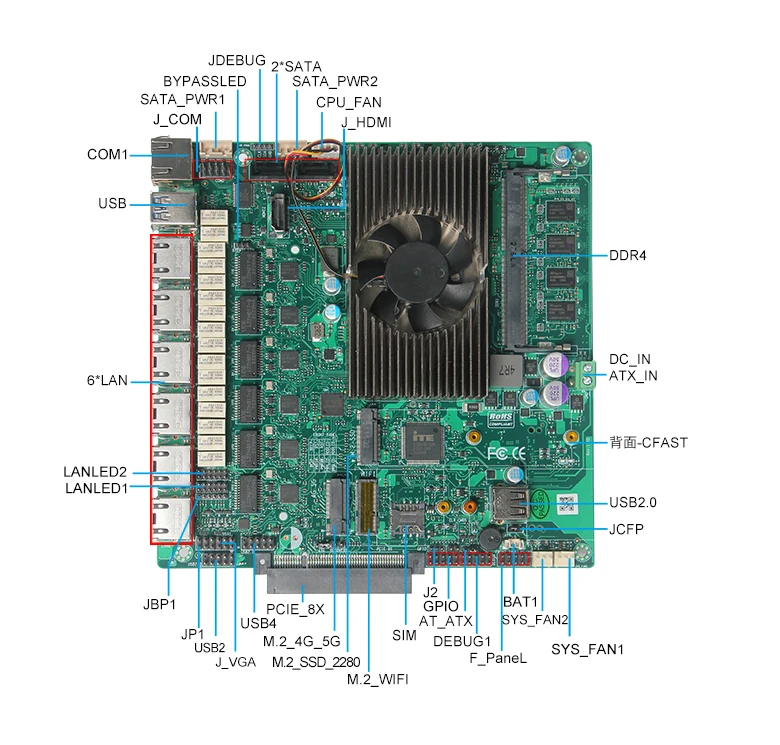

Onboard Intel 11th generation Tiger Lake-U series processors | |
EFI BIOS | |
Memory | 1 x DDR4 SO-DIMM memory slot; On-board memory, up to 16GB, total up to 48GB |
Storage | 1 x M.2 Key-M 2280, NVMe (PCIe4.0_X4) protocol |

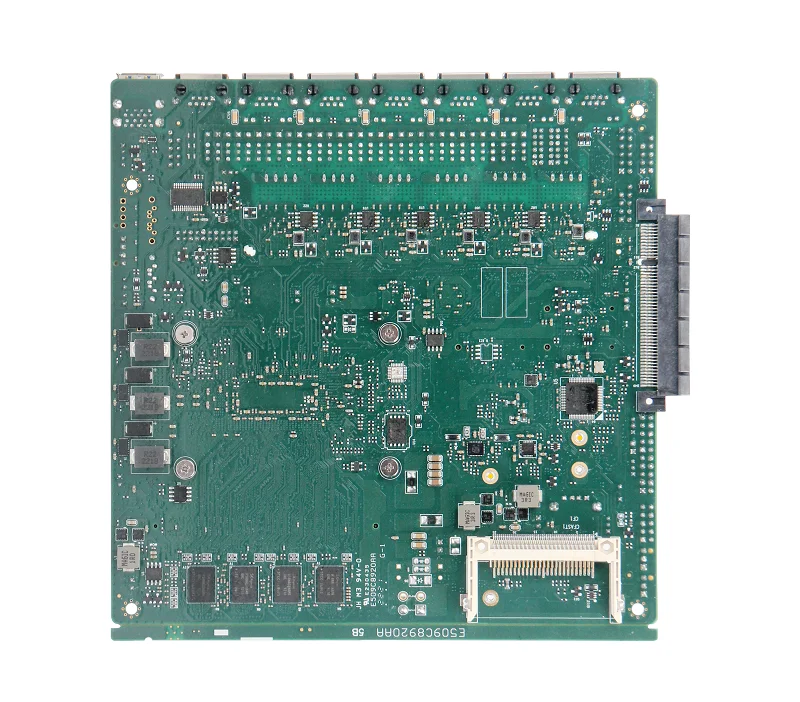

1 x CF card, 3.3V/5V power supply options. Choose between SATA1 and SATA1 | |
2 x SATA3.0, SATA1 or CF card. Default 2 SATA 3.0 | |
Display | 1 set of HDMI 2.0 pin header |
1 x VGA pin header | |

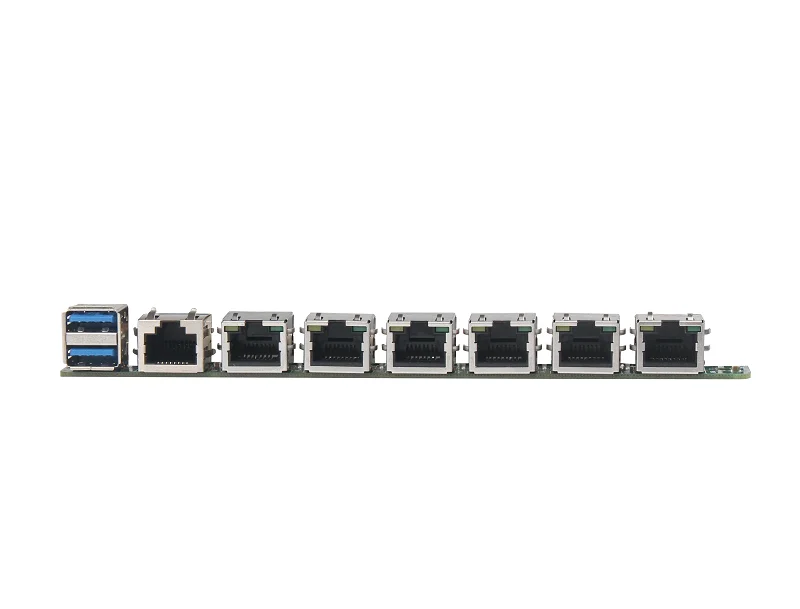

Board side I/O interface | 6 x RJ45, Intel i225V 2.5G network, LAN1/2/3/4 with Bypass |
2 x USB3.0 | |
1 x RS232 (RJ45 interface) | |

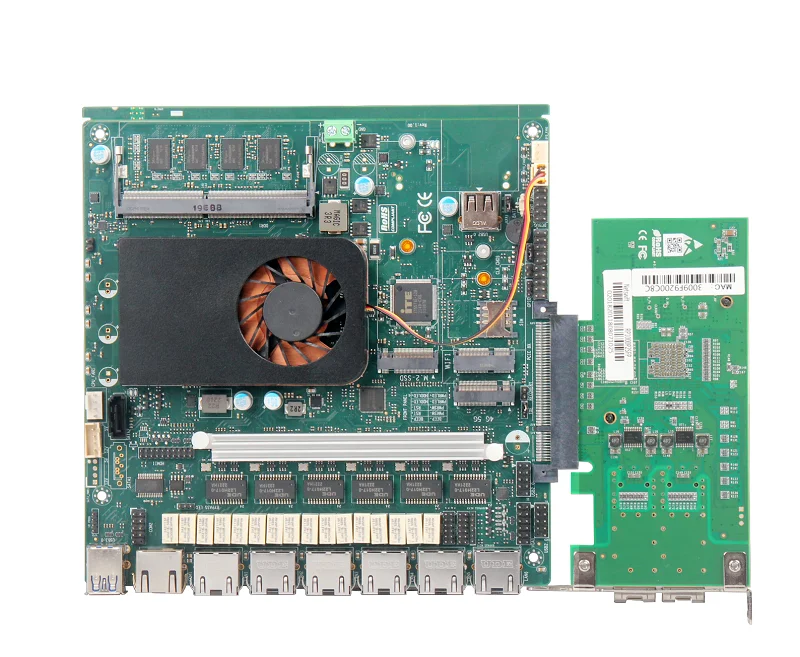

Extended Interface/Function | 1 x PCIe_8X（PCIe3.0_X4） |
1 x M.2 Key-E slot, supporting PCIe_X1 and USB 2.0 protocols, 2230 size WIFI/BT devices | |
1 x M.2 Key-B slot, supporting USB2.0 and USB3.0 protocols, 3G/4G/5G devices | |
TPM2.0, optional | |
F Panel, 2x5Pin, pitch 2.54mm | |
2 sets (4) USB2.0 headers, 2x5Pin, pitch 2.54mm | |
1 x RS232 pin header, 2x5Pin, pitch 2.54mm | |
8-position GPIO header, 2x5Pin, pitch 2.54mm | |
AT/ATX power-on selection | |
1 x 4Pin CPU Smart Fan, 2 x 3Pin System Fan | |
Power supply | DC 9-36V, 90W, copper with fan heatsink |
Working Environment | Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90% |
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90% | |
Operating system | Windows10, Windows11, Linux |
Size,Weight | 170x170 mm |
260g without radiator; 350g with radiator |
Details Images
