Zunsia Industrial J1900 Atom Baytrail 4*i226 LAN WIFI Soft Router Firewall 8GB RAM SATA Single Cheap ATX Nano ITX Motherboard
- Category: >>>
- Supplier: Shenzhen Zunsia Intelligent Technology Co. Ltd.
Share on (1601201279587):
Product Overview
Description
Products Description
Main Features:
◆ with Baytrail-D/I/M serial Processor；◆ J1900\\J1800\\N2806\\N2900；
◆ DDR3 SODIMM 204 Socket ram slot,Max support8G；
◆ 4*Intel I211AT Gigabit Ethernet；
◆ 1*RJ45 Port RS232 or RS485(optional）
◆Onboard 32/64/128G EMMMC chipset（optional）；
◆ Single-input DC power supply, DC12V power supply；
◆ Size: 120 x 120 mm；
Processor | CPU | Support Baytrail-I/D/M serial Processor (J1900 N2900 J1800 N2806) |
CPU package | BGA | |
Chipset | Support Baytrail-I/D/M serial Processor | |
BIOS | EFI BIOS | |
Technology framework | Singel channel DDR3 1066/1333/1600MHz | |
Capacity | Max support 8GB Ram | |
socket | DDR3 SODIMM 204 Socket | |
Video | Graphic controller | Intel HD Graphics |
HDMI | HDMI Resolution maximum 1920x1080 | |
Interface Port | 1*HDMI 1*USB3.0 1*USB2.0 4*LAN 1 * Quick Power On button with indicator 1 * Restart button 1*Power indicator 1*Hard disk indicator 1*DC | |
Network | Controller | 4*Intel I211AT high performance Gigabit Ethernet Port，RJ45 Port |
Cooler | Aluminum alloy heat sink with fan | |
Input/Output Interface | USB | 1*USB2.0 1*USB3.0 Max support +5V/1A |
COM | 1*RJ45 port RS232 or RS485(optional） | |
Extended Bus | Mini-PCle | 1*Mini-PCIe slot ,support PCIe and USB equipment |
SATA | 1*SATAII connector, Maximum transmission rate 3Gb/s | |
EMMC | On board 32/64/128G EMMMC | |
M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 3Gb/s | |
Power Supply | Power Type | Single-input DC power supply, DC12V power supply |
Power consumption | 20W | |
Working temperature | -20℃ ~ +60℃ | |
Storage temperature | -40℃ ~ +85℃ | |
Working humidity | 0% ~ 90%(non-condensing) | |
Storage humidity | 0% ~ 90%(non-condensing) | |
Windows7 Windows8.1 Windows10 Linux When using EMMC to install the system J1900, J1800 CPU only supports Windows8.1 Windows10, E3845 CPU supports Windows8.1 Windows10 Linux | ||
Size | size | 120 *120 mm |
weight | 0.5KG |

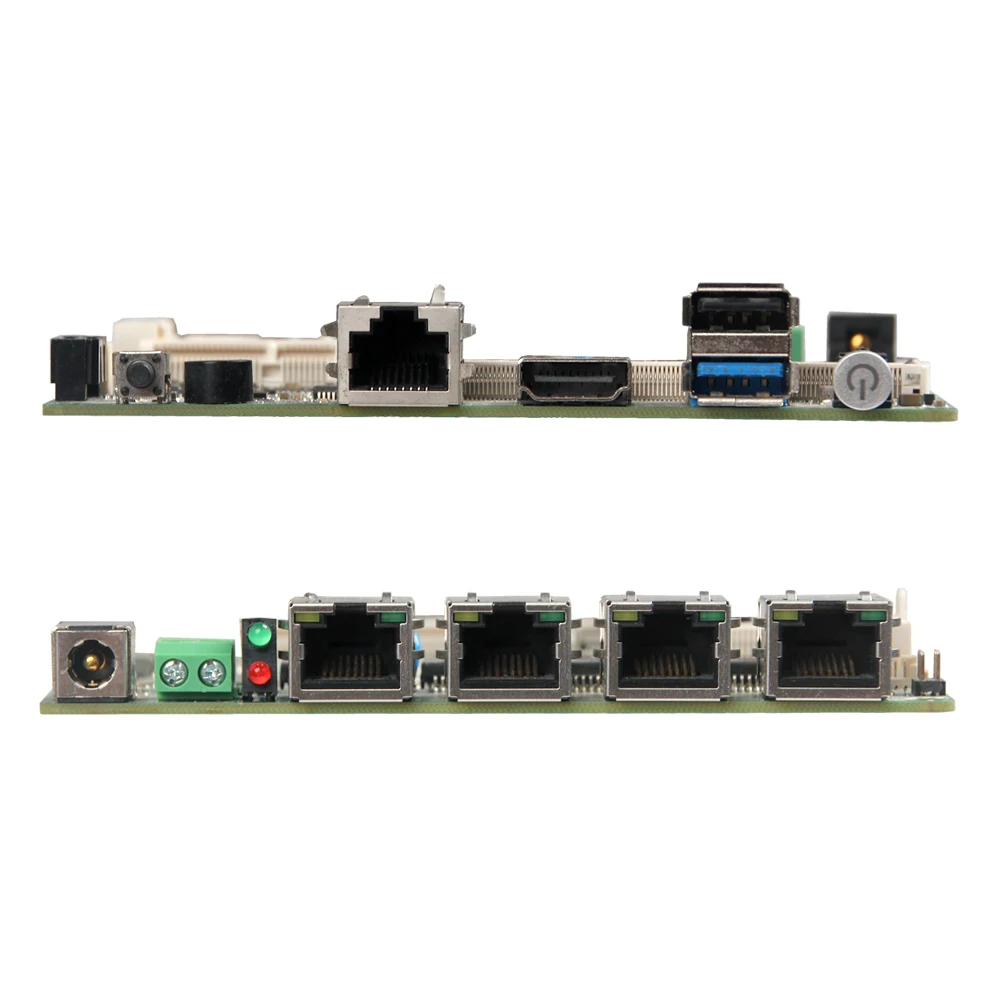

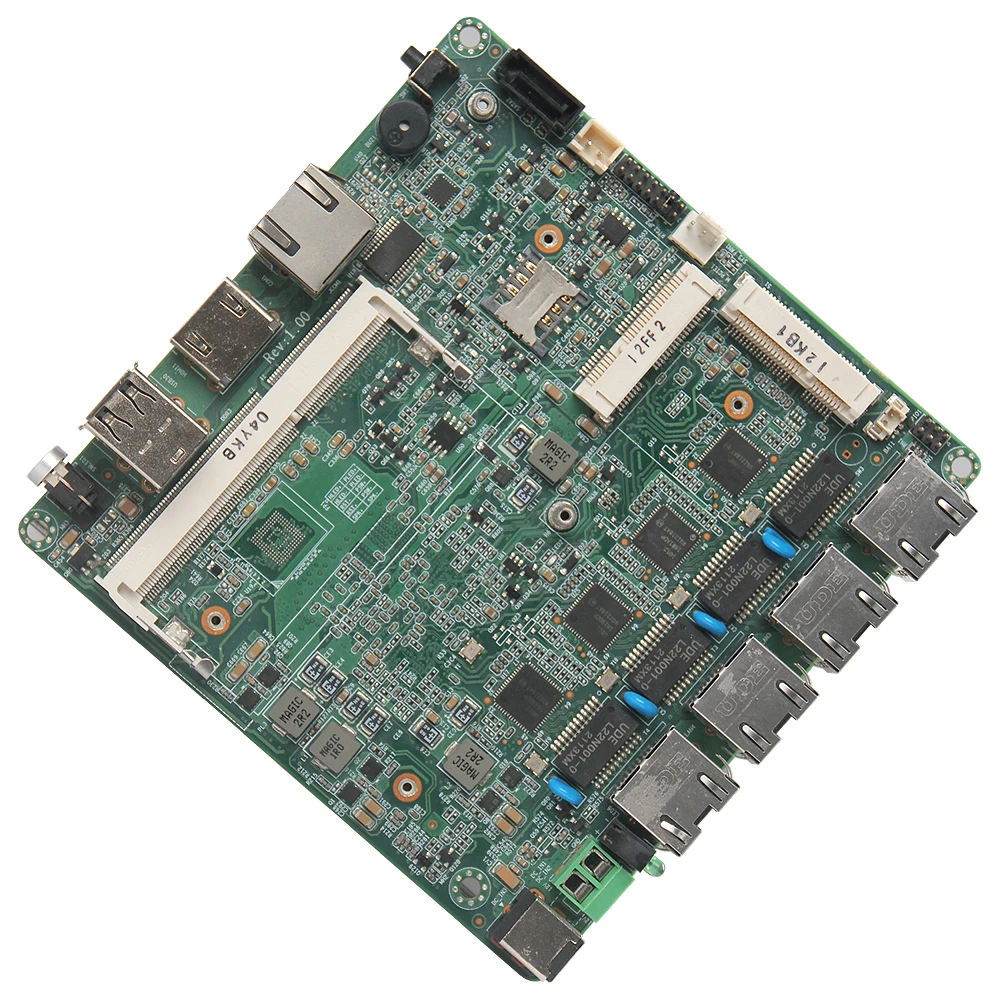

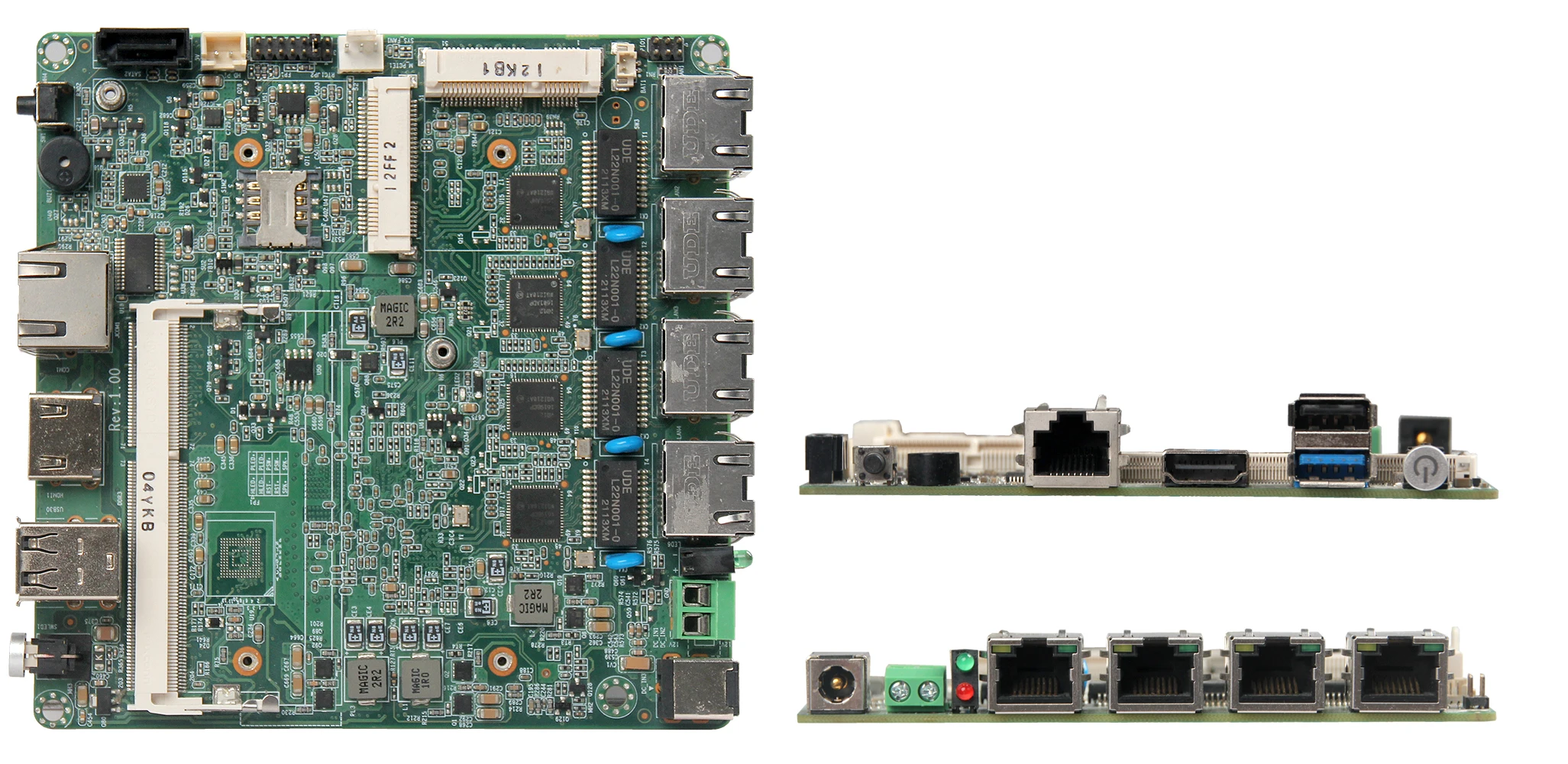

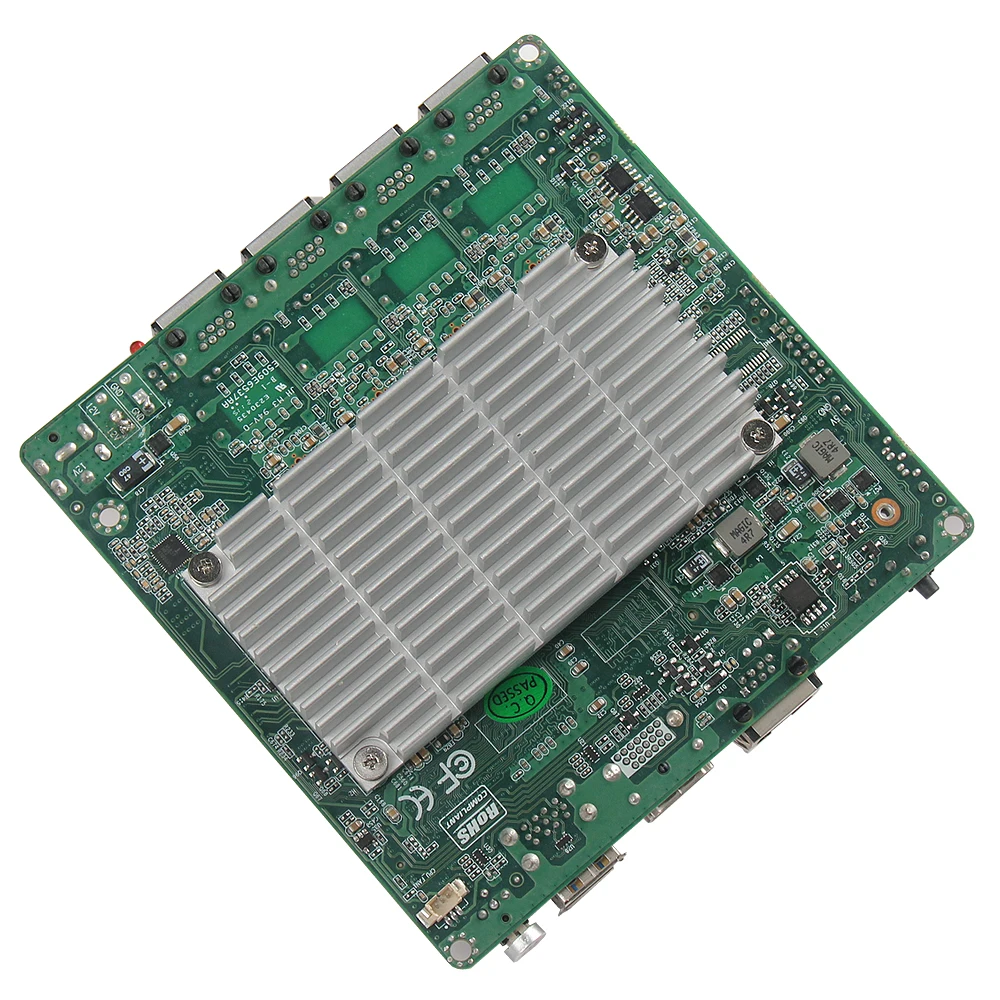

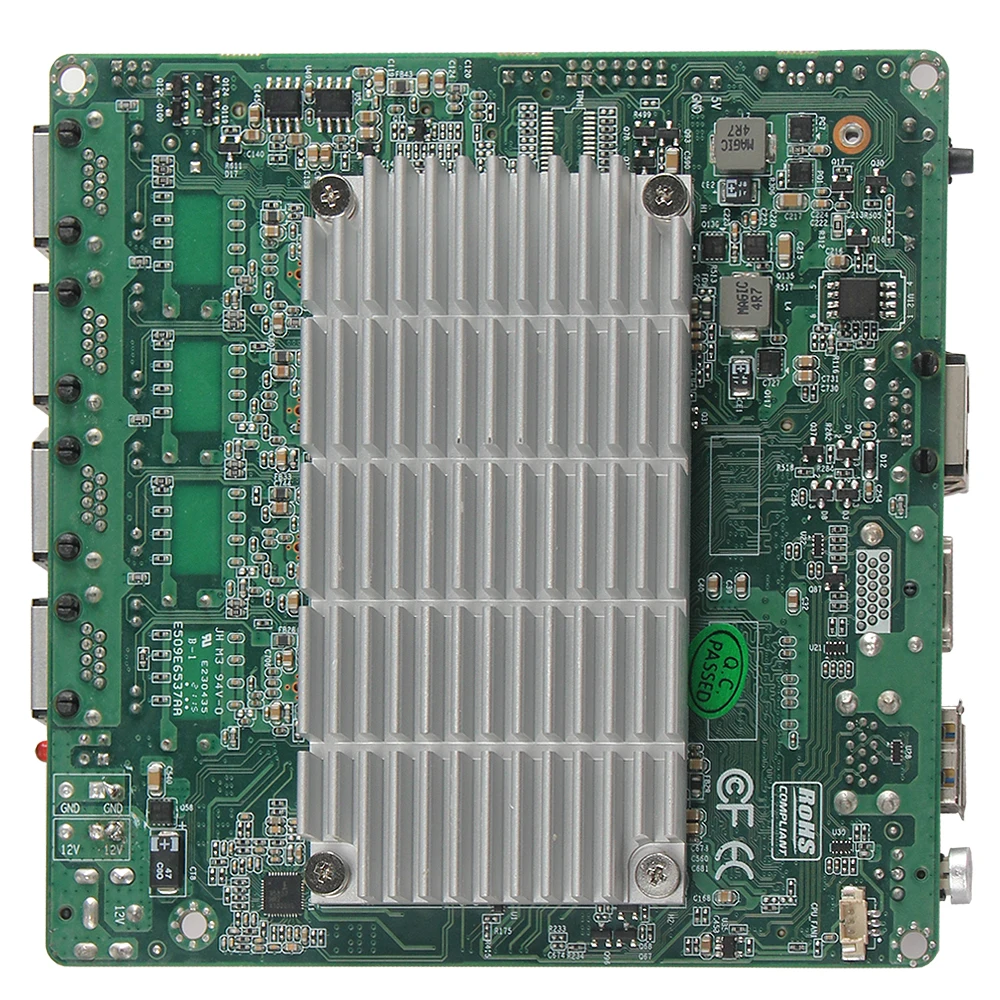

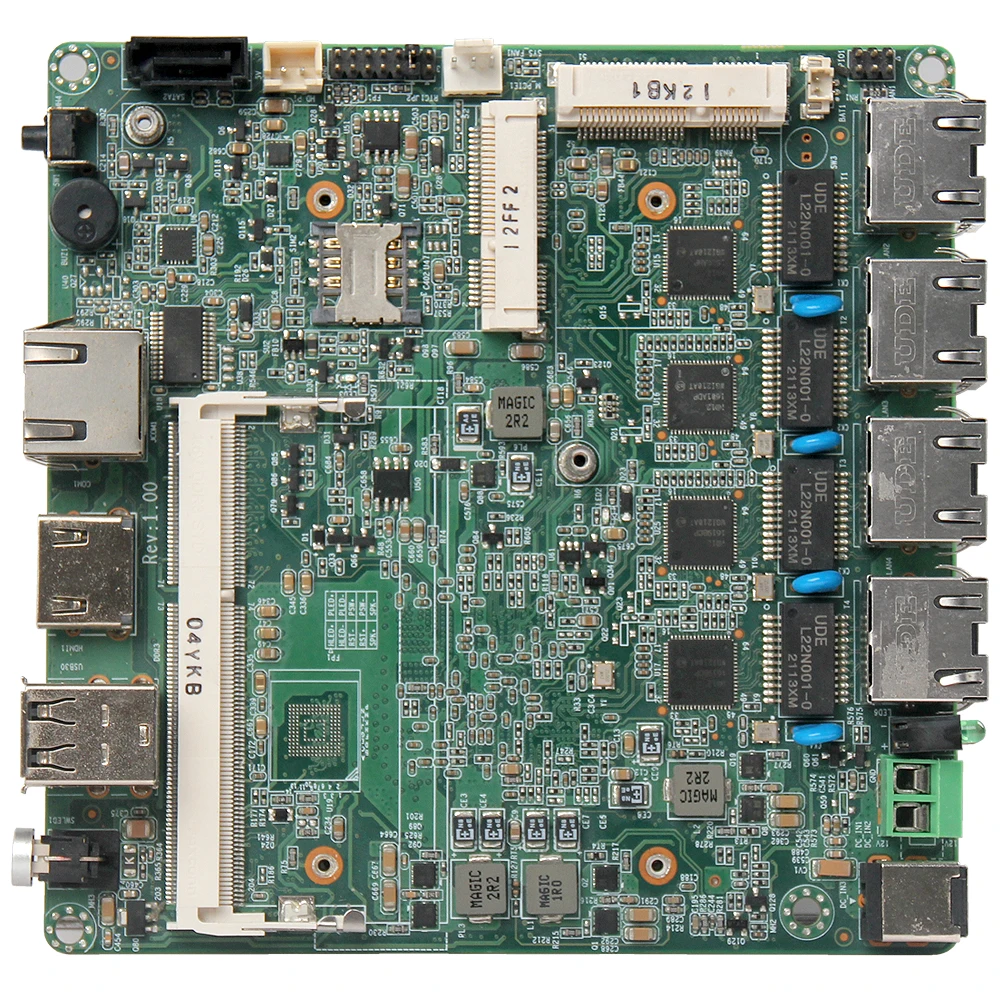

Details Images
Our Services
1.Quality: we check every product carefully before the delivery, and provide 2 years warranty time, if you find problems please contact us in time.
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
Company Profile
Package&Delivery
FAQ
Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order;
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order;
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
