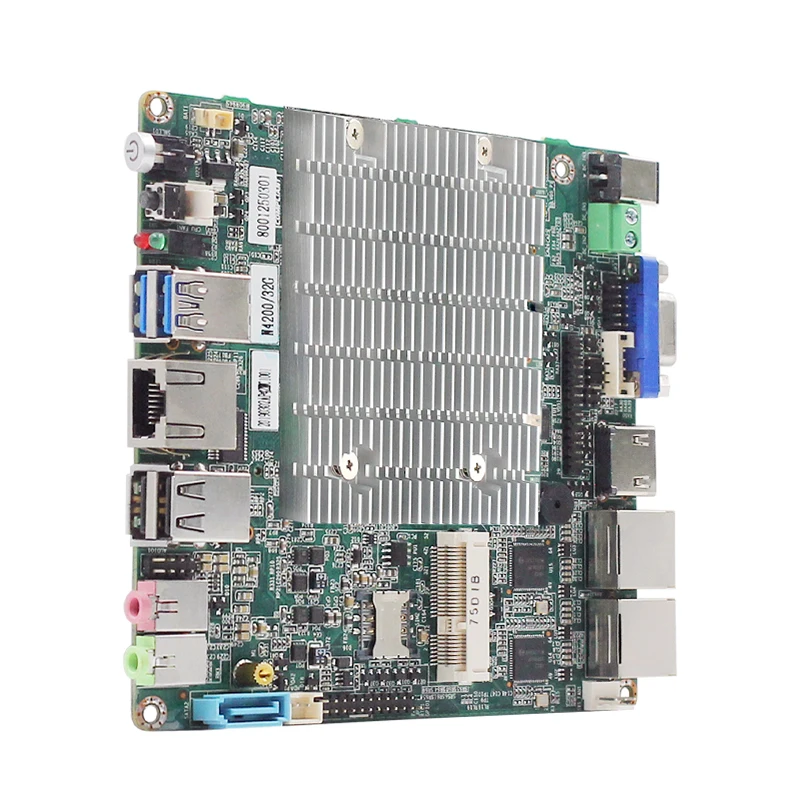

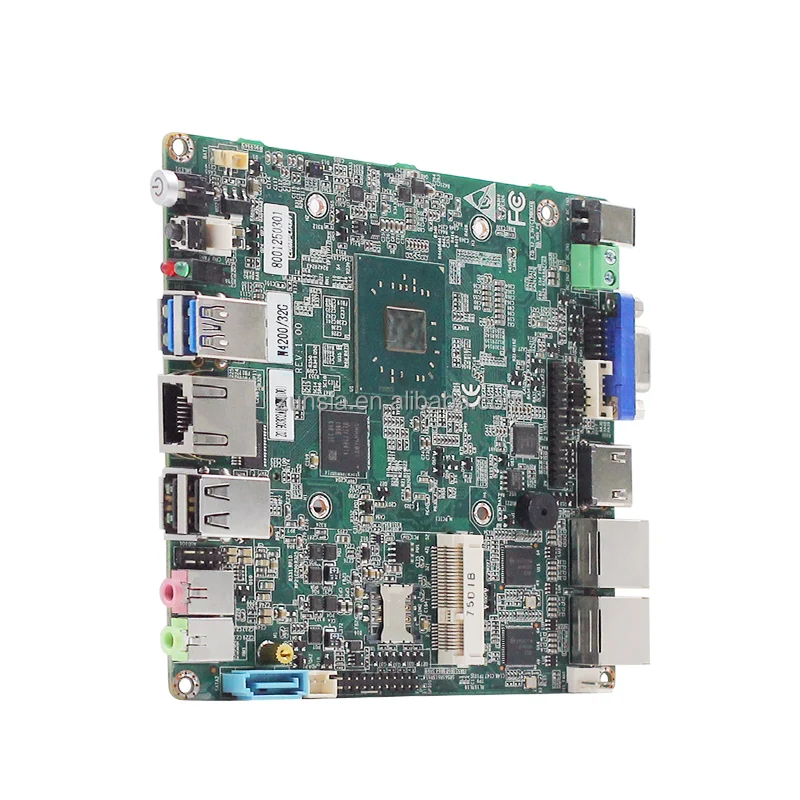

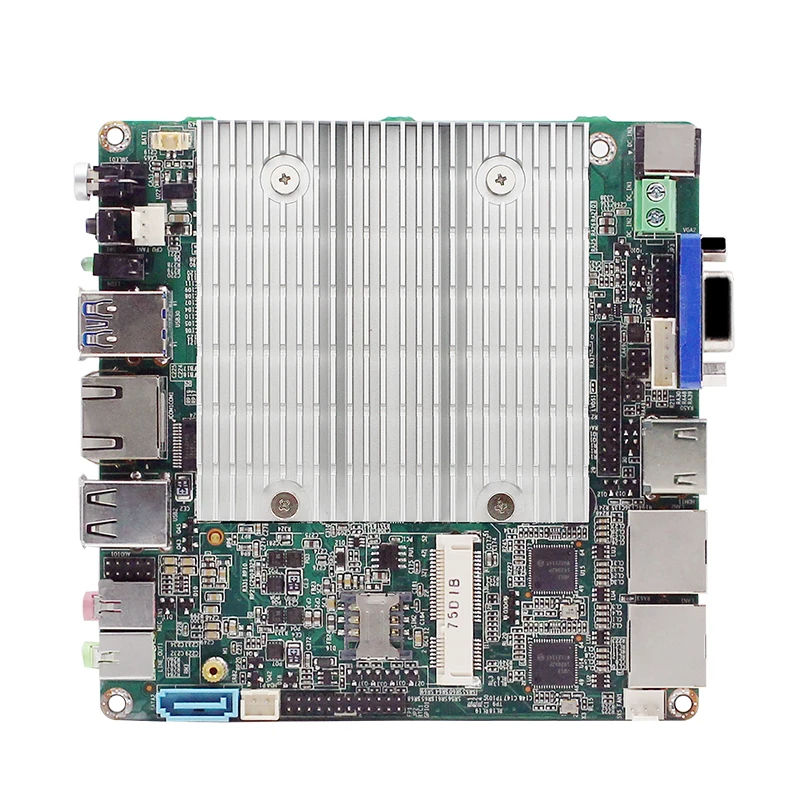

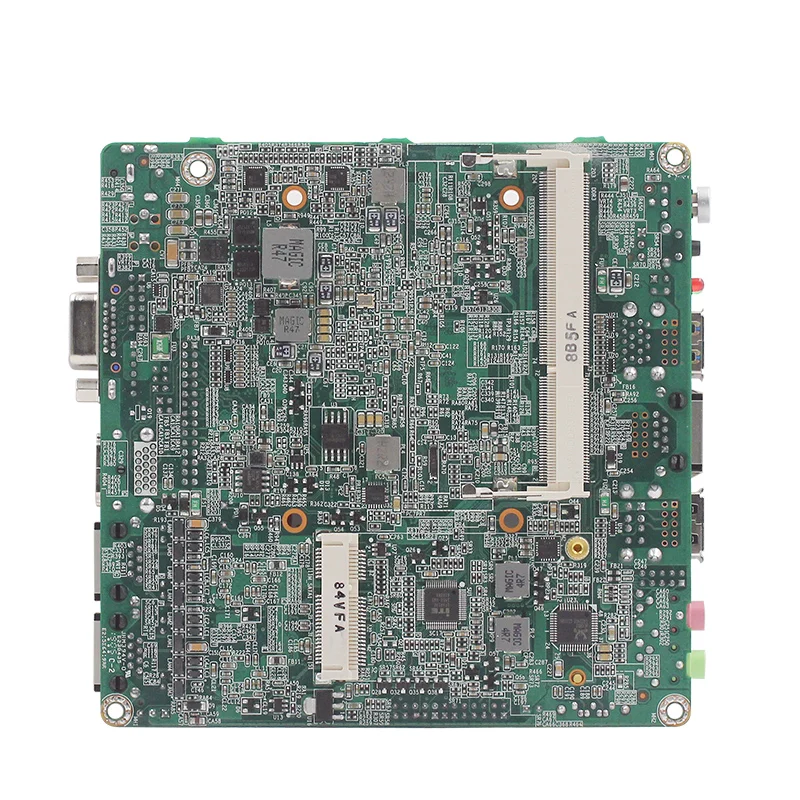

Zunsia Industrial J4205 N3350 Robot Motherboard Apollo Lake Intel Celeron LVDS/HD MI/VGA Nano ITX 8GB RAM SATA MSATA Integrated
- Category: >>>
- Supplier: Shenzhen Zunsia Intelligent Technology Co. Ltd.
Share on (1601201351958):
Product Overview
Description
Products Description
◆ Apollo lake series processor；
◆ DDR3 SODIMM 204 Socket memory socket, max 8GB ram
◆ 1 *RS-232
◆ Support dual channel 24 pin LVDS output and EDP output (can choose one of）。
◆ Onboard 32/64/128G EMMC SSD（optional）；
◆ Power supply: DC12-19V；
◆ Size 120 x 120 mm
◆ DDR3 SODIMM 204 Socket memory socket, max 8GB ram
◆ 1 *RS-232
◆ Support dual channel 24 pin LVDS output and EDP output (can choose one of）。
◆ Onboard 32/64/128G EMMC SSD（optional）；
◆ Power supply: DC12-19V；
◆ Size 120 x 120 mm
Processor | CPU | Apollo lake series processor | |
CPU Package | BGA | ||
Chipset | Apollo lake single chip | ||
BIOS | EFI BIOS | ||
Memory | Technology framework | Single channel DDR3 1066/1333/1600/1866MHz | |
RAM Socket | DDR3 SODIMM 204 Socket | ||
Video | Graphic controller | Intel HD Graphics | |
Dual LVDS and EDP | LVDS Support dual channel 24bit LVDS,Resolution maximum:1920*1200, EDP Resolution maximum: 3840*2160（LVDS&EDP Display alternatively） | ||
VGA | VGA support Resolution maximum:2048x1536 | ||
HDMI | Support Resolution maximum:3840*2160 | ||
Double display support | VGA+HDMI VGA+LVDS LVDS+HDMI Synchronous or asynchronous display | ||
Three Display support | LVDS+VGA+HDMI Synchronous or asynchronous display | ||

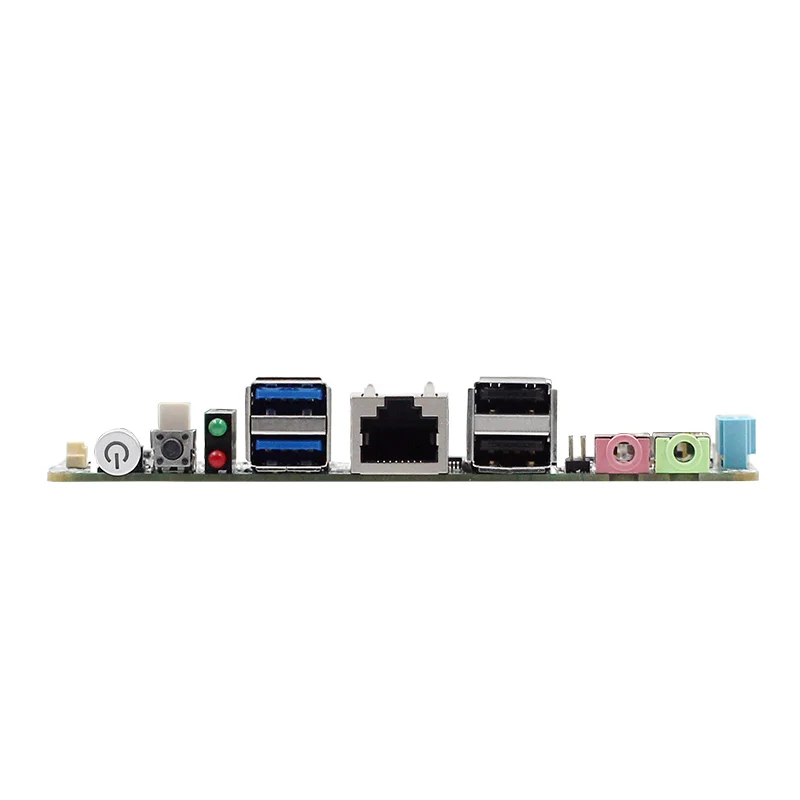

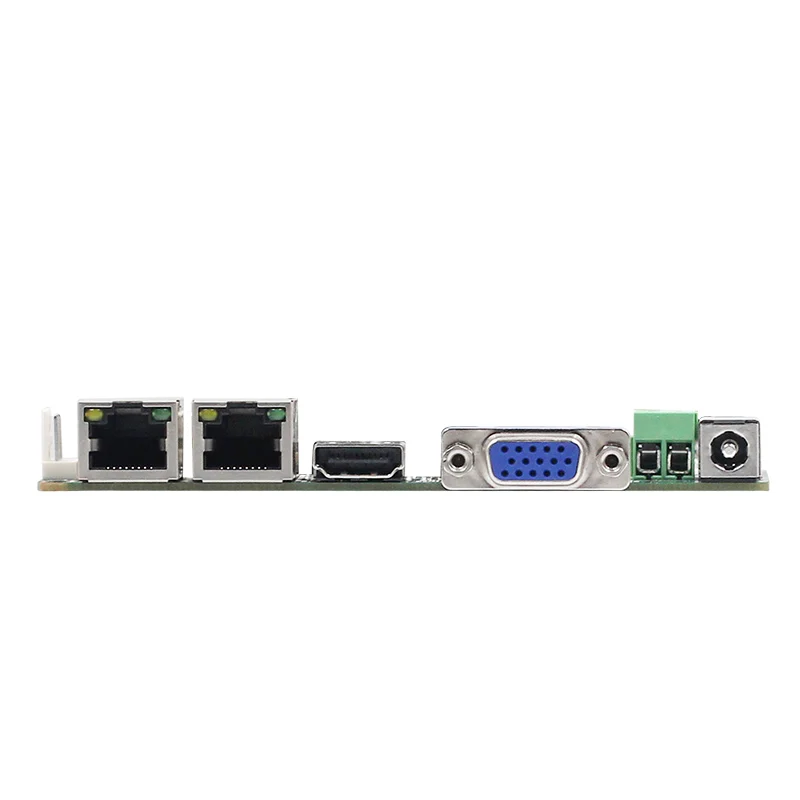

I/O panel | Ports | 1*DC 1*VGA 1*HDMI 2*LAN 1*LINE OUT 1*MIC IN 2*USB2.0 2*USB3.0 1*COM Port（RJ45 interface） 1*Power indicator and hard disk indicator 1*Reset button 1*Fast switch button with indicator | |
Internet | CONTROLLER | 2*Intel I225 Ethernet LAN,RJ45 ports | |
Audio | CONTROLLER | Raychem HD ALC662 audio decoding (left and right channel + microphone) | |
Super I/O | CONTROLLER | ITE8613 | |
HARDWARE MONITORING | Watchdog timer | 0-255sec, sample code optional | |
Cooler | Aluminum fan heater (fanless available) | ||
Input/Output Interface | USB | 2*USB2.0,2*USB3.0max support +5V/1A | |
Com port | 1*RS-232（RJ45 interface） | ||
GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | ||
EXPANSION BUS | Mini-PCle | 1 Mini-PCIe slot, only supports PCIE protocol modules | |
STORAGE | SATA | 1 standard SATAIII interface, maximum transfer rate 6Gb/s | |
M-SATA | 1 M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s | ||
EMMC | 32/64/128G（optional） | ||
POWER SUPPLY | Power Type | Single input DC power supply, DC12-19V, +/- 5% | |
WORKING ENVIRONMENT | Working temperature | -20℃ ~ +60℃ | |
Storage temperature | -40℃ ~ +85℃ | ||
Working humidity | 0% ~ 90% | ||
Storage humidity | 0% ~ 90% | ||
Supported System | Windows10 Linux（E3940 CPU can support Android） | ||
MEASURE | Size | 120 x 120 mm | |
Weight | 0.5KG | ||
CERTIFICATION | CE,ROHS,FCC | CE,ROHS,FCC | |
