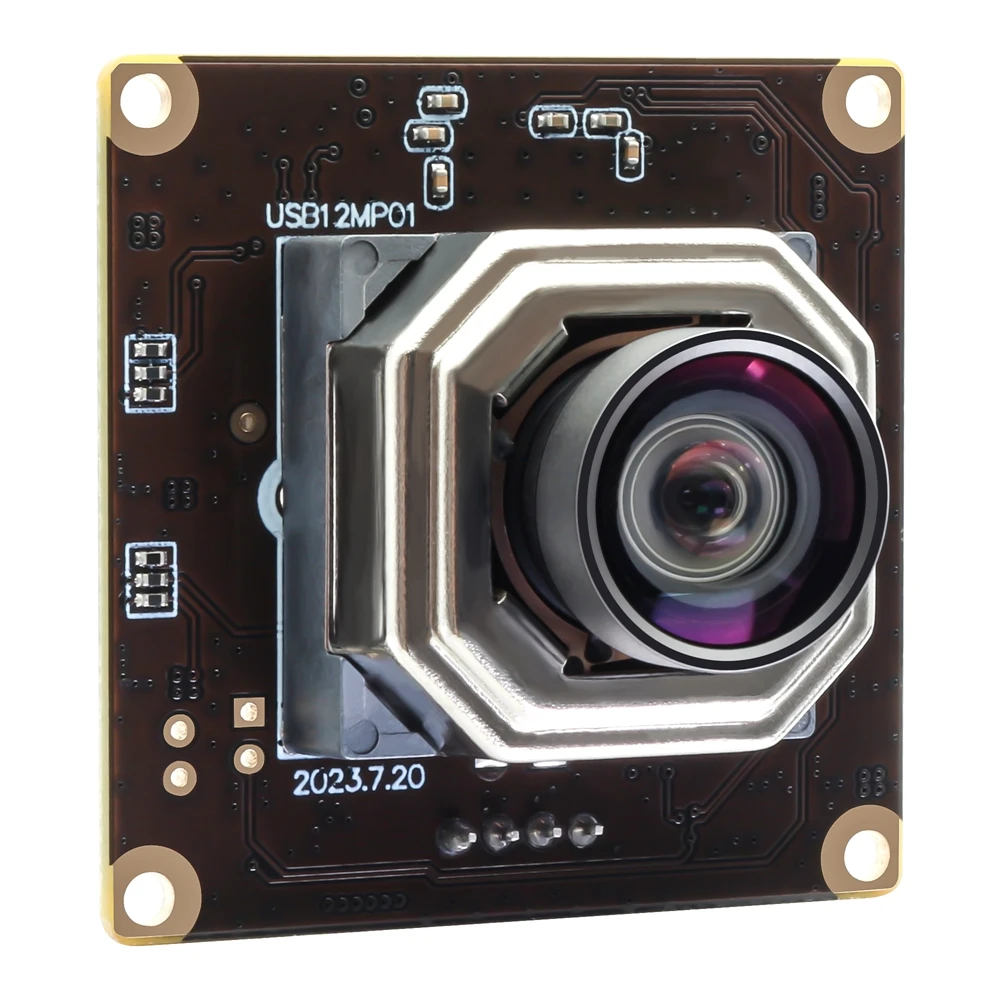

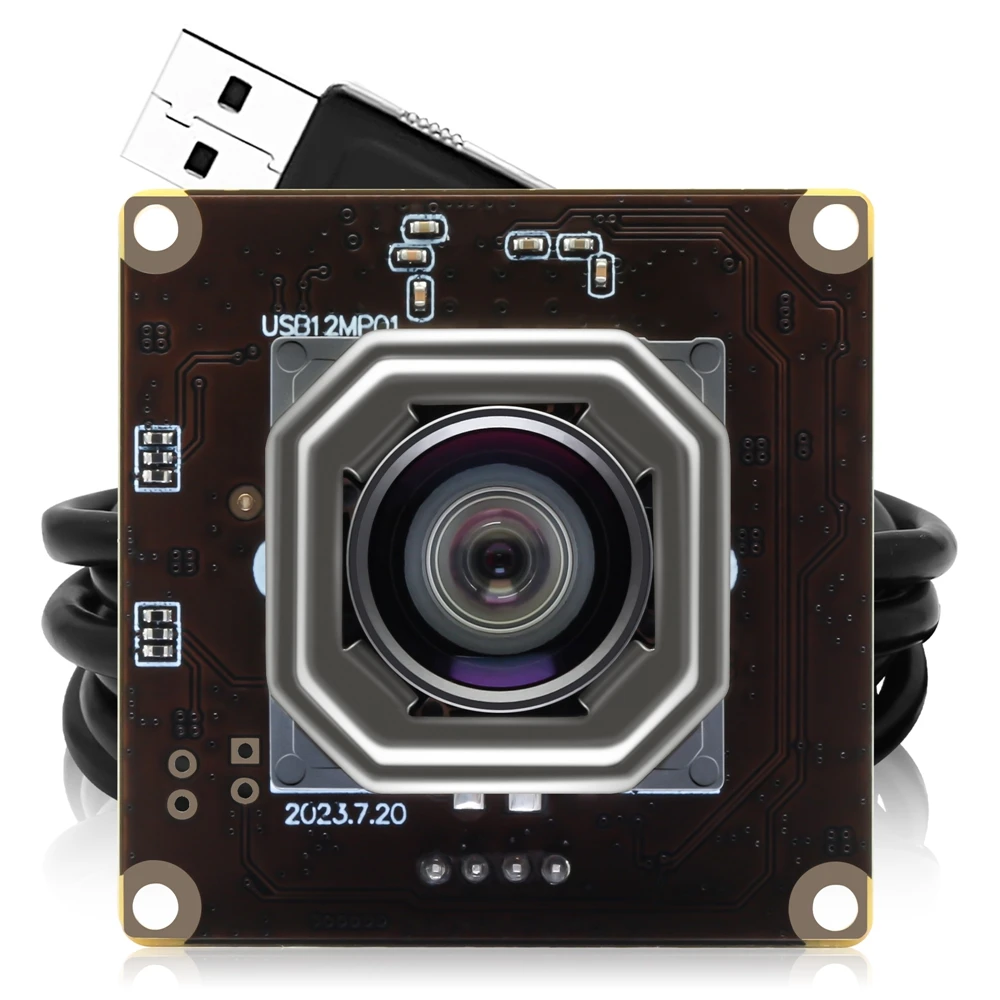

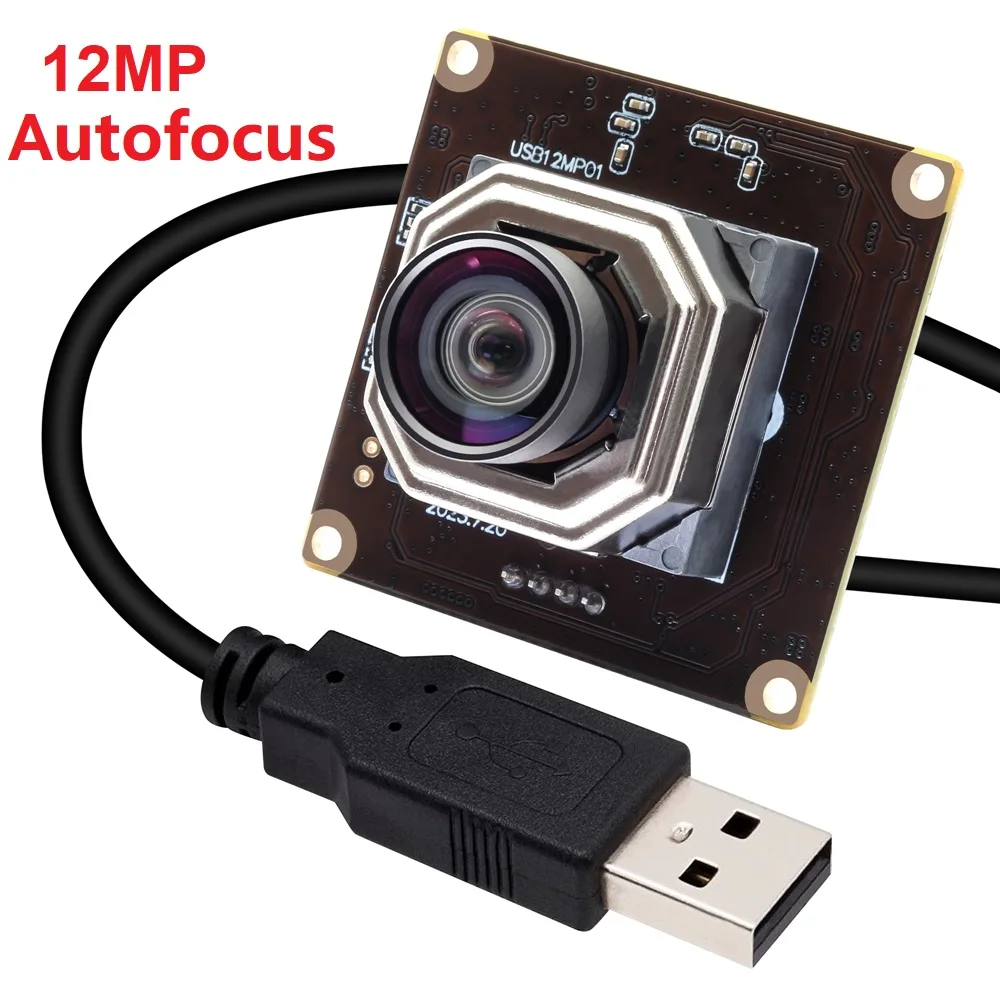

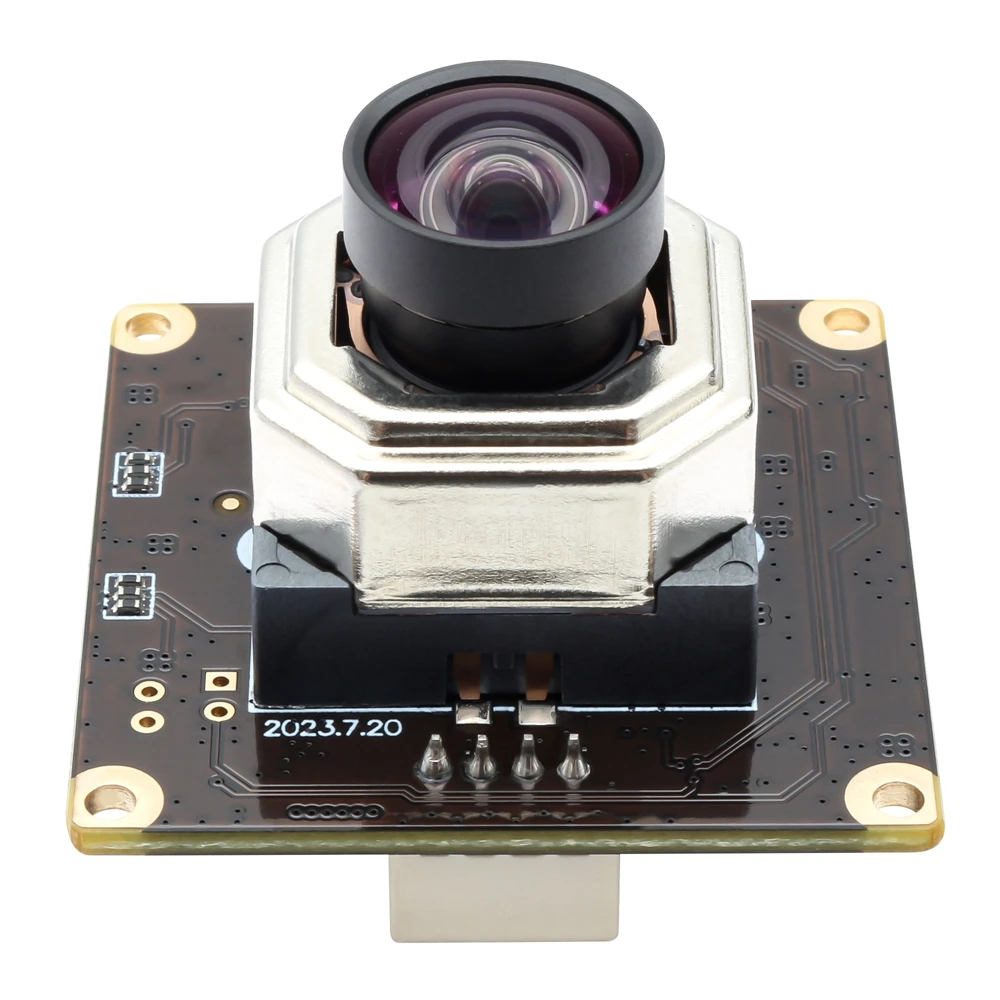

ELP 12Megapixels Autofocus PC Webcam Golf Swing Machine Vision 3840x3040P 20fps 2160P 30fps 1080P 120fps AF Mini USB Camera
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1601201545378):
Product Overview
Description
SHENZHEN AILIPU TECHNOLOGY CO LTD
20+Years Professional USB Camera Designer and Manufacturer,OEM ODM Support

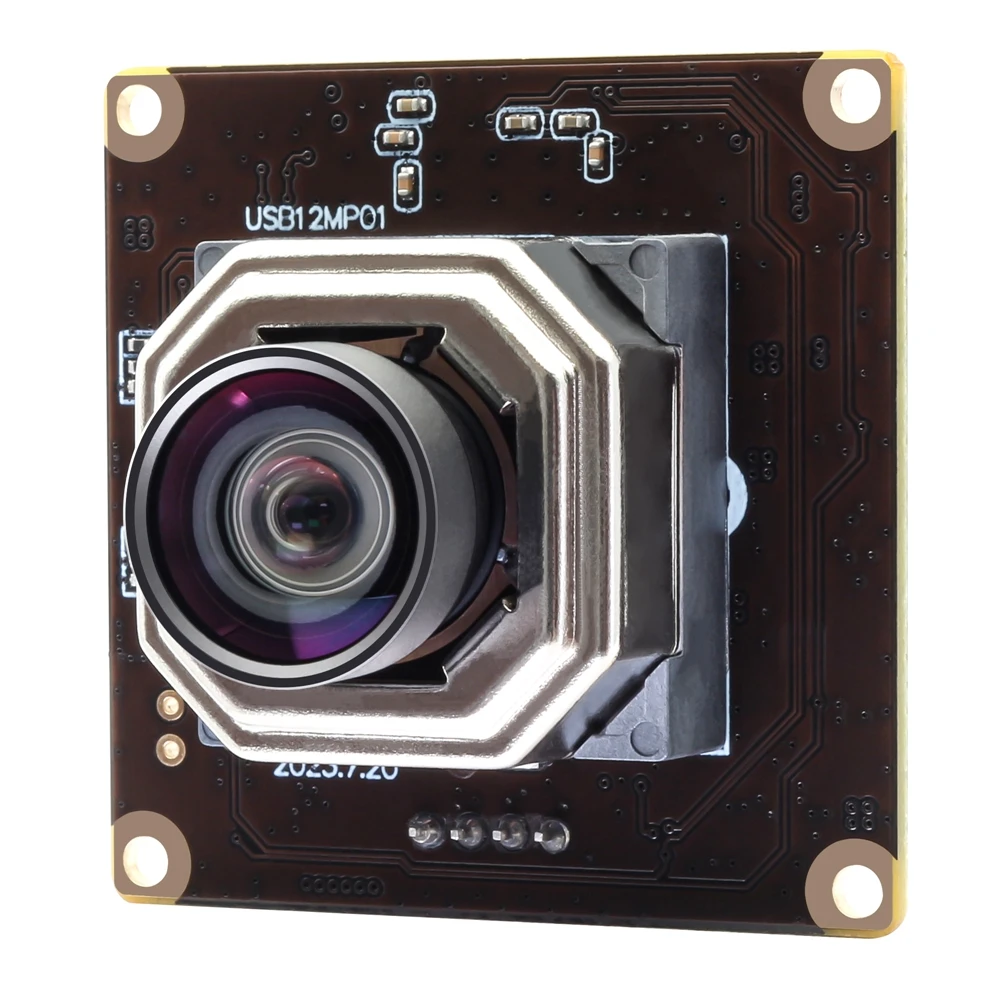

12MP Mini Autofocus USB Camera With Autofocus Lens No Distortion
Model :ELP-USB12MP01-AFV100
Camera Description :
* Based on big size 1/2.3inch Sony IMX577 image sensor, the ultra high definition 12Megapixels camera resolution max 3840X3040, can shoot the images or record videos with super Image reality, real color reproduction.
Mini Autofocus camera lens wide angle no distortion ,M12 Mount interchangeable .(V100 Lens, HFOV 88degree )
1m cable supplied with USB 2.0 Interfece . UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera board.
Dimension 38*38mm Small outline and thin profile can be embedded in most machines.
Mini Autofocus camera lens wide angle no distortion ,M12 Mount interchangeable .(V100 Lens, HFOV 88degree )
1m cable supplied with USB 2.0 Interfece . UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera board.
Dimension 38*38mm Small outline and thin profile can be embedded in most machines.
Package include:
1pc of 12MP USB Camera with autofocus V100 No distortion lens ,
1pc of 1m USB Cable
Products Description
Main Features of 48MP Camera
* High Definition 11.6Megapixels USB Camera Max. resolution 3840x3040 .
Compatible resolution 3840x2880 (default) ; 3840x2160-4K,FHD 1920X1080P .
* High Technology Sony IMX577 Image sensor Webcams, large sensor size 1/2.3 inch . Sensor resolution max can get 12Megapixels .Work more efficiency and lens viewing angle wider .
* No Distrotion Autofocus Lens camera module : Image without any fisheye -undistortion image ,lens optional with FOV 70-100Degree
* High Frame rate max 120fps .Max the 12MP Camera can drive 120fps @1920x1080P. Support 30fps@3840x2160 4K /20fps@3840x2880p FHD .
* Compression format: MJPEG or YUY2 optional . It can get less compressed image and more details .
* USB Interface , Plug & Play .No need any drivers. Just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed.
* UVC-compliant,Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
* Mini USB Camera Size : This tiny camera(38*38mm) is highly recommended for embedded industrial machines .
* High Technology Sony IMX577 Image sensor Webcams, large sensor size 1/2.3 inch . Sensor resolution max can get 12Megapixels .Work more efficiency and lens viewing angle wider .
* No Distrotion Autofocus Lens camera module : Image without any fisheye -undistortion image ,lens optional with FOV 70-100Degree
* High Frame rate max 120fps .Max the 12MP Camera can drive 120fps @1920x1080P. Support 30fps@3840x2160 4K /20fps@3840x2880p FHD .
* Compression format: MJPEG or YUY2 optional . It can get less compressed image and more details .
* USB Interface , Plug & Play .No need any drivers. Just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed.
* UVC-compliant,Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
* Mini USB Camera Size : This tiny camera(38*38mm) is highly recommended for embedded industrial machines .
Specification
Model | ELP-USB12MP01-AFV100 (No Distortion Lens) |
Sensor | Sony IMX577 (1/2.3inch ) |
Max. Resolution | 3840(H)*3040(V) |
Default Resolution output | 3840(H)*2880(V) |
Sensor Size/Image Size | 10.7mmX8.5mm/ 5.95mmX4.71mm |
Compression format | MJPEG / YUY2(YUYV) |
Resolution & frame | 3840X3040 MJPEG@20fps YUY2@1fps /3840X2880 MJPEG@20fps YUY2@1fps/ 3840X2160 MJPEG@30fps YUY2@1fps/2592X1944 MJPEG@30fps YUY2@1fps 2048X1536 MJPEG@30fps YUY2@3fps/1600X1200 MJPEG@30fps YUY2@5fps 1920X1080 MJPEG@120fps YUY2@5fps/1280X960 MJPEG@120fps YUY2@5fps 1280X720 MJPEG@120fps YUY2@5fps/1024X768 MJPEG@120fps YUY2@5fps 960X720 MJPEG@120fps YUY2@5fps/800X600 MJPEG@120fps YUY2@20fps 640X480 MJPEG@120fps YUY2@30fps/320X240 MJPEG@120fps YUY2@30fps |
Surface Mount Technology | SMT |
Focus | AF, Autofocus |
Focus Distance | 10cm~ Infinite |
Center Definition | 1000 LW/ PH(Center) |
S/N (Signal Noise Ratio) | 26dB |
Sensitivity | 0.65V/lux-sec@550nm |
Mini illumination | 0.1 Lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB 2.0 High Speed |
Free Drive Protocol | USB Video Class（UVC） |
AEC/AWB/AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure . |
Lens Parameter | No Distortion Lens, V100 lens HFOV 88degree M12 Mount auto focus lens optional |

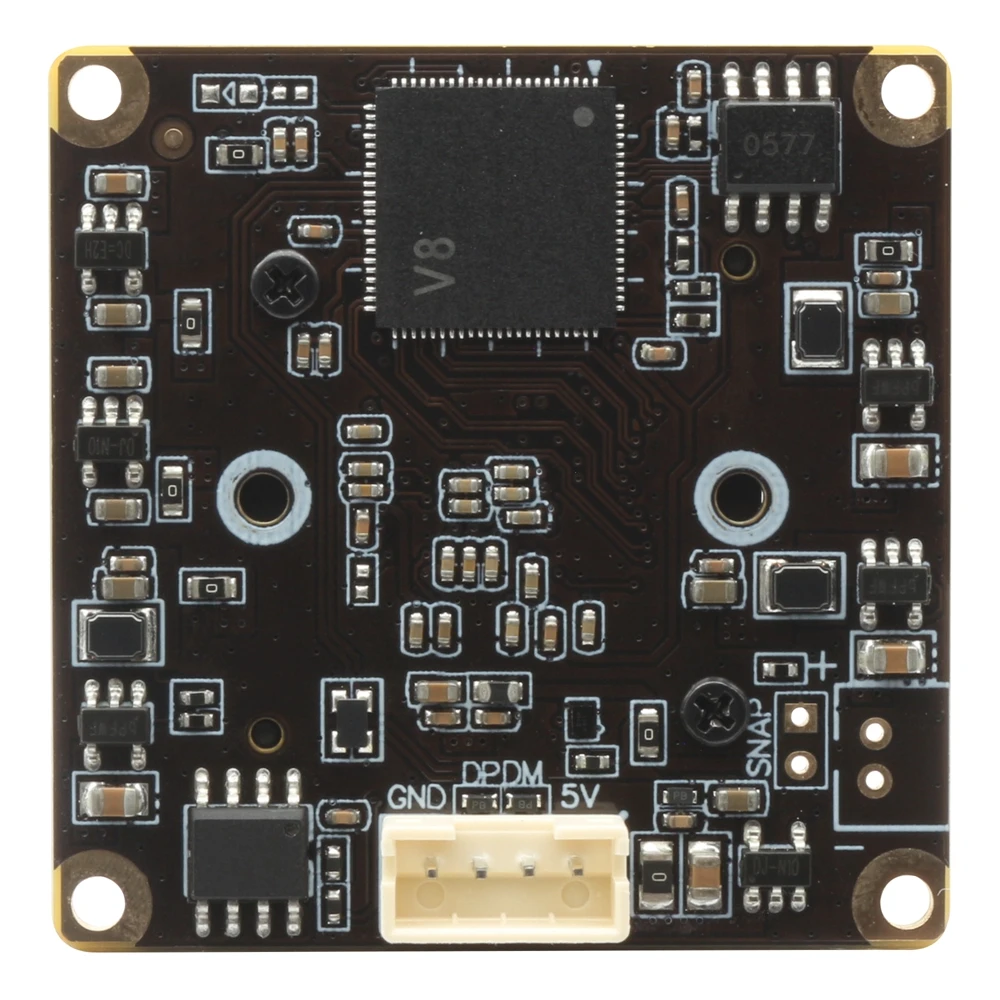

Power supply Interface | USB Bus Power 4P-2.0mm socket |
Operating Voltage | DC 5V |
Working current | 240mA |
Storage Temperature | -20～85℃ |
Working temperature | -10～65℃ |
Board size /Weight | 38mm × 38mm / 100g |
Cable equipments | Stander 1m (optional 2m ,3m cable ) |
Operating system request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Product Picture Show
Ultra HD Webcam 12Megapixels
High Definition 12MP Camera max reach 3840(H)x3040(V) resolution ,Default 3840x2880P
Industrial SONY IMX577 Sensor CMOS Camera
1/2inch SONY IMX577 Image Sensor embedded in high technology and work efficiently .

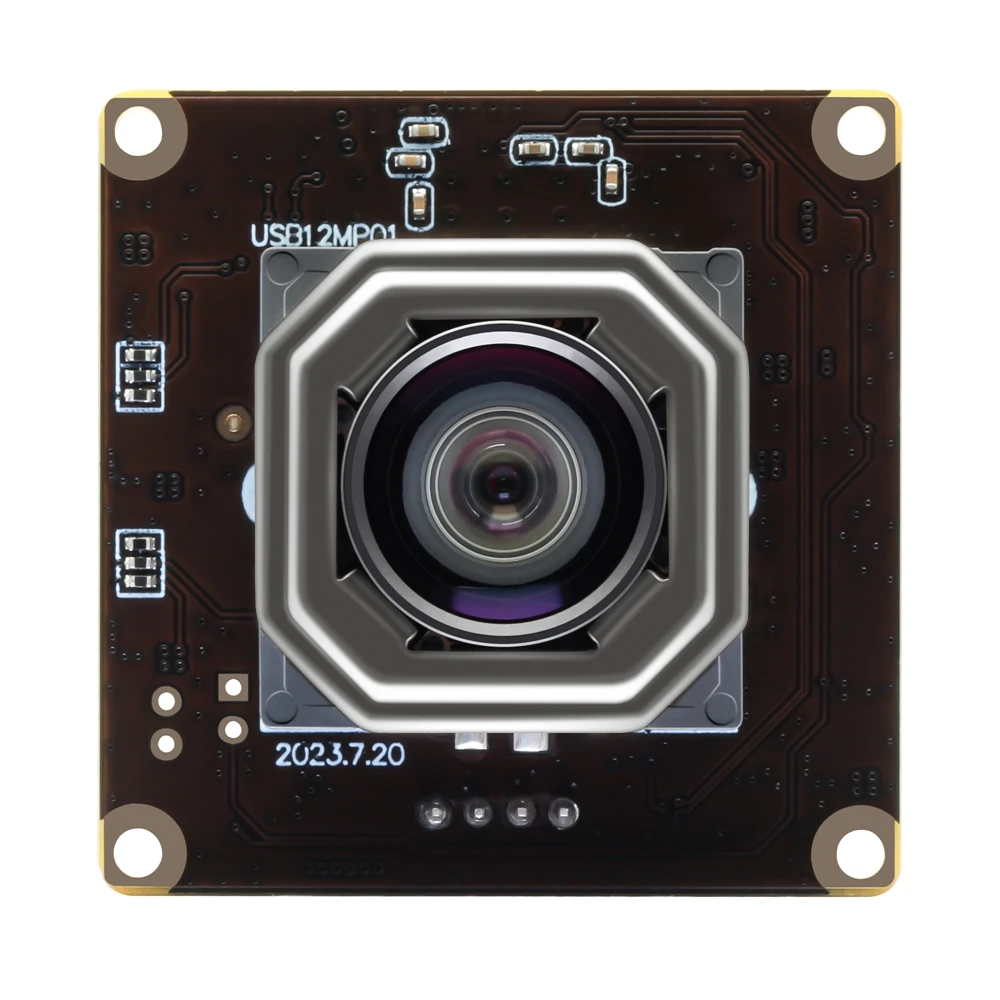

Mini Autofocus Lens No Distortion Webcam
The Autofocus camera adopt mini AF Lens viewing angle about 88degree ,capture the images without fisheye/distrotion . M12 Mount lens interchangeable
High Speed Camera 120fps Compatible with
3840X3040 MJPEG@20fps/3840X2880 MJPEG@20fps /3840X2160 MJPEG@30fps/
1920X1080 MJPEG@120fps/1280X720 MJPEG@120fps /960X720 MJPEG@120fps /
1920X1080 MJPEG@120fps/1280X720 MJPEG@120fps /960X720 MJPEG@120fps /
640X480 MJPEG@120fps/320X240 MJPEG@120fps
Widely Appication
USB Camera wide application
Used for Robot , virtual Dressing mirror , Bank safety surveillance , video conference , Machinery equipment, all-in-one machine,POS equipment ,smart box TV BOX, Advisement player,LED display,automatic vending machine,safety box,notebook,video door phone, MID, Tablet external, evaluator,medical Equipment ,and etc
USB Camera Module work with all kinds of machine vision device
1. Barcode scanning camera ,
2. 3D scanner
3.ATM,Kiosk,POS machines
4.Robot Camera
5. Advertising cameras
6. Electronic microscope
7. Automatic vending machine
8. Automated image acquisition system
10: Medical diagnostic image acquisition
11: fingerprints, palm prints reader
12:video door phone
13:HD surveillance
3.ATM,Kiosk,POS machines
4.Robot Camera
5. Advertising cameras
6. Electronic microscope
7. Automatic vending machine
8. Automated image acquisition system
10: Medical diagnostic image acquisition
11: fingerprints, palm prints reader
12:video door phone
13:HD surveillance

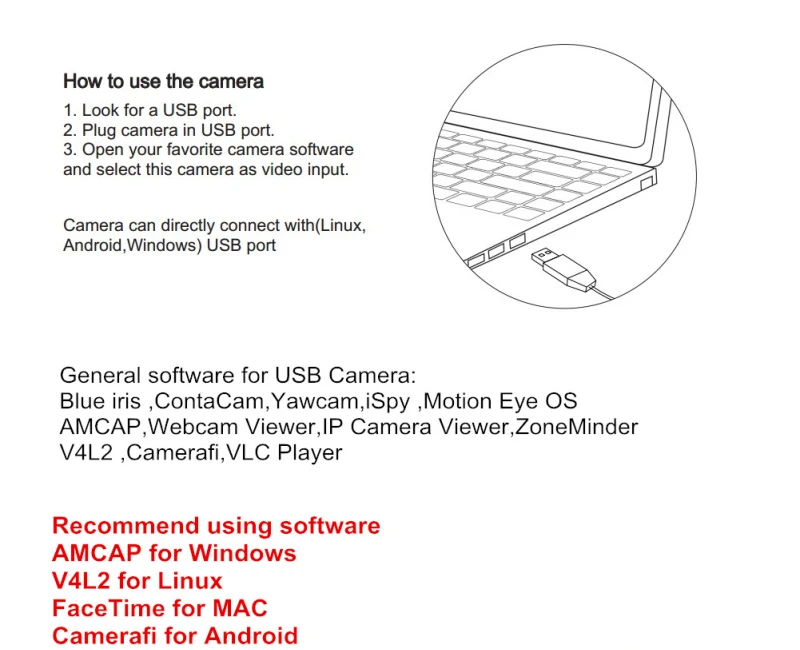

How to use
Plug & Play , Free Driver Camera .
Compatible with most video software and operation system
Steps to run this camera :
Support to adjust camera settings like Brightness ,Contrast ,Saturation, HUe, Sharpness ,Gamma, White Balance ,Exposure .
1-Look up the USB Port in your device
2-Plug our camera USB Cable to your USB port
3-Open your video software , and select the USB Cable as video out put
2-Plug our camera USB Cable to your USB port
3-Open your video software , and select the USB Cable as video out put
ELP USB Camera with UVC, free driver to work in various software and operation systems .
Support to adjust camera settings like Brightness ,Contrast ,Saturation, HUe, Sharpness ,Gamma, White Balance ,Exposure .
Compatible with the Video software and OS
Windows : Amcap ,e-CAMView ， Blue iris , Contacam , Yawcam, iSpy ,Webcam Viewer, IP Camera viewer
Linux :Motion Eye OS, V4L2
Android : USB Camera ,Camera Fi
Mac : Facetime, Quick time . Webcam Viewer, Webcam Settings，NCH Software
Linux :Motion Eye OS, V4L2
Android : USB Camera ,Camera Fi
Mac : Facetime, Quick time . Webcam Viewer, Webcam Settings，NCH Software
Support OS
Windows, Linux ,Android ,Mac and etc .
Related Products
Company Profile
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
